± DIAGNOSTICSABS WITH EBD SYSTEM
05±697
AVENSIS REPAIR MANUAL (RM1018E)

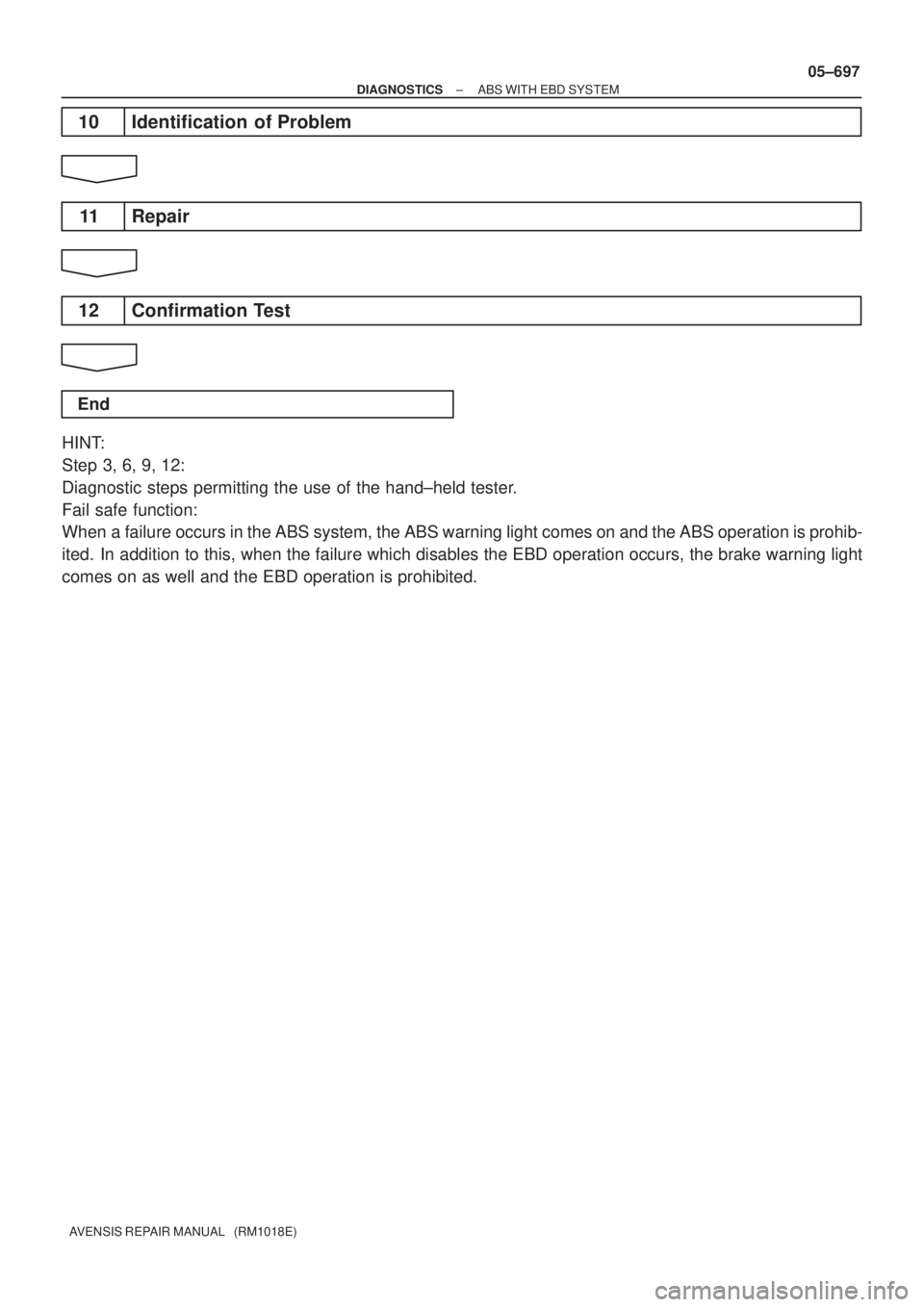

10 Identification of Problem
11 Repair
12 Confirmation Test
End
HINT:
Step 3, 6, 9, 12:
Diagnostic steps permitting the use of the hand±held tester.
Fail safe function:
When a failure occurs in the ABS system, the ABS warning light comes on and the ABS operation is prohib-
ited. In addition to this, when the failure which disables the EBD operation occurs, the brake warning light
comes on as well and the EBD operation is prohibited.
Page 812 of 5135
056T1±03
F45086
Stop Lamp SwitchDLC3
Yaw Rate Sensor
(Include Lateral Acceleration Sensor) TRC OFF
Switch
Parking Brake Switch
Skid Control
BuzzerSkid Control Sensor
Left Front
Speed Sensor
Brake Actuator
(Include Skid Control ECU)
Combination Meter
(ABS Warning Light)
(Brake Warning Light)
(VSC Warning Light)
(TRC OFF Indicator Light)
(SLIP Indicator Light)
Speed Sensor Rotor
Steering Angle Sensor
ECM
± DIAGNOSTICSABS WITH EBD & BA & TRC & VSC SYSTEM
05±769
AVENSIS REPAIR MANUAL (RM1018E)

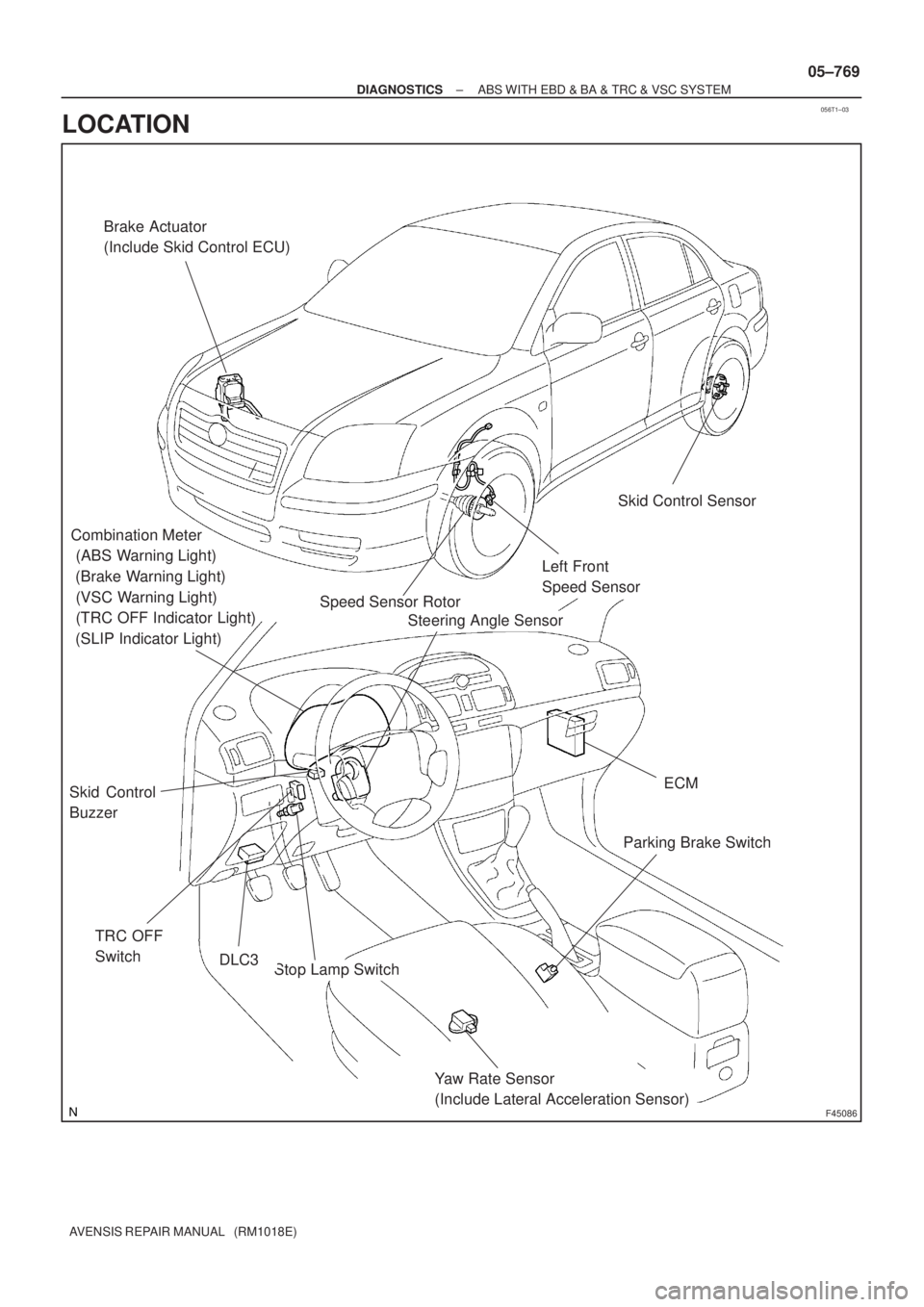

LOCATION
Page 813 of 5135
0542Q±04
05±766
±
DIAGNOSTICS ABS WITH EBD & BA & TRC & VSC SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
DIAGNOSTIC TROUBLE CODE CHART
HINT:
Using SST 09843±18040, connect the terminal Tc and CG of the DLC3.
If malfunction is not found when inspecting parts, inspect the ECU and grou\
nd points for poor contact.
If a malfunction code is displayed during the DTC check, check the circuit\
listed for that code. For de-
tails of each code, refer to the ºSee pageº for respective ºDTC No.º\
in the DTC chart.
When 2 or more DTCs are detected, perform circuit inspection one by one unti\
l the problem is identi-
fied.
DTC chart of ABS system:
DTC No.
(See Page)Detection ItemTrouble Area
C0200 / 31 (05±774)Right front wheel speed sensor signal malfunction
Right front speed sensor
Right front speed sensor circuit
Right front speed sensor rotor
C0205 / 32
(05±774)Left front wheel speed sensor signal malfunction
Left front speed sensor
Left front speed sensor circuit
Left front speed sensor rotor
C0210 / 33
(05±778)Right rear wheel speed sensor signal malfunction
Right rear speed sensor
Right rear speed sensor circuit
Right rear speed sensor rotor
C0215 / 34
(05±778)Left rear wheel speed sensor signal malfunction
Left rear speed sensor
Left rear speed sensor circuit
Left rear speed sensor rotor
C0226 / 21
(05±782)Open or short circuit in brake actuator Brake actuator
SFRR or SFRH circuit
C0236 / 22
(05±782)Open or short circuit in brake actuator Brake actuator
SFLR or SFLH circuit
C0246 / 23
(05±782)Open or short circuit in brake actuator Brake actuator
SRRR or SRRH circuit
C0256 / 24
(05±782)Open or short circuit in brake actuator Brake actuator
SRLR or SRLH circuit
C0273 / 13
(05±784)Open or short circuit in ABS motor relay circuit ABS motor relay
ABS motor relay circuit
C0278 / 11
(05±787)Open or short circuit in ABS solenoid relay circuit ABS solenoid relay
ABS solenoid relay circuit
C1237 / 37
(05±807)Wrong tire size Tire size
Speed sensor rotor
C1241 / 41
(05±808)Low battery positive voltage or abnormally high battery positive
voltage Battery
Charging system
Power source circuit
C1249 / 58
(05±815)Open circuit in stop light switch circuit Stop lamp switch
Stop lamp switch circuit
C1300 / 62
(05±819)Malfunction in skid control ECU Battery
Skid control ECU
C1330 / 35
(05±774)Open circuit in right front speed sensor circuit Right front speed sensor
Right front speed sensor circuit
C1331 / 36
(05±774)Open circuit in left front speed sensor circuit Left front speed sensor
Left front speed sensor circuit
C1332 / 38
(05±778)Open circuit in right rear speed sensor circuit Right rear speed sensor
Right rear speed sensor circuit
Page 814 of 5135
±
DIAGNOSTICS ABS WITH EBD & BA & TRC & VSC SYSTEM
05±767
AVENSIS REPAIR MANUAL (RM1018E)C1333 / 39
(05±778)
Open circuit in left rear speed sensor circuit Left rear speed sensor
Left rear speed sensor circuit
Always ON
(05±827)Malfunction in skid control ECU
Open circuit in ABS warning light circuit
Battery
Charging system
Power source circuit
Skid control ECU
DTC chart of VSC system:
DTC No.
(See Page)Detection ItemTrouble Area
C0365 / 43 (05±790)Malfunction in lateral acceleration sensor (combined in yaw
rate sensor) Yaw rate sensor
Yaw rate sensor circuit
C0371 / 55
(05±793)Malfunction in yaw rate sensor circuit Yaw rate sensor
Yaw rate sensor circuit
C1224 / 44
(05±797)Open or short circuit in NE signal circuit
NEO circuit
ECM
Skid control ECU
C1201/45
(05±796)VSC shut down due to ECM failure ECM
C1203 / 59
(05±799)ECM communication circuit malfunction
TRC+ or TRC± circuit
ENG+ or ENG± circuit
ECM
C1208 / 54
(05±801)Malfunction in steering angle sensor Steering angle sensor
Steering angle sensor circuit
C1225 / 25
(05±805)Open or short circuit in brake actuator solenoid circuit (SMC1
circuit) Brake actuator
SMC1 circuit
C1226 / 26
(05±805)Open or short circuit in brake actuator solenoid circuit (SMC2
circuit) Brake actuator
SMC2 circuit
C1227 / 27
(05±805)Open or short circuit in brake actuator solenoid circuit (SRC1
circuit) Brake actuator
SRC1 circuit
C1228 / 28
(05±805)Open or short circuit in brake actuator solenoid circuit (SRC2
circuit) Brake actuator
SRC2 circuit
C1246 / 53
(05±812)Malfunction in master cylinder pressure sensor Master cylinder pressure sensor
Master cylinder pressure sensor circuit
C1288 / 88
(05±818)Malfunction in ECM version Steering angle sensor zero point calibration
C1301 / 42
(05±821)Malfunction in CAN communication circuit
(steering angle sensor circuit, yaw rate sensor circuit) Steering angle sensor circuit
Yaw rate sensor circuit
C1350 / 51
(05±825)Pump motor is locked
Open circuit in pump motor ground Brake actuator pump motor
Always ON
(05±831)Malfunction in skid control ECU
Open circuit in VSC warning light circuit
Battery
Charging system
Power source circuit
Skid control ECU
Page 815 of 5135
05±768
± DIAGNOSTICSABS WITH EBD & BA & TRC & VSC SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

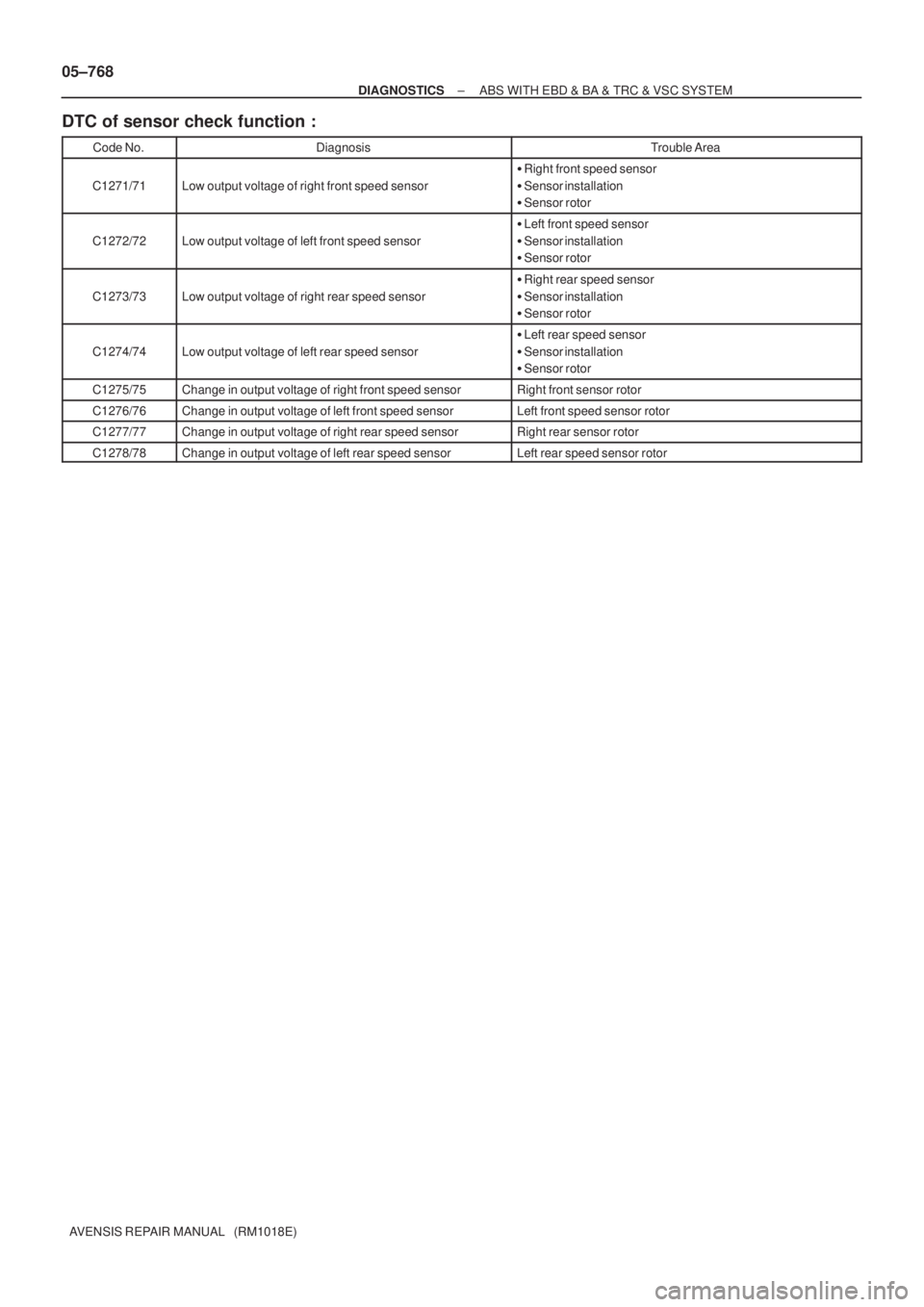

DTC of sensor check function :
Code No.DiagnosisTrouble Area
C1271/71Low output voltage of right front speed sensor
Right front speed sensor
Sensor installation
Sensor rotor
C1272/72Low output voltage of left front speed sensor
Left front speed sensor
Sensor installation
Sensor rotor
C1273/73Low output voltage of right rear speed sensor
Right rear speed sensor
Sensor installation
Sensor rotor
C1274/74Low output voltage of left rear speed sensor
Left rear speed sensor
Sensor installation
Sensor rotor
C1275/75Change in output voltage of right front speed sensorRight front sensor rotor
C1276/76Change in output voltage of left front speed sensorLeft front speed sensor rotor
C1277/77Change in output voltage of right rear speed sensorRight rear sensor rotor
C1278/78Change in output voltage of left rear speed sensorLeft rear speed sensor rotor
Page 816 of 5135
0577Y±02
F45094
ABS Warning LightBRAKE Warning
Light
VSC Warning Light SLIP Indicator Light
TRC OFF Indicator
Light
C52361
DLC3 Tc
CG
05±756
±
DIAGNOSTICS ABS WITH EBD & BA & TRC & VSC SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

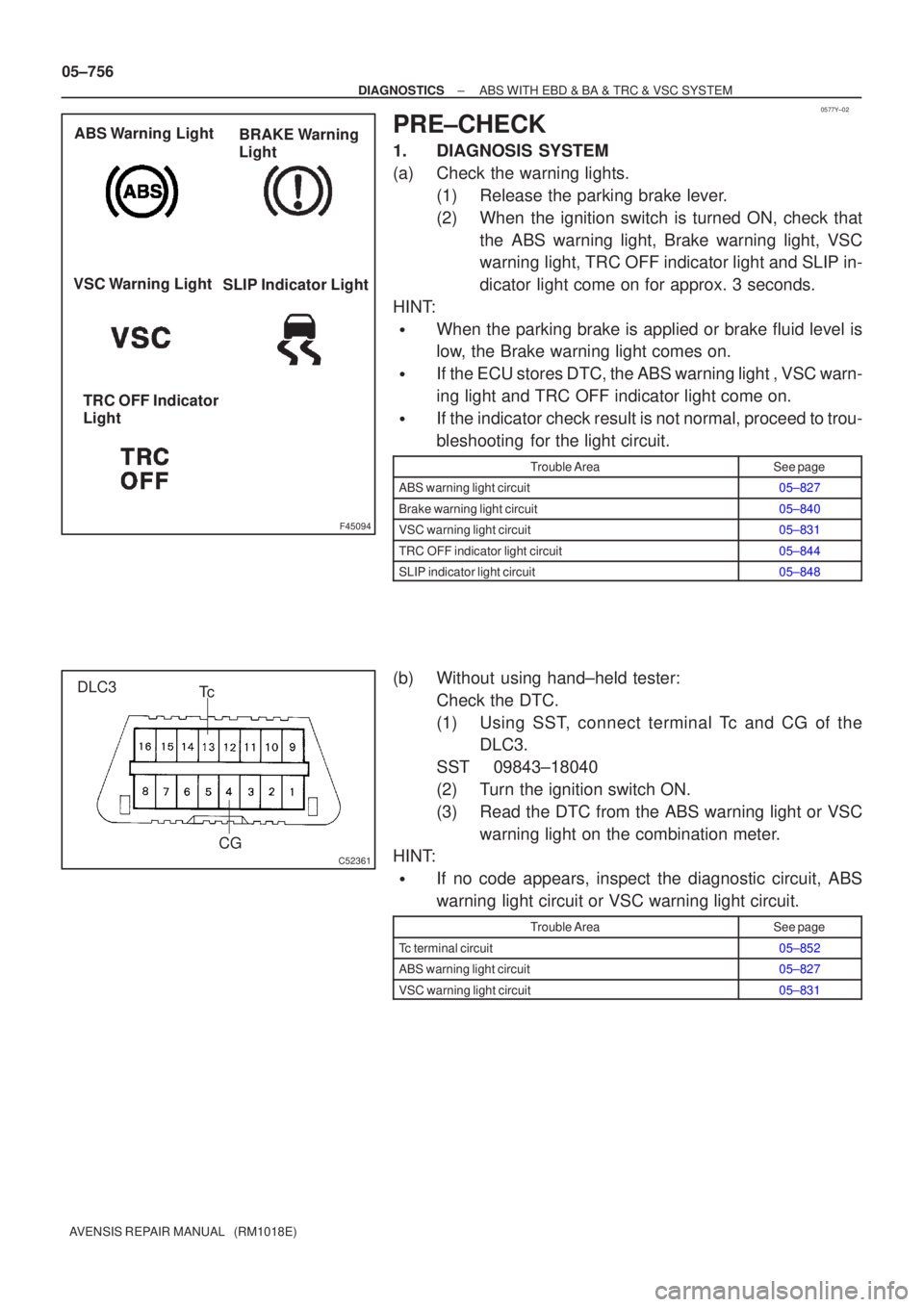

PRE±CHECK
1.DIAGNOSIS SYSTEM
(a)Check the warning lights. (1)Release the parking brake lever.
(2)When the ignition switch is turned ON, check thatthe ABS warning light, Brake warning light, VSC
warning light, TRC OFF indicator light and SLIP in-
dicator light come on for approx. 3 seconds.
HINT:
When the parking brake is applied or brake fluid level is
low, the Brake warning light comes on.
If the ECU stores DTC, the ABS warning light , VSC warn-
ing light and TRC OFF indicator light come on.
If the indicator check result is not normal, proceed to trou-
bleshooting for the light circuit.
Trouble AreaSee page
ABS warning light circuit05±827
Brake warning light circuit05±840
VSC warning light circuit05±831
TRC OFF indicator light circuit05±844
SLIP indicator light circuit05±848
(b) Without using hand±held tester: Check the DTC.
(1) Using SST, connect terminal Tc and CG of theDLC3.
SST 09843±18040
(2) Turn the ignition switch ON.
(3) Read the DTC from the ABS warning light or VSC warning light on the combination meter.
HINT:
If no code appears, inspect the diagnostic circuit, ABS
warning light circuit or VSC warning light circuit.
Trouble AreaSee page
Tc terminal circuit05±852
ABS warning light circuit05±827
VSC warning light circuit05±831
Page 817 of 5135
R01346
Normal Code
Code 1 1 and 21
ON
OFF
4 sec.0.5 sec.
1.5 sec.
2.5 sec. 0.5 sec.
2 sec.
0.25 sec.
0.25 sec.
ON
OFF
Cod e 1 1 Code 21
BR3890
±
DIAGNOSTIC SABS WITH EBD & BA & TRC & VSC SYSTEM
05±757
AVENSIS RE PAIR MANUAL (RM1018E)

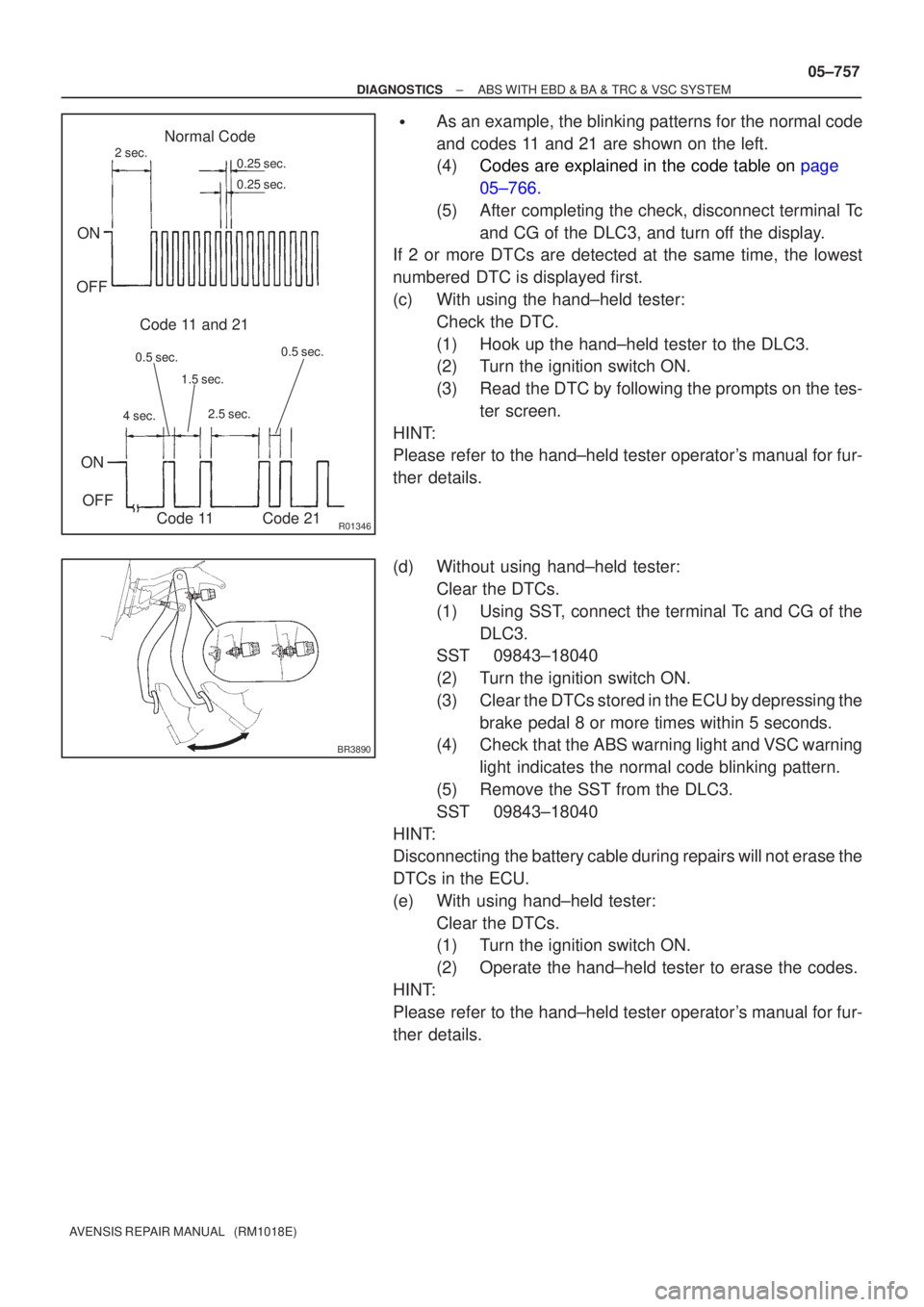

A s an example, the blinking patterns for the normal code
an d codes 11 and 21 are shown on the left.
(4 ) Codes are explained in the code table on page
05±766.
(5) After completing the check, disconnect terminal Tc and CG of the DLC3, and turn off the display.
If 2 or more DTCs are detected at the same time, the lowest
numbered DTC is displayed first.
(c) With using the hand±held tester:
Check the DTC.
(1) Hook up the hand±held tester to the DLC3.
(2) Turn the ignition switch ON.
(3) Read the DTC by following the prompts on the tes-ter screen.
HINT:
Please refer to the hand±held tester operator's manual for fur-
ther details.
(d) Without using hand±held tester: Clear the DTCs.
(1) Using SST, connect the terminal Tc and CG of theDLC3.
SST 09843±18040
(2) Turn the ignition switch ON.
(3) Clear the DTCs stored in the ECU by depressing the
brake pedal 8 or more times within 5 seconds.
(4) Check that the ABS warning light and VSC warning
light indicates the normal code blinking pattern.
(5) Remove the SST from the DLC3.
SST 09843±18040
HINT:
Disconnecting the battery cable during repairs will not erase the
DTCs in the ECU.
(e) With using hand±held tester: Clear the DTCs.
(1) Turn the ignition switch ON.
(2) Operate the hand±held tester to erase the codes.
HINT:
Please refer to the hand±held tester operator's manual for fur-
ther details.
Page 818 of 5135
05±758
± DIAGNOSTICSABS WITH EBD & BA & TRC & VSC SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

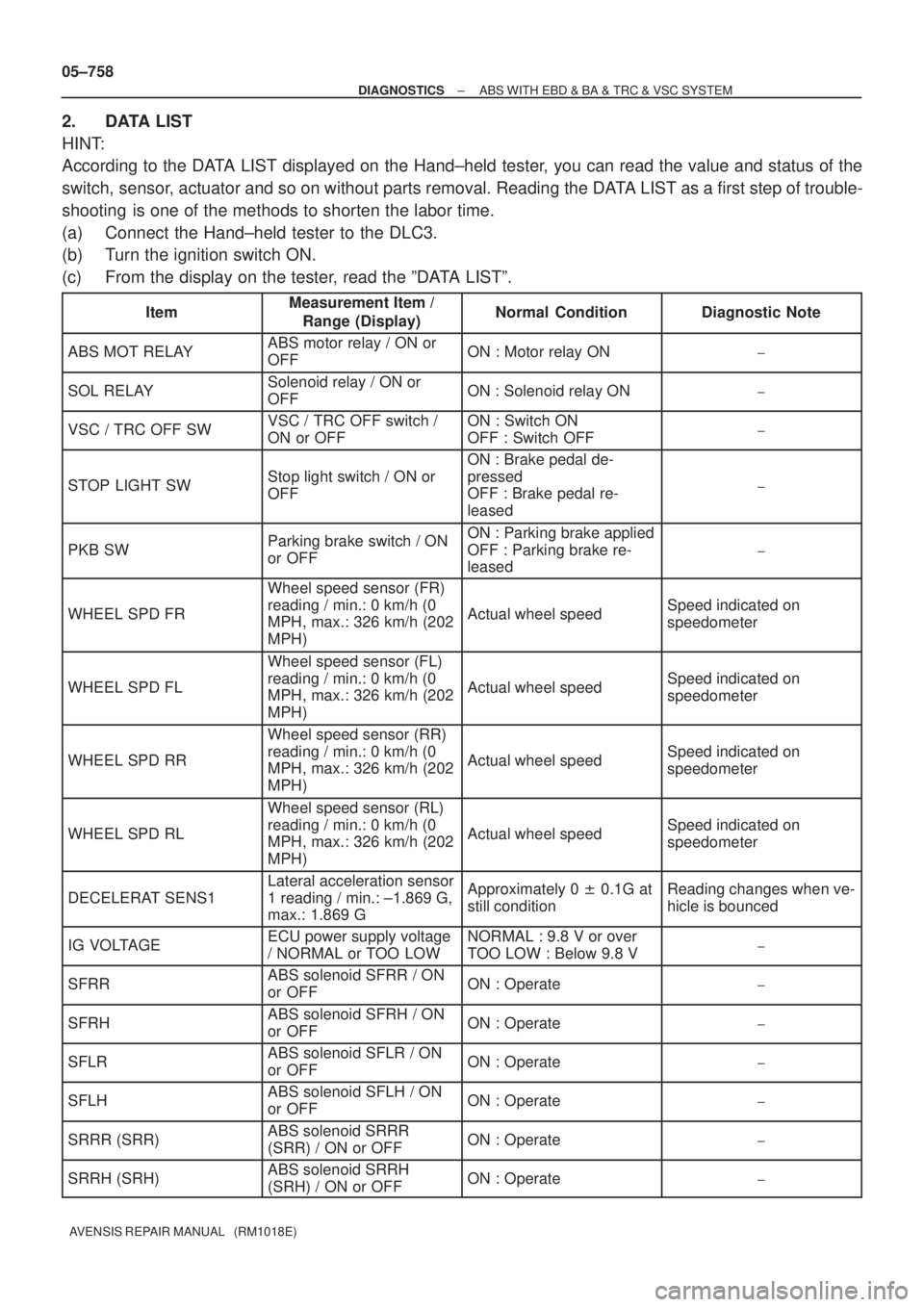

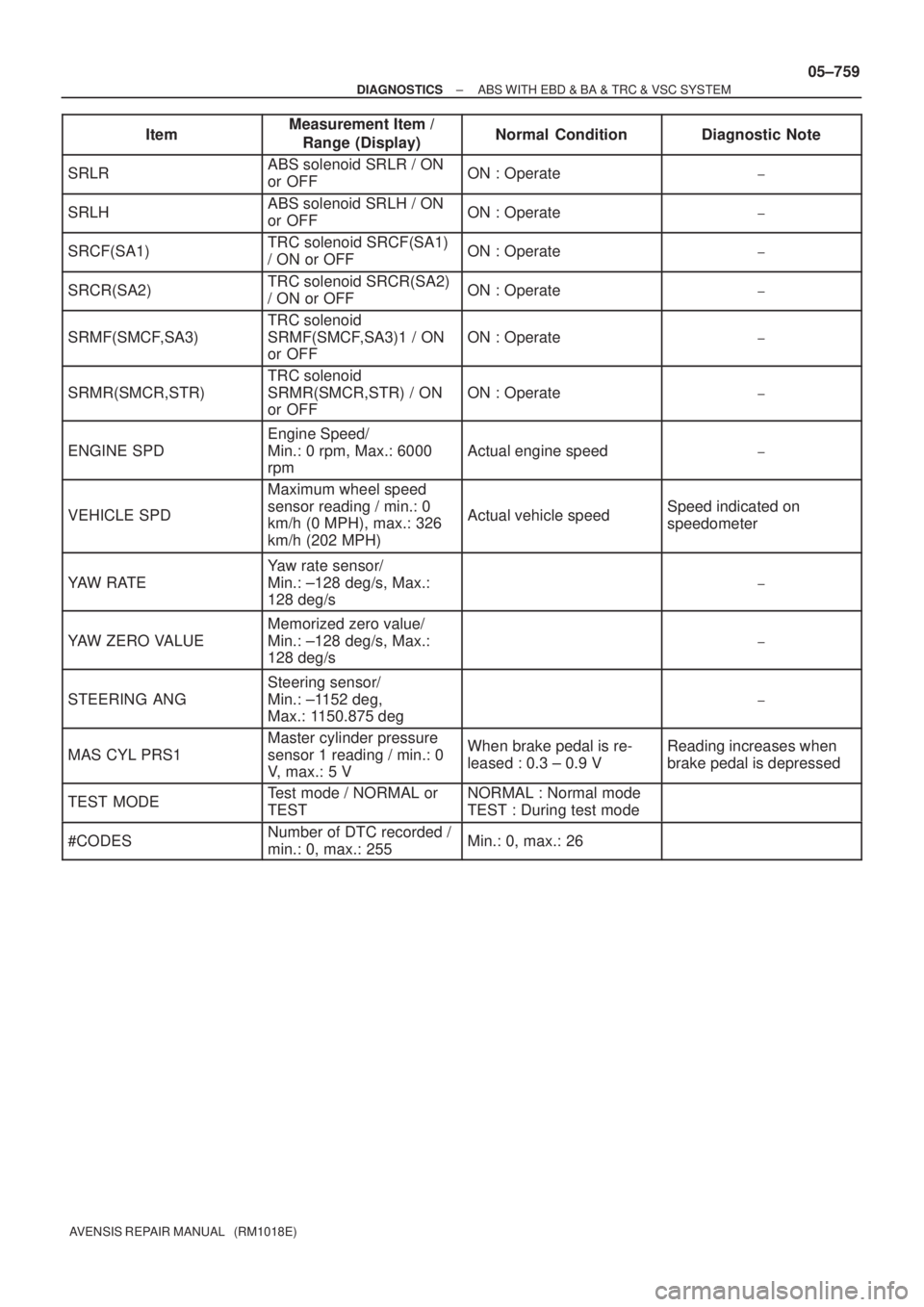

2. DATA LIST
HINT:
According to the DATA LIST displayed on the Hand±held tester, you can read the value and status of the
switch, sensor, actuator and so on without parts removal. Reading the DATA LIST as a first step of trouble-
shooting is one of the methods to shorten the labor time.
(a) Connect the Hand±held tester to the DLC3.
(b) Turn the ignition switch ON.
(c) From the display on the tester, read the ºDATA LISTº.
ItemMeasurement Item /
Range (Display)Normal ConditionDiagnostic Note
ABS MOT RELAYABS motor relay / ON or
OFFON : Motor relay ON±
SOL RELAYSolenoid relay / ON or
OFFON : Solenoid relay ON±
VSC / TRC OFF SWVSC / TRC OFF switch /
ON or OFFON : Switch ON
OFF : Switch OFF±
STOP LIGHT SWStop light switch / ON or
OFF
ON : Brake pedal de-
pressed
OFF : Brake pedal re-
leased
±
PKB SWParking brake switch / ON
or OFFON : Parking brake applied
OFF : Parking brake re-
leased
±
WHEEL SPD FR
Wheel speed sensor (FR)
reading / min.: 0 km/h (0
MPH, max.: 326 km/h (202
MPH)
Actual wheel speedSpeed indicated on
speedometer
WHEEL SPD FL
Wheel speed sensor (FL)
reading / min.: 0 km/h (0
MPH, max.: 326 km/h (202
MPH)
Actual wheel speedSpeed indicated on
speedometer
WHEEL SPD RR
Wheel speed sensor (RR)
reading / min.: 0 km/h (0
MPH, max.: 326 km/h (202
MPH)
Actual wheel speedSpeed indicated on
speedometer
WHEEL SPD RL
Wheel speed sensor (RL)
reading / min.: 0 km/h (0
MPH, max.: 326 km/h (202
MPH)
Actual wheel speedSpeed indicated on
speedometer
DECELERAT SENS1
Lateral acceleration sensor
1 reading / min.: ±1.869 G,
max.: 1.869 GApproximately 0 0.1G at
still conditionReading changes when ve-
hicle is bounced
IG VOLTAGEECU power supply voltage
/ NORMAL or TOO LOWNORMAL : 9.8 V or over
TOO LOW : Below 9.8 V±
SFRRABS solenoid SFRR / ON
or OFFON : Operate±
SFRHABS solenoid SFRH / ON
or OFFON : Operate±
SFLRABS solenoid SFLR / ON
or OFFON : Operate±
SFLHABS solenoid SFLH / ON
or OFFON : Operate±
SRRR (SRR)ABS solenoid SRRR
(SRR) / ON or OFFON : Operate±
SRRH (SRH)ABS solenoid SRRH
(SRH) / ON or OFFON : Operate±
Page 819 of 5135
± DIAGNOSTICSABS WITH EBD & BA & TRC & VSC SYSTEM
05±759
AVENSIS REPAIR MANUAL (RM1018E)
ItemDiagnostic Note Normal Condition Measurement Item /
Range (Display)
SRLRABS solenoid SRLR / ON
or OFFON : Operate±
SRLHABS solenoid SRLH / ON
or OFFON : Operate±
SRCF(SA1)TRC solenoid SRCF(SA1)
/ ON or OFFON : Operate±
SRCR(SA2)TRC solenoid SRCR(SA2)
/ ON or OFFON : Operate±
SRMF(SMCF,SA3)
TRC solenoid
SRMF(SMCF,SA3)1 / ON
or OFF
ON : Operate±
SRMR(SMCR,STR)
TRC solenoid
SRMR(SMCR,STR) / ON
or OFF
ON : Operate±
ENGINE SPD
Engine Speed/
Min.: 0 rpm, Max.: 6000
rpm
Actual engine speed±
VEHICLE SPD
Maximum wheel speed
sensor reading / min.: 0
km/h (0 MPH), max.: 326
km/h (202 MPH)
Actual vehicle speedSpeed indicated on
speedometer
YAW RATE
Yaw rate sensor/
Min.: ±128 deg/s, Max.:
128 deg/s
±
YAW ZERO VALUE
Memorized zero value/
Min.: ±128 deg/s, Max.:
128 deg/s
±
STEERING ANG
Steering sensor/
Min.: ±1152 deg,
Max.: 1150.875 deg
±
MAS CYL PRS1
Master cylinder pressure
sensor 1 reading / min.: 0
V, max.: 5 VWhen brake pedal is re-
leased : 0.3 ± 0.9 VReading increases when
brake pedal is depressed
TEST MODETest mode / NORMAL or
TESTNORMAL : Normal mode
TEST : During test mode
#CODESNumber of DTC recorded /
min.: 0, max.: 255Min.: 0, max.: 26
Page 820 of 5135
05±760
± DIAGNOSTICSABS WITH EBD & BA & TRC & VSC SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

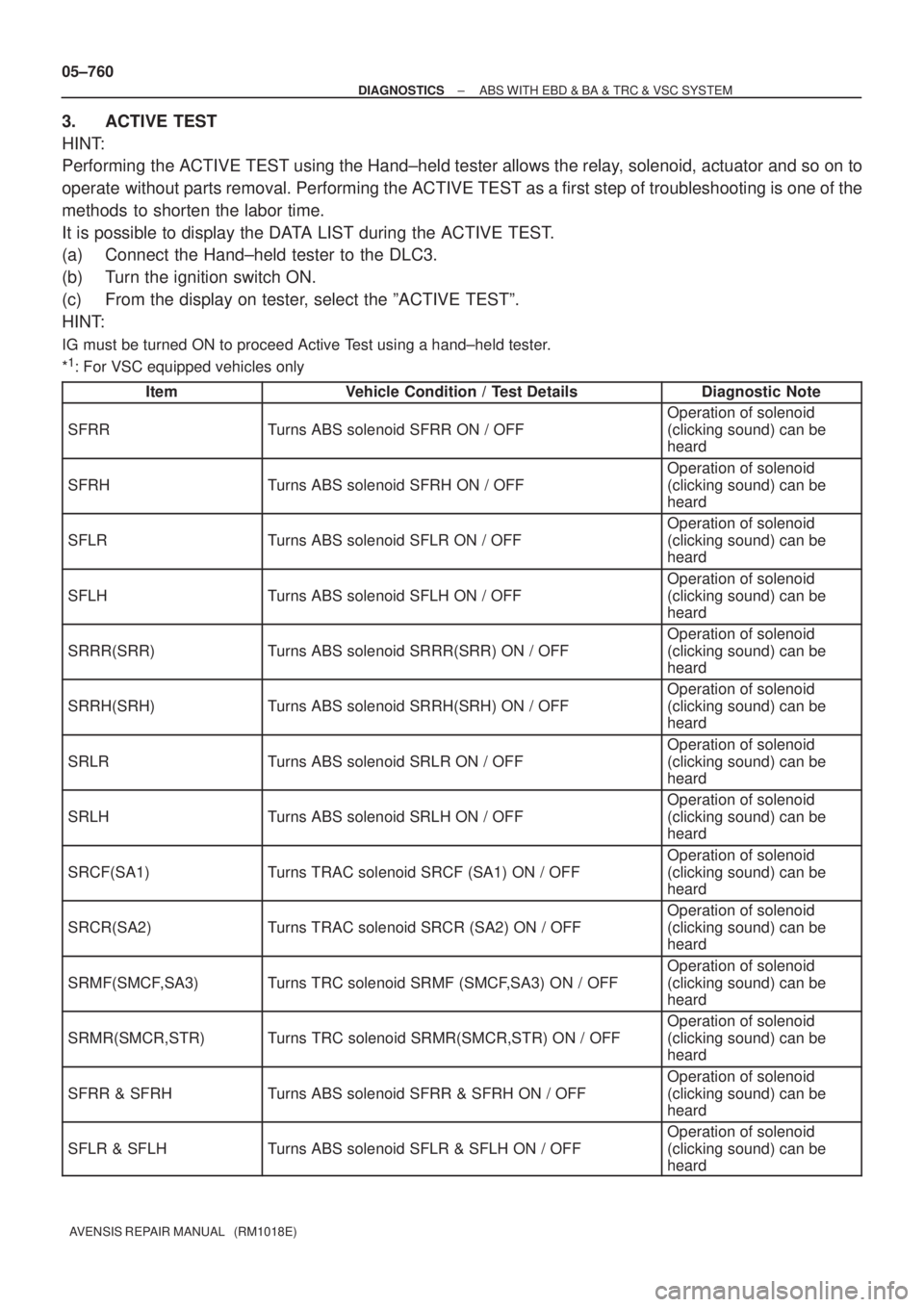

3. ACTIVE TEST
HINT:
Performing the ACTIVE TEST using the Hand±held tester allows the relay, solenoid, actuator and so on to
operate without parts removal. Performing the ACTIVE TEST as a first step of troubleshooting is one of the
methods to shorten the labor time.
It is possible to display the DATA LIST during the ACTIVE TEST.
(a) Connect the Hand±held tester to the DLC3.
(b) Turn the ignition switch ON.
(c) From the display on tester, select the ºACTIVE TESTº.
HINT:
IG must be turned ON to proceed Active Test using a hand±held tester.
*
1: For VSC equipped vehicles only
Item
Vehicle Condition / Test DetailsDiagnostic Note
SFRRTurns ABS solenoid SFRR ON / OFF
Operation of solenoid
(clicking sound) can be
heard
SFRHTurns ABS solenoid SFRH ON / OFF
Operation of solenoid
(clicking sound) can be
heard
SFLRTurns ABS solenoid SFLR ON / OFF
Operation of solenoid
(clicking sound) can be
heard
SFLHTurns ABS solenoid SFLH ON / OFF
Operation of solenoid
(clicking sound) can be
heard
SRRR(SRR)Turns ABS solenoid SRRR(SRR) ON / OFF
Operation of solenoid
(clicking sound) can be
heard
SRRH(SRH)Turns ABS solenoid SRRH(SRH) ON / OFF
Operation of solenoid
(clicking sound) can be
heard
SRLRTurns ABS solenoid SRLR ON / OFF
Operation of solenoid
(clicking sound) can be
heard
SRLHTurns ABS solenoid SRLH ON / OFF
Operation of solenoid
(clicking sound) can be
heard
SRCF(SA1)Turns TRAC solenoid SRCF (SA1) ON / OFF
Operation of solenoid
(clicking sound) can be
heard
SRCR(SA2)Turns TRAC solenoid SRCR (SA2) ON / OFF
Operation of solenoid
(clicking sound) can be
heard
SRMF(SMCF,SA3)Turns TRC solenoid SRMF (SMCF,SA3) ON / OFF
Operation of solenoid
(clicking sound) can be
heard
SRMR(SMCR,STR)Turns TRC solenoid SRMR(SMCR,STR) ON / OFF
Operation of solenoid
(clicking sound) can be
heard
SFRR & SFRHTurns ABS solenoid SFRR & SFRH ON / OFF
Operation of solenoid
(clicking sound) can be
heard
SFLR & SFLHTurns ABS solenoid SFLR & SFLH ON / OFF
Operation of solenoid
(clicking sound) can be
heard
