022K8±01
± PREPARATIONENGINE HOOD/DOOR
02±61
AVENSIS REPAIR MANUAL (RM1018E)
ENGINE HOOD/DOOR
PREPARATION
SST
09812±00010Door Hinge Set Bolt WrenchFRONT DOOR
09812±00020Door Hinge Set Bolt WrenchFRONT DOOR
Recomended Tools
09042±00010Torx Socket T30FRONT DOOR
REAR DOOR
09042±00020Torx Socket T40FRONT DOOR
REAR DOOR
LUGGAGE COMPARTMENT DOOR
BACK DOOR(LIFTBACK MODELS)
BACK DOOR(WAGON MODELS)
09050±00032Air DrillFRONT DOOR
09050±20010Air RiveterFRONT DOOR
SSM
08833±00070ºAdhesive 1324,º
THREE BOND 1324 or equivalentFRONT DOOR
REAR DOOR
Equipment
Brass bar
Clip remover
Hand riveter
Hammer
Plastic±faced hammer
TapeTo avoid surface damage
Torque wrench

022KO±01
02±60

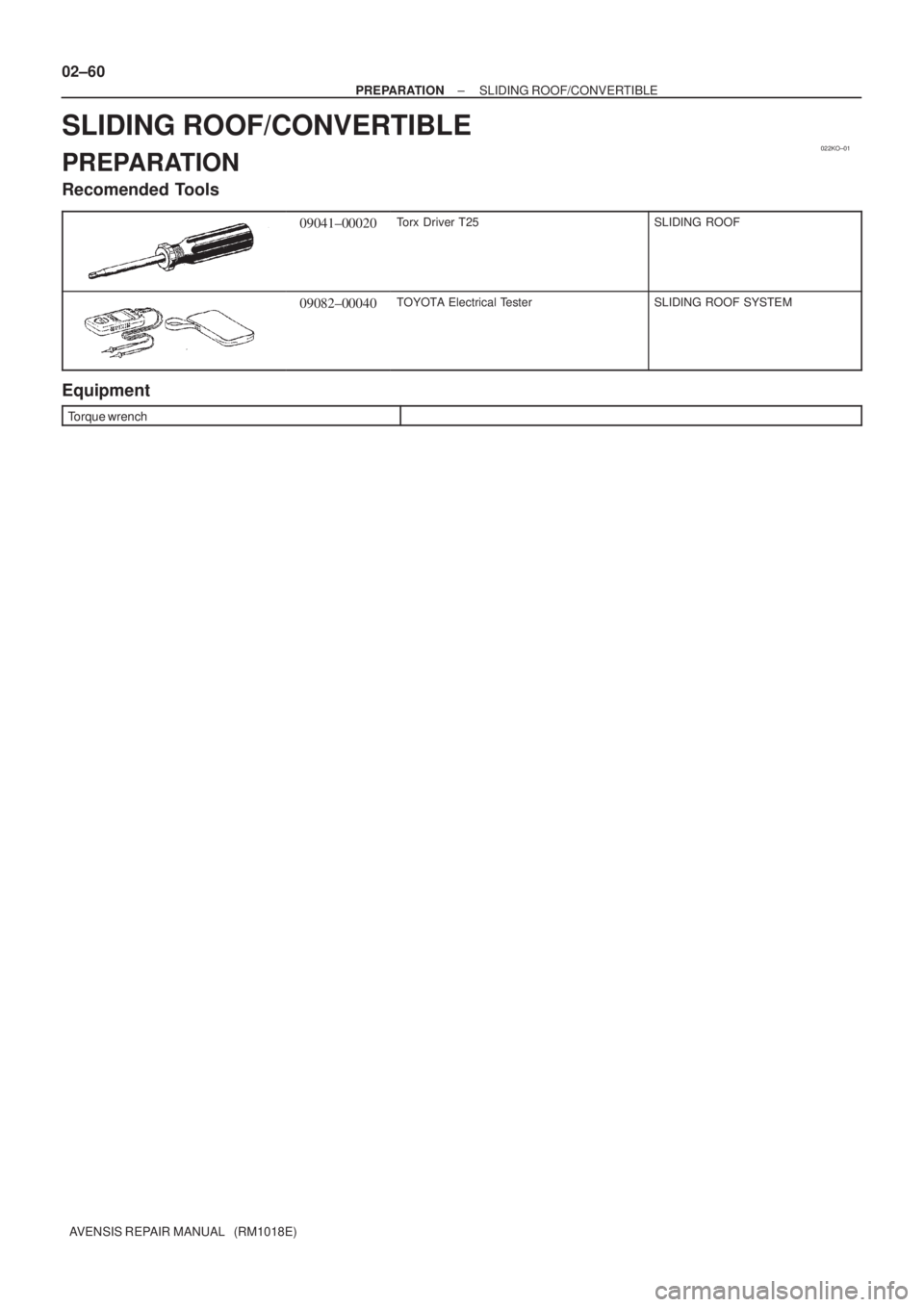

± PREPARATIONSLIDING ROOF/CONVERTIBLE
AVENSIS REPAIR MANUAL (RM1018E)
SLIDING ROOF/CONVERTIBLE
PREPARATION
Recomended Tools
09041±00020Torx Driver T25SLIDING ROOF
09082±00040TOYOTA Electrical TesterSLIDING ROOF SYSTEM
Equipment
Torque wrench

022L6±01

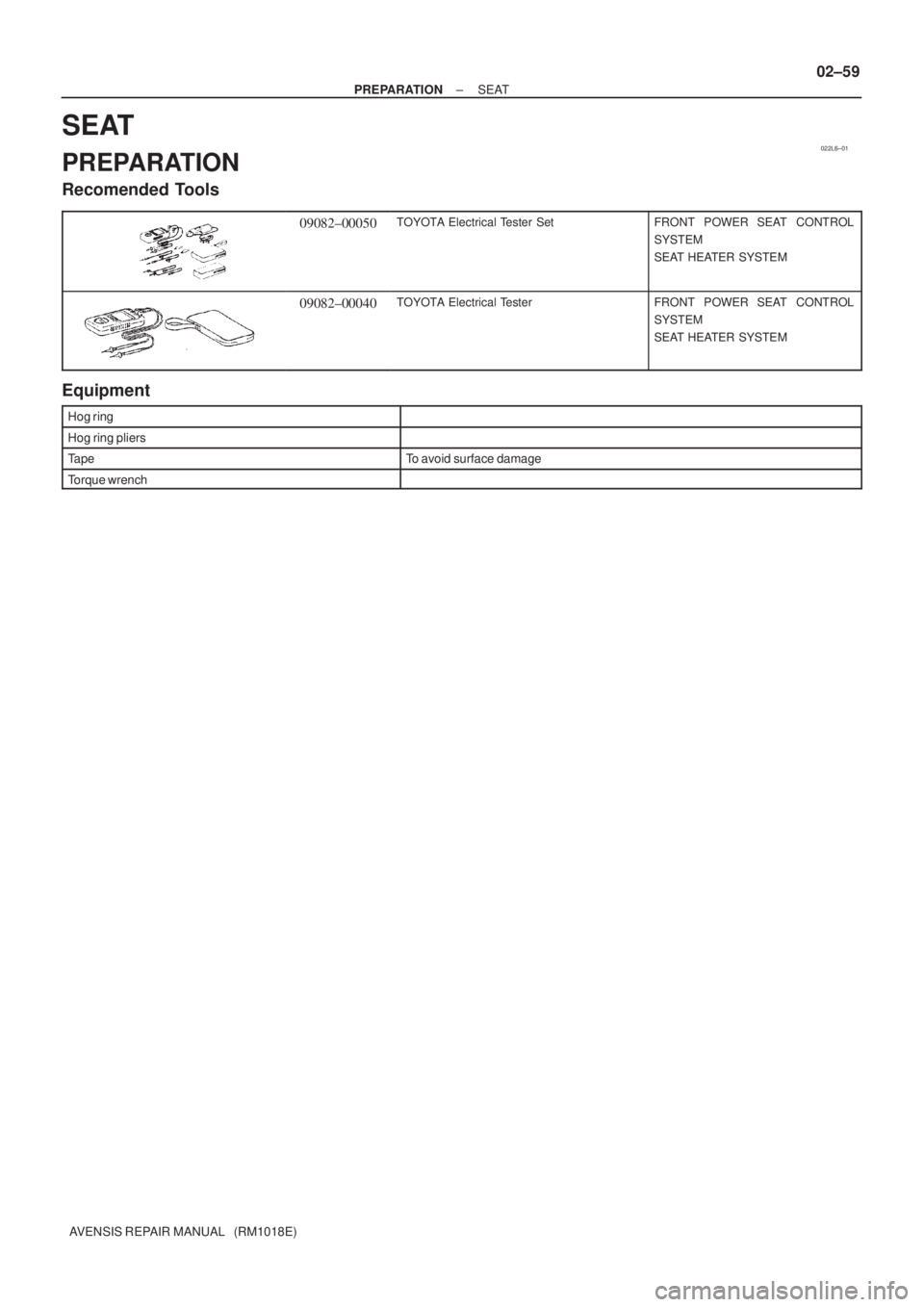

± PREPARATIONSEAT
02±59
AVENSIS REPAIR MANUAL (RM1018E)
SEAT
PREPARATION
Recomended Tools
09082±00050TOYOTA Electrical Tester SetFRONT POWER SEAT CONTROL
SYSTEM
SEAT HEATER SYSTEM
09082±00040TOYOTA Electrical TesterFRONT POWER SEAT CONTROL
SYSTEM
SEAT HEATER SYSTEM
Equipment
Hog ring
Hog ring pliers
TapeTo avoid surface damage
Torque wrench

022G7±01
02±58

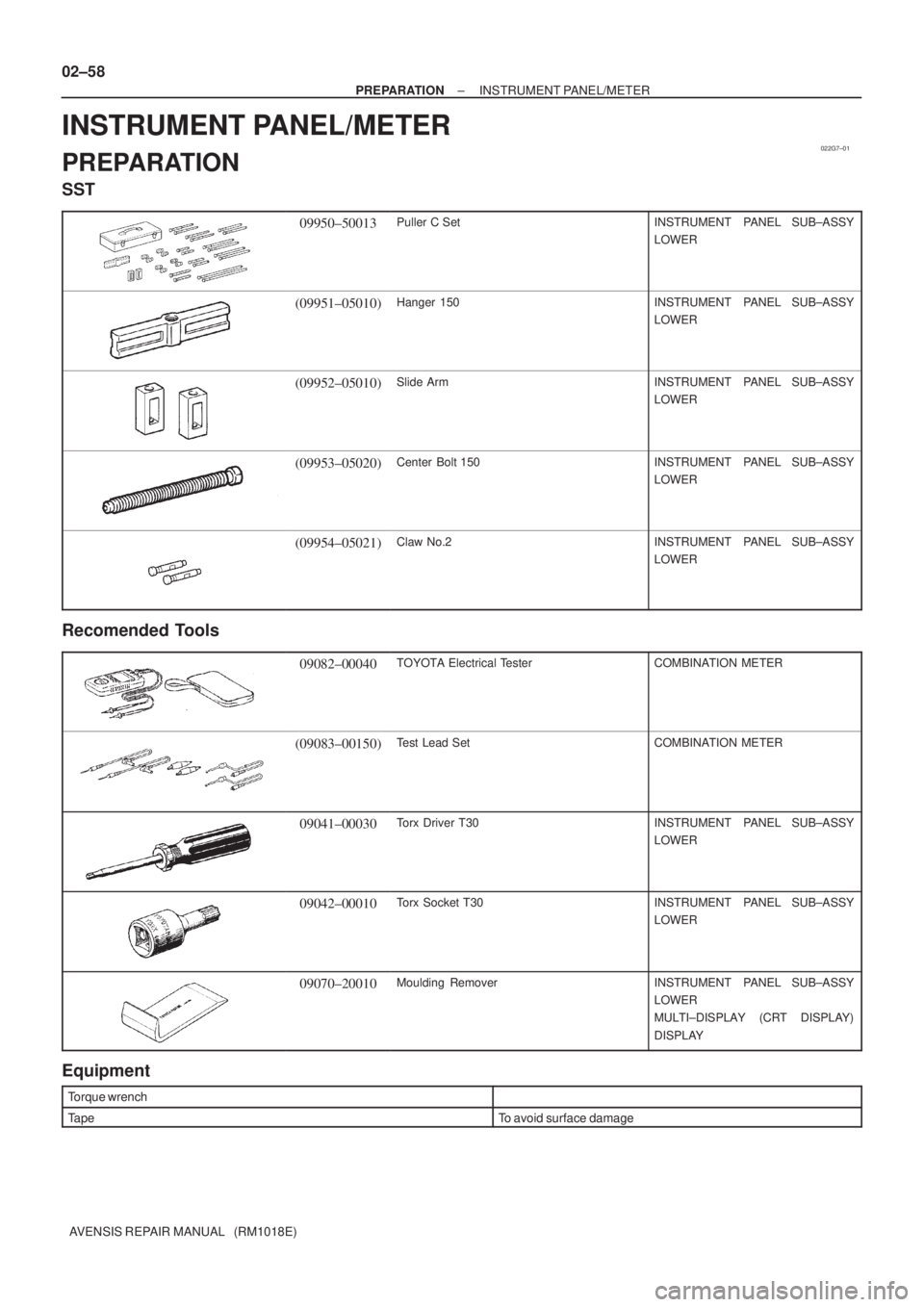

± PREPARATIONINSTRUMENT PANEL/METER
AVENSIS REPAIR MANUAL (RM1018E)
INSTRUMENT PANEL/METER
PREPARATION
SST
09950±50013Puller C SetINSTRUMENT PANEL SUB±ASSY
LOWER
(09951±05010)Hanger 150INSTRUMENT PANEL SUB±ASSY
LOWER
(09952±05010)Slide ArmINSTRUMENT PANEL SUB±ASSY
LOWER
(09953±05020)Center Bolt 150INSTRUMENT PANEL SUB±ASSY
LOWER
(09954±05021)Claw No.2INSTRUMENT PANEL SUB±ASSY
LOWER
Recomended Tools
09082±00040TOYOTA Electrical TesterCOMBINATION METER
(09083±00150)Test Lead SetCOMBINATION METER
09041±00030Torx Driver T30INSTRUMENT PANEL SUB±ASSY
LOWER
09042±00010Torx Socket T30INSTRUMENT PANEL SUB±ASSY
LOWER
09070±20010Moulding RemoverINSTRUMENT PANEL SUB±ASSY
LOWER
MULTI±DISPLAY (CRT DISPLAY)
DISPLAY
Equipment
Torque wrench
TapeTo avoid surface damage

022L7±01
± PREPARATIONWINDSHIELD/WINDOWGLASS/MIRROR
02±57
AVENSIS REPAIR MANUAL (RM1018E)
WINDSHIELD/WINDOWGLASS/MIRROR
PREPARATION
Recomended Tools
09070±20010Moulding RemoverWINDSHIELD GLASS
09082±00040TOYOTA Electrical TesterPOWER WINDOW CONTROL
SYSTEM
WINDOW DEFOGGER SYSTEM
POWER MIRROR CONTROL
SYSTEM
(09083±00150)Test Lead SetPOWER WINDOW CONTROL
SYSTEM
(09083±00350)AC/DC 400 A ProbePOWER WINDOW CONTROL
SYSTEM
Equipment
Knife
Piano wireWindshield
Plastic sheetTo avoid surface damage.
Sealer gun
TapeTo avoid surface damage.
Torque wrench
Wooden block or similar objectFor tying both piano wire ends
SSM
08850±00065Butyl Tape SetINNER REAR VIEW MIRROR ASSY
08850±00801Windshield Glass Adhesive Set
or equivalentWINDSHIELD GLASS
BACK DOOR GLASS(LIFTBACK
MODELS)
BACK WINDOW GLASS(SEDAN
MODELS)
QUARTER WINDOW ASSY
LH(WAGON MODELS)
BACK DOOR GLASS(WAGON
MODELS)

022L2±01
02±56

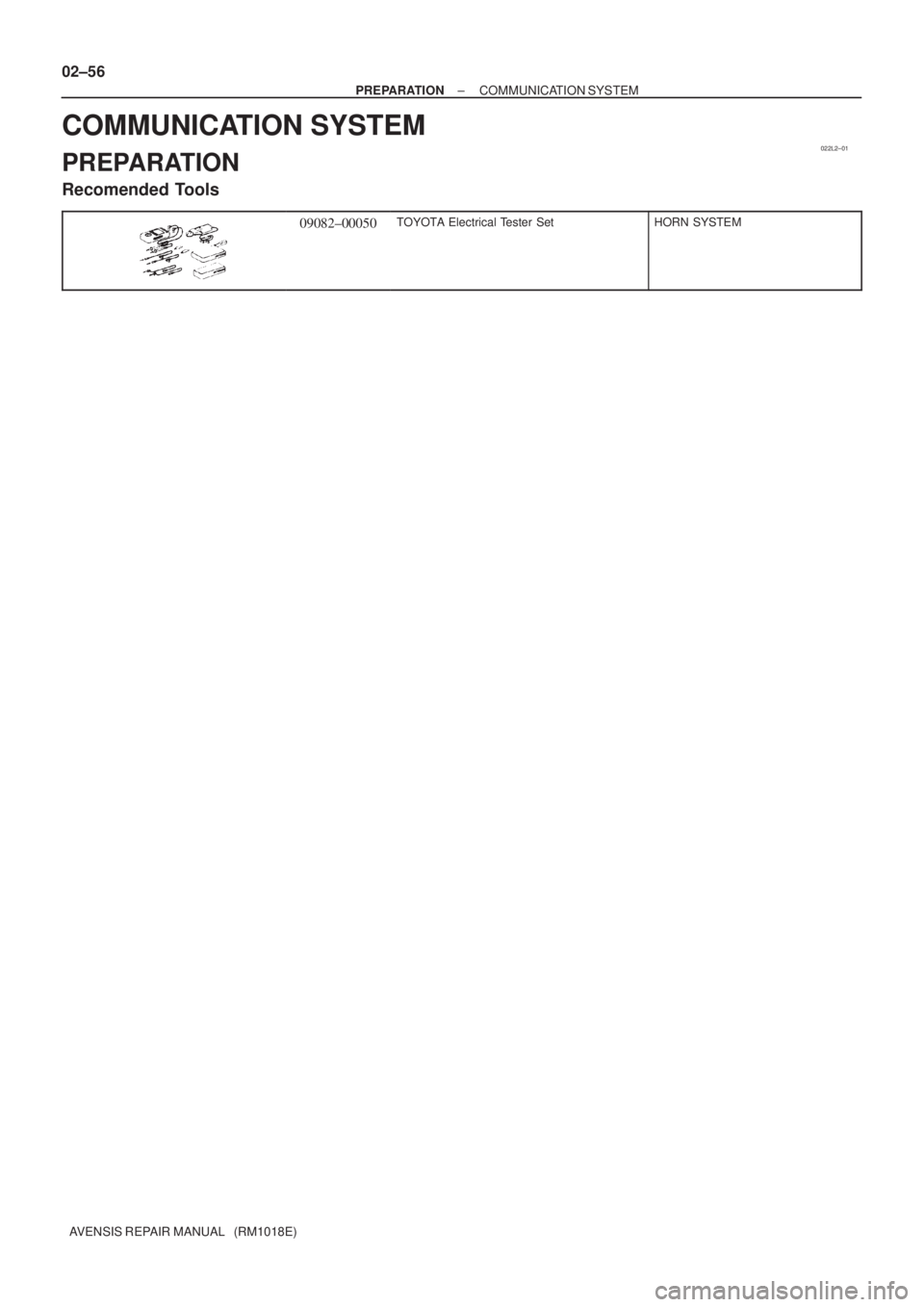

± PREPARATIONCOMMUNICATION SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
COMMUNICATION SYSTEM
PREPARATION
Recomended Tools
09082±00050TOYOTA Electrical Tester SetHORN SYSTEM

022KX±01
± PREPARATIONAUDIO & VISUAL SYSTEM
02±55
AVENSIS REPAIR MANUAL (RM1018E)
AUDIO & VISUAL SYSTEM
PREPARATION
Recomended Tools
09042±00010Torx Socket T30NAVIGATION ANTENNA ASSY
09042±00030Torx Socket T20CIGARETTE LIGHTER ASSY
09050±00032Air DrillFRONT NO.1 SPEAKER ASSY
REAR SPEAKER ASSY
(09050±00210)Chuck SetFRONT NO.1 SPEAKER ASSY
REAR SPEAKER ASSY
(09050±00220)HandleFRONT NO.1 SPEAKER ASSY
REAR SPEAKER ASSY
09050±20010Air RiveterFRONT NO.1 SPEAKER ASSY
REAR SPEAKER ASSY
(09050±02010)Dust CapFRONT NO.1 SPEAKER ASSY
REAR SPEAKER ASSY
(09050±02020)Nose Piece No.1FRONT NO.1 SPEAKER ASSY
REAR SPEAKER ASSY
09060±60350Revet CutterFRONT NO.1 SPEAKER ASSY
REAR SPEAKER ASSY
09070±20010Moulding RemoverRADIO RECEIVER ASSY
ANTENNA CORD SUB±ASSY
POWER POINT SOCKET ASSY
NAVIGATION ANTENNA ASSY
ANTENNA CORD SUB±ASSY NO.3
AMPLIFIER ANTENNA
ASSY(LIFTBACK MODELS)
AMPLIFIER ANTENNA ASSY(SEDAN
MODELS)
AMPLIFIER ANTENNA
ASSY(WAGON MODELS)
Equipment
Torque wrench

022KW±01
02±54

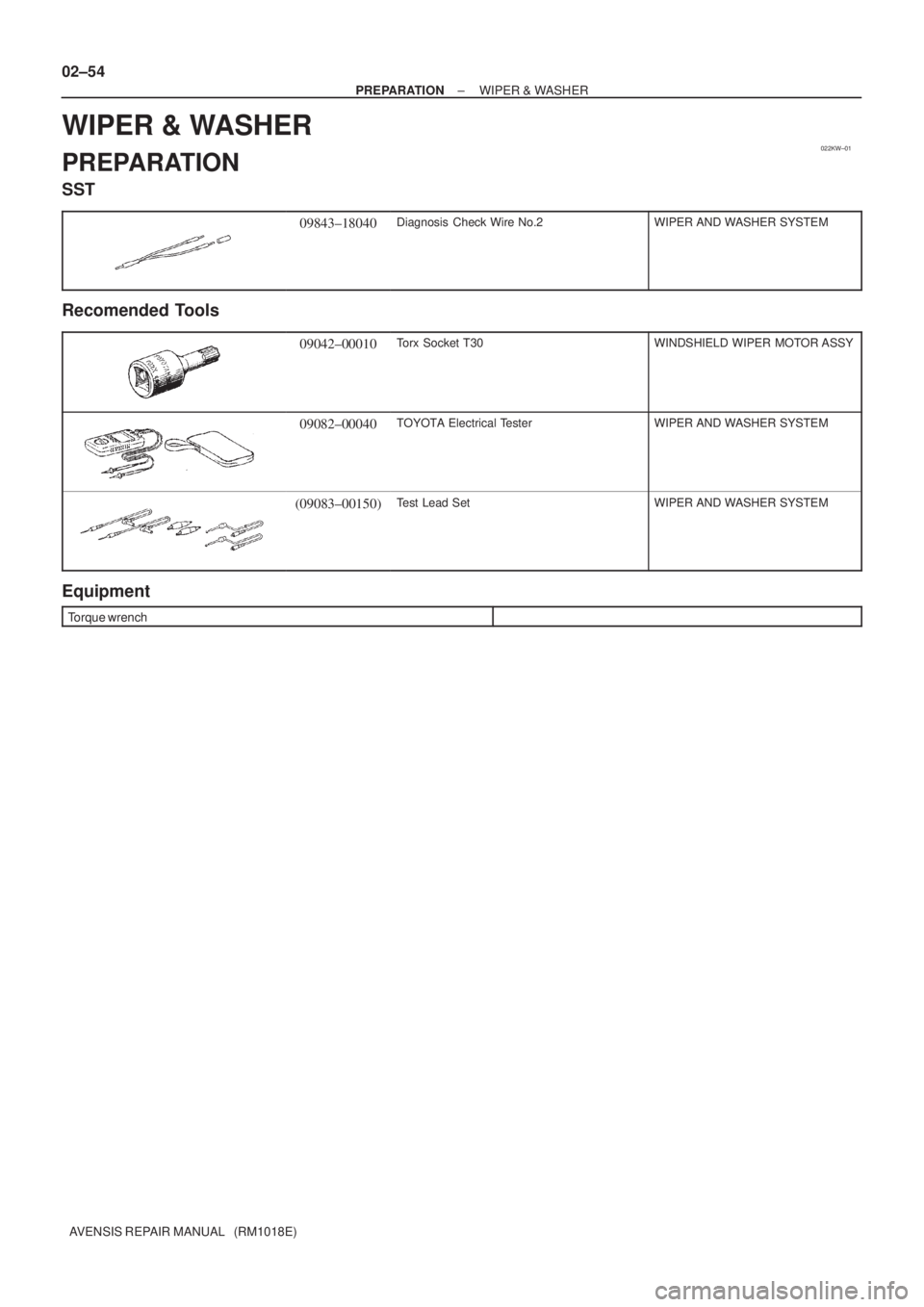

± PREPARATIONWIPER & WASHER
AVENSIS REPAIR MANUAL (RM1018E)
WIPER & WASHER
PREPARATION
SST
09843±18040Diagnosis Check Wire No.2WIPER AND WASHER SYSTEM
Recomended Tools
09042±00010Torx Socket T30WINDSHIELD WIPER MOTOR ASSY
09082±00040TOYOTA Electrical TesterWIPER AND WASHER SYSTEM
(09083±00150)Test Lead SetWIPER AND WASHER SYSTEM
Equipment
Torque wrench

022L5±01
02±52

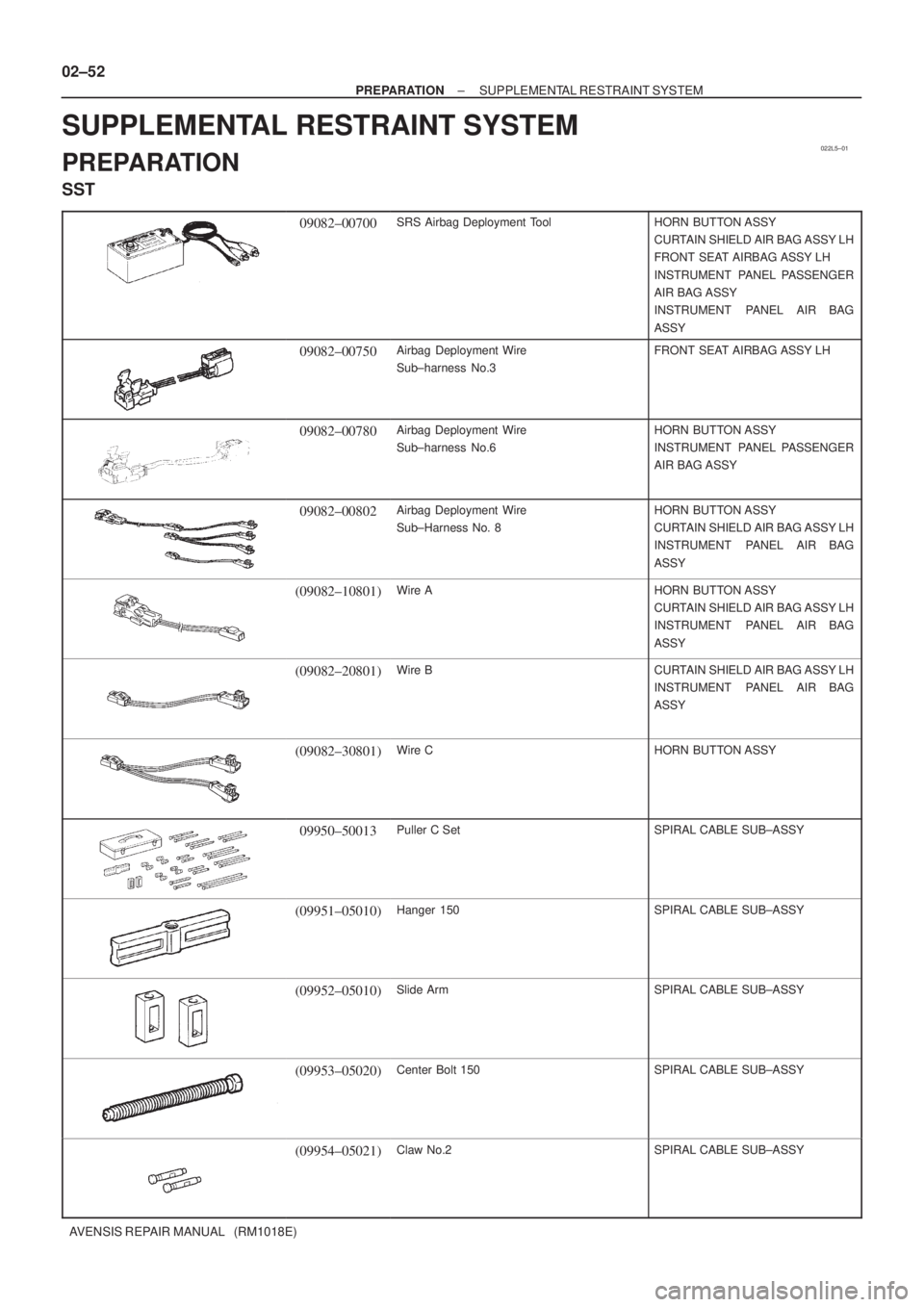

± PREPARATIONSUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
SUPPLEMENTAL RESTRAINT SYSTEM
PREPARATION
SST
09082±00700SRS Airbag Deployment ToolHORN BUTTON ASSY
CURTAIN SHIELD AIR BAG ASSY LH
FRONT SEAT AIRBAG ASSY LH
INSTRUMENT PANEL PASSENGER
AIR BAG ASSY
INSTRUMENT PANEL AIR BAG
ASSY
09082±00750Airbag Deployment Wire
Sub±harness No.3FRONT SEAT AIRBAG ASSY LH
09082±00780Airbag Deployment Wire
Sub±harness No.6HORN BUTTON ASSY
INSTRUMENT PANEL PASSENGER
AIR BAG ASSY
09082±00802Airbag Deployment Wire
Sub±Harness No. 8HORN BUTTON ASSY
CURTAIN SHIELD AIR BAG ASSY LH
INSTRUMENT PANEL AIR BAG
ASSY
(09082±10801)Wire AHORN BUTTON ASSY
CURTAIN SHIELD AIR BAG ASSY LH
INSTRUMENT PANEL AIR BAG
ASSY
(09082±20801)Wire BCURTAIN SHIELD AIR BAG ASSY LH
INSTRUMENT PANEL AIR BAG
ASSY
(09082±30801)Wire CHORN BUTTON ASSY
09950±50013Puller C SetSPIRAL CABLE SUB±ASSY
(09951±05010)Hanger 150SPIRAL CABLE SUB±ASSY
(09952±05010)Slide ArmSPIRAL CABLE SUB±ASSY
(09953±05020)Center Bolt 150SPIRAL CABLE SUB±ASSY
(09954±05021)Claw No.2SPIRAL CABLE SUB±ASSY

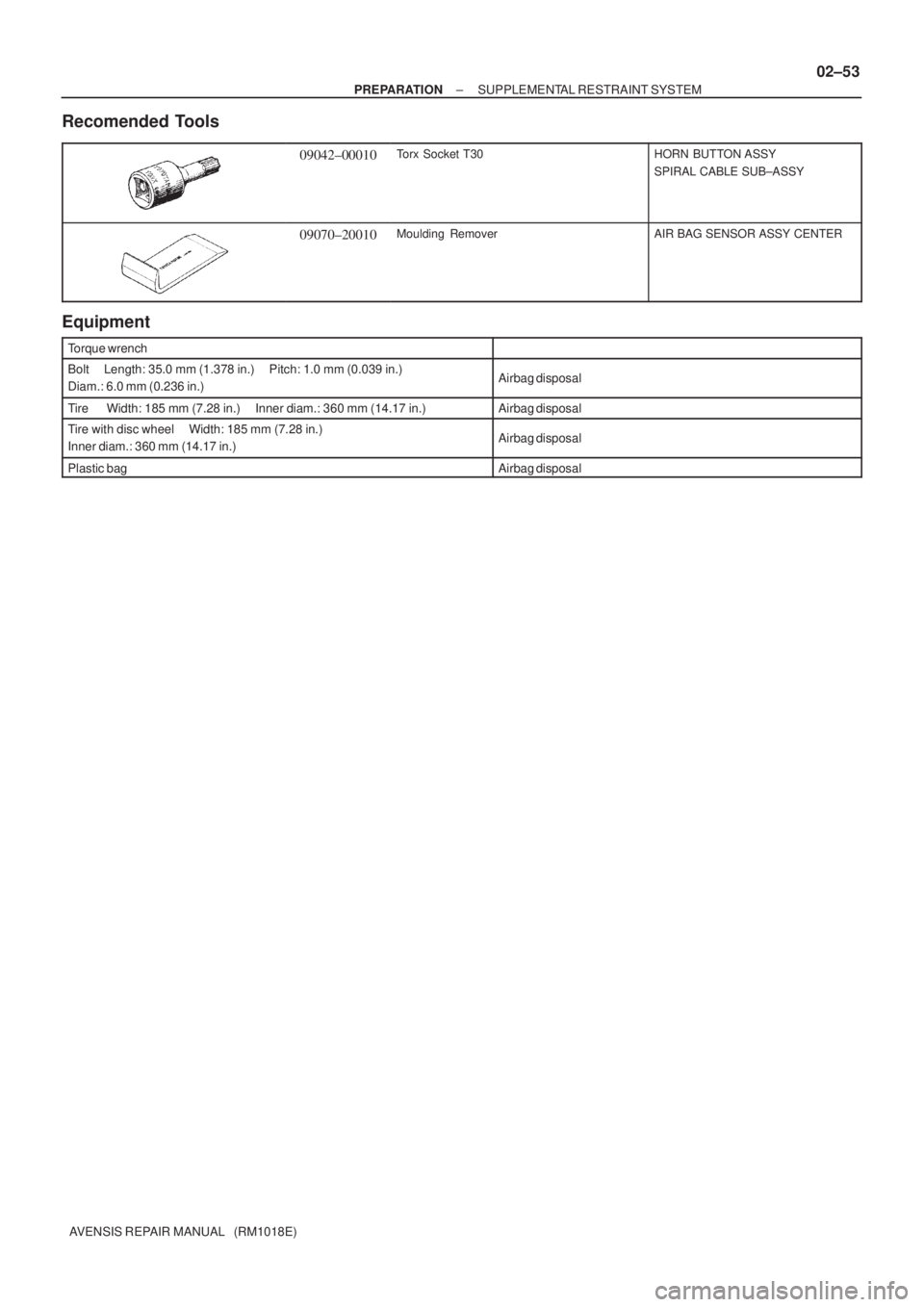

± PREPARATIONSUPPLEMENTAL RESTRAINT SYSTEM
02±53
AVENSIS REPAIR MANUAL (RM1018E)
Recomended Tools
09042±00010Torx Socket T30HORN BUTTON ASSY
SPIRAL CABLE SUB±ASSY
09070±20010Moulding RemoverAIR BAG SENSOR ASSY CENTER
Equipment
Torque wrench
Bolt Length: 35.0 mm (1.378 in.) Pitch: 1.0 mm (0.039 in.)
Diam.: 6.0 mm (0.236 in.)Airbag disposal
Tire Width: 185 mm (7.28 in.) Inner diam.: 360 mm (14.17 in.)Airbag disposal
Tire with disc wheel Width: 185 mm (7.28 in.)
Inner diam.: 360 mm (14.17 in.)Airbag disposal
Plastic bagAirbag disposal
