Page 551 of 772

TOYOTA AVENSIS 2013  Owners Manual (in English) 551 4-3. Do-it-yourself maintenance
4
Maintenance and care

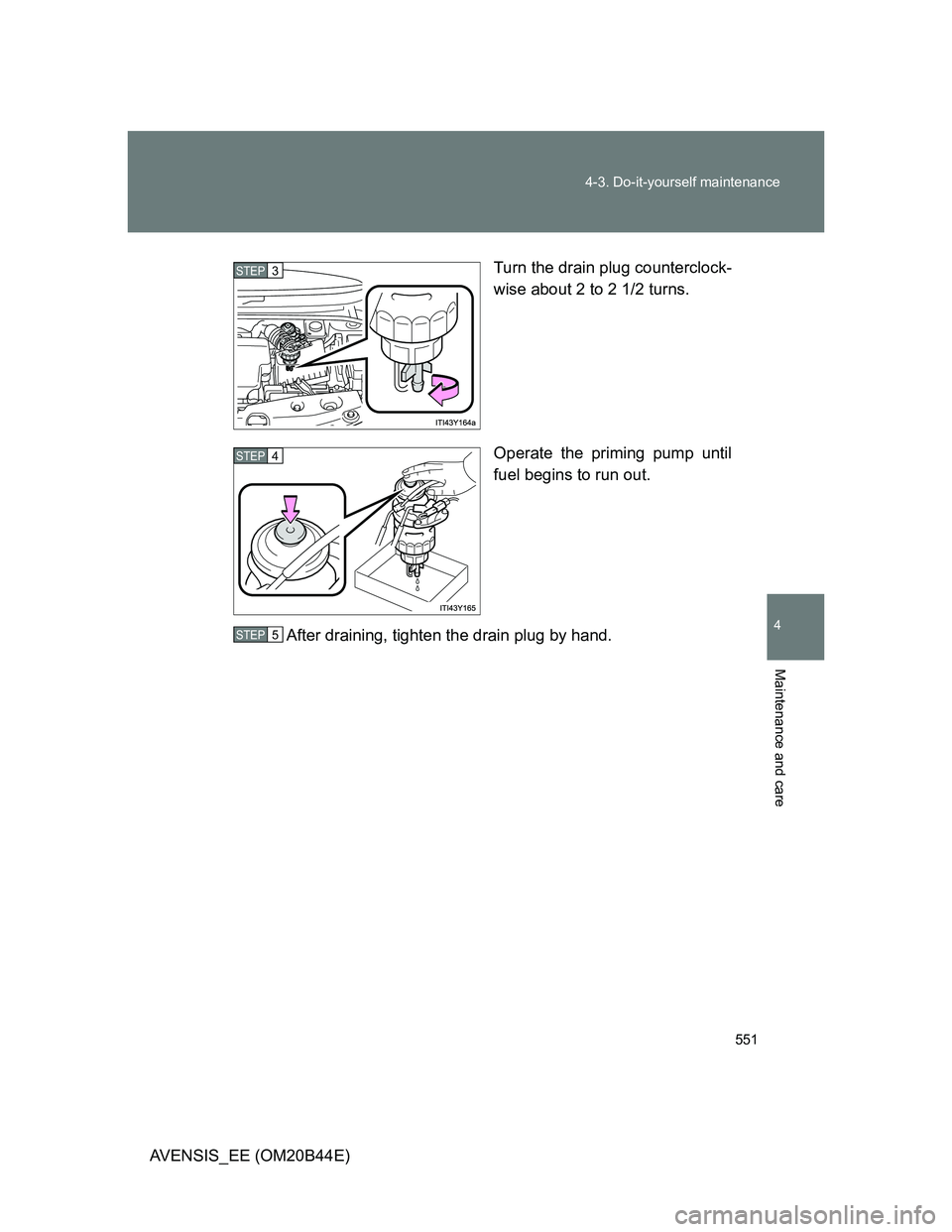

AVENSIS_EE (OM20B44E)Turn the drain plug counterclock-
wise about 2 to 2 1/2 turns.
Operate the priming pump until
fuel begins to run out.
Af

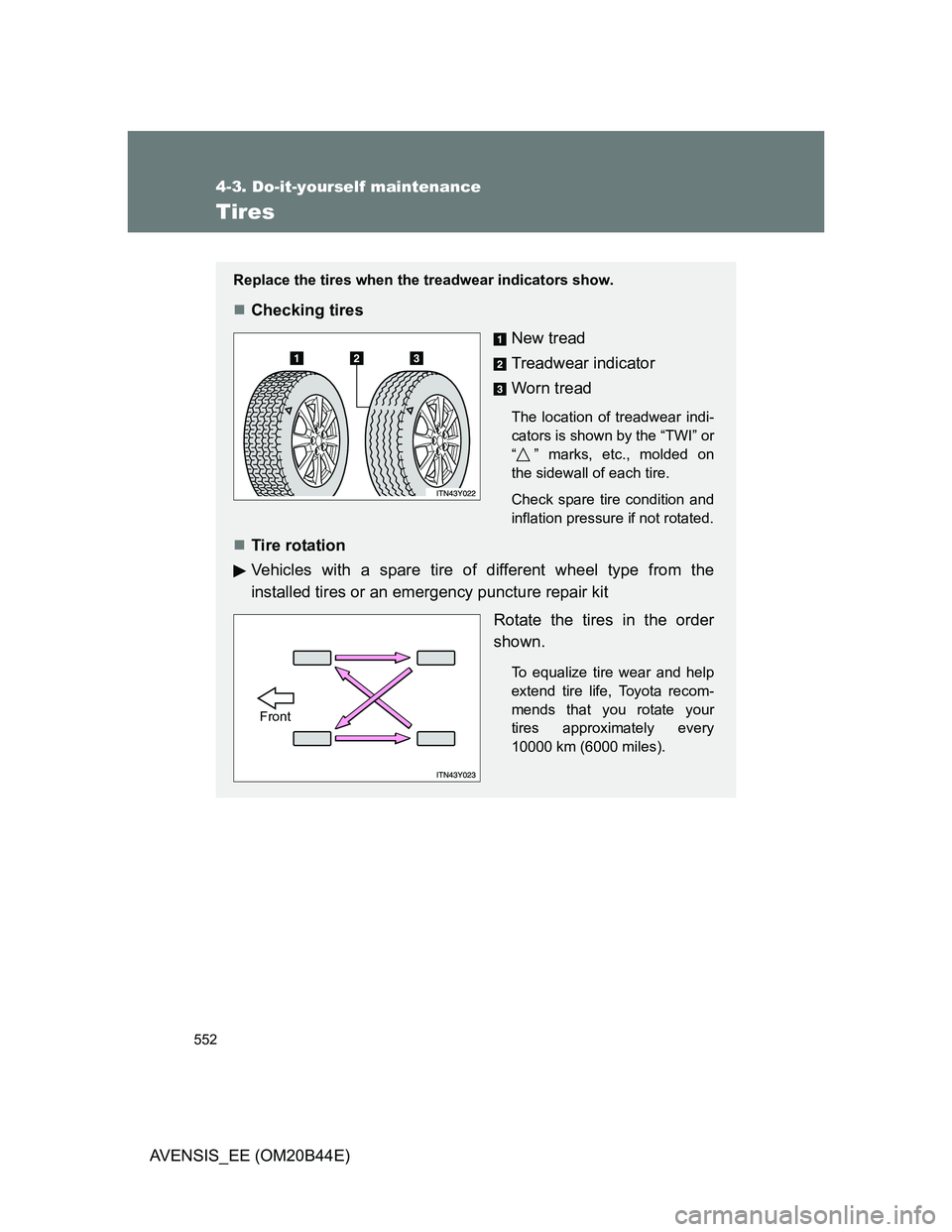

Page 552 of 772

TOYOTA AVENSIS 2013  Owners Manual (in English) 552
4-3. Do-it-yourself maintenance
AVENSIS_EE (OM20B44E)
Tires
Replace the tires when the treadwear indicators show.
Checking tires
New tread
Treadwear indicator
Worn tread
The location of treadwe

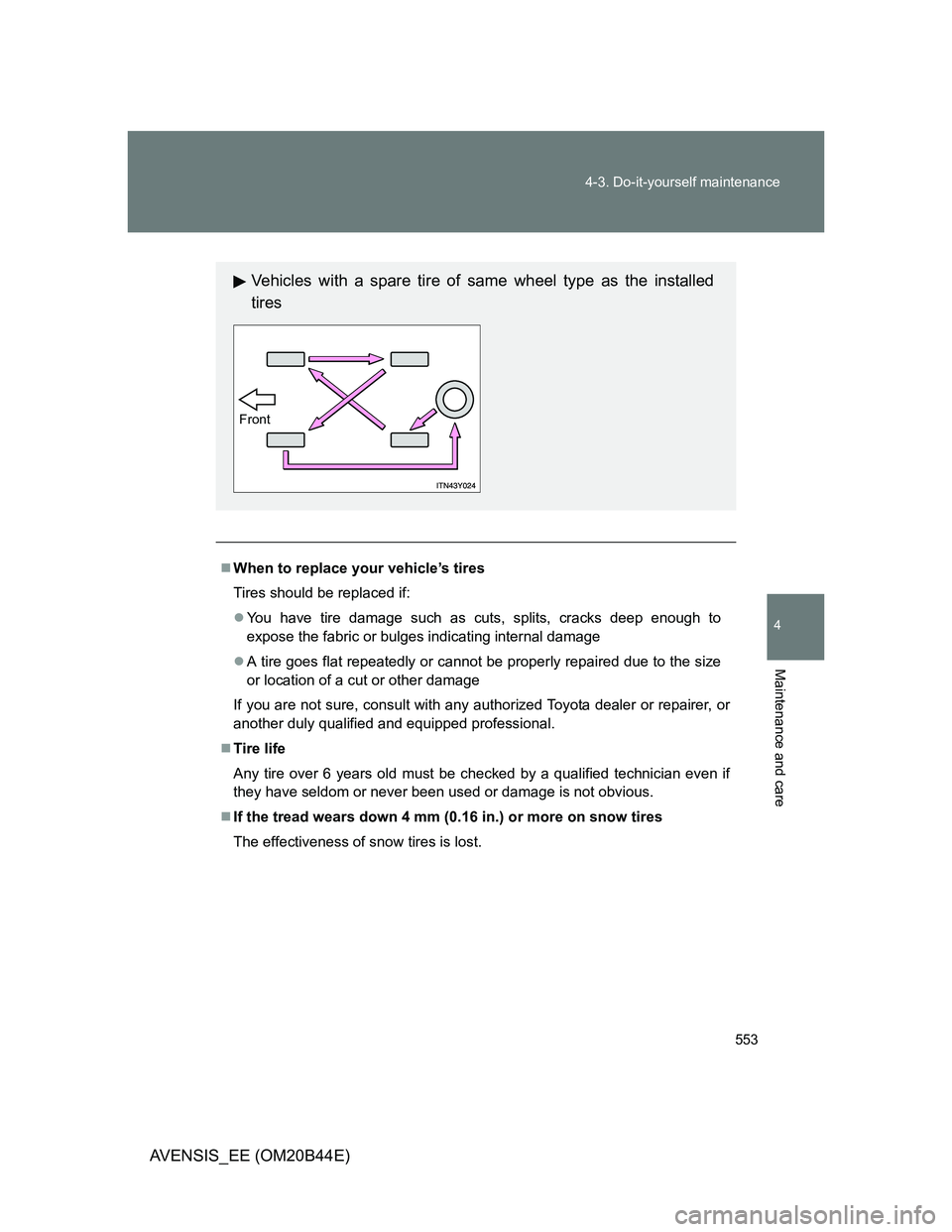

Page 553 of 772

TOYOTA AVENSIS 2013  Owners Manual (in English) 553 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_EE (OM20B44E)
When to replace your vehicle’s tires
Tires should be replaced if:
You have tire damage such as cuts, splits, cr

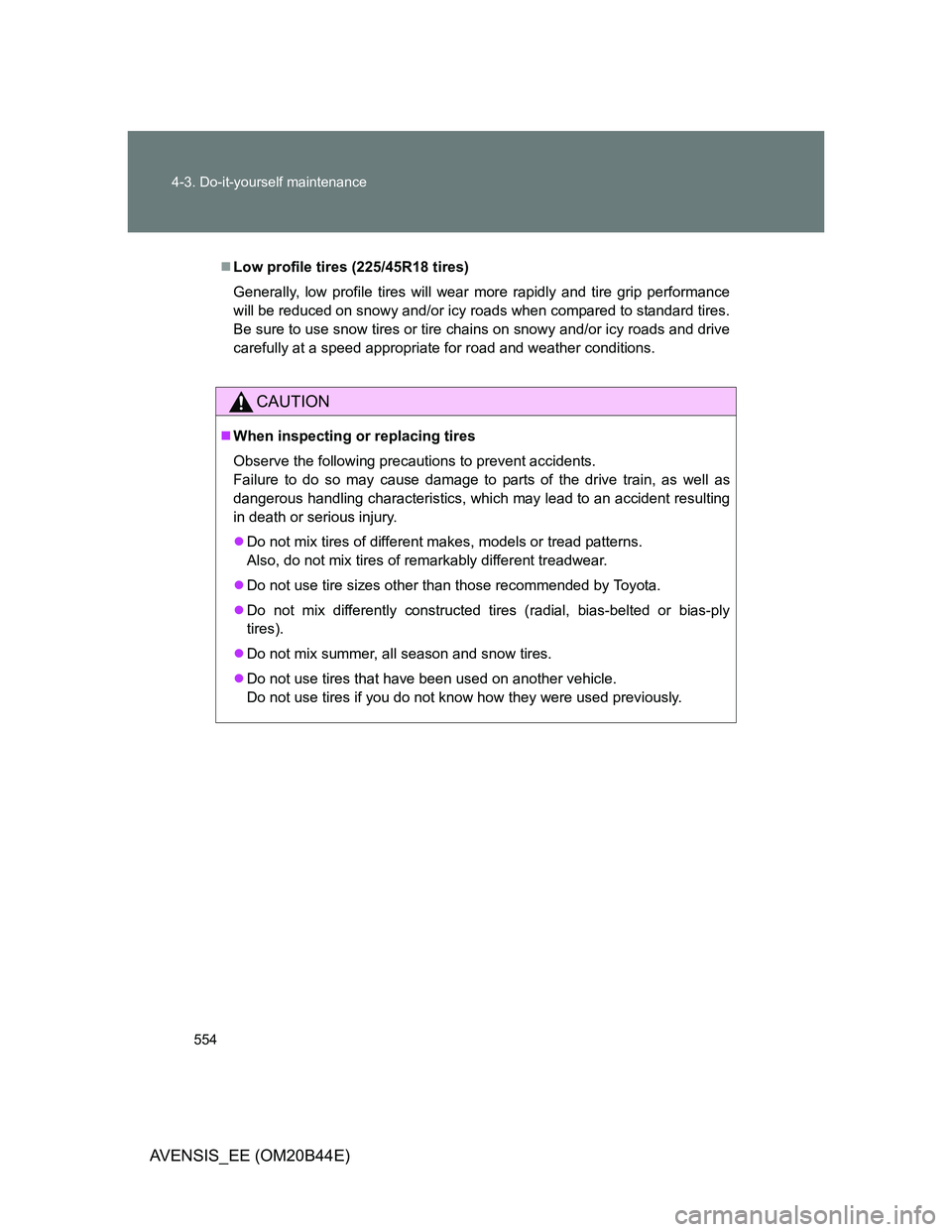

Page 554 of 772

TOYOTA AVENSIS 2013  Owners Manual (in English) 554 4-3. Do-it-yourself maintenance
AVENSIS_EE (OM20B44E)
Low profile tires (225/45R18 tires)
Generally, low profile tires will wear more rapidly and tire grip performance
will be reduced on snowy

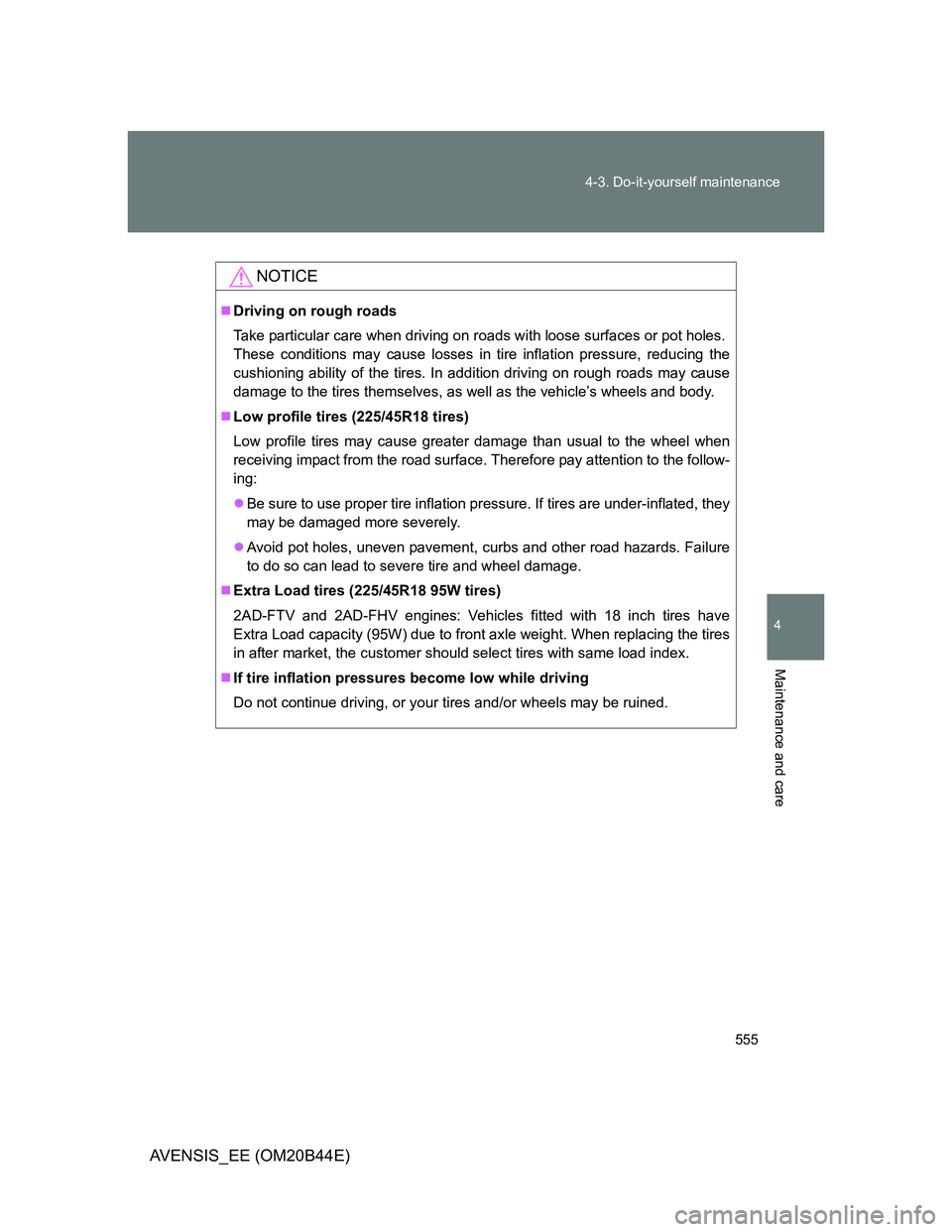

Page 555 of 772

TOYOTA AVENSIS 2013  Owners Manual (in English) 555 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_EE (OM20B44E)
NOTICE
Driving on rough roads
Take particular care when driving on roads with loose surfaces or pot holes.
These con

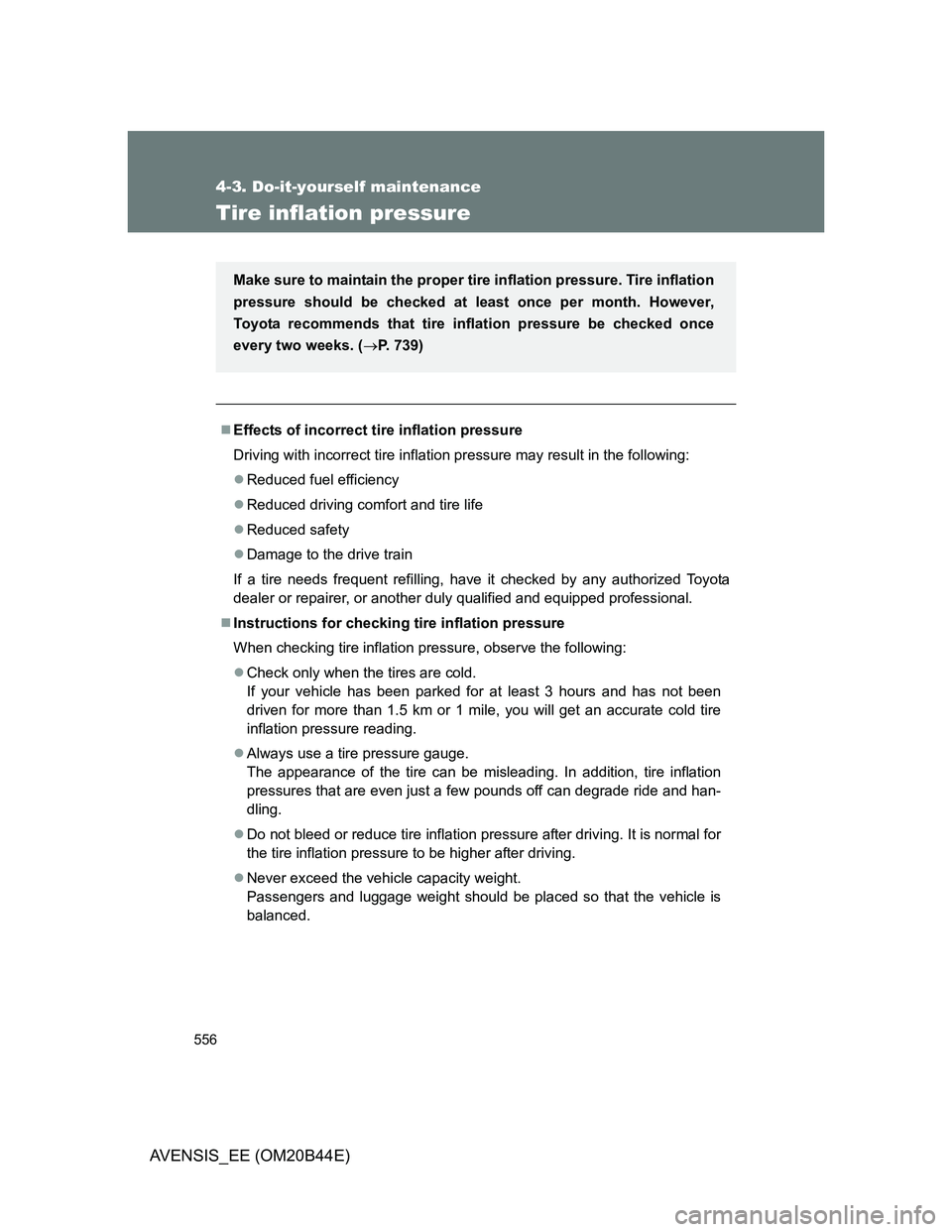

Page 556 of 772

TOYOTA AVENSIS 2013  Owners Manual (in English) 556
4-3. Do-it-yourself maintenance
AVENSIS_EE (OM20B44E)
Tire inflation pressure
Effects of incorrect tire inflation pressure
Driving with incorrect tire inflation pressure may result in the follo

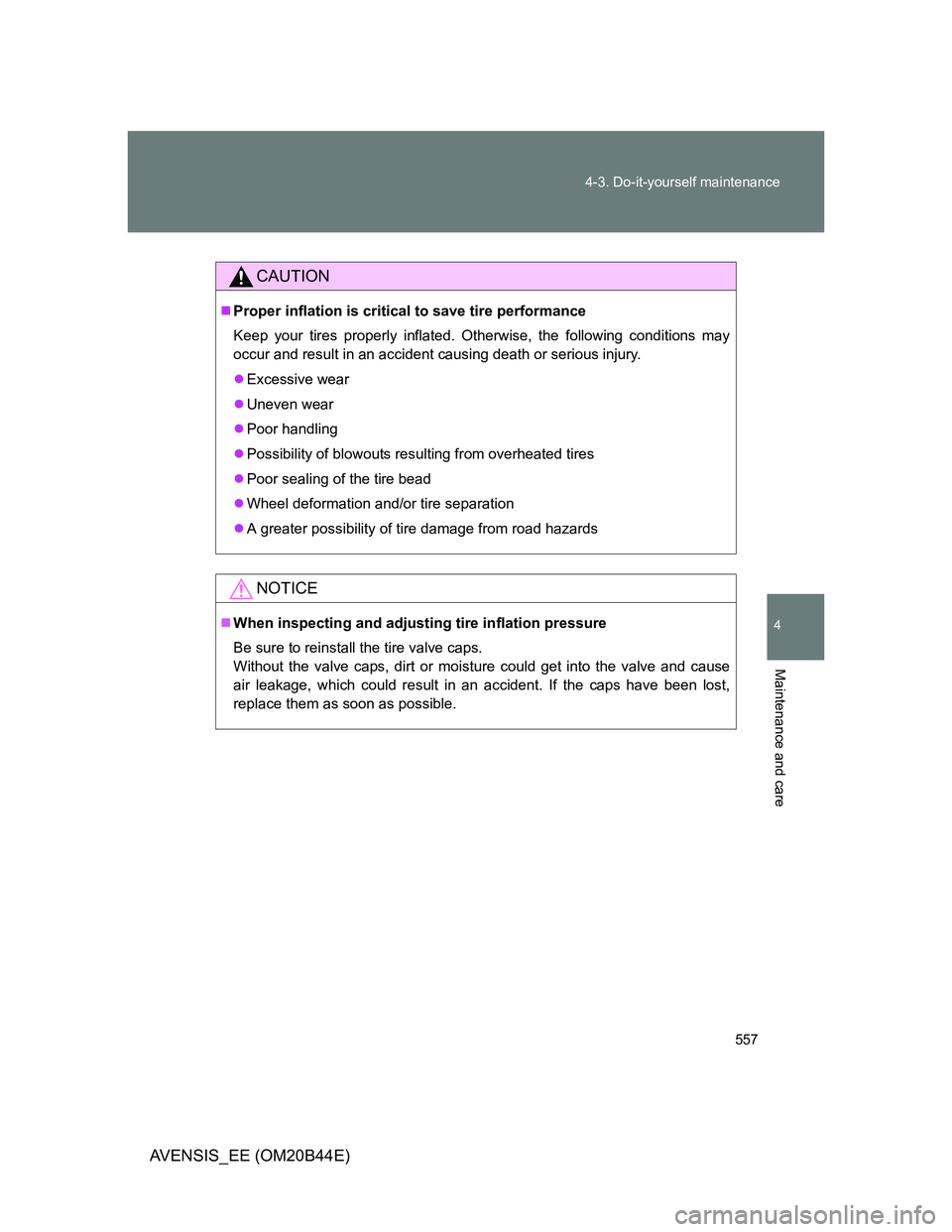

Page 557 of 772

TOYOTA AVENSIS 2013  Owners Manual (in English) 557 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_EE (OM20B44E)
CAUTION
Proper inflation is critical to save tire performance
Keep your tires properly inflated. Otherwise, the foll

Page 558 of 772

TOYOTA AVENSIS 2013  Owners Manual (in English) 558
4-3. Do-it-yourself maintenance
AVENSIS_EE (OM20B44E)

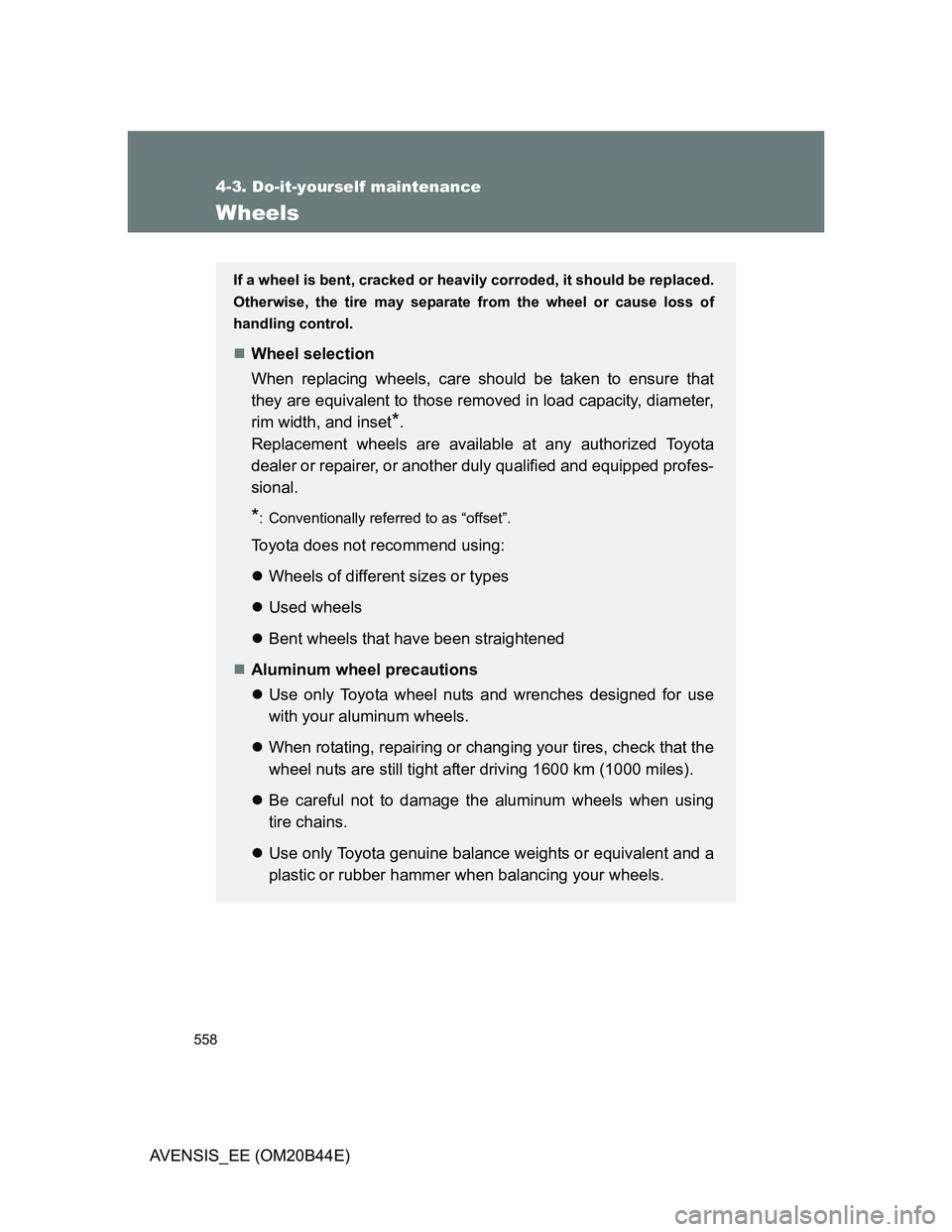

Wheels
If a wheel is bent, cracked or heavily corroded, it should be replaced.
Otherwise, the tire may separate from the wheel or cause loss o

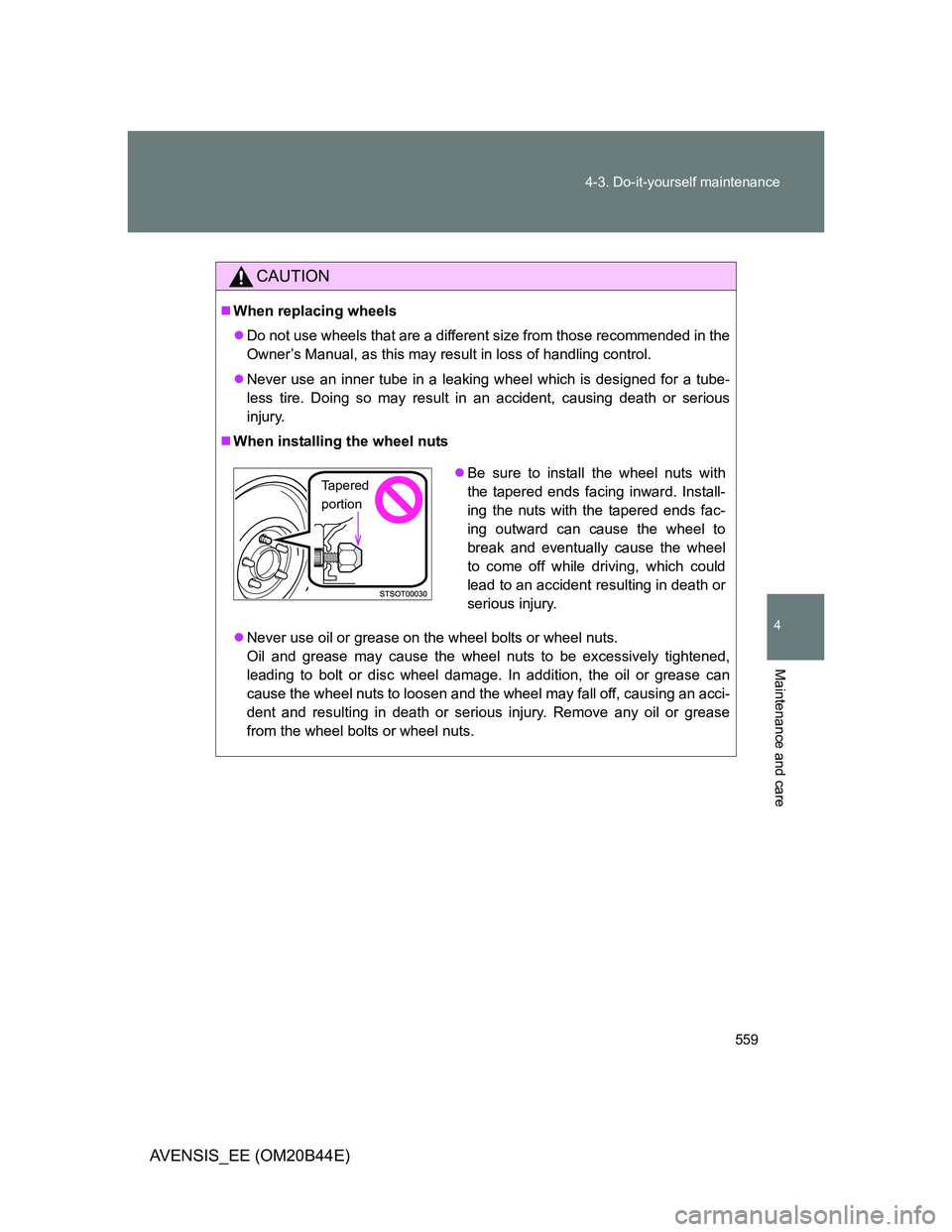

Page 559 of 772

TOYOTA AVENSIS 2013  Owners Manual (in English) 559 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_EE (OM20B44E)
CAUTION
When replacing wheels
Do not use wheels that are a different size from those recommended in the
Owner’s

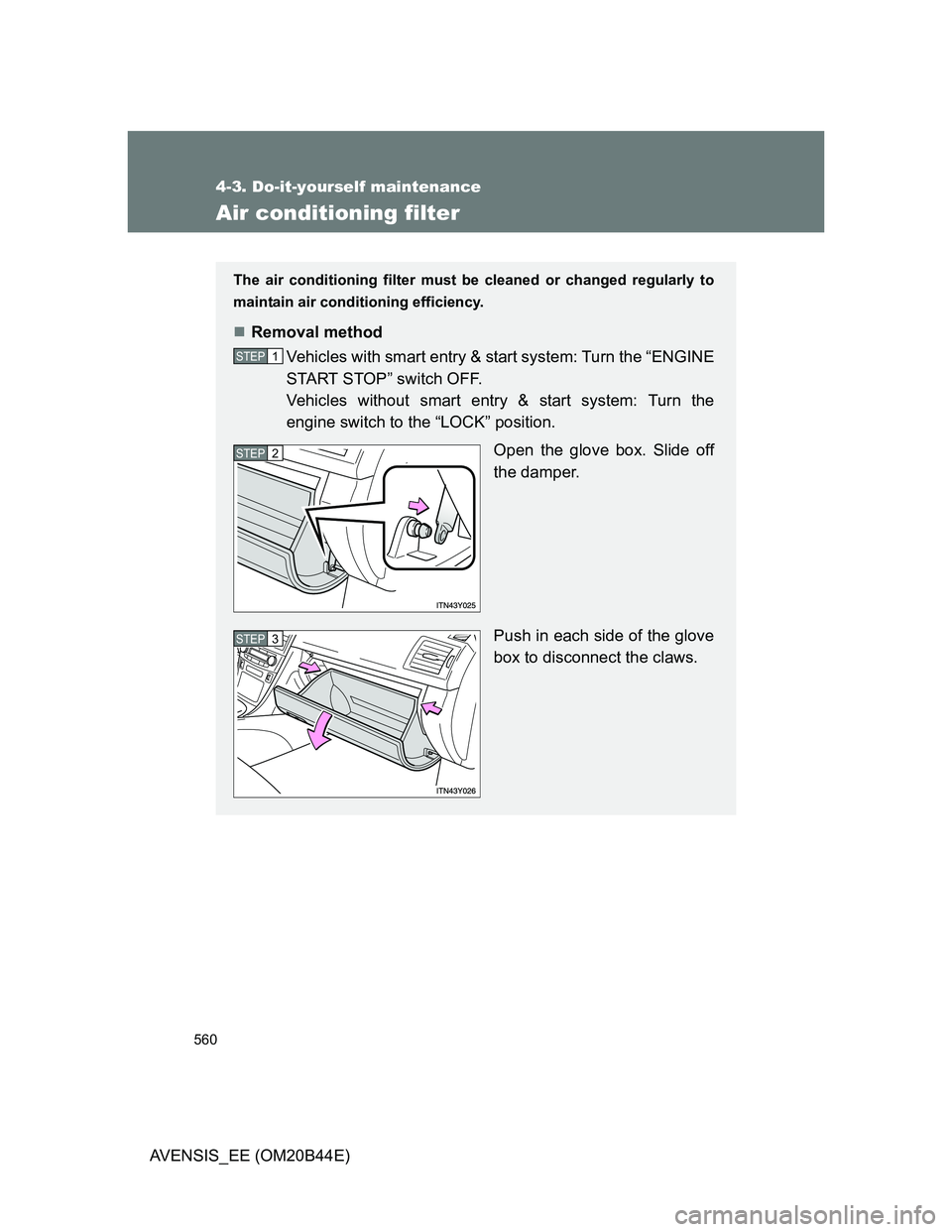

Page 560 of 772

TOYOTA AVENSIS 2013  Owners Manual (in English) 560
4-3. Do-it-yourself maintenance
AVENSIS_EE (OM20B44E)
Air conditioning filter
The air conditioning filter must be cleaned or changed regularly to
maintain air conditioning efficiency.
Removal m
