TOYOTA AVENSIS 2013 Owners Manual (in English)

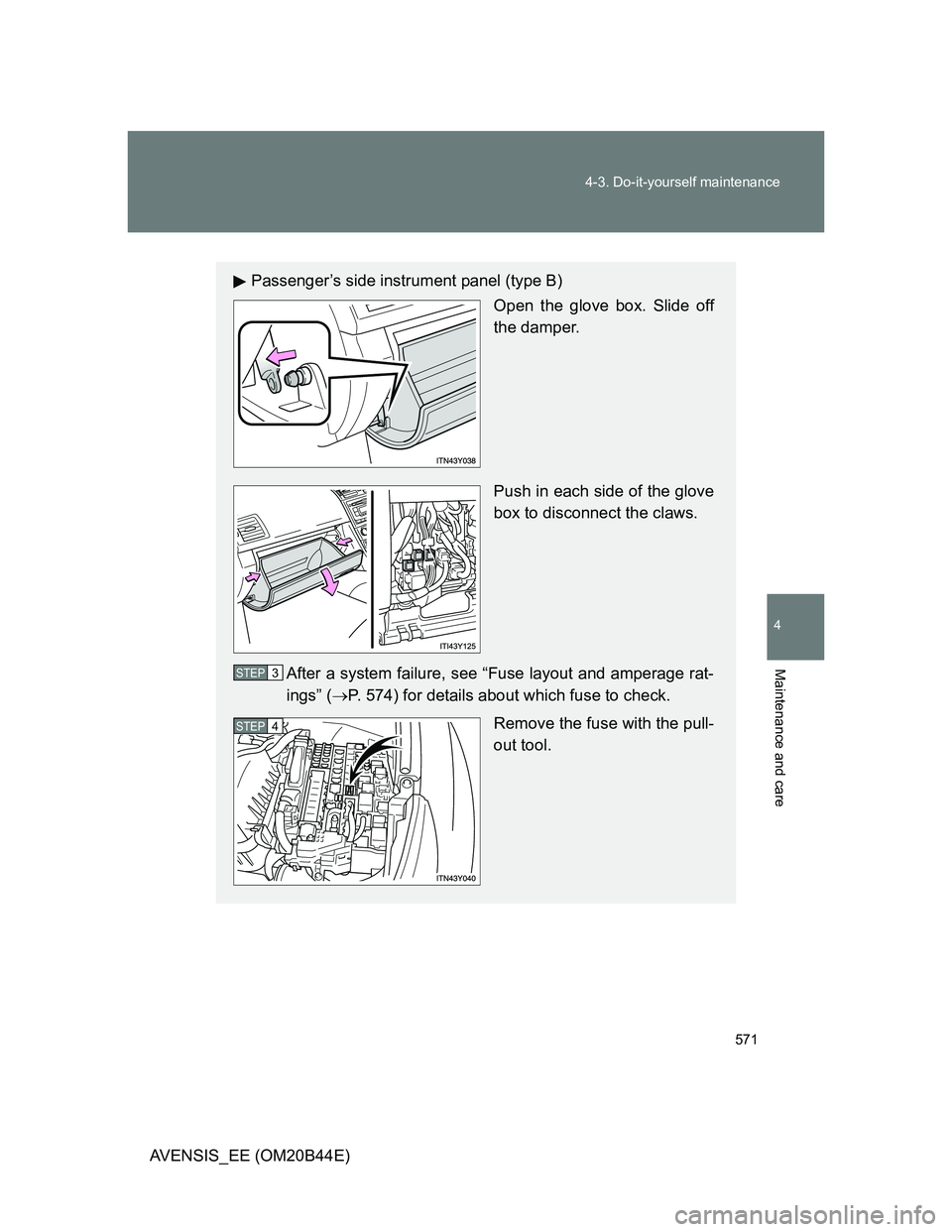

571 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_EE (OM20B44E)
Passenger’s side instrument panel (type B)
Open the glove box. Slide off
the damper.
Push in each side of the glove
box to disconnect the claws.
After a system failure, see “Fuse layout and amperage rat-
ings” (P. 574) for details about which fuse to check.
Remove the fuse with the pull-
out tool.
STEP3
STEP4

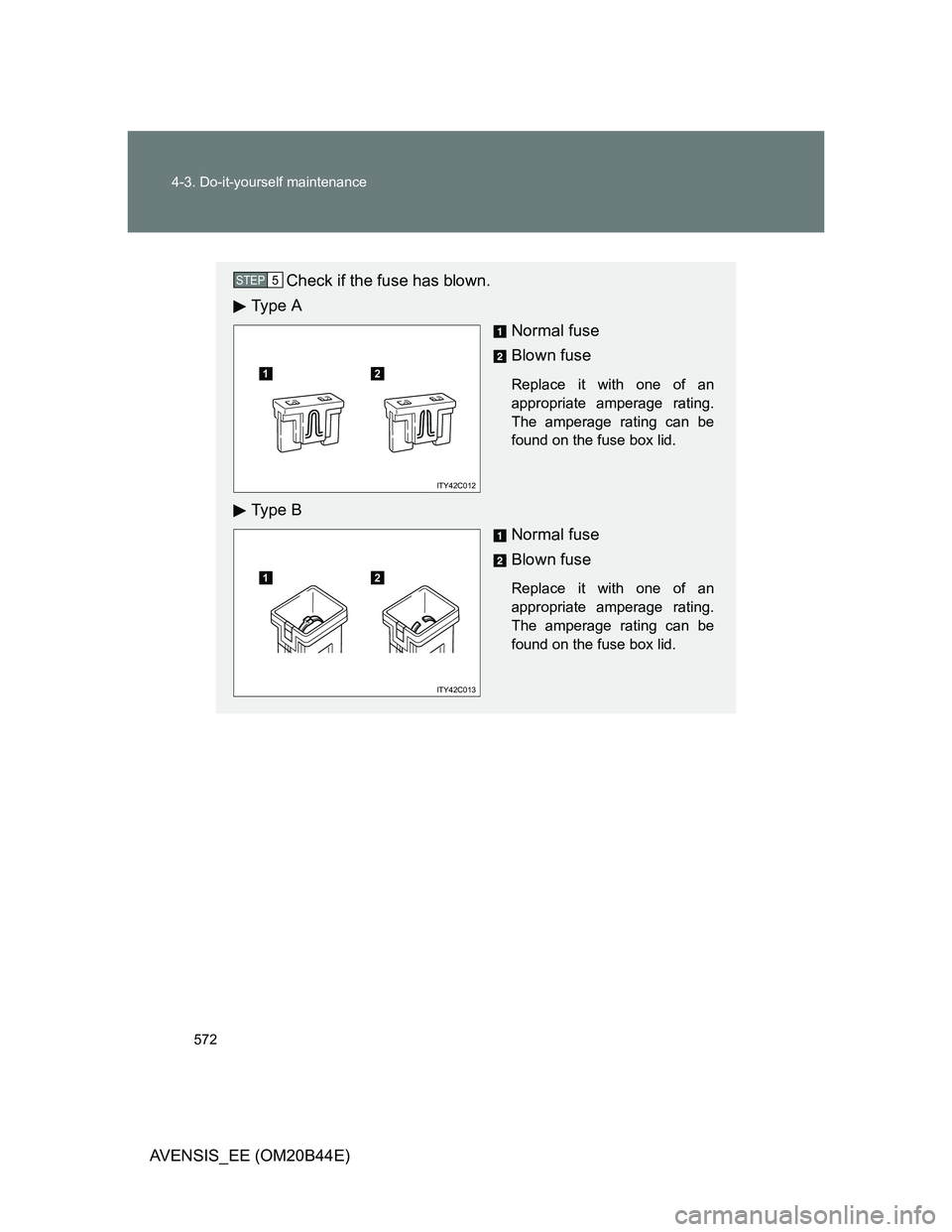

572 4-3. Do-it-yourself maintenance
AVENSIS_EE (OM20B44E)
Check if the fuse has blown.
Ty p e A
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e B
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
STEP5
12
ITY42C012
12
ITY42C013

573 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_EE (OM20B44E)

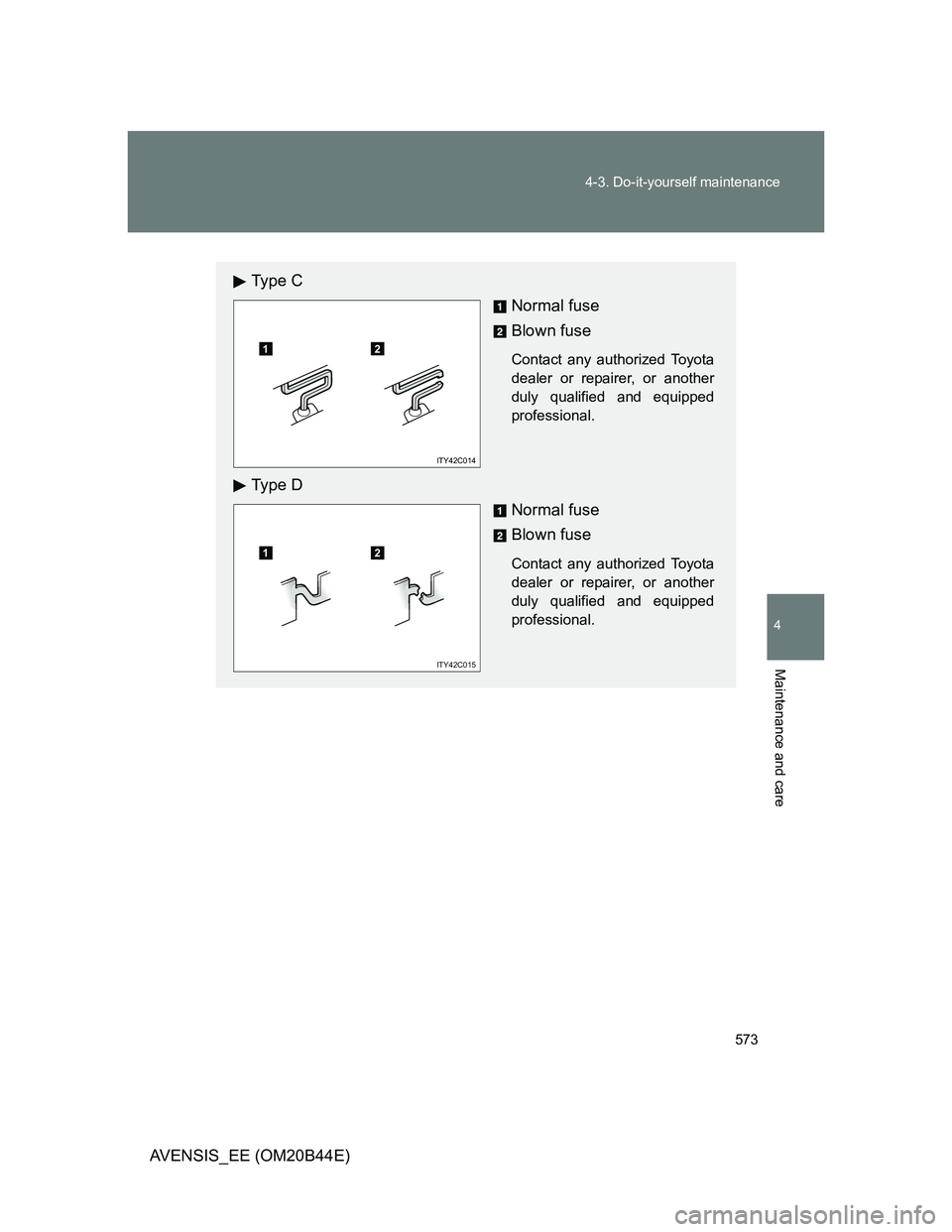

Ty p e C
Normal fuse
Blown fuse
Contact any authorized Toyota
dealer or repairer, or another
duly qualified and equipped
professional.
Ty p e D
Normal fuse
Blown fuse
Contact any authorized Toyota
dealer or repairer, or another
duly qualified and equipped
professional.
12
ITY42C014
12
ITY42C015

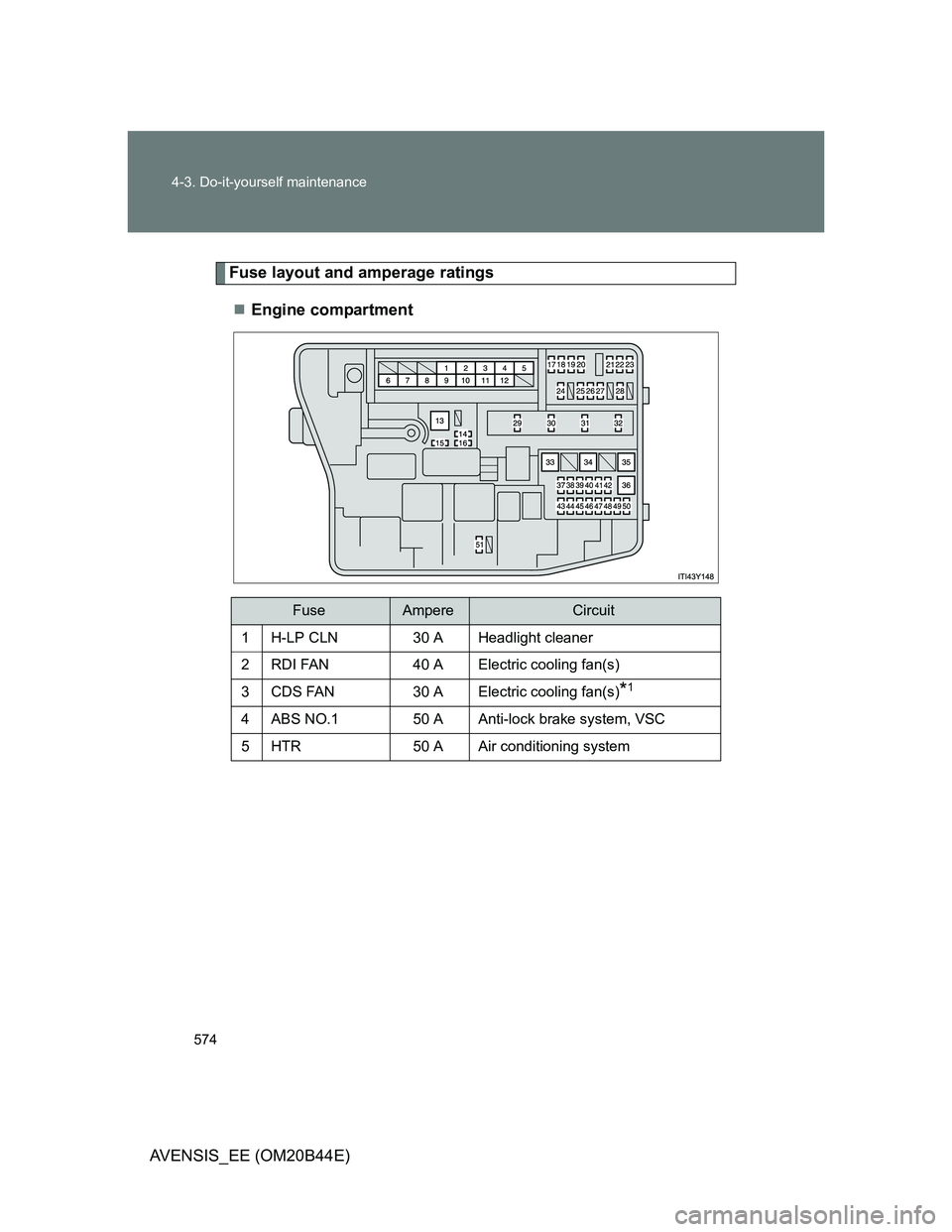

574 4-3. Do-it-yourself maintenance
AVENSIS_EE (OM20B44E)
Fuse layout and amperage ratings
Engine compartment
FuseAmpereCircuit
1H-LP CLN30 A Headlight cleaner
2RDI FAN40 A Electric cooling fan(s)
3CDS FAN30 A Electric cooling fan(s)*1
4 ABS NO.1 50 A Anti-lock brake system, VSC
5 HTR 50 A Air conditioning system

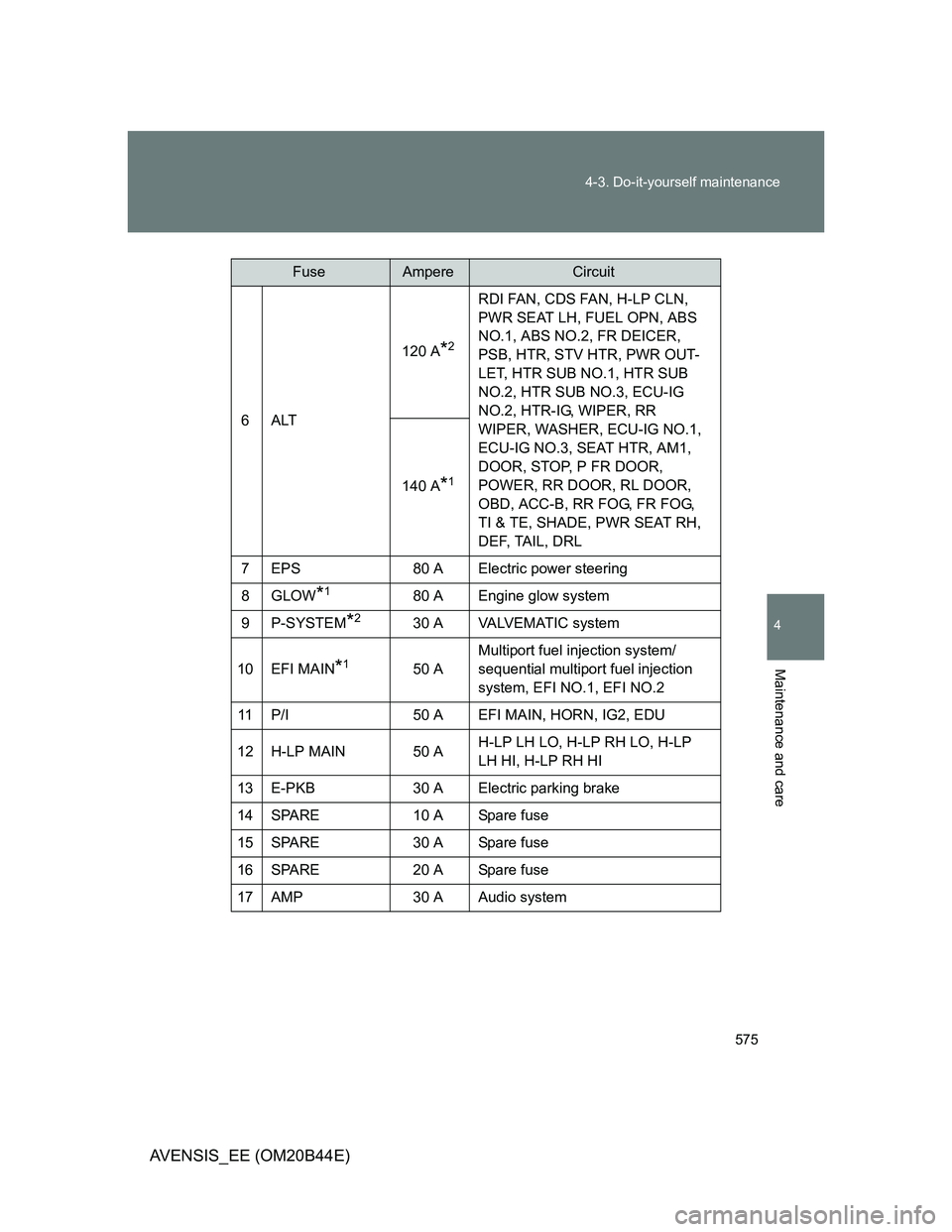

575 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_EE (OM20B44E)
6ALT120 A
*2
RDI FAN, CDS FAN, H-LP CLN,
PWR SEAT LH, FUEL OPN, ABS
NO.1, ABS NO.2, FR DEICER,
PSB, HTR, STV HTR, PWR OUT-
LET, HTR SUB NO.1, HTR SUB
NO.2, HTR SUB NO.3, ECU-IG
NO.2, HTR-IG, WIPER, RR
WIPER, WASHER, ECU-IG NO.1,
ECU-IG NO.3, SEAT HTR, AM1,
DOOR, STOP, P FR DOOR,
POWER, RR DOOR, RL DOOR,
OBD, ACC-B, RR FOG, FR FOG,
TI & TE, SHADE, PWR SEAT RH,
DEF, TAIL, DRL 140 A
*1
7 EPS 80 A Electric power steering
8GLOW
*180 A Engine glow system
9P-SYSTEM
*230 A VALVEMATIC system
10 EFI MAIN
*150 AMultiport fuel injection system/
sequential multiport fuel injection
system, EFI NO.1, EFI NO.2
11 P/I 50 A EFI MAIN, HORN, IG2, EDU
12 H-LP MAIN 50 AH-LP LH LO, H-LP RH LO, H-LP
LH HI, H-LP RH HI
13 E-PKB 30 A Electric parking brake
14 SPARE 10 A Spare fuse
15 SPARE 30 A Spare fuse
16 SPARE 20 A Spare fuse
17 AMP 30 A Audio system
FuseAmpereCircuit

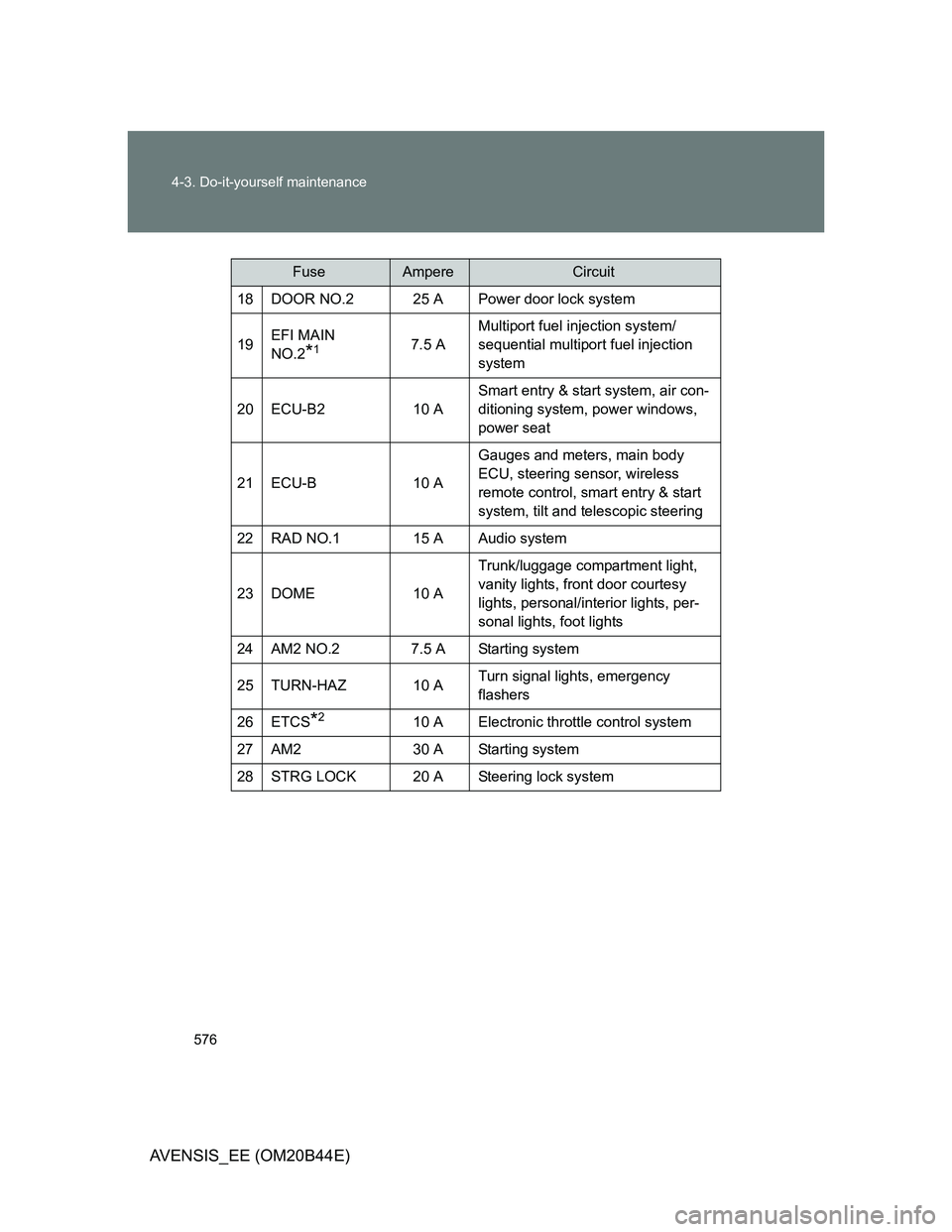

576 4-3. Do-it-yourself maintenance
AVENSIS_EE (OM20B44E)
18 DOOR NO.2 25 A Power door lock system
19EFI MAIN
NO.2
*17.5 AMultiport fuel injection system/
sequential multiport fuel injection
system
20 ECU-B2 10 ASmart entry & start system, air con-
ditioning system, power windows,
power seat
21 ECU-B 10 AGauges and meters, main body
ECU, steering sensor, wireless
remote control, smart entry & start
system, tilt and telescopic steering
22 RAD NO.1 15 A Audio system
23 DOME 10 ATrunk/luggage compartment light,
vanity lights, front door courtesy
lights, personal/interior lights, per-
sonal lights, foot lights
24 AM2 NO.2 7.5 A Starting system
25 TURN-HAZ 10 ATurn signal lights, emergency
flashers
26 ETCS
*210 A Electronic throttle control system
27 AM2 30 A Starting system
28 STRG LOCK 20 A Steering lock system
FuseAmpereCircuit

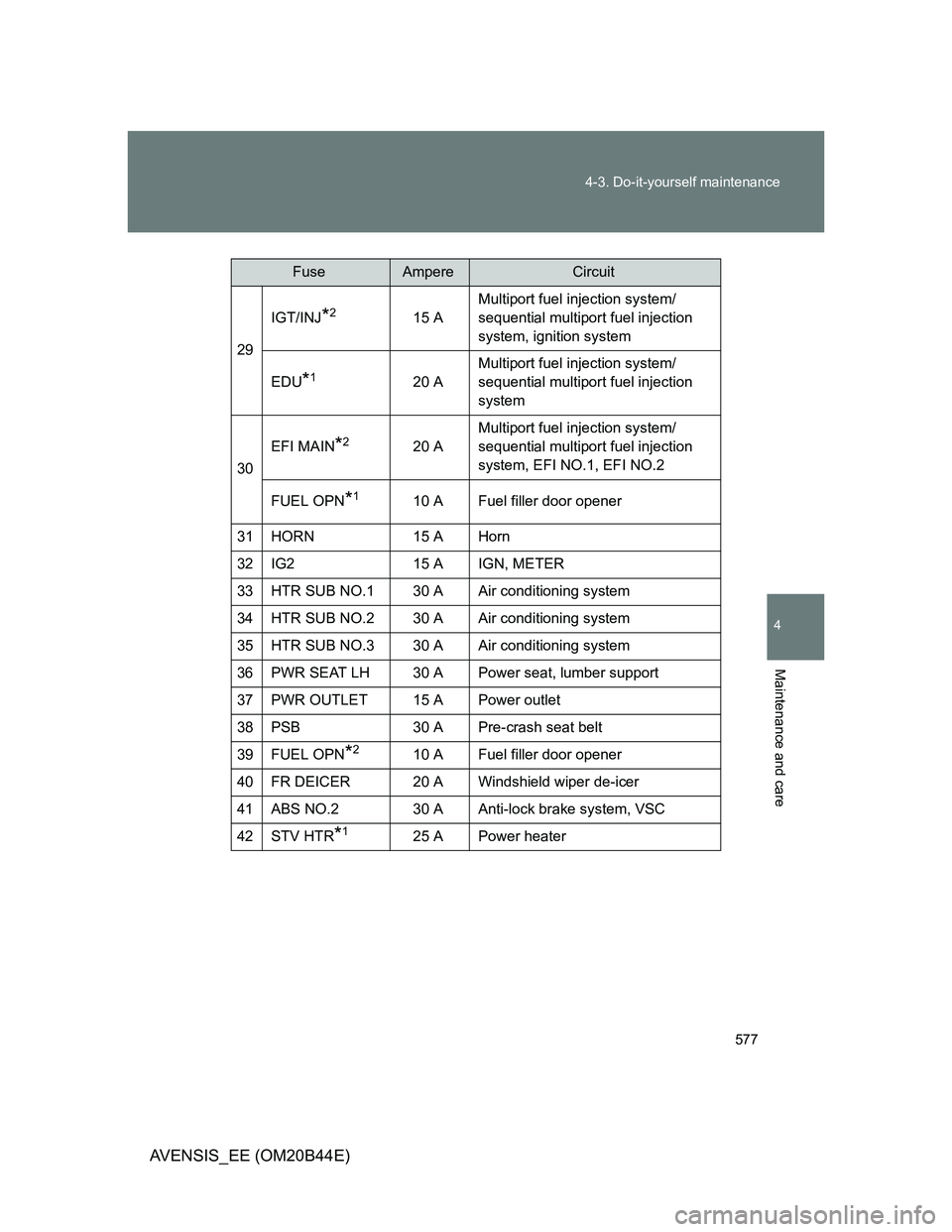

577 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_EE (OM20B44E)
29IGT/INJ
*215 AMultiport fuel injection system/
sequential multiport fuel injection
system, ignition system
EDU
*120 AMultiport fuel injection system/
sequential multiport fuel injection
system
30EFI MAIN
*220 AMultiport fuel injection system/
sequential multiport fuel injection
system, EFI NO.1, EFI NO.2
FUEL OPN
*110 A Fuel filler door opener
31 HORN 15 A Horn
32 IG2 15 A IGN, METER
33 HTR SUB NO.1 30 A Air conditioning system
34 HTR SUB NO.2 30 A Air conditioning system
35 HTR SUB NO.3 30 A Air conditioning system
36 PWR SEAT LH 30 A Power seat, lumber support
37 PWR OUTLET 15 A Power outlet
38 PSB 30 A Pre-crash seat belt
39 FUEL OPN
*210 A Fuel filler door opener
40 FR DEICER 20 A Windshield wiper de-icer
41 ABS NO.2 30 A Anti-lock brake system, VSC
42 STV HTR
*125 A Power heater
FuseAmpereCircuit

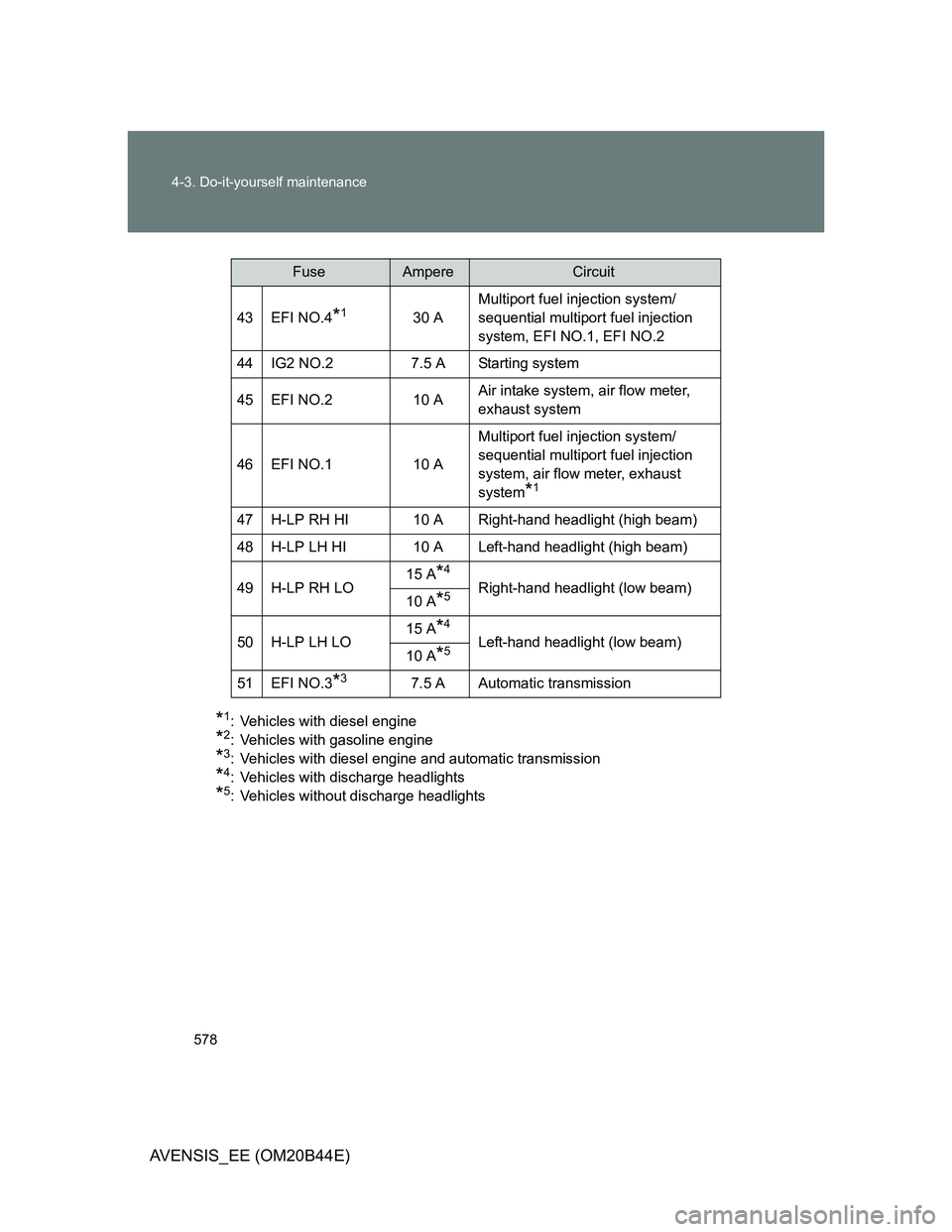

578 4-3. Do-it-yourself maintenance
AVENSIS_EE (OM20B44E)
*1: Vehicles with diesel engine
*2: Vehicles with gasoline engine
*3: Vehicles with diesel engine and automatic transmission
*4: Vehicles with discharge headlights
*5: Vehicles without discharge headlights43 EFI NO.4
*130 AMultiport fuel injection system/
sequential multiport fuel injection
system, EFI NO.1, EFI NO.2
44 IG2 NO.2 7.5 A Starting system
45 EFI NO.2 10 AAir intake system, air flow meter,
exhaust system
46 EFI NO.1 10 AMultiport fuel injection system/
sequential multiport fuel injection
system, air flow meter, exhaust
system
*1
47 H-LP RH HI 10 A Right-hand headlight (high beam)
48 H-LP LH HI 10 A Left-hand headlight (high beam)
49 H-LP RH LO15 A
*4
Right-hand headlight (low beam)
10 A*5
50 H-LP LH LO15 A*4
Left-hand headlight (low beam)
10 A*5
51 EFI NO.3*37.5 A Automatic transmission
FuseAmpereCircuit

579 4-3. Do-it-yourself maintenance
4
Maintenance and care

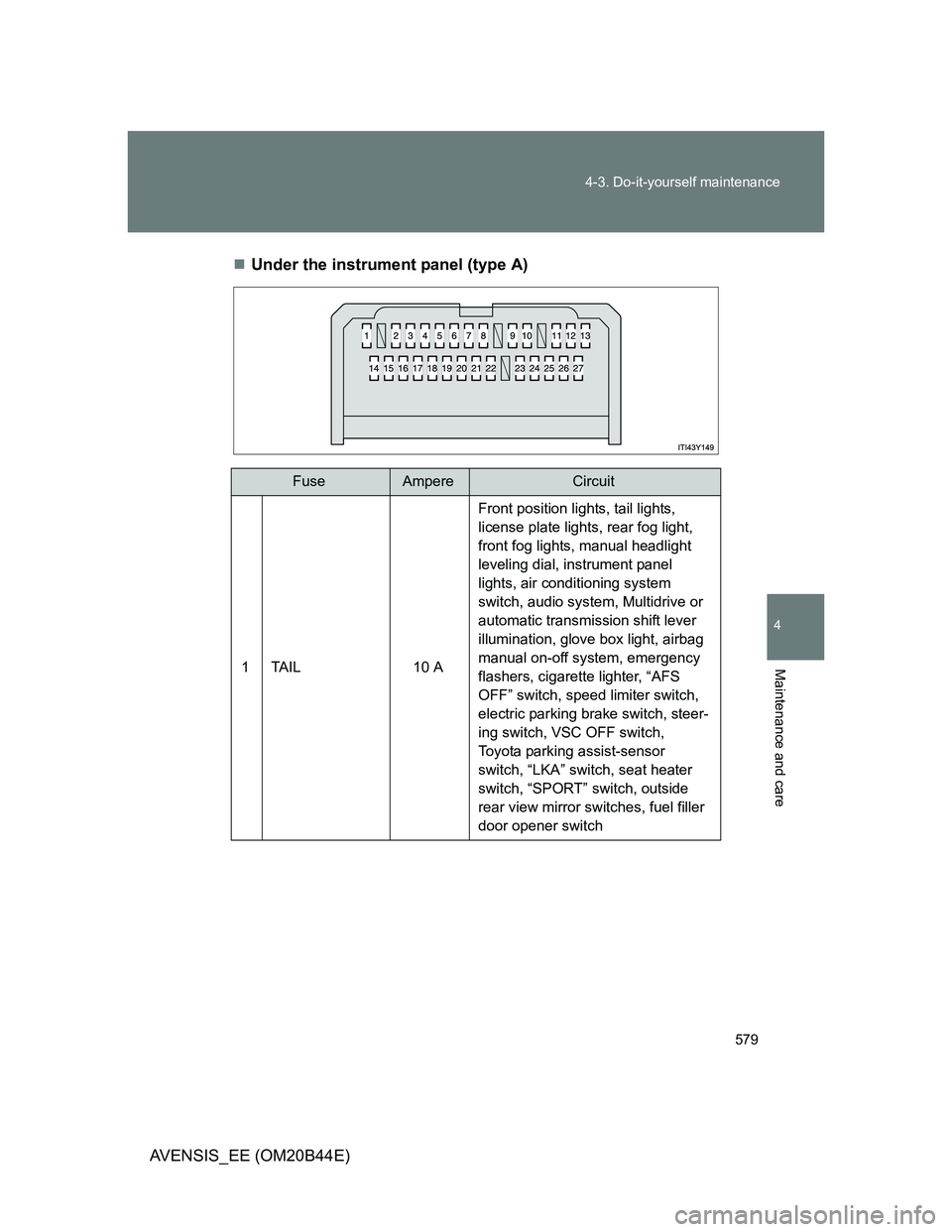

AVENSIS_EE (OM20B44E)Under the instrument panel (type A)
FuseAmpereCircuit
1TAIL 10 AFront position lights, tail lights,
license plate lights, rear fog light,
front fog lights, manual headlight
leveling dial, instrument panel
lights, air conditioning system
switch, audio system, Multidrive or
automatic transmission shift lever
illumination, glove box light, airbag
manual on-off system, emergency
flashers, cigarette lighter, “AFS
OFF” switch, speed limiter switch,
electric parking brake switch, steer-
ing switch, VSC OFF switch,
Toyota parking assist-sensor
switch, “LKA” switch, seat heater
switch, “SPORT” switch, outside
rear view mirror switches, fuel filler
door opener switch

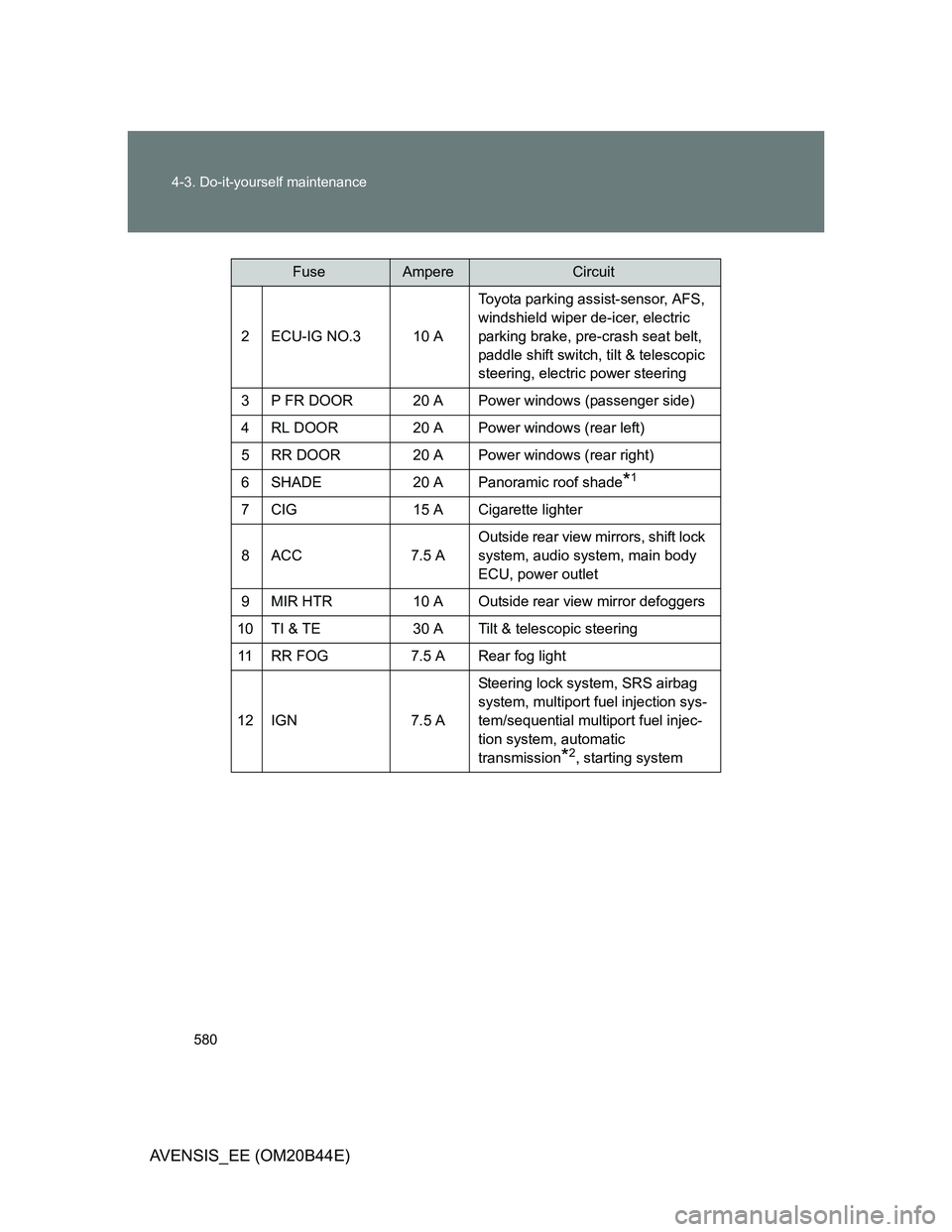

580 4-3. Do-it-yourself maintenance
AVENSIS_EE (OM20B44E)
2 ECU-IG NO.3 10 AToyota parking assist-sensor, AFS,
windshield wiper de-icer, electric
parking brake, pre-crash seat belt,
paddle shift switch, tilt & telescopic
steering, electric power steering
3 P FR DOOR 20 A Power windows (passenger side)
4 RL DOOR 20 A Power windows (rear left)
5 RR DOOR 20 A Power windows (rear right)
6 SHADE 20 A Panoramic roof shade
*1
7 CIG 15 A Cigarette lighter
8ACC 7.5 AOutside rear view mirrors, shift lock
system, audio system, main body
ECU, power outlet
9 MIR HTR 10 A Outside rear view mirror defoggers
10 TI & TE 30 A Tilt & telescopic steering
11 RR FOG 7.5 A Rear fog light
12 IGN 7.5 ASteering lock system, SRS airbag
system, multiport fuel injection sys-
tem/sequential multiport fuel injec-
tion system, automatic
transmission
*2, starting system
FuseAmpereCircuit
