TOYOTA AVENSIS 2013 Owners Manual (in English)

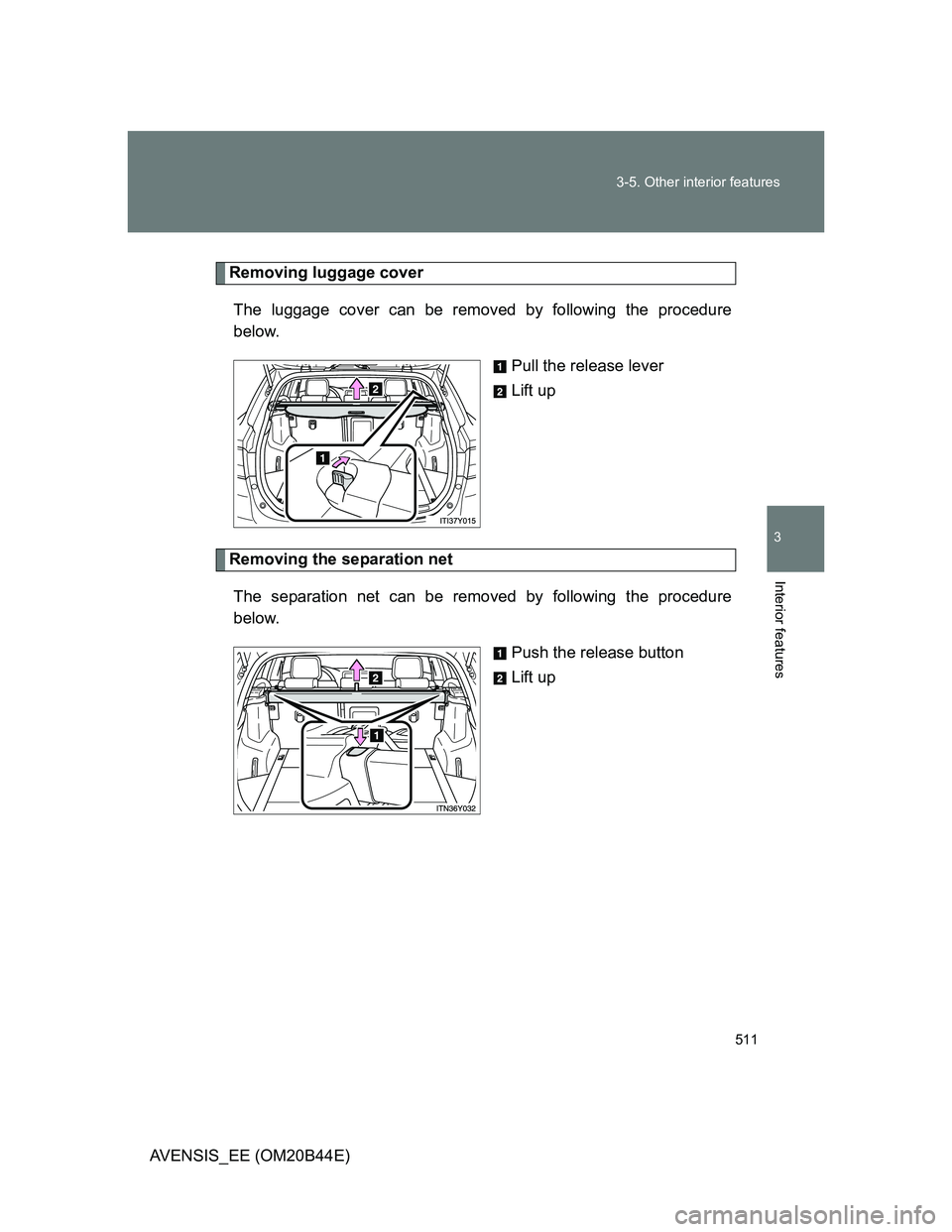

511 3-5. Other interior features
3
Interior features
AVENSIS_EE (OM20B44E)
Removing luggage cover
The luggage cover can be removed by following the procedure
below.
Pull the release lever
Lift up
Removing the separation net
The separation net can be removed by following the procedure
below.
Push the release button
Lift up

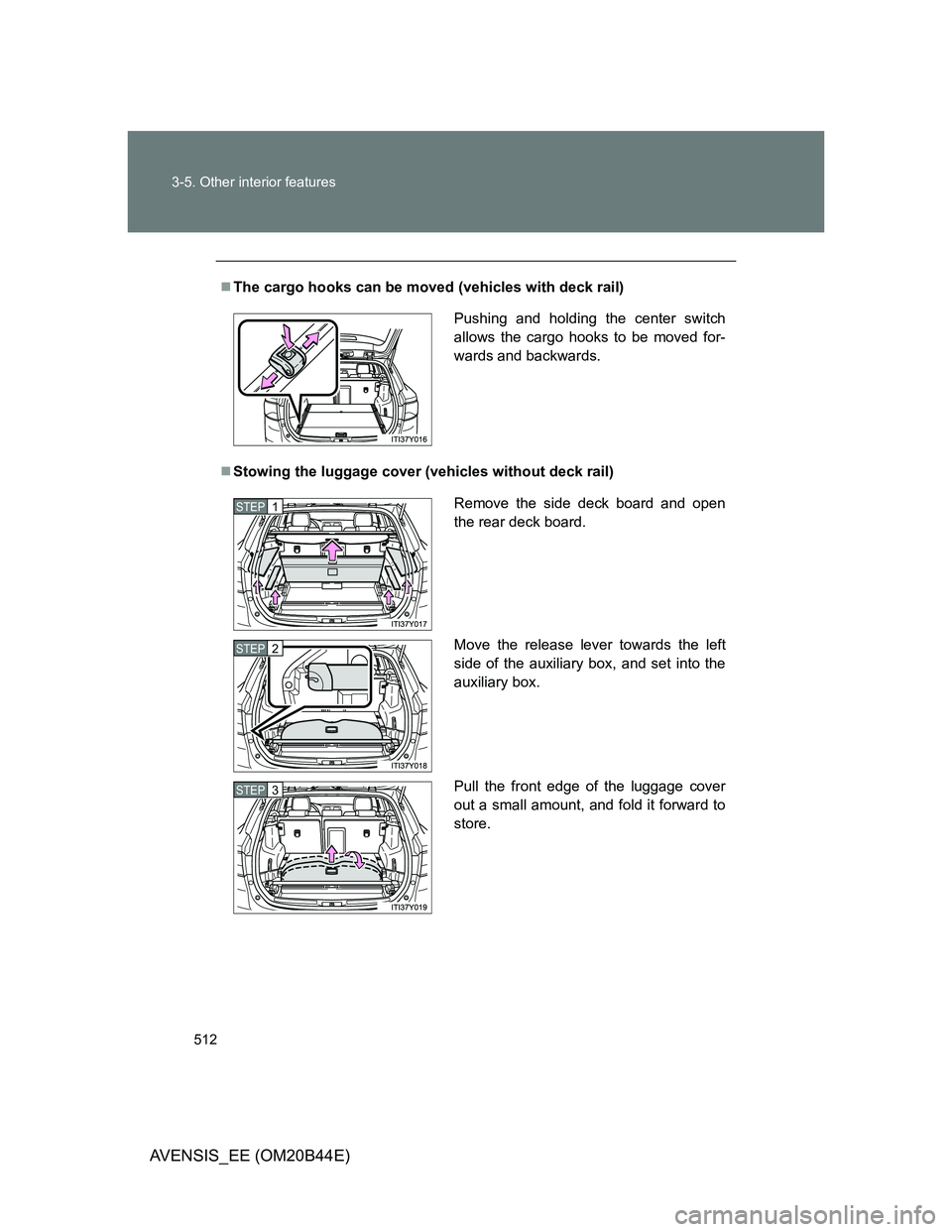

512 3-5. Other interior features
AVENSIS_EE (OM20B44E)
The cargo hooks can be moved (vehicles with deck rail)
Stowing the luggage cover (vehicles without deck rail)
Pushing and holding the center switch
allows the cargo hooks to be moved for-
wards and backwards.
Remove the side deck board and open
the rear deck board.
Move the release lever towards the left
side of the auxiliary box, and set into the
auxiliary box.
Pull the front edge of the luggage cover
out a small amount, and fold it forward to
store.STEP1
STEP2
STEP3

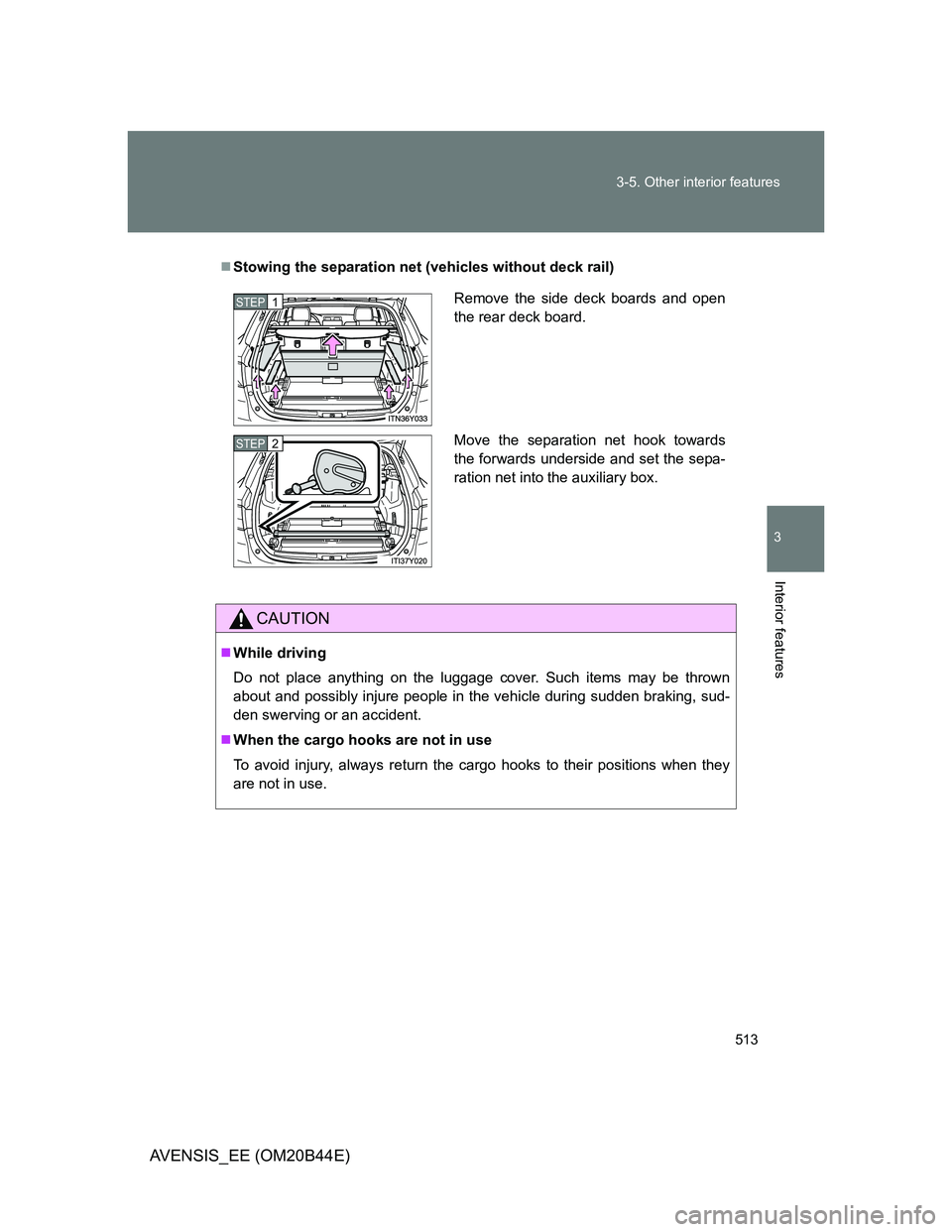

513 3-5. Other interior features
3
Interior features
AVENSIS_EE (OM20B44E)
Stowing the separation net (vehicles without deck rail)
CAUTION
While driving
Do not place anything on the luggage cover. Such items may be thrown
about and possibly injure people in the vehicle during sudden braking, sud-
den swerving or an accident.
When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their positions when they
are not in use.
Remove the side deck boards and open
the rear deck board.
Move the separation net hook towards
the forwards underside and set the sepa-
ration net into the auxiliary box.STEP1
STEP2

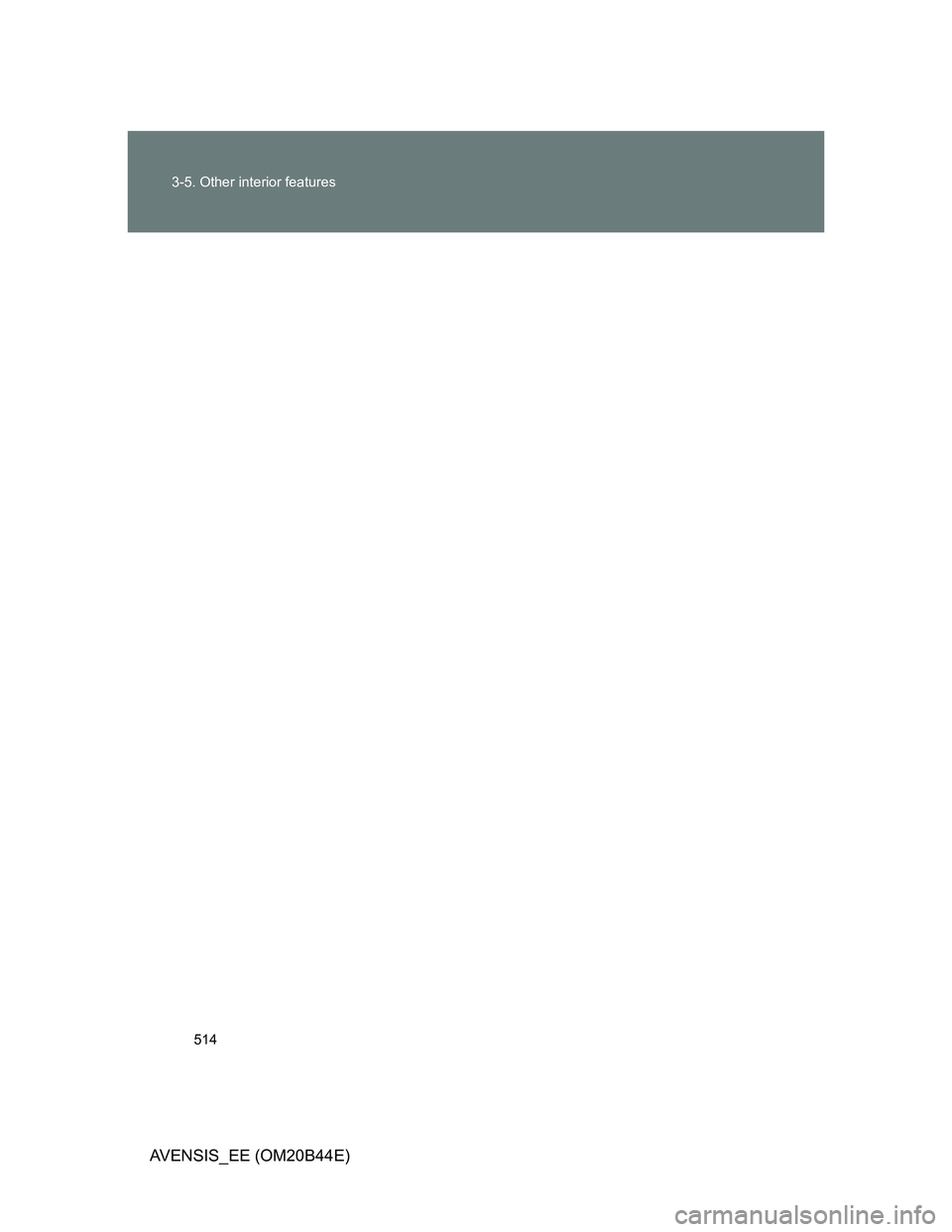

514 3-5. Other interior features
AVENSIS_EE (OM20B44E)

4Maintenance and care
515
AVENSIS_EE (OM20B44E)
4-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ......... 516
Cleaning and protecting
the vehicle interior .......... 521
4-2. Maintenance
Maintenance
requirements................... 524
4-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ..................... 527
Hood ................................. 531
Positioning a floor jack ...... 533
Engine compartment......... 535
Tires .................................. 552
Tire inflation pressure ....... 556
Wheels .............................. 558
Air conditioning filter ......... 560
Key battery........................ 564
Checking and replacing
fuses ............................... 569
Light bulbs ........................ 585

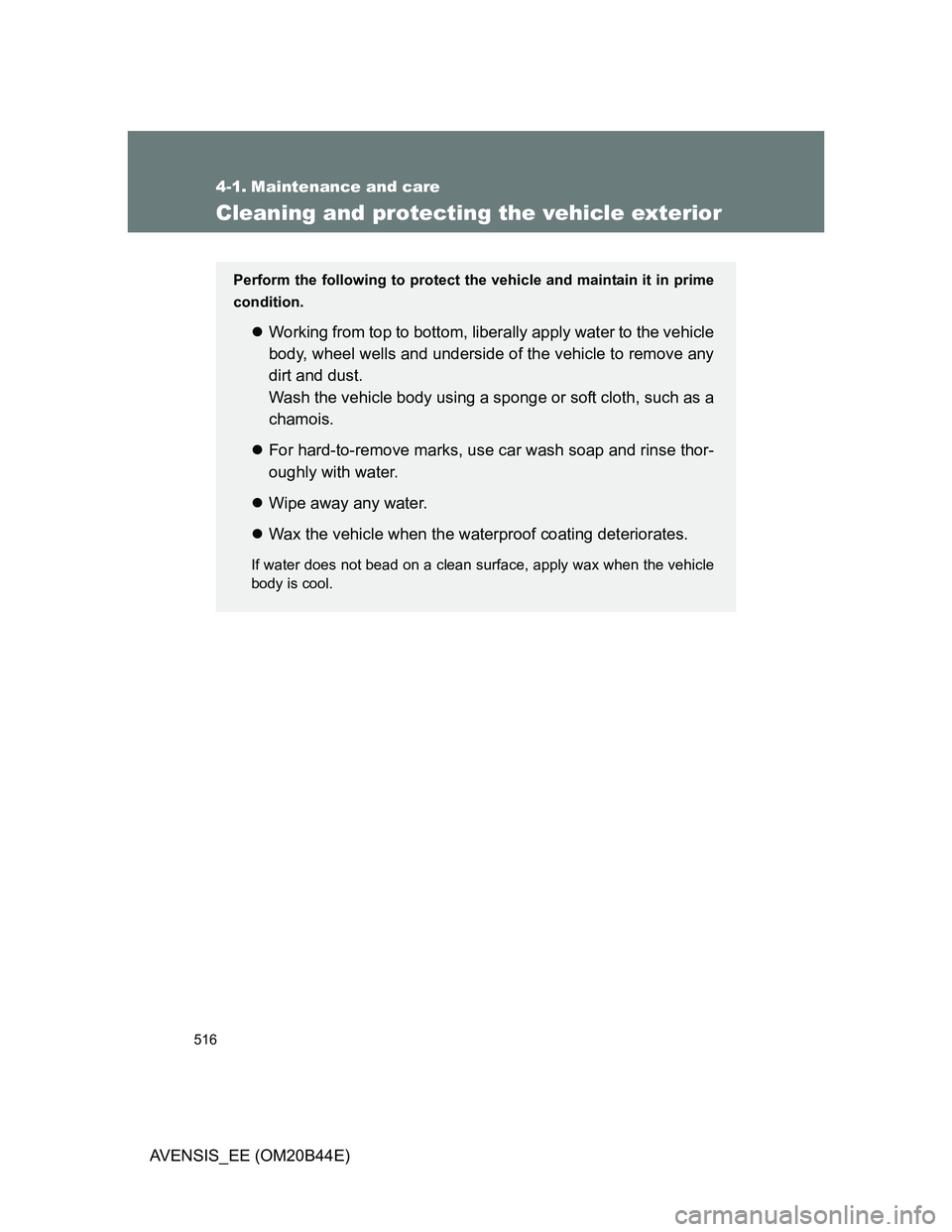

516
AVENSIS_EE (OM20B44E)
4-1. Maintenance and care
Cleaning and protecting the vehicle exterior
Perform the following to protect the vehicle and maintain it in prime
condition.
Working from top to bottom, liberally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any
dirt and dust.
Wash the vehicle body using a sponge or soft cloth, such as a
chamois.
For hard-to-remove marks, use car wash soap and rinse thor-
oughly with water.
Wipe away any water.
Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle
body is cool.

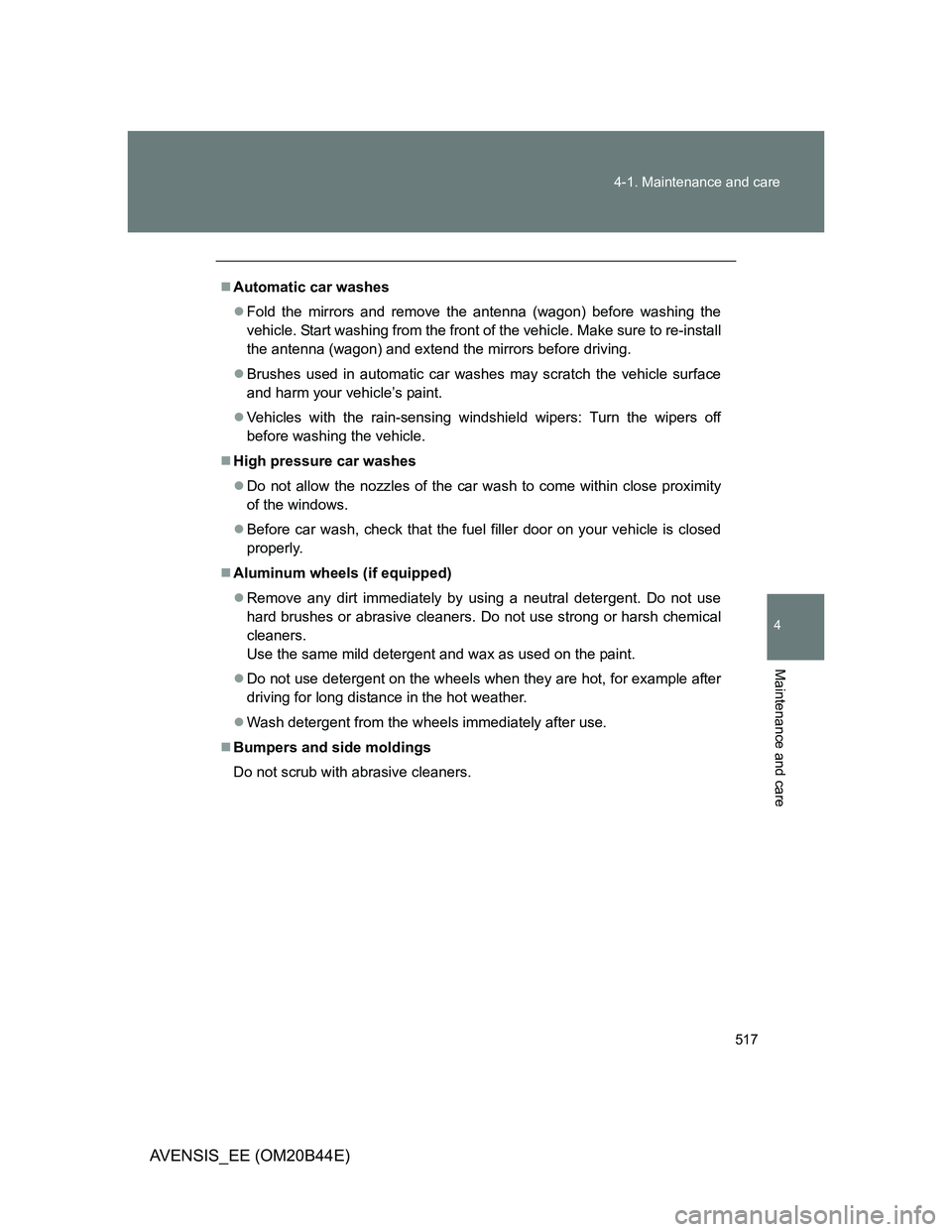

517 4-1. Maintenance and care
4
Maintenance and care
AVENSIS_EE (OM20B44E)
Automatic car washes
Fold the mirrors and remove the antenna (wagon) before washing the
vehicle. Start washing from the front of the vehicle. Make sure to re-install
the antenna (wagon) and extend the mirrors before driving.
Brushes used in automatic car washes may scratch the vehicle surface
and harm your vehicle’s paint.
Vehicles with the rain-sensing windshield wipers: Turn the wipers off
before washing the vehicle.
High pressure car washes
Do not allow the nozzles of the car wash to come within close proximity
of the windows.
Before car wash, check that the fuel filler door on your vehicle is closed
properly.
Aluminum wheels (if equipped)
Remove any dirt immediately by using a neutral detergent. Do not use
hard brushes or abrasive cleaners. Do not use strong or harsh chemical
cleaners.
Use the same mild detergent and wax as used on the paint.
Do not use detergent on the wheels when they are hot, for example after
driving for long distance in the hot weather.
Wash detergent from the wheels immediately after use.
Bumpers and side moldings
Do not scrub with abrasive cleaners.

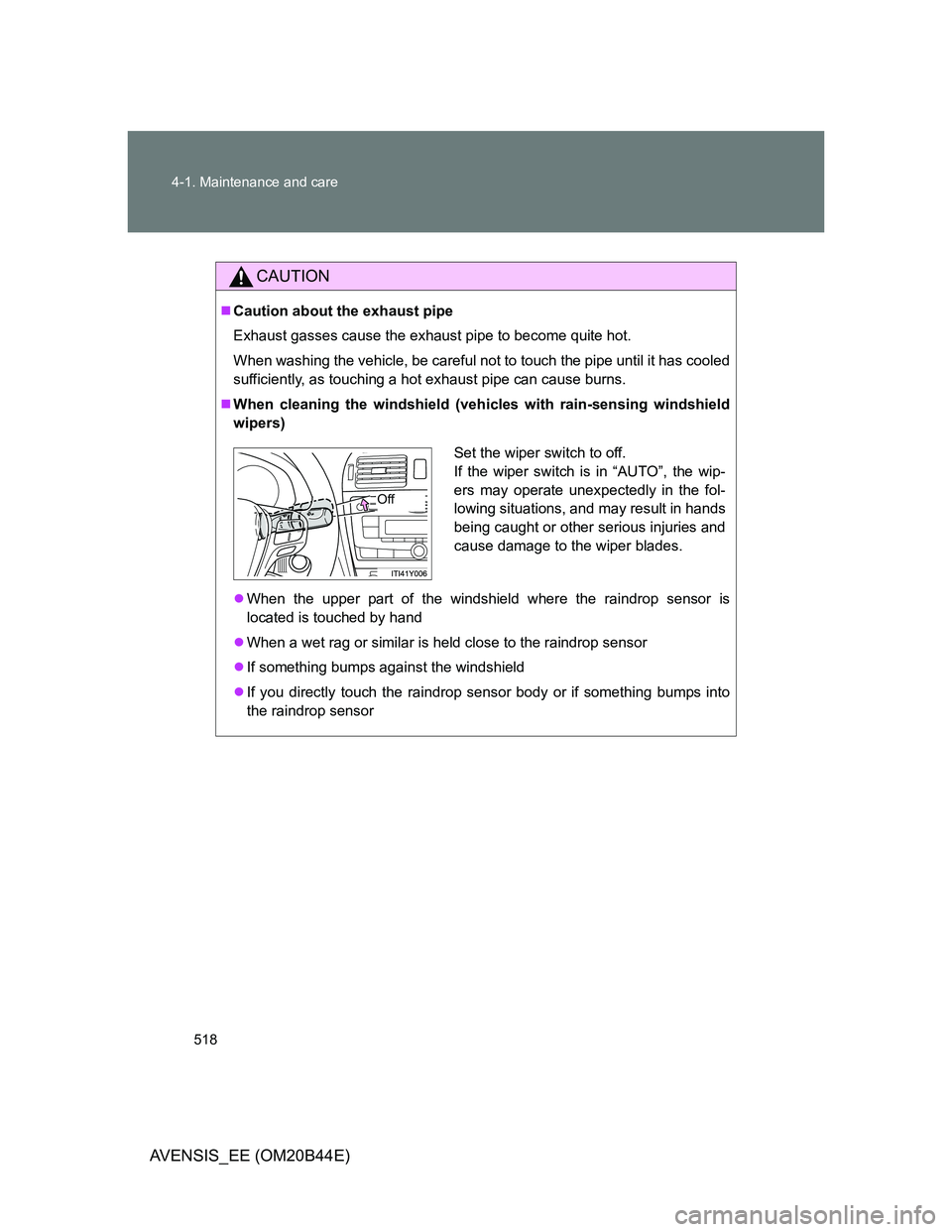

518 4-1. Maintenance and care
AVENSIS_EE (OM20B44E)
CAUTION
Caution about the exhaust pipe
Exhaust gasses cause the exhaust pipe to become quite hot.
When washing the vehicle, be careful not to touch the pipe until it has cooled
sufficiently, as touching a hot exhaust pipe can cause burns.
When cleaning the windshield (vehicles with rain-sensing windshield
wipers)
When the upper part of the windshield where the raindrop sensor is
located is touched by hand
When a wet rag or similar is held close to the raindrop sensor
If something bumps against the windshield
If you directly touch the raindrop sensor body or if something bumps into
the raindrop sensor
Set the wiper switch to off.
If the wiper switch is in “AUTO”, the wip-
ers may operate unexpectedly in the fol-
lowing situations, and may result in hands
being caught or other serious injuries and
cause damage to the wiper blades.
Off

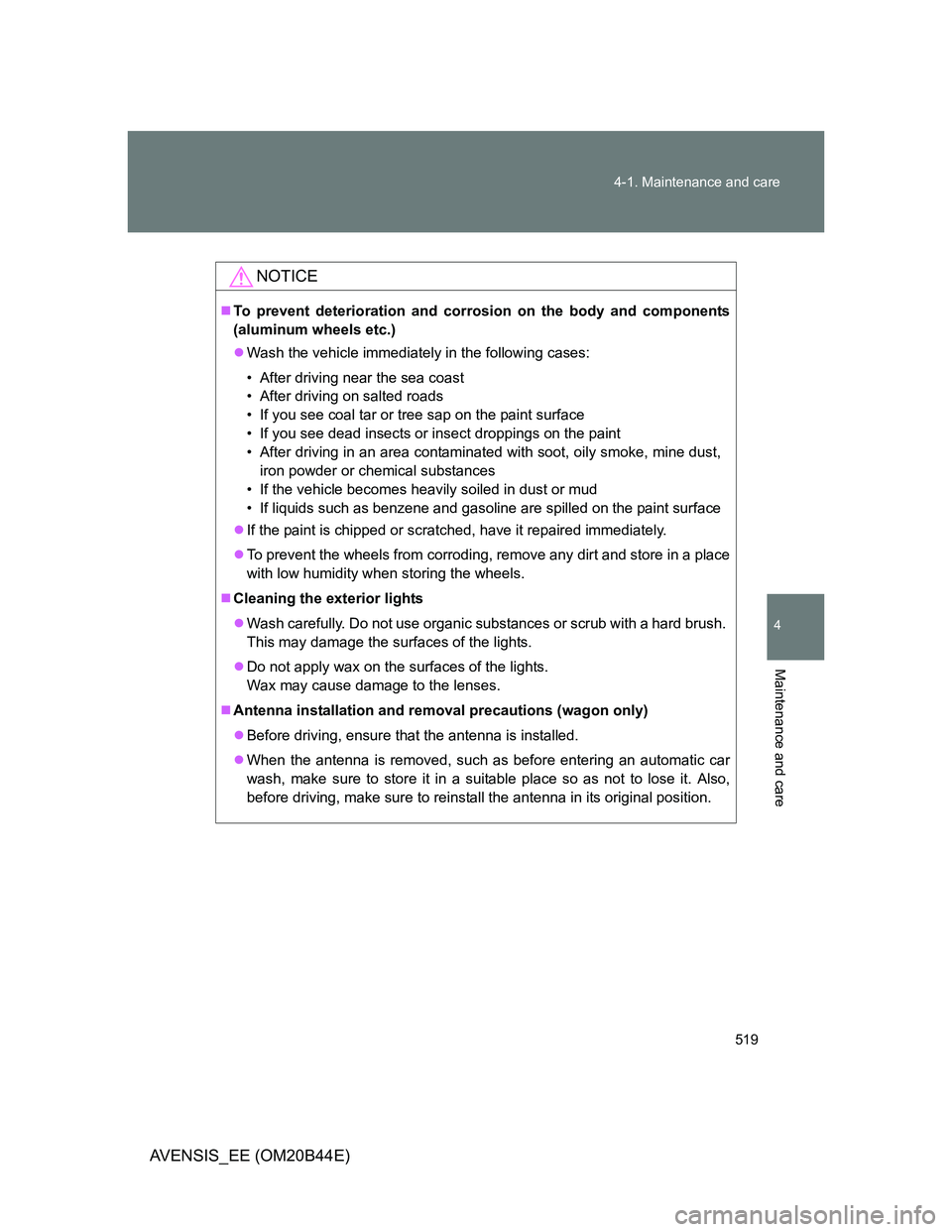

519 4-1. Maintenance and care
4
Maintenance and care
AVENSIS_EE (OM20B44E)
NOTICE
To prevent deterioration and corrosion on the body and components
(aluminum wheels etc.)
Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If you see coal tar or tree sap on the paint surface
• If you see dead insects or insect droppings on the paint
• After driving in an area contaminated with soot, oily smoke, mine dust,
iron powder or chemical substances
• If the vehicle becomes heavily soiled in dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface
If the paint is chipped or scratched, have it repaired immediately.
To prevent the wheels from corroding, remove any dirt and store in a place
with low humidity when storing the wheels.
Cleaning the exterior lights
Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.
Do not apply wax on the surfaces of the lights.
Wax may cause damage to the lenses.
Antenna installation and removal precautions (wagon only)
Before driving, ensure that the antenna is installed.
When the antenna is removed, such as before entering an automatic car
wash, make sure to store it in a suitable place so as not to lose it. Also,
before driving, make sure to reinstall the antenna in its original position.

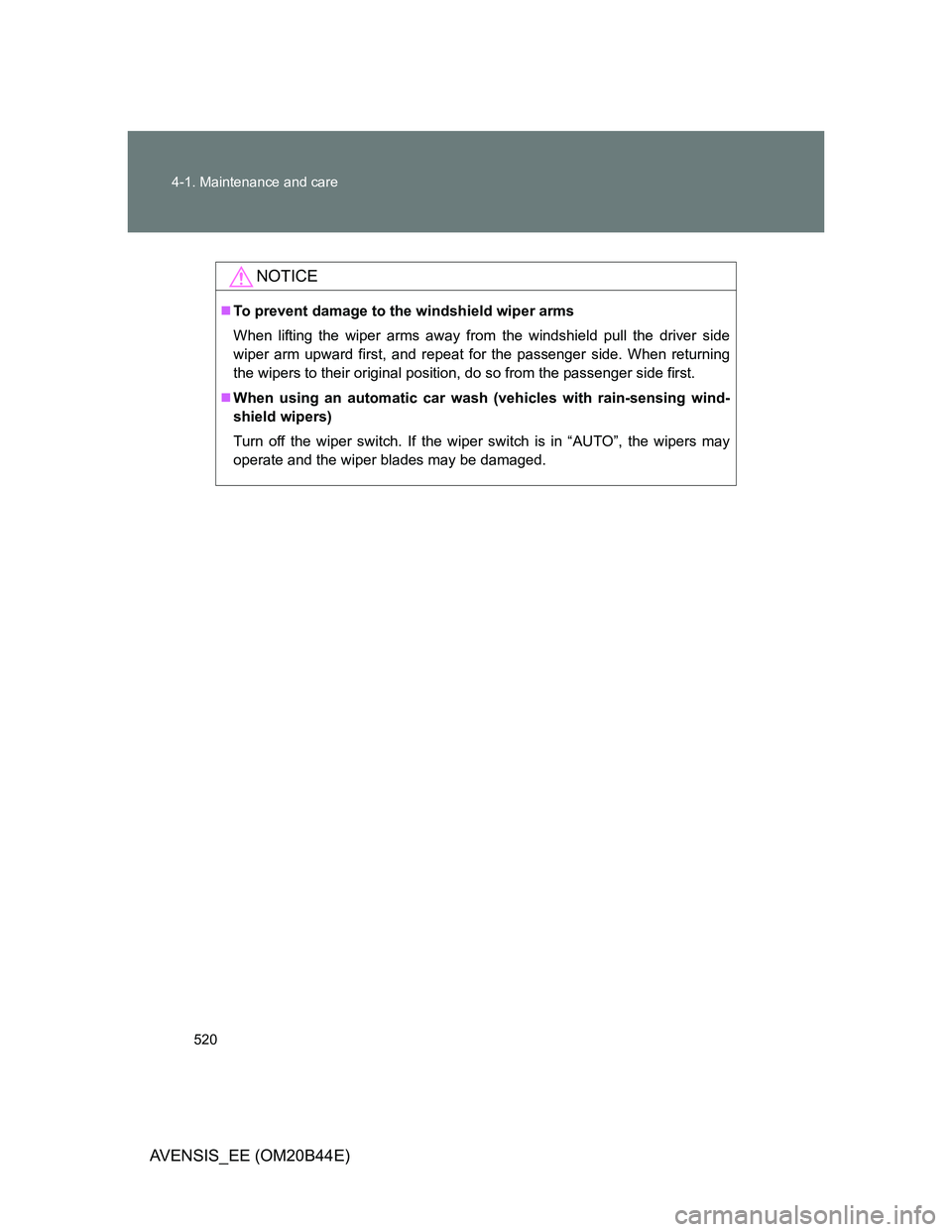

520 4-1. Maintenance and care
AVENSIS_EE (OM20B44E)
NOTICE
To prevent damage to the windshield wiper arms
When lifting the wiper arms away from the windshield pull the driver side
wiper arm upward first, and repeat for the passenger side. When returning
the wipers to their original position, do so from the passenger side first.
When using an automatic car wash (vehicles with rain-sensing wind-
shield wipers)
Turn off the wiper switch. If the wiper switch is in “AUTO”, the wipers may
operate and the wiper blades may be damaged.
