Page 251 of 776

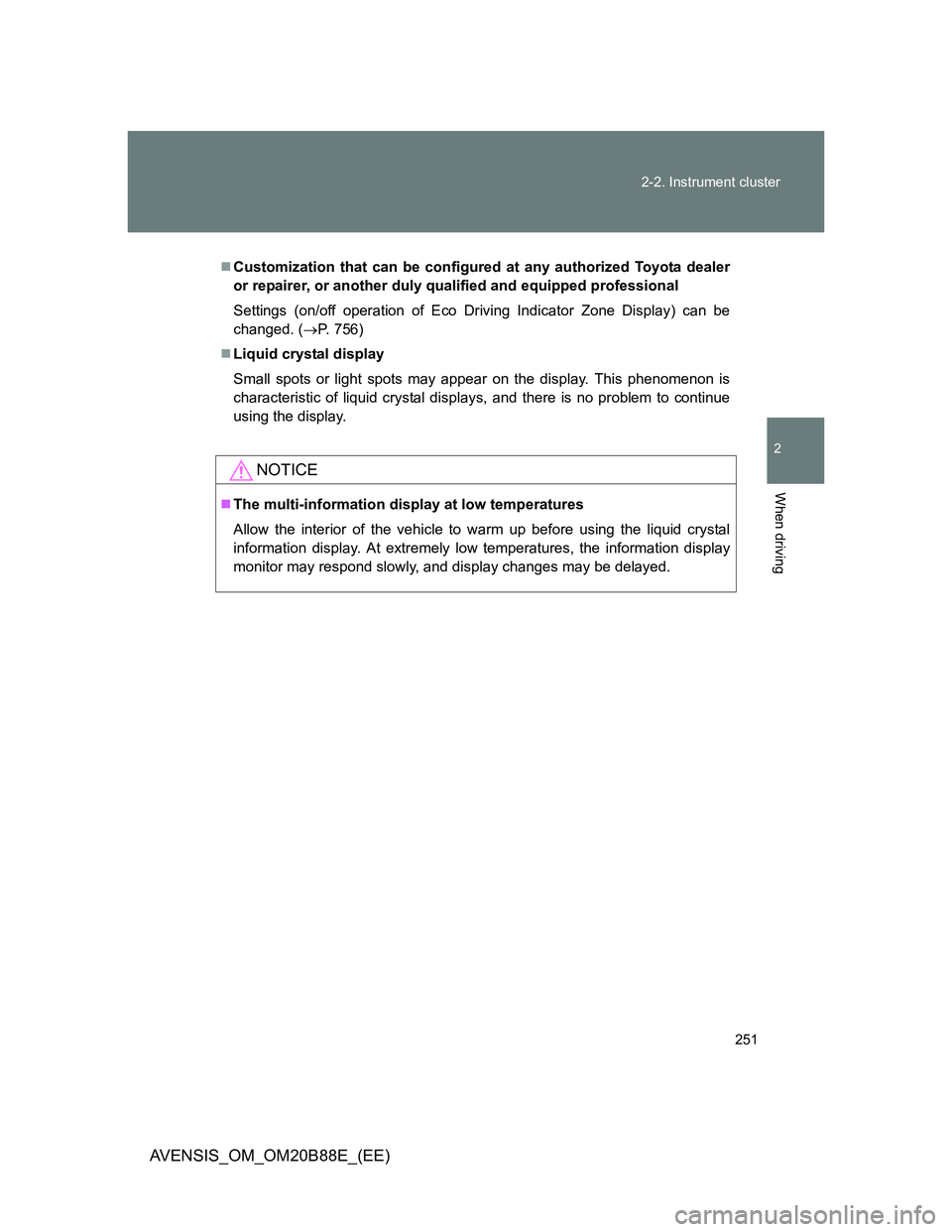

251 2-2. Instrument cluster
2
When driving
AVENSIS_OM_OM20B88E_(EE)
Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
Settings (on/off operation of Eco Driving Indicator Zone Display) can be
changed. (P. 756)
Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem to continue
using the display.
NOTICE
The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
Page 252 of 776

252
AVENSIS_OM_OM20B88E_(EE)
2-3. Operating the lights and wipers

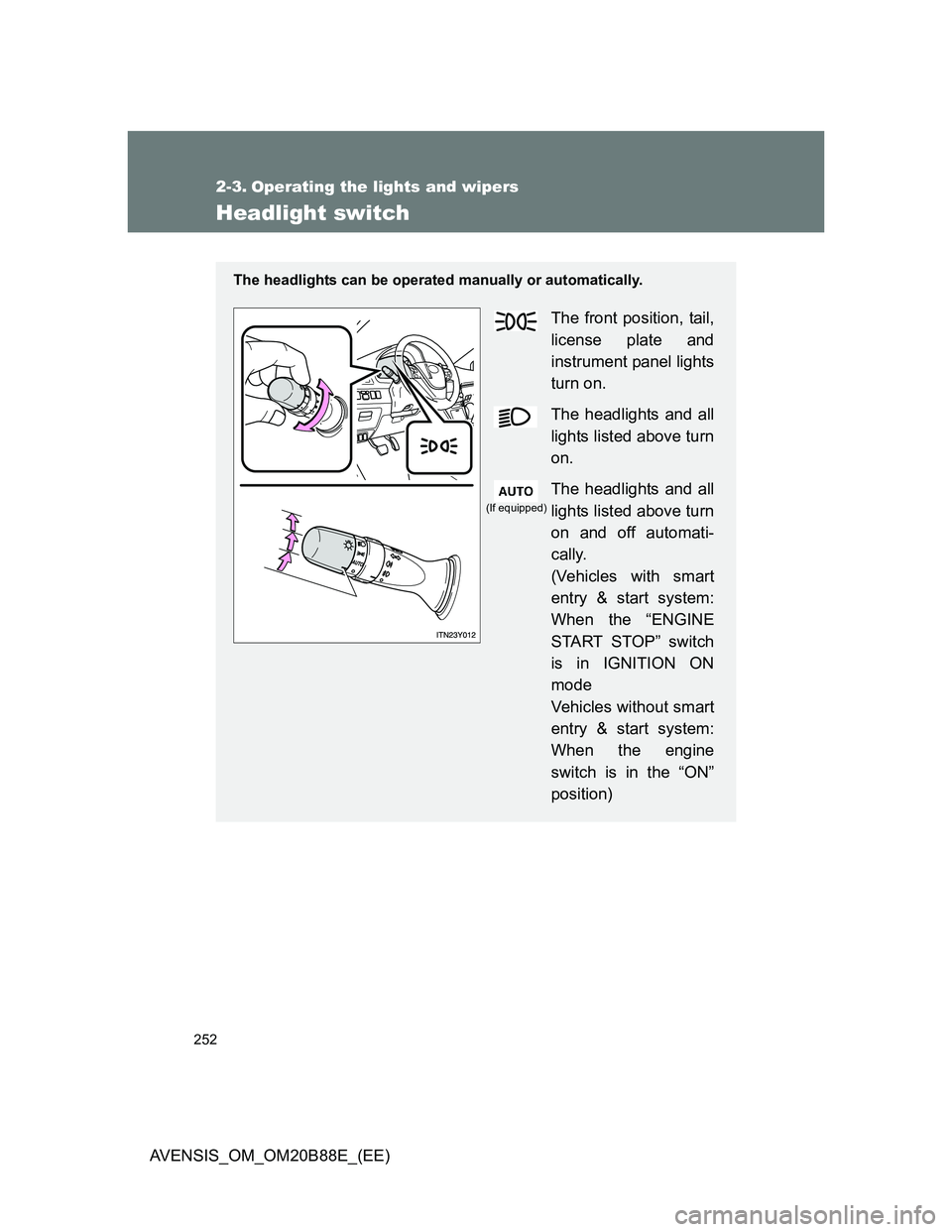

Headlight switch
The headlights can be operated manually or automatically.
The front position, tail,
license plate and
instrument panel lights
turn on.
The headlights and all
lights listed above turn
on.
The headlights and all
lights listed above turn
on and off automati-
cally.
(Vehicles with smart
entry & start system:
When the “ENGINE
START STOP” switch
is in IGNITION ON
mode
Vehicles without smart
entry & start system:
When the engine
switch is in the “ON”
position)
(If equipped)
Page 253 of 776

253 2-3. Operating the lights and wipers
2
When driving
AVENSIS_OM_OM20B88E_(EE)

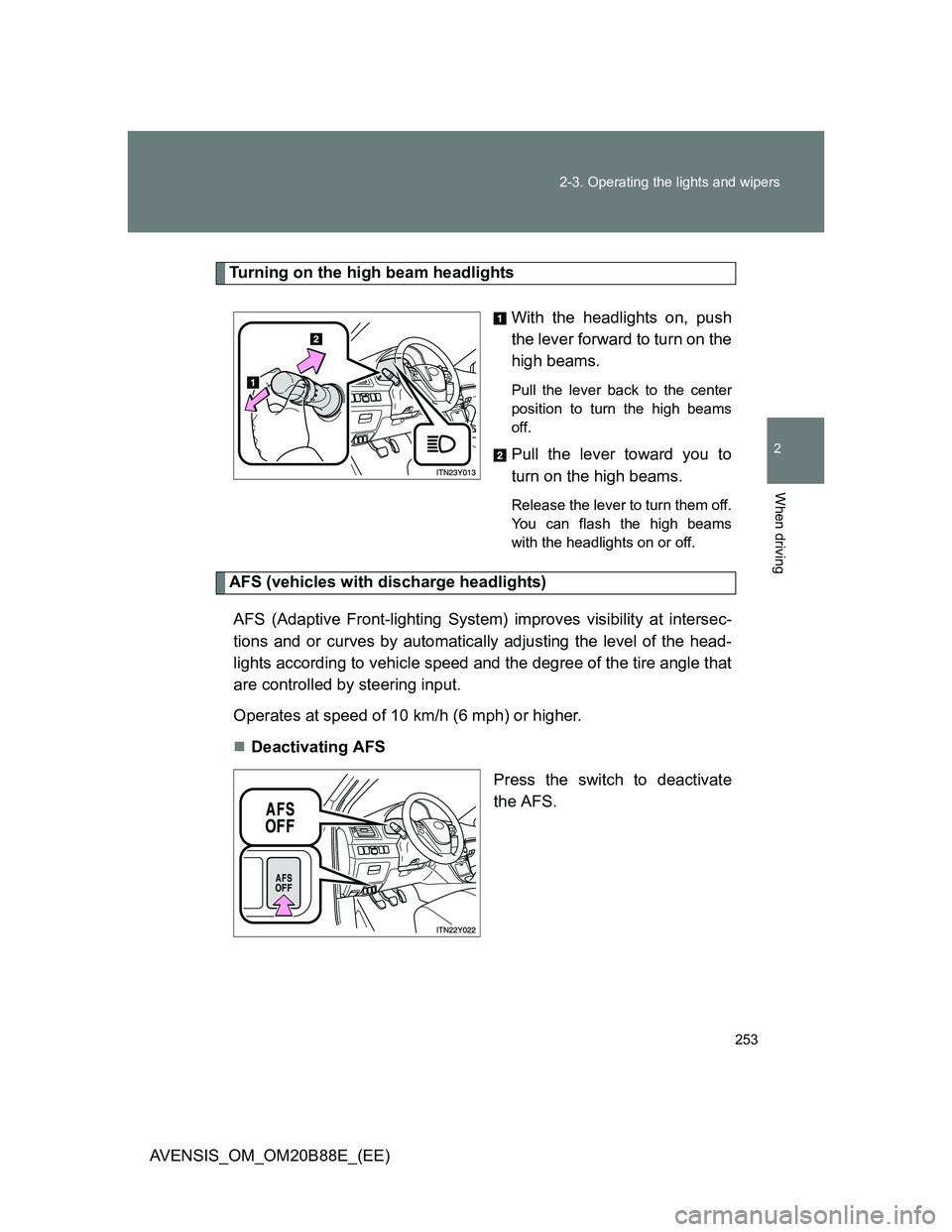

Turning on the high beam headlights
With the headlights on, push
the lever forward to turn on the
high beams.
Pull the lever back to the center
position to turn the high beams
off.
Pull the lever toward you to
turn on the high beams.
Release the lever to turn them off.
You can flash the high beams
with the headlights on or off.
AFS (vehicles with discharge headlights)
AFS (Adaptive Front-lighting System) improves visibility at intersec-
tions and or curves by automatically adjusting the level of the head-
lights according to vehicle speed and the degree of the tire angle that
are controlled by steering input.
Operates at speed of 10 km/h (6 mph) or higher.
Deactivating AFS
Press the switch to deactivate
the AFS.
Page 254 of 776

254 2-3. Operating the lights and wipers
AVENSIS_OM_OM20B88E_(EE)

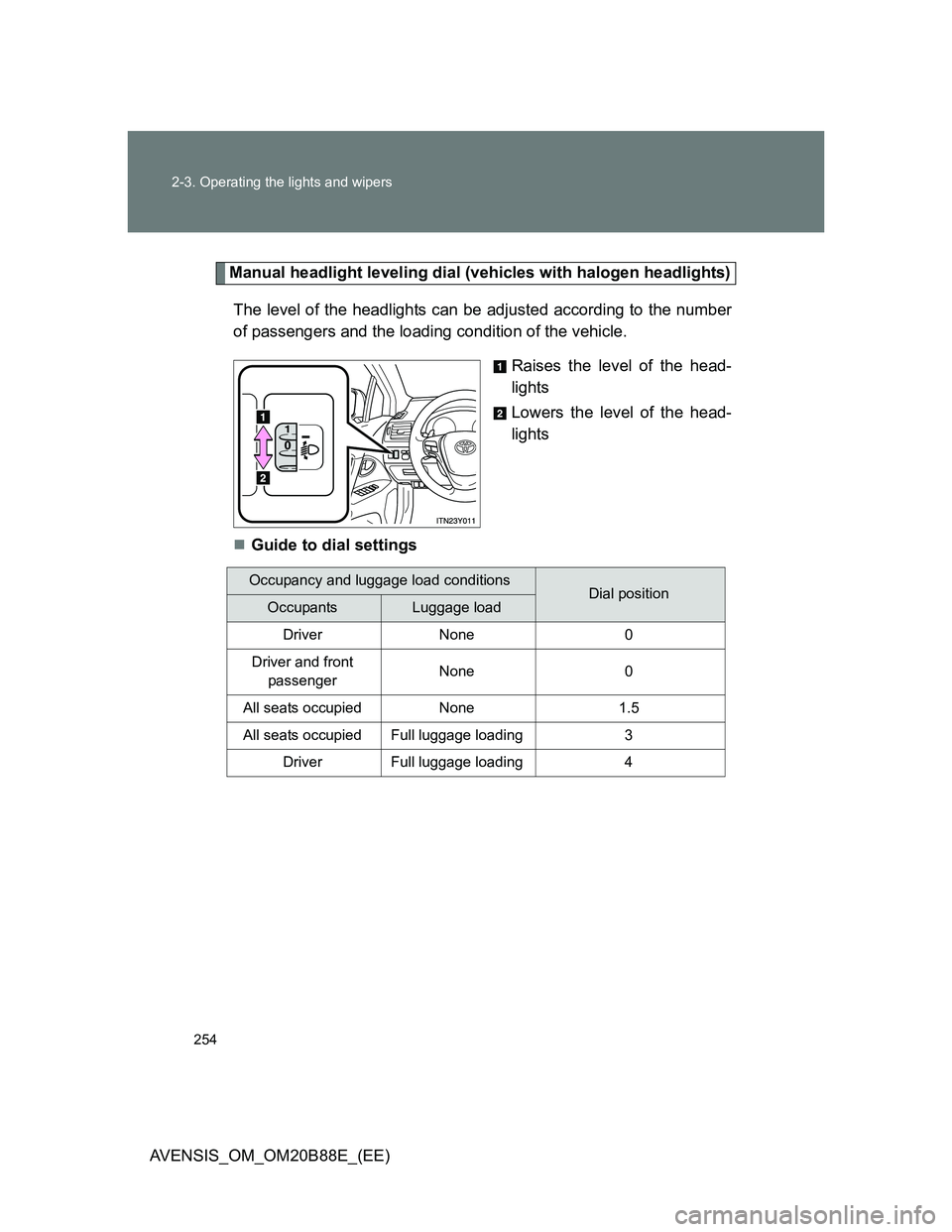

Manual headlight leveling dial (vehicles with halogen headlights)
The level of the headlights can be adjusted according to the number
of passengers and the loading condition of the vehicle.
Raises the level of the head-
lights
Lowers the level of the head-
lights
Guide to dial settings
Occupancy and luggage load conditionsDial positionOccupantsLuggage load
Driver None 0
Driver and front
passengerNone 0
All seats occupied None 1.5
All seats occupied Full luggage loading 3
Driver Full luggage loading 4
Page 255 of 776

255 2-3. Operating the lights and wipers
2
When driving
AVENSIS_OM_OM20B88E_(EE)

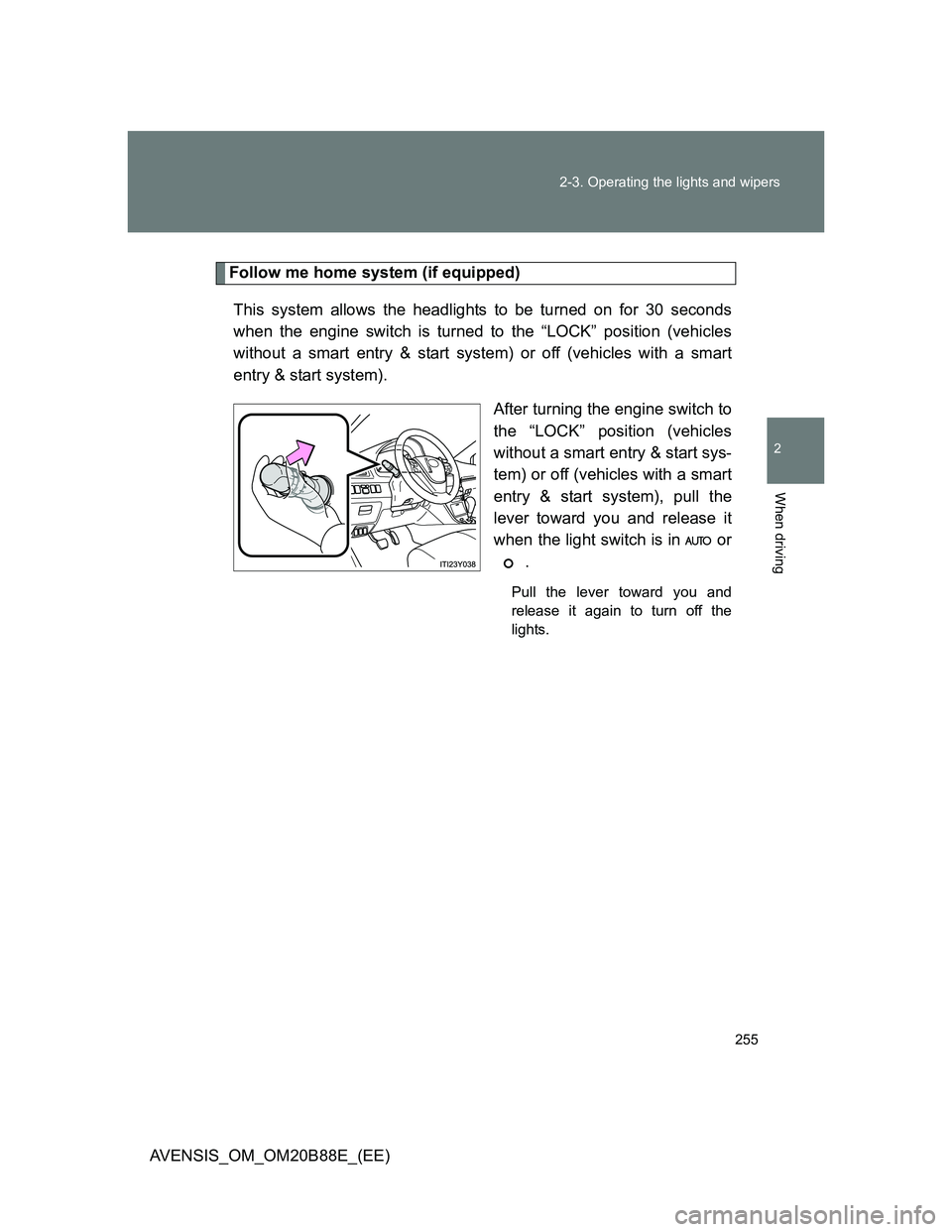

Follow me home system (if equipped)
This system allows the headlights to be turned on for 30 seconds
when the engine switch is turned to the “LOCK” position (vehicles
without a smart entry & start system) or off (vehicles with a smart
entry & start system).
After turning the engine switch to
the “LOCK” position (vehicles
without a smart entry & start sys-
tem) or off (vehicles with a smart
entry & start system), pull the
lever toward you and release it
when the light switch is in or
.
Pull the lever toward you and
release it again to turn off the
lights.
Page 256 of 776

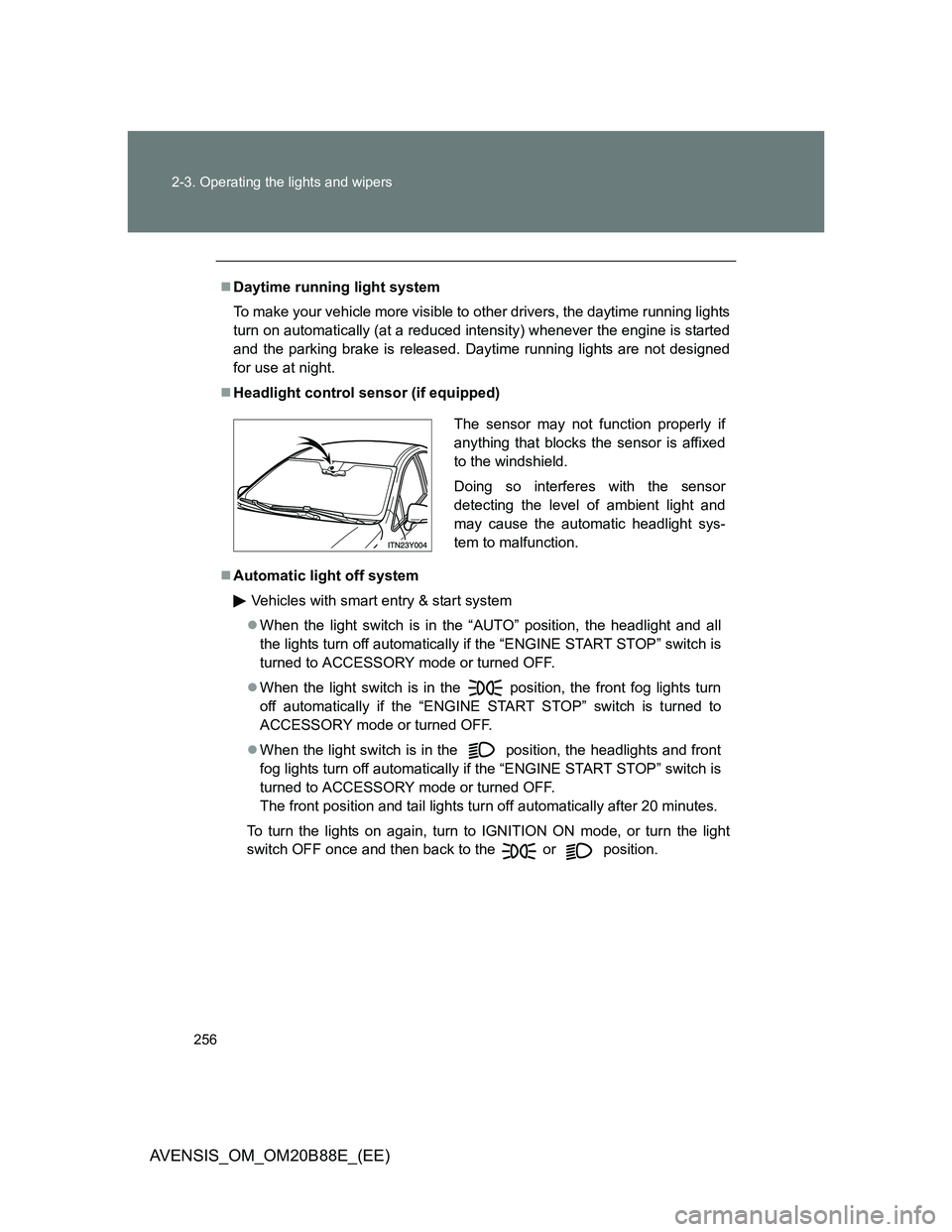

256 2-3. Operating the lights and wipers
AVENSIS_OM_OM20B88E_(EE)
Daytime running light system
To make your vehicle more visible to other drivers, the daytime running lights
turn on automatically (at a reduced intensity) whenever the engine is started
and the parking brake is released. Daytime running lights are not designed
for use at night.
Headlight control sensor (if equipped)
Automatic light off system
Vehicles with smart entry & start system
When the light switch is in the “AUTO” position, the headlight and all
the lights turn off automatically if the “ENGINE START STOP” switch is
turned to ACCESSORY mode or turned OFF.
When the light switch is in the position, the front fog lights turn
off automatically if the “ENGINE START STOP” switch is turned to
ACCESSORY mode or turned OFF.
When the light switch is in the
position, the headlights and front
fog lights turn off automatically if the “ENGINE START STOP” switch is
turned to ACCESSORY mode or turned OFF.
The front position and tail lights turn off automatically after 20 minutes.
To turn the lights on again, turn to IGNITION ON mode, or turn the light
switch OFF once and then back to the or position.
The sensor may not function properly if
anything that blocks the sensor is affixed
to the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.
Page 257 of 776

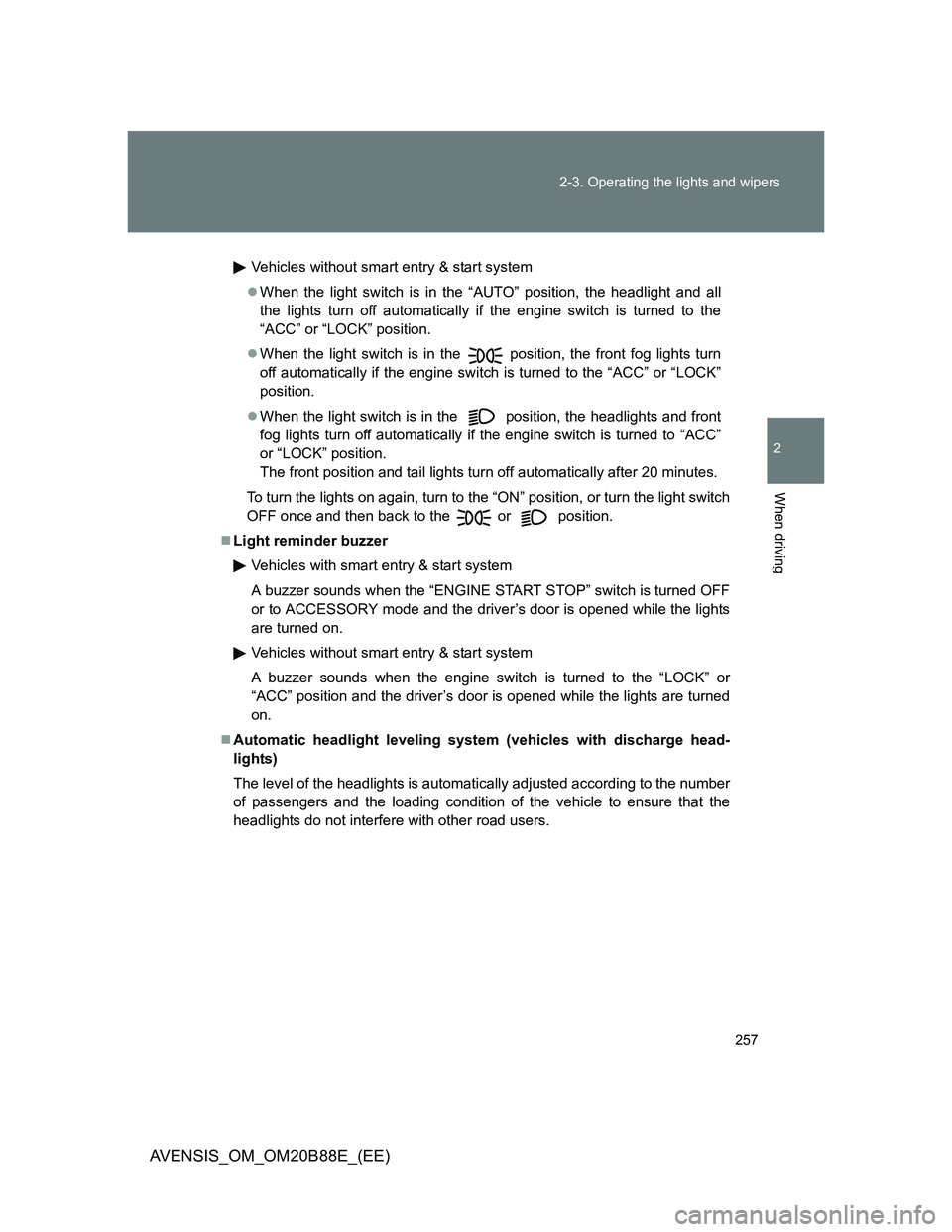

257 2-3. Operating the lights and wipers
2
When driving
AVENSIS_OM_OM20B88E_(EE)
Vehicles without smart entry & start system
When the light switch is in the “AUTO” position, the headlight and all
the lights turn off automatically if the engine switch is turned to the
“ACC” or “LOCK” position.
When the light switch is in the position, the front fog lights turn
off automatically if the engine switch is turned to the “ACC” or “LOCK”
position.
When the light switch is in the
position, the headlights and front
fog lights turn off automatically if the engine switch is turned to “ACC”
or “LOCK” position.
The front position and tail lights turn off automatically after 20 minutes.
To turn the lights on again, turn to the “ON” position, or turn the light switch
OFF once and then back to the or position.
Light reminder buzzer
Vehicles with smart entry & start system
A buzzer sounds when the “ENGINE START STOP” switch is turned OFF
or to ACCESSORY mode and the driver’s door is opened while the lights
are turned on.
Vehicles without smart entry & start system
A buzzer sounds when the engine switch is turned to the “LOCK” or
“ACC” position and the driver’s door is opened while the lights are turned
on.
Automatic headlight leveling system (vehicles with discharge head-
lights)
The level of the headlights is automatically adjusted according to the number
of passengers and the loading condition of the vehicle to ensure that the
headlights do not interfere with other road users.
Page 258 of 776

258 2-3. Operating the lights and wipers
AVENSIS_OM_OM20B88E_(EE)

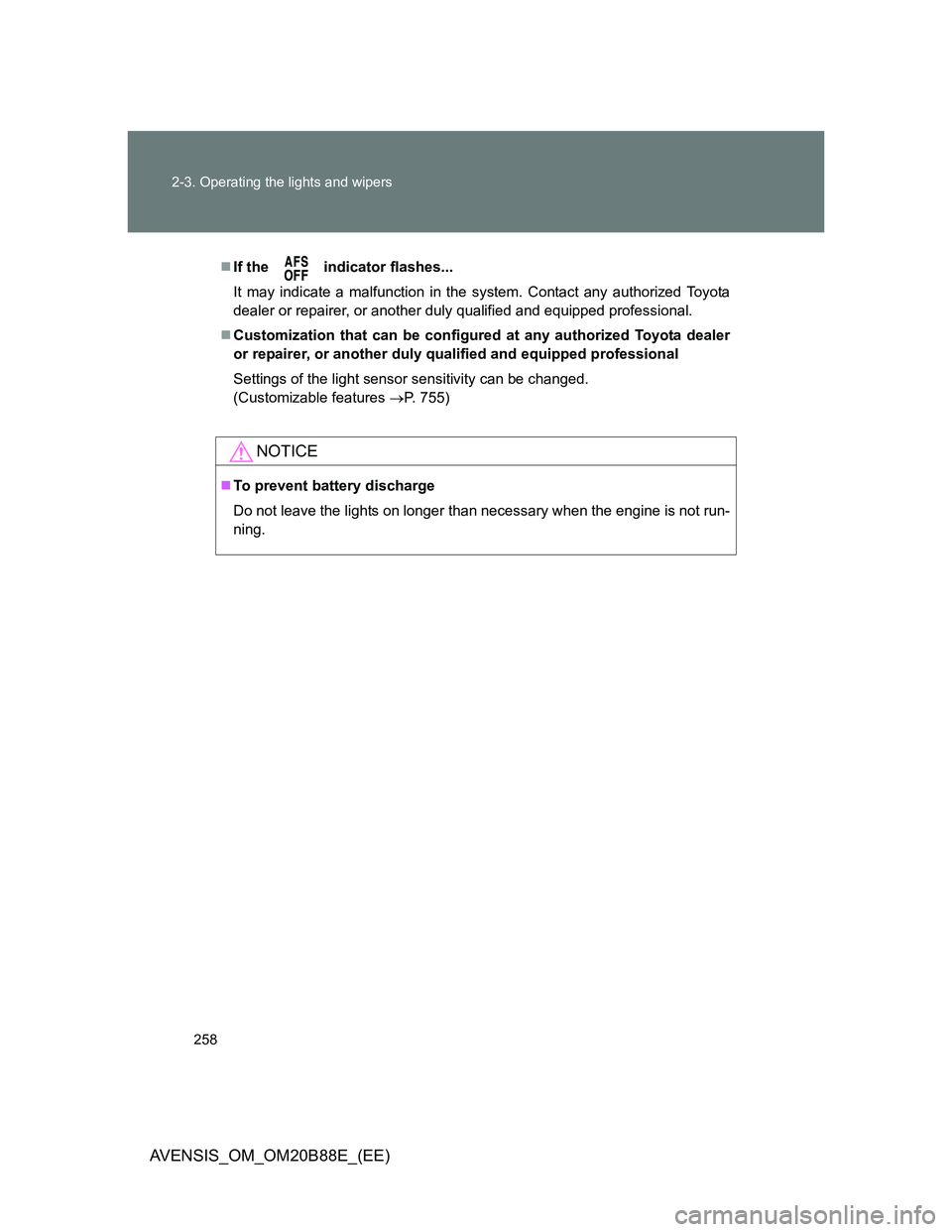

If the indicator flashes...
It may indicate a malfunction in the system. Contact any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
Settings of the light sensor sensitivity can be changed.
(Customizable features P. 755)
NOTICE
To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not run-
ning.
Page 259 of 776

259
2-3. Operating the lights and wipers
2
When driving
AVENSIS_OM_OM20B88E_(EE)

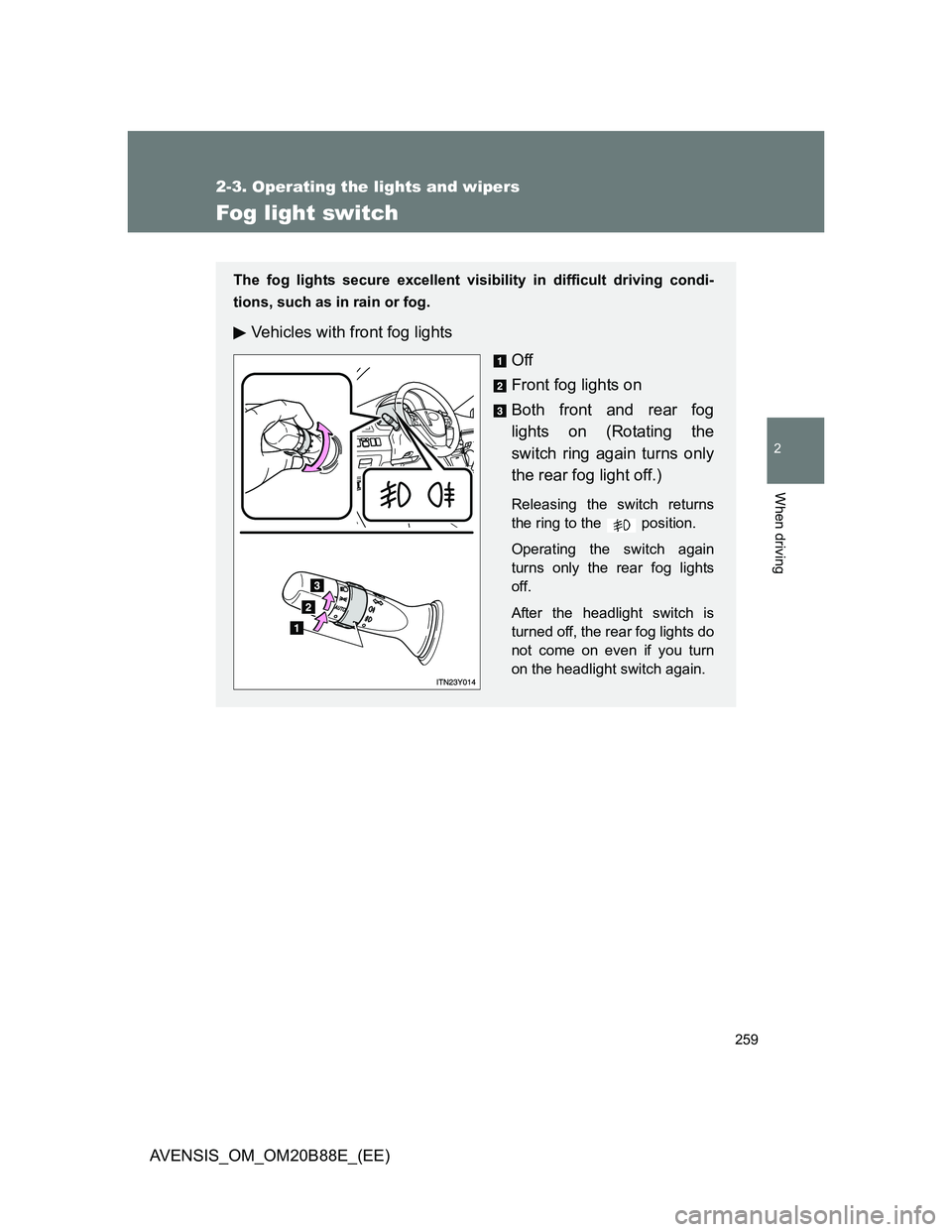

Fog light switch
The fog lights secure excellent visibility in difficult driving condi-
tions, such as in rain or fog.
Vehicles with front fog lights
Off
Front fog lights on
Both front and rear fog
lights on (Rotating the
switch ring again turns only
the rear fog light off.)
Releasing the switch returns
the ring to the position.
Operating the switch again
turns only the rear fog lights
off.
After the headlight switch is
turned off, the rear fog lights do
not come on even if you turn
on the headlight switch again.
Page 260 of 776

260 2-3. Operating the lights and wipers
AVENSIS_OM_OM20B88E_(EE)

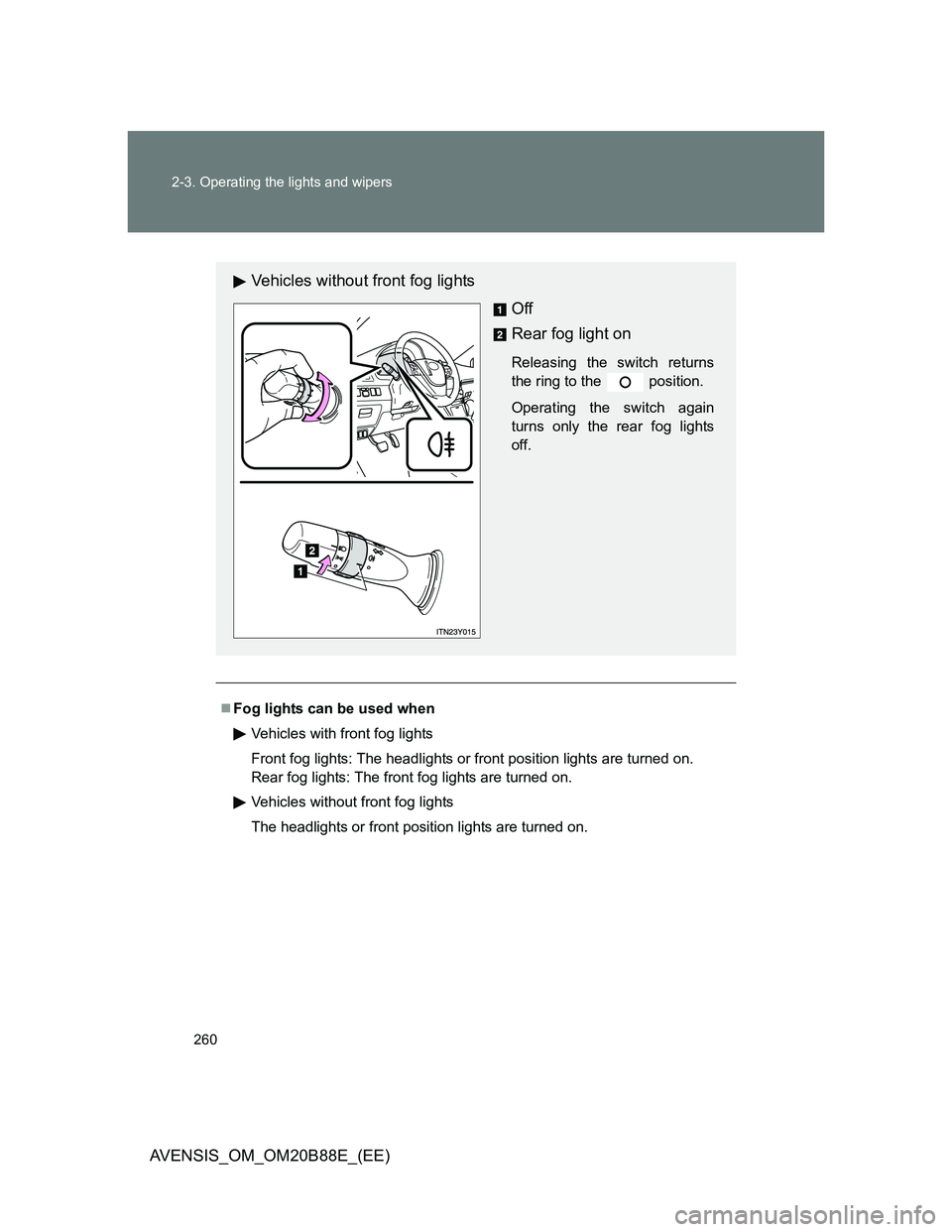

Fog lights can be used when
Vehicles with front fog lights
Front fog lights: The headlights or front position lights are turned on.
Rear fog lights: The front fog lights are turned on.
Vehicles without front fog lights
The headlights or front position lights are turned on.
Vehicles without front fog lights
Off
Rear fog light on
Releasing the switch returns
the ring to the position.
Operating the switch again
turns only the rear fog lights
off.
