Page 261 of 776

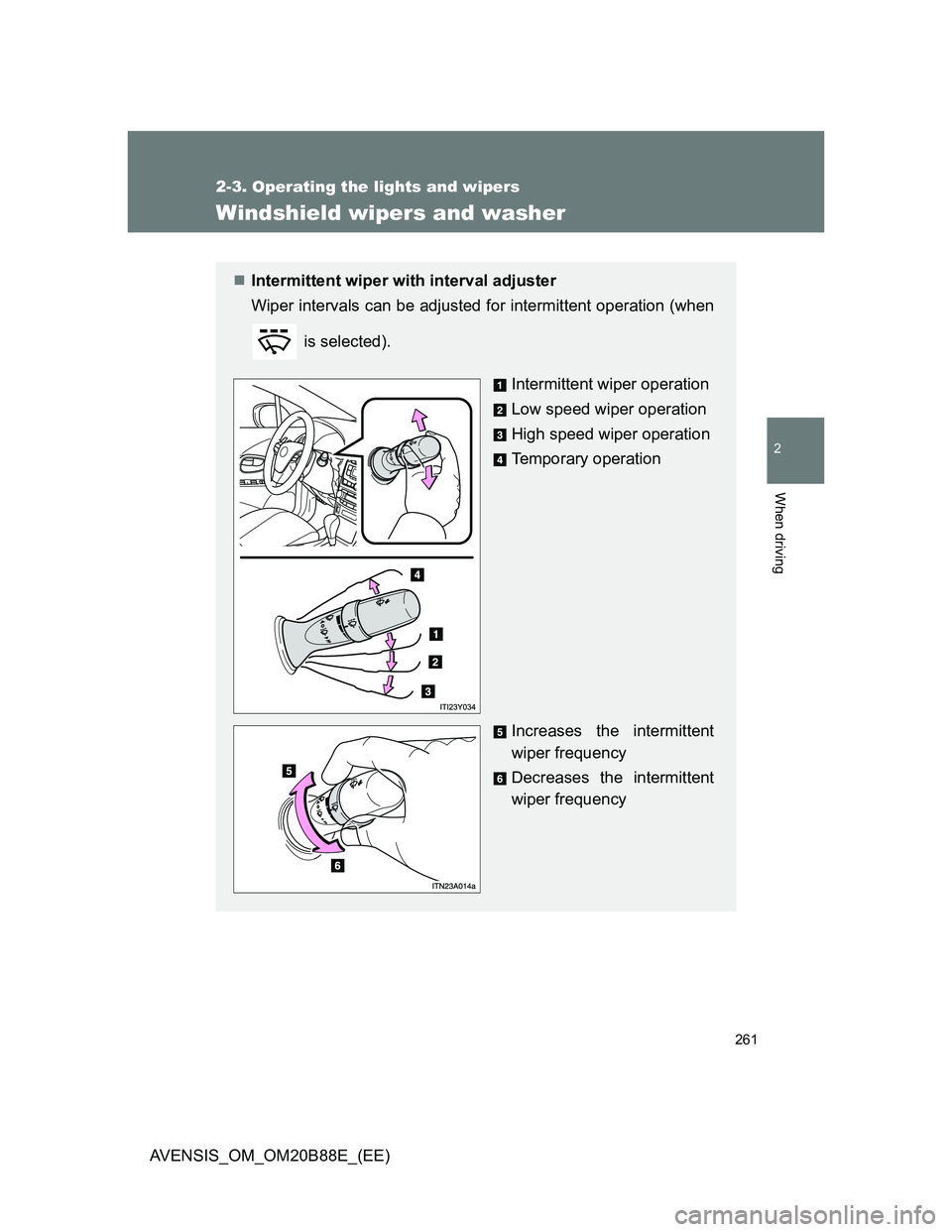

261
2-3. Operating the lights and wipers
2
When driving
AVENSIS_OM_OM20B88E_(EE)
Windshield wipers and washer
Intermittent wiper with interval adjuster
Wiper intervals can be adjusted for intermittent operation (when
is selected).
Intermittent wiper operation
Low speed wiper operation
High speed wiper operation
Temporary operation
Increases the intermittent
wiper frequency
Decreases the intermittent
wiper frequency

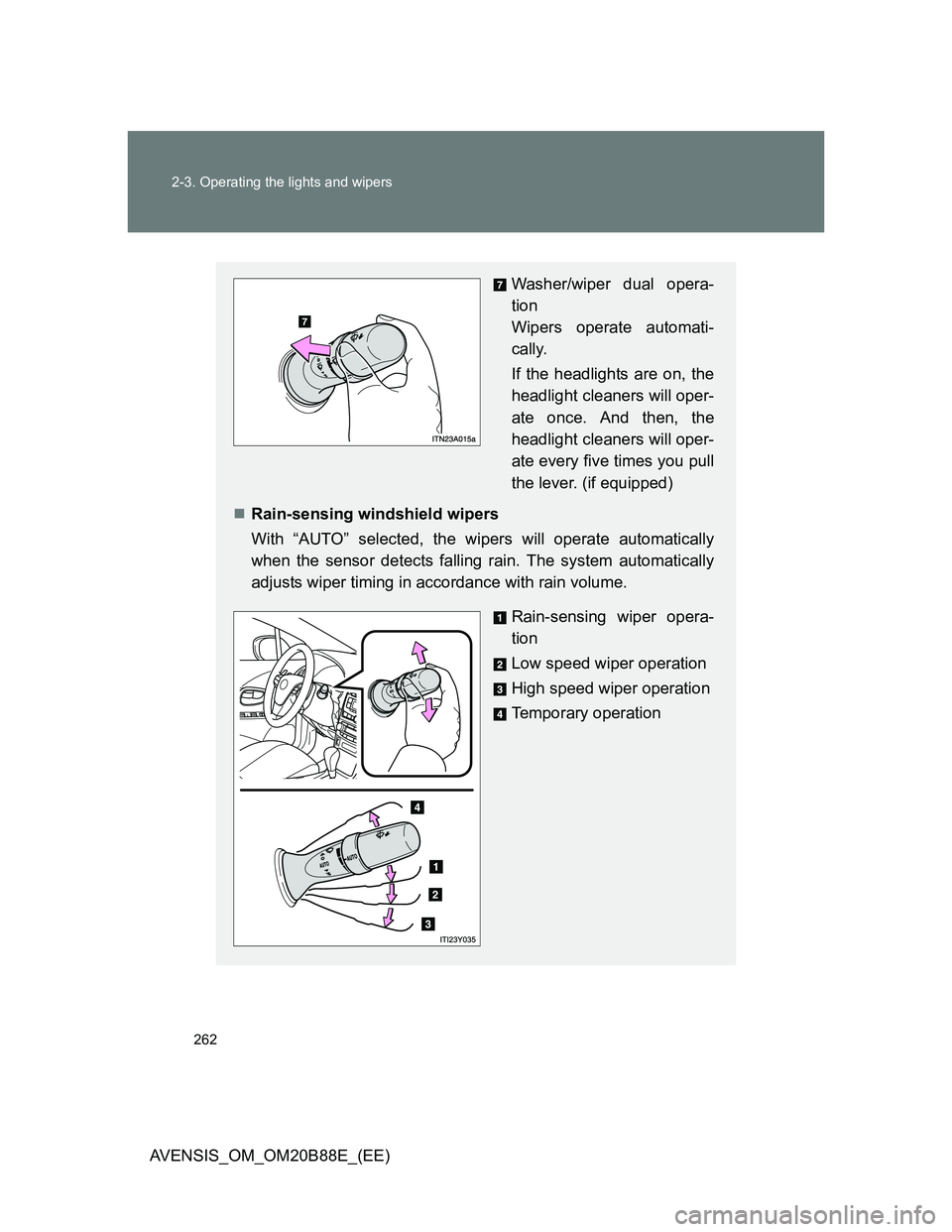

Page 262 of 776
262 2-3. Operating the lights and wipers
AVENSIS_OM_OM20B88E_(EE)
Washer/wiper dual opera-
tion
Wipers operate automati-
cally.
If the headlights are on, the
headlight cleaners will oper-
ate once. And then, the
headlight cleaners will oper-
ate every five times you pull
the lever. (if equipped)
Rain-sensing windshield wipers
With “AUTO” selected, the wipers will operate automatically
when the sensor detects falling rain. The system automatically
adjusts wiper timing in accordance with rain volume.
Rain-sensing wiper opera-
tion
Low speed wiper operation
High speed wiper operation
Temporary operation

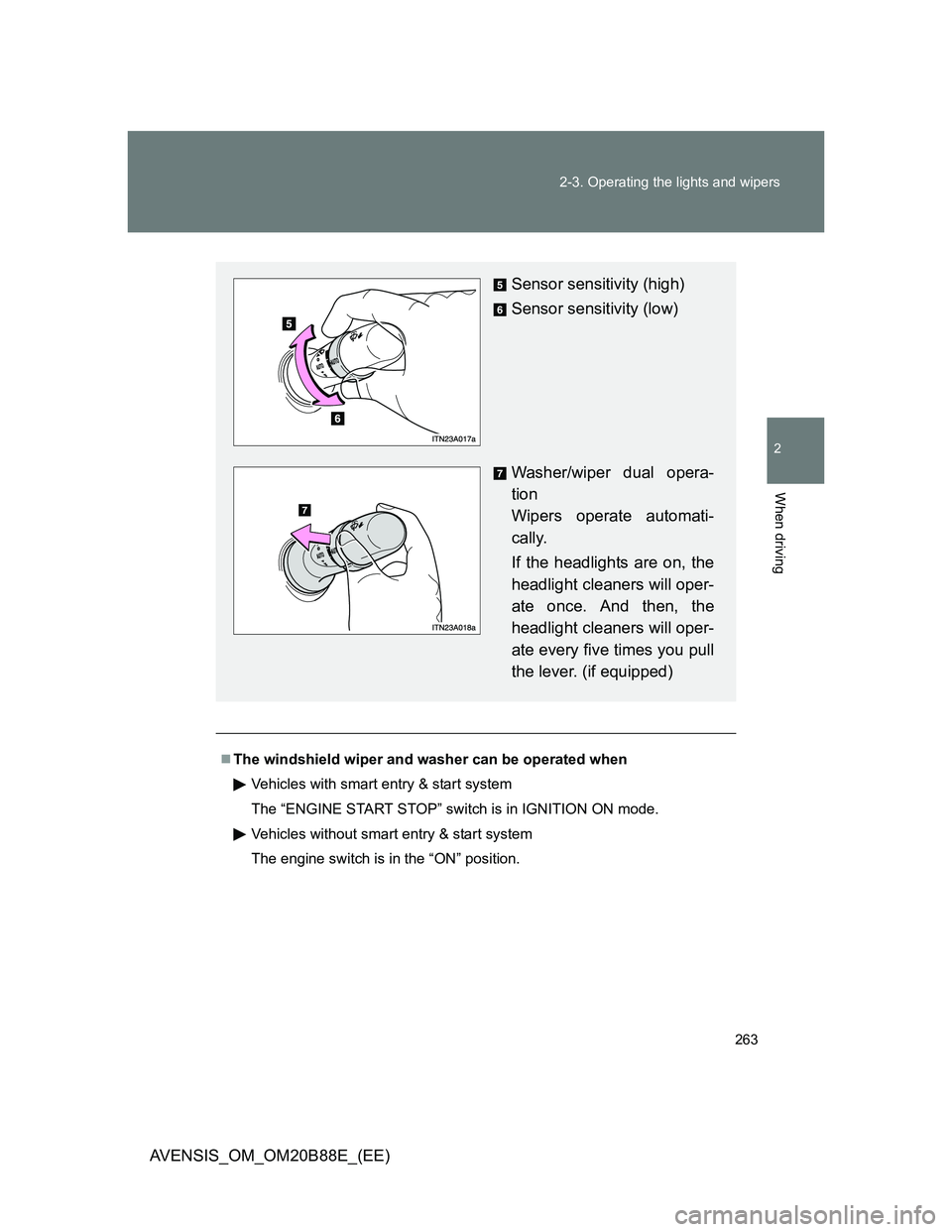

Page 263 of 776
263 2-3. Operating the lights and wipers
2
When driving
AVENSIS_OM_OM20B88E_(EE)
The windshield wiper and washer can be operated when
Vehicles with smart entry & start system
The “ENGINE START STOP” switch is in IGNITION ON mode.
Vehicles without smart entry & start system
The engine switch is in the “ON” position.
Sensor sensitivity (high)
Sensor sensitivity (low)
Washer/wiper dual opera-
tion
Wipers operate automati-
cally.
If the headlights are on, the
headlight cleaners will oper-
ate once. And then, the
headlight cleaners will oper-
ate every five times you pull
the lever. (if equipped)

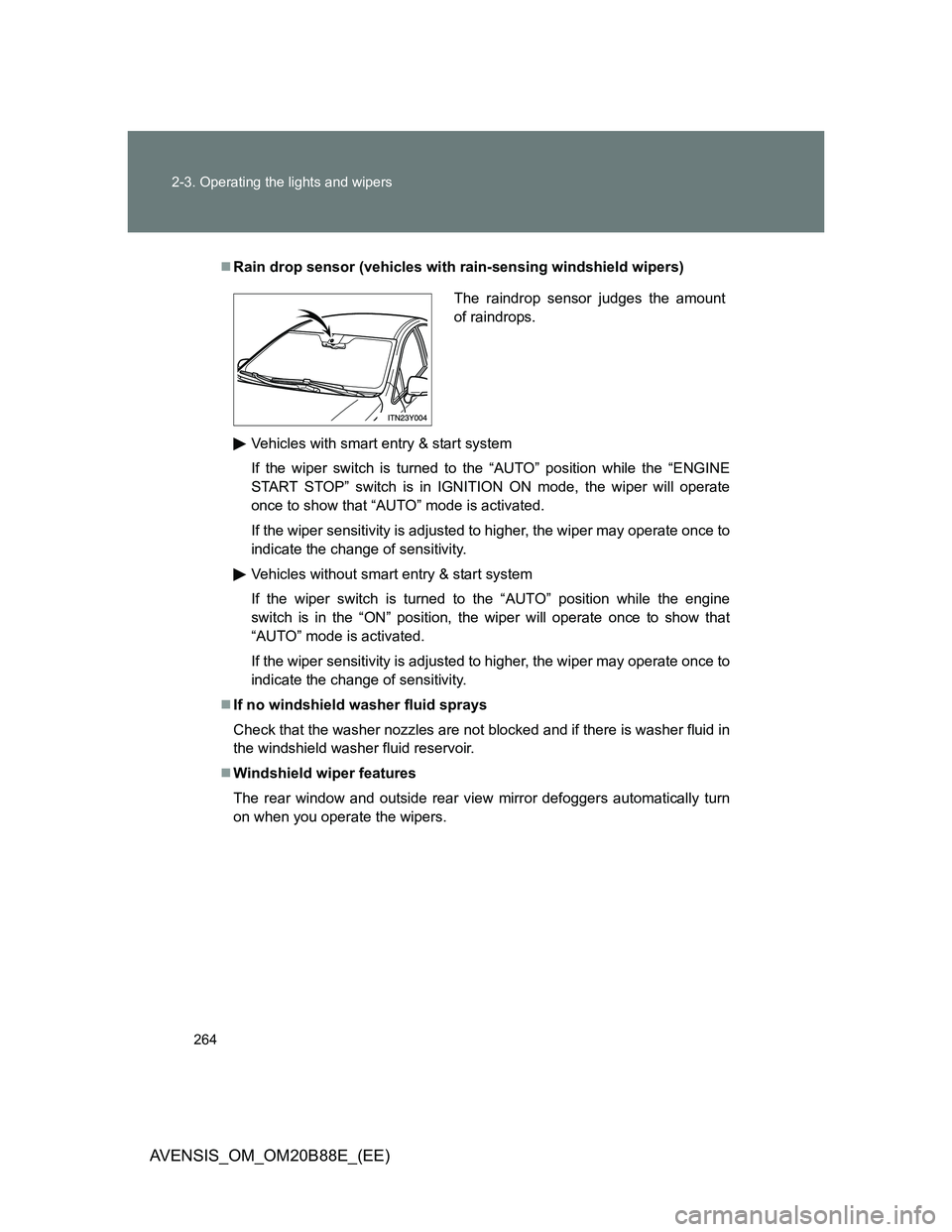

Page 264 of 776

264 2-3. Operating the lights and wipers
AVENSIS_OM_OM20B88E_(EE)
Rain drop sensor (vehicles with rain-sensing windshield wipers)
Vehicles with smart entry & start system
If the wiper switch is turned to the “AUTO” position while the “ENGINE
START STOP” switch is in IGNITION ON mode, the wiper will operate
once to show that “AUTO” mode is activated.
If the wiper sensitivity is adjusted to higher, the wiper may operate once to
indicate the change of sensitivity.
Vehicles without smart entry & start system
If the wiper switch is turned to the “AUTO” position while the engine
switch is in the “ON” position, the wiper will operate once to show that
“AUTO” mode is activated.
If the wiper sensitivity is adjusted to higher, the wiper may operate once to
indicate the change of sensitivity.
If no windshield washer fluid sprays
Check that the washer nozzles are not blocked and if there is washer fluid in
the windshield washer fluid reservoir.
Windshield wiper features
The rear window and outside rear view mirror defoggers automatically turn
on when you operate the wipers.
The raindrop sensor judges the amount
of raindrops.

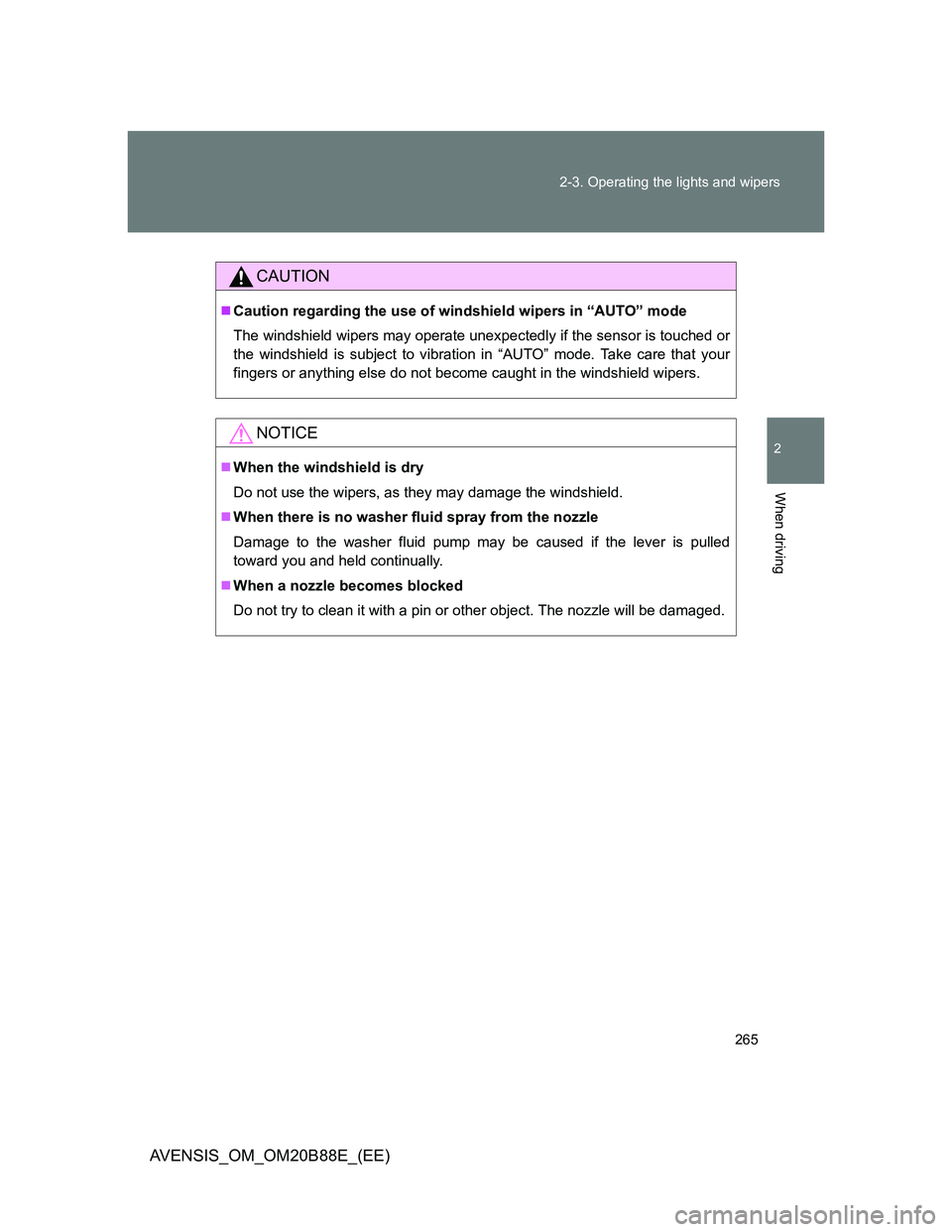

Page 265 of 776
265 2-3. Operating the lights and wipers
2
When driving
AVENSIS_OM_OM20B88E_(EE)
CAUTION
Caution regarding the use of windshield wipers in “AUTO” mode
The windshield wipers may operate unexpectedly if the sensor is touched or
the windshield is subject to vibration in “AUTO” mode. Take care that your
fingers or anything else do not become caught in the windshield wipers.
NOTICE
When the windshield is dry
Do not use the wipers, as they may damage the windshield.
When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled
toward you and held continually.
When a nozzle becomes blocked
Do not try to clean it with a pin or other object. The nozzle will be damaged.

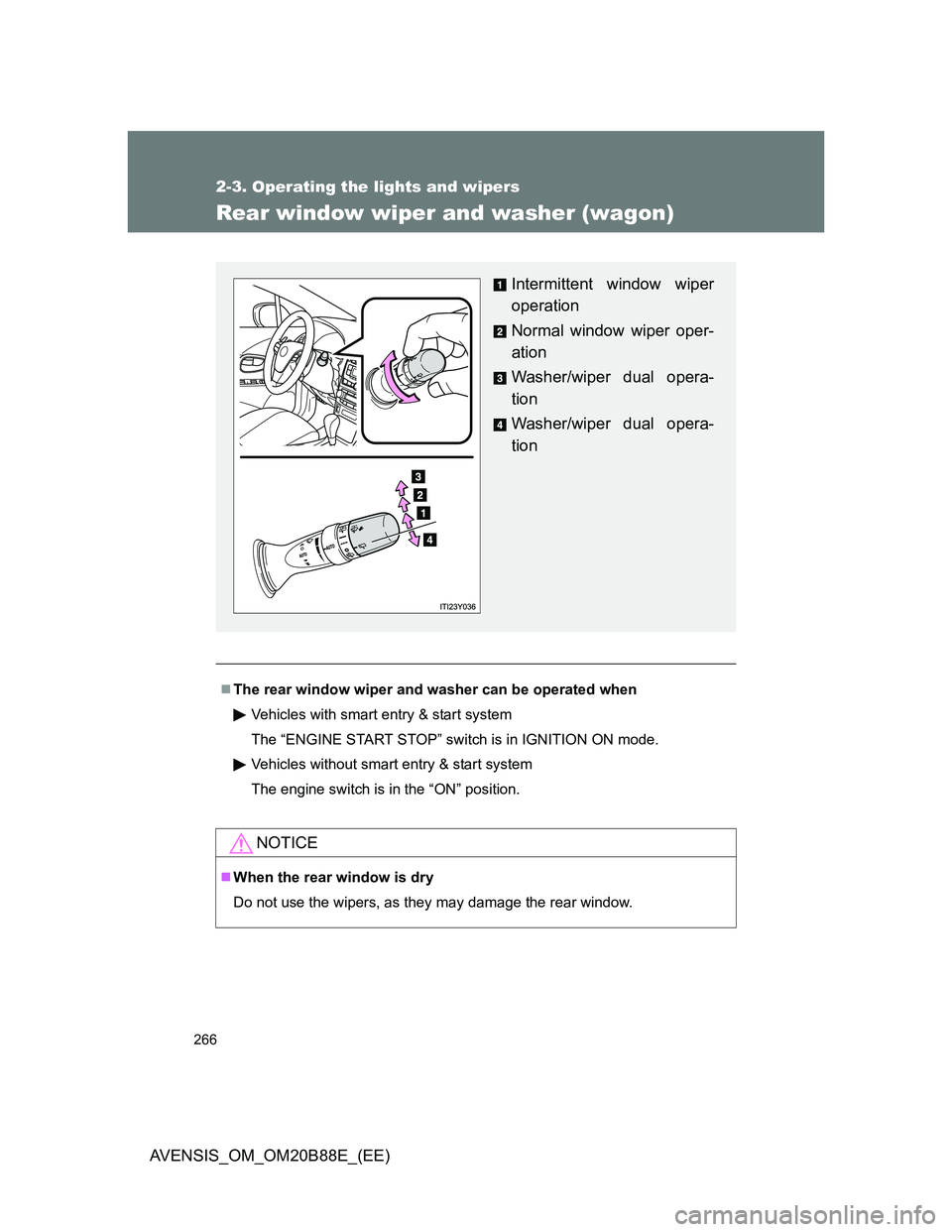

Page 266 of 776
266
2-3. Operating the lights and wipers
AVENSIS_OM_OM20B88E_(EE)
Rear window wiper and washer (wagon)
The rear window wiper and washer can be operated when
Vehicles with smart entry & start system
The “ENGINE START STOP” switch is in IGNITION ON mode.
Vehicles without smart entry & start system
The engine switch is in the “ON” position.
NOTICE
When the rear window is dry
Do not use the wipers, as they may damage the rear window.
Intermittent window wiper
operation
Normal window wiper oper-
ation
Washer/wiper dual opera-
tion
Washer/wiper dual opera-
tion

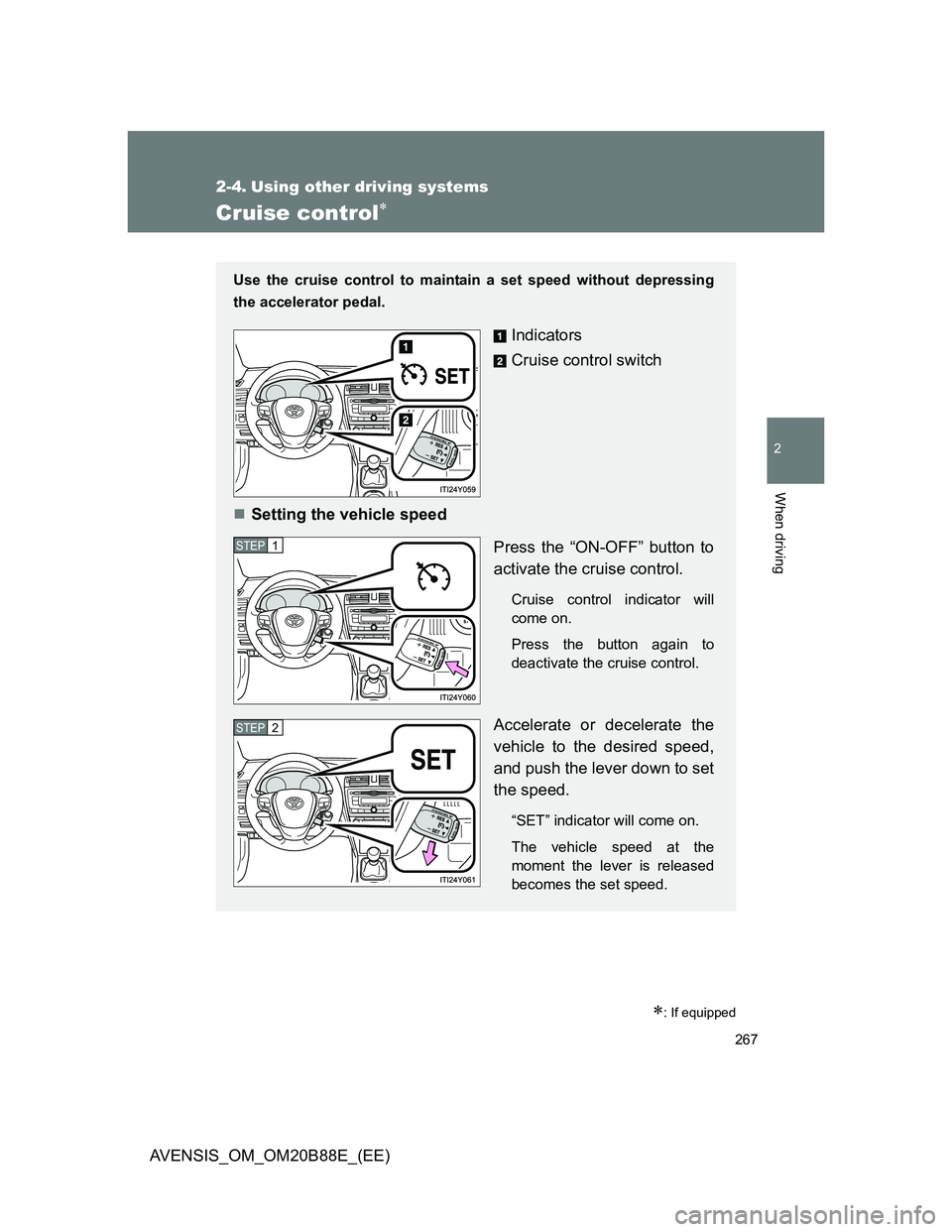

Page 267 of 776
267
2
When driving
AVENSIS_OM_OM20B88E_(EE)
2-4. Using other driving systems
Cruise control
: If equipped
Use the cruise control to maintain a set speed without depressing
the accelerator pedal.
Indicators
Cruise control switch
Setting the vehicle speed
Press the “ON-OFF” button to
activate the cruise control.
Cruise control indicator will
come on.
Press the button again to
deactivate the cruise control.
Accelerate or decelerate the
vehicle to the desired speed,
and push the lever down to set
the speed.
“SET” indicator will come on.
The vehicle speed at the
moment the lever is released
becomes the set speed.
STEP1
STEP2
Page 268 of 776
268 2-4. Using other driving systems
AVENSIS_OM_OM20B88E_(EE)
Adjusting the set speed
To change the set speed, operate the lever until the desired set
speed is obtained.
Increase the speed
Decrease the speed
Fine adjustment: Momentarily
move the lever in the desired
direction.
Large adjustment: Hold the
lever in the desired direction.
The set speed will be increased or decreased as follows:
Fine adjustment: By approximately 1.6 km/h (1 mph) each time
the lever is operated.
Large adjustment: The set speed can be increased or
decreased continually until the lever is released.

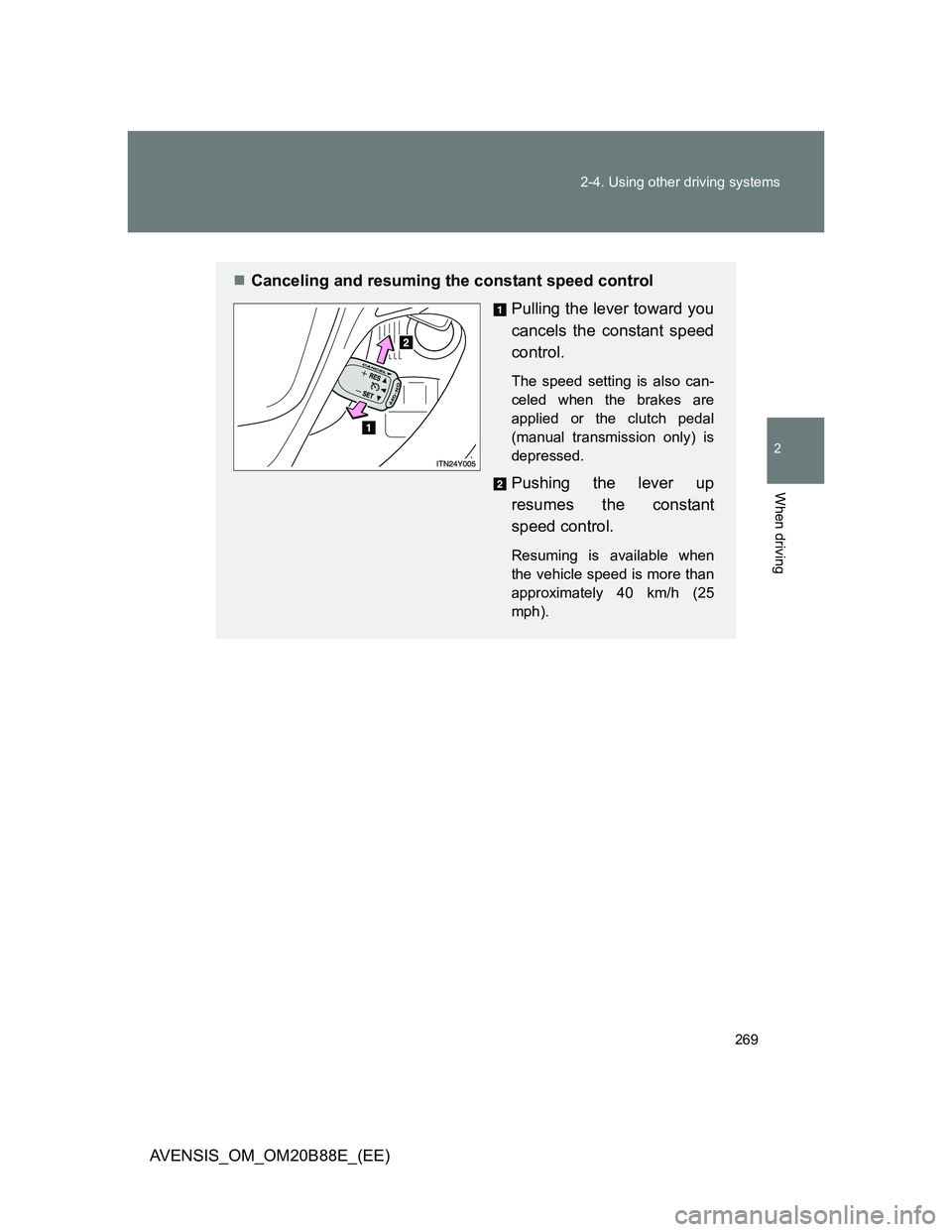

Page 269 of 776
269 2-4. Using other driving systems
2
When driving
AVENSIS_OM_OM20B88E_(EE)
Canceling and resuming the constant speed control
Pulling the lever toward you
cancels the constant speed
control.
The speed setting is also can-
celed when the brakes are
applied or the clutch pedal
(manual transmission only) is
depressed.
Pushing the lever up
resumes the constant
speed control.
Resuming is available when
the vehicle speed is more than
approximately 40 km/h (25
mph).

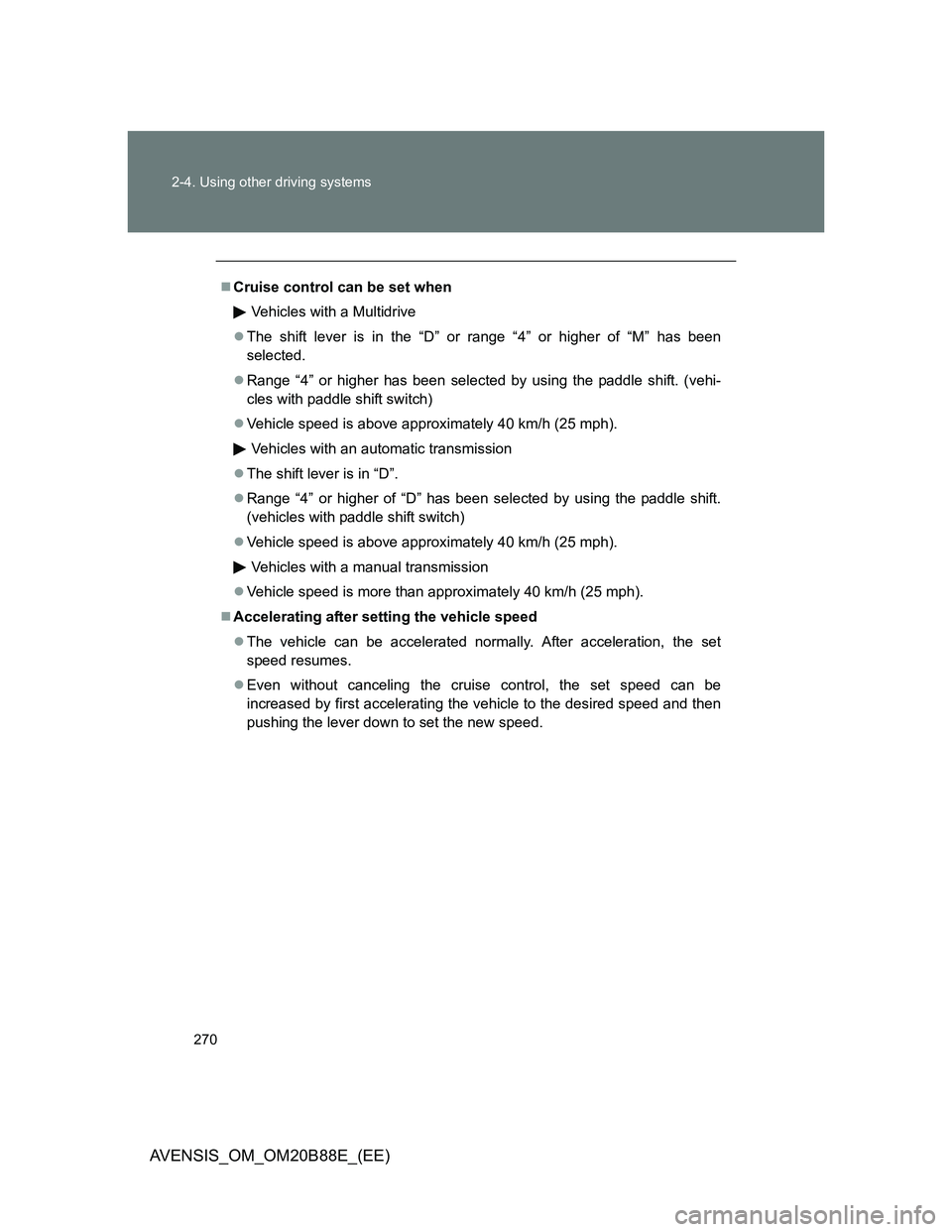

Page 270 of 776

270 2-4. Using other driving systems
AVENSIS_OM_OM20B88E_(EE)
Cruise control can be set when
Vehicles with a Multidrive
The shift lever is in the “D” or range “4” or higher of “M” has been
selected.
Range “4” or higher has been selected by using the paddle shift. (vehi-
cles with paddle shift switch)
Vehicle speed is above approximately 40 km/h (25 mph).
Vehicles with an automatic transmission
The shift lever is in “D”.
Range “4” or higher of “D” has been selected by using the paddle shift.
(vehicles with paddle shift switch)
Vehicle speed is above approximately 40 km/h (25 mph).
Vehicles with a manual transmission
Vehicle speed is more than approximately 40 km/h (25 mph).
Accelerating after setting the vehicle speed
The vehicle can be accelerated normally. After acceleration, the set
speed resumes.
Even without canceling the cruise control, the set speed can be
increased by first accelerating the vehicle to the desired speed and then
pushing the lever down to set the new speed.
