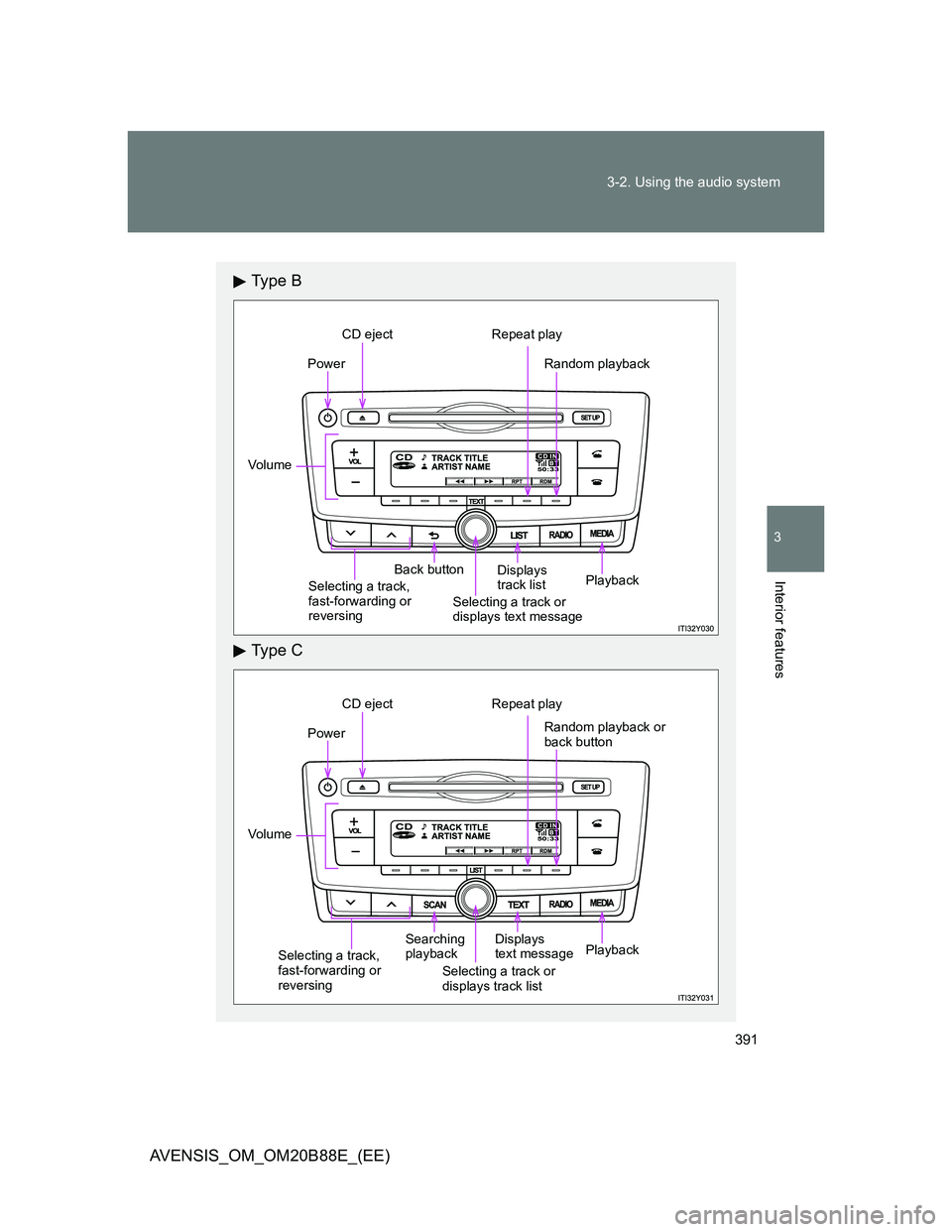

Page 391 of 776
391 3-2. Using the audio system
3
Interior features
AVENSIS_OM_OM20B88E_(EE)
Ty p e B
Ty p e C
Power
Vo lu m e
Back button
CD eject Repeat play
Random playback
Selecting a track,
fast-forwarding or
reversingSelecting a track or
displays text messageDisplays
track listPlayback
Power
Vo lu m e
Searching
playback
Selecting a track or
displays track listDisplays
text message
CD eject Repeat play
Random playback or
back button
Selecting a track,
fast-forwarding or
reversingPlayback

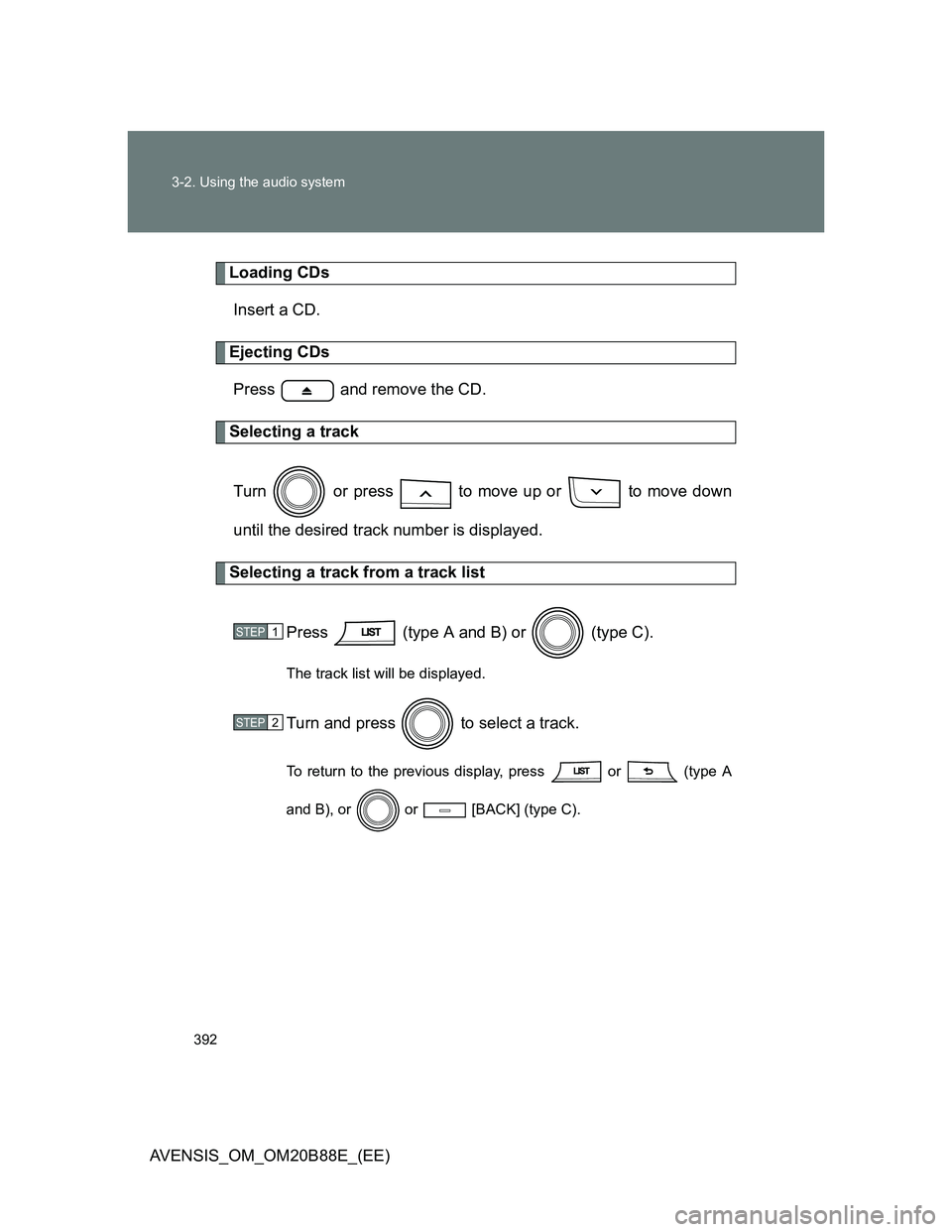

Page 392 of 776
392 3-2. Using the audio system
AVENSIS_OM_OM20B88E_(EE)
Loading CDs
Insert a CD.
Ejecting CDs
Press and remove the CD.
Selecting a track
Turn or press to move up or to move down
until the desired track number is displayed.
Selecting a track from a track list
Press (type A and B) or (type C).
The track list will be displayed.
Turn and press to select a track.
To return to the previous display, press or (type A
and B), or or [BACK] (type C).
STEP1
STEP2

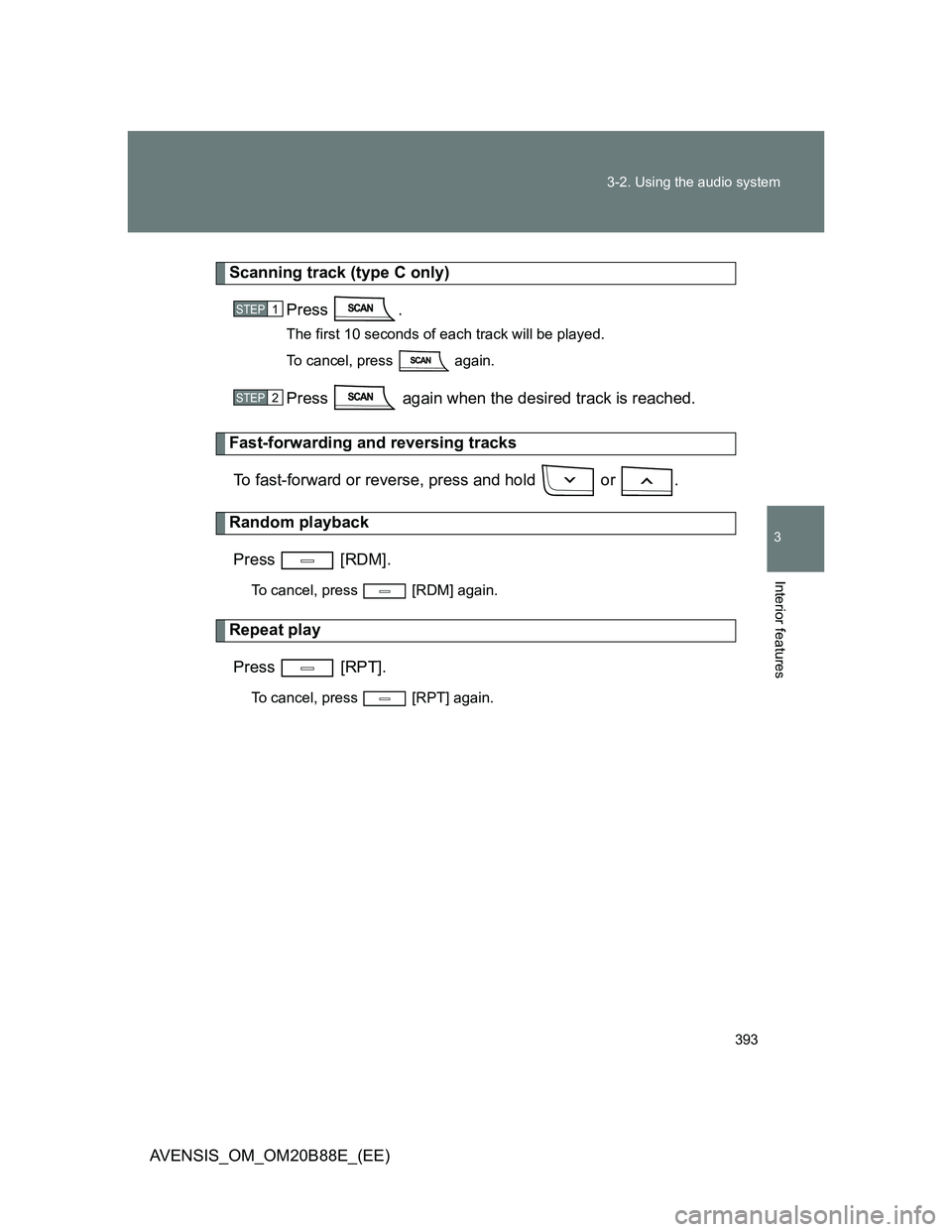

Page 393 of 776
393 3-2. Using the audio system
3
Interior features
AVENSIS_OM_OM20B88E_(EE)
Scanning track (type C only)
Press .
The first 10 seconds of each track will be played.
To cancel, press
again.
Press again when the desired track is reached.
Fast-forwarding and reversing tracks
To fast-forward or reverse, press and hold or .
Random playback
Press [RDM].
To cancel, press [RDM] again.
Repeat play
Press [RPT].
To cancel, press [RPT] again.
STEP1
STEP2

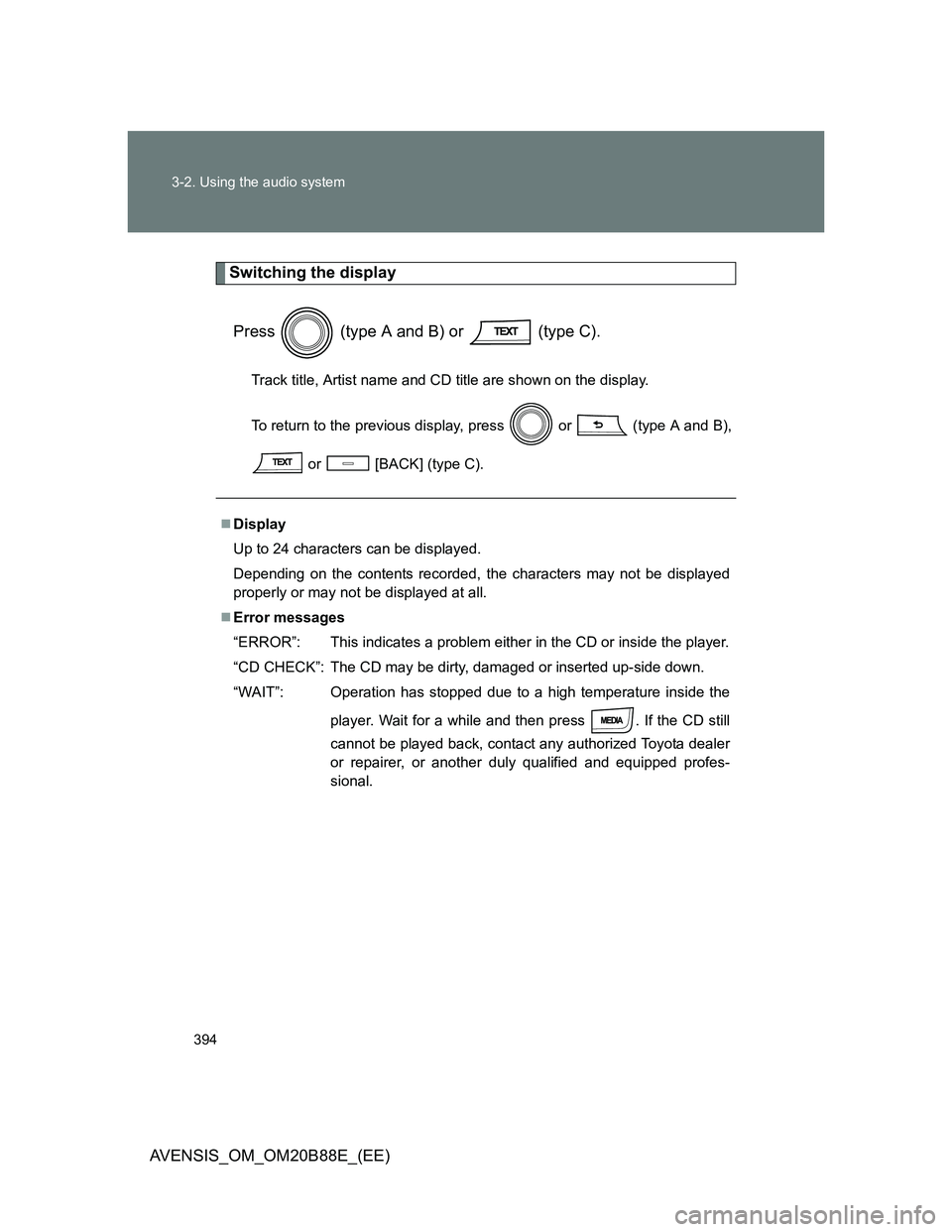

Page 394 of 776
394 3-2. Using the audio system
AVENSIS_OM_OM20B88E_(EE)
Switching the display
Press (type A and B) or (type C).
Track title, Artist name and CD title are shown on the display.
To return to the previous display, press
or (type A and B),
or [BACK] (type C).
Display
Up to 24 characters can be displayed.
Depending on the contents recorded, the characters may not be displayed
properly or may not be displayed at all.
Error messages
“ERROR”: This indicates a problem either in the CD or inside the player.
“CD CHECK”: The CD may be dirty, damaged or inserted up-side down.
“WAIT”: Operation has stopped due to a high temperature inside the
player. Wait for a while and then press . If the CD still
cannot be played back, contact any authorized Toyota dealer
or repairer, or another duly qualified and equipped profes-
sional.

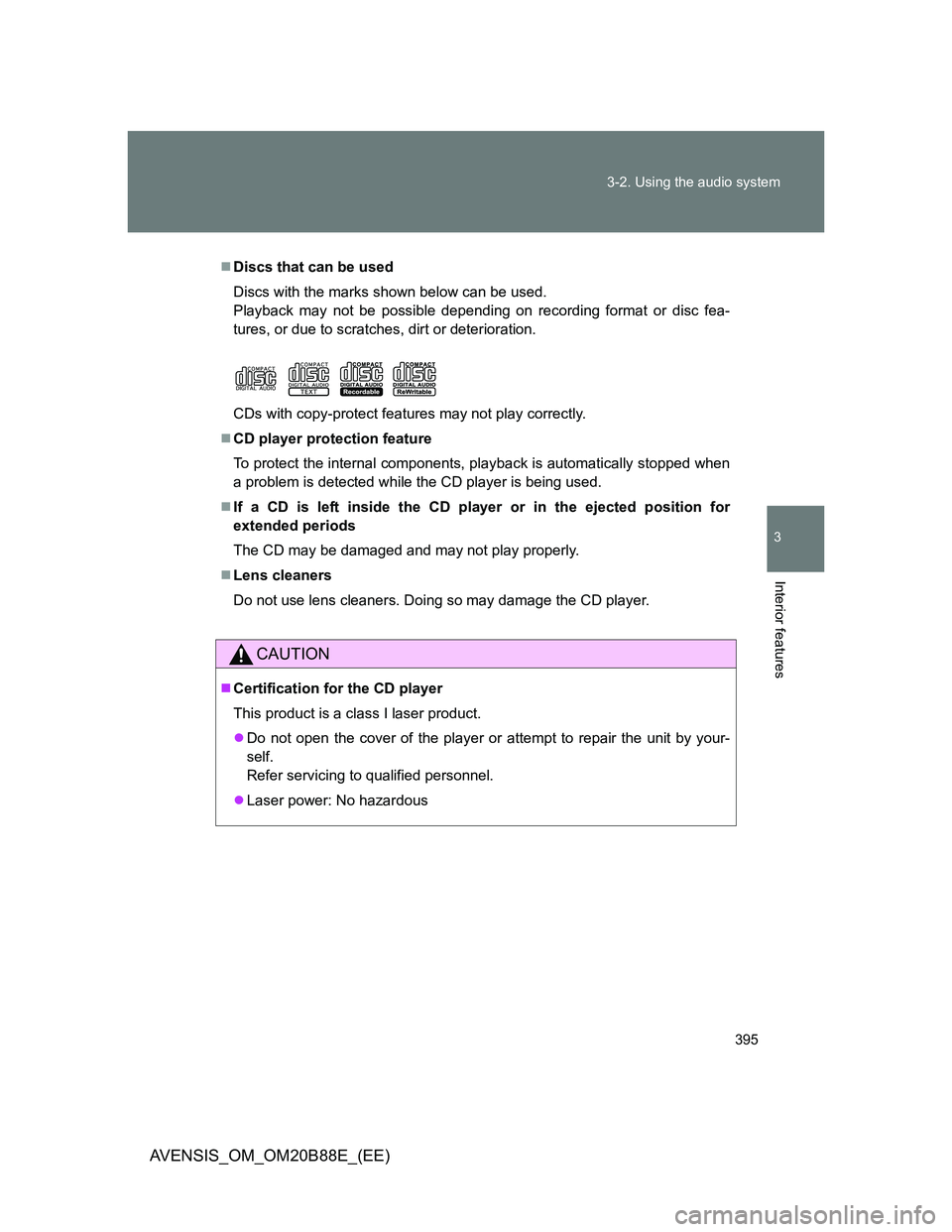

Page 395 of 776
395 3-2. Using the audio system
3
Interior features
AVENSIS_OM_OM20B88E_(EE)
Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CDs with copy-protect features may not play correctly.
CD player protection feature
To protect the internal components, playback is automatically stopped when
a problem is detected while the CD player is being used.
If a CD is left inside the CD player or in the ejected position for
extended periods
The CD may be damaged and may not play properly.
Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
CAUTION
Certification for the CD player
This product is a class I laser product.
Do not open the cover of the player or attempt to repair the unit by your-
self.
Refer servicing to qualified personnel.
Laser power: No hazardous

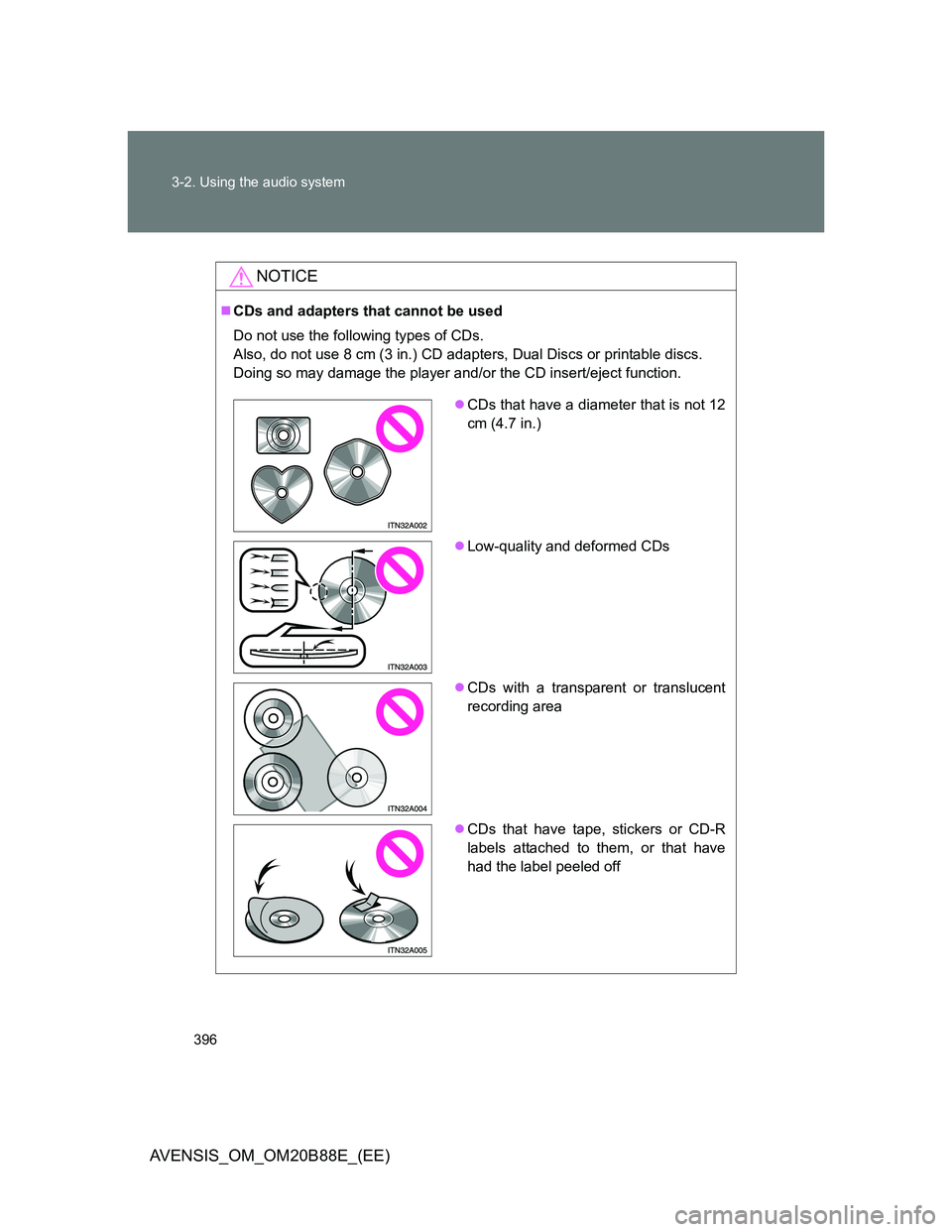

Page 396 of 776
396 3-2. Using the audio system
AVENSIS_OM_OM20B88E_(EE)
NOTICE
CDs and adapters that cannot be used
Do not use the following types of CDs.
Also, do not use 8 cm (3 in.) CD adapters, Dual Discs or printable discs.
Doing so may damage the player and/or the CD insert/eject function.
CDs that have a diameter that is not 12
cm (4.7 in.)
Low-quality and deformed CDs
CDs with a transparent or translucent
recording area
CDs that have tape, stickers or CD-R
labels attached to them, or that have
had the label peeled off

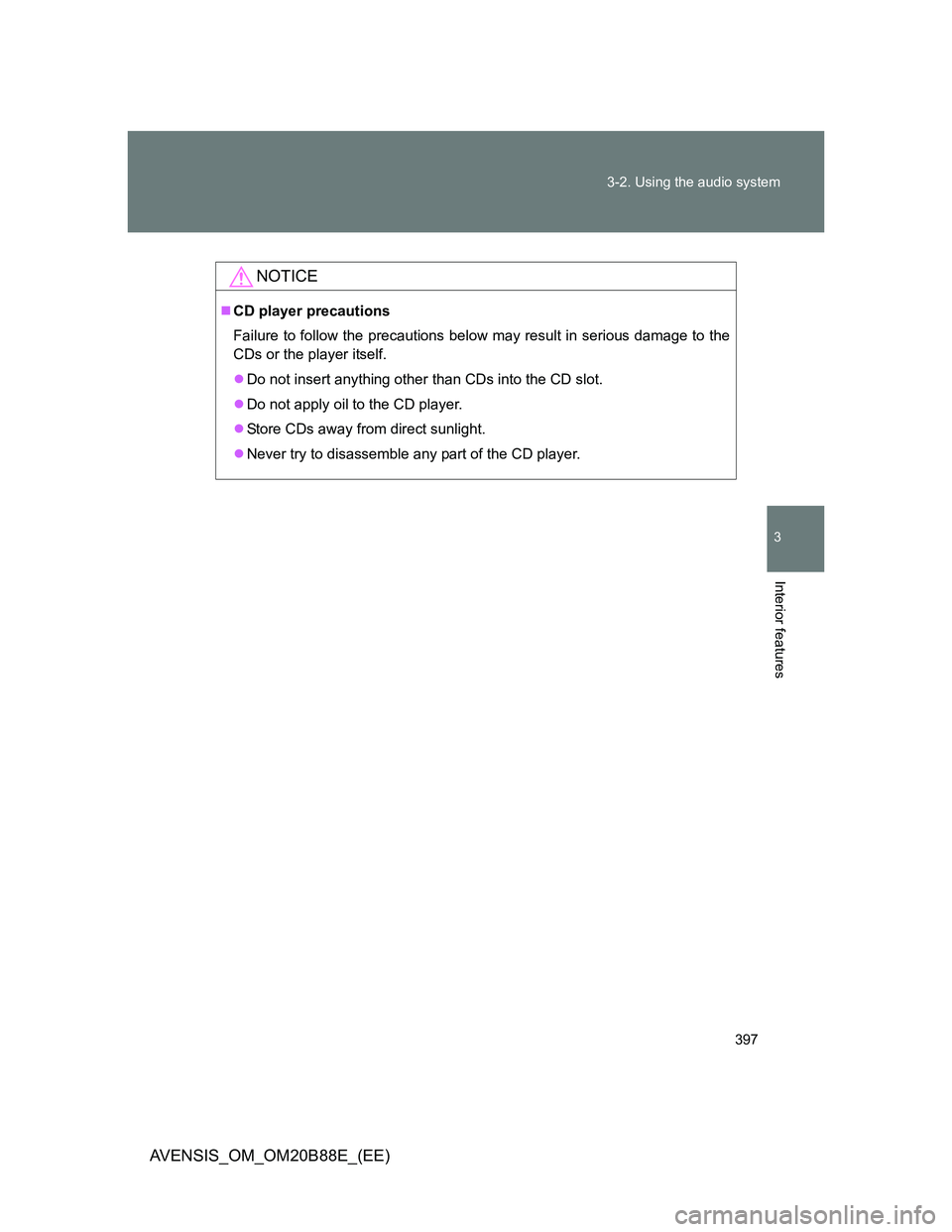

Page 397 of 776
397 3-2. Using the audio system
3
Interior features
AVENSIS_OM_OM20B88E_(EE)
NOTICE
CD player precautions
Failure to follow the precautions below may result in serious damage to the
CDs or the player itself.
Do not insert anything other than CDs into the CD slot.
Do not apply oil to the CD player.
Store CDs away from direct sunlight.
Never try to disassemble any part of the CD player.

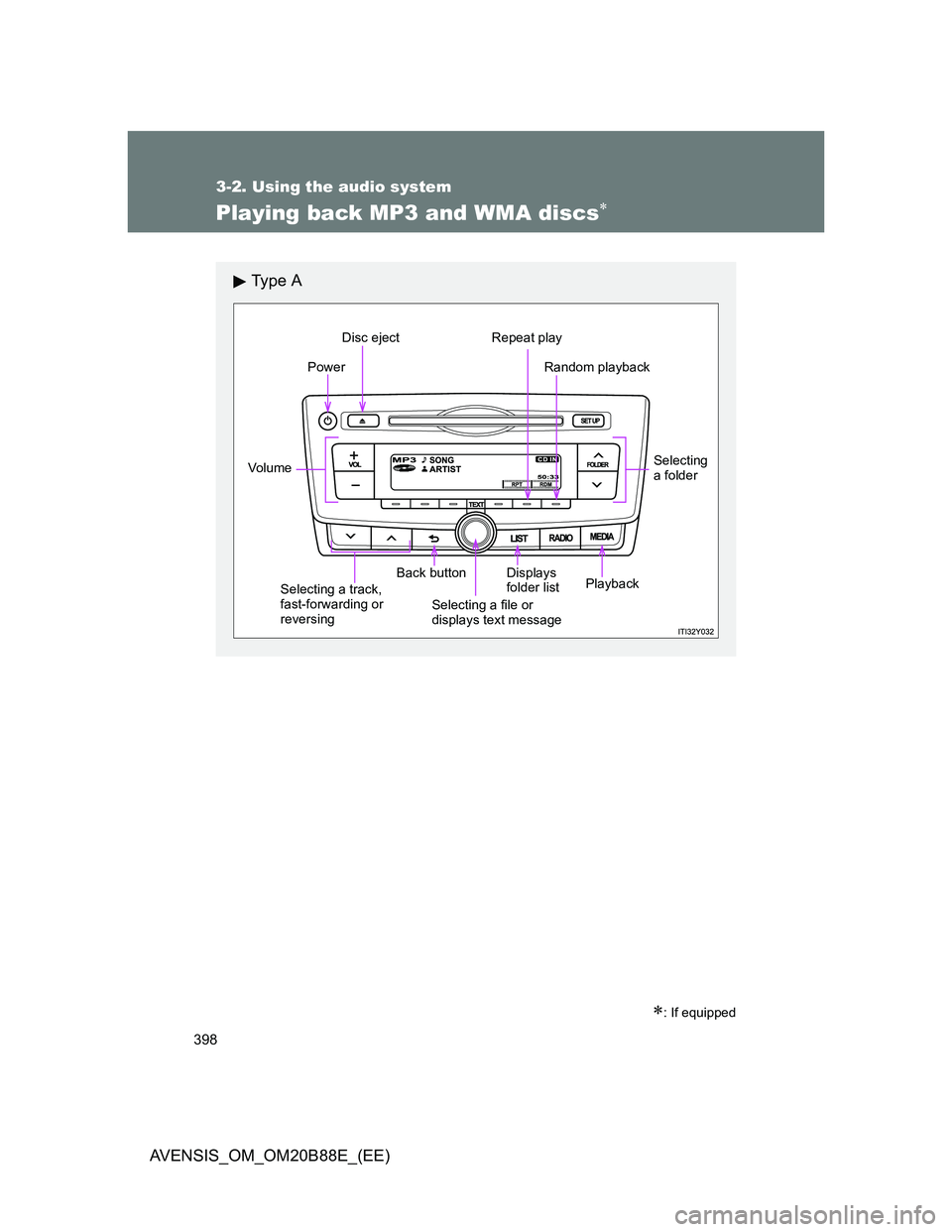

Page 398 of 776
398
3-2. Using the audio system
AVENSIS_OM_OM20B88E_(EE)
Playing back MP3 and WMA discs
: If equipped
Ty p e A
Power
Vo lu m e
Selecting a track,
fast-forwarding or
reversingBack button
Selecting a file or
displays text messageDisplays
folder list
Disc eject Repeat play
Random playback
Selecting
a folder
Playback
Page 399 of 776
399 3-2. Using the audio system
3
Interior features
AVENSIS_OM_OM20B88E_(EE)
Ty p e B
Ty p e C
Selecting a folderPower
Vo lu m e
Selecting a track,
fast-forwarding or
reversingBack button
Selecting a file or
displays text messageDisplays
folder list
Disc eject Repeat play
Random playback
Playback
Selecting a folderPower
Vo lu m e
Selecting a track,
fast-forwarding or
reversingSearching
playback
Selecting a file or
displays folder listDisplays text
message
Disc eject Repeat play
Random playback
Playback

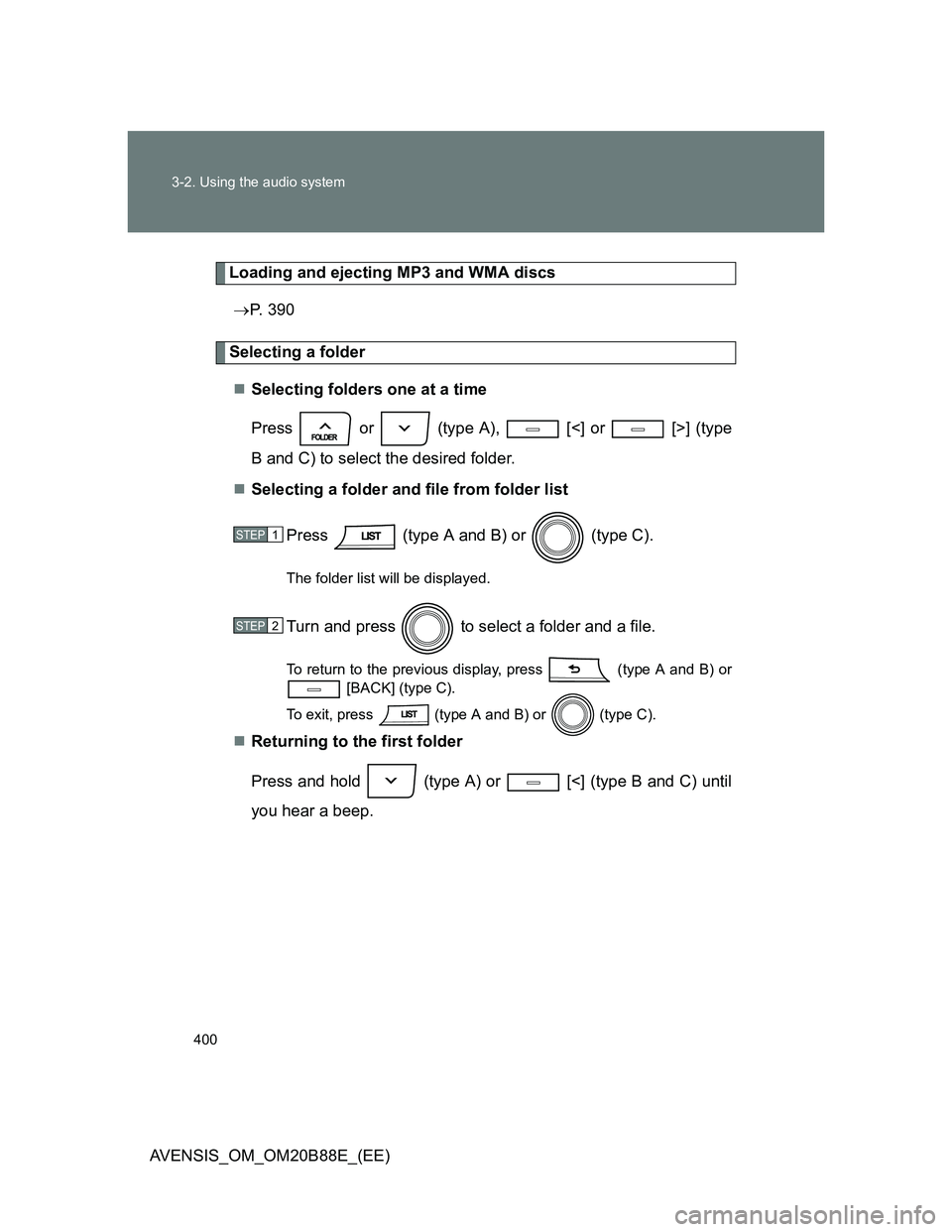

Page 400 of 776
400 3-2. Using the audio system
AVENSIS_OM_OM20B88E_(EE)
Loading and ejecting MP3 and WMA discs
P. 390
Selecting a folder
Selecting folders one at a time
Press or (type A), [<] or [>] (type
B and C) to select the desired folder.
Selecting a folder and file from folder list
Press (type A and B) or (type C).
The folder list will be displayed.
Turn and press to select a folder and a file.
To return to the previous display, press (type A and B) or
[BACK] (type C).
To exit, press (type A and B) or (type C).
Returning to the first folder
Press and hold (type A) or [<] (type B and C) until
you hear a beep.
STEP1
STEP2
