TOYOTA AVENSIS 2015 Owners Manual

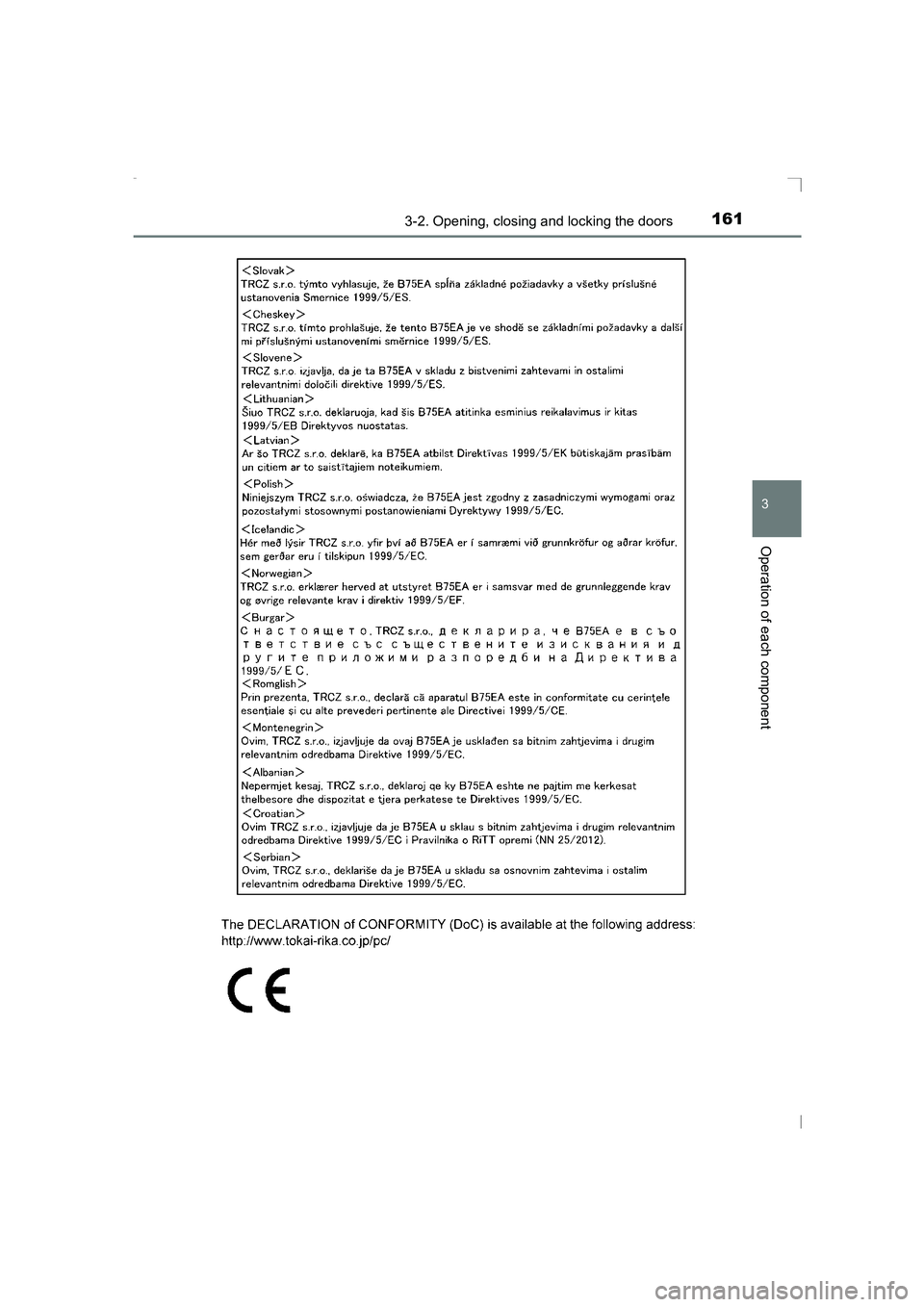

1613-2. Opening, closing and locking the doors
3
Operation of each component
AVENSIS_OM_OM20C20E_(EE)
AVENSIS_OM_OM20C20E_(EE).book Page 161 Thursday, January 29, 2015 1:47 PM

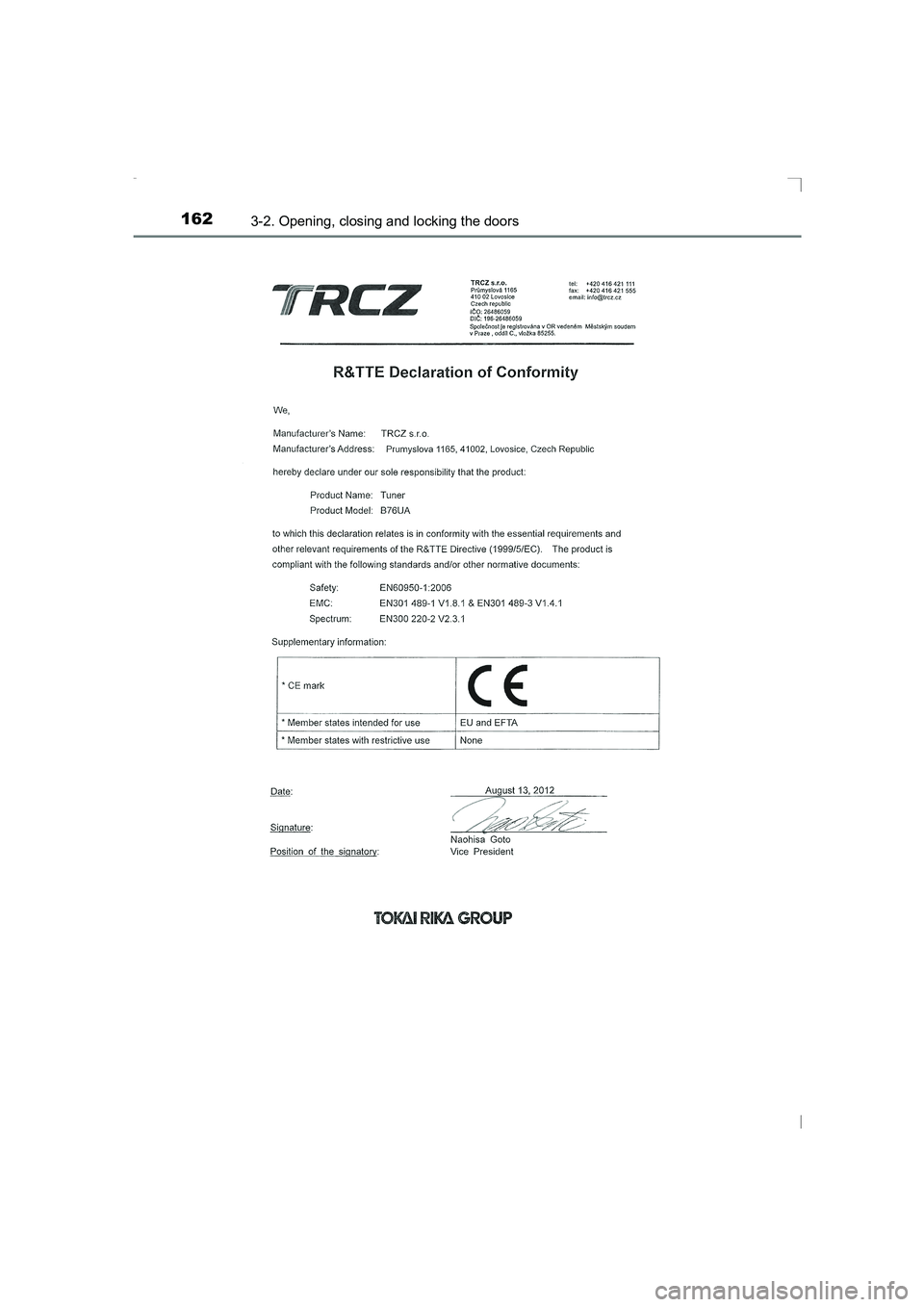

1623-2. Opening, closing and locking the doors
AVENSIS_OM_OM20C20E_(EE)
AVENSIS_OM_OM20C20E_(EE).book Page 162 Thursday, January 29, 2015 1:47 PM

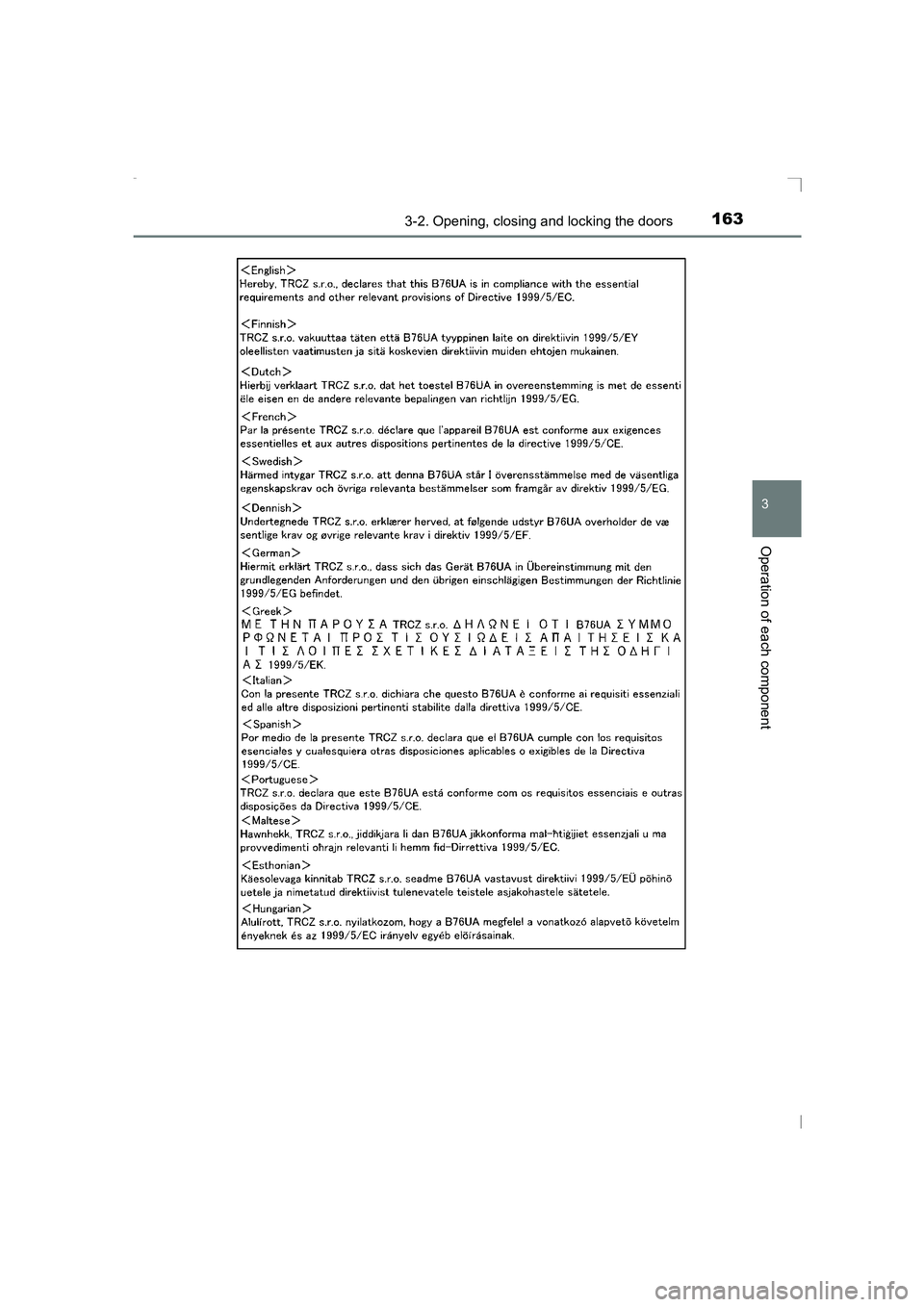

1633-2. Opening, closing and locking the doors
3
Operation of each component
AVENSIS_OM_OM20C20E_(EE)
AVENSIS_OM_OM20C20E_(EE).book Page 163 Thursday, January 29, 2015 1:47 PM

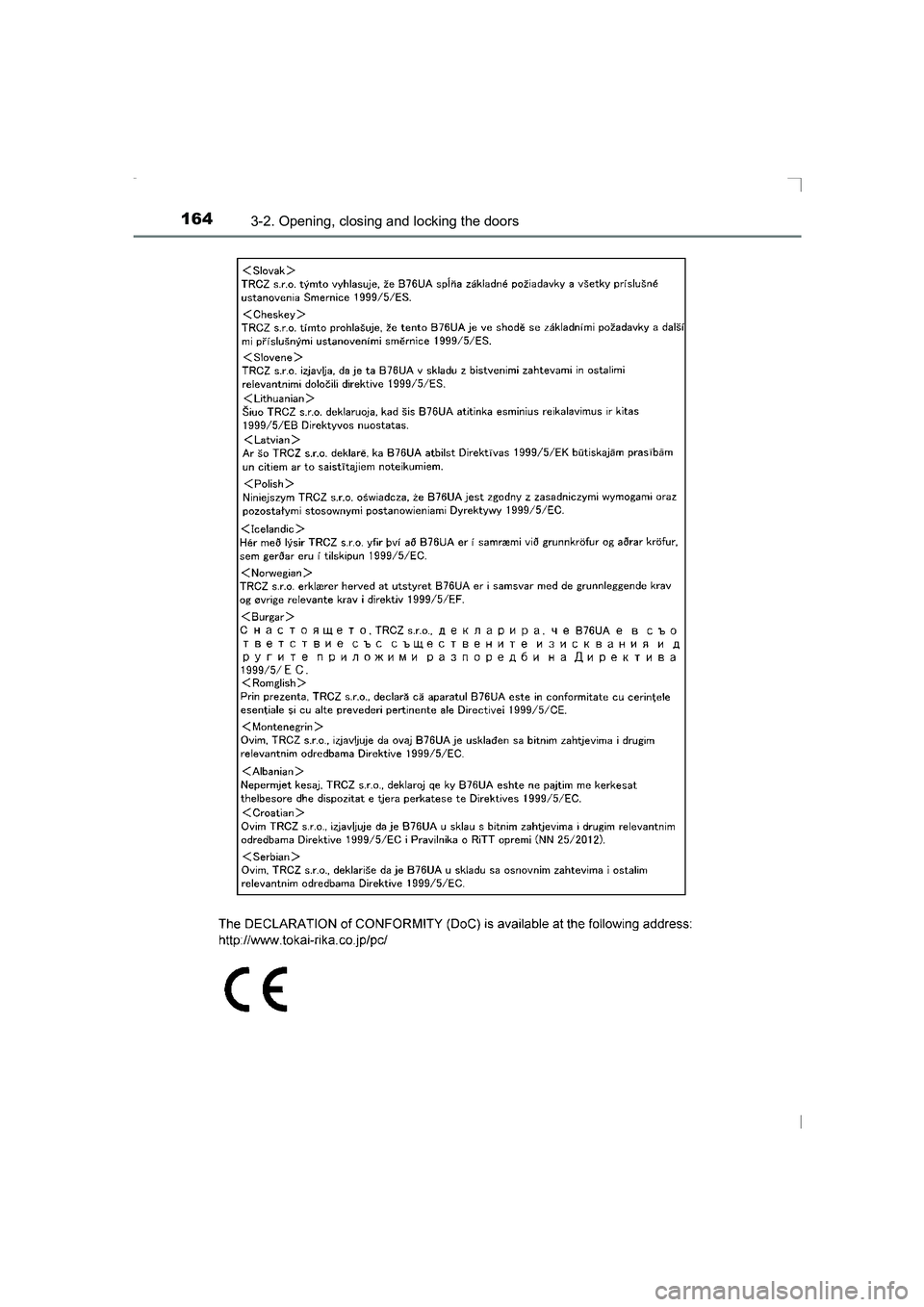

1643-2. Opening, closing and locking the doors
AVENSIS_OM_OM20C20E_(EE)
AVENSIS_OM_OM20C20E_(EE).book Page 164 Thursday, January 29, 2015 1:47 PM

1653-2. Opening, closing and locking the doors
3
Operation of each component
AVENSIS_OM_OM20C20E_(EE)

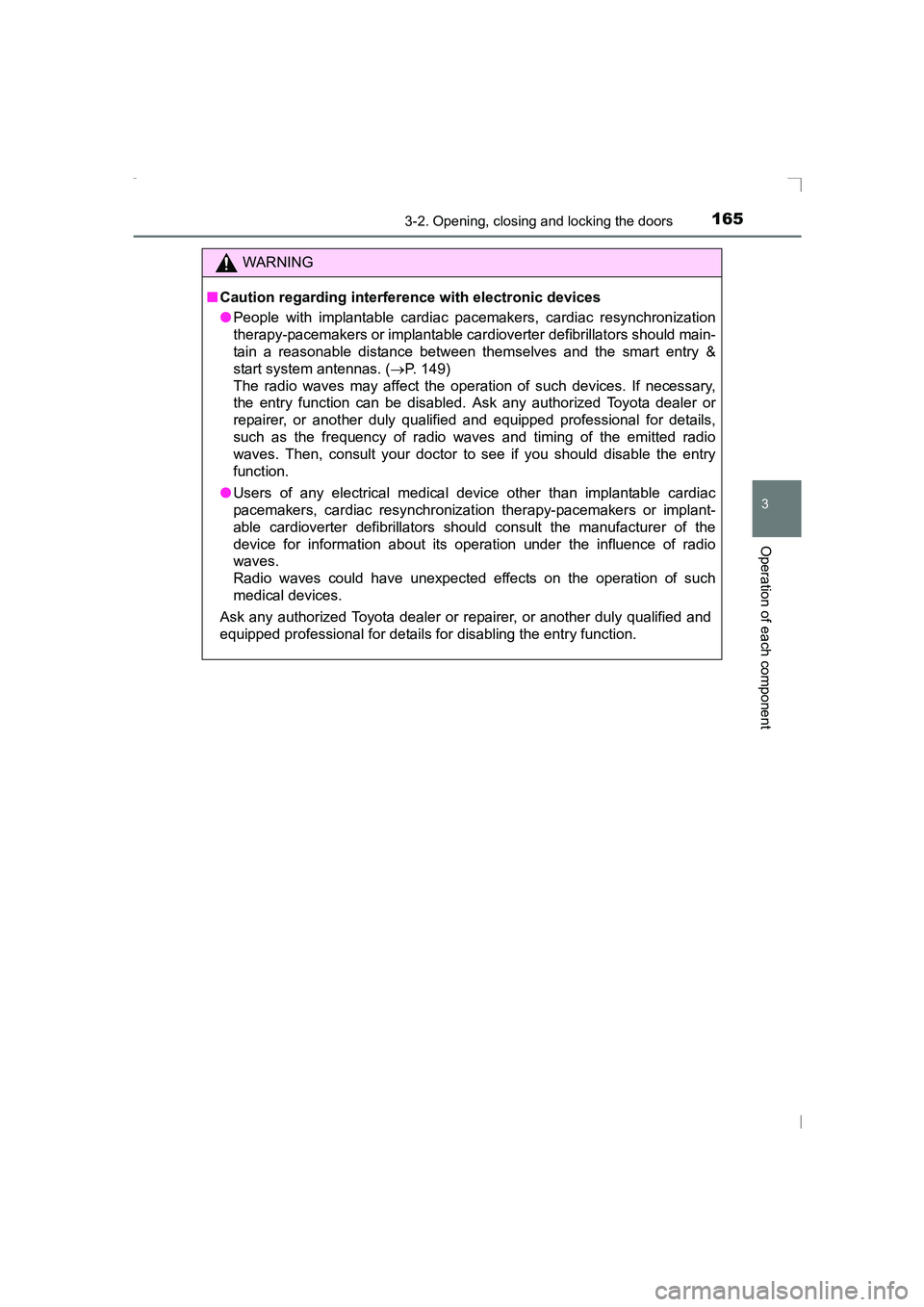

WARNING
■ Caution regarding interference with electronic devices
●People with implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should main-
tain a reasonable distance between themselves and the smart entry &
start system antennas. ( →P. 149)
The radio waves may affect the operation of such devices. If necessary,
the entry function can be disabled. Ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for details,
such as the frequency of radio waves and timing of the emitted radio
waves. Then, consult your doctor to see if you should disable the entry
function.
● Users of any electrical medical device other than implantable cardiac
pacemakers, cardiac resynchronization therapy-pacemakers or implant-
able cardioverter defibrillators should consult the manufacturer of the
device for information about its operation under the influence of radio
waves.
Radio waves could have unexpected effects on the operation of such
medical devices.
Ask any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details for disabling the entry function.
AVENSIS_OM_OM20C20E_(EE).book Page 165 Thursday, January 29, 2015 1:47 PM

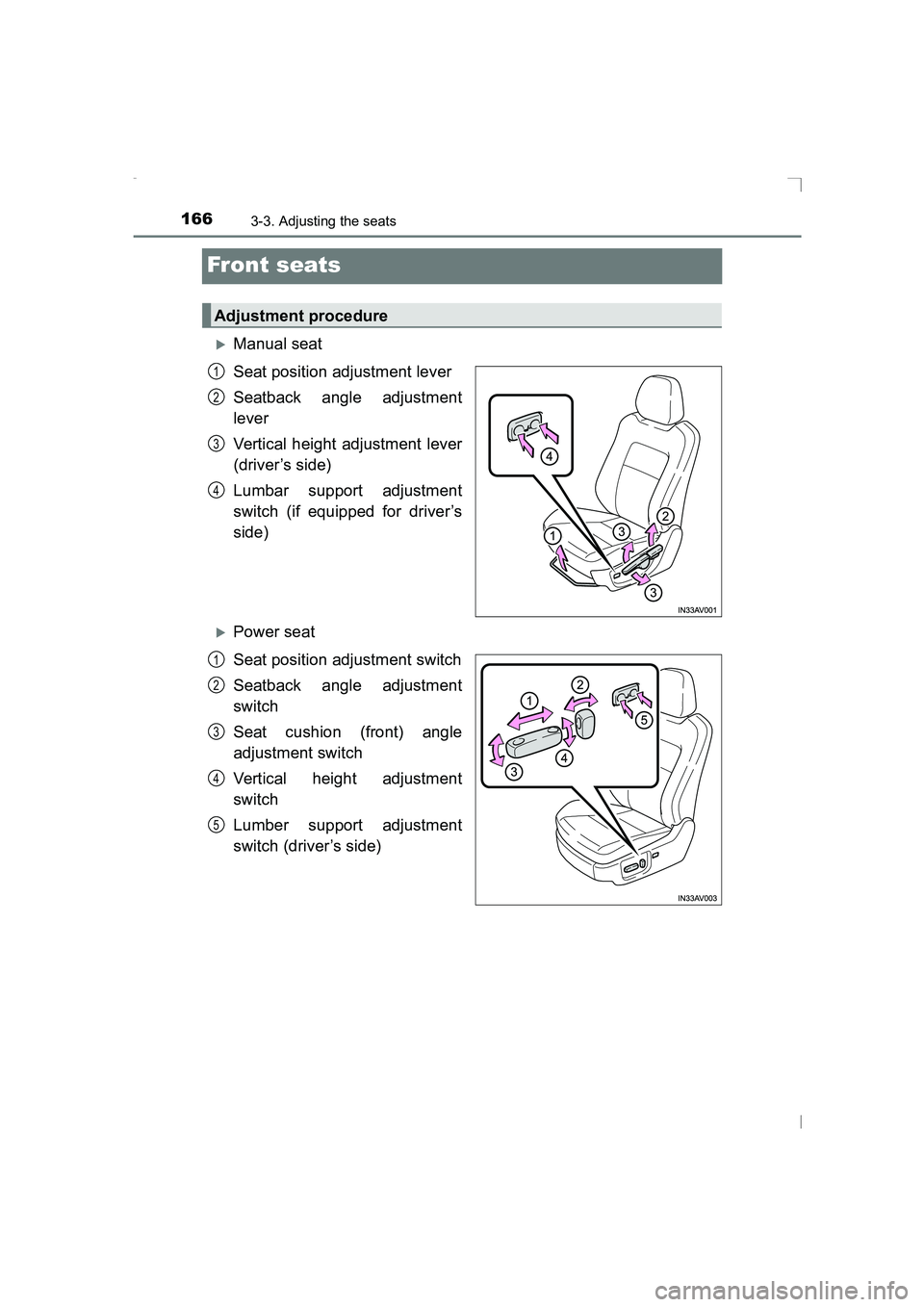

1663-3. Adjusting the seats
AVENSIS_OM_OM20C20E_(EE)
Front seats
XManual seat
Seat position adjustment lever
Seatback angle adjustment
lever
Vertical height adjustment lever
(driver’s side)
Lumbar support adjustment
switch (if equipped for driver’s
side)
XPower seat
Seat position adjustment switch
Seatback angle adjustment
switch
Seat cushion (front) angle
adjustment switch
Vertical height adjustment
switch
Lumber support adjustment
switch (driver’s side)
Adjustment procedure
1
2
3
4
1
2
3
4
5
AVENSIS_OM_OM20C20E_(EE).book Page 166 Thursday, January 29, 2015 1:47 PM

1673-3. Adjusting the seats
3
Operation of each component
AVENSIS_OM_OM20C20E_(EE)

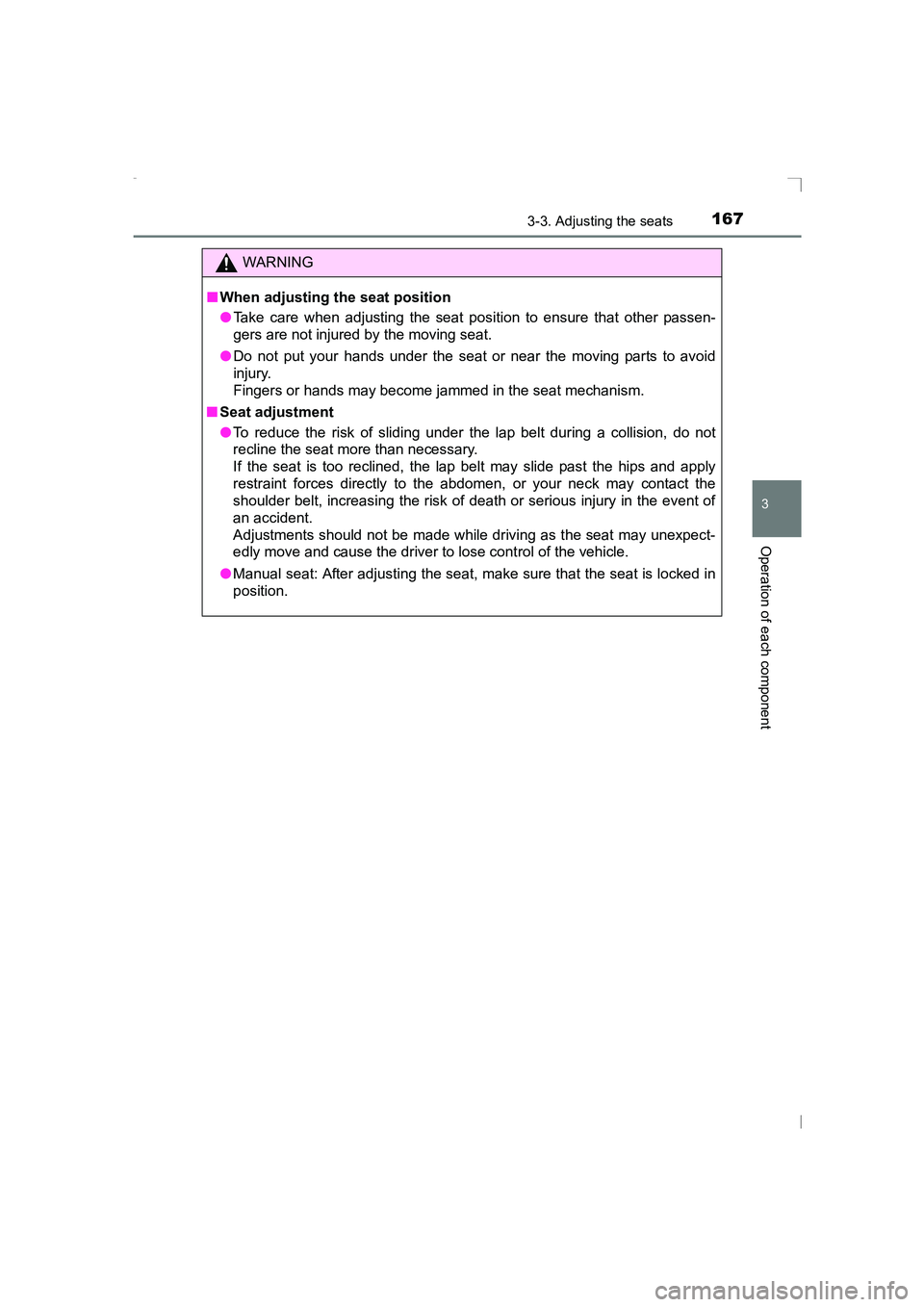

WARNING
■ When adjusting the seat position
●Take care when adjusting the seat position to ensure that other passen-
gers are not injured by the moving seat.
● Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.
■ Seat adjustment
●To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
● Manual seat: After adjusting the seat, make sure that the seat is locked in
position.
AVENSIS_OM_OM20C20E_(EE).book Page 167 Thursday, January 29, 2015 1:47 PM

1683-3. Adjusting the seats
AVENSIS_OM_OM20C20E_(EE)

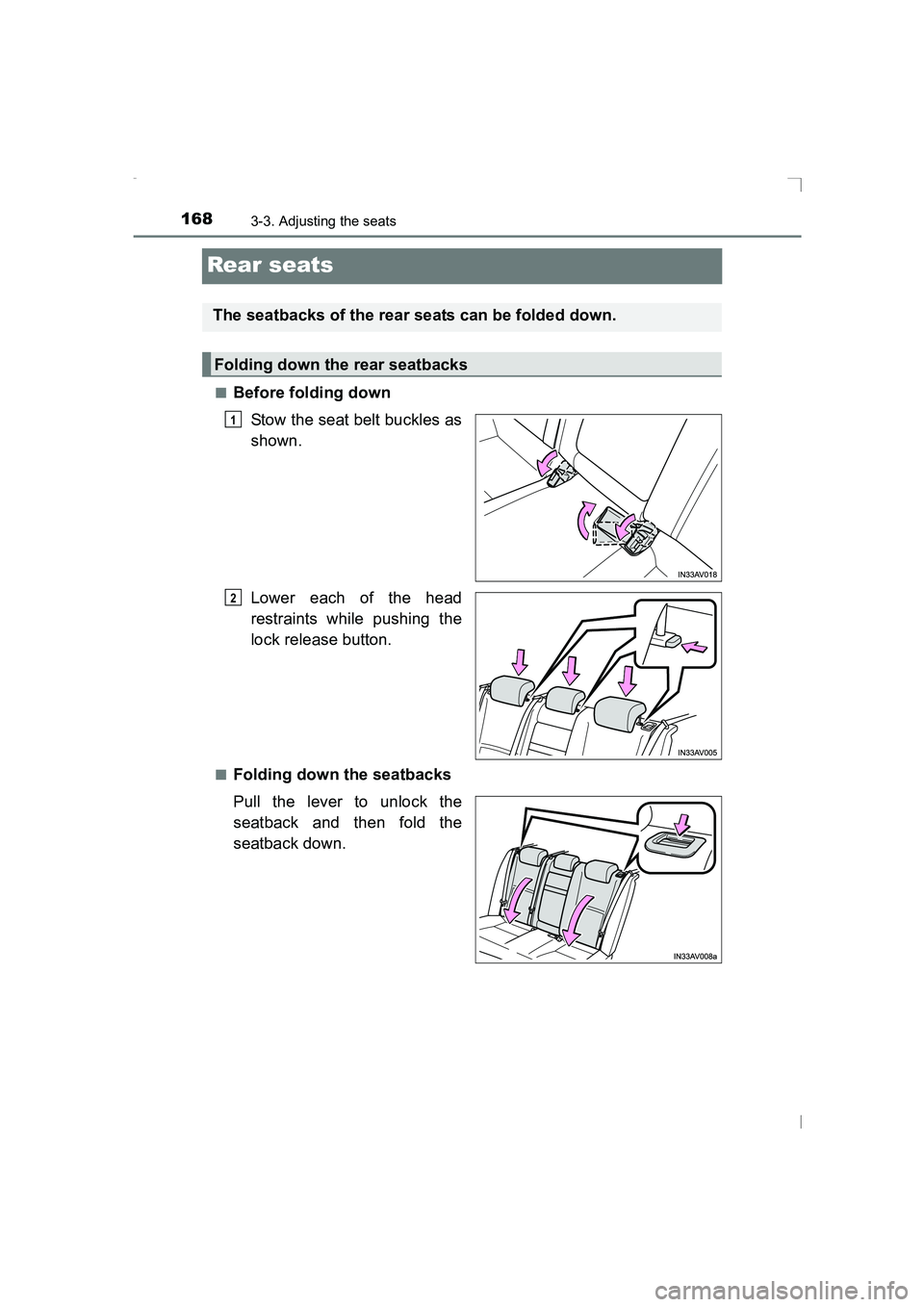

Rear seats
■Before folding downStow the seat belt buckles as
shown.
Lower each of the head
restraints while pushing the
lock release button.
■Folding down the seatbacks
Pull the lever to unlock the
seatback and then fold the
seatback down.
The seatbacks of the rear seats can be folded down.
Folding down the rear seatbacks
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 168 Thursday, January 29, 2015 1:47 PM

1693-3. Adjusting the seats
3
Operation of each component
AVENSIS_OM_OM20C20E_(EE)

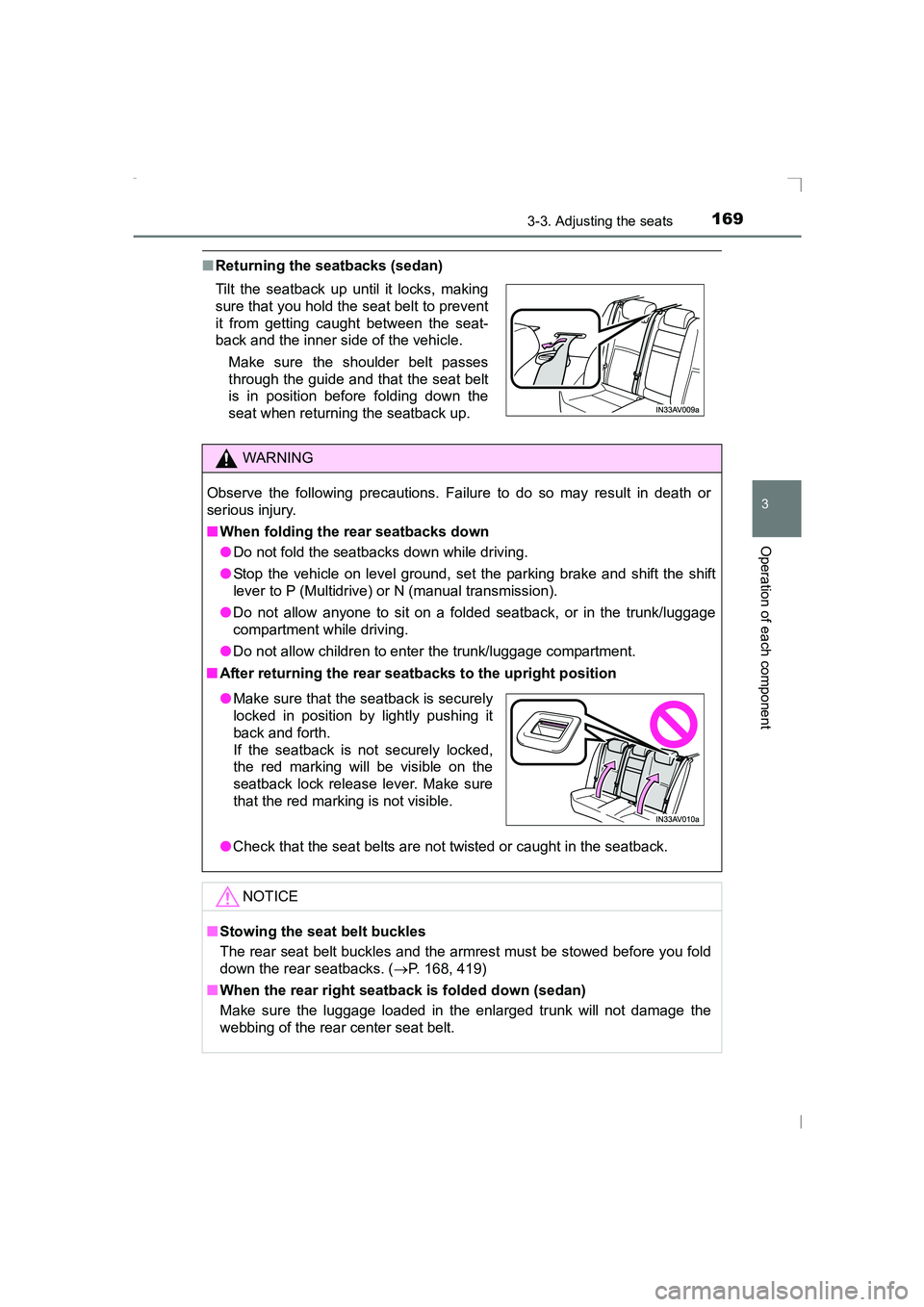

■Returning the seatbacks (sedan)
Tilt the seatback up until it locks, making
sure that you hold the seat belt to prevent
it from getting caught between the seat-
back and the inner side of the vehicle.
Make sure the shoulder belt passes
through the guide and that the seat belt
is in position before folding down the
seat when returning the seatback up.
WARNING
Observe the following precautions. Failure to do so may result in death or
serious injury.
■ When folding the rear seatbacks down
●Do not fold the seatbacks down while driving.
● Stop the vehicle on level ground, set the parking brake and shift the shift
lever to P (Multidrive) or N (manual transmission).
● Do not allow anyone to sit on a folded seatback, or in the trunk/luggage
compartment while driving.
● Do not allow children to enter the trunk/luggage compartment.
■ After returning the rear seatbacks to the upright position
●Check that the seat belts are not twisted or caught in the seatback.
NOTICE
■ Stowing the seat belt buckles
The rear seat belt buckles and the armrest must be stowed before you fold
down the rear seatbacks. ( →P. 168, 419)
■ When the rear right seatback is folded down (sedan)
Make sure the luggage loaded in the enlarged trunk will not damage the
webbing of the rear center seat belt.
● Make sure that the seatback is securely
locked in position by lightly pushing it
back and forth.
If the seatback is not securely locked,
the red marking will be visible on the
seatback lock release lever. Make sure
that the red marking is not visible.
AVENSIS_OM_OM20C20E_(EE).book Page 169 Thursday, January 29, 2015 1:47 PM

1703-3. Adjusting the seats
AVENSIS_OM_OM20C20E_(EE)

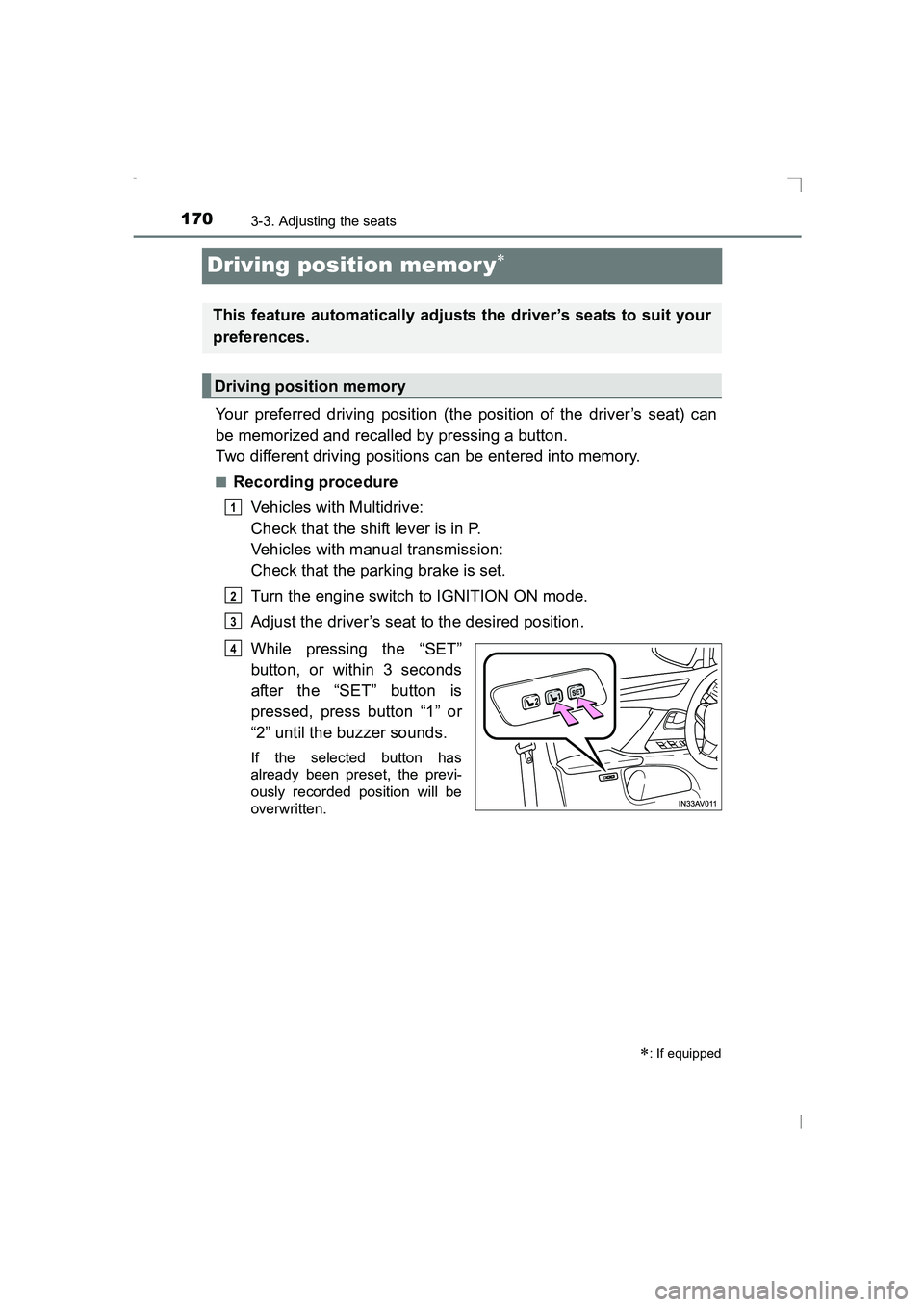

Driving position memor y∗
Your preferred driving position (the position of the driver’s seat) can
be memorized and recalled by pressing a button.
Two different driving positions can be entered into memory.
■Recording procedureVehicles with Multidrive:
Check that the shift lever is in P.
Vehicles with manual transmission:
Check that the parking brake is set.
Turn the engine switch to IGNITION ON mode.
Adjust the driver’s seat to the desired position.
While pressing the “SET”
button, or within 3 seconds
after the “SET” button is
pressed, press button “1” or
“2” until the buzzer sounds.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
∗: If equipped
This feature automatically adjusts the driver’s seats to suit your
preferences.
Driving position memory
1
2
3
4
