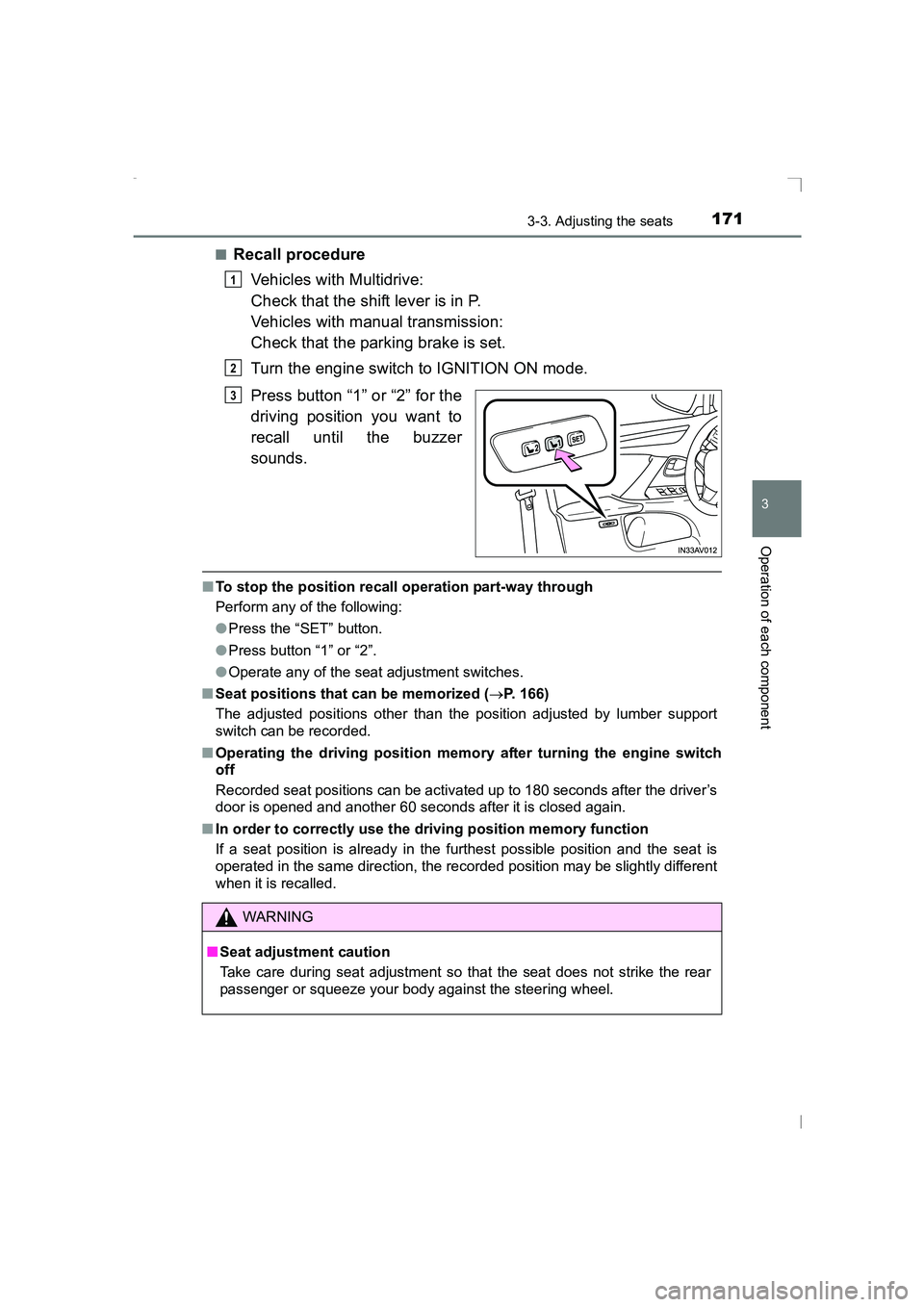

Recall procedure
Vehicles with Multidrive:
Check that the shift lever is in P.
Vehicles with manual transmission:
Check that the parking brake is set.
Turn the engine switch to IGNITION ON mode.
Press button “1” or “2” for the
driving position you want to
recall until the buzzer
sounds.
■To stop the position recall operation part-way through
Perform any of the following:
●Press the “SET” button.
● Press button “1” or “2”.
● Operate any of the seat adjustment switches.
■ Seat positions that can be memorized ( →P. 166)
The adjusted positions other than the position adjusted by lumber support
switch can be recorded.
■ Operating the driving position memory after turning the engine switch
off
Recorded seat positions can be activated up to 180 seconds after the driver’s
door is opened and another 60 seconds after it is closed again.
■ In order to correctly use the driving position memory function
If a seat position is already in the furthest possible position and the seat is
operated in the same direction, the recorded position may be slightly different
when it is recalled.
1
2
3
WARNING
■ Seat adjustment caution
Take care during seat adjustment so that the seat does not strike the rear
passenger or squeeze your body against the steering wheel.
AVENSIS_OM_OM20C20E_(EE).book Page 171 Thursday, January 29, 2015 1:47 PM

1723-3. Adjusting the seats
AVENSIS_OM_OM20C20E_(EE)

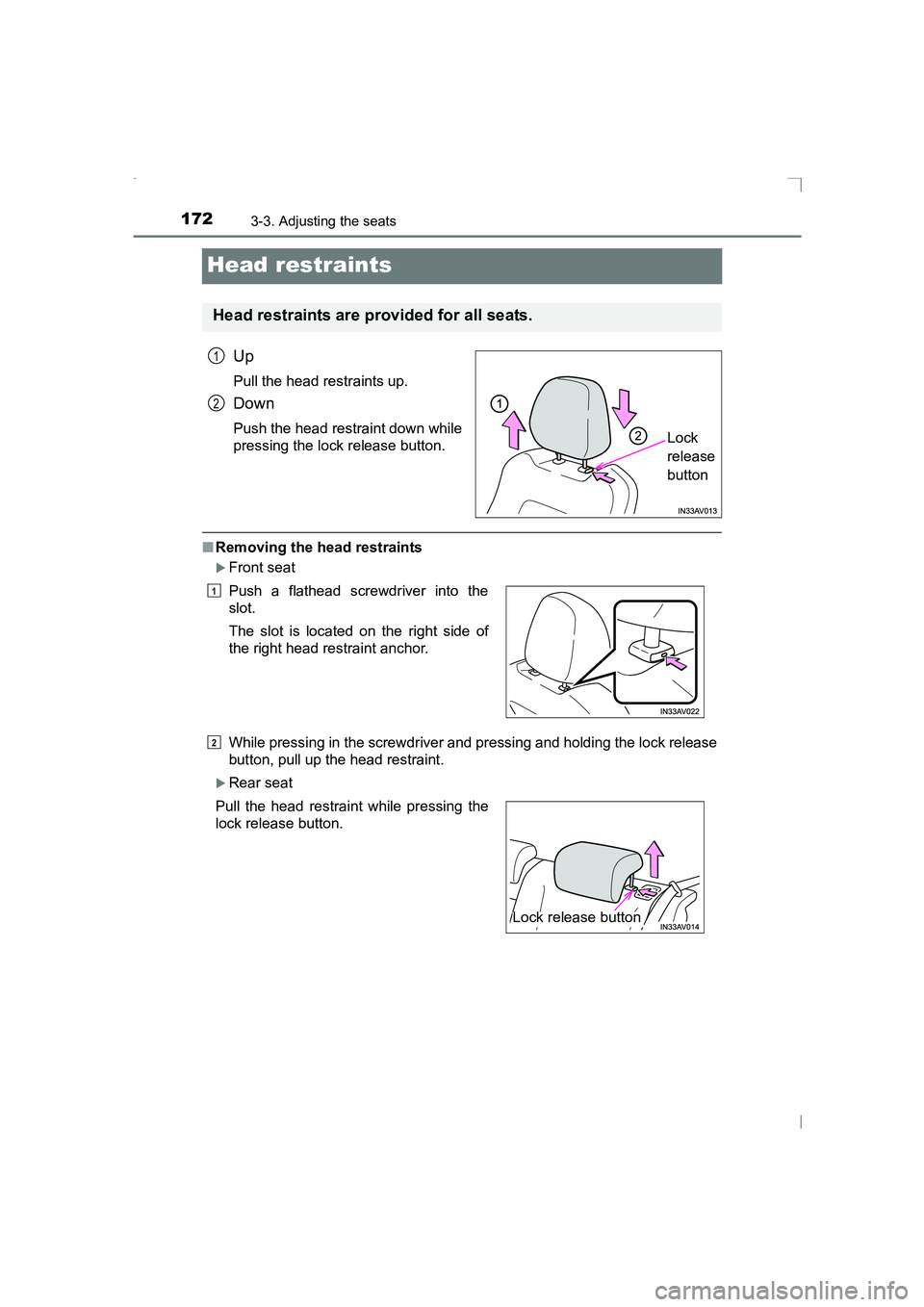

Head restraints
Up
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
■Removing the head restraints
XFront seat
While pressing in the screwdriver and pressing and holding the lock release
button, pull up the head restraint.
XRear seat
Head restraints are provided for all seats.
Lock
release
button
1
2
Push a flathead screwdriver into the
slot.
The slot is located on the right side of
the right head restraint anchor.
Pull the head restraint while pressing the
lock release button.1
2
Lock release button
AVENSIS_OM_OM20C20E_(EE).book Page 172 Thursday, January 29, 2015 1:47 PM

1733-3. Adjusting the seats
3
Operation of each component
AVENSIS_OM_OM20C20E_(EE)■

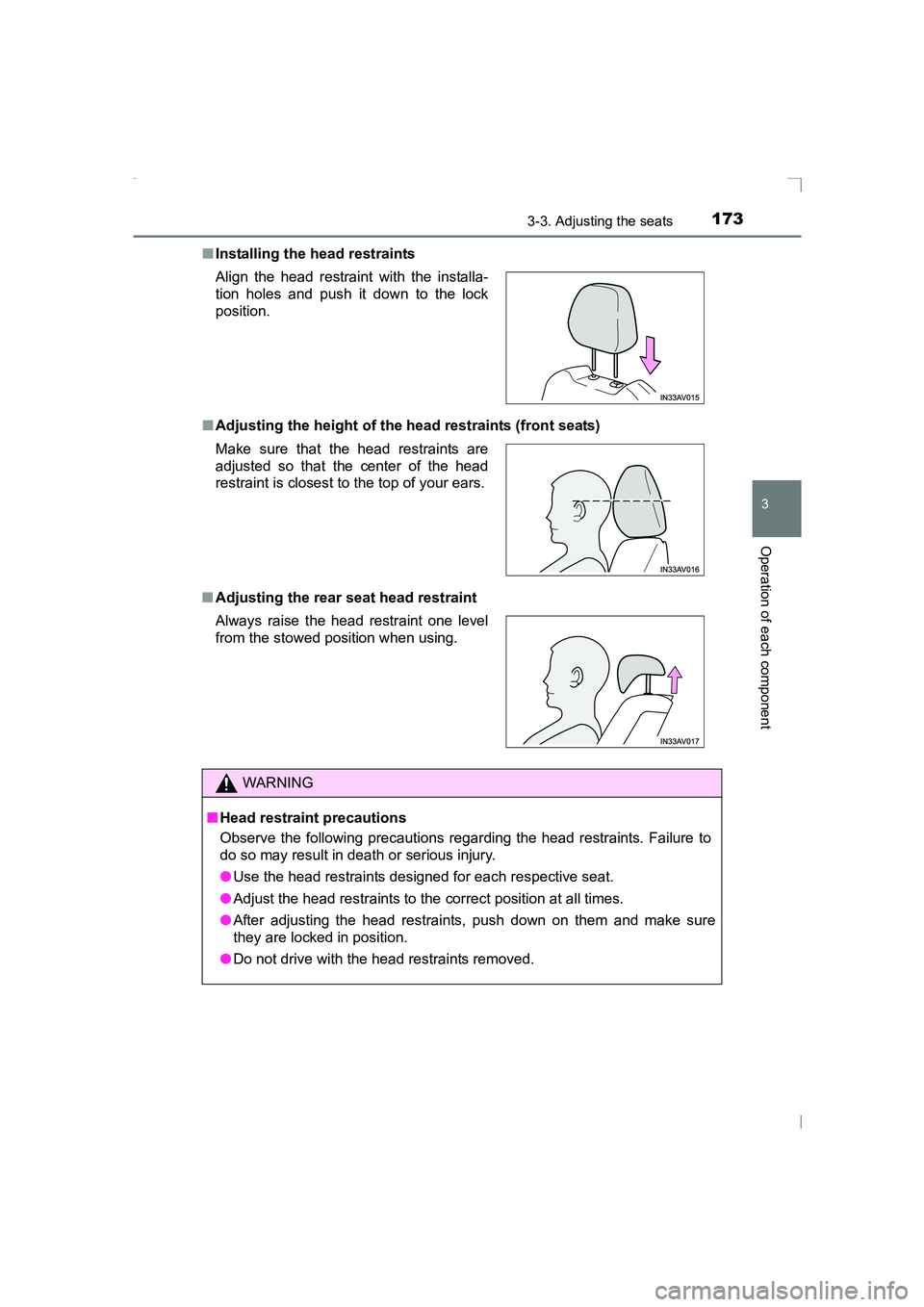

Installing the head restraints
■ Adjusting the height of the head restraints (front seats)
■ Adjusting the rear seat head restraint Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
Always raise the head restraint one level
from the stowed position when using.
WARNING
■ Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
●Use the head restraints designed for each respective seat.
● Adjust the head restraints to the correct position at all times.
● After adjusting the head restraints, push down on them and make sure
they are locked in position.
● Do not drive with the head restraints removed.
AVENSIS_OM_OM20C20E_(EE).book Page 173 Thursday, January 29, 2015 1:47 PM

1743-4. Adjusting the steering wheel and mirrors
AVENSIS_OM_OM20C20E_(EE)
Steering wheel
Hold the steering wheel and
press the lever down.
Adjust to the ideal position by
moving the steering wheel hori-
zontally and vertically.
After adjustment, pull the lever up
to secure the steering wheel.
To sound the horn, press on or
close to the mark.
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
Adjustment procedure
1
2
Horn
AVENSIS_OM_OM20C20E_(EE).book Page 174 Thursday, January 29, 2015 1:47 PM

1753-4. Adjusting the steering wheel and mirrors
3
Operation of each component
AVENSIS_OM_OM20C20E_(EE)
WARNING
■ Caution while driving
Do not adjust the steering wheel.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.
■ After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident and resulting in death or serious injury.
AVENSIS_OM_OM20C20E_(EE).book Page 175 Thursday, January 29, 2015 1:47 PM

1763-4. Adjusting the steering wheel and mirrors
AVENSIS_OM_OM20C20E_(EE)

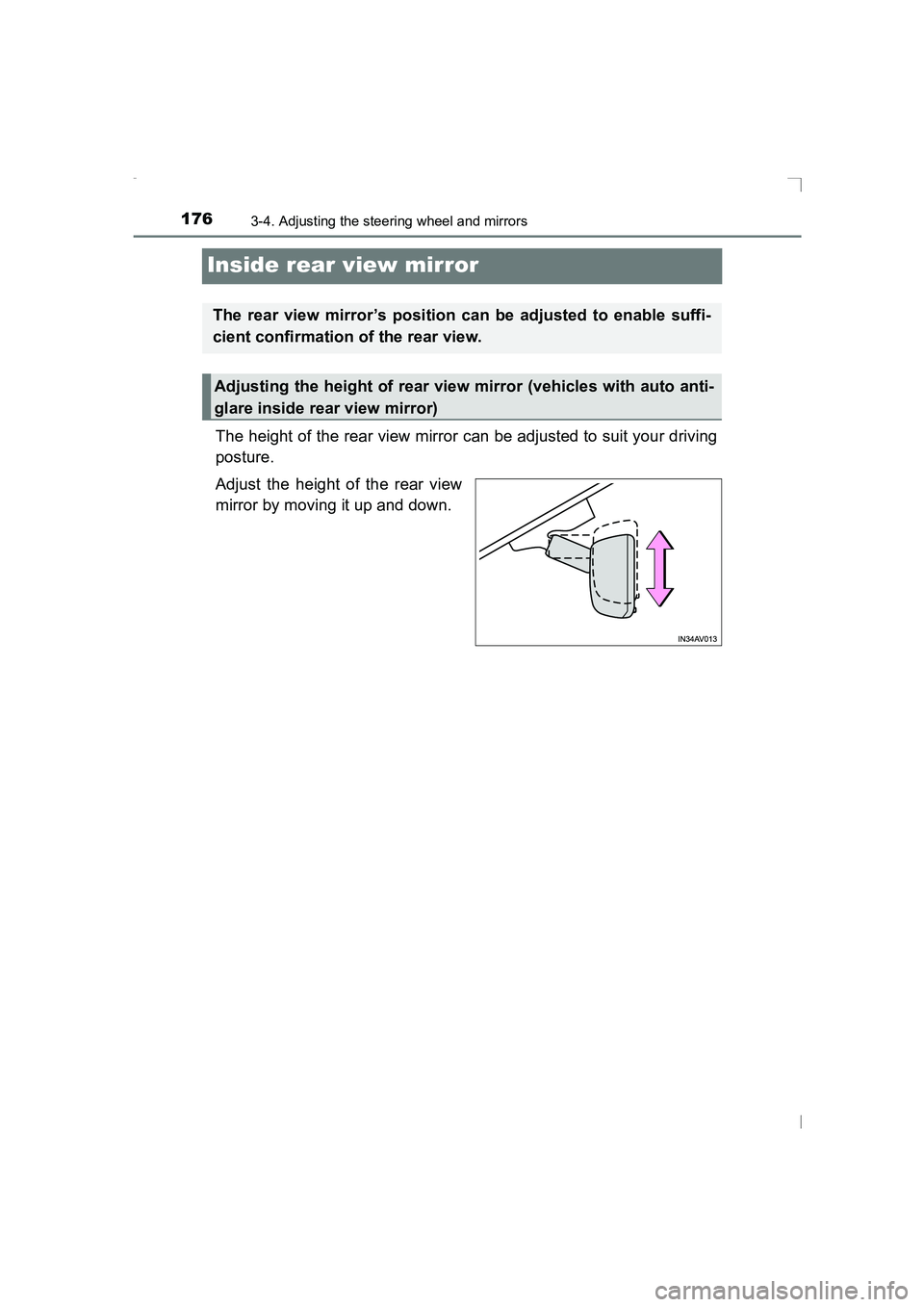

Inside rear view mirror
The height of the rear view mirror can be adjusted to suit your driving
posture.
Adjust the height of the rear view
mirror by moving it up and down.
The rear view mirror’s position can be adjusted to enable suffi-
cient confirmation of the rear view.
Adjusting the height of rear view mirror (vehicles with auto anti-
glare inside rear view mirror)
AVENSIS_OM_OM20C20E_(EE).book Page 176 Thursday, January 29, 2015 1:47 PM

1773-4. Adjusting the steering wheel and mirrors
3
Operation of each component
AVENSIS_OM_OM20C20E_(EE)
XManual anti-glare inside rear view mirror
Reflected light from the headlights of vehicles behind can be reduced
by operating the lever.
Normal position
Anti-glare position
XAuto anti-glare inside rear view mirror
Responding to the level of brightness of the headlights of vehicles
behind, the reflected light is automatically reduced.
Changing automatic anti-glare
function mode ON/OFF
When the automatic anti-glare
function is in ON mode, the indica-
tor illuminates.
The function will set to ON mode
each time the engine switch is
turned to “ON” position (vehicles
without smart entry & start system)
or IGNITION ON mode (vehicles
with smart entry & start system).
Pressing the button turns the function to OFF mode. (The indicator also
turns off.)

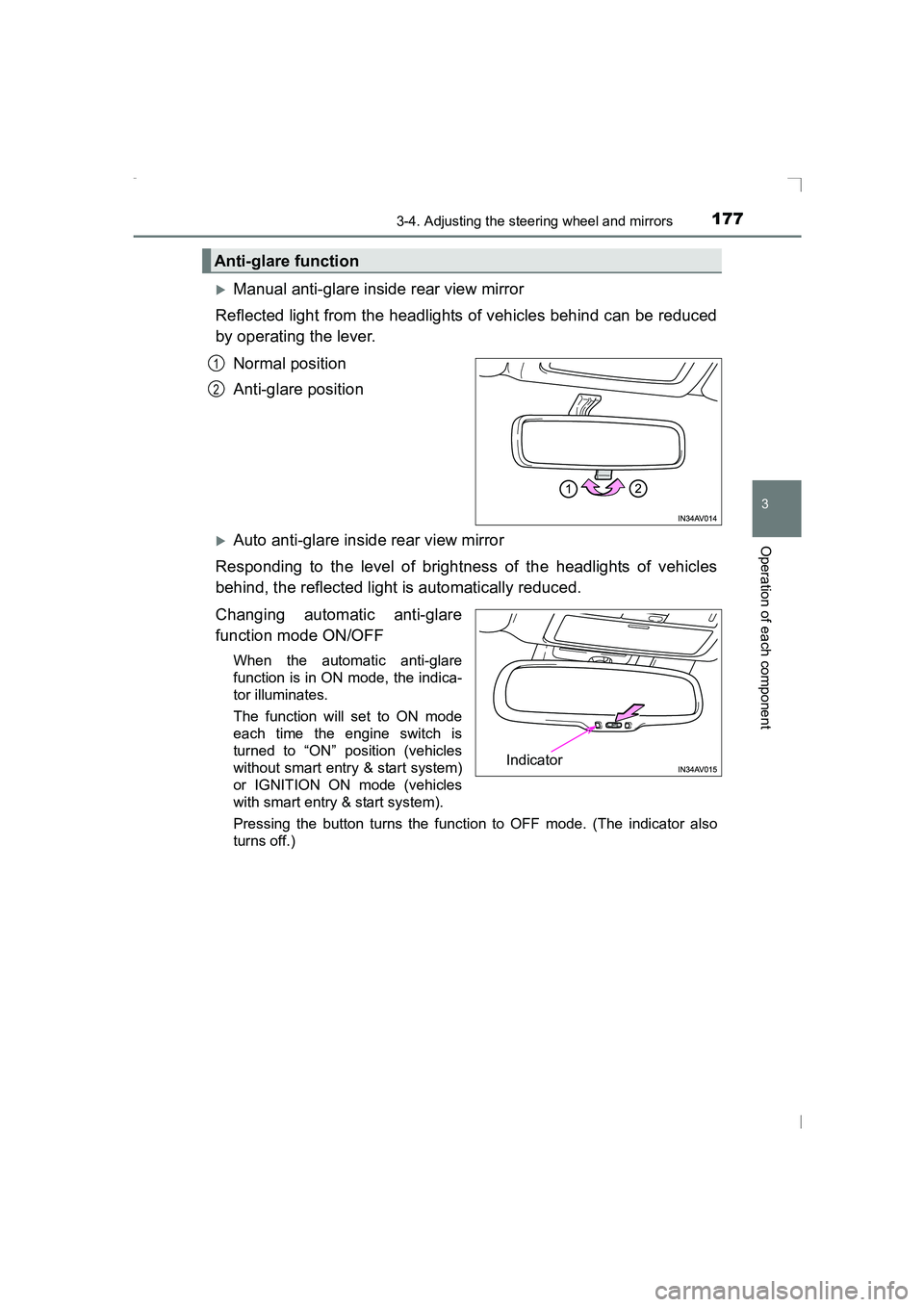

Anti-glare function
1
2
Indicator
AVENSIS_OM_OM20C20E_(EE).book Page 177 Thursday, January 29, 2015 1:47 PM

1783-4. Adjusting the steering wheel and mirrors
AVENSIS_OM_OM20C20E_(EE)

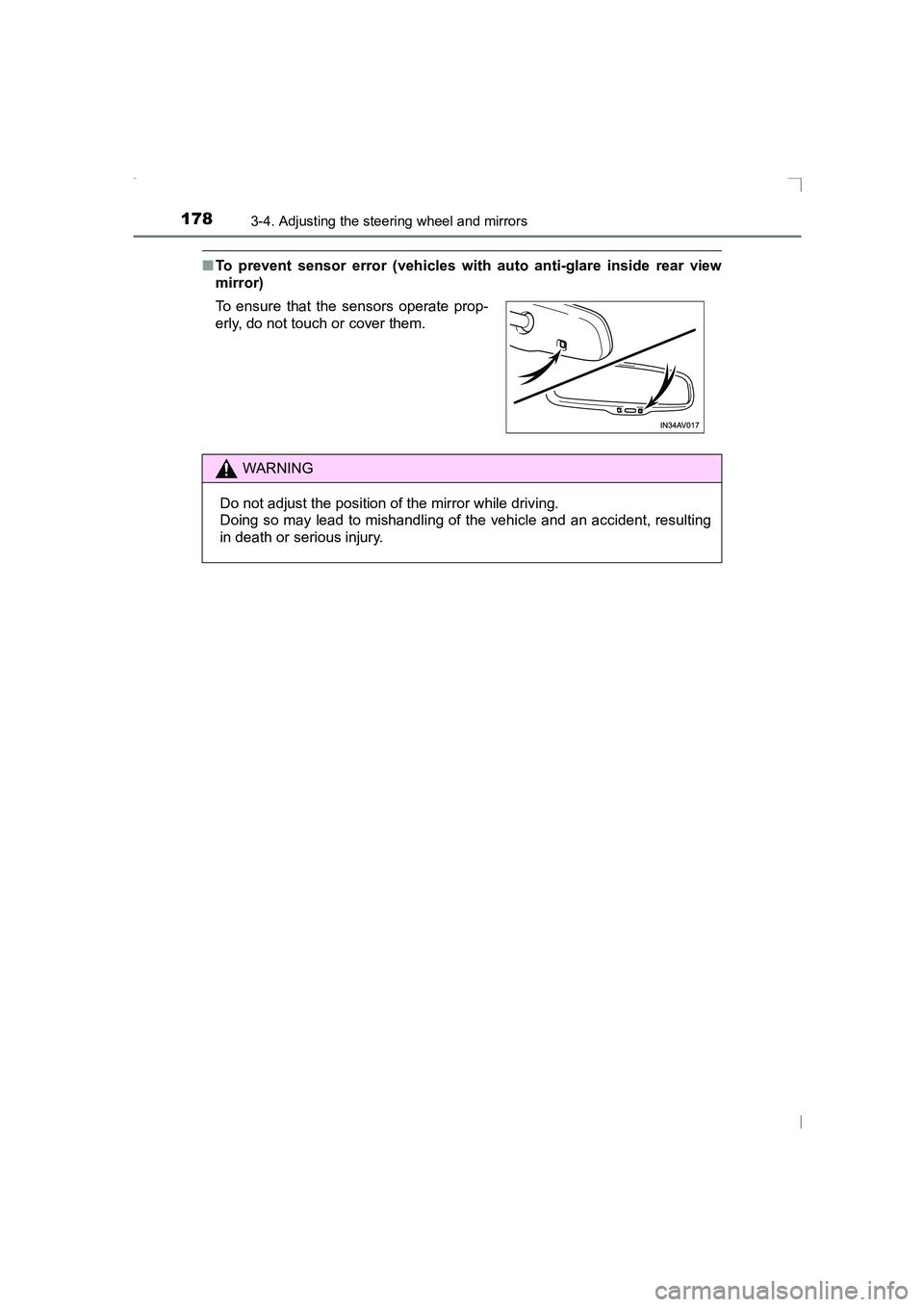

■To prevent sensor error (vehicles with auto anti-glare inside rear view
mirror)
To ensure that the sensors operate prop-
erly, do not touch or cover them.
WARNING
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and an accident, resulting
in death or serious injury.
AVENSIS_OM_OM20C20E_(EE).book Page 178 Thursday, January 29, 2015 1:47 PM

179
3
3-4. Adjusting the steering wheel and mirrors
Operation of each component
AVENSIS_OM_OM20C20E_(EE)

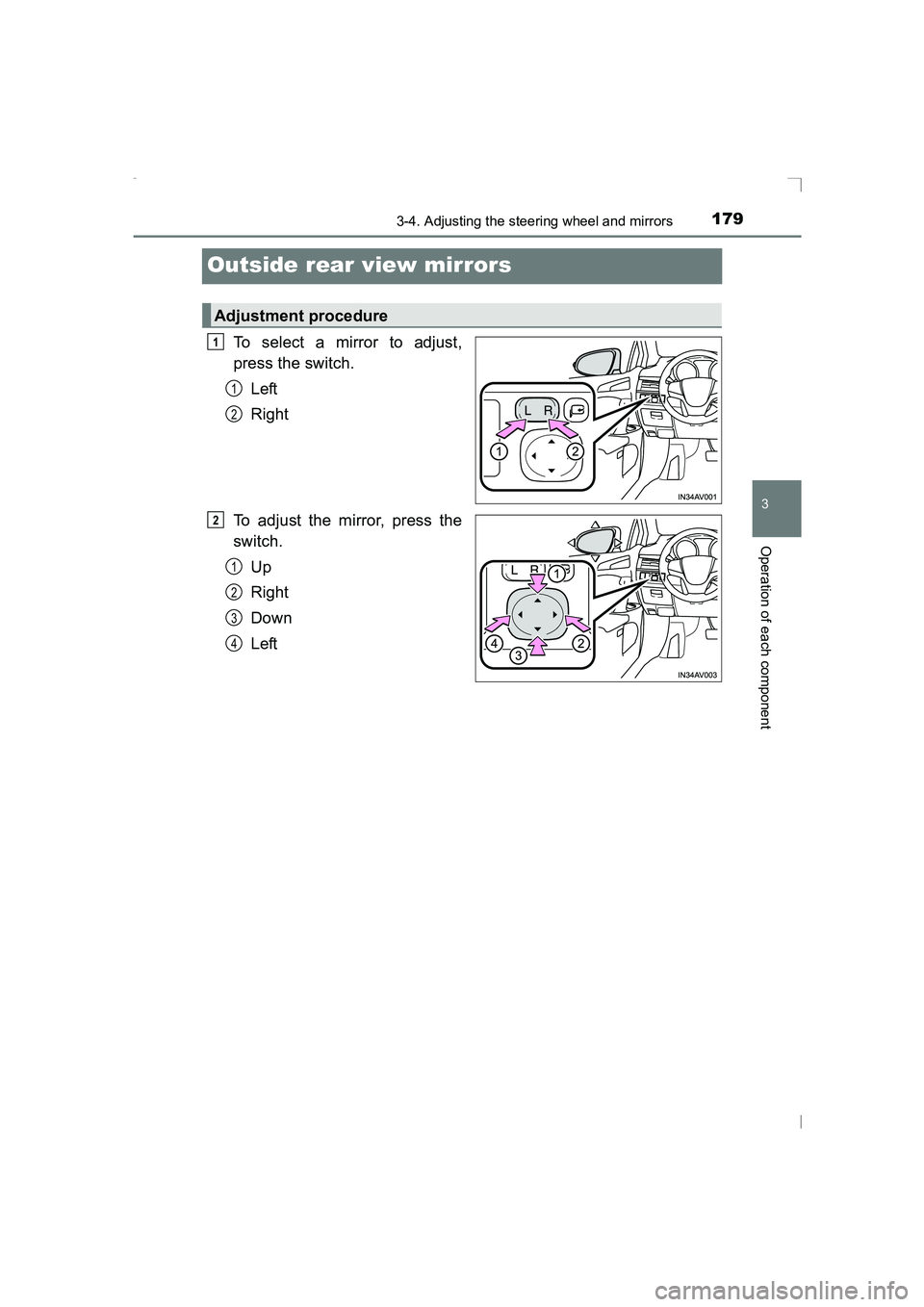

Outside rear view mirrors
To select a mirror to adjust,
press the switch.Left
Right
To adjust the mirror, press the
switch. Up
Right
Down
Left
Adjustment procedure
1
1
2
2
1
2
3
4
AVENSIS_OM_OM20C20E_(EE).book Page 179 Thursday, January 29, 2015 1:47 PM

1803-4. Adjusting the steering wheel and mirrors
AVENSIS_OM_OM20C20E_(EE)
XManual type
Push the mirror back in the direc-
tion of the vehicle’s rear.
XPower type
Press the switch to fold the mir-
rors.
Press it again to extend them to
the original position.
■ The outside rear view mirrors can be operated when
XVehicles without smart entry & start system
The engine switch is in the “ACC” or “ON” position.
XVehicles with smart entry & start system
The engine switch is in ACCESSORY or IGNITION ON mode.
■ When the mirrors are fogged up
The outside rear view mirrors can be cleared using the mirror defoggers. Turn
on the rear window defogger to turn on the outside rear view mirror defog-
gers. ( →P. 384, 391)

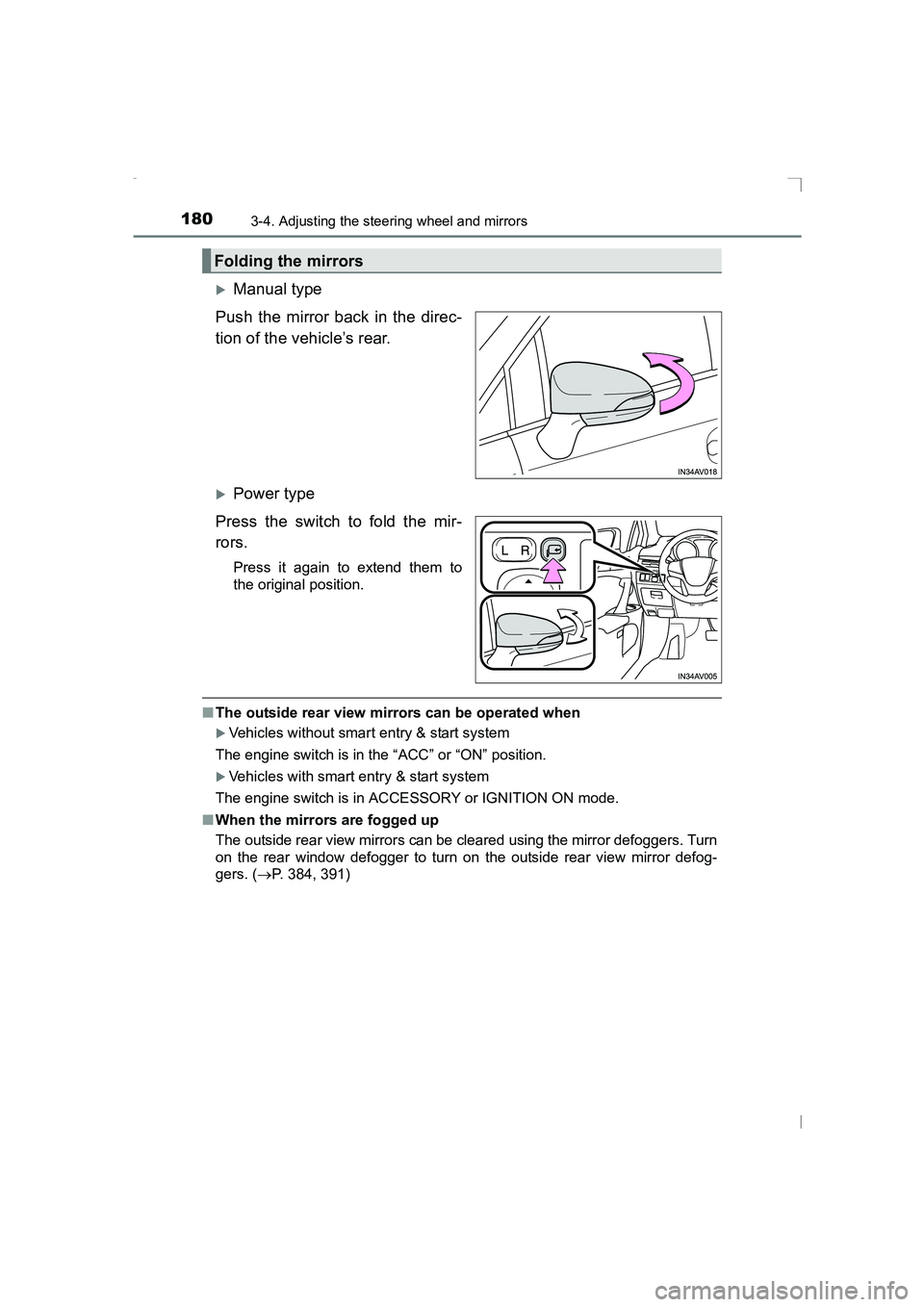

Folding the mirrors
