TOYOTA AVENSIS 2015 Owners Manual

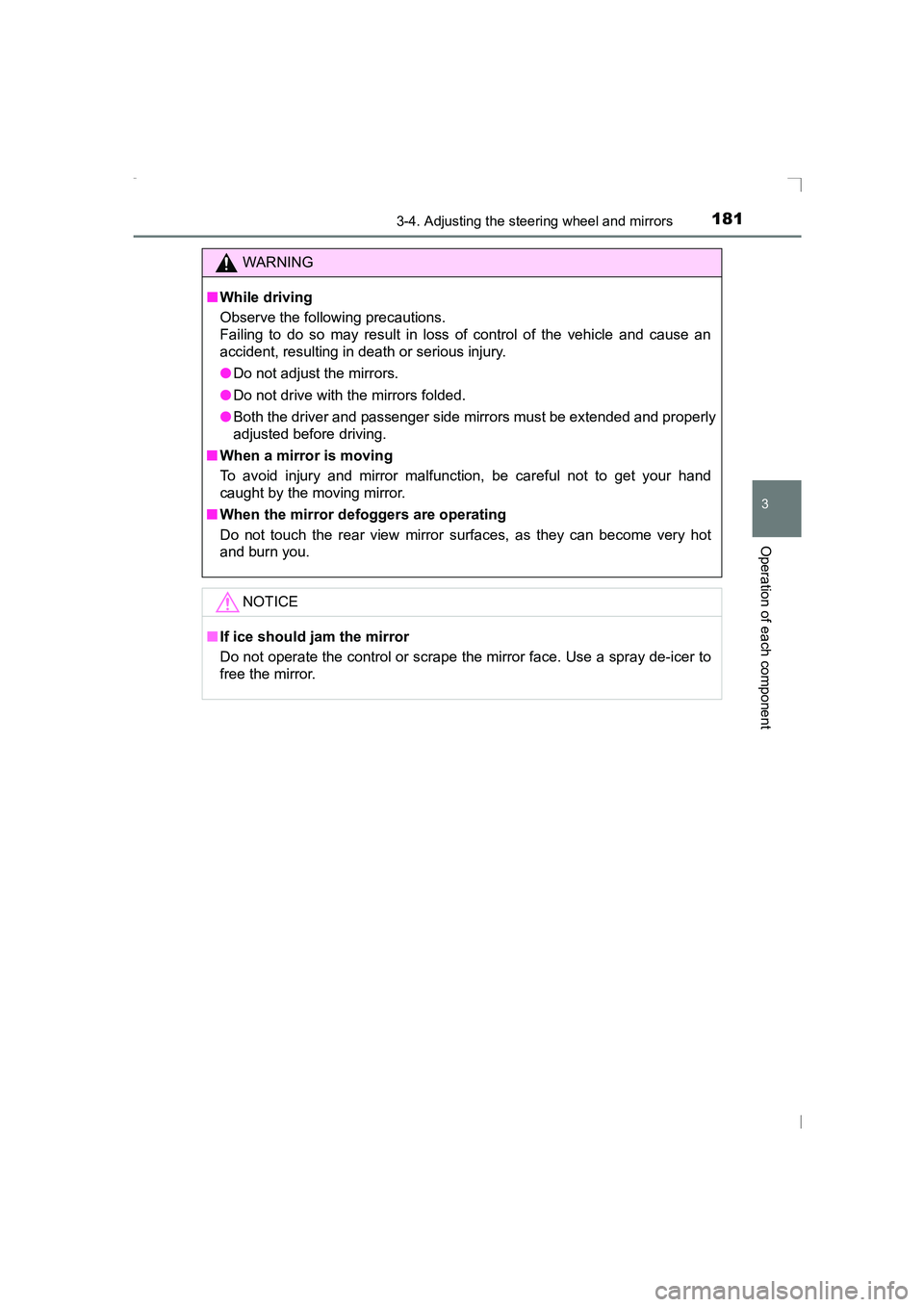

1813-4. Adjusting the steering wheel and mirrors
3
Operation of each component
AVENSIS_OM_OM20C20E_(EE)
WARNING
■ While driving
Observe the following precautions.
Failing to do so may result in loss of control of the vehicle and cause an
accident, resulting in death or serious injury.
●Do not adjust the mirrors.
● Do not drive with the mirrors folded.
● Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■ When a mirror is moving
To avoid injury and mirror malfunction, be careful not to get your hand
caught by the moving mirror.
■ When the mirror defoggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot
and burn you.
NOTICE
■If ice should jam the mirror
Do not operate the control or scrape the mirror face. Use a spray de-icer to
free the mirror.
AVENSIS_OM_OM20C20E_(EE).book Page 181 Thursday, January 29, 2015 1:47 PM

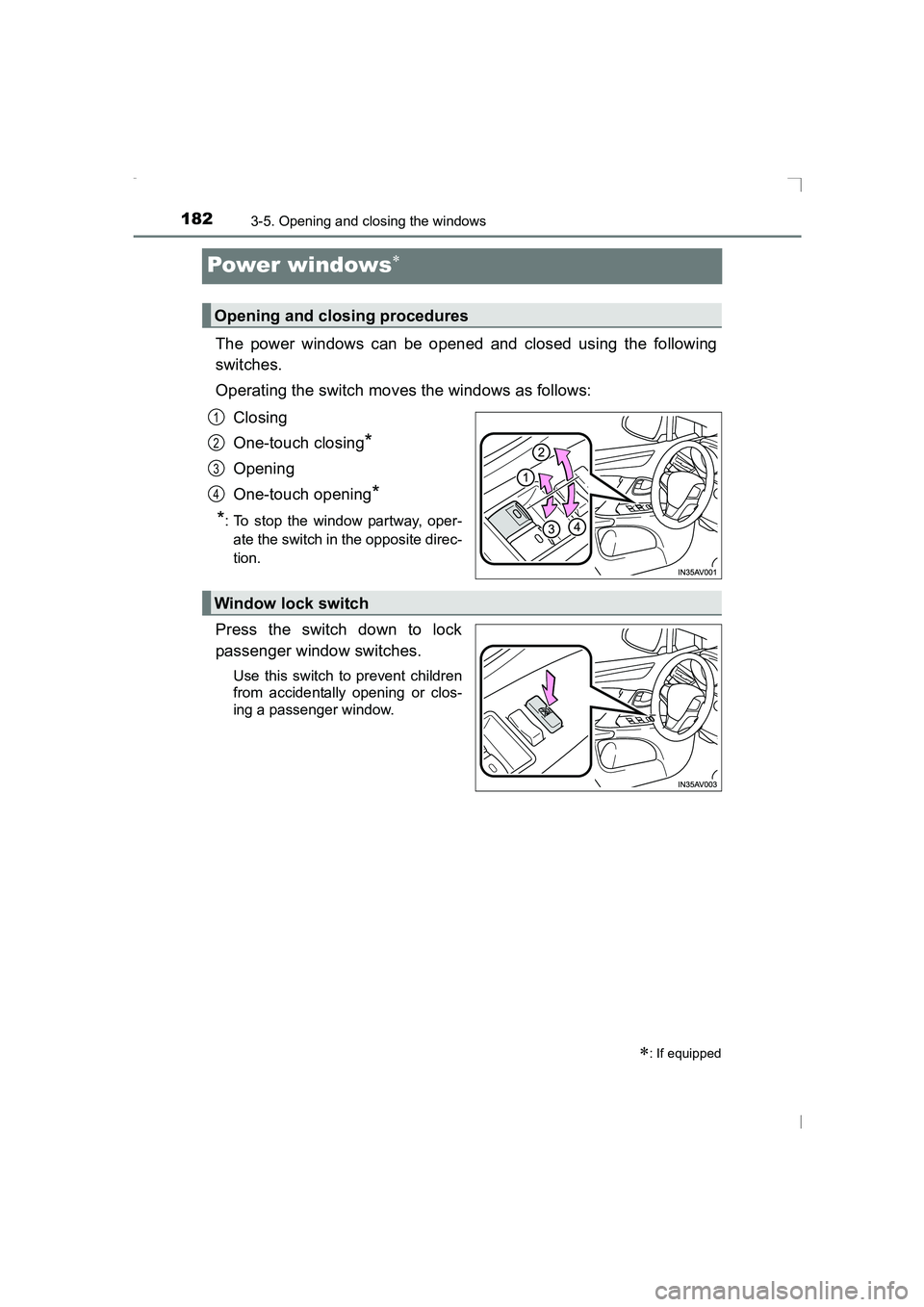

1823-5. Opening and closing the windows
AVENSIS_OM_OM20C20E_(EE)
Power windows∗
The power windows can be opened and closed using the following
switches.
Operating the switch moves the windows as follows:Closing
One-touch closing
*
Opening
One-touch opening
*
*
: To stop the window partway, oper- ate the switch in the opposite direc-
tion.
Press the switch down to lock
passenger window switches.
Use this switch to prevent children
from accidentally opening or clos-
ing a passenger window.
∗: If equipped
Opening and closing procedures
1
2
3
4
Window lock switch
AVENSIS_OM_OM20C20E_(EE).book Page 182 Thursday, January 29, 2015 1:47 PM

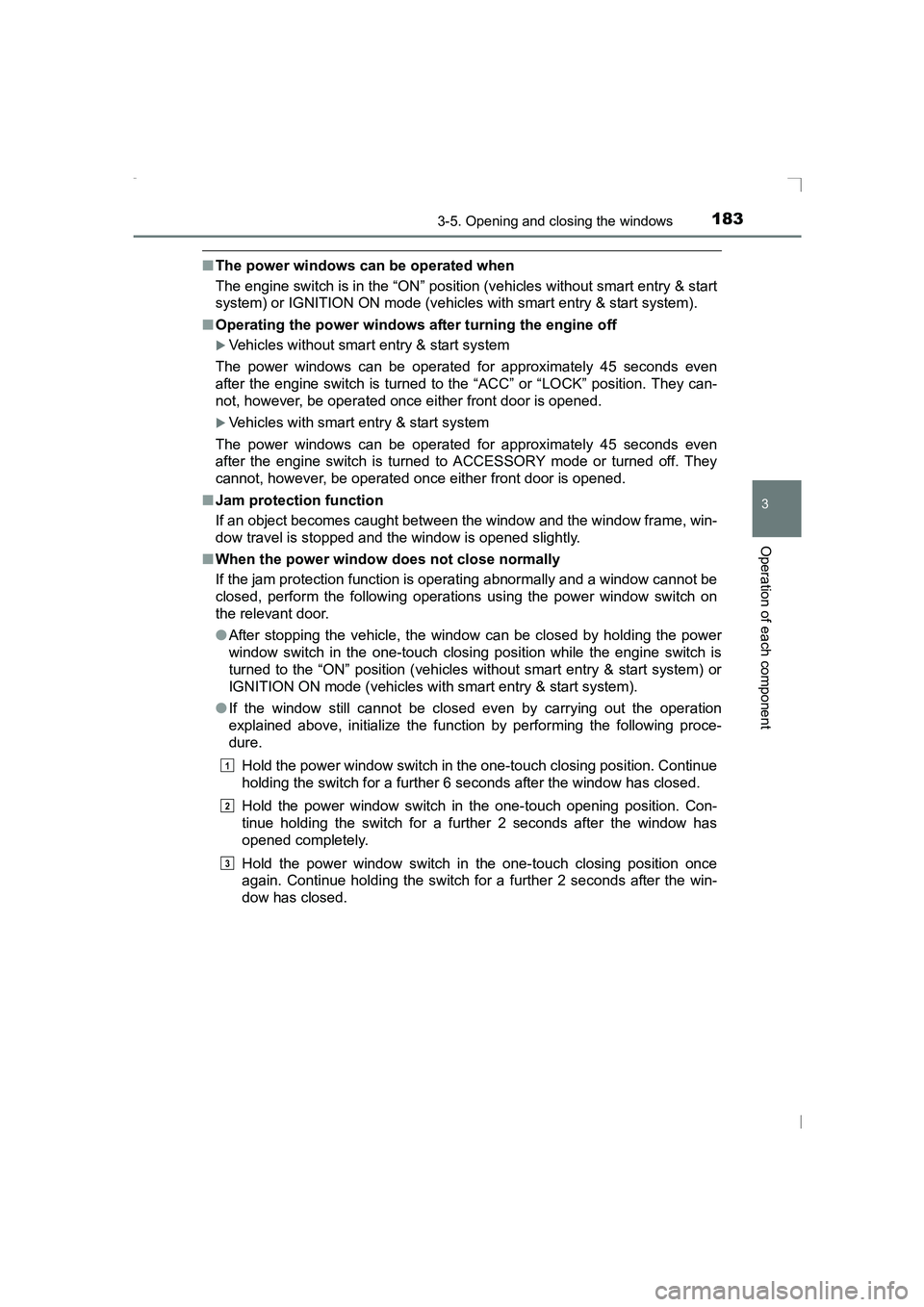

1833-5. Opening and closing the windows
3
Operation of each component
AVENSIS_OM_OM20C20E_(EE)
■The power windows can be operated when
The engine switch is in the “ON” position (vehicles without smart entry & start
system) or IGNITION ON mode (vehicles with smart entry & start system).
■ Operating the power windows after turning the engine off
XVehicles without smart entry & start system
The power windows can be operated for approximately 45 seconds even
after the engine switch is turned to the “ACC” or “LOCK” position. They can-
not, however, be operated once either front door is opened.
XVehicles with smart entry & start system
The power windows can be operated for approximately 45 seconds even
after the engine switch is turned to ACCESSORY mode or turned off. They
cannot, however, be operated once either front door is opened.
■ Jam protection function
If an object becomes caught between the window and the window frame, win-
dow travel is stopped and the window is opened slightly.
■ When the power window does not close normally
If the jam protection function is operating abnormally and a window cannot be
closed, perform the following operations using the power window switch on
the relevant door.
●After stopping the vehicle, the window can be closed by holding the power
window switch in the one-touch closing position while the engine switch is
turned to the “ON” position (vehicles without smart entry & start system) or
IGNITION ON mode (vehicles with smart entry & start system).
● If the window still cannot be closed even by carrying out the operation
explained above, initialize the function by performing the following proce-
dure.
Hold the power window switch in the one-touch closing position. Continue
holding the switch for a further 6 seconds after the window has closed.
Hold the power window switch in the one-touch opening position. Con-
tinue holding the switch for a further 2 seconds after the window has
opened completely.
Hold the power window switch in the one-touch closing position once
again. Continue holding the switch for a further 2 seconds after the win-
dow has closed.
1
2
3
AVENSIS_OM_OM20C20E_(EE).book Page 183 Thursday, January 29, 2015 1:47 PM

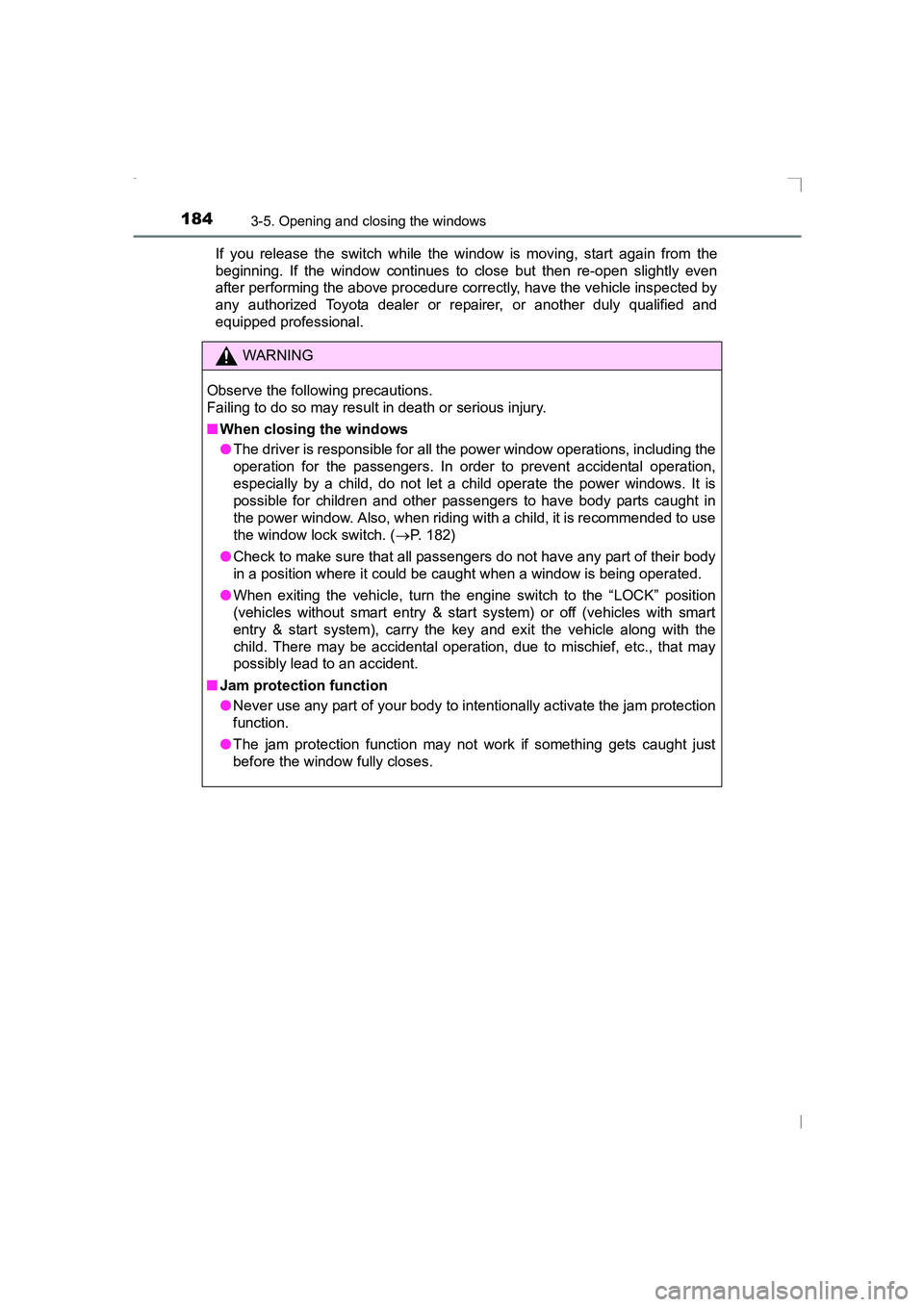

1843-5. Opening and closing the windows
AVENSIS_OM_OM20C20E_(EE)If you release the switch while the window is moving, start again from the
beginning. If the window continues to close but then re-open slightly even
after performing the above procedure correctly, have the vehicle inspected by
any authorized Toyota dealer or re
pairer, or another duly qualified and
equipped professional.
WARNING
Observe the following precautions.
Failing to do so may result in death or serious injury.
■ When closing the windows
●The driver is responsible for all t he power window operations, including the
operation for the passengers. In order to prevent accidental operation,
especially by a child, do not let a child operate the power windows. It is
possible for children and other passengers to have body parts caught in
the power window. Also, when riding with a child, it is recommended to use
the window lock switch. ( →P. 182)
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
● When exiting the vehicle, turn the engine switch to the “LOCK” position
(vehicles without smart entry & start system) or off (vehicles with smart
entry & start system), carry the key and exit the vehicle along with the
child. There may be accidental operation, due to mischief, etc., that may
possibly lead to an accident.
■ Jam protection function
●Never use any part of your body to intentionally activate the jam protection
function.
● The jam protection function may not work if something gets caught just
before the window fully closes.
AVENSIS_OM_OM20C20E_(EE).book Page 184 Thursday, January 29, 2015 1:47 PM

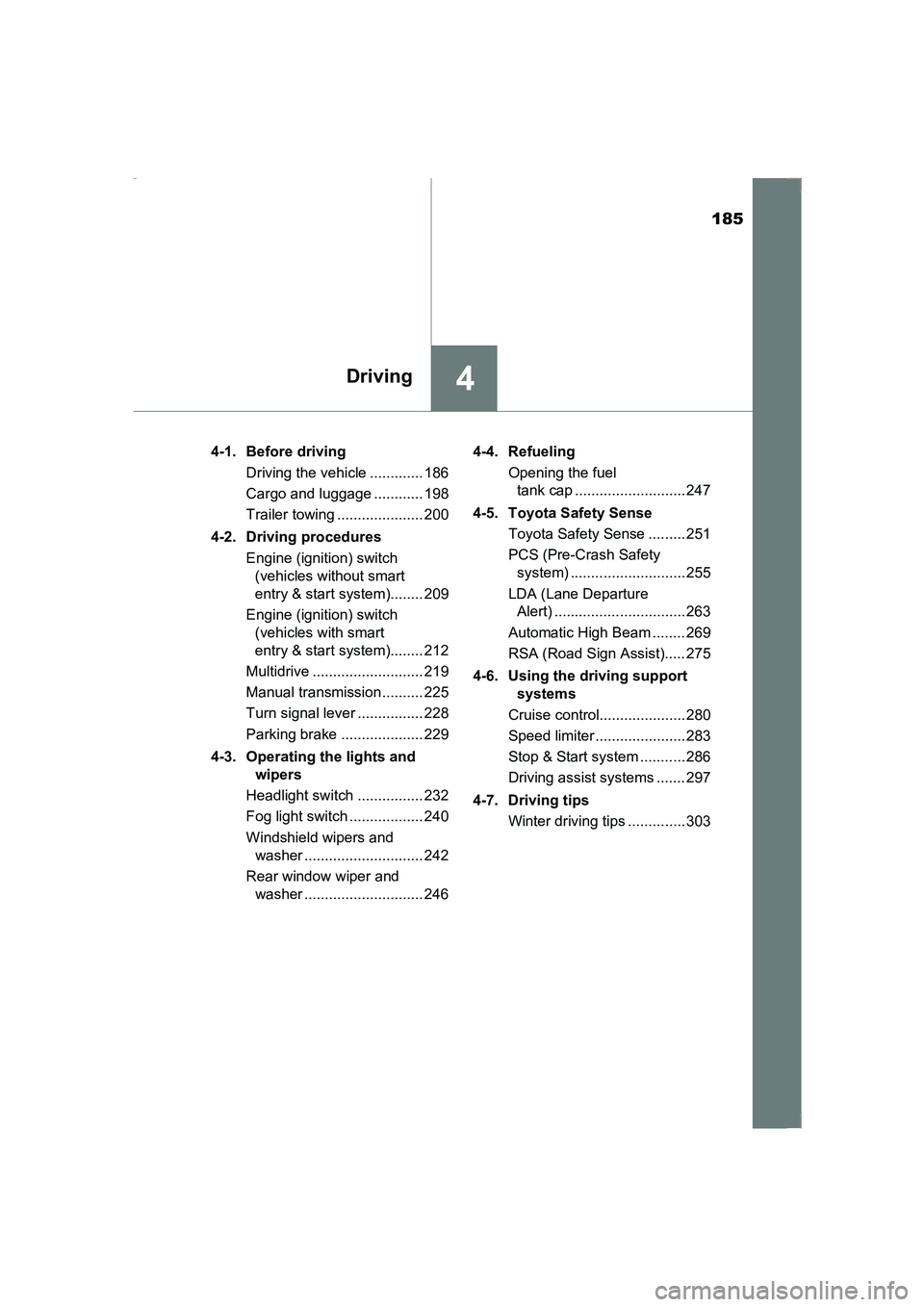

185
4Driving
AVENSIS_OM_OM20C20E_(EE)4-1. Before driving
Driving the vehicle ............. 186
Cargo and luggage ............ 198
Trailer towing ..................... 200
4-2. Driving procedures Engine (ignition) switch (vehicles without smart
entry & start system)........ 209
Engine (ignition) switch (vehicles with smart
entry & start system)........ 212
Multidrive ........................... 219
Manual transmission.......... 225
Turn signal lever ................ 228
Parking brake .................... 229
4-3. Operating the lights and wipers
Headlight switch ................ 232
Fog light switch .................. 240
Windshield wipers and washer ............................. 242
Rear window wiper and washer ............................. 246 4-4. Refueling
Opening the fuel tank cap ........................... 247
4-5. Toyota Safety Sense Toyota Safety Sense ......... 251
PCS (Pre-Crash Safety system) ............................ 255
LDA (Lane Departure Alert) ................................ 263
Automatic High Beam ........ 269
RSA (Road Sign Assist)..... 275
4-6. Using the driving support systems
Cruise control..................... 280
Speed limiter ......................283
Stop & Start system ........... 286
Driving assist systems ....... 297
4-7. Driving tips Winter driving tips .............. 303
AVENSIS_OM_OM20C20E_(EE).book Page 185 Thursday, January 29, 2015 1:47 PM

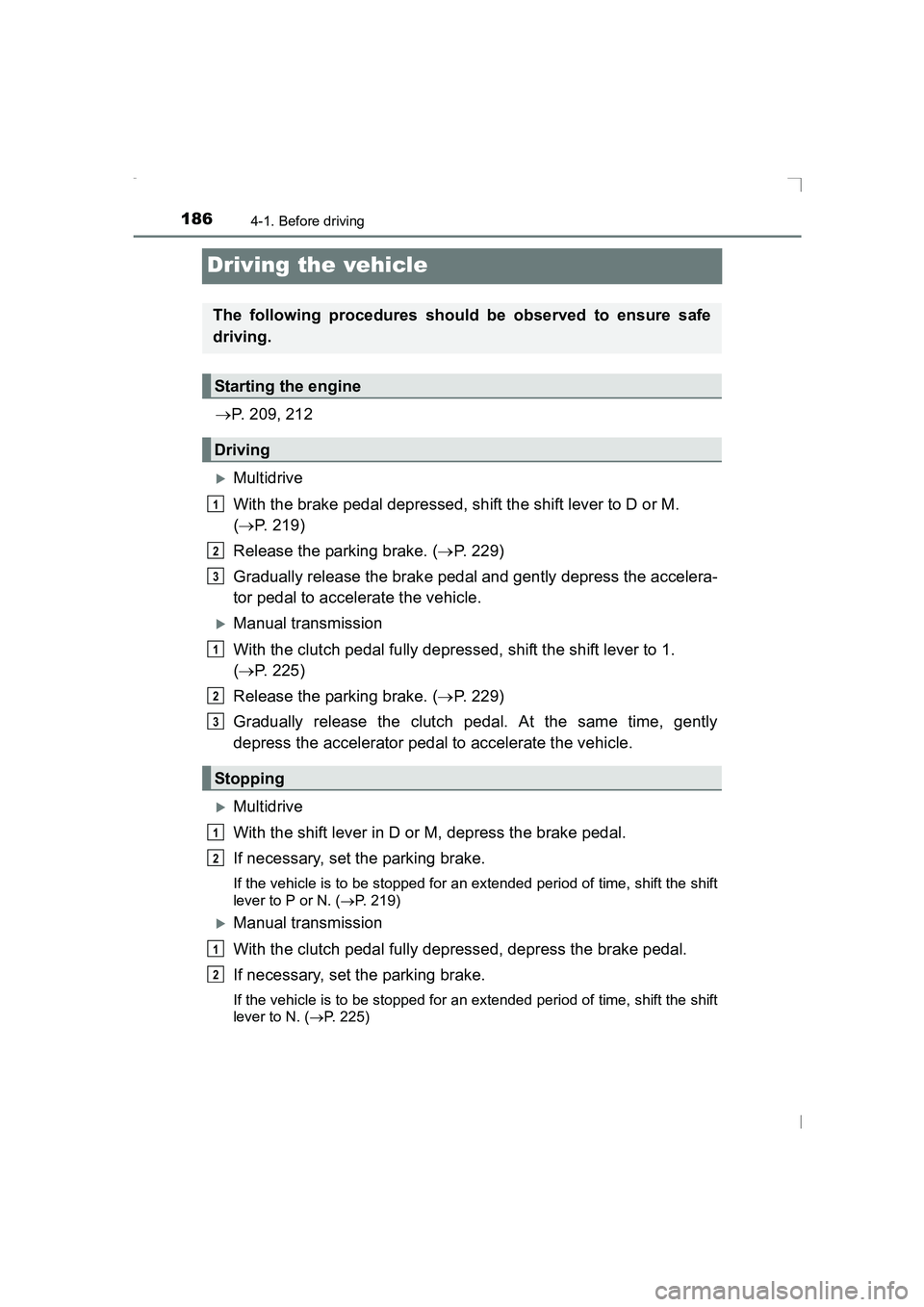

1864-1. Before driving
AVENSIS_OM_OM20C20E_(EE)
Driving the vehicle
→P. 209, 212
XMultidrive
With the brake pedal depressed, shift the shift lever to D or M.
(→ P. 219)
Release the parking brake. ( →P. 229)
Gradually release the brake pedal and gently depress the accelera-
tor pedal to accelerate the vehicle.
XManual transmission
With the clutch pedal fully depressed, shift the shift lever to 1.
( → P. 225)
Release the parking brake. ( →P. 229)
Gradually release the clutch pedal. At the same time, gently
depress the accelerator pedal to accelerate the vehicle.
XMultidrive
With the shift lever in D or M, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the shift
lever to P or N. ( →P. 219)
XManual transmission
With the clutch pedal fully depressed, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the shift
lever to N. ( →P. 225)
The following procedures should be observed to ensure safe
driving.
Starting the engine
Driving
Stopping
1
2
3
1
2
3
1
2
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 186 Thursday, January 29, 2015 1:47 PM

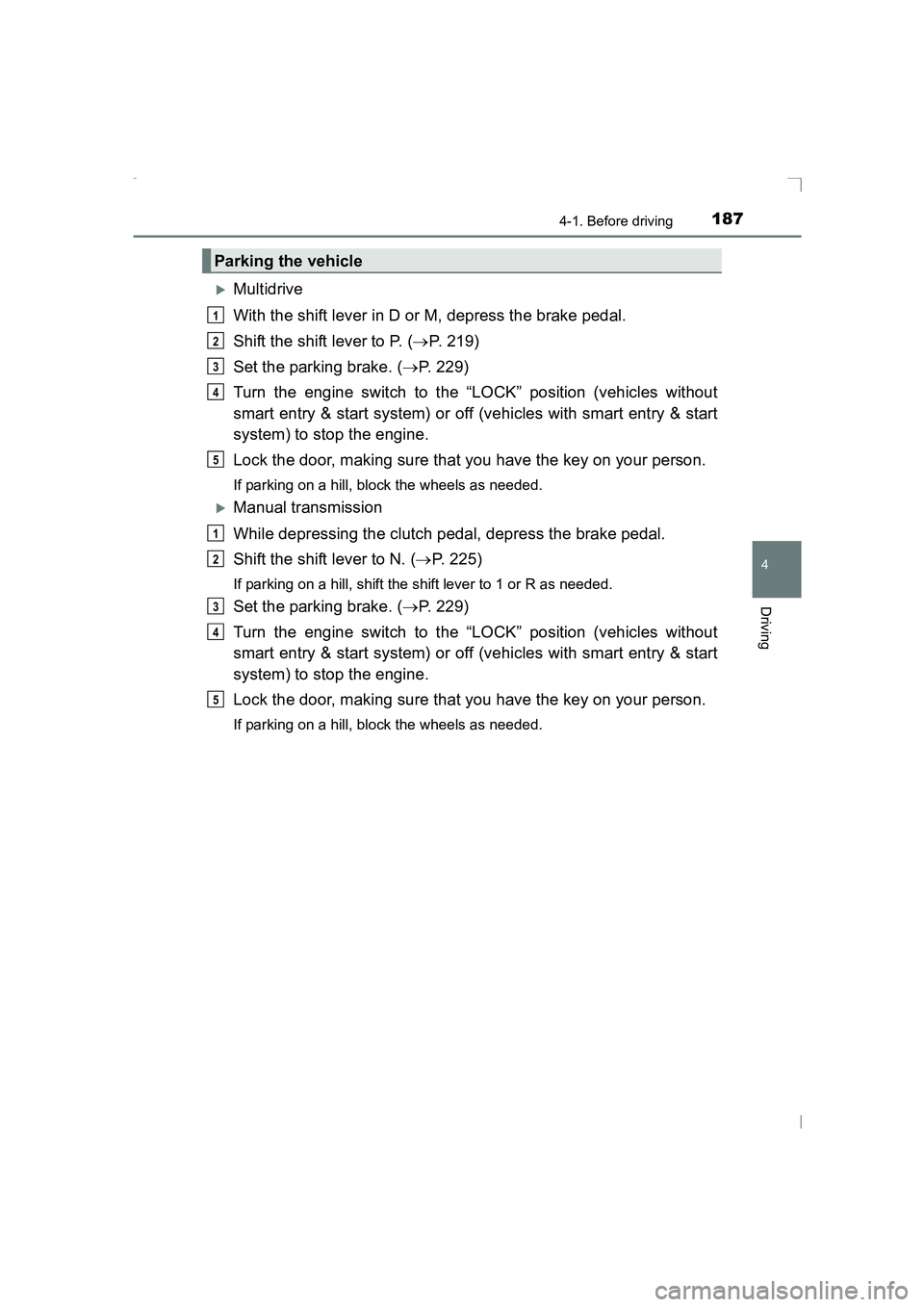

1874-1. Before driving
4
Driving
AVENSIS_OM_OM20C20E_(EE)
XMultidrive
With the shift lever in D or M, depress the brake pedal.
Shift the shift lever to P. (→P. 219)
Set the parking brake. ( →P. 229)
Turn the engine switch to the “LOCK” position (vehicles without
smart entry & start system) or off (vehicles with smart entry & start
system) to stop the engine.
Lock the door, making sure that you have the key on your person.
If parking on a hill, block the wheels as needed.
XManual transmission
While depressing the clutch pedal, depress the brake pedal.
Shift the shift lever to N. ( →P. 225)
If parking on a hill, shift the shift lever to 1 or R as needed.
Set the parking brake. ( →P. 229)
Turn the engine switch to the “LOCK” position (vehicles without
smart entry & start system) or off (vehicles with smart entry & start
system) to stop the engine.
Lock the door, making sure that you have the key on your person.
If parking on a hill, block the wheels as needed.
Parking the vehicle
1
2
3
4
5
1
2
3
4
5
AVENSIS_OM_OM20C20E_(EE).book Page 187 Thursday, January 29, 2015 1:47 PM

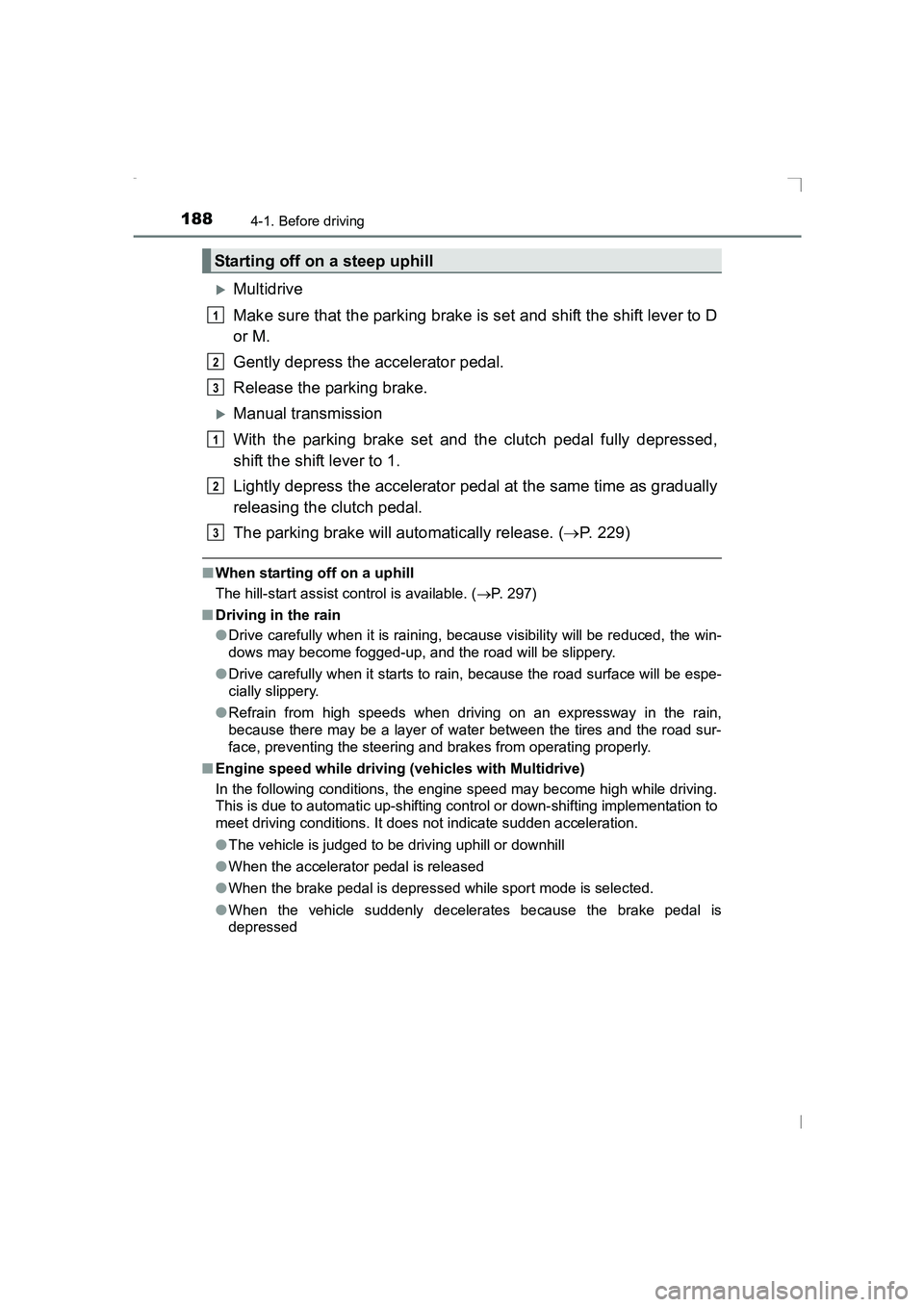

1884-1. Before driving
AVENSIS_OM_OM20C20E_(EE)
XMultidrive
Make sure that the parking brake is set and shift the shift lever to D
or M.
Gently depress the accelerator pedal.
Release the parking brake.
XManual transmission
With the parking brake set and the clutch pedal fully depressed,
shift the shift lever to 1.
Lightly depress the accelerator pedal at the same time as gradually
releasing the clutch pedal.
The parking brake will automatically release. (→P. 229)
■When starting off on a uphill
The hill-start assist control is available. ( →P. 297)
■ Driving in the rain
●Drive carefully when it is raining, because visibility will be reduced, the win-
dows may become fogged-up, and the road will be slippery.
● Drive carefully when it starts to rain, because the road surface will be espe-
cially slippery.
● Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road sur-
face, preventing the steering and brakes from operating properly.
■ Engine speed while driving (vehicles with Multidrive)
In the following conditions, the engine speed may become high while driving.
This is due to automatic up-shifting control or down-shifting implementation to
meet driving conditions. It does not indicate sudden acceleration.
● The vehicle is judged to be driving uphill or downhill
● When the accelerator pedal is released
● When the brake pedal is depressed while sport mode is selected.
● When the vehicle suddenly decelerates because the brake pedal is
depressed
Starting off on a steep uphill
1
2
3
1
2
3
AVENSIS_OM_OM20C20E_(EE).book Page 188 Thursday, January 29, 2015 1:47 PM

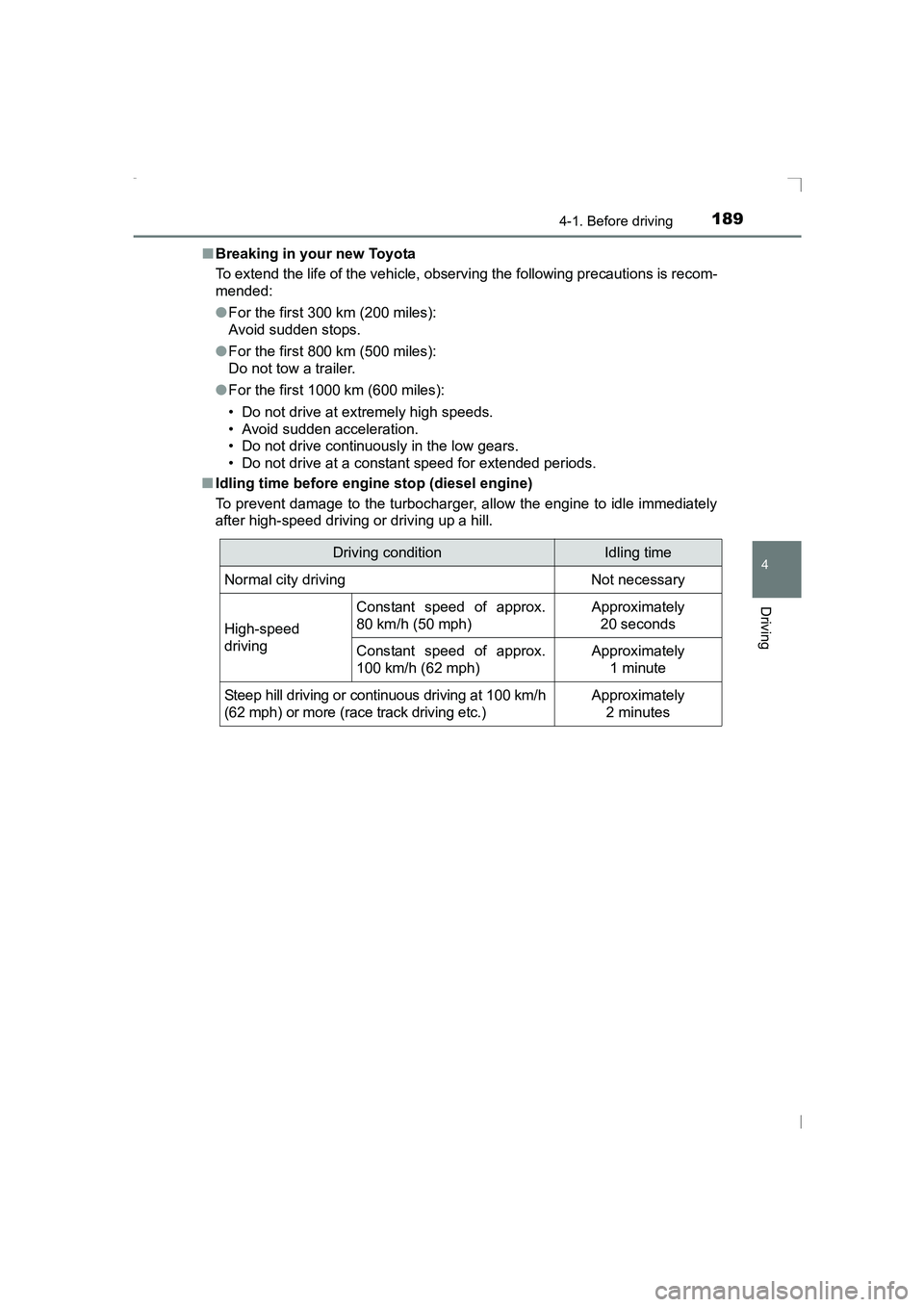

1894-1. Before driving
4
Driving
AVENSIS_OM_OM20C20E_(EE)■
Breaking in your new Toyota
To extend the life of the vehicle, observing the following precautions is recom-
mended:
●For the first 300 km (200 miles):
Avoid sudden stops.
● For the first 800 km (500 miles):
Do not tow a trailer.
● For the first 1000 km (600 miles):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive continuously in the low gears.
• Do not drive at a constant speed for extended periods.
■ Idling time before engine stop (diesel engine)
To prevent damage to the turbocharger, allow the engine to idle immediately
after high-speed driving or driving up a hill.
Driving conditionIdling time
Normal city drivingNot necessary
High-speed
driving
Constant speed of approx.
80 km/h (50 mph)Approximately
20 seconds
Constant speed of approx.
100 km/h (62 mph)Approximately 1 minute
Steep hill driving or continuous driving at 100 km/h
(62 mph) or more (race track driving etc.)Approximately 2 minutes
AVENSIS_OM_OM20C20E_(EE).book Page 189 Thursday, January 29, 2015 1:47 PM

1904-1. Before driving
AVENSIS_OM_OM20C20E_(EE)■

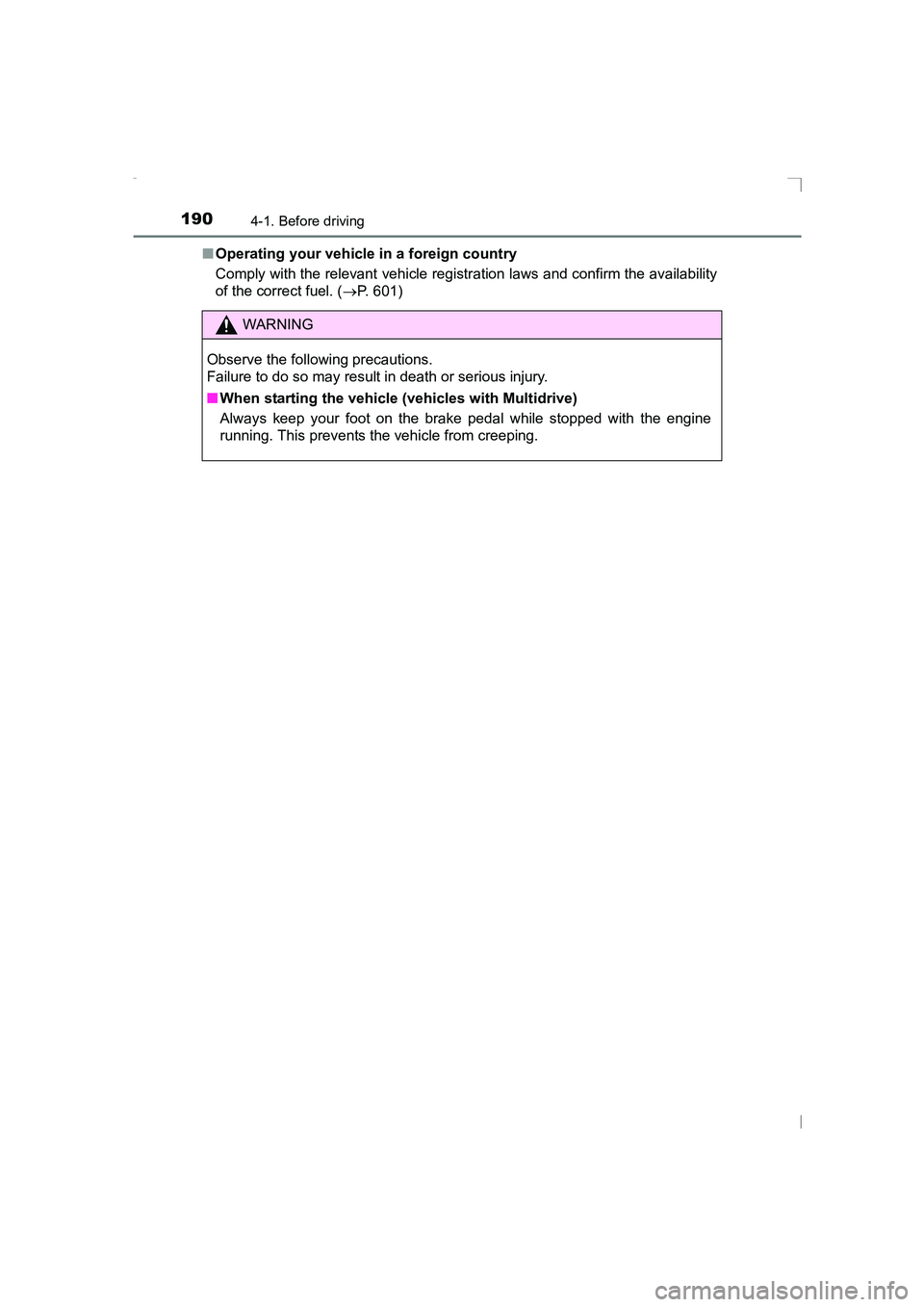

Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability
of the correct fuel. ( →P. 601)
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ When starting the vehicle (vehicles with Multidrive)
Always keep your foot on the brake pedal while stopped with the engine
running. This prevents the vehicle from creeping.
AVENSIS_OM_OM20C20E_(EE).book Page 190 Thursday, January 29, 2015 1:47 PM
