3615-6. Using Bluetooth® devices
5
Audio system
AVENSIS_OM_OM20C66E_(EE)
Device registration/connection flow
1. Register the Bluetooth® device to be used with audio
system ( →P. 367)
2. Connect the registered Bluetooth® device to be used
( → P. 368, 369)
5. Use Bluetooth® audio
( → P. 374)5. Use Bluetooth® phone
( → P. 378)
3. Set automatic connection of the device
(→ P. 369)
4. Check Bluetooth® connection condition
( → P. 362)
To be used for audio
To be used for hands-free phone
AVENSIS_OM_OM20C66E_(EE).book Page 361 Wednesday, June 15, 20 16 4:07 PM

3625-6. Using Bluetooth® devices
AVENSIS_OM_OM20C66E_(EE)

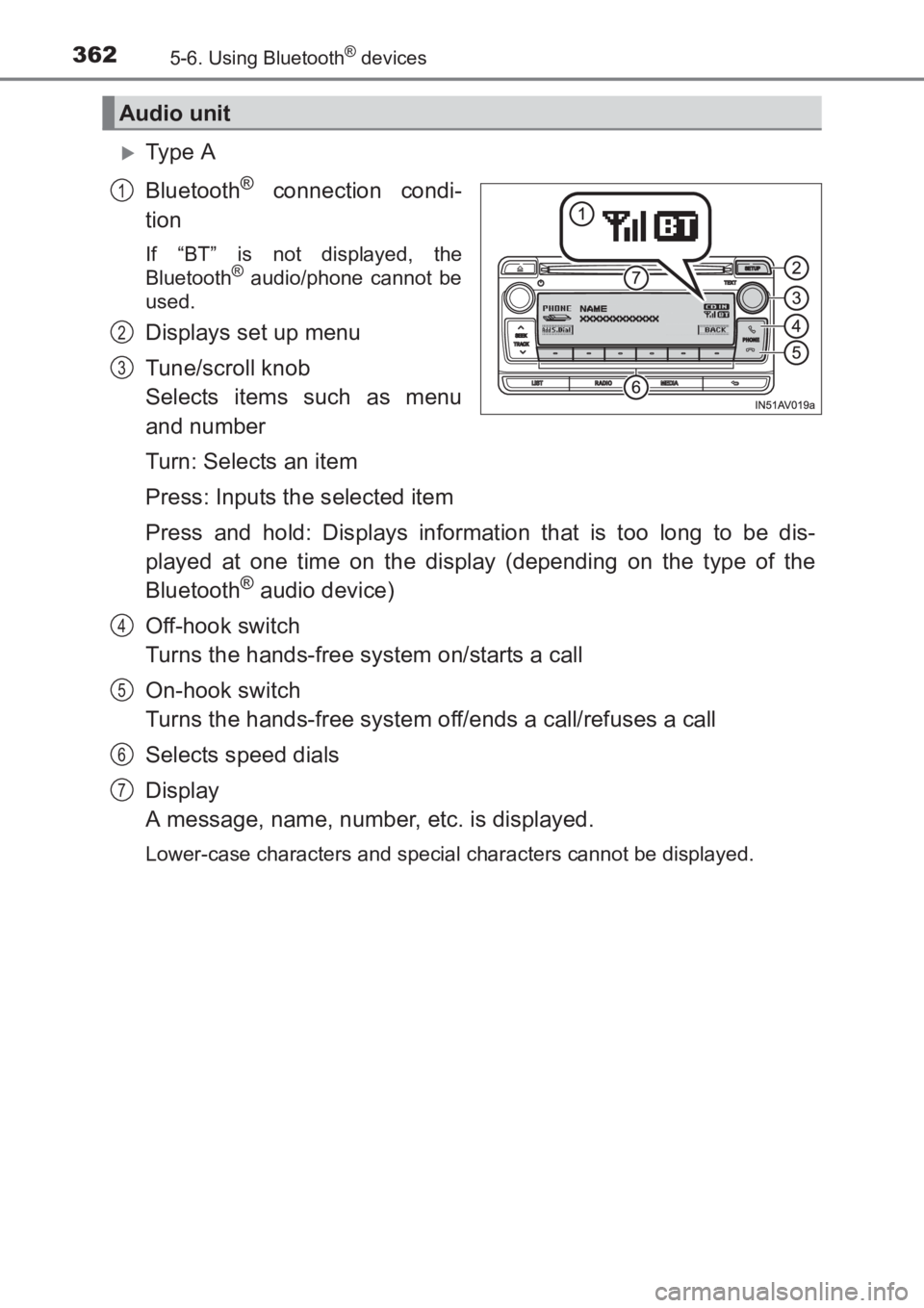

XTy pe A
Bluetooth
® connection condi-
tion
If “BT” is not displayed, the
Bluetooth® audio/phone cannot be
used.
Displays set up menu
Tune/scroll knob
Selects items such as menu
and number
Turn: Selects an item
Press: Inputs the selected item
Press and hold: Displays information that is too long to be dis-
played at one time on the display (depending on the type of the
Bluetooth
® audio device)
Off-hook switch
Turns the hands-free system on/starts a call
On-hook switch
Turns the hands-free system off/ends a call/refuses a call
Selects speed dials
Display
A message, name, number, etc. is displayed.
Lower-case characters and special characters cannot be displayed.
Audio unit
1
2
3
4
5
6
7
AVENSIS_OM_OM20C66E_(EE).book Page 362 Wednesday, June 15, 20 16 4:07 PM

3635-6. Using Bluetooth® devices
5
Audio system
AVENSIS_OM_OM20C66E_(EE)

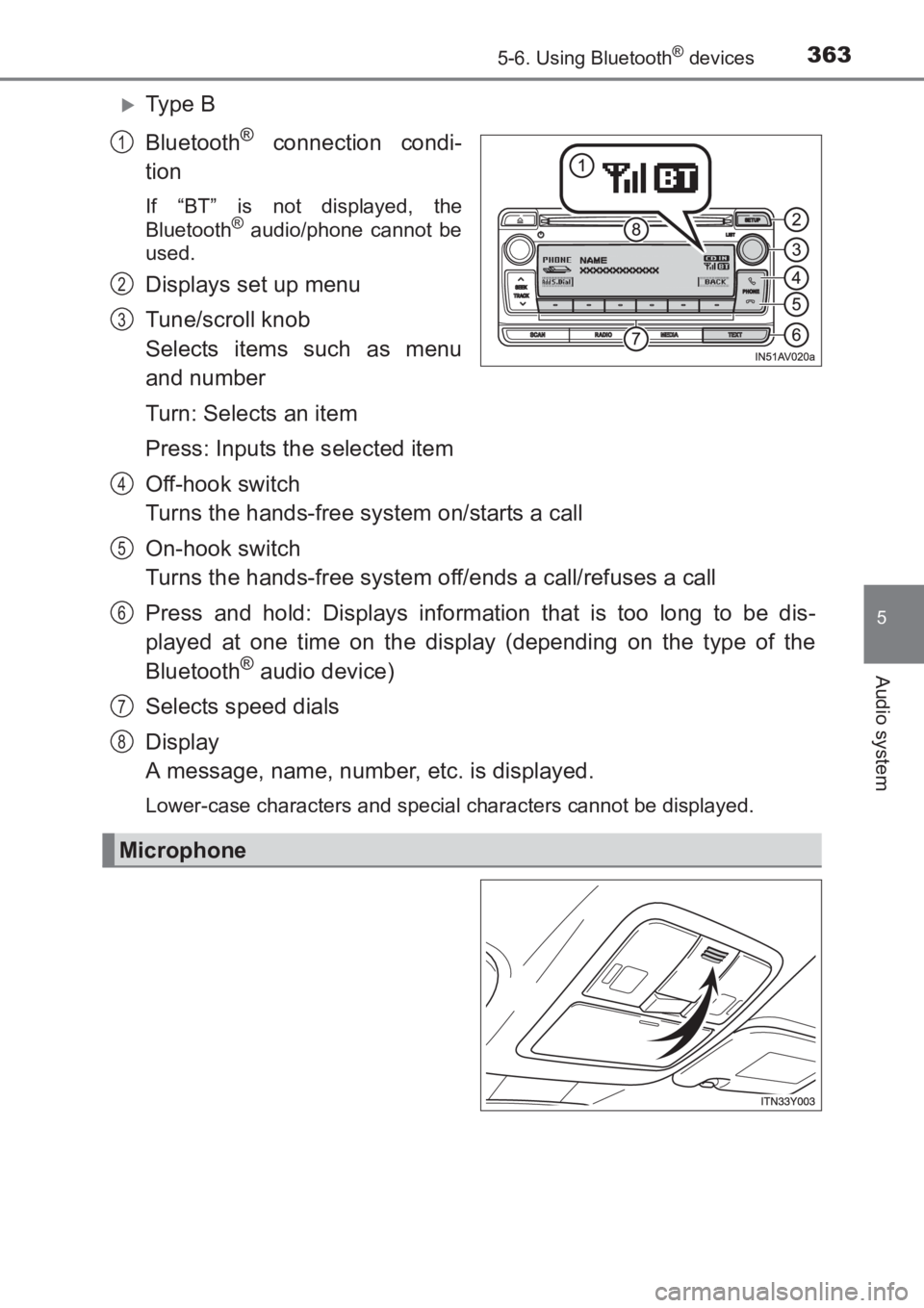

XTy pe B
Bluetooth
® connection condi-
tion
If “BT” is not displayed, the
Bluetooth® audio/phone cannot be
used.
Displays set up menu
Tune/scroll knob
Selects items such as menu
and number
Turn: Selects an item
Press: Inputs the selected item
Off-hook switch
Turns the hands-free system on/starts a call
On-hook switch
Turns the hands-free system off/ends a call/refuses a call
Press and hold: Displays information that is too long to be dis-
played at one time on the display (depending on the type of the
Bluetooth
® audio device)
Selects speed dials
Display
A message, name, number, etc. is displayed.
Lower-case characters and special characters cannot be displayed.
1
2
3
Microphone
4
5
6
7
8
AVENSIS_OM_OM20C66E_(EE).book Page 363 Wednesday, June 15, 20 16 4:07 PM

3645-6. Using Bluetooth® devices
AVENSIS_OM_OM20C66E_(EE)
To enter a menu, press the tune/scroll knob and navigate menus by
using the knob.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.

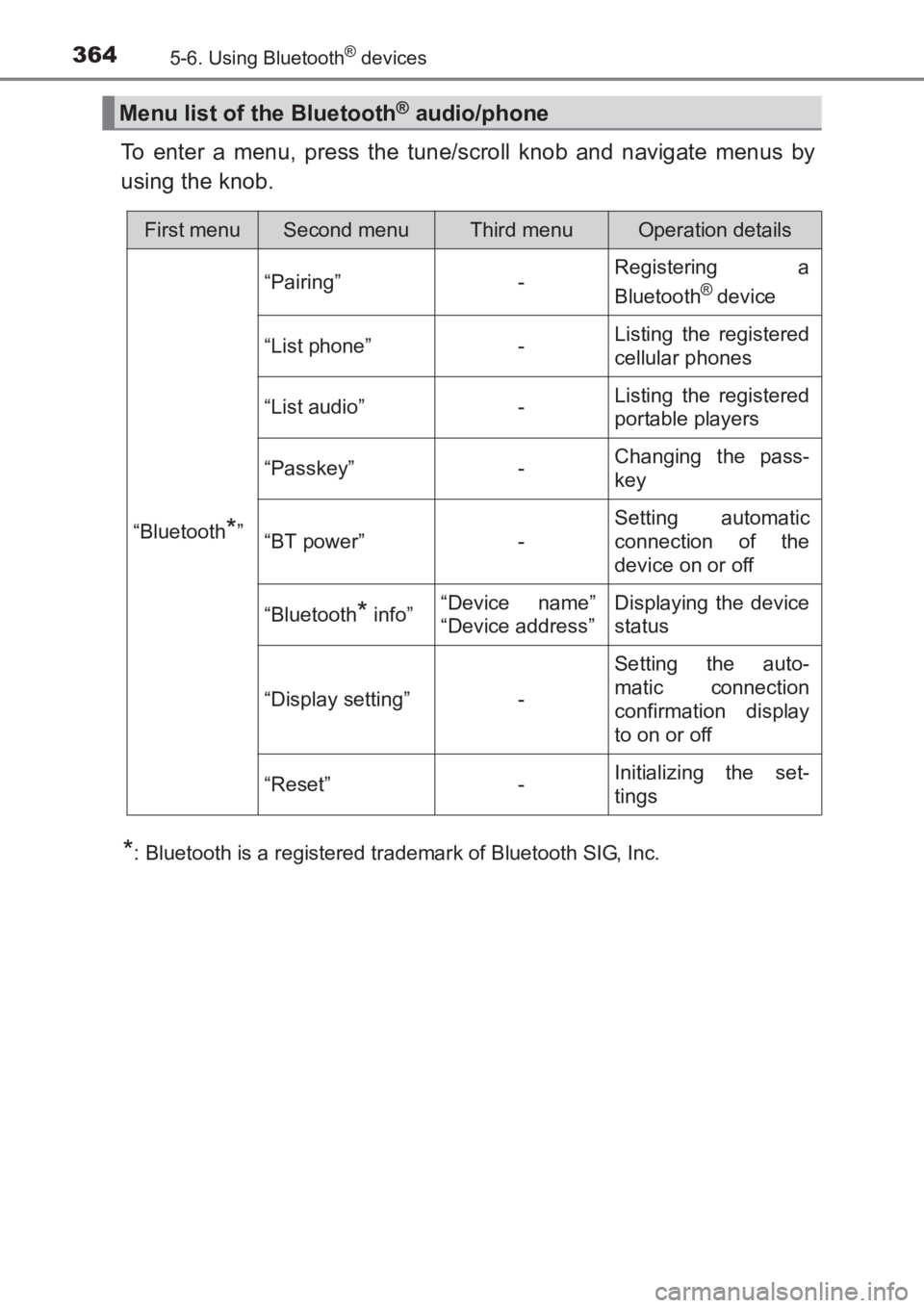

Menu list of the Bluetooth® audio/phone
First menuSecond menuThird menuOperation details
“Bluetooth
*” “Pairing” -
Registering a
Bluetooth
® device
“List phone” - Listing the registered
cellular phones
“List audio” - Listing the registered
portable players
“Passkey” - Changing the pass-
key
“BT power” - Setting automatic
connection of the
device on or off
“Bluetooth
* info” “Device name”
“Device address” Displaying the device
status
“Display setting” - Setting the auto-
matic connection
confirmation display
to on or off
“Reset” - Initializing the set-
tings
AVENSIS_OM_OM20C66E_(EE).book Page 364 Wednesday, June 15, 20
16 4:07 PM

3655-6. Using Bluetooth® devices
5
Audio system
AVENSIS_OM_OM20C66E_(EE)

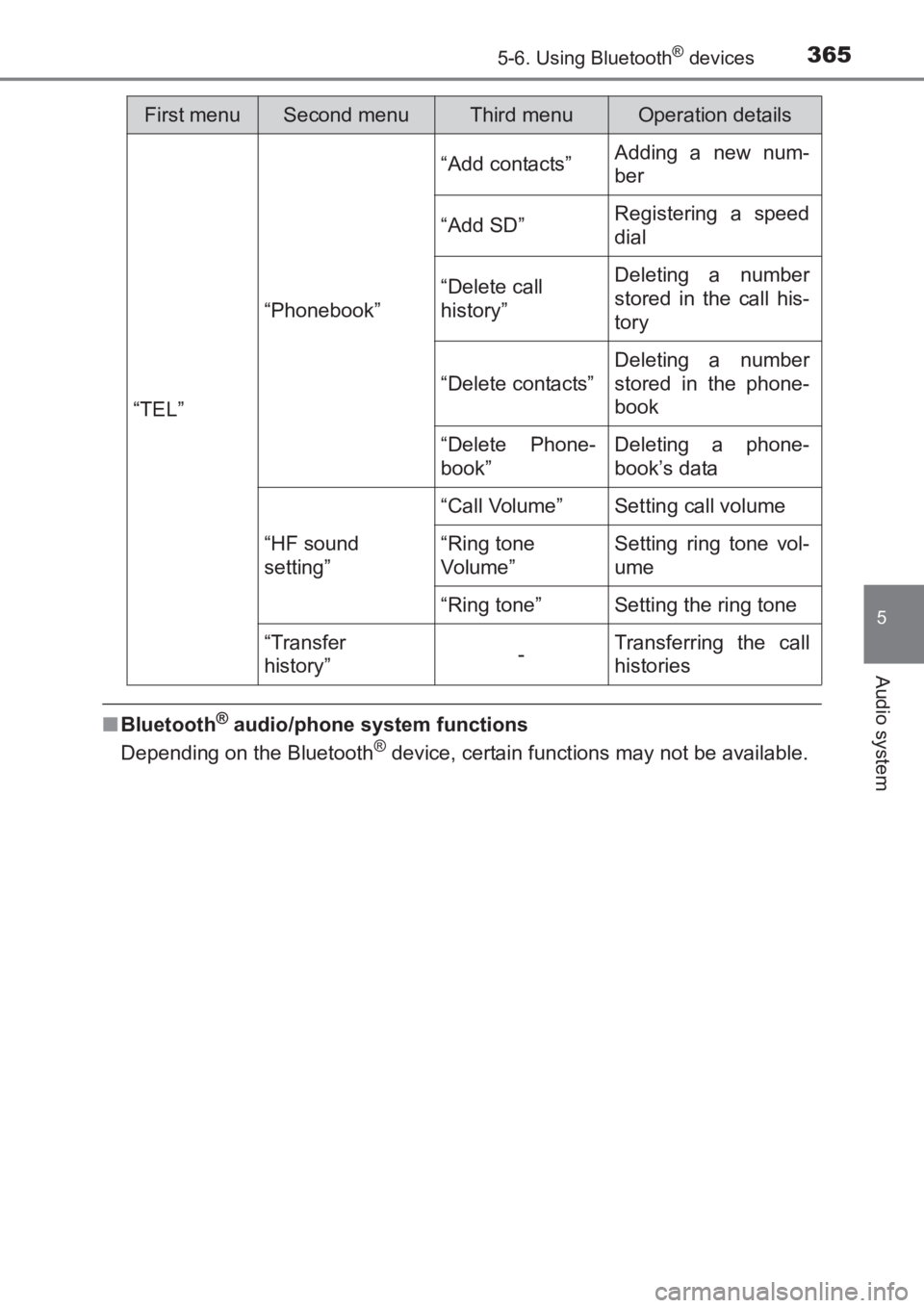

■Bluetooth® audio/phone system functions
Depending on the Bluetooth® device, certain functions may not be available.
First menuSecond menuThird menuOperation details
“TEL” “Phonebook” “Add contacts”
Adding a new num-
ber
“Add SD” Registering a speed
dial
“Delete call
history” Deleting a number
stored in the call his-
tory
“Delete contacts” Deleting a number
stored in the phone-
book
“Delete Phone-
book” Deleting a phone-
book’s data
“HF sound
setting” “Call Volume” Setting call volume
“Ring tone
Volume”
Setting ring tone vol-
ume
“Ring tone” Setting the ring tone
“Transfer
history” -Transferring the call
histories
AVENSIS_OM_OM20C66E_(EE).book Page 365 Wednesday, June 15, 20
16 4:07 PM

3665-6. Using Bluetooth® devices
AVENSIS_OM_OM20C66E_(EE)

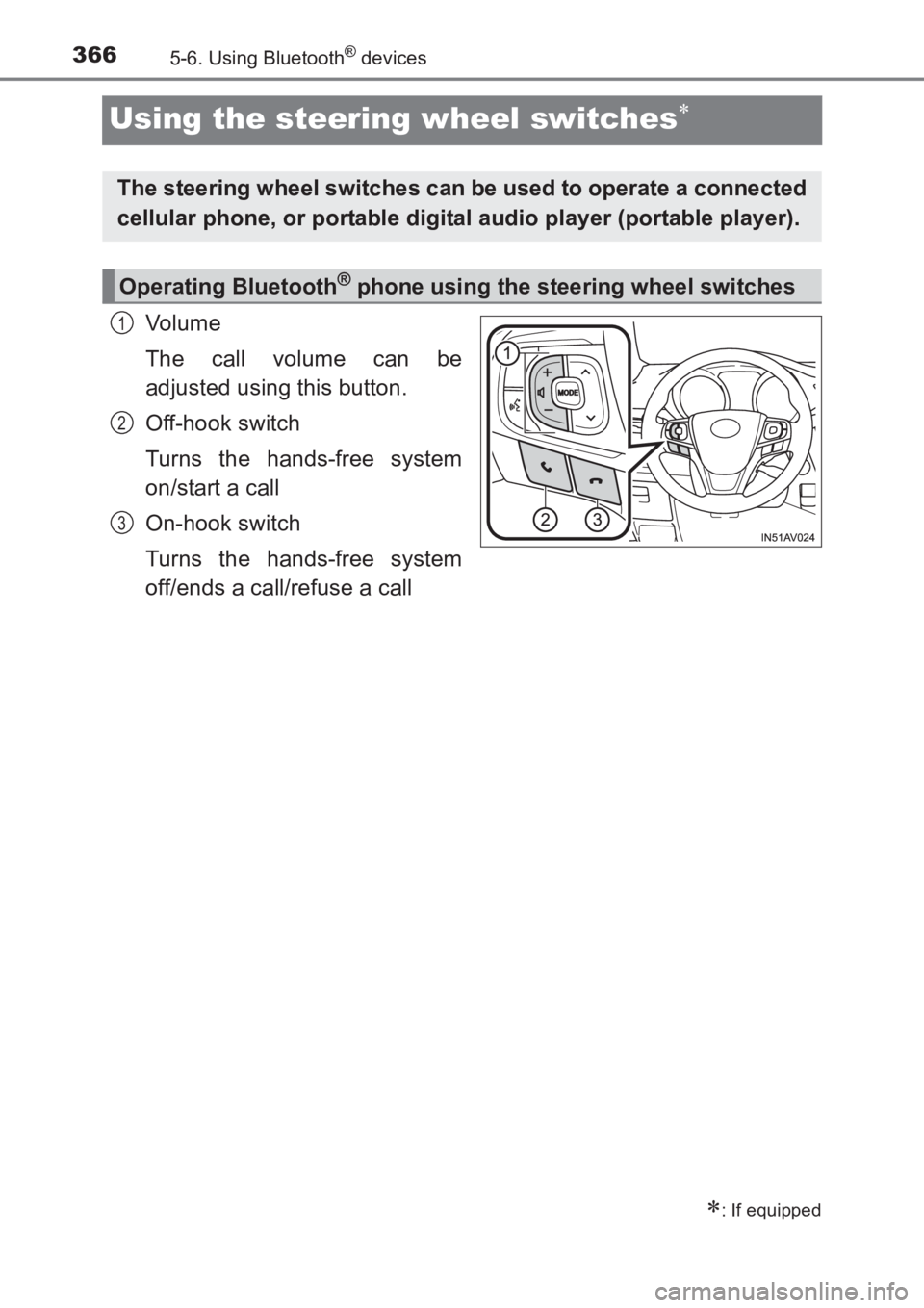

Using the steering wheel switches∗
Vo lu m e
The call volume can be
adjusted using this button.
Off-hook switch
Turns the hands-free system
on/start a call
On-hook switch
Turns the hands-free system
off/ends a call/refuse a call
∗: If equipped
The steering wheel switches can be used to operate a connected
cellular phone, or portable digital audio player (portable player).
Operating Bluetooth® phone using the steering wheel switches
1
2
3
AVENSIS_OM_OM20C66E_(EE).book Page 366 Wednesday, June 15, 2016 4:07 PM

367
5
5-6. Using Bluetooth® devices
Audio system
AVENSIS_OM_OM20C66E_(EE)

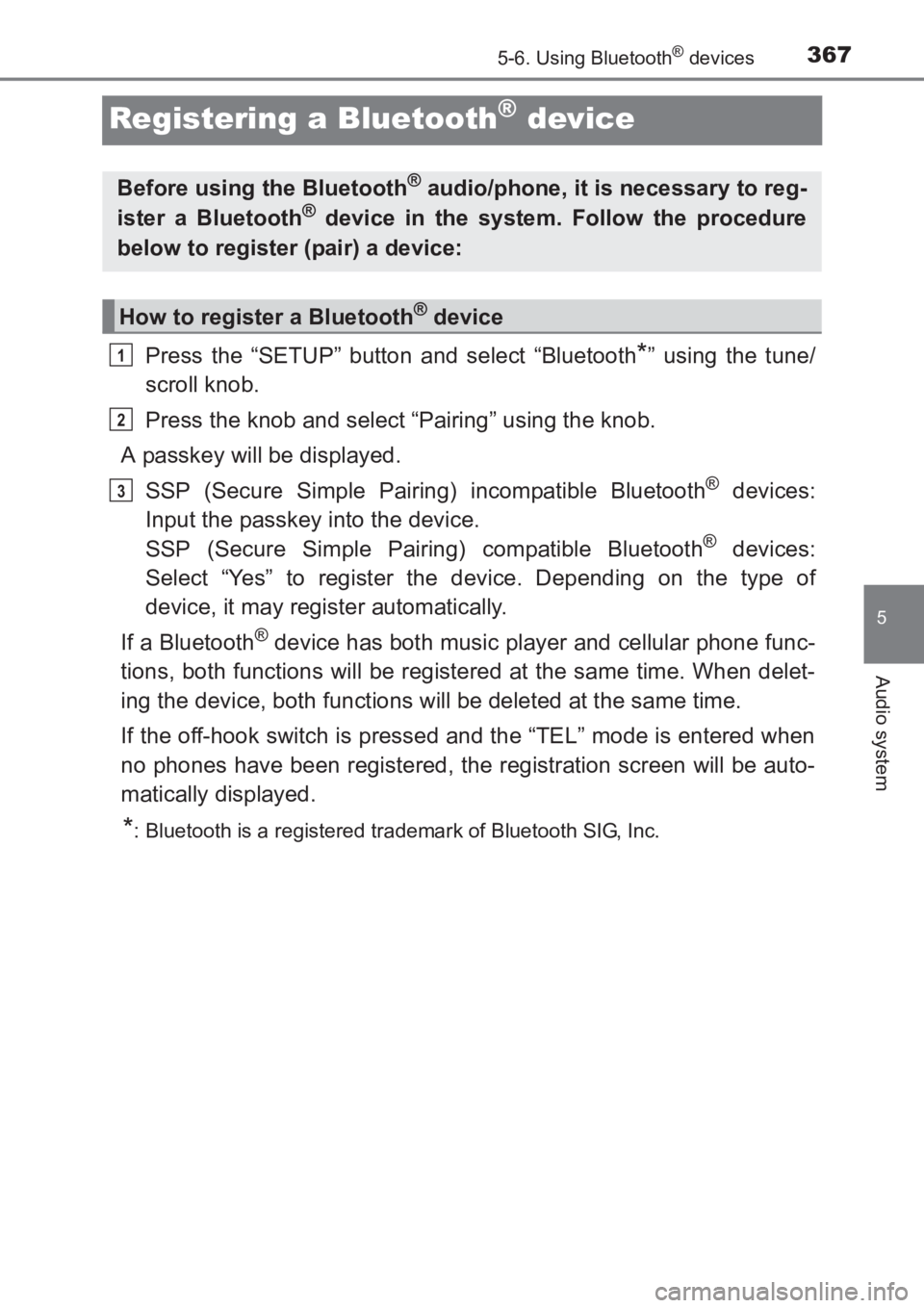

Registering a Bluetooth® device
Press the “SETUP” button and select “Bluetooth*” using the tune/
scroll knob.
Press the knob and select “Pairing” using the knob.
A passkey will be displayed.
SSP (Secure Simple Pairing) incompatible Bluetooth
® devices:
Input the passkey into the device.
SSP (Secure Simple Pairing) compatible Bluetooth
® devices:
Select “Yes” to register the device. Depending on the type of
device, it may register automatically.
If a Bluetooth
® device has both music player and cellular phone func-
tions, both functions will be registered at the same time. When delet-
ing the device, both functions will be deleted at the same time.
If the off-hook switch is pressed and the “TEL” mode is entered when
no phones have been registered, the registration screen will be auto-
matically displayed.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Before using the Bluetooth® audio/phone, it is necessary to reg-
ister a Bluetooth® device in the system. Follow the procedure
below to register (pair) a device:
How to register a Bluetooth® device
1
2
3
AVENSIS_OM_OM20C66E_(EE).book Page 367 Wednesday, June 15, 20 16 4:07 PM

3685-7. “SETUP” menu
AVENSIS_OM_OM20C66E_(EE)

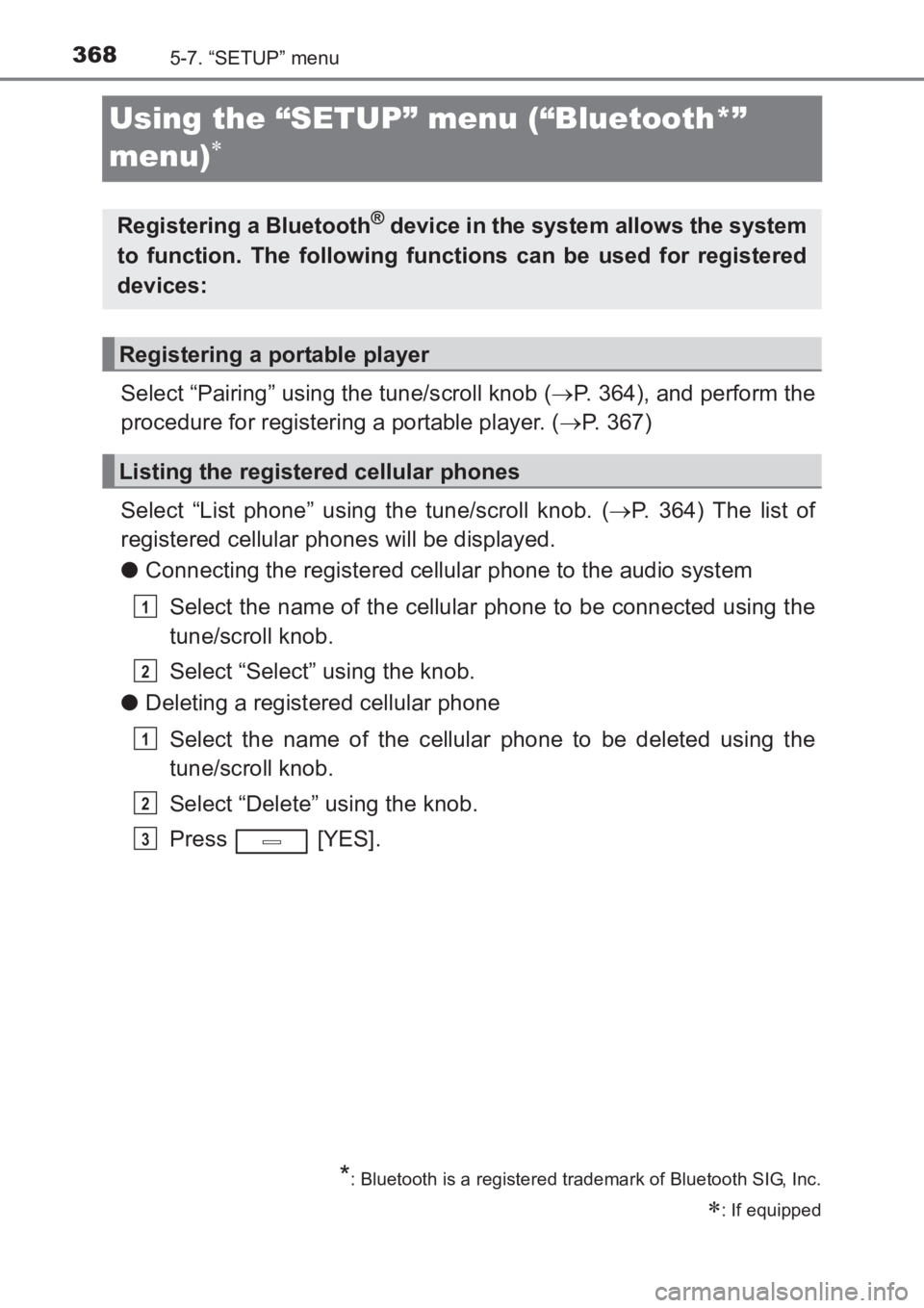

Using the “SETUP” menu (“Bluetooth*”
menu)
∗
Select “Pairing” using the tune/scroll knob (→P. 364), and perform the
procedure for registering a portable player. ( →P. 367)
Select “List phone” using the tune/scroll knob. ( →P. 364) The list of
registered cellular phones will be displayed.
● Connecting the registered cellular phone to the audio system
Select the name of the cellular phone to be connected using the
tune/scroll knob.
Select “Select” using the knob.
● Deleting a registered cellular phone
Select the name of the cellular phone to be deleted using the
tune/scroll knob.
Select “Delete” using the knob.
Press [YES].
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
∗: If equipped
Registering a Bluetooth® device in the system allows the system
to function. The following functions can be used for registered
devices:
Registering a portable player
Listing the registered cellular phones
1
2
1
2
3
AVENSIS_OM_OM20C66E_(EE).book Page 368 Wednesday, June 15, 20 16 4:07 PM

3695-7. “SETUP” menu
5
Audio system
AVENSIS_OM_OM20C66E_(EE)

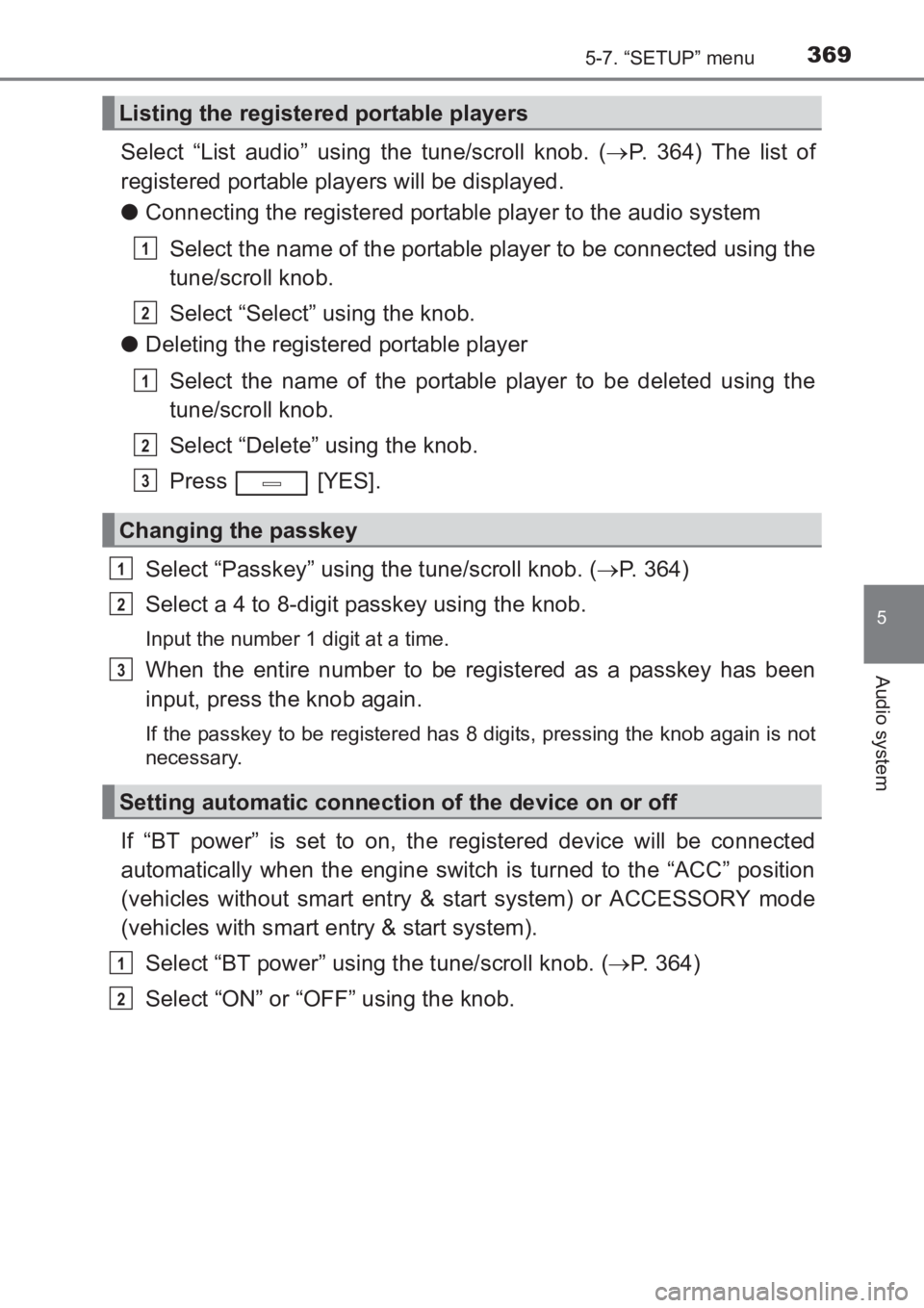

Select “List audio” using the tune/scroll knob. (→P. 364) The list of
registered portable players will be displayed.
● Connecting the registered portable player to the audio system
Select the name of the portable player to be connected using the
tune/scroll knob.
Select “Select” using the knob.
● Deleting the registered portable player
Select the name of the portable player to be deleted using the
tune/scroll knob.
Select “Delete” using the knob.
Press [YES].
Select “Passkey” using the tune/scroll knob. ( →P. 364)
Select a 4 to 8-digit passkey using the knob.
Input the number 1 digit at a time.
When the entire number to be registered as a passkey has been
input, press the knob again.
If the passkey to be registered has 8 digits, pressing the knob again is not
necessary.
If “BT power” is set to on, the registered device will be connected
automatically when the engine switch is turned to the “ACC” position
(vehicles without smart entry & start system) or ACCESSORY mode
(vehicles with smart entry & start system).
Select “BT power” using the tune/scroll knob. ( →P. 364)
Select “ON” or “OFF” using the knob.
Listing the registered portable players
Changing the passkey
Setting automatic connection of the device on or off
1
2
1
2
3
1
2
3
1
2
AVENSIS_OM_OM20C66E_(EE).book Page 369 Wednesday, June 15, 20 16 4:07 PM

3705-7. “SETUP” menu
AVENSIS_OM_OM20C66E_(EE)

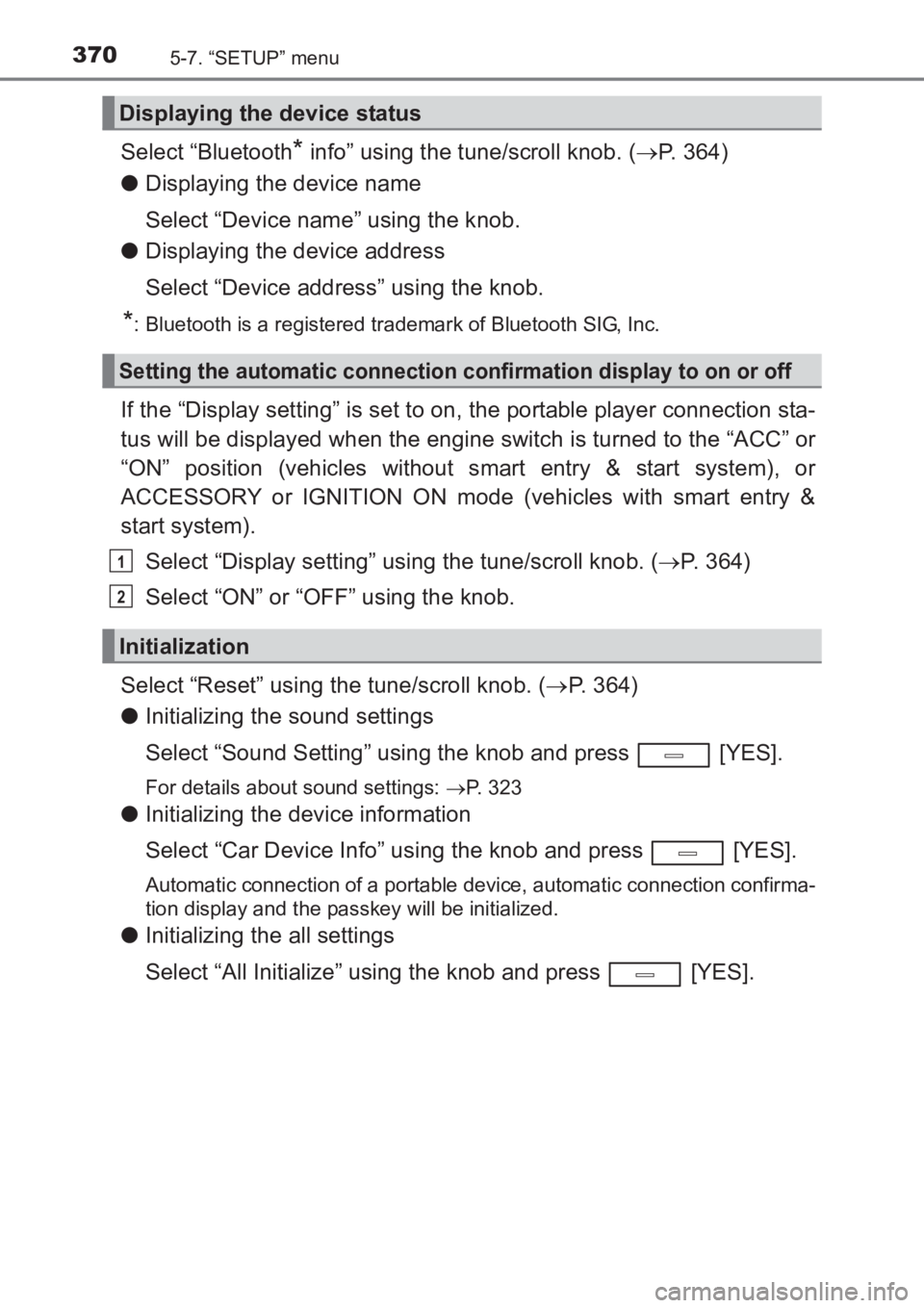

Select “Bluetooth* info” using the tune/scroll knob. (→P. 364)
● Displaying the device name
Select “Device name” using the knob.
● Displaying the device address
Select “Device address” using the knob.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
If the “Display setting” is set to on, the portable player connection sta-
tus will be displayed when the engine switch is turned to the “ACC” or
“ON” position (vehicles without smart entry & start system), or
ACCESSORY or IGNITION ON mode (vehicles with smart entry &
start system).
Select “Display setting” using the tune/scroll knob. ( →P. 364)
Select “ON” or “OFF” using the knob.
Select “Reset” using the tune/scroll knob. ( →P. 364)
● Initializing the sound settings
Select “Sound Setting” using the knob and press [YES].
For details about sound settings: →P. 323
● Initializing the device information
Select “Car Device Info” using the knob and press [YES].
Automatic connection of a portable device, automatic connection confirma-
tion display and the passkey will be initialized.
●Initializing the all settings
Select “All Initialize” using the knob and press [YES].
Displaying the device status
Setting the automatic connection confirmation display to on or off
Initialization
1
2
