101 1-7. Safety information
1
Before driving
AYGO_WE_99E96E

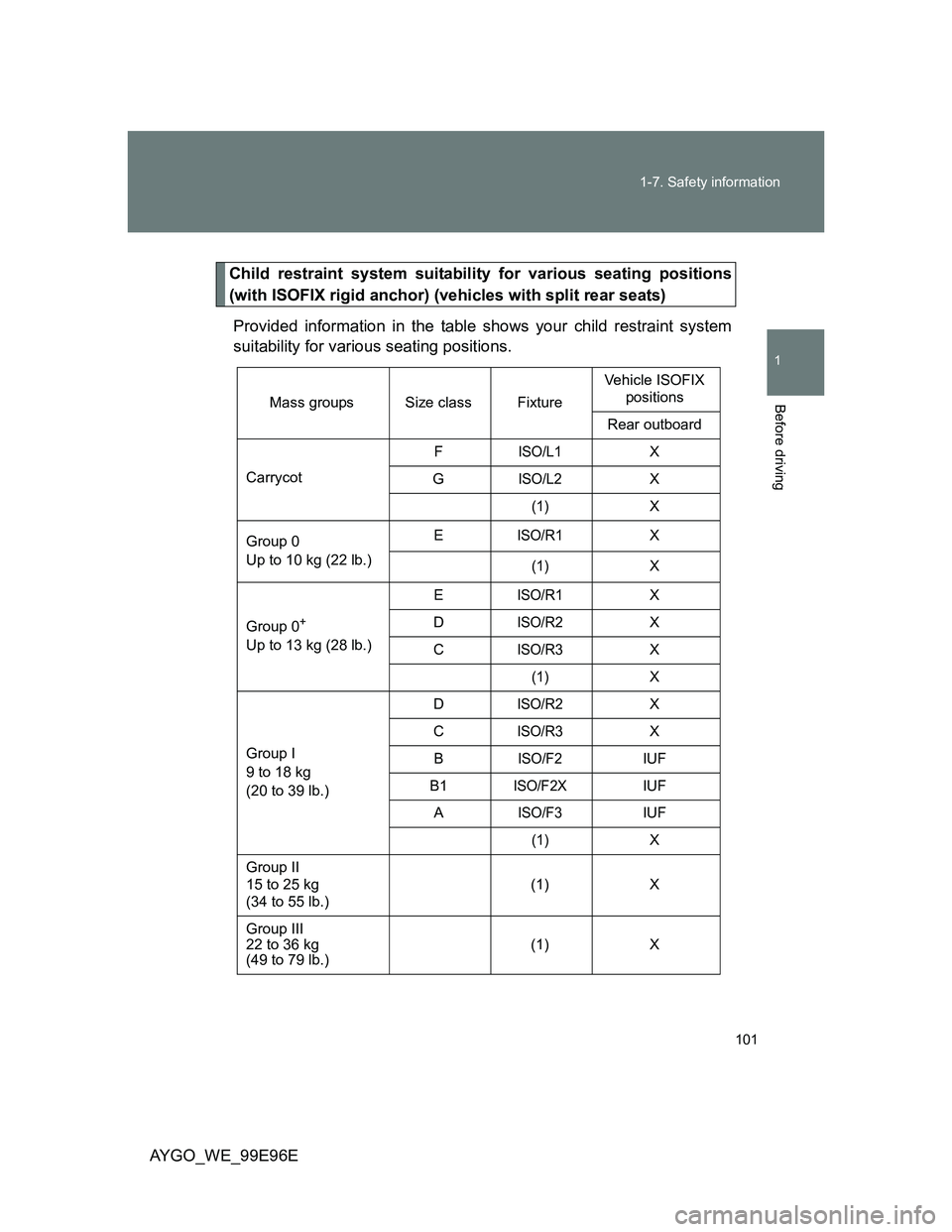

Child restraint system suitability for various seating positions
(with ISOFIX rigid anchor) (vehicles with split rear seats)
Provided information in the table shows your child restraint system
suitability for various seating positions.
Mass groups Size class FixtureVehicle ISOFIX
positions
Rear outboard
CarrycotF
ISO/L1X
G
ISO/L2X
(1)X
Group 0
Up to 10 kg (22 lb.)E
ISO/R1X
(1)X
Group 0
+
Up to 13 kg (28 lb.)E
ISO/R1X
D
ISO/R2X
C
ISO/R3X
(1)X
Group I
9 to 18 kg
(20 to 39 lb.)D
ISO/R2X
C
ISO/R3X
B
ISO/F2IUF
B1
ISO/F2XIUF
A
ISO/F3IUF
(1)X
Group II
15 to 25 kg
(34 to 55 lb.)(1) X
Group III
22 to 36 kg
(49 to 79 lb.)(1) X

102 1-7. Safety information

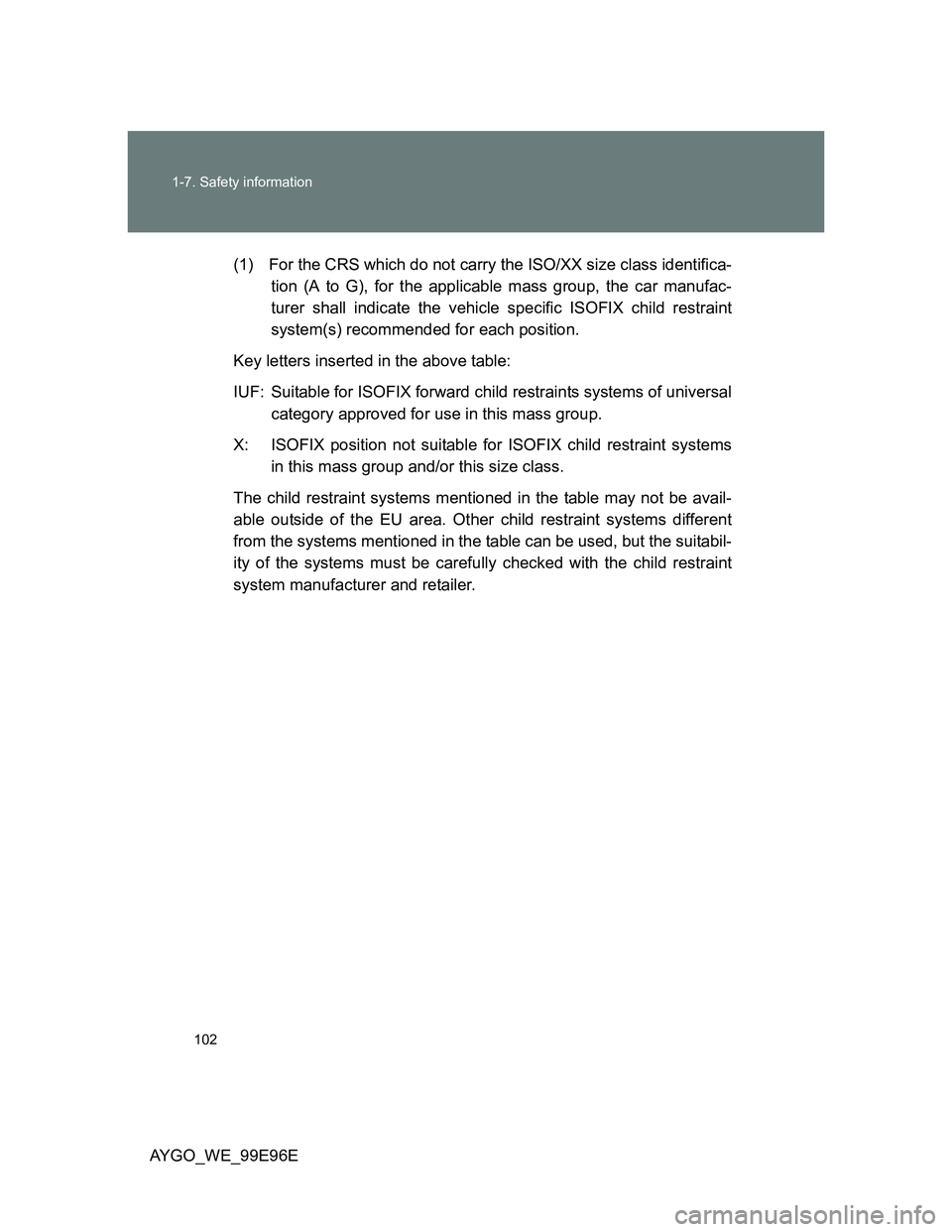

AYGO_WE_99E96E(1) For the CRS which do not carry the ISO/XX size class identifica-
tion (A to G), for the applicable mass group, the car manufac-
turer shall indicate the vehicle specific ISOFIX child restraint
system(s) recommended for each position.
Key letters inserted in the above table:
IUF: Suitable for ISOFIX forward child restraints systems of universal
category approved for use in this mass group.
X: ISOFIX position not suitable for ISOFIX child restraint systems
in this mass group and/or this size class.
The child restraint systems mentioned in the table may not be avail-
able outside of the EU area. Other child restraint systems different
from the systems mentioned in the table can be used, but the suitabil-
ity of the systems must be carefully checked with the child restraint
system manufacturer and retailer.

103 1-7. Safety information
1
Before driving
AYGO_WE_99E96E

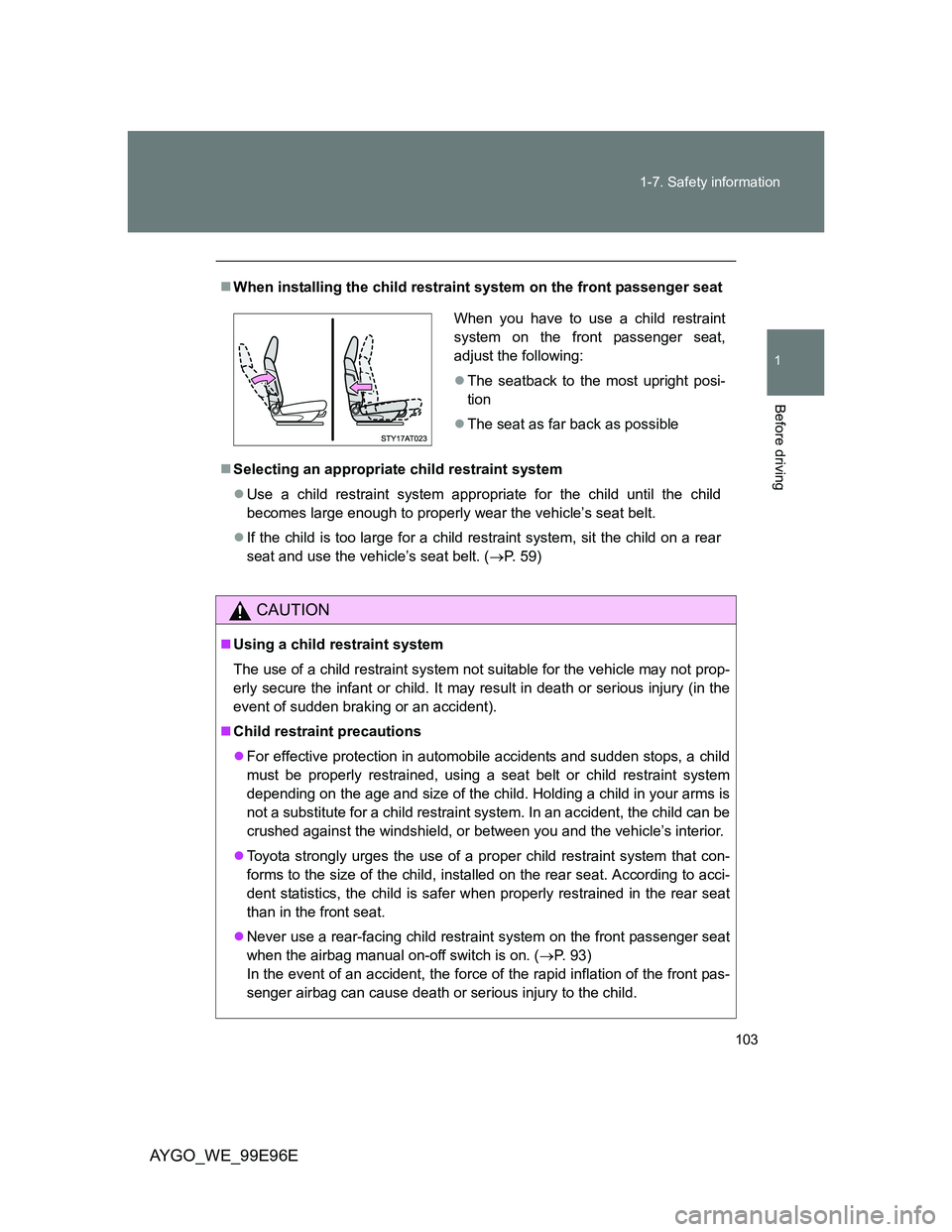

When installing the child restraint system on the front passenger seat
Selecting an appropriate child restraint system
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
If the child is too large for a child restraint system, sit the child on a rear
seat and use the vehicle’s seat belt. (P. 59)
CAUTION
Using a child restraint system
The use of a child restraint system not suitable for the vehicle may not prop-
erly secure the infant or child. It may result in death or serious injury (in the
event of sudden braking or an accident).
Child restraint precautions
For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
depending on the age and size of the child. Holding a child in your arms is
not a substitute for a child restraint system. In an accident, the child can be
crushed against the windshield, or between you and the vehicle’s interior.
Toyota strongly urges the use of a proper child restraint system that con-
forms to the size of the child, installed on the rear seat. According to acci-
dent statistics, the child is safer when properly restrained in the rear seat
than in the front seat.
Never use a rear-facing child restraint system on the front passenger seat
when the airbag manual on-off switch is on. (P. 93)
In the event of an accident, the force of the rapid inflation of the front pas-
senger airbag can cause death or serious injury to the child.
When you have to use a child restraint
system on the front passenger seat,
adjust the following:
The seatback to the most upright posi-
tion
The seat as far back as possible

104 1-7. Safety information
AYGO_WE_99E96E

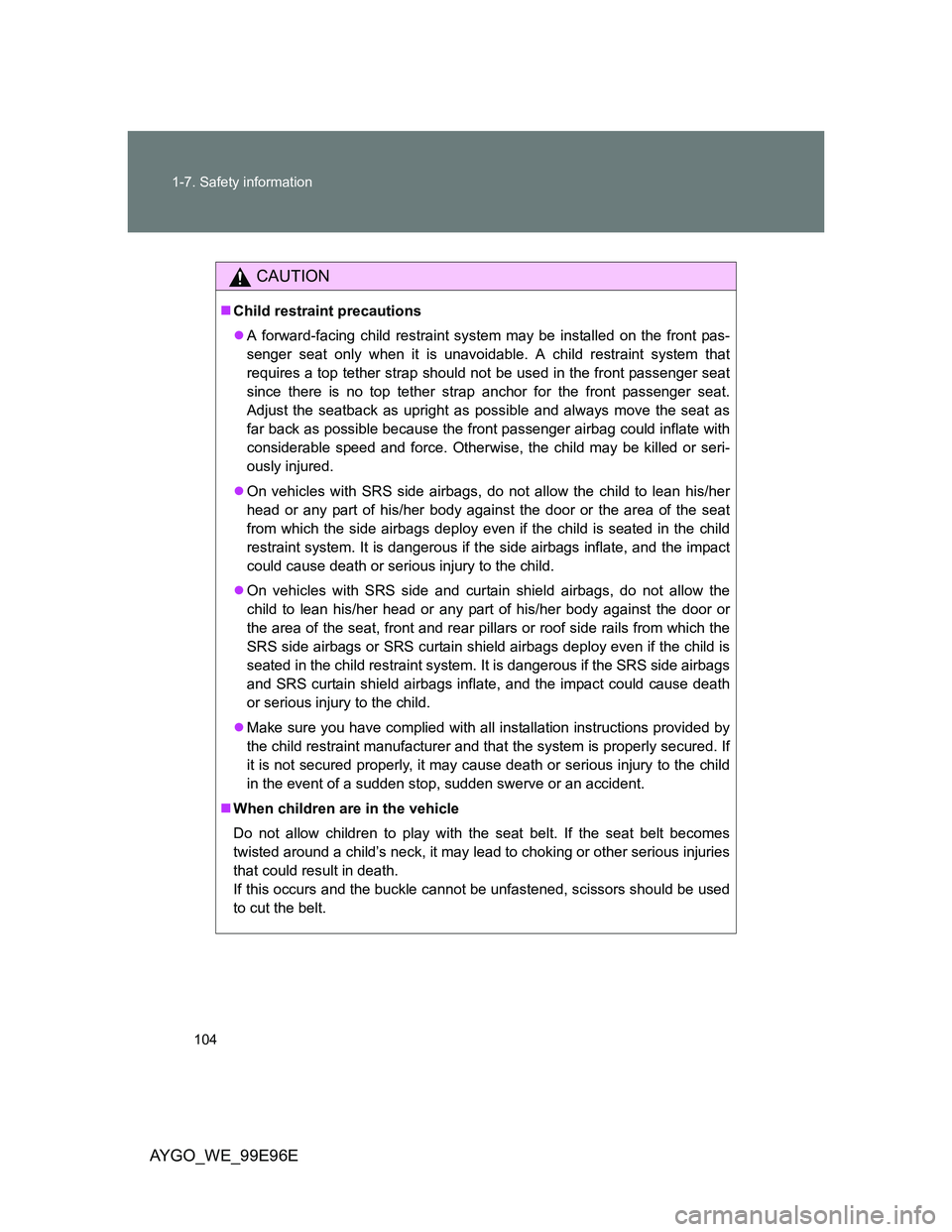

CAUTION
Child restraint precautions
A forward-facing child restraint system may be installed on the front pas-
senger seat only when it is unavoidable. A child restraint system that
requires a top tether strap should not be used in the front passenger seat
since there is no top tether strap anchor for the front passenger seat.
Adjust the seatback as upright as possible and always move the seat as
far back as possible because the front passenger airbag could inflate with
considerable speed and force. Otherwise, the child may be killed or seri-
ously injured.
On vehicles with SRS side airbags, do not allow the child to lean his/her
head or any part of his/her body against the door or the area of the seat
from which the side airbags deploy even if the child is seated in the child
restraint system. It is dangerous if the side airbags inflate, and the impact
could cause death or serious injury to the child.
On vehicles with SRS side and curtain shield airbags, do not allow the
child to lean his/her head or any part of his/her body against the door or
the area of the seat, front and rear pillars or roof side rails from which the
SRS side airbags or SRS curtain shield airbags deploy even if the child is
seated in the child restraint system. It is dangerous if the SRS side airbags
and SRS curtain shield airbags inflate, and the impact could cause death
or serious injury to the child.
Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden stop, sudden swerve or an accident.
When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.

105 1-7. Safety information
1
Before driving
AYGO_WE_99E96E

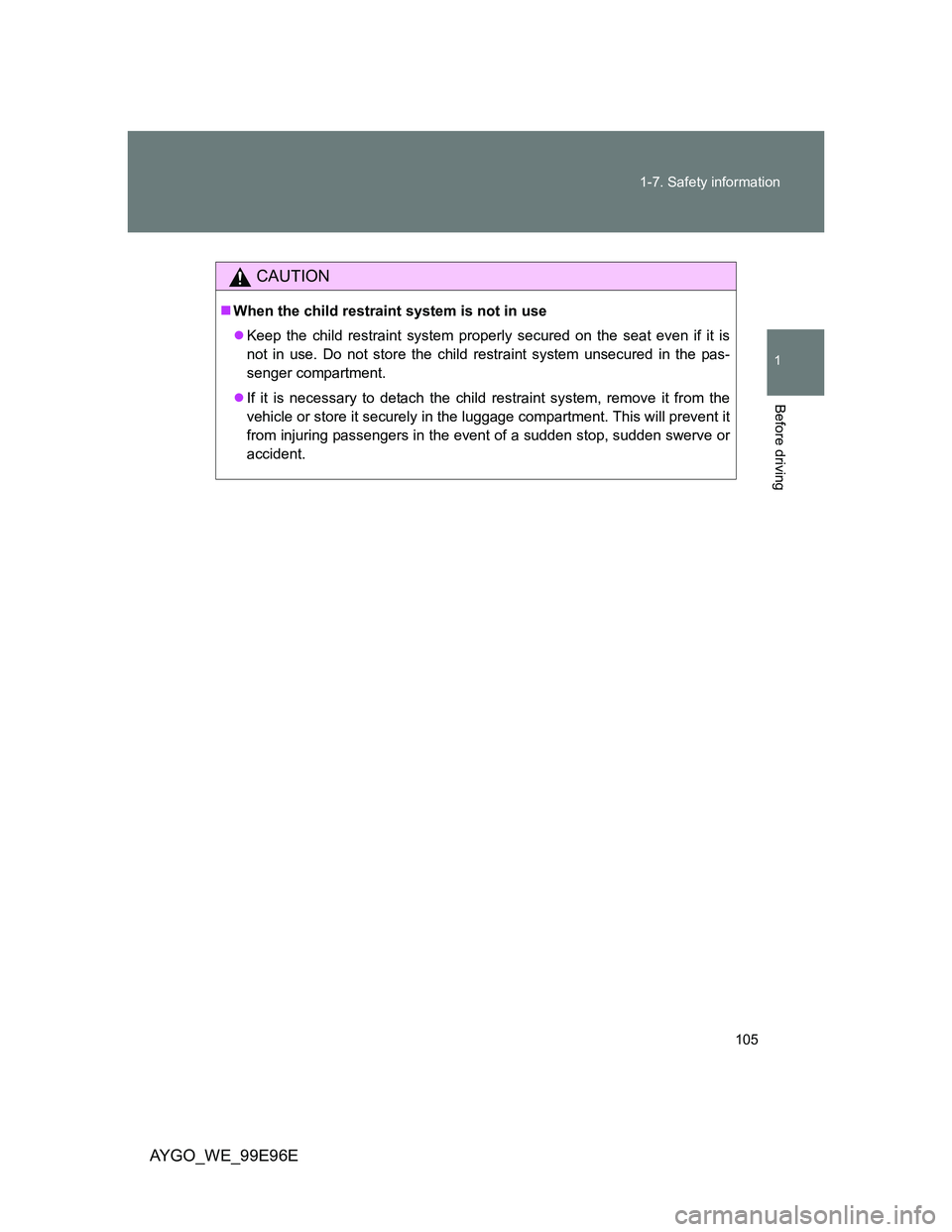

CAUTION
When the child restraint system is not in use
Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the child restraint system unsecured in the pas-
senger compartment.
If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the luggage compartment. This will prevent it
from injuring passengers in the event of a sudden stop, sudden swerve or
accident.

106
1-7. Safety information
AYGO_WE_99E96E

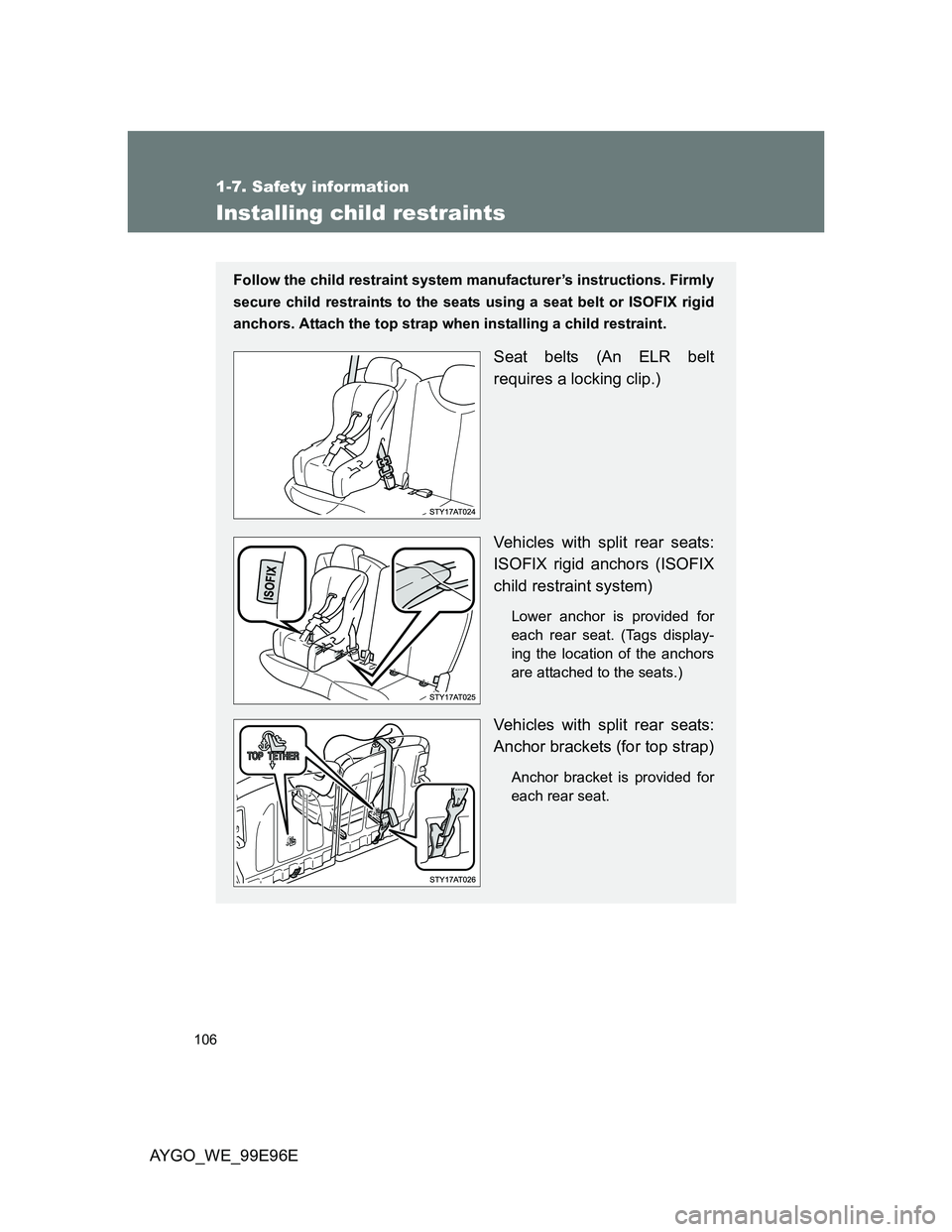

Installing child restraints
Follow the child restraint system manufacturer’s instructions. Firmly
secure child restraints to the seats using a seat belt or ISOFIX rigid
anchors. Attach the top strap when installing a child restraint.
Seat belts (An ELR belt
requires a locking clip.)
Vehicles with split rear seats:
ISOFIX rigid anchors (ISOFIX
child restraint system)
Lower anchor is provided for
each rear seat. (Tags display-
ing the location of the anchors
are attached to the seats.)
Vehicles with split rear seats:
Anchor brackets (for top strap)
Anchor bracket is provided for
each rear seat.

107 1-7. Safety information
1
Before driving
AYGO_WE_99E96E

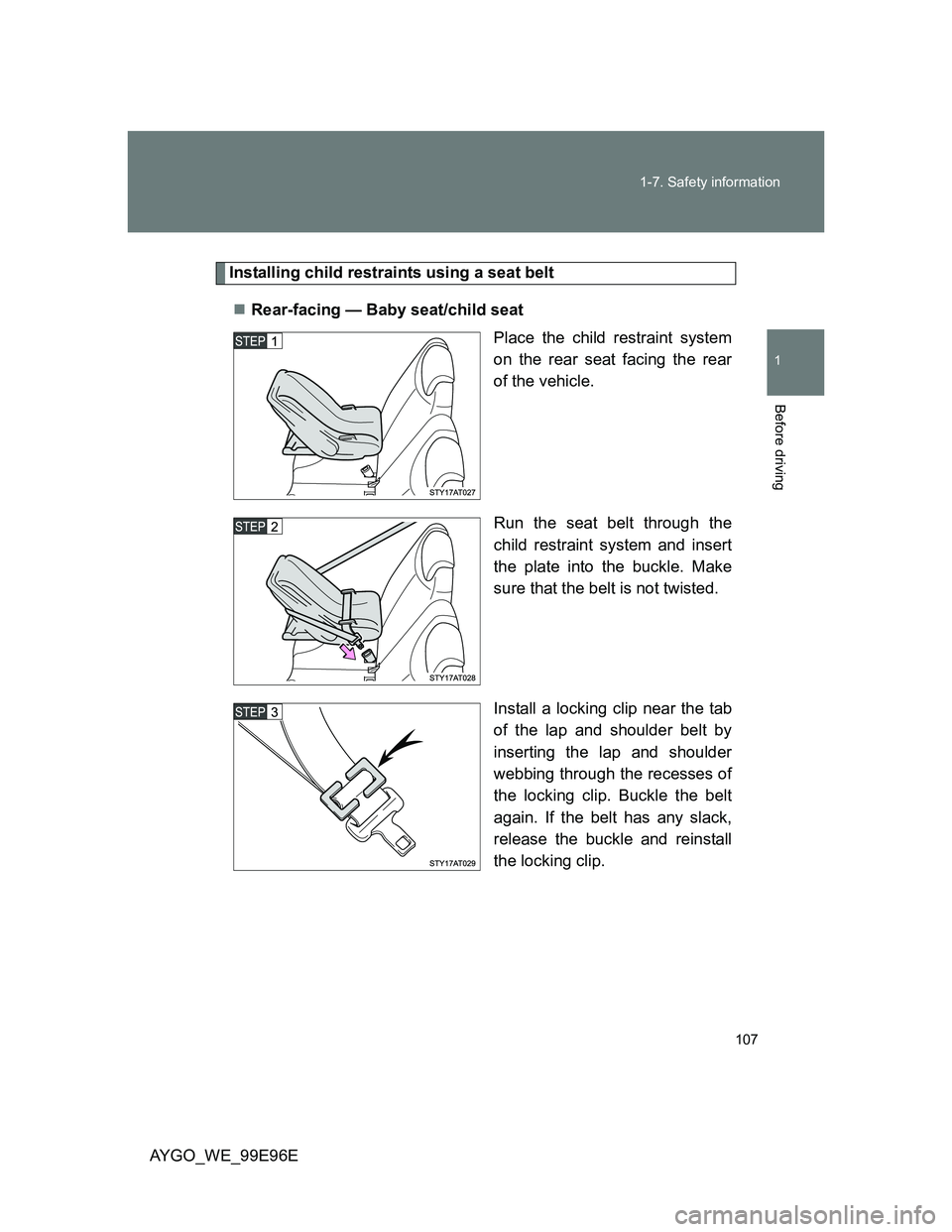

Installing child restraints using a seat belt
Rear-facing — Baby seat/child seat
Place the child restraint system
on the rear seat facing the rear
of the vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Install a locking clip near the tab
of the lap and shoulder belt by
inserting the lap and shoulder
webbing through the recesses of
the locking clip. Buckle the belt
again. If the belt has any slack,
release the buckle and reinstall
the locking clip.

108 1-7. Safety information

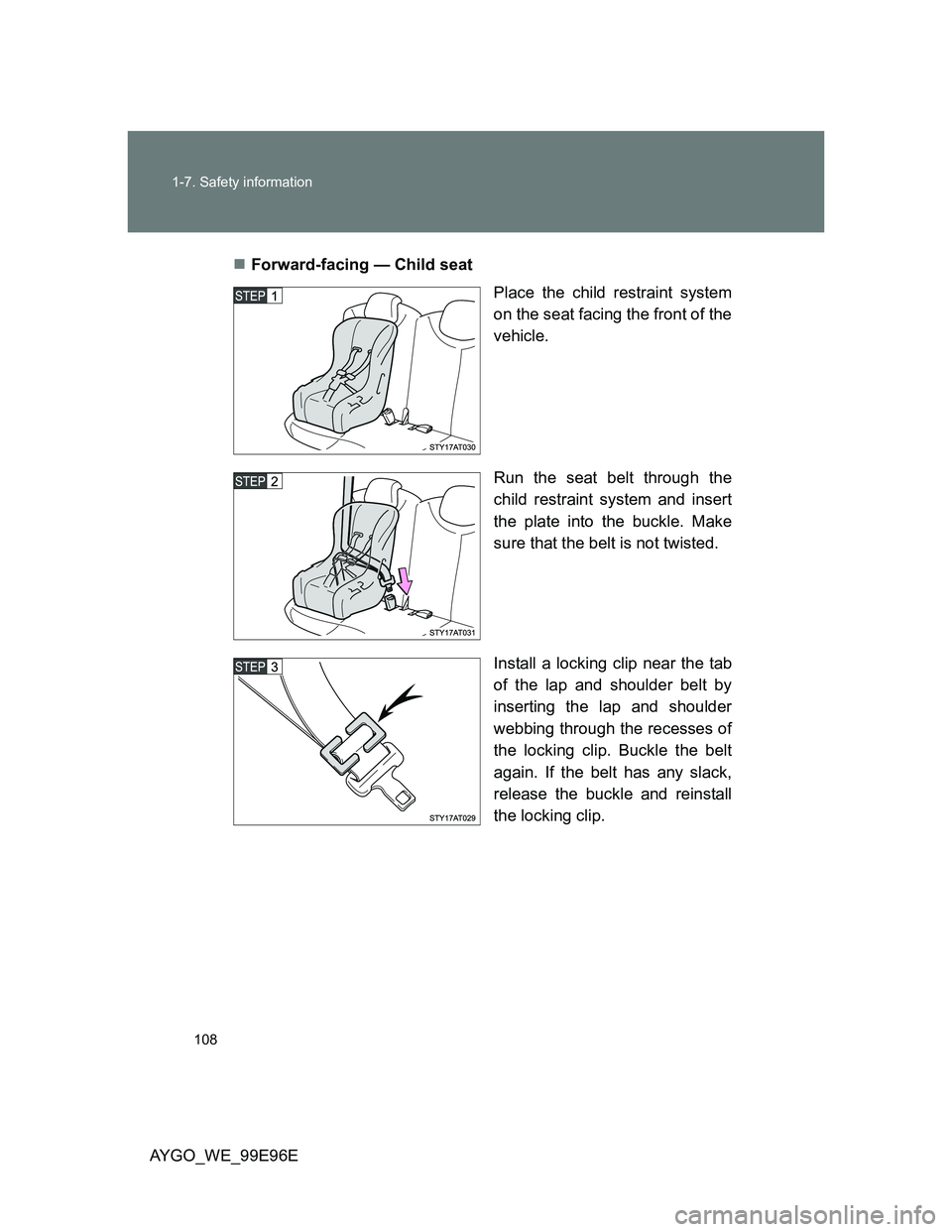

AYGO_WE_99E96EForward-facing — Child seat
Place the child restraint system
on the seat facing the front of the
vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Install a locking clip near the tab
of the lap and shoulder belt by
inserting the lap and shoulder
webbing through the recesses of
the locking clip. Buckle the belt
again. If the belt has any slack,
release the buckle and reinstall
the locking clip.

109 1-7. Safety information
1
Before driving
AYGO_WE_99E96EJunior seat
Place the child restraint system
on the seat facing the front of the
vehicle.
Sit the child in the child restraint
system. Fit the seat belt to the
child restraint system according
to the manufacturer’s instruc-
tions and insert the plate into the
buckle. Make sure that the belt is
not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder and that the lap
belt is as low as possible.
(P. 59)
Removing a child restraint installed with a seat belt
Push the buckle release button
and fully retract the seat belt.

110 1-7. Safety information
AYGO_WE_99E96E

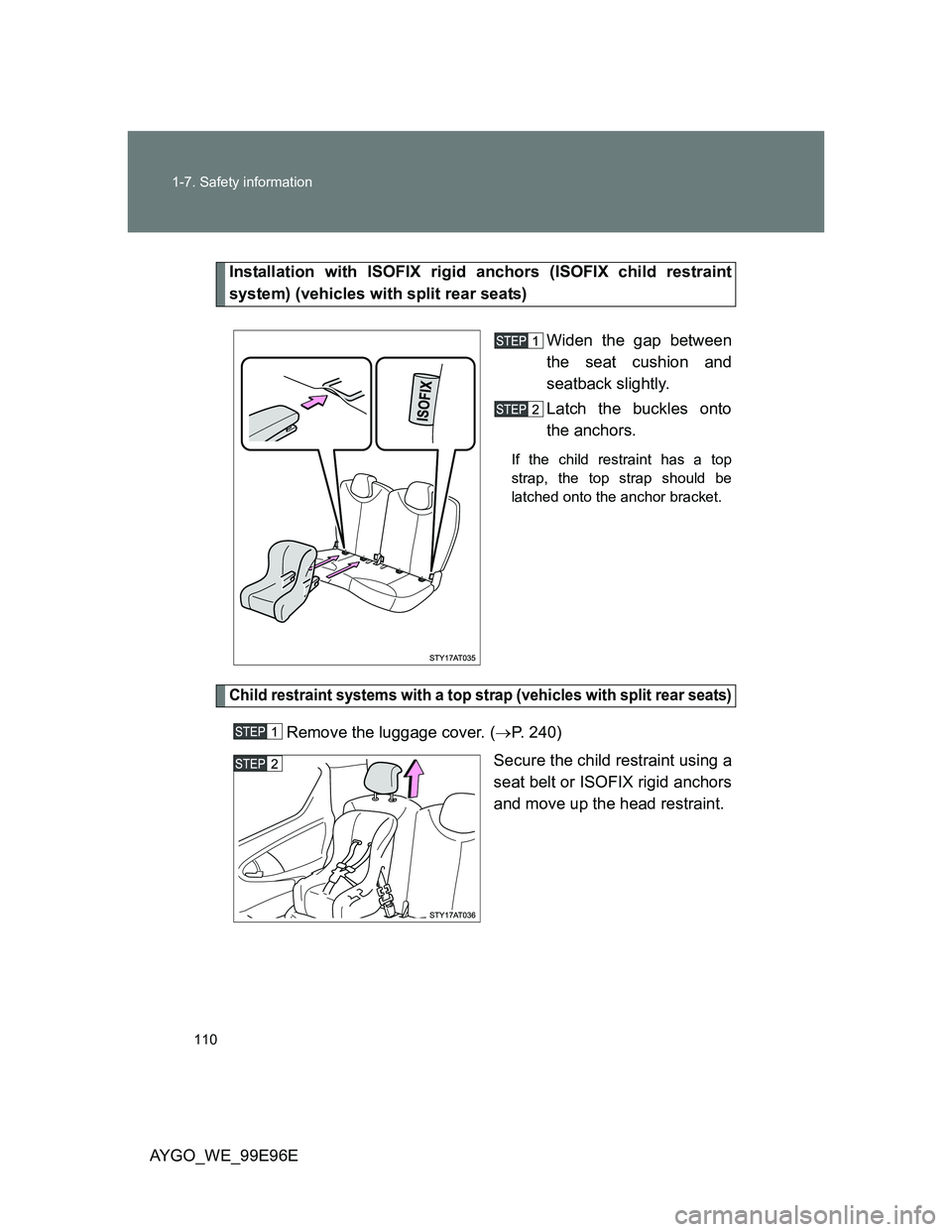

Installation with ISOFIX rigid anchors (ISOFIX child restraint
system) (vehicles with split rear seats)
Widen the gap between
the seat cushion and
seatback slightly.
Latch the buckles onto
the anchors.
If the child restraint has a top
strap, the top strap should be
latched onto the anchor bracket.
Child restraint systems with a top strap (vehicles with split rear seats)
Remove the luggage cover. (P. 240)
Secure the child restraint using a
seat belt or ISOFIX rigid anchors
and move up the head restraint.
