2-1. Driving procedures
2
When driving
AYGO_WE_99E96E
Parking brake
Usage in winter time
P. 163
NOTICE
Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
To set the parking brake,
fully pull the parking brake
lever while depressing the
brake pedal.
To release the parking
brake, slightly raise the
lever and lower it com-
pletely while pressing the
button.

142
2-1. Driving procedures
AYGO_WE_99E96E

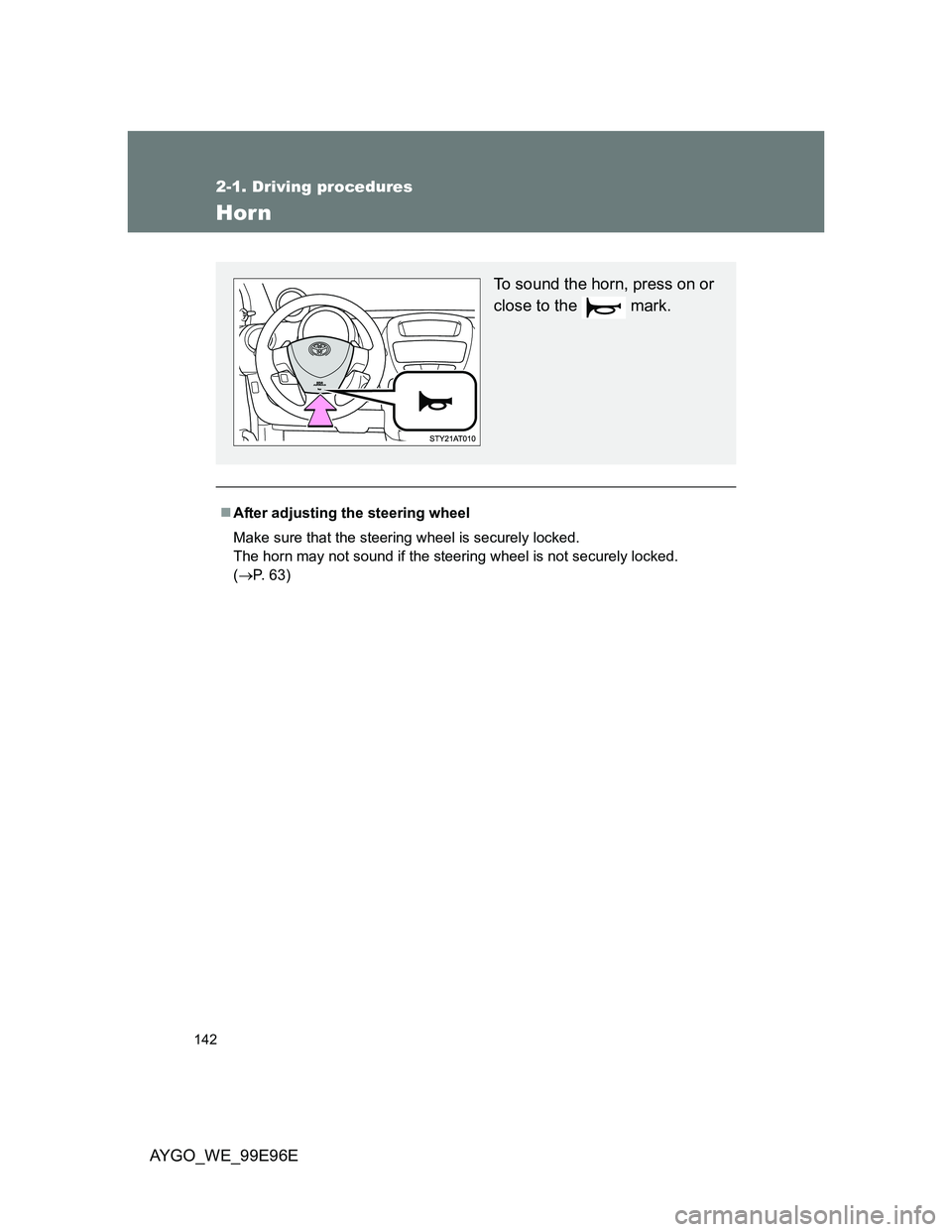

Horn
After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
(P. 63)
To sound the horn, press on or
close to the mark.

143
2
When driving
AYGO_WE_99E96E
2-2. Instrument cluster
Gauges and meters
Tachometer (if equipped)
Displays the engine speed in revolutions per minute.
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Odometer and trip meter
Odometer: Displays the total distance the vehicle has been driven.
Trip meter: Displays the distance the vehicle has been driven since the
meter was last reset.
Odometer/trip meter display change button
P. 144

144 2-2. Instrument cluster
AYGO_WE_99E96E
Changing the display
Switches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the button will reset the
trip meter.
The meters and display operate when
The engine switch is in the “ON” position.
NOTICE
To prevent damage to the engine and its components
Vehicles with a tachometer: Do not let the indicator needle of the tachome-
ter enter the red zone, which indicates the maximum engine speed.
The engine may be overheating if the high engine coolant temperature
warning light flashes or turns on. In this case, immediately stop the vehicle
in a safe place, and check the engine after it has cooled completely.
(
P. 336)

145
2-2. Instrument cluster
2
When driving
AYGO_WE_99E96E
Indicators and warning lights
The indicators and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
For the purpose of explanation, the following illustration displays all
indicators and warning lights illuminated.
Instrument cluster

146 2-2. Instrument cluster
AYGO_WE_99E96E
Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
*1: These lights turn on when the engine switch is turned to the “ON”
position to indicate that a system check is being performed. They
will turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
*2: The light flashes to indicate that the system is operating.
Turn signal indicator
(P. 140)Rear fog light indicator
(P. 152)
Headlight low beam
indicator (P. 148)Shift position and gear
position indicators
(P. 133)
Headlight high beam
indicator (P. 148)
(Vehicles with a multi-mode manual transmission)
*1,2
(If equipped)
Slip indicator
(P. 158)
(If equipped)
Front fog light indicator
(P. 153)

147 2-2. Instrument cluster
2
When driving
AYGO_WE_99E96E
CAUTION
If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional immediately
if this occurs.

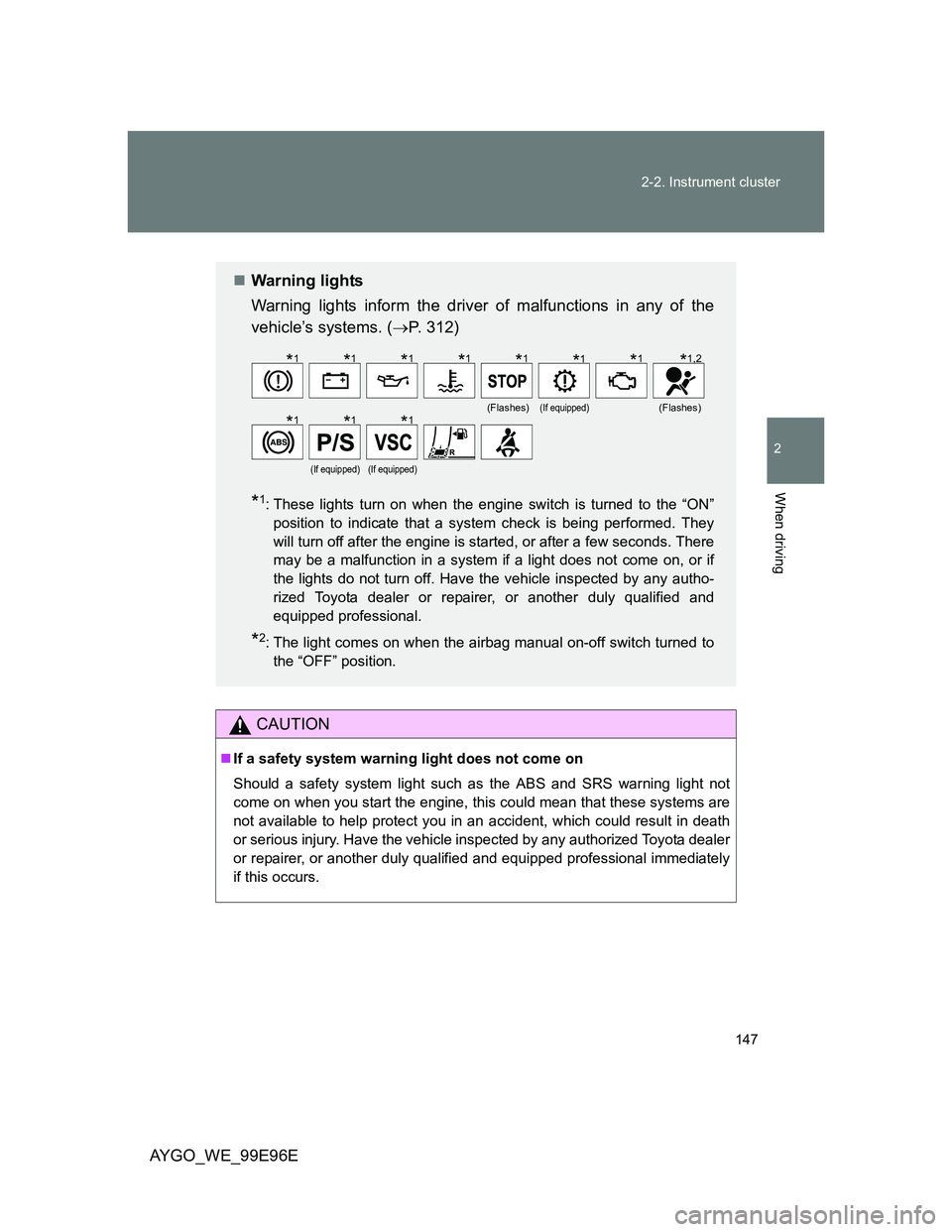

Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. (P. 312)
*1: These lights turn on when the engine switch is turned to the “ON”
position to indicate that a system check is being performed. They
will turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
*2: The light comes on when the airbag manual on-off switch turned to
the “OFF” position.
(Flashes)(If equipped)(Flashes)
(If equipped)(If equipped)
*1*1*1*1*1*1*1*1,2
*1*1*1

148
AYGO_WE_99E96E
2-3. Operating the lights and wipers

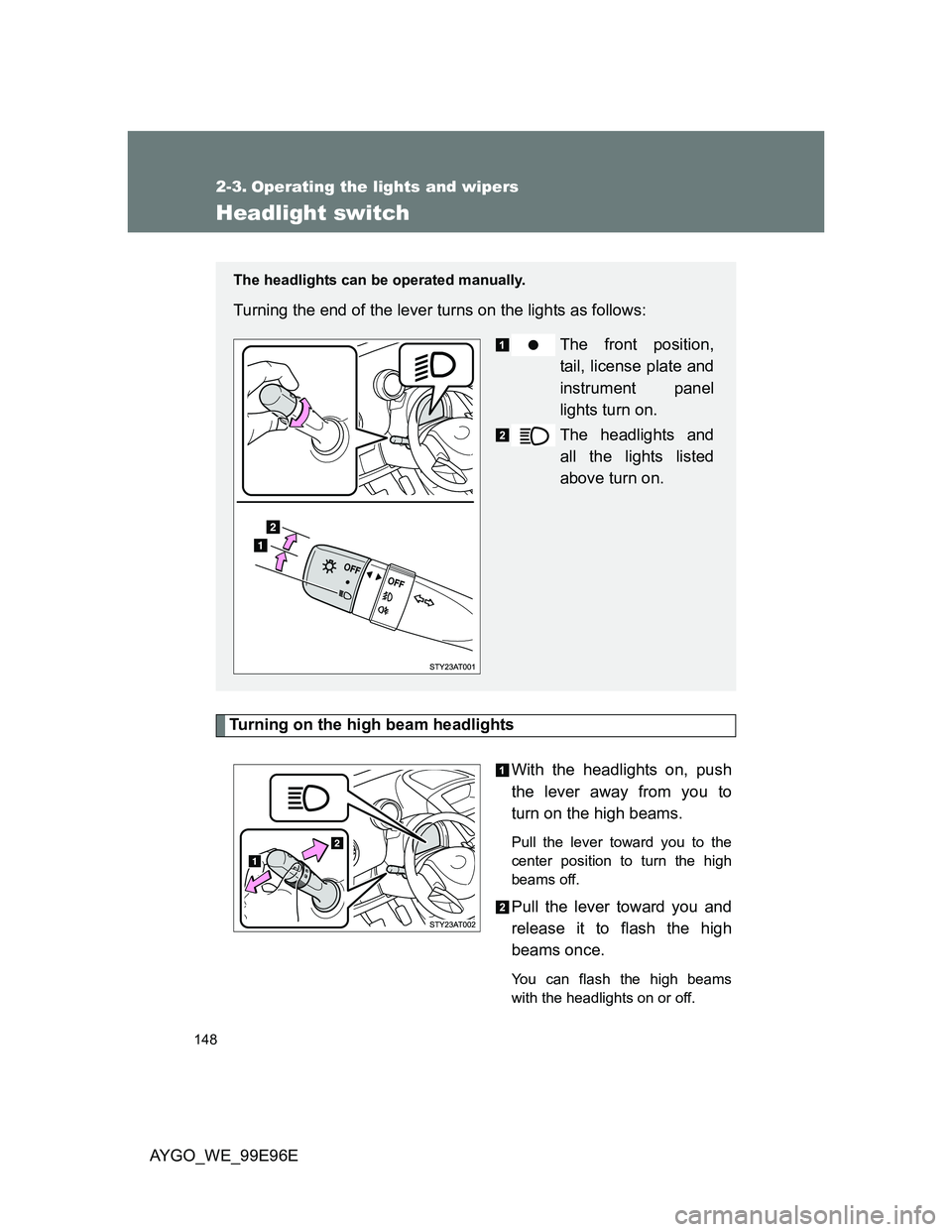

Headlight switch
Turning on the high beam headlights
With the headlights on, push
the lever away from you to
turn on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams
with the headlights on or off.
The headlights can be operated manually.
Turning the end of the lever turns on the lights as follows:
The front position,
tail, license plate and
instrument panel
lights turn on.
The headlights and
all the lights listed
above turn on.

149 2-3. Operating the lights and wipers
2
When driving
AYGO_WE_99E96E

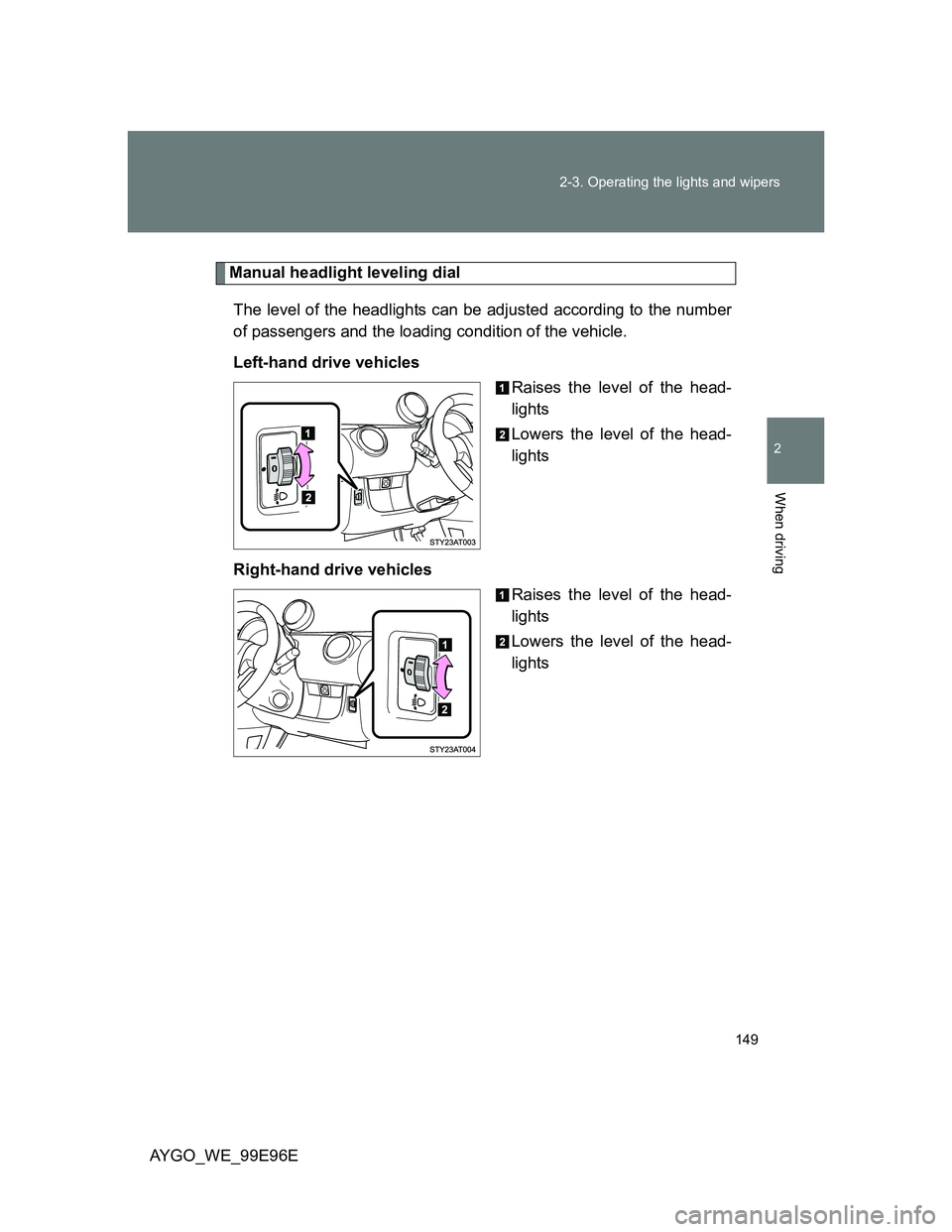

Manual headlight leveling dial
The level of the headlights can be adjusted according to the number
of passengers and the loading condition of the vehicle.
Left-hand drive vehicles
Raises the level of the head-
lights
Lowers the level of the head-
lights
Right-hand drive vehicles
Raises the level of the head-
lights
Lowers the level of the head-
lights

150 2-3. Operating the lights and wipers

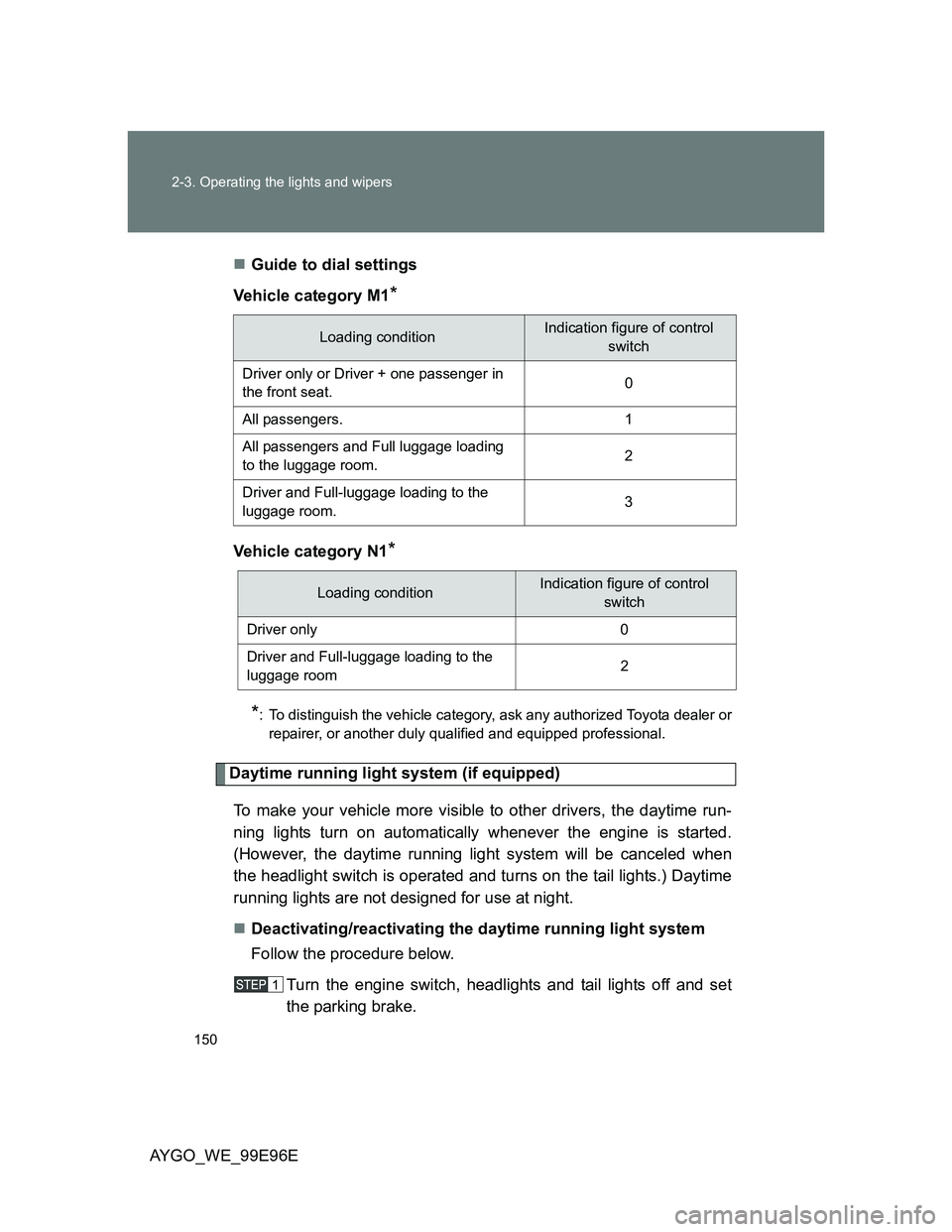

AYGO_WE_99E96EGuide to dial settings
Vehicle category M1
*
Vehicle category N1*
*
: To distinguish the vehicle category, ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Daytime running light system (if equipped)
To make your vehicle more visible to other drivers, the daytime run-
ning lights turn on automatically whenever the engine is started.
(However, the daytime running light system will be canceled when
the headlight switch is operated and turns on the tail lights.) Daytime
running lights are not designed for use at night.
Deactivating/reactivating the daytime running light system
Follow the procedure below.
Turn the engine switch, headlights and tail lights off and set
the parking brake.
Loading conditionIndication figure of control
switch
Driver only or Driver + one passenger in
the front seat.0
All passengers. 1
All passengers and Full luggage loading
to the luggage room.2
Driver and Full-luggage loading to the
luggage room.3
Loading conditionIndication figure of control
switch
Driver only 0
Driver and Full-luggage loading to the
luggage room2
