351 6-1. Specifications
6
Vehicle specifications
AYGO_WE_99E96E
Ignition system
Electrical system
Manual transmission
Spark plug
Make
GapDENSO SK16HR11
1.1 mm (0.043 in.)
NOTICE
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Battery
Open voltage* at
20C (68F):12.6 12.8 V Fully charged
12.2 12.4 V Half charged
11 . 8 12.0 V Discharged
(
*: Voltage checked 20 minutes after
the engine and all the lights are
turned off)
Charging rates 5 A max.
Gear oil capacity (Reference) 1.7 L (1.8 qt., 1.5 Imp.qt.)
Gear oil typeUse either of the following:
• “TOYOTA Genuine Manual Transmission
Gear Oil LV”
• Other gear oil that meets API GL-4 and
SAE 75W specifications

352 6-1. Specifications
AYGO_WE_99E96E

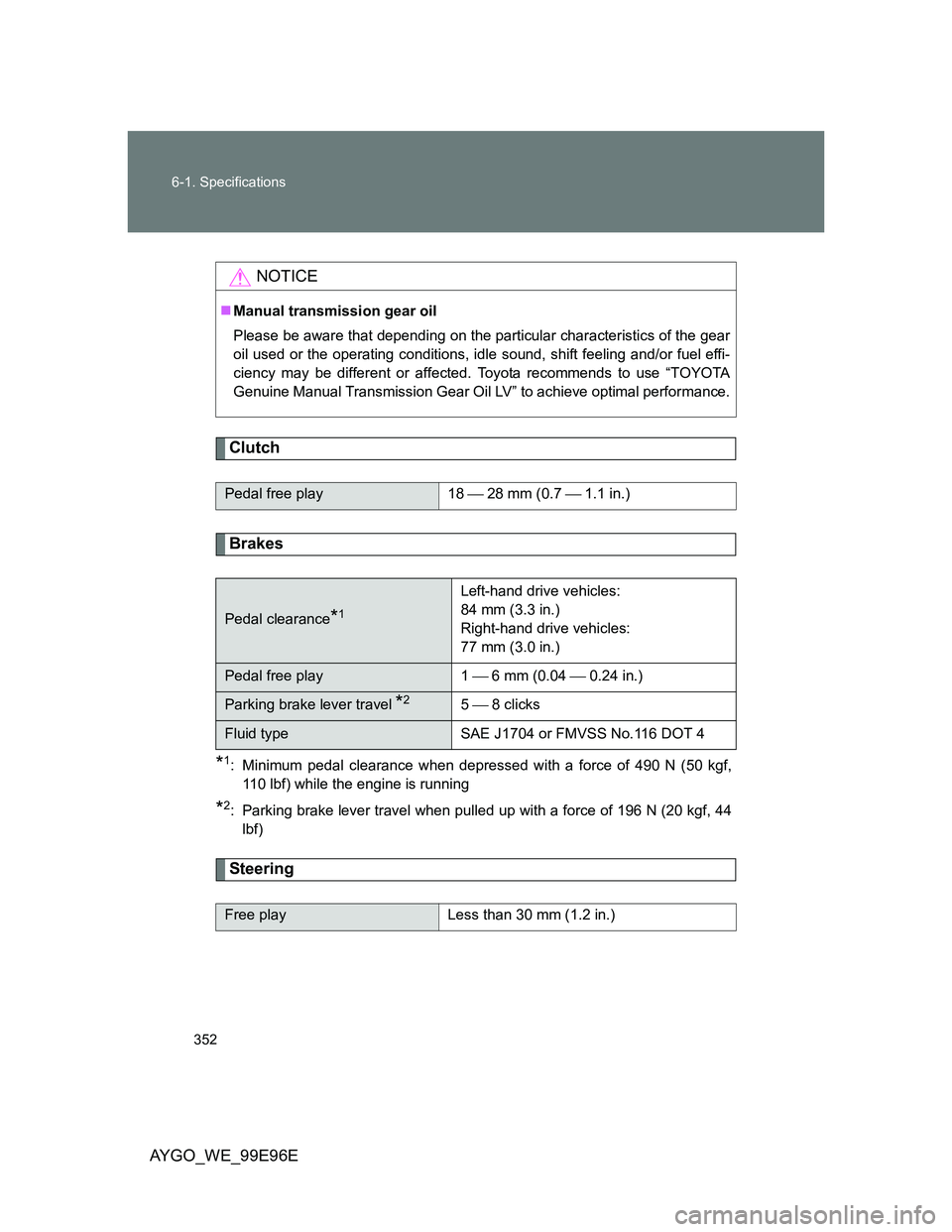

Clutch
Brakes
*1: Minimum pedal clearance when depressed with a force of 490 N (50 kgf,
110 lbf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 196 N (20 kgf, 44
lbf)
Steering
NOTICE
Manual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil LV” to achieve optimal performance.
Pedal free play 18  28 mm (0.7  1.1 in.)
Pedal clearance*1
Left-hand drive vehicles:
84 mm (3.3 in.)
Right-hand drive vehicles:
77 mm (3.0 in.)
Pedal free play 1  6 mm (0.04  0.24 in.)
Parking brake lever travel *25  8 clicks
Fluid type SAE J1704 or FMVSS No.116 DOT 4
Free play Less than 30 mm (1.2 in.)

353 6-1. Specifications
6
Vehicle specifications
AYGO_WE_99E96E

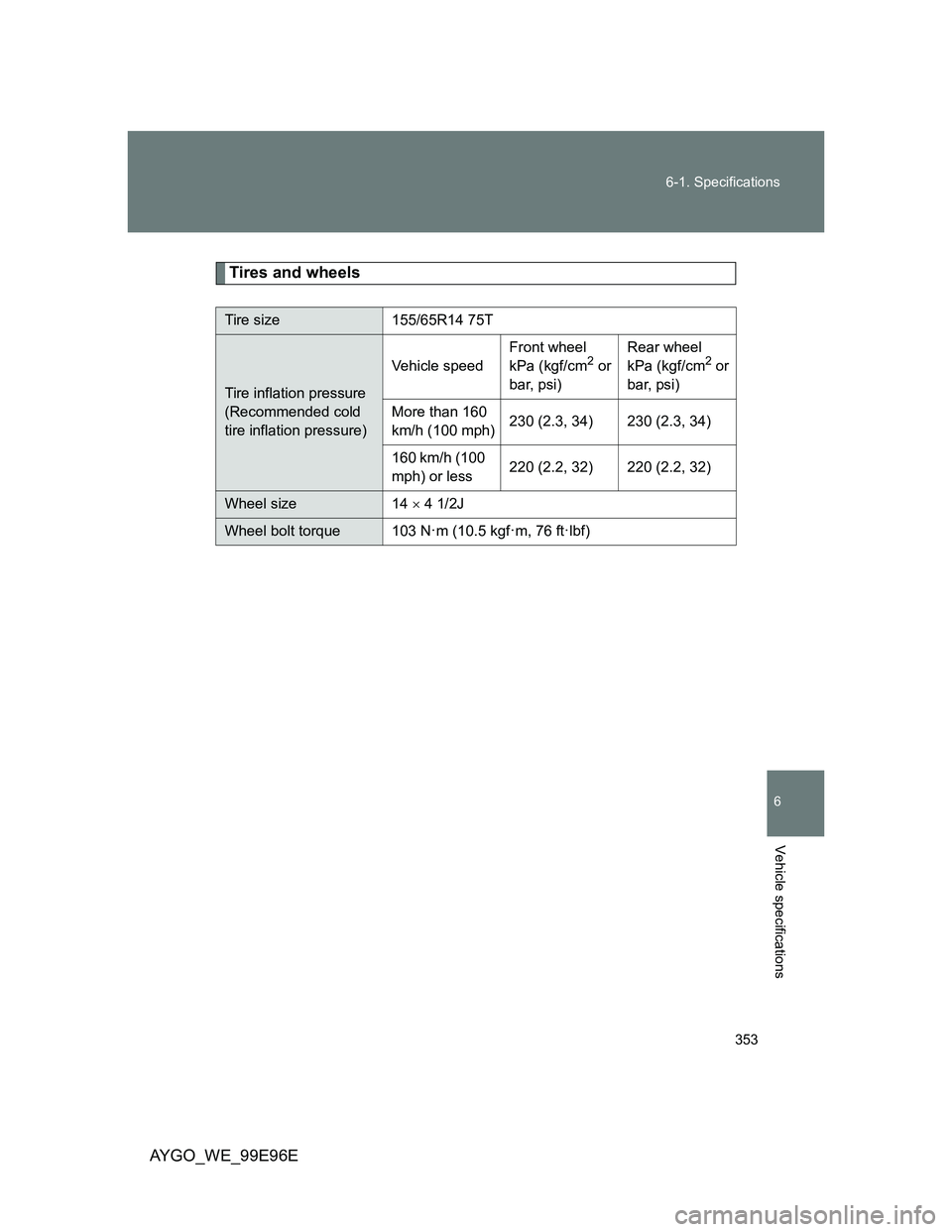

Tires and wheels
Tire size 155/65R14 75T
Tire inflation pressure
(Recommended cold
tire inflation pressure)Vehicle speedFront wheel
kPa (kgf/cm
2 or
bar, psi)Rear wheel
kPa (kgf/cm2 or
bar, psi)
More than 160
km/h (100 mph)230 (2.3, 34) 230 (2.3, 34)
160 km/h (100
mph) or less220 (2.2, 32) 220 (2.2, 32)
Wheel size 14  4 1/2J
Wheel bolt torque 103 N·m (10.5 kgf·m, 76 ft·lbf)

354 6-1. Specifications
AYGO_WE_99E96E

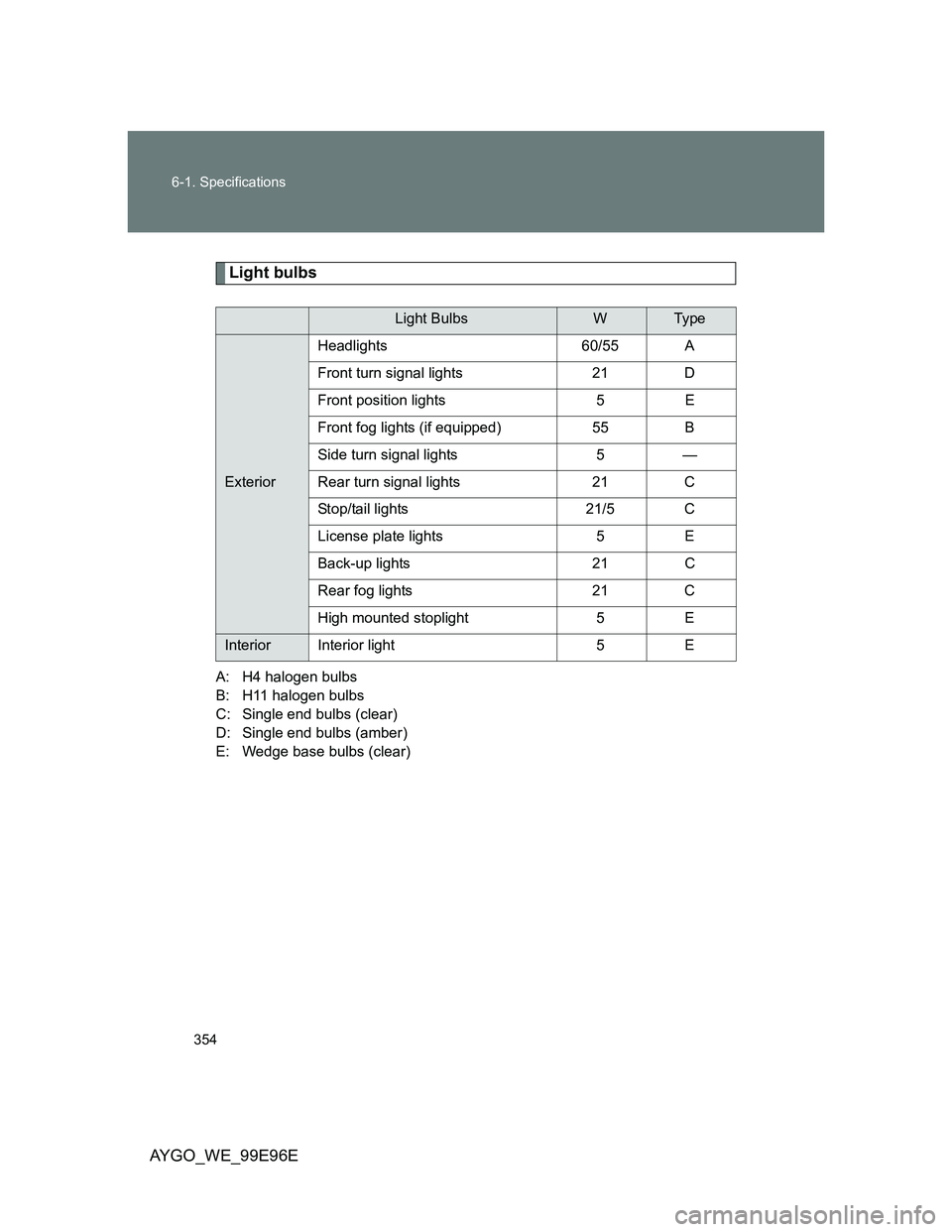

Light bulbs
A: H4 halogen bulbs
B: H11 halogen bulbs
C: Single end bulbs (clear)
D: Single end bulbs (amber)
E: Wedge base bulbs (clear)
Light BulbsWTy p e
ExteriorHeadlights 60/55 A
Front turn signal lights 21 D
Front position lights 5 E
Front fog lights (if equipped) 55 B
Side turn signal lights 5 —
Rear turn signal lights 21 C
Stop/tail lights 21/5 C
License plate lights 5 E
Back-up lights 21 C
Rear fog lights 21 C
High mounted stoplight 5 E
Interior Interior light 5 E

355
6-1. Specifications
6
Vehicle specifications
AYGO_WE_99E96E

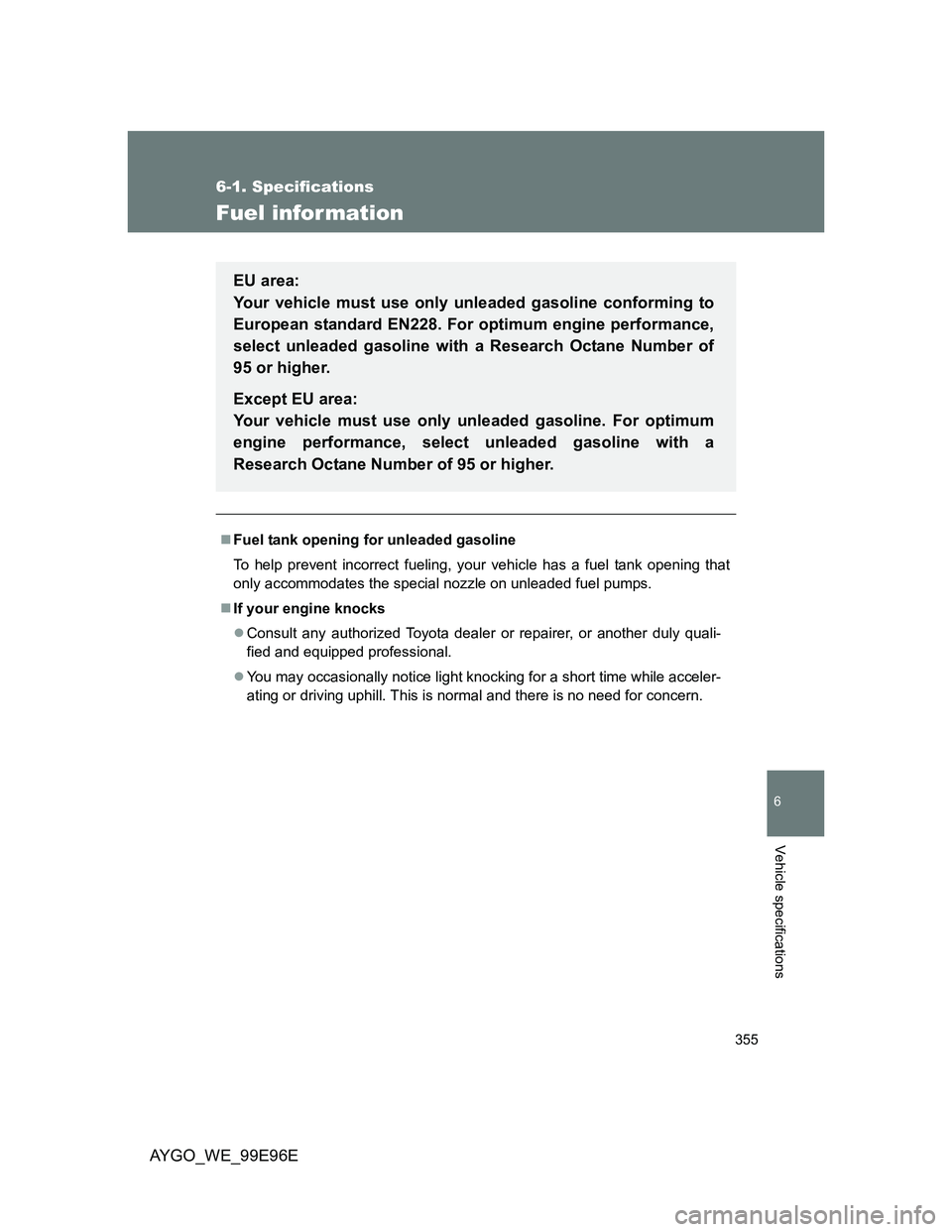

Fuel infor mation
Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
If your engine knocks
Consult any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
EU area:
Your vehicle must use only unleaded gasoline conforming to
European standard EN228. For optimum engine performance,
select unleaded gasoline with a Research Octane Number of
95 or higher.
Except EU area:
Your vehicle must use only unleaded gasoline. For optimum
engine performance, select unleaded gasoline with a
Research Octane Number of 95 or higher.

356 6-1. Specifications
AYGO_WE_99E96E

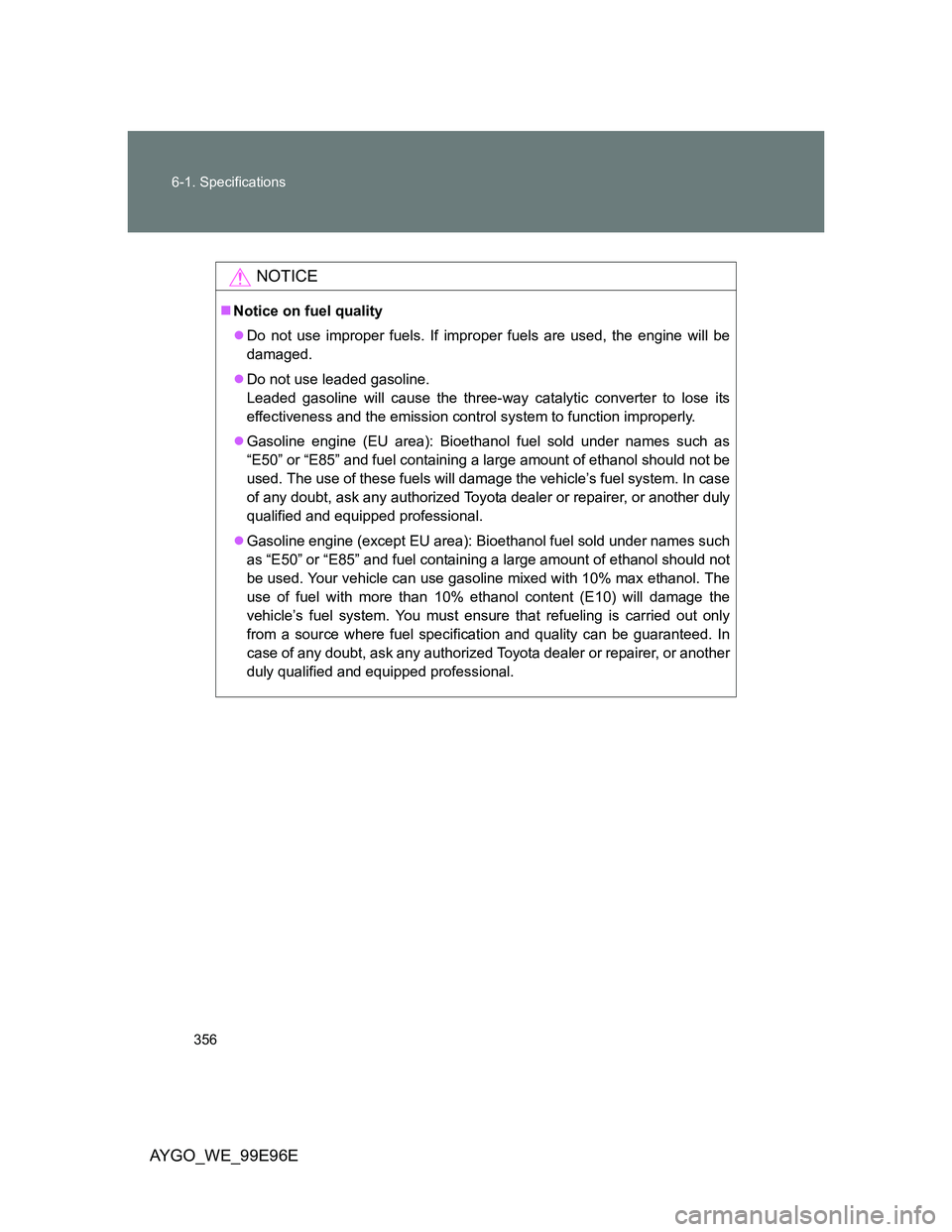

NOTICE
Notice on fuel quality
Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and the emission control system to function improperly.
Gasoline engine (EU area): Bioethanol fuel sold under names such as
“E50” or “E85” and fuel containing a large amount of ethanol should not be
used. The use of these fuels will damage the vehicle’s fuel system. In case
of any doubt, ask any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Gasoline engine (except EU area): Bioethanol fuel sold under names such
as “E50” or “E85” and fuel containing a large amount of ethanol should not
be used. Your vehicle can use gasoline mixed with 10% max ethanol. The
use of fuel with more than 10% ethanol content (E10) will damage the
vehicle’s fuel system. You must ensure that refueling is carried out only
from a source where fuel specification and quality can be guaranteed. In
case of any doubt, ask any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
