321 5-2. Steps to take in an emergency
When trouble arises
AYGO_WE_99G80E

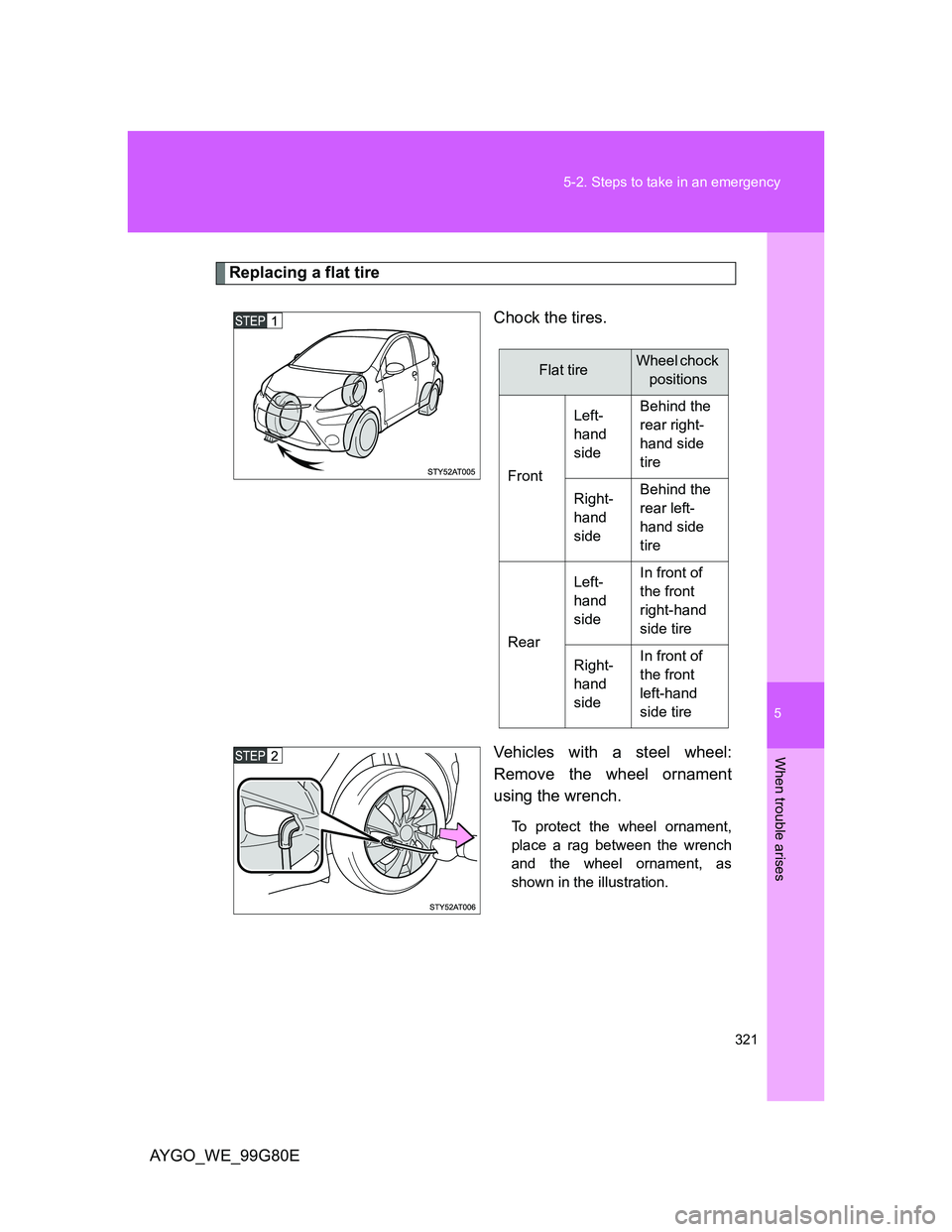

Replacing a flat tire
Chock the tires.
Vehicles with a steel wheel:
Remove the wheel ornament
using the wrench.
To protect the wheel ornament,
place a rag between the wrench
and the wheel ornament, as
shown in the illustration.
Flat tireWheel chock
positions
FrontLeft-
hand
sideBehind the
rear right-
hand side
tire
Right-
hand
sideBehind the
rear left-
hand side
tire
RearLeft-
hand
sideIn front of
the front
right-hand
side tire
Right-
hand
sideIn front of
the front
left-hand
side tire

322 5-2. Steps to take in an emergency

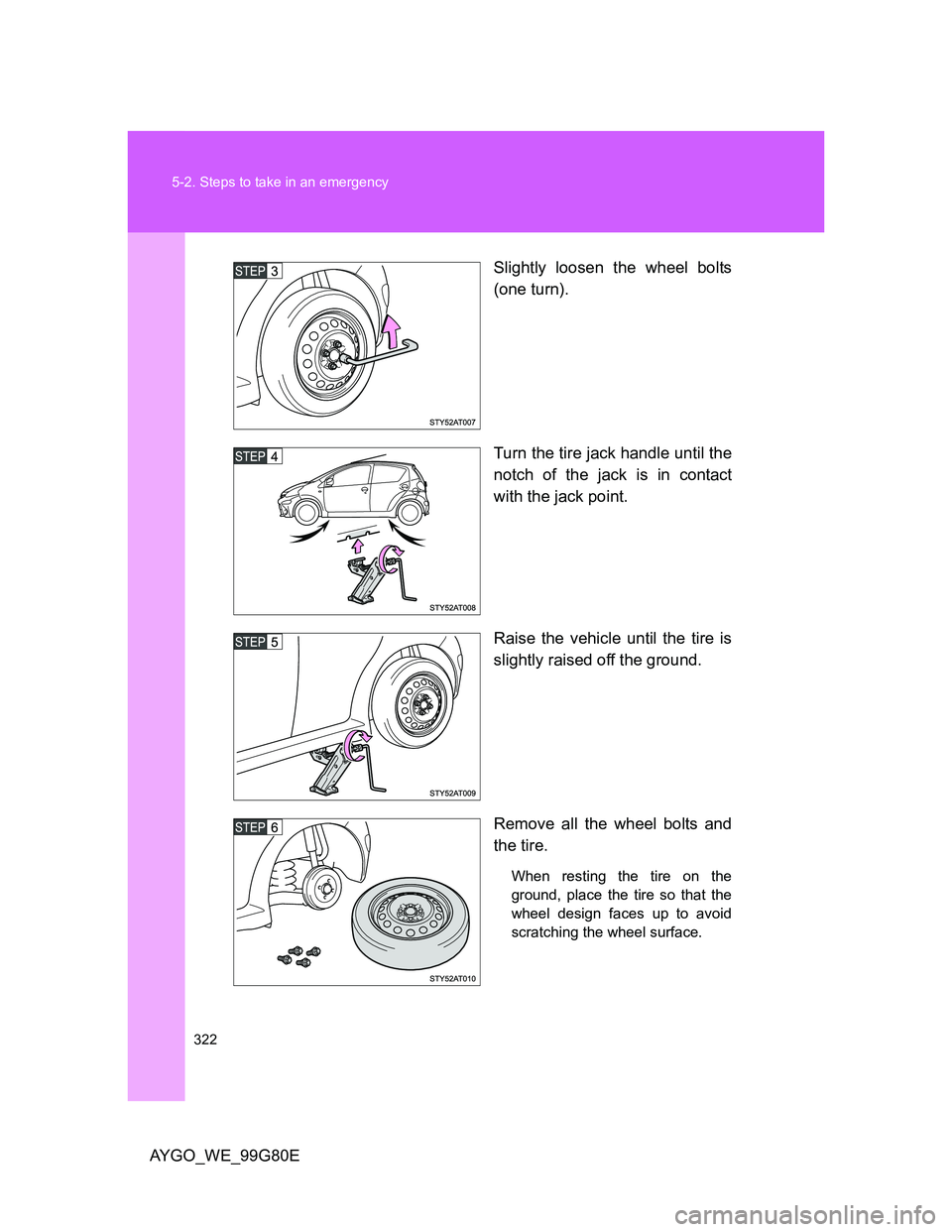

AYGO_WE_99G80ESlightly loosen the wheel bolts
(one turn).
Turn the tire jack handle until the
notch of the jack is in contact
with the jack point.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel bolts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.

5
323 5-2. Steps to take in an emergency
When trouble arises
AYGO_WE_99G80E

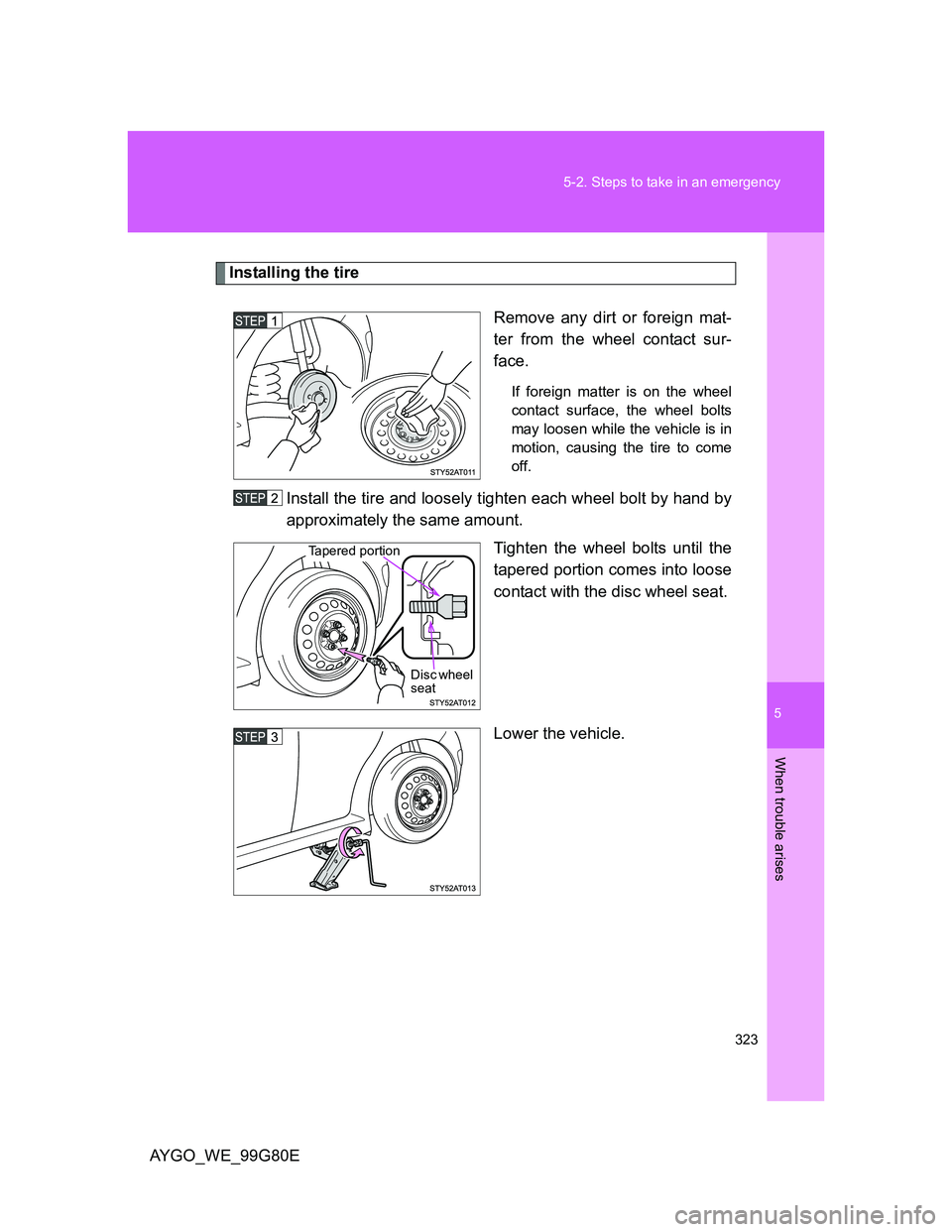

Installing the tire
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel bolts
may loosen while the vehicle is in
motion, causing the tire to come
off.
Install the tire and loosely tighten each wheel bolt by hand by
approximately the same amount.
Tighten the wheel bolts until the
tapered portion comes into loose
contact with the disc wheel seat.
Lower the vehicle.
Disc wheel
seat
Tapered portion

324 5-2. Steps to take in an emergency

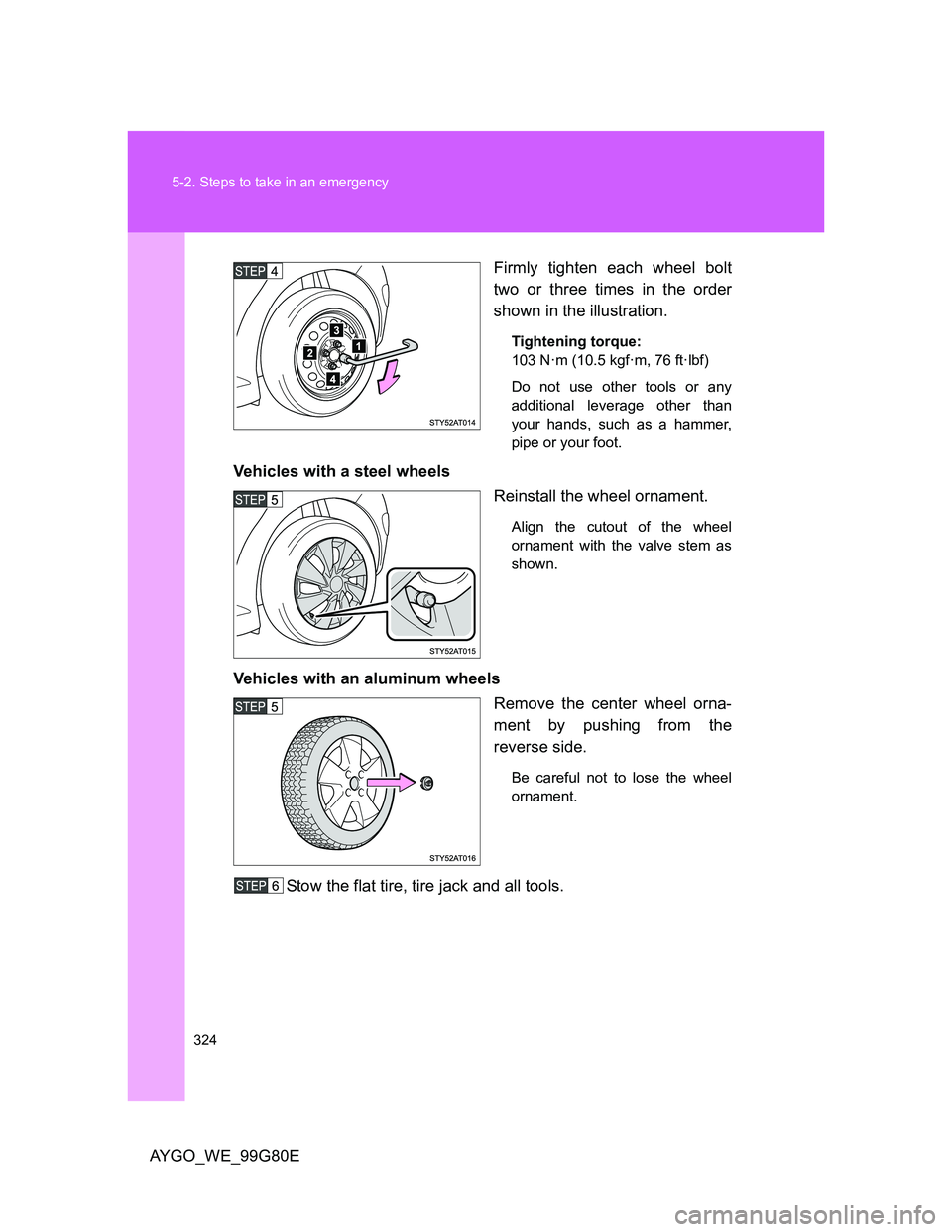

AYGO_WE_99G80EFirmly tighten each wheel bolt
two or three times in the order
shown in the illustration.
Tightening torque:
103 N·m (10.5 kgf·m, 76 ft·lbf)
Do not use other tools or any
additional leverage other than
your hands, such as a hammer,
pipe or your foot.
Vehicles with a steel wheels
Reinstall the wheel ornament.
Align the cutout of the wheel
ornament with the valve stem as
shown.
Vehicles with an aluminum wheels
Remove the center wheel orna-
ment by pushing from the
reverse side.
Be careful not to lose the wheel
ornament.
Stow the flat tire, tire jack and all tools.

5
325 5-2. Steps to take in an emergency
When trouble arises
AYGO_WE_99G80E

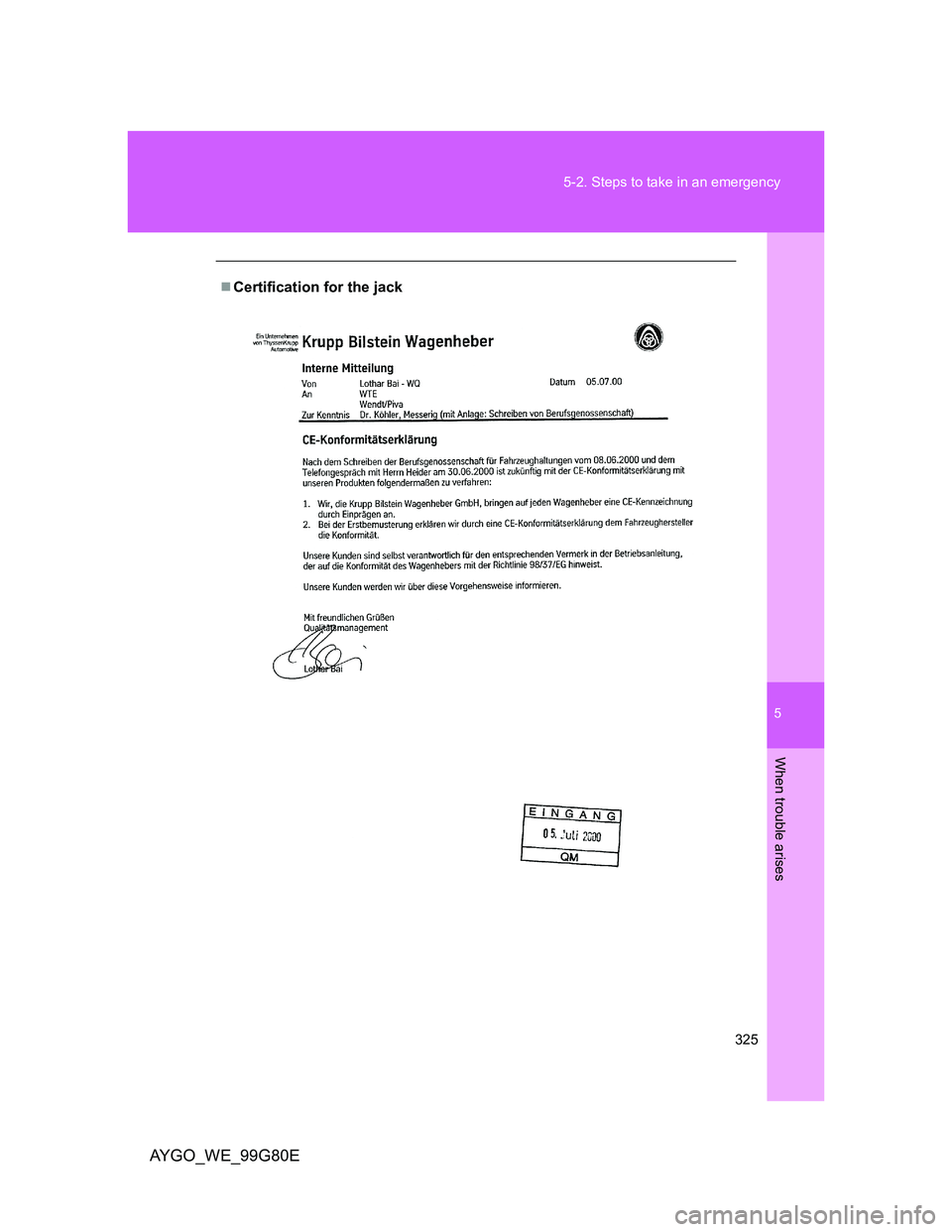

Certification for the jack

326 5-2. Steps to take in an emergency
AYGO_WE_99G80E

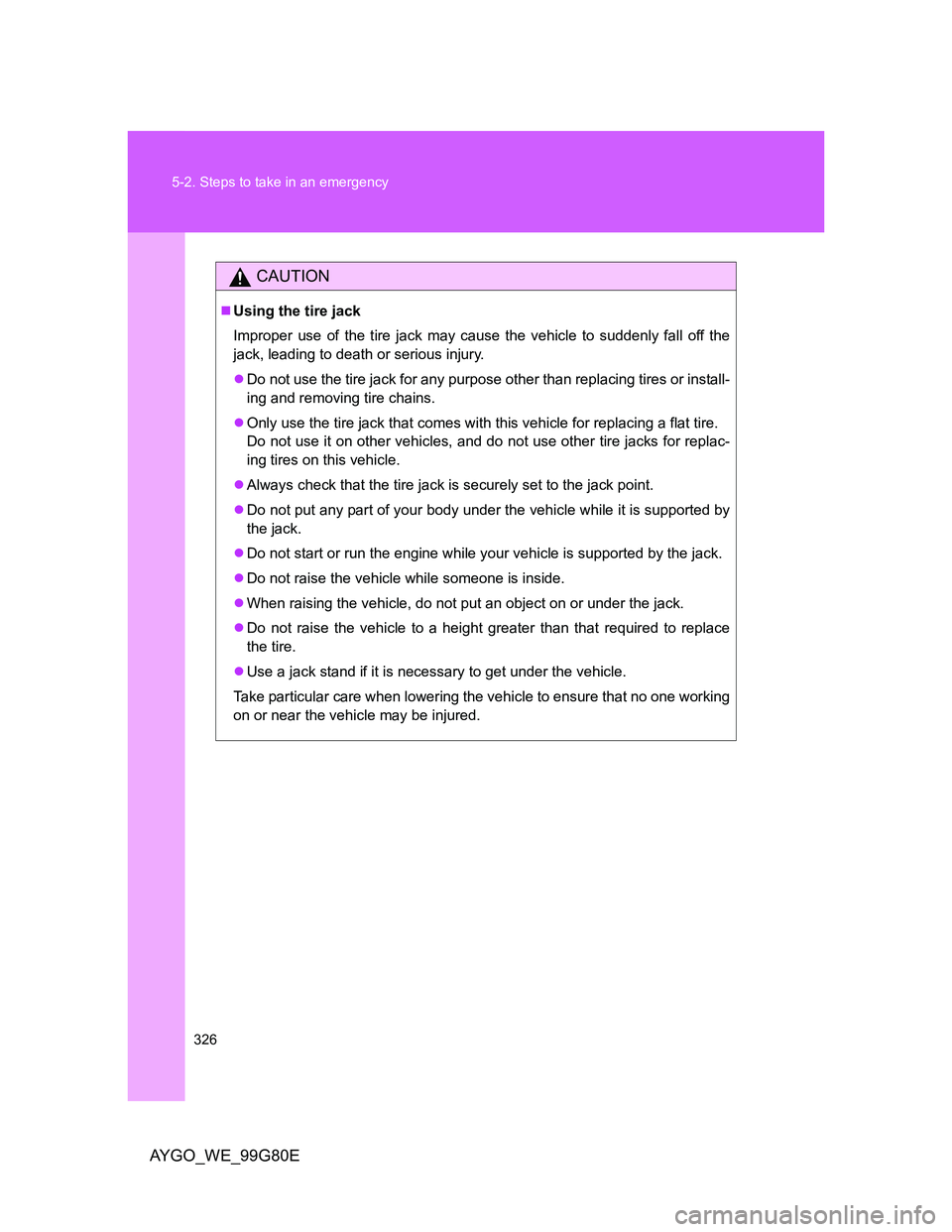

CAUTION
Using the tire jack
Improper use of the tire jack may cause the vehicle to suddenly fall off the
jack, leading to death or serious injury.
Do not use the tire jack for any purpose other than replacing tires or install-
ing and removing tire chains.
Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
Always check that the tire jack is securely set to the jack point.
Do not put any part of your body under the vehicle while it is supported by
the jack.
Do not start or run the engine while your vehicle is supported by the jack.
Do not raise the vehicle while someone is inside.
When raising the vehicle, do not put an object on or under the jack.
Do not raise the vehicle to a height greater than that required to replace
the tire.
Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one working
on or near the vehicle may be injured.

5
327 5-2. Steps to take in an emergency
When trouble arises
AYGO_WE_99G80E

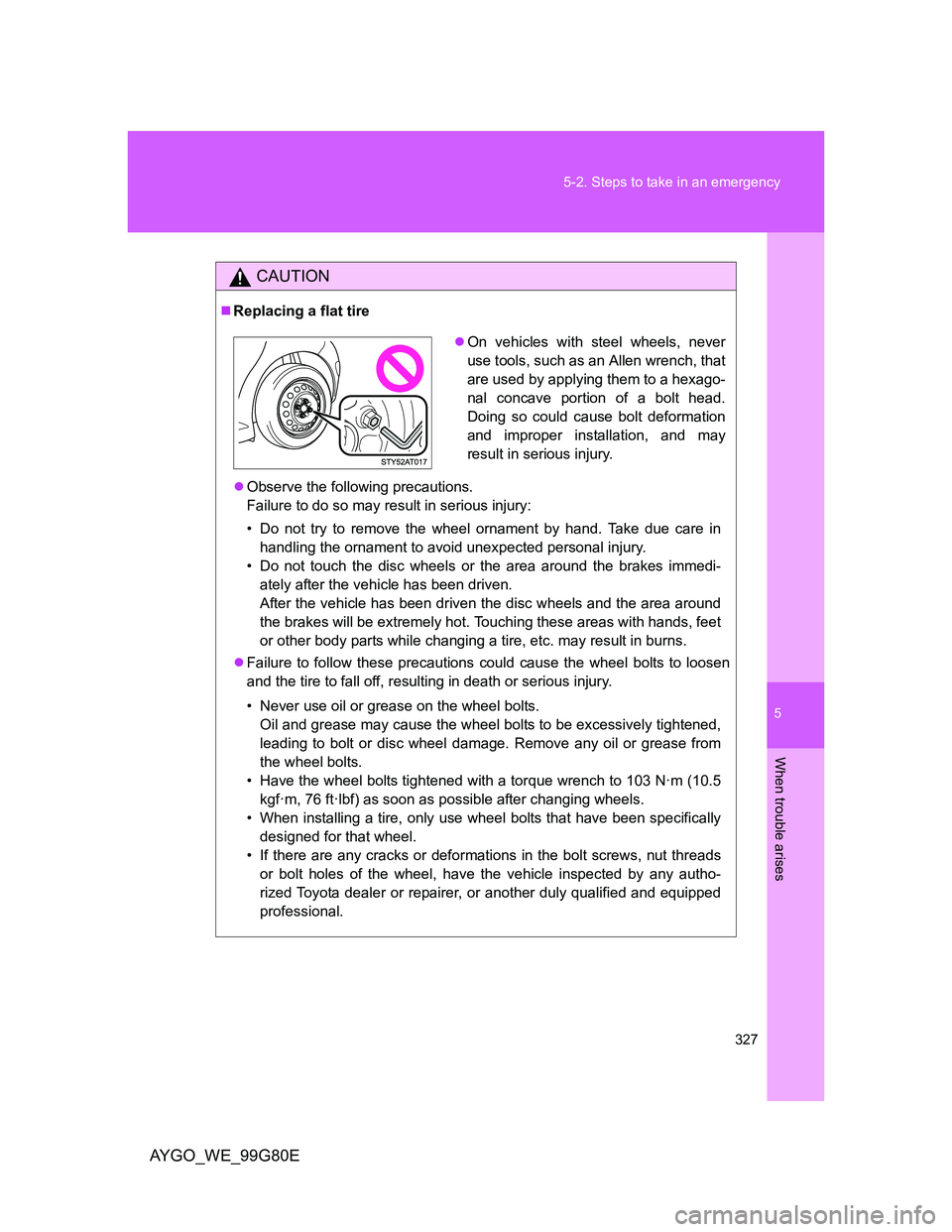

CAUTION
Replacing a flat tire
Observe the following precautions.
Failure to do so may result in serious injury:
• Do not try to remove the wheel ornament by hand. Take due care in
handling the ornament to avoid unexpected personal injury.
• Do not touch the disc wheels or the area around the brakes immedi-
ately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around
the brakes will be extremely hot. Touching these areas with hands, feet
or other body parts while changing a tire, etc. may result in burns.
Failure to follow these precautions could cause the wheel bolts to loosen
and the tire to fall off, resulting in death or serious injury.
• Never use oil or grease on the wheel bolts.
Oil and grease may cause the wheel bolts to be excessively tightened,
leading to bolt or disc wheel damage. Remove any oil or grease from
the wheel bolts.
• Have the wheel bolts tightened with a torque wrench to 103 N·m (10.5
kgf·m, 76 ft·lbf) as soon as possible after changing wheels.
• When installing a tire, only use wheel bolts that have been specifically
designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads
or bolt holes of the wheel, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped
professional.
On vehicles with steel wheels, never
use tools, such as an Allen wrench, that
are used by applying them to a hexago-
nal concave portion of a bolt head.
Doing so could cause bolt deformation
and improper installation, and may
result in serious injury.

328 5-2. Steps to take in an emergency
AYGO_WE_99G80E

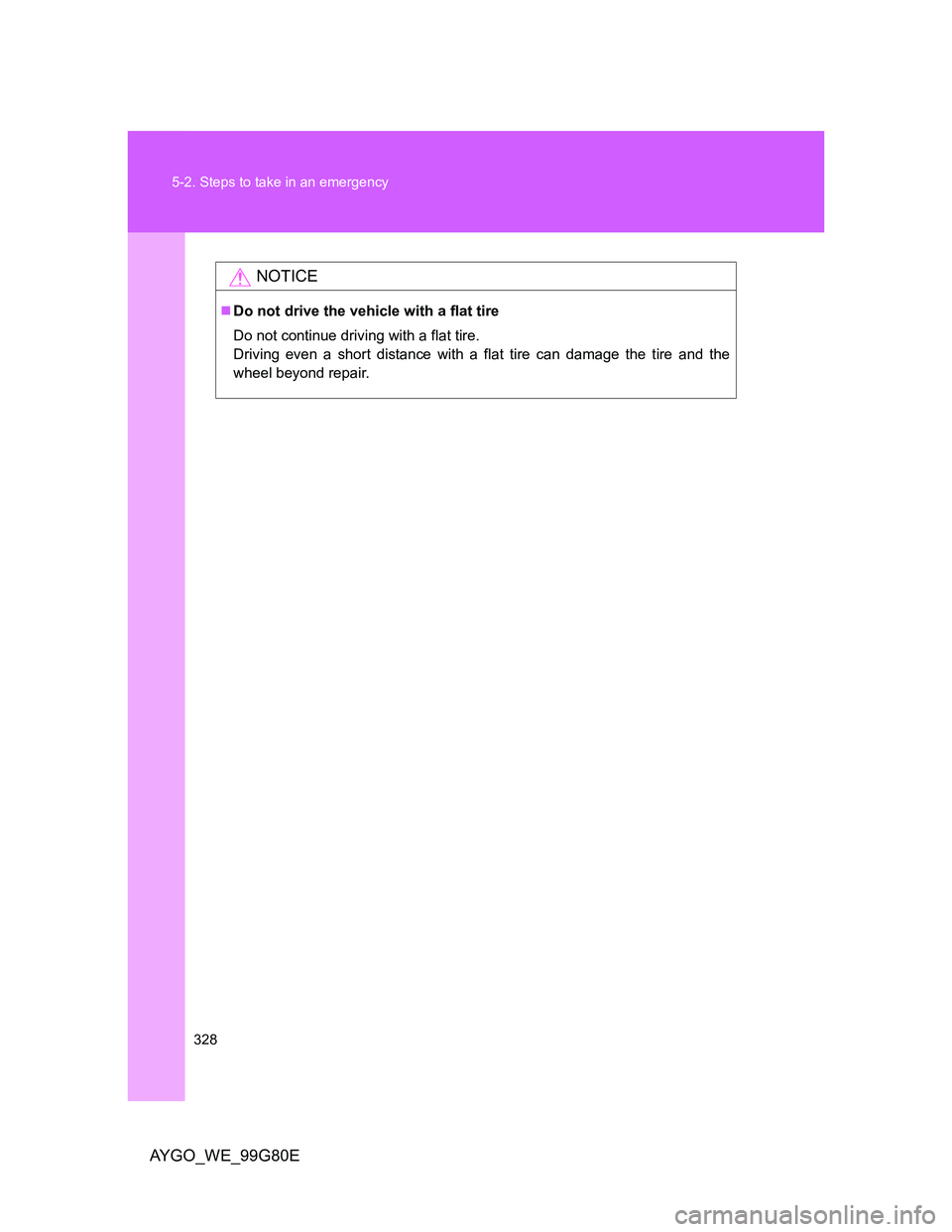

NOTICE
Do not drive the vehicle with a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.

5
329
5-2. Steps to take in an emergency
When trouble arises
AYGO_WE_99G80E

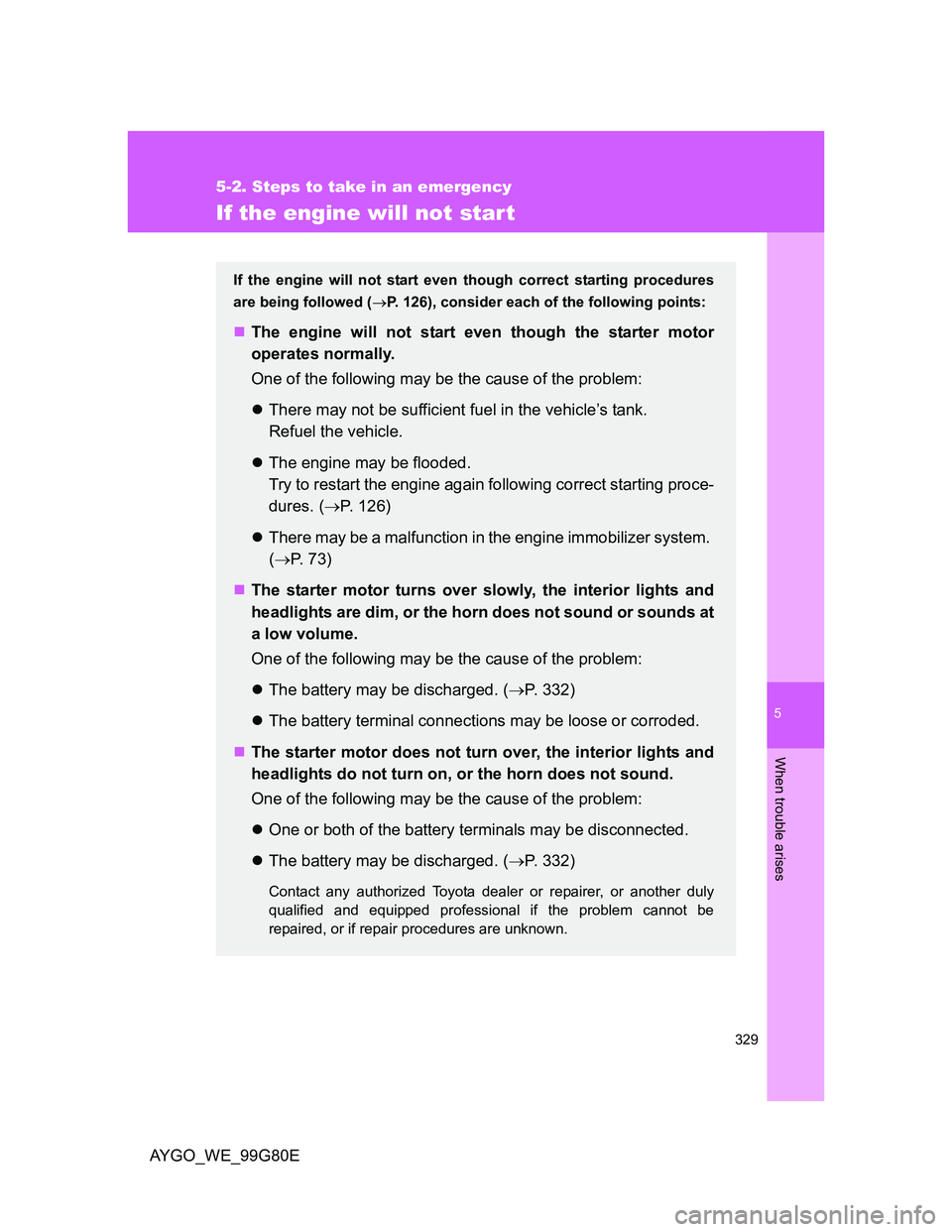

If the engine will not start
If the engine will not start even though correct starting procedures
are being followed (P. 126), consider each of the following points:
The engine will not start even though the starter motor
operates normally.
One of the following may be the cause of the problem:
There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
The engine may be flooded.
Try to restart the engine again following correct starting proce-
dures. (P. 126)
There may be a malfunction in the engine immobilizer system.
(P. 7 3 )
The starter motor turns over slowly, the interior lights and
headlights are dim, or the horn does not sound or sounds at
a low volume.
One of the following may be the cause of the problem:
The battery may be discharged. (P. 332)
The battery terminal connections may be loose or corroded.
The starter motor does not turn over, the interior lights and
headlights do not turn on, or the horn does not sound.
One of the following may be the cause of the problem:
One or both of the battery terminals may be disconnected.
The battery may be discharged. (P. 332)
Contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional if the problem cannot be
repaired, or if repair procedures are unknown.

330
5-2. Steps to take in an emergency
AYGO_WE_99G80E

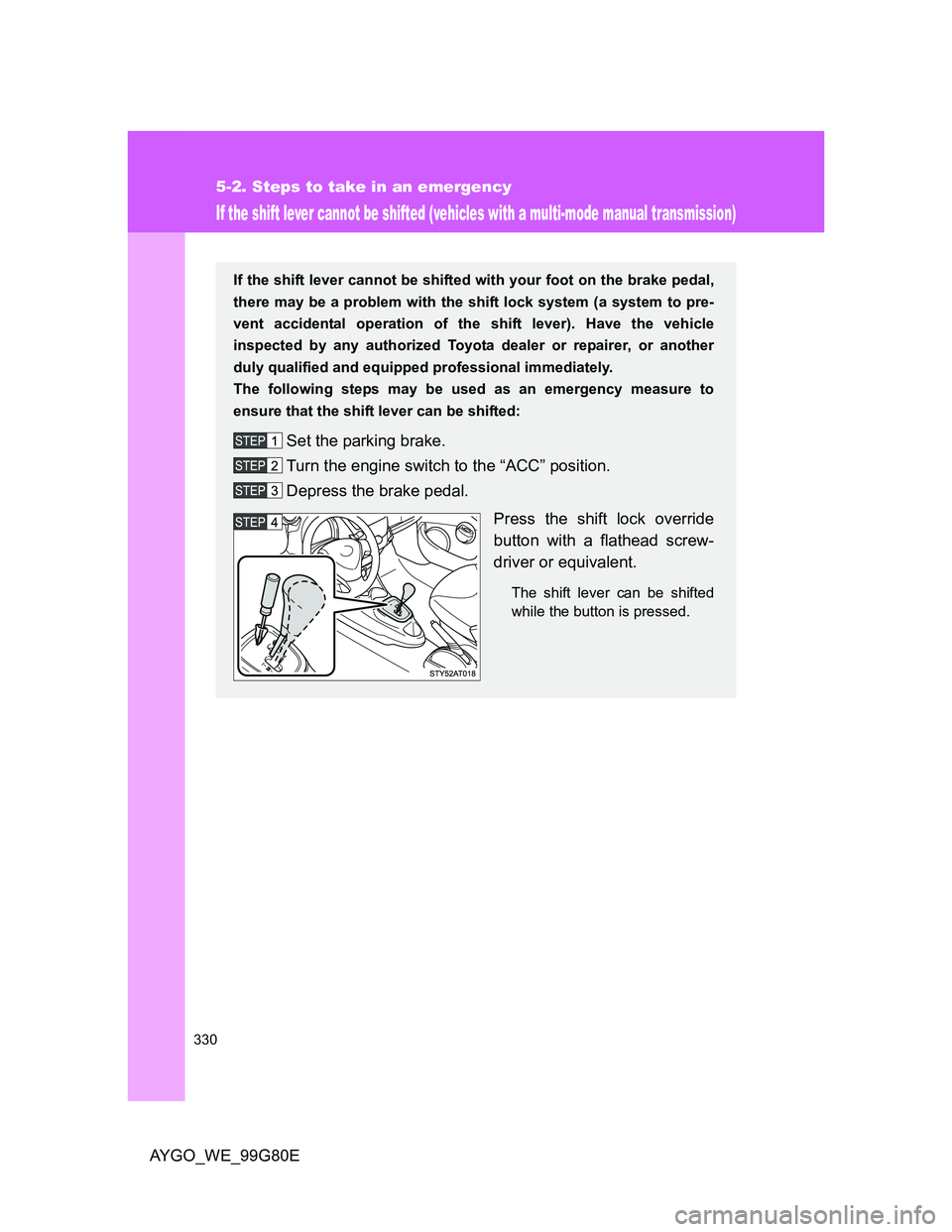

If the shift lever cannot be shifted (vehicles with a multi-mode manual transmission)
If the shift lever cannot be shifted with your foot on the brake pedal,
there may be a problem with the shift lock system (a system to pre-
vent accidental operation of the shift lever). Have the vehicle
inspected by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional immediately.
The following steps may be used as an emergency measure to
ensure that the shift lever can be shifted:
Set the parking brake.
Turn the engine switch to the “ACC” position.
Depress the brake pedal.
Press the shift lock override
button with a flathead screw-
driver or equivalent.
The shift lever can be shifted
while the button is pressed.
