351 6-1. Specifications
6
Vehicle specifications
AYGO_WE_99G80E
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.

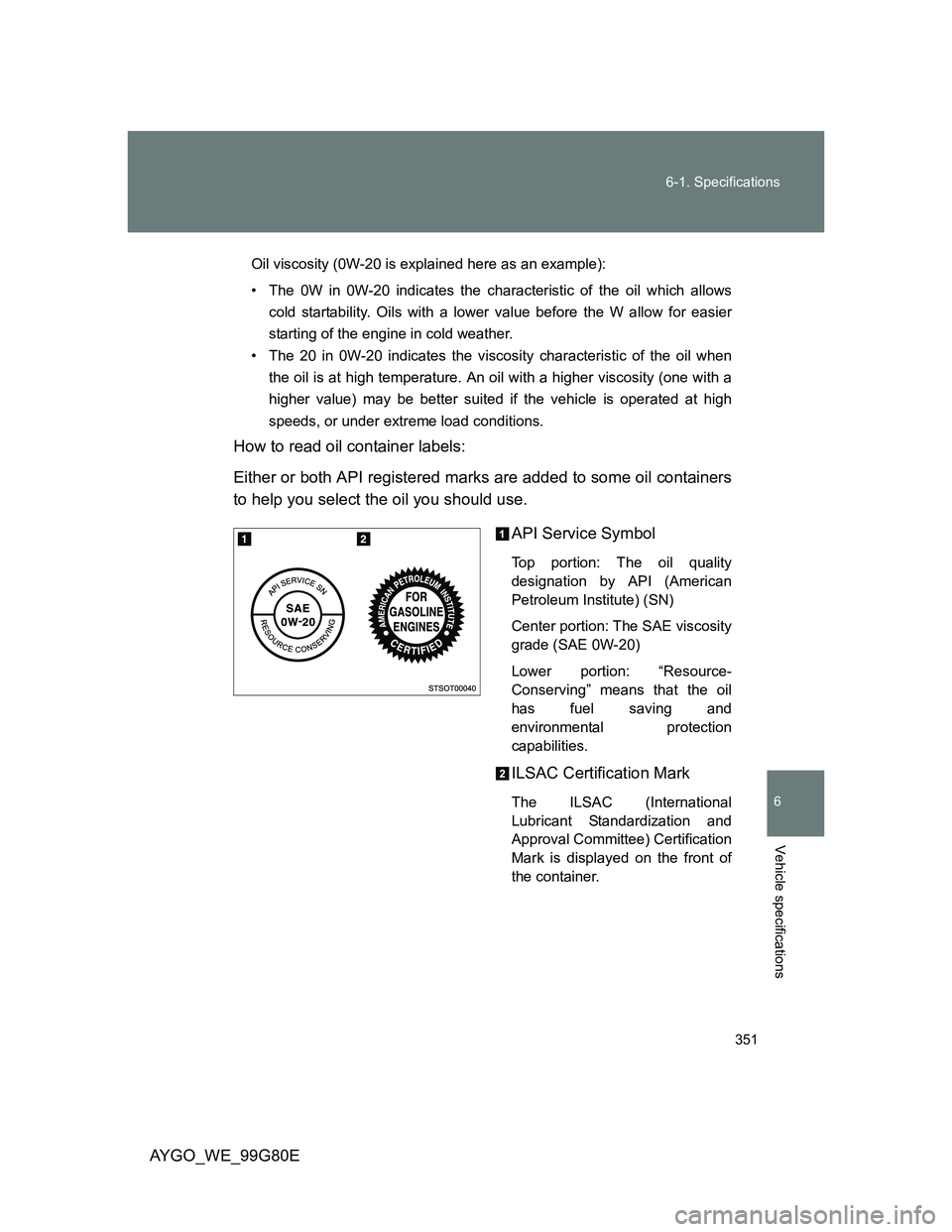

How to read oil container labels:
Either or both API registered marks are added to some oil containers
to help you select the oil you should use.
API Service Symbol
Top portion: The oil quality
designation by API (American
Petroleum Institute) (SN)
Center portion: The SAE viscosity
grade (SAE 0W-20)
Lower portion: “Resource-
Conserving” means that the oil
has fuel saving and
environmental protection
capabilities.
ILSAC Certification Mark
The ILSAC (International
Lubricant Standardization and
Approval Committee) Certification
Mark is displayed on the front of
the container.

352 6-1. Specifications
AYGO_WE_99G80E
Cooling system

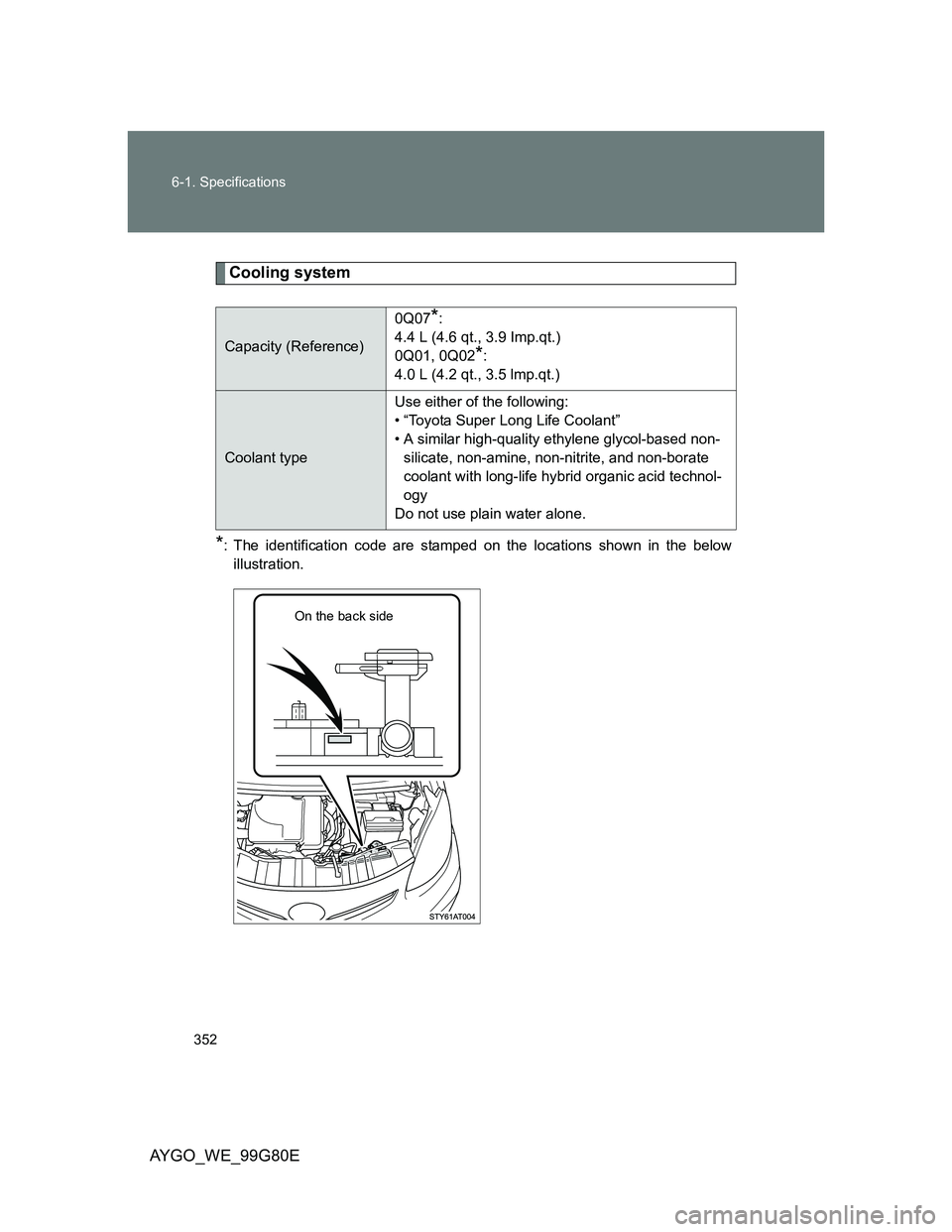

*: The identification code are stamped on the locations shown in the below
illustration.
Capacity (Reference)0Q07
*:
4.4 L (4.6 qt., 3.9 Imp.qt.)
0Q01, 0Q02
*:
4.0 L (4.2 qt., 3.5 lmp.qt.)
Coolant typeUse either of the following:
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based non-
silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.
On the back side

353 6-1. Specifications
6
Vehicle specifications
AYGO_WE_99G80E

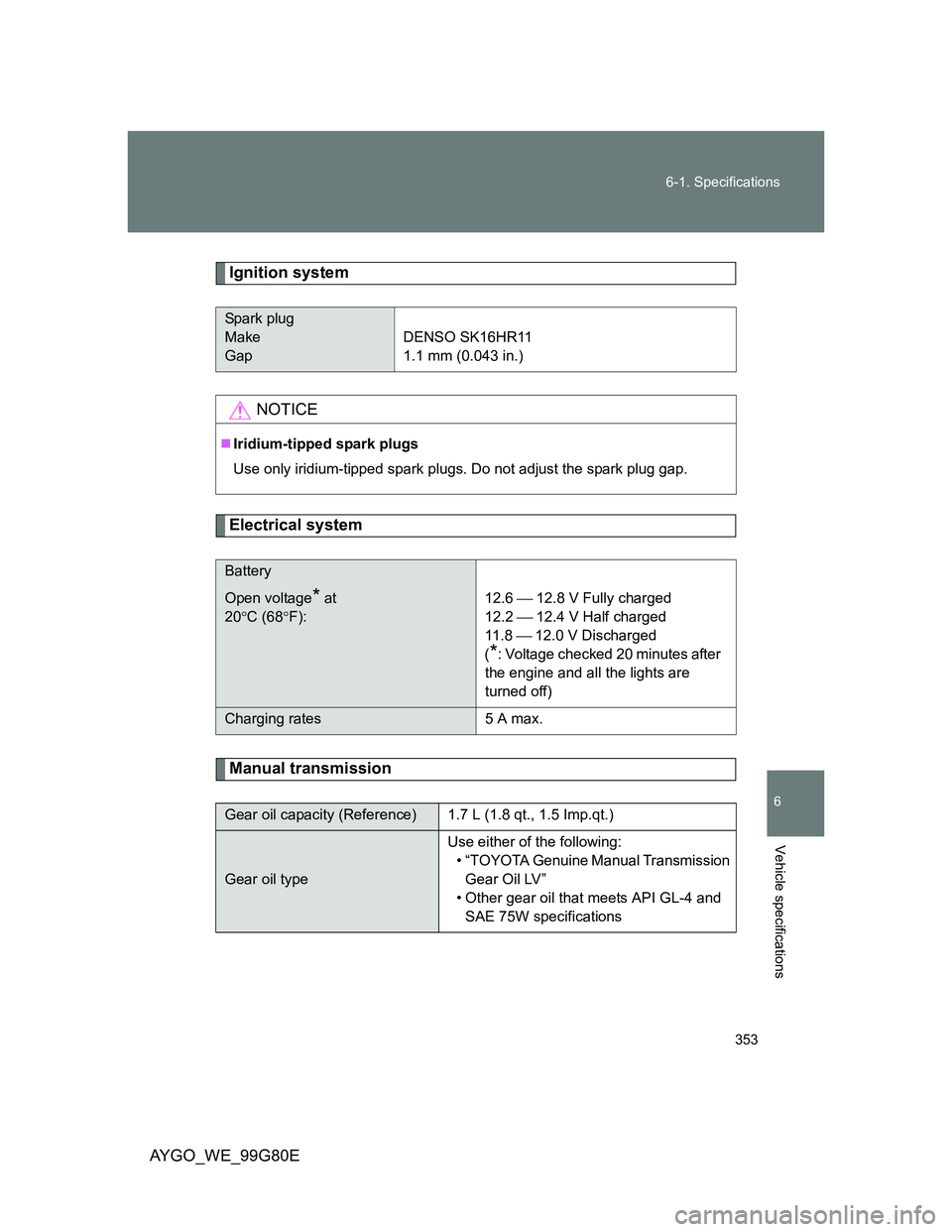

Ignition system
Electrical system
Manual transmission
Spark plug
Make
GapDENSO SK16HR11
1.1 mm (0.043 in.)
NOTICE
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Battery
Open voltage* at
20C (68F):12.6 12.8 V Fully charged
12.2 12.4 V Half charged
11 . 8 12.0 V Discharged
(
*: Voltage checked 20 minutes after
the engine and all the lights are
turned off)
Charging rates 5 A max.
Gear oil capacity (Reference) 1.7 L (1.8 qt., 1.5 Imp.qt.)
Gear oil typeUse either of the following:
• “TOYOTA Genuine Manual Transmission
Gear Oil LV”
• Other gear oil that meets API GL-4 and
SAE 75W specifications

354 6-1. Specifications
AYGO_WE_99G80E
Clutch
Brakes

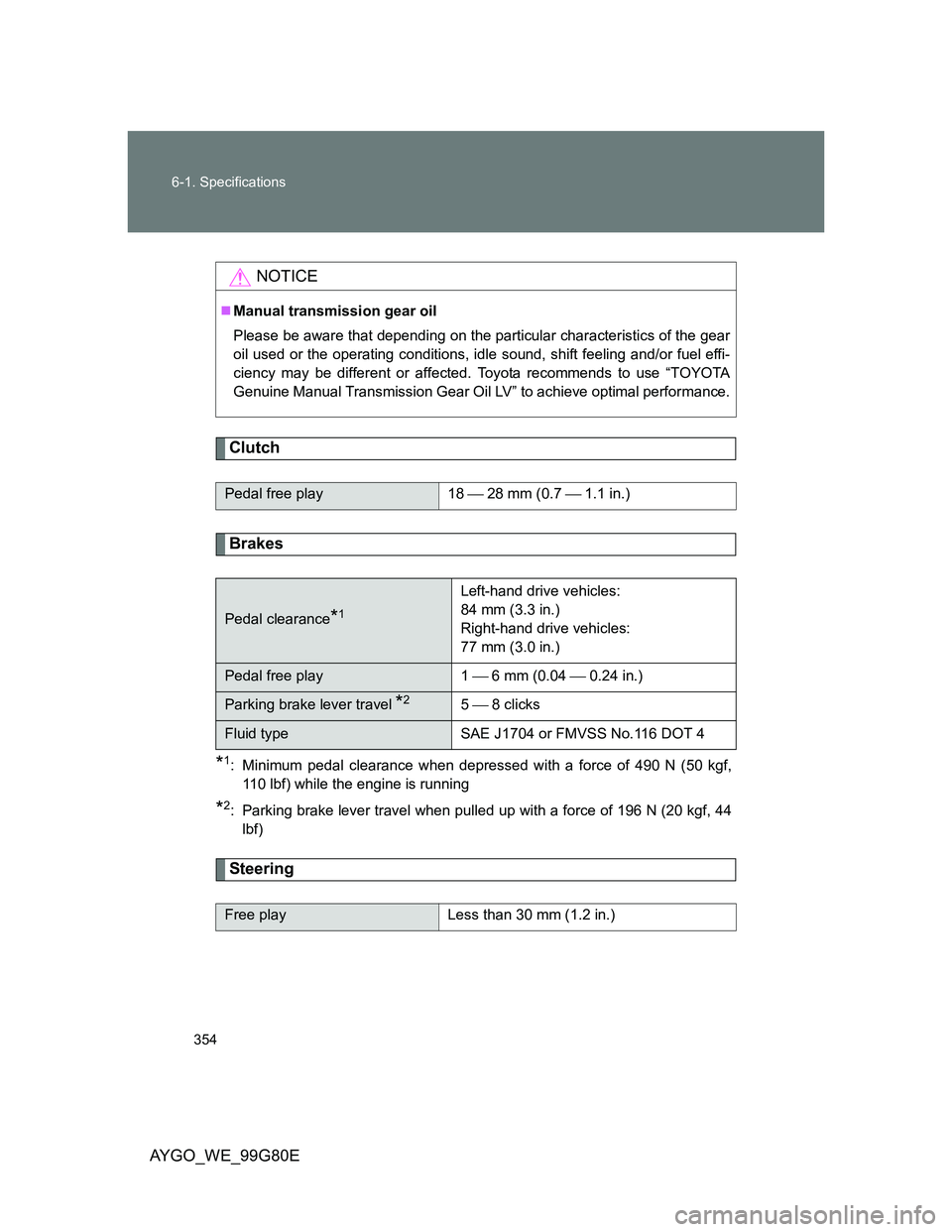

*1: Minimum pedal clearance when depressed with a force of 490 N (50 kgf,
110 lbf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 196 N (20 kgf, 44
lbf)
Steering
NOTICE
Manual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil LV” to achieve optimal performance.
Pedal free play 18  28 mm (0.7  1.1 in.)
Pedal clearance*1
Left-hand drive vehicles:
84 mm (3.3 in.)
Right-hand drive vehicles:
77 mm (3.0 in.)
Pedal free play 1  6 mm (0.04  0.24 in.)
Parking brake lever travel *25  8 clicks
Fluid type SAE J1704 or FMVSS No.116 DOT 4
Free play Less than 30 mm (1.2 in.)

355 6-1. Specifications
6
Vehicle specifications
AYGO_WE_99G80E

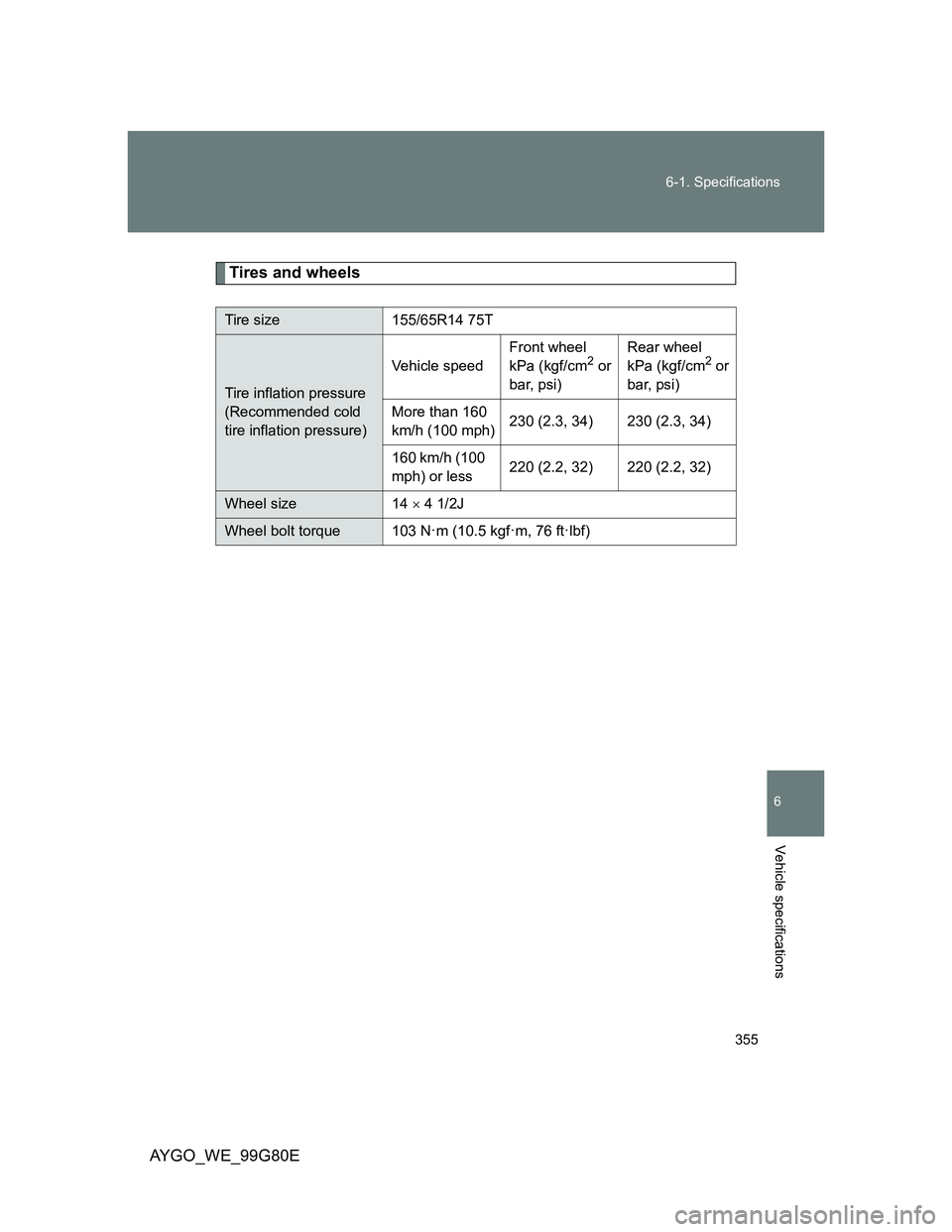

Tires and wheels
Tire size 155/65R14 75T
Tire inflation pressure
(Recommended cold
tire inflation pressure)Vehicle speedFront wheel
kPa (kgf/cm
2 or
bar, psi)Rear wheel
kPa (kgf/cm2 or
bar, psi)
More than 160
km/h (100 mph)230 (2.3, 34) 230 (2.3, 34)
160 km/h (100
mph) or less220 (2.2, 32) 220 (2.2, 32)
Wheel size 14  4 1/2J
Wheel bolt torque 103 N·m (10.5 kgf·m, 76 ft·lbf)

356 6-1. Specifications
AYGO_WE_99G80E

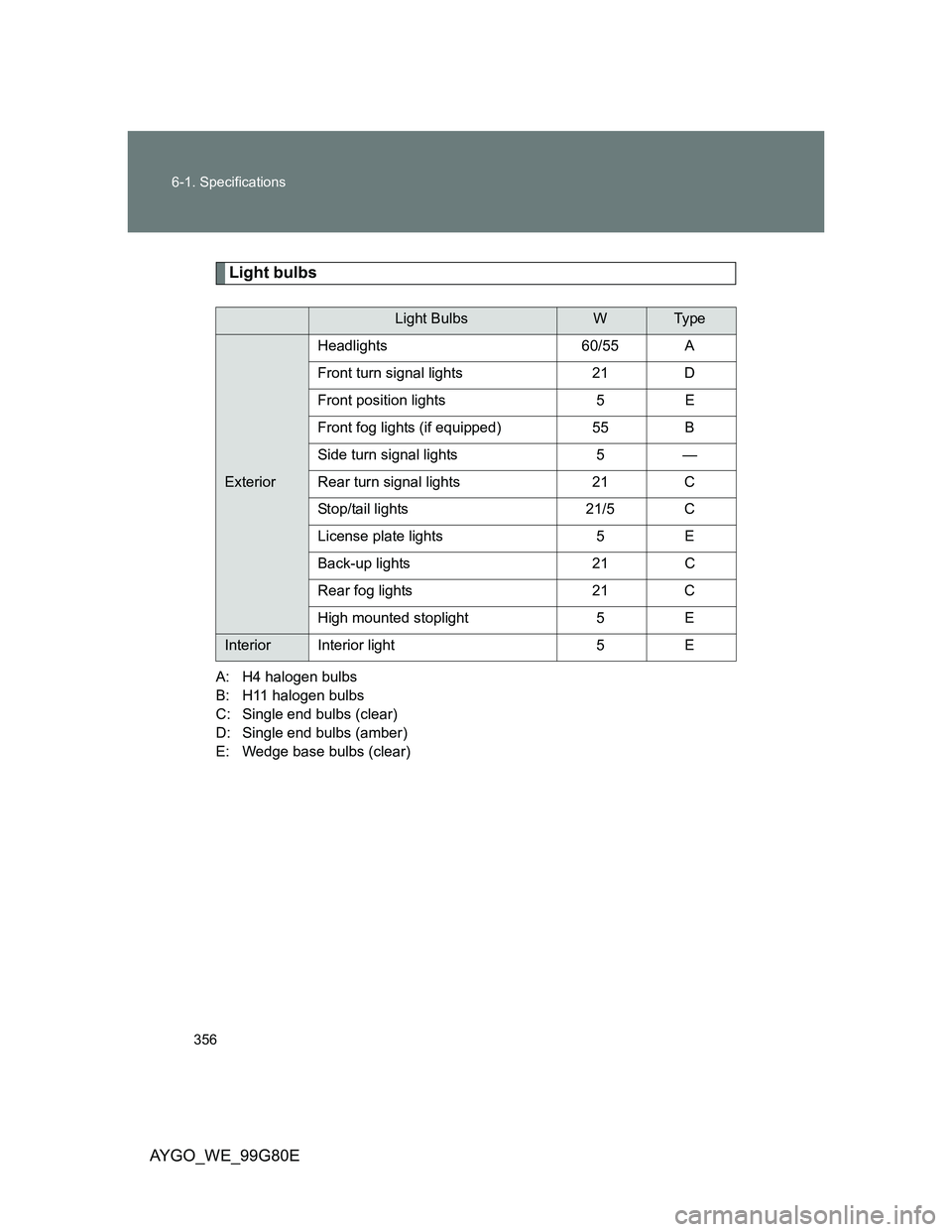

Light bulbs
A: H4 halogen bulbs
B: H11 halogen bulbs
C: Single end bulbs (clear)
D: Single end bulbs (amber)
E: Wedge base bulbs (clear)
Light BulbsWTy p e
ExteriorHeadlights 60/55 A
Front turn signal lights 21 D
Front position lights 5 E
Front fog lights (if equipped) 55 B
Side turn signal lights 5 —
Rear turn signal lights 21 C
Stop/tail lights 21/5 C
License plate lights 5 E
Back-up lights 21 C
Rear fog lights 21 C
High mounted stoplight 5 E
Interior Interior light 5 E

357
6-1. Specifications
6
Vehicle specifications
AYGO_WE_99G80E
Fuel infor mation
Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
If your engine knocks
Consult any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
EU area:
Your vehicle must use only unleaded gasoline conforming to
European standard EN228. For optimum engine performance,
select unleaded gasoline with a Research Octane Number of
95 or higher.
Except EU area:
Your vehicle must use only unleaded gasoline. For optimum
engine performance, select unleaded gasoline with a
Research Octane Number of 95 or higher.

358 6-1. Specifications
AYGO_WE_99G80E
NOTICE

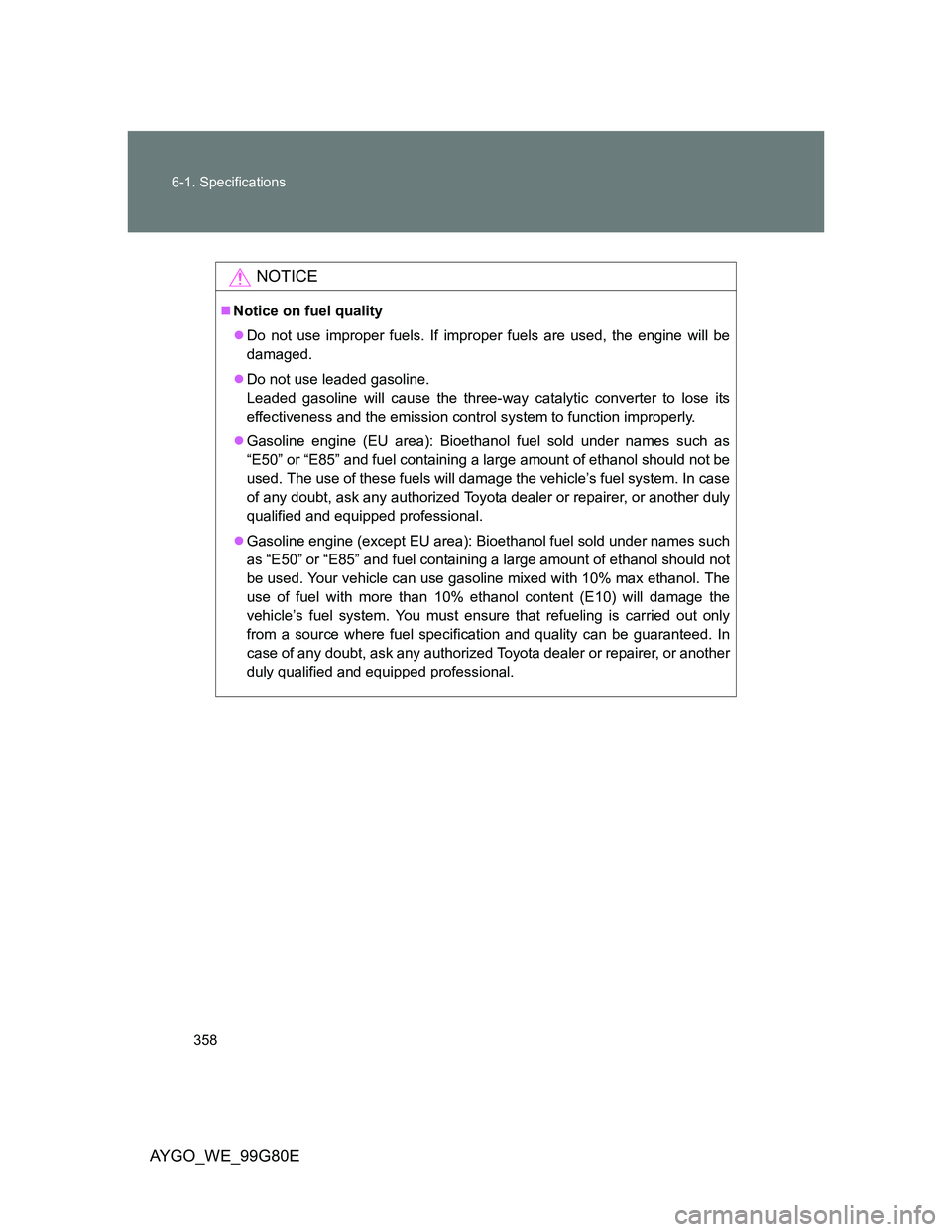

Notice on fuel quality
Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and the emission control system to function improperly.
Gasoline engine (EU area): Bioethanol fuel sold under names such as
“E50” or “E85” and fuel containing a large amount of ethanol should not be
used. The use of these fuels will damage the vehicle’s fuel system. In case
of any doubt, ask any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Gasoline engine (except EU area): Bioethanol fuel sold under names such
as “E50” or “E85” and fuel containing a large amount of ethanol should not
be used. Your vehicle can use gasoline mixed with 10% max ethanol. The
use of fuel with more than 10% ethanol content (E10) will damage the
vehicle’s fuel system. You must ensure that refueling is carried out only
from a source where fuel specification and quality can be guaranteed. In
case of any doubt, ask any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.

Index
359
AYGO_WE_99G80E
Abbreviation list ...................... 360
Alphabetical index................... 361
What to do if... ......................... 370

360
AYGO_WE_99G80E
Abbreviation list

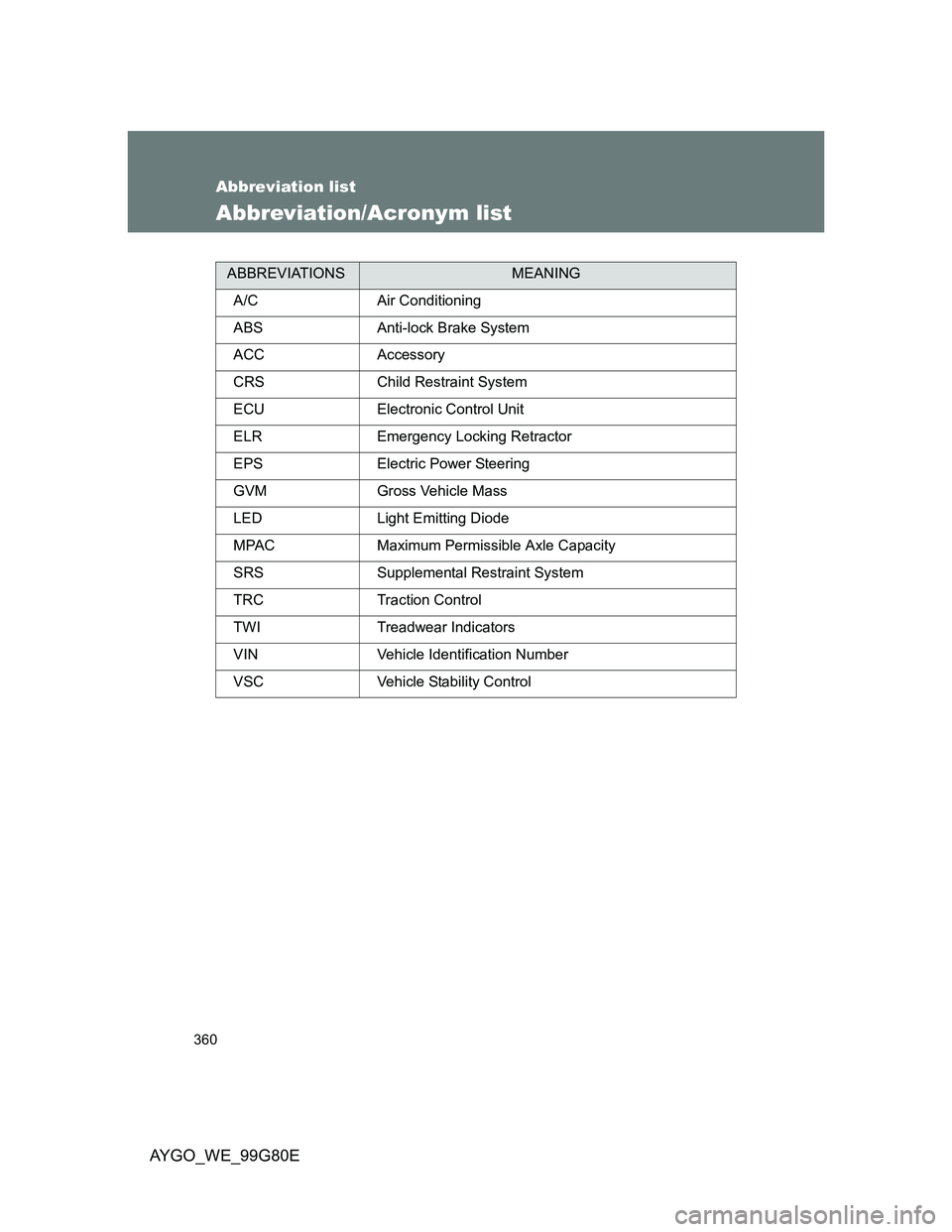

Abbreviation/Acronym list
