341 5-2. Steps to take in an emergency
When trouble arises
AYGO_WE_99G80E

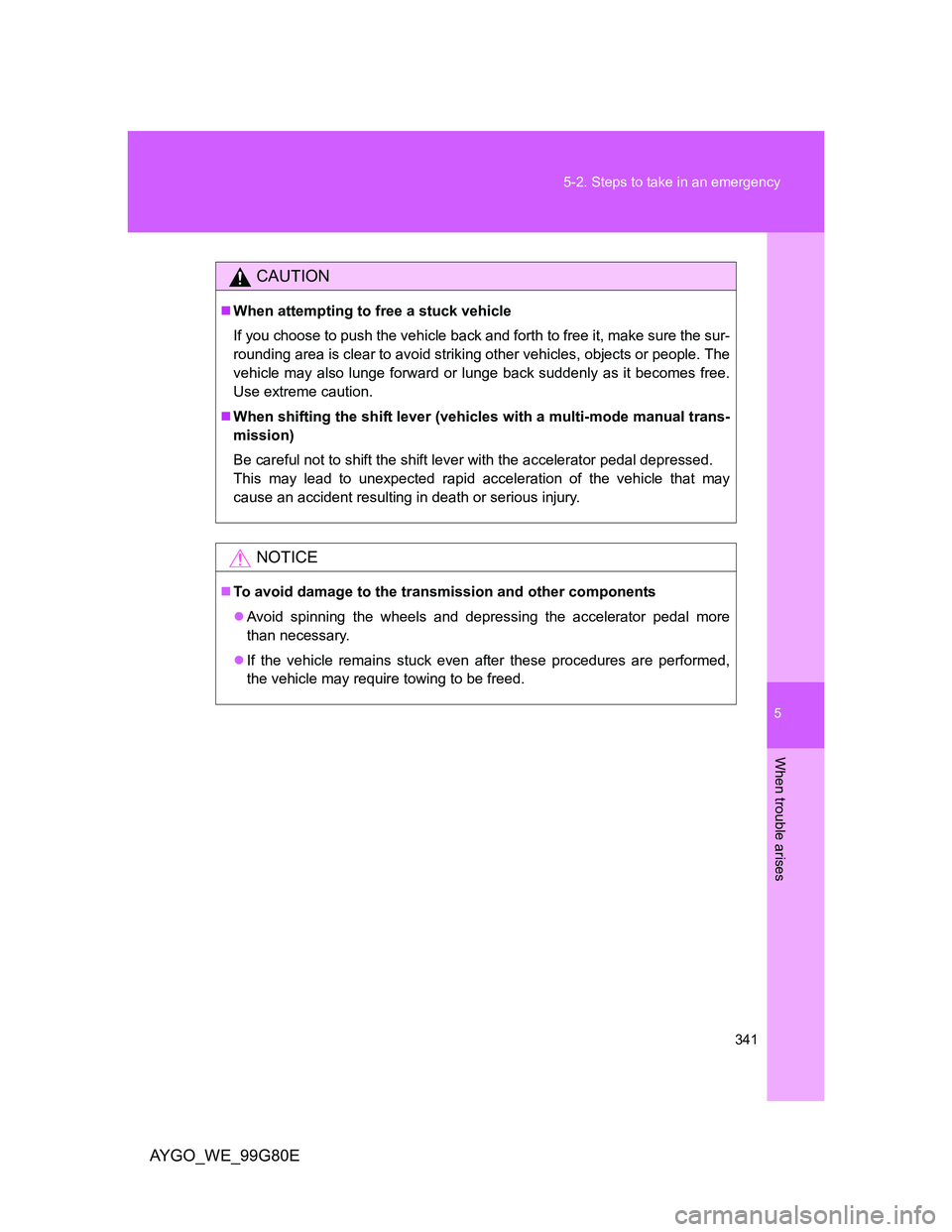

CAUTION
When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the sur-
rounding area is clear to avoid striking other vehicles, objects or people. The
vehicle may also lunge forward or lunge back suddenly as it becomes free.
Use extreme caution.
When shifting the shift lever (vehicles with a multi-mode manual trans-
mission)
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
To avoid damage to the transmission and other components
Avoid spinning the wheels and depressing the accelerator pedal more
than necessary.
If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

342
5-2. Steps to take in an emergency
AYGO_WE_99G80E

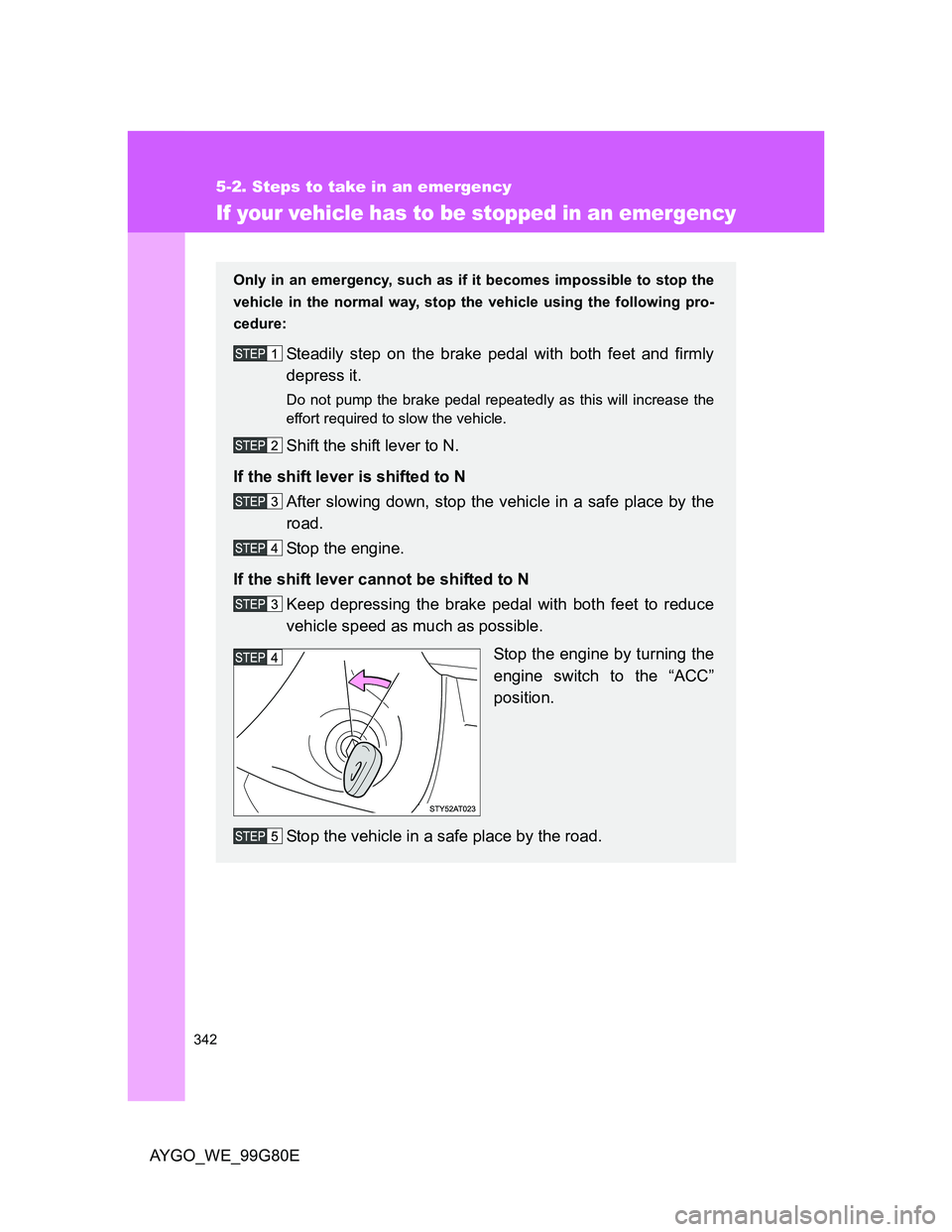

If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the
vehicle in the normal way, stop the vehicle using the following pro-
cedure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the
road.
Stop the engine.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce
vehicle speed as much as possible.
Stop the engine by turning the
engine switch to the “ACC”
position.
Stop the vehicle in a safe place by the road.

5
343 5-2. Steps to take in an emergency
When trouble arises
AYGO_WE_99G80E

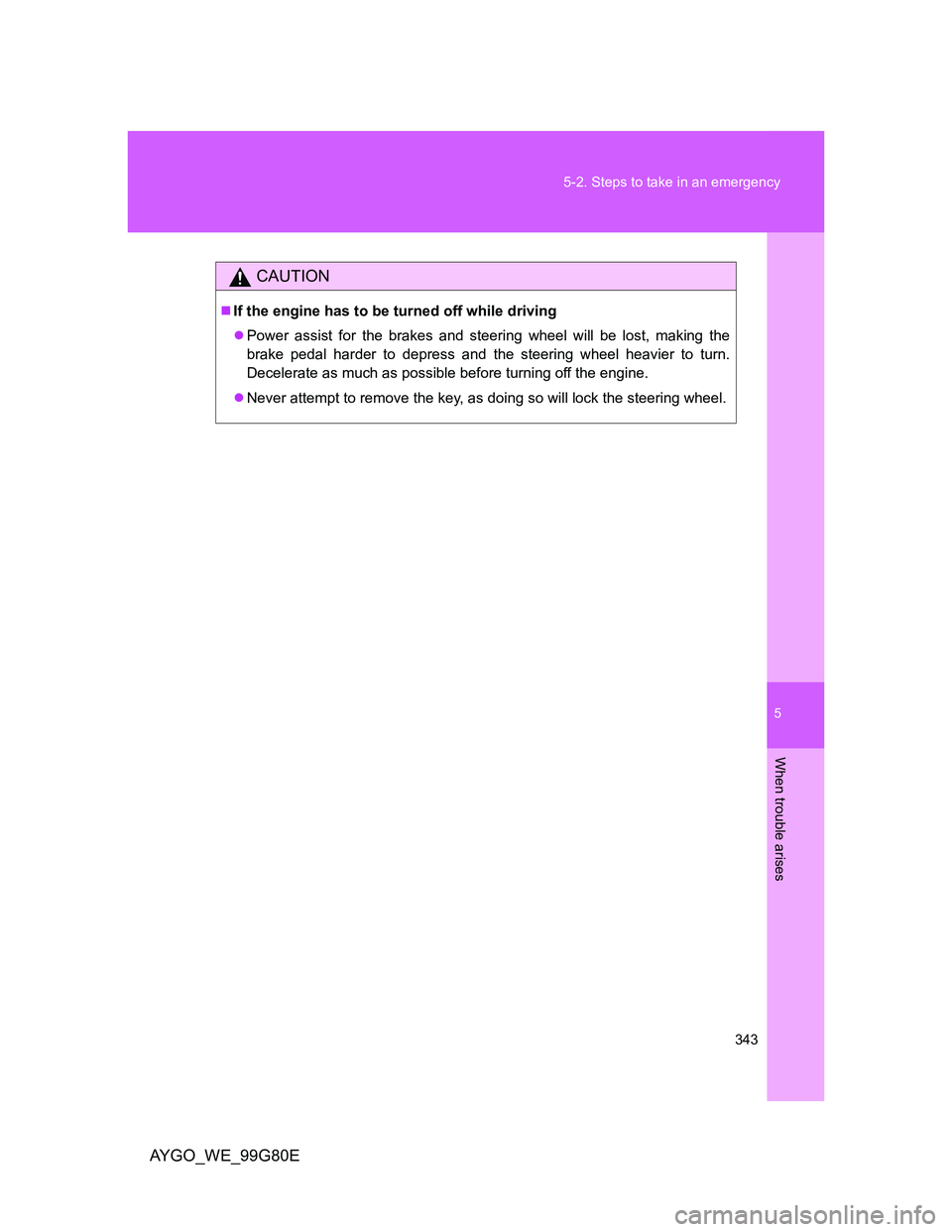

CAUTION
If the engine has to be turned off while driving
Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
Never attempt to remove the key, as doing so will lock the steering wheel.

344 5-2. Steps to take in an emergency
AYGO_WE_99G80E

6Vehicle specifications
345
AYGO_WE_99G80E
6-1. Specifications
Maintenance data
(fuel, oil level, etc.).......... 346
Fuel information ................ 357

346
AYGO_WE_99G80E
6-1. Specifications

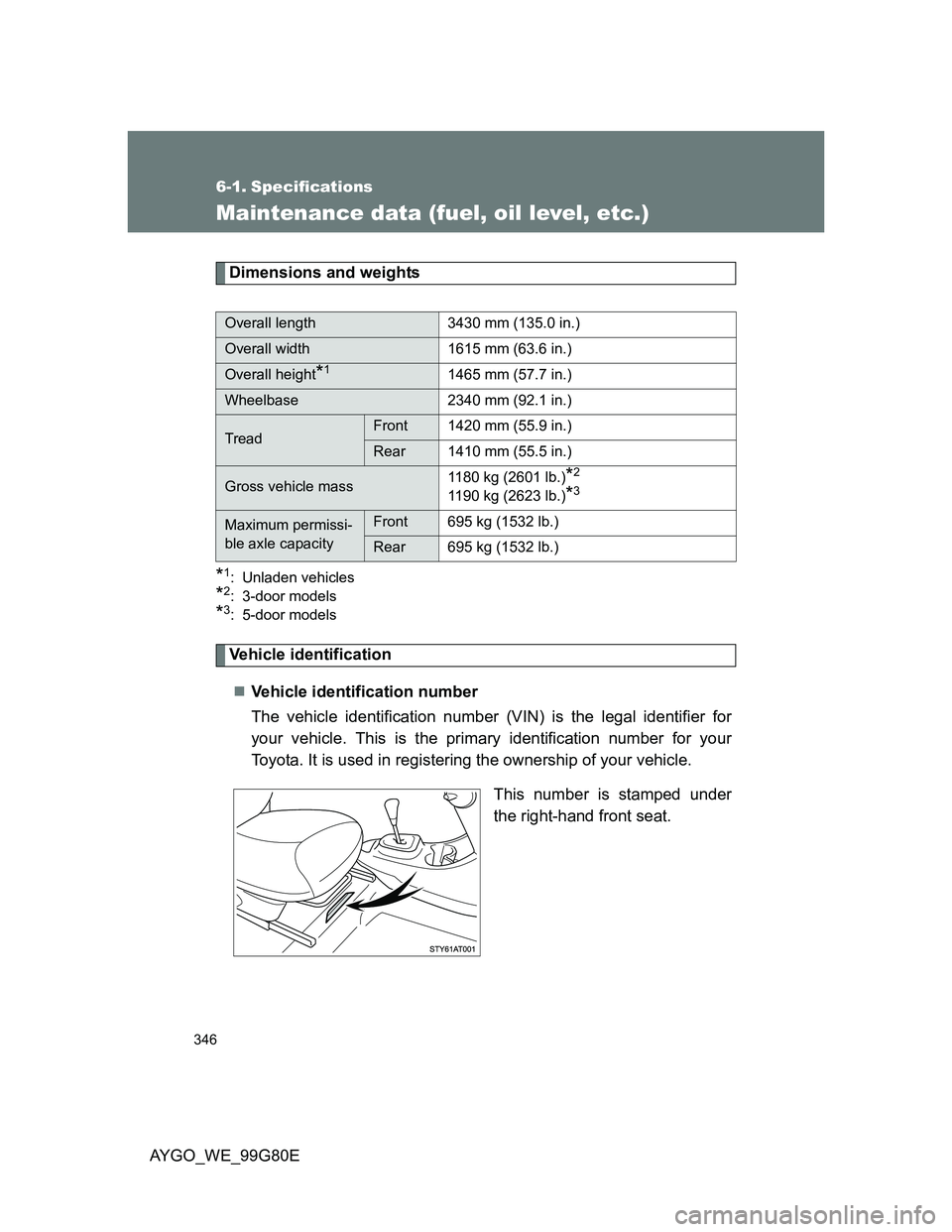

Maintenance data (fuel, oil level, etc.)
Dimensions and weights
*1: Unladen vehicles
*2: 3-door models
*3: 5-door models
Vehicle identification
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped under
the right-hand front seat.
Overall length 3430 mm (135.0 in.)
Overall width 1615 mm (63.6 in.)
Overall height*11465 mm (57.7 in.)
Wheelbase 2340 mm (92.1 in.)
TreadFront 1420 mm (55.9 in.)
Rear 1410 mm (55.5 in.)
Gross vehicle mass1180 kg (2601 lb.)*2
1190 kg (2623 lb.)*3
Maximum permissi-
ble axle capacityFront 695 kg (1532 lb.)
Rear 695 kg (1532 lb.)

347 6-1. Specifications
6
Vehicle specifications

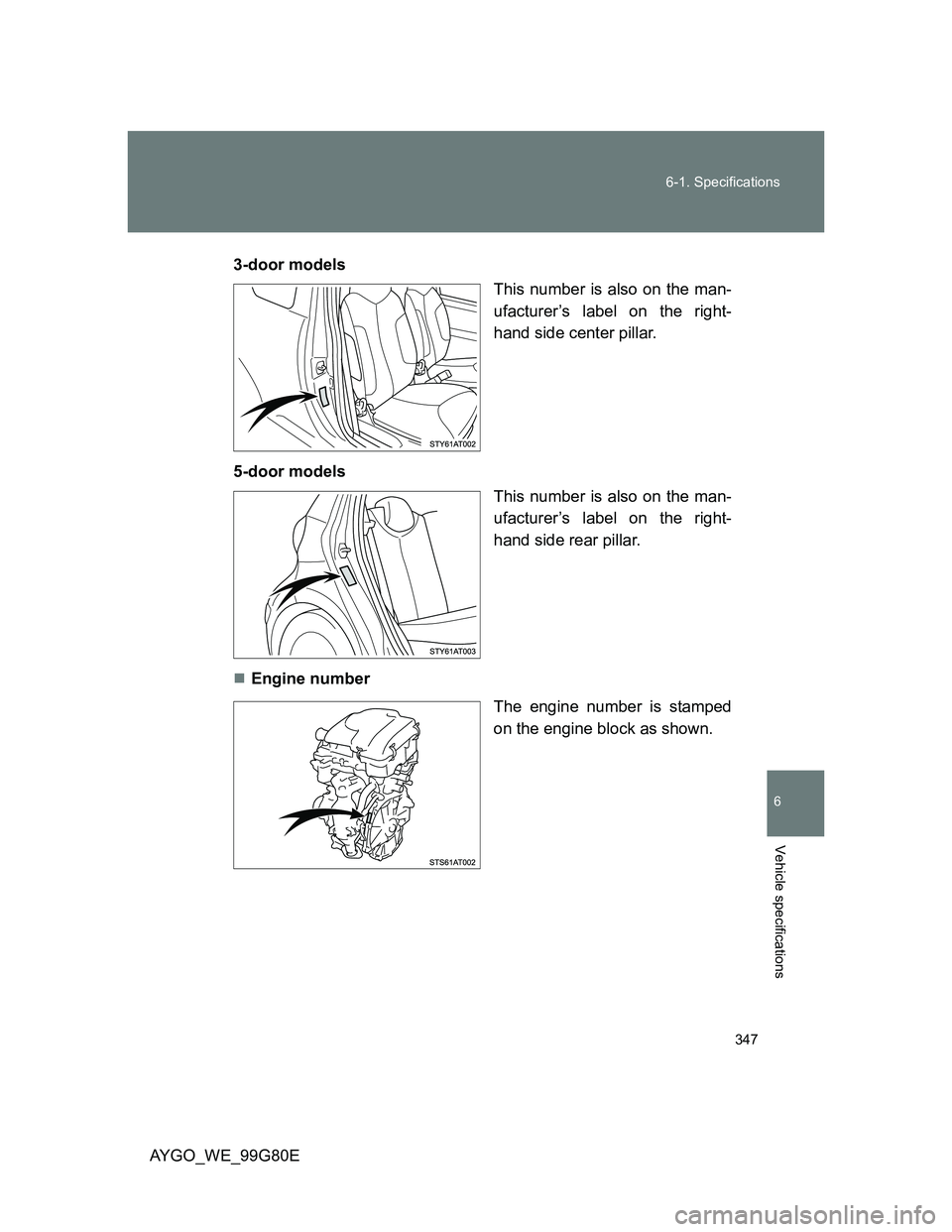

AYGO_WE_99G80E3-door models
This number is also on the man-
ufacturer’s label on the right-
hand side center pillar.
5-door models
This number is also on the man-
ufacturer’s label on the right-
hand side rear pillar.
Engine number
The engine number is stamped
on the engine block as shown.

348 6-1. Specifications
AYGO_WE_99G80E

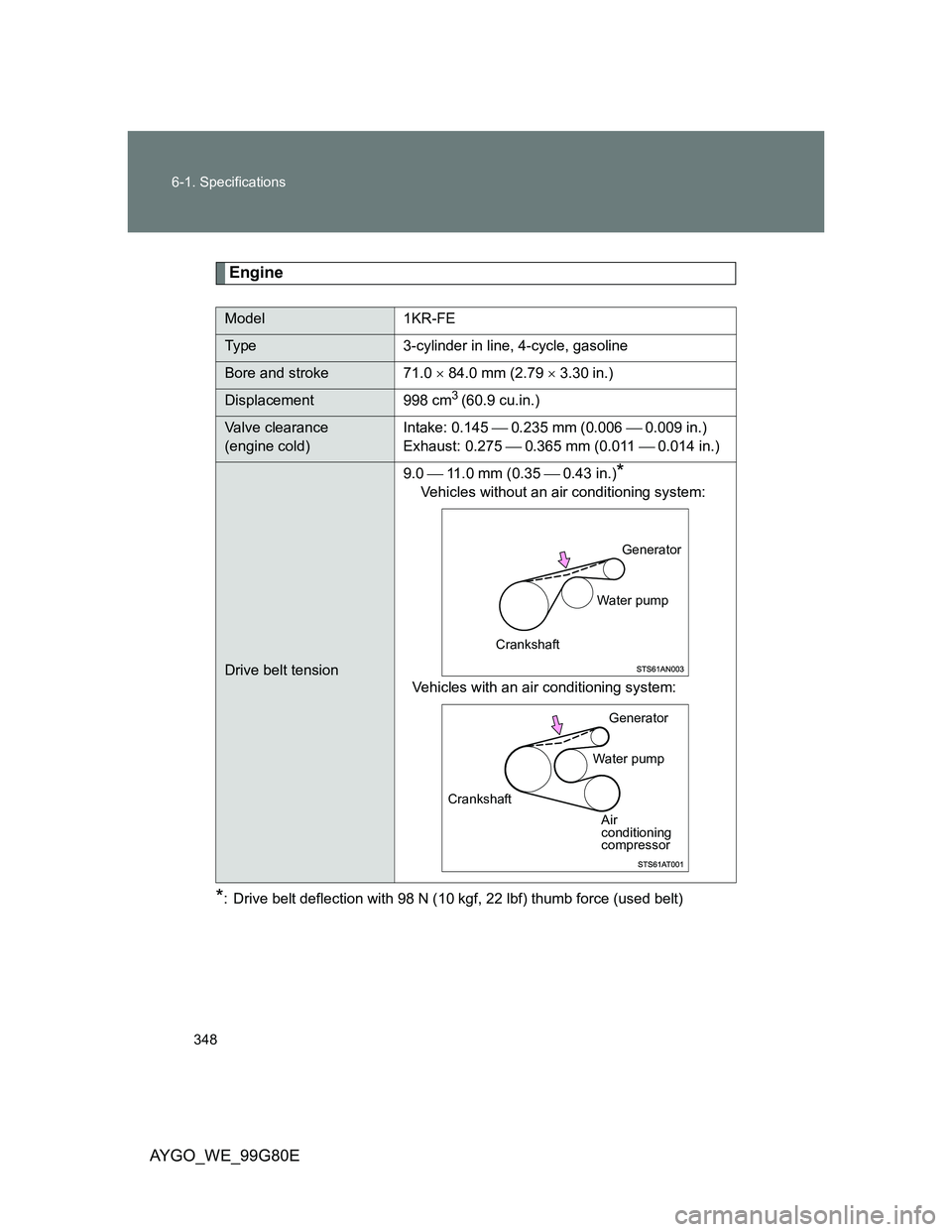

Engine
*: Drive belt deflection with 98 N (10 kgf, 22 lbf) thumb force (used belt)
Model 1KR-FE
Type 3-cylinder in line, 4-cycle, gasoline
Bore and stroke 71.0  84.0 mm (2.79  3.30 in.)
Displacement 998 cm3 (60.9 cu.in.)
Valve clearance
(engine cold)Intake: 0.145 0.235 mm (0.006 0.009 in.)
Exhaust:
0.275 0.365 mm (0.011 0.014 in.)
Drive belt tension9.0 11.0 mm (0.35 0.43 in.)
*
Vehicles without an air conditioning system:
Vehicles with an air conditioning system:
Generator
Water pump
Crankshaft
CrankshaftWater pumpGenerator
Air
conditioning
compressor

349 6-1. Specifications
6
Vehicle specifications
AYGO_WE_99G80E

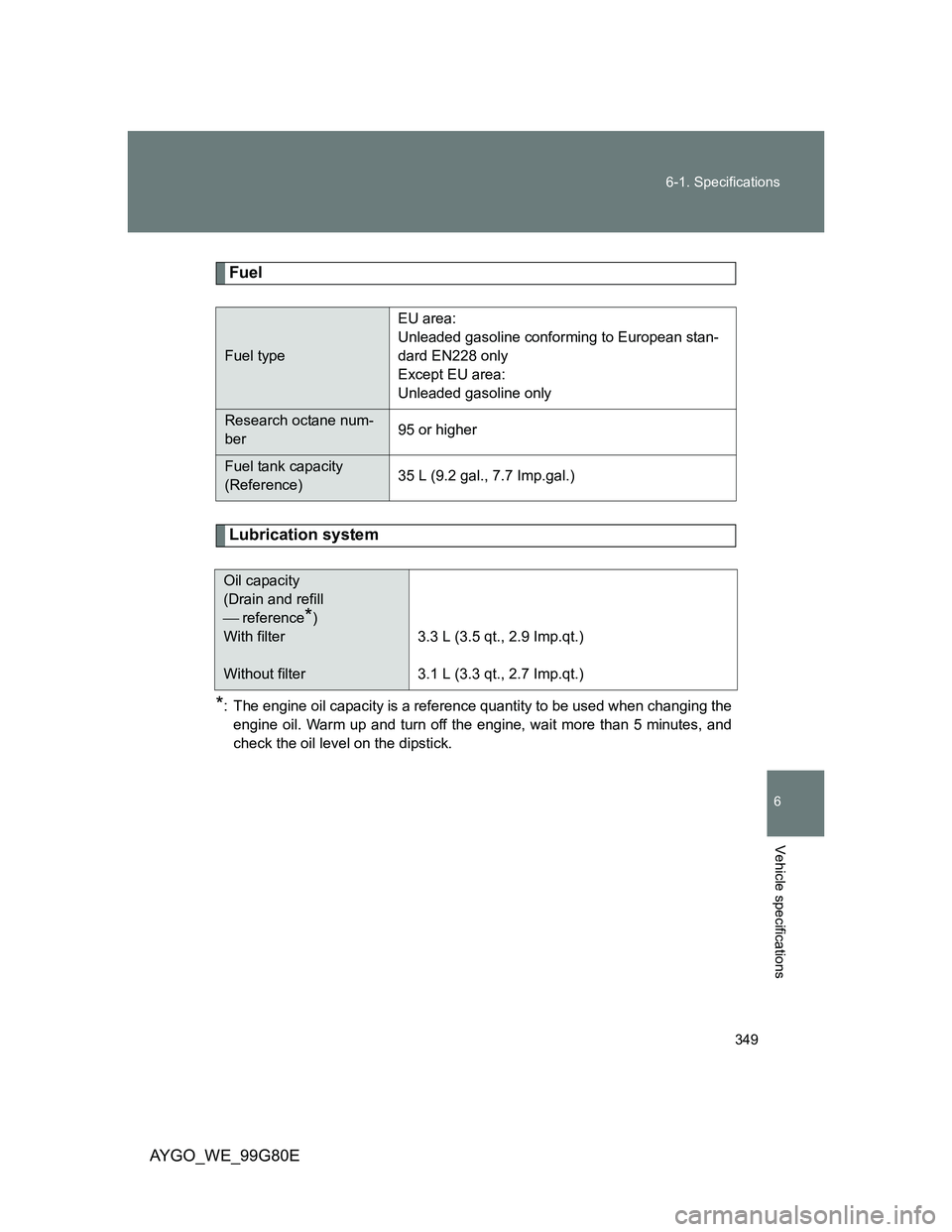

Fuel
Lubrication system
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the engine, wait more than 5 minutes, and
check the oil level on the dipstick.
Fuel typeEU area:
Unleaded gasoline conforming to European stan-
dard EN228 only
Except EU area:
Unleaded gasoline only
Research octane num-
ber95 or higher
Fuel tank capacity
(Reference)35 L (9.2 gal., 7.7 Imp.gal.)
Oil capacity
(Drain and refill
 reference
*)
With filter
Without filter3.3 L (3.5 qt., 2.9 Imp.qt.)
3.1 L (3.3 qt., 2.7 Imp.qt.)

350 6-1. Specifications

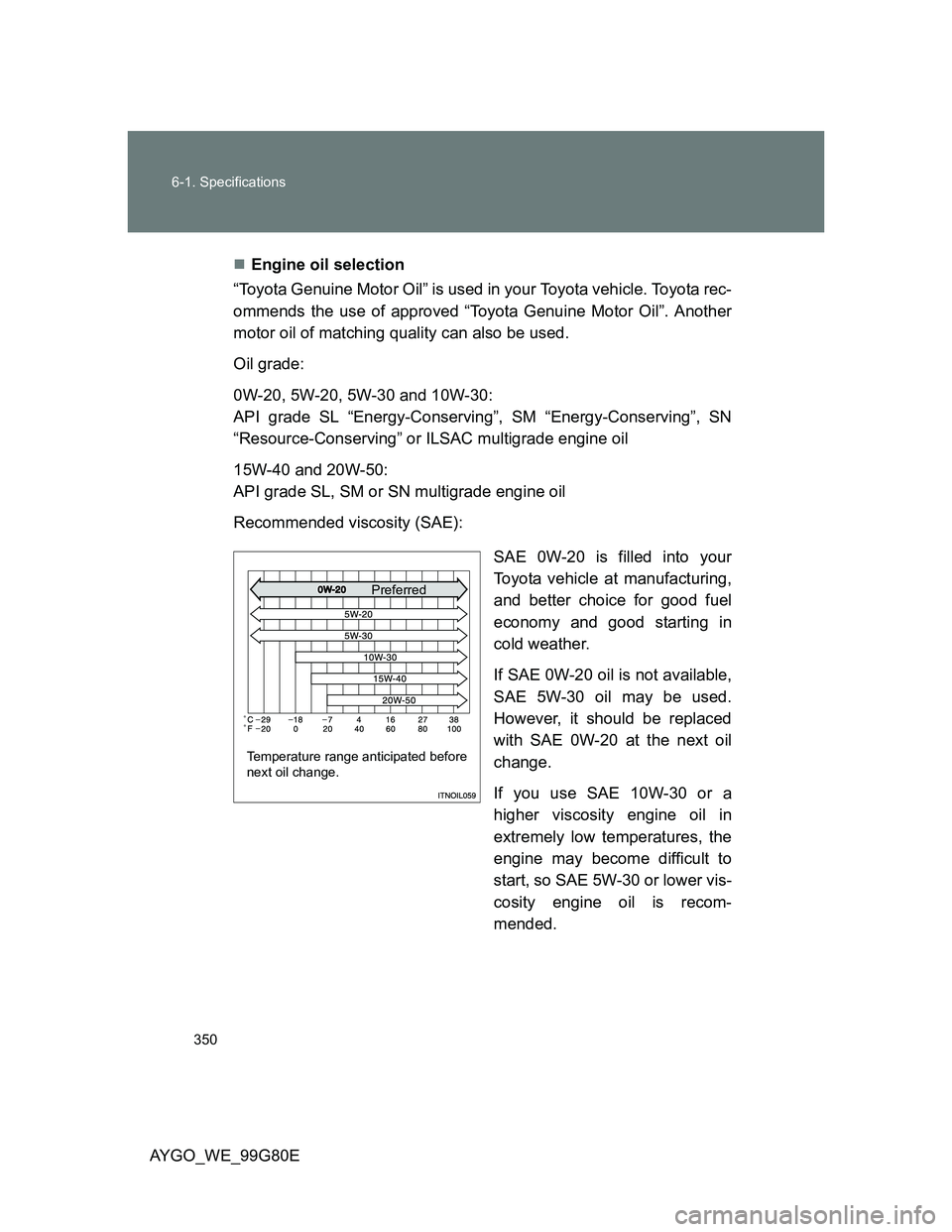

AYGO_WE_99G80EEngine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota rec-
ommends the use of approved “Toyota Genuine Motor Oil”. Another
motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving”, SN
“Resource-Conserving” or ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufacturing,
and better choice for good fuel
economy and good starting in
cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used.
However, it should be replaced
with SAE 0W-20 at the next oil
change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 5W-30 or lower vis-
cosity engine oil is recom-
mended.
Temperature range anticipated before
next oil change.Preferred
