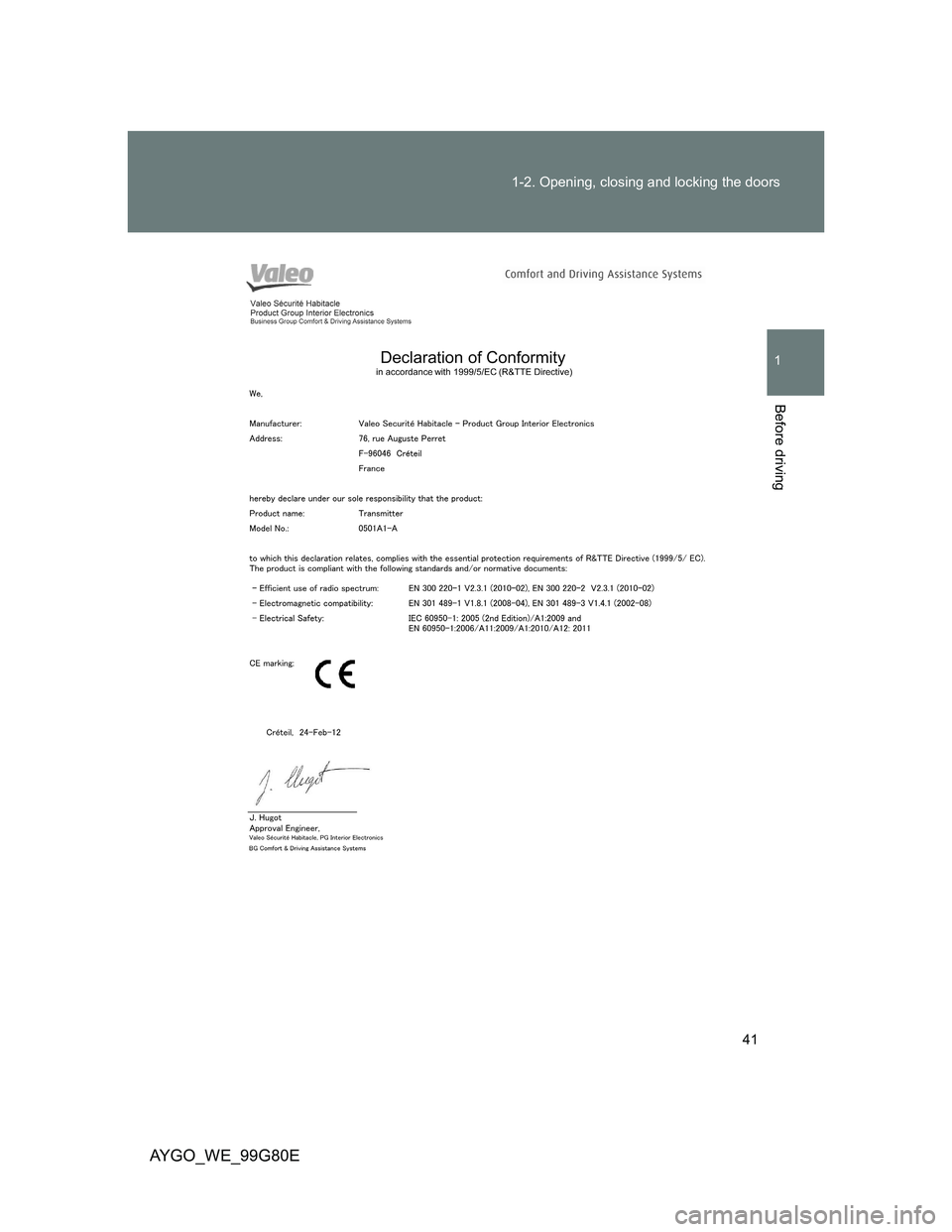

41 1-2. Opening, closing and locking the doors
1
Before driving
AYGO_WE_99G80E

42 1-2. Opening, closing and locking the doors
AYGO_WE_99G80E

43 1-2. Opening, closing and locking the doors
1
Before driving
AYGO_WE_99G80E

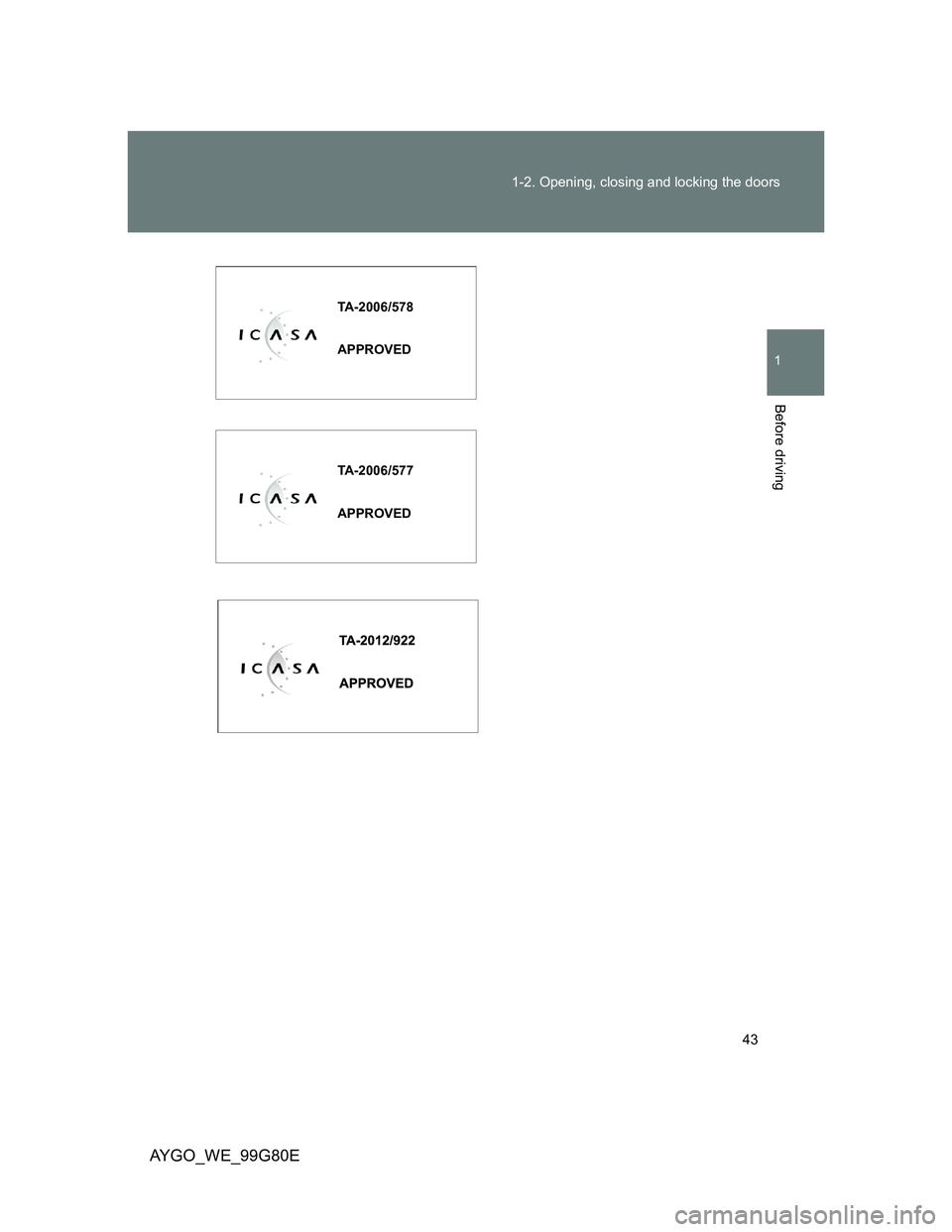

TA-2006/578
APPROVED
TA-2006/577
APPROVED

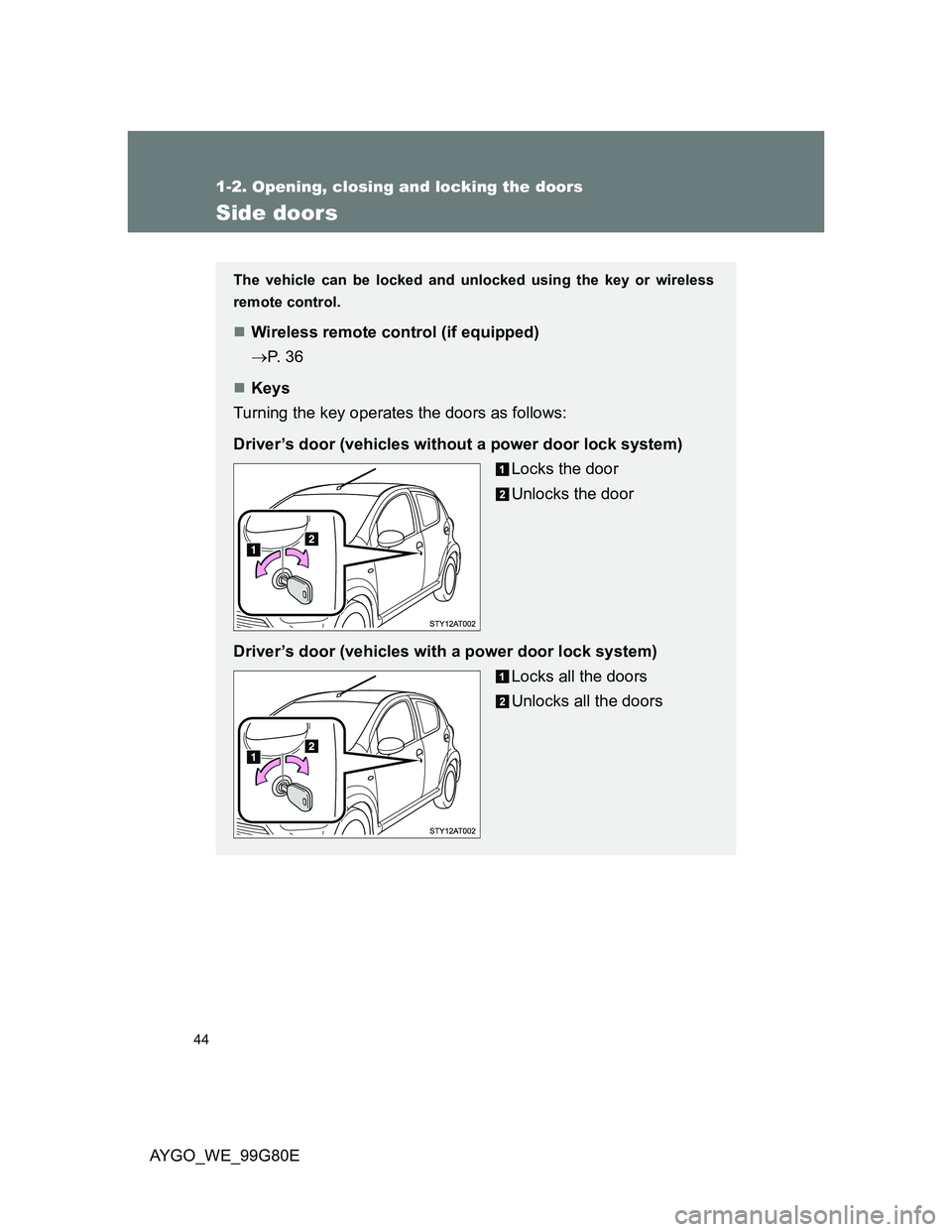

44
1-2. Opening, closing and locking the doors
AYGO_WE_99G80E
Side doors
The vehicle can be locked and unlocked using the key or wireless
remote control.
Wireless remote control (if equipped)
P. 3 6
Keys
Turning the key operates the doors as follows:
Driver’s door (vehicles without a power door lock system)
Locks the door
Unlocks the door
Driver’s door (vehicles with a power door lock system)
Locks all the doors
Unlocks all the doors

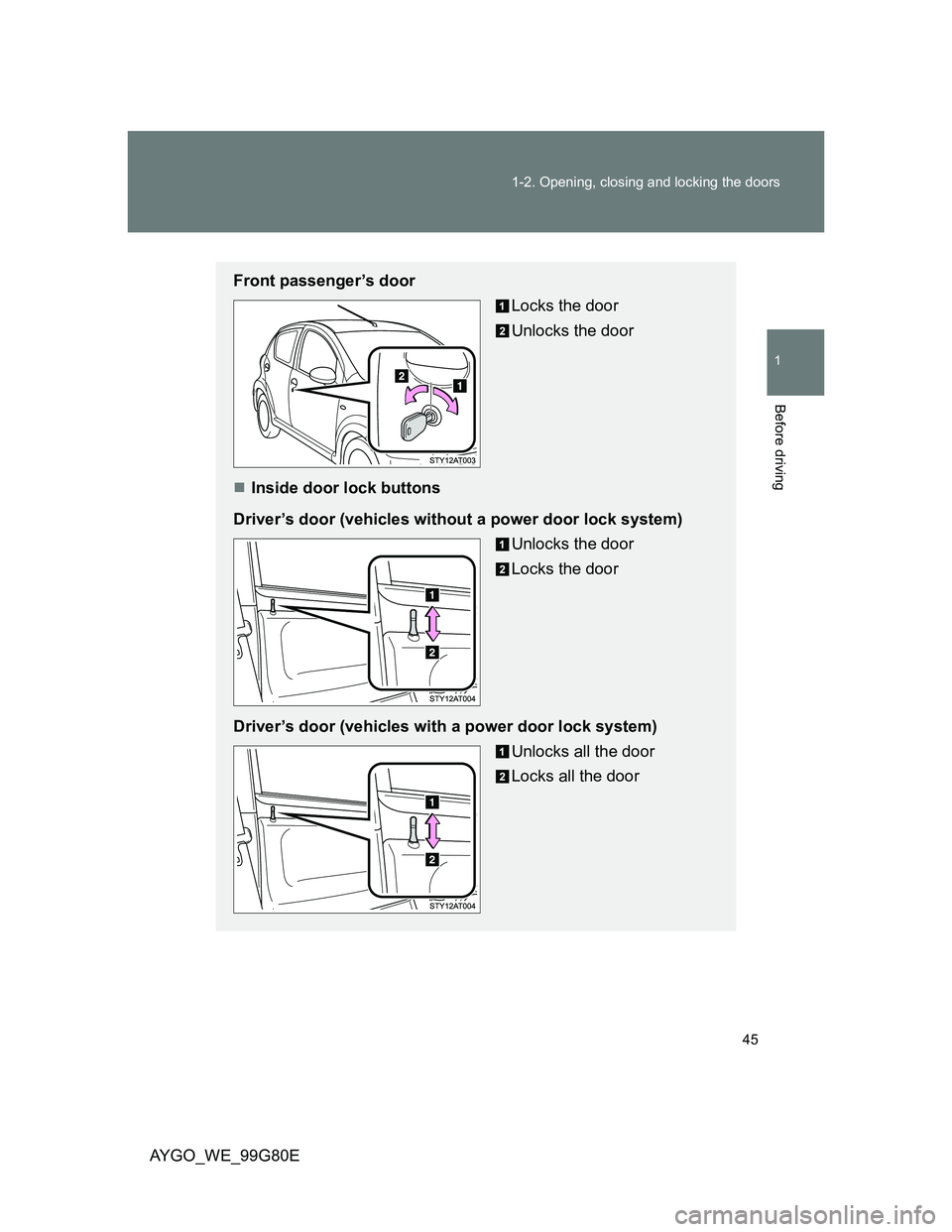

45 1-2. Opening, closing and locking the doors
1
Before driving
AYGO_WE_99G80E
Front passenger’s door
Locks the door
Unlocks the door
Inside door lock buttons
Driver’s door (vehicles without a power door lock system)
Unlocks the door
Locks the door
Driver’s door (vehicles with a power door lock system)
Unlocks all the door
Locks all the door

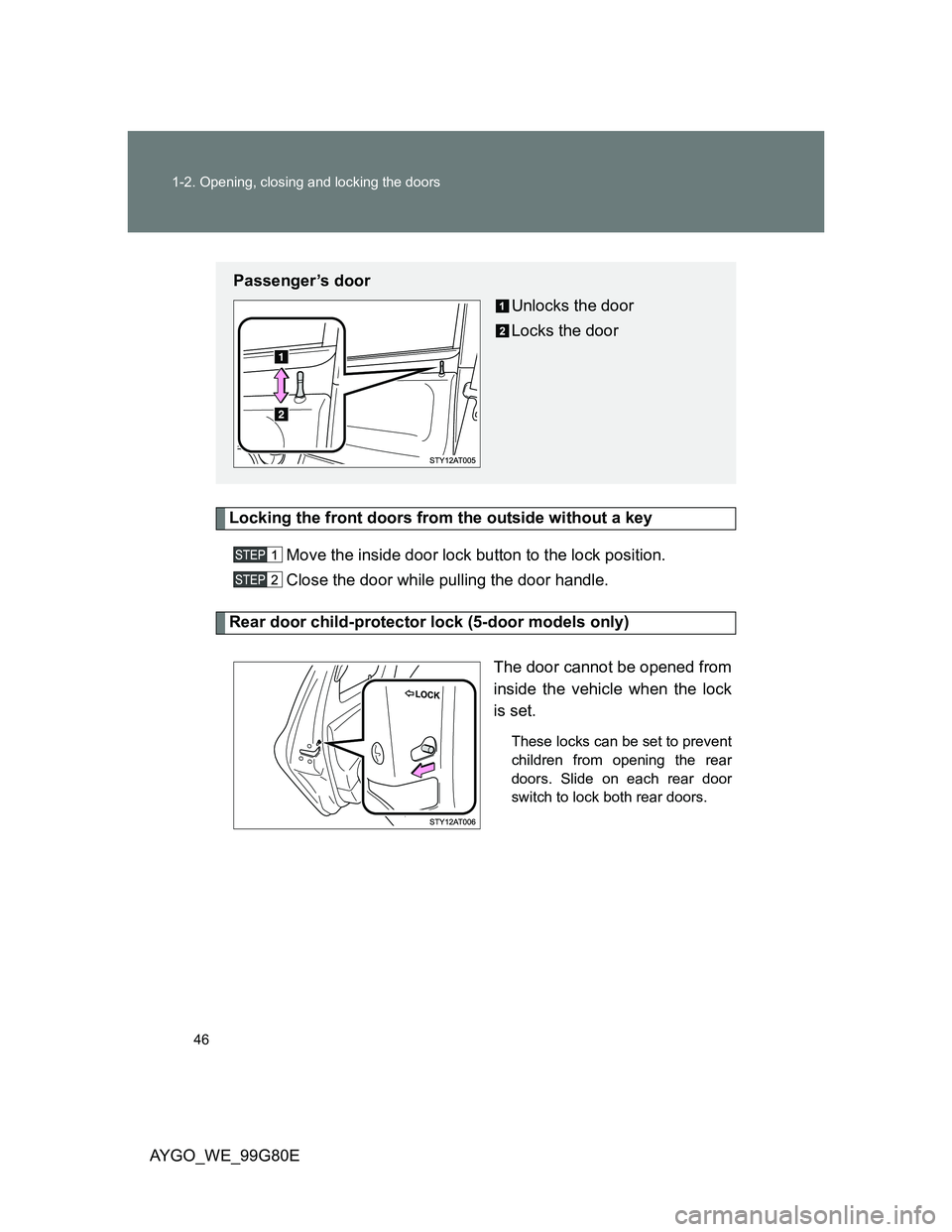

46 1-2. Opening, closing and locking the doors
AYGO_WE_99G80E
Locking the front doors from the outside without a key
Move the inside door lock button to the lock position.
Close the door while pulling the door handle.
Rear door child-protector lock (5-door models only)
The door cannot be opened from
inside the vehicle when the lock
is set.
These locks can be set to prevent
children from opening the rear
doors. Slide on each rear door
switch to lock both rear doors.
Passenger’s door
Unlocks the door
Locks the door

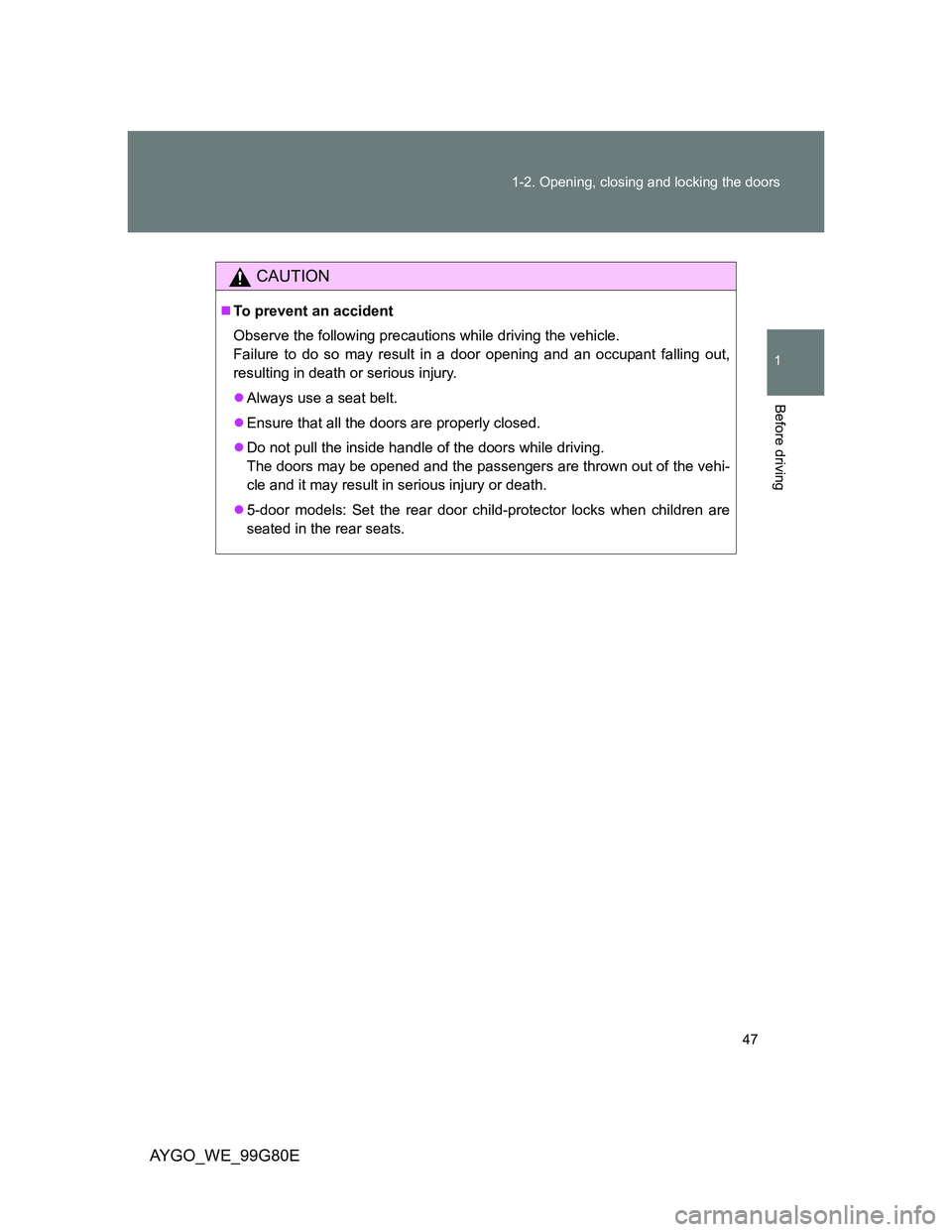

47 1-2. Opening, closing and locking the doors
1
Before driving
AYGO_WE_99G80E
CAUTION
To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
Always use a seat belt.
Ensure that all the doors are properly closed.
Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in serious injury or death.
5-door models: Set the rear door child-protector locks when children are
seated in the rear seats.

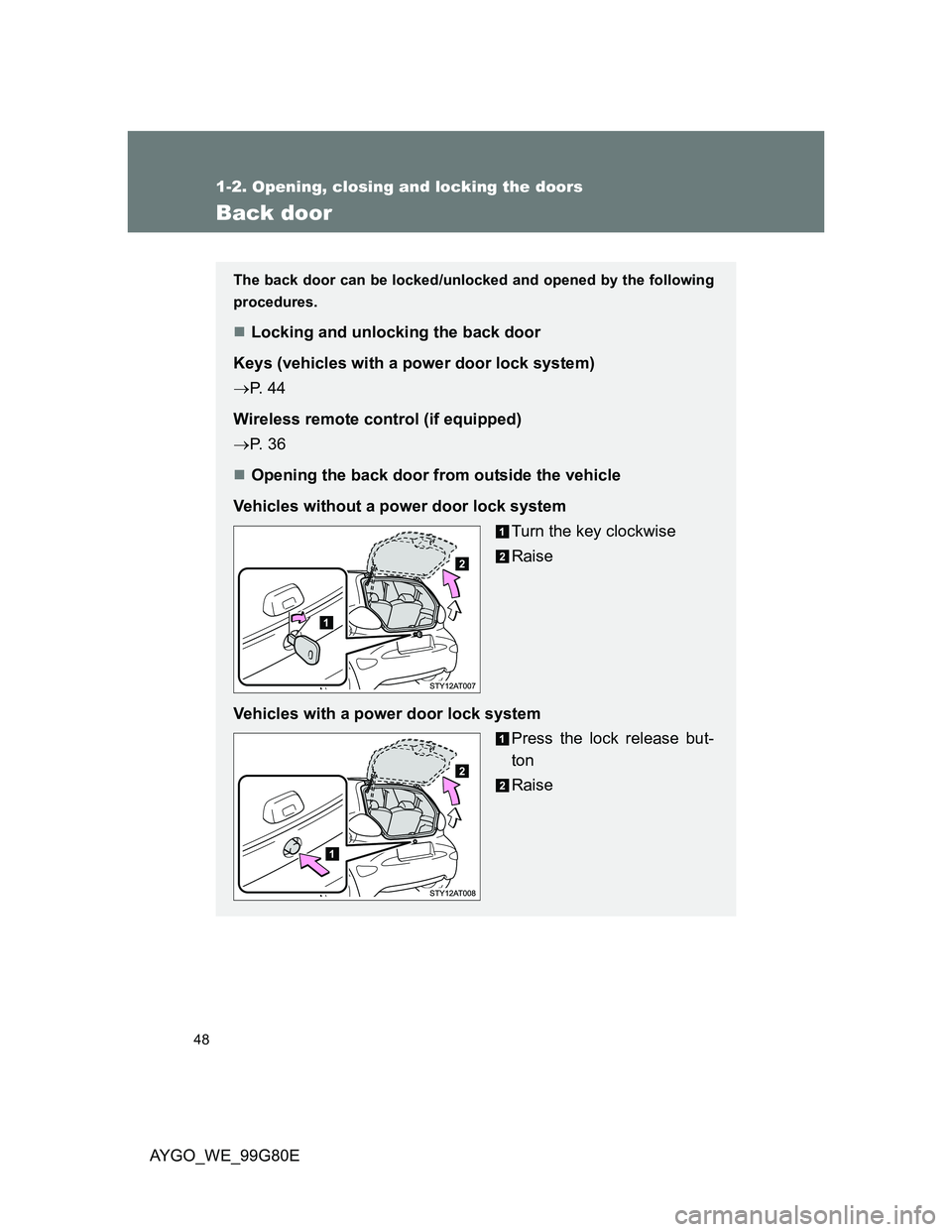

48
1-2. Opening, closing and locking the doors
AYGO_WE_99G80E
Back door
The back door can be locked/unlocked and opened by the following
procedures.
Locking and unlocking the back door
Keys (vehicles with a power door lock system)
P. 4 4
Wireless remote control (if equipped)
P. 3 6
Opening the back door from outside the vehicle
Vehicles without a power door lock system
Turn the key clockwise
Raise
Vehicles with a power door lock system
Press the lock release but-
ton
Raise

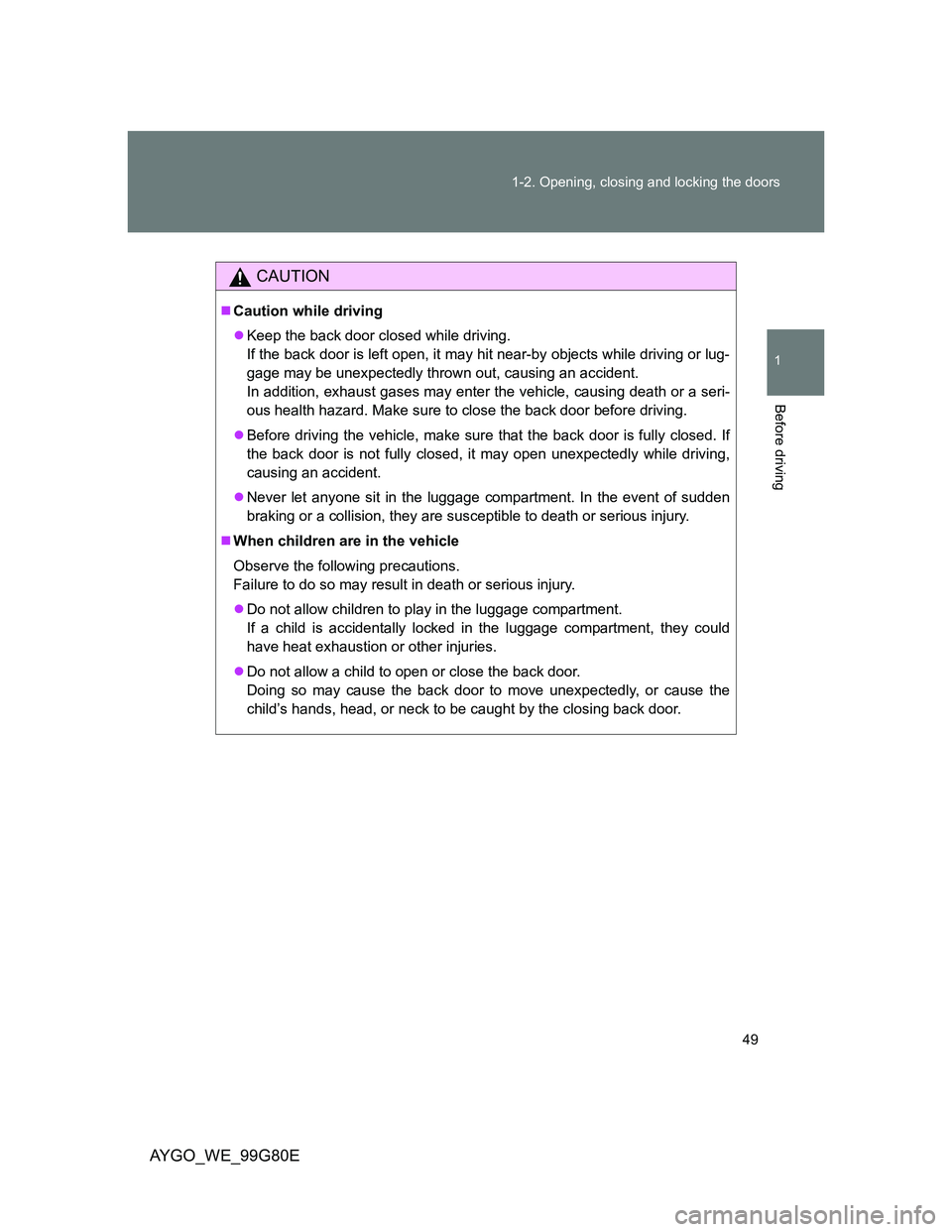

49 1-2. Opening, closing and locking the doors
1
Before driving
AYGO_WE_99G80E
CAUTION
Caution while driving
Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects while driving or lug-
gage may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the back door before driving.
Before driving the vehicle, make sure that the back door is fully closed. If
the back door is not fully closed, it may open unexpectedly while driving,
causing an accident.
Never let anyone sit in the luggage compartment. In the event of sudden
braking or a collision, they are susceptible to death or serious injury.
When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
Do not allow children to play in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion or other injuries.
Do not allow a child to open or close the back door.
Doing so may cause the back door to move unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.

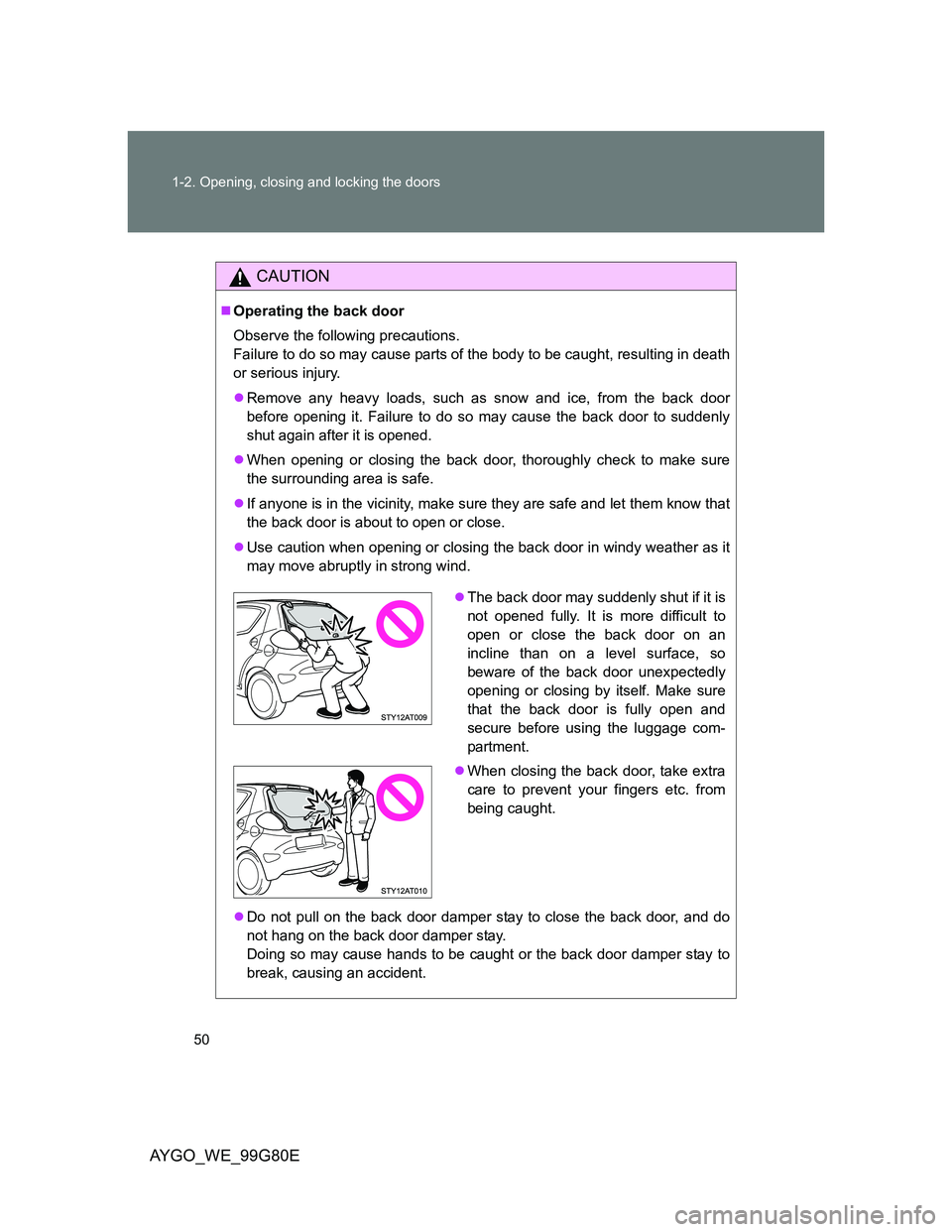

50 1-2. Opening, closing and locking the doors
AYGO_WE_99G80E
CAUTION
Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.
Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door to suddenly
shut again after it is opened.
When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.
If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.
Do not pull on the back door damper stay to close the back door, and do
not hang on the back door damper stay.
Doing so may cause hands to be caught or the back door damper stay to
break, causing an accident.
The back door may suddenly shut if it is
not opened fully. It is more difficult to
open or close the back door on an
incline than on a level surface, so
beware of the back door unexpectedly
opening or closing by itself. Make sure
that the back door is fully open and
secure before using the luggage com-
partment.
When closing the back door, take extra
care to prevent your fingers etc. from
being caught.
