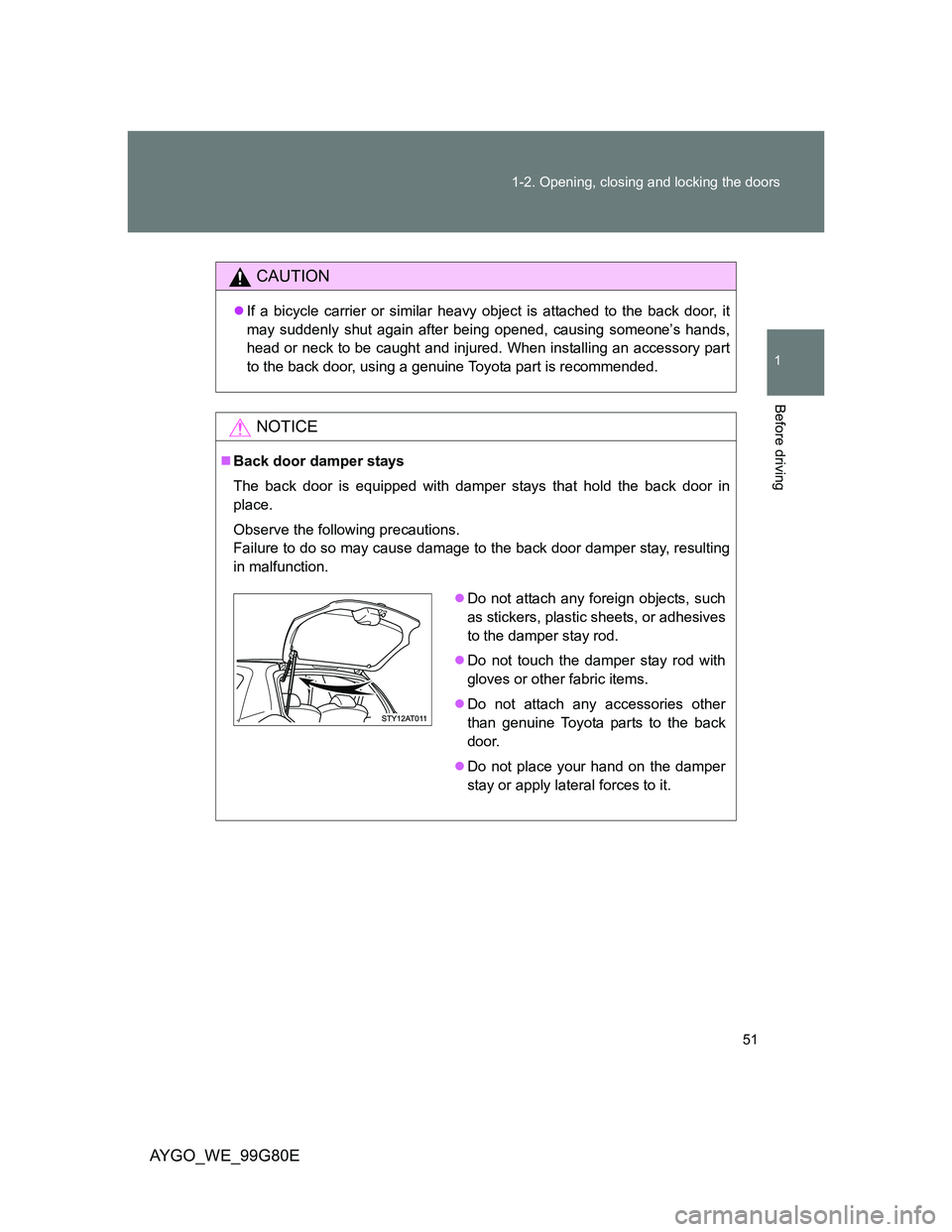

51 1-2. Opening, closing and locking the doors
1
Before driving
AYGO_WE_99G80E
CAUTION
If a bicycle carrier or similar heavy object is attached to the back door, it
may suddenly shut again after being opened, causing someone’s hands,
head or neck to be caught and injured. When installing an accessory part
to the back door, using a genuine Toyota part is recommended.
NOTICE
Back door damper stays
The back door is equipped with damper stays that hold the back door in
place.
Observe the following precautions.
Failure to do so may cause damage to the back door damper stay, resulting
in malfunction.
Do not attach any foreign objects, such
as stickers, plastic sheets, or adhesives
to the damper stay rod.
Do not touch the damper stay rod with
gloves or other fabric items.
Do not attach any accessories other
than genuine Toyota parts to the back
door.
Do not place your hand on the damper
stay or apply lateral forces to it.

52
AYGO_WE_99G80E
1-3. Adjustable components (seats, mirrors, steering wheel)

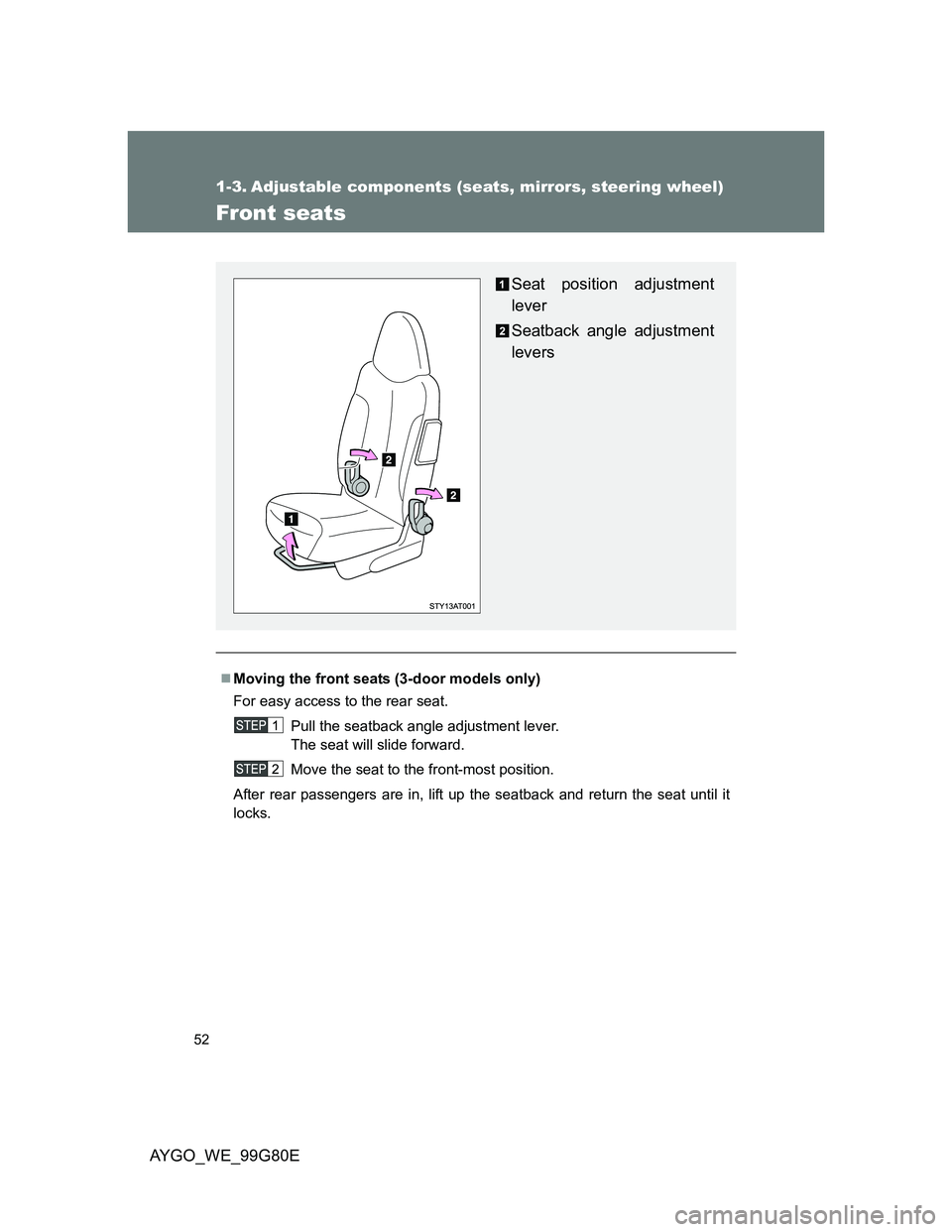

Front seats
Moving the front seats (3-door models only)
For easy access to the rear seat.
Pull the seatback angle adjustment lever.
The seat will slide forward.
Move the seat to the front-most position.
After rear passengers are in, lift up the seatback and return the seat until it
locks.
Seat position adjustment
lever
Seatback angle adjustment
levers

53 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
AYGO_WE_99G80E

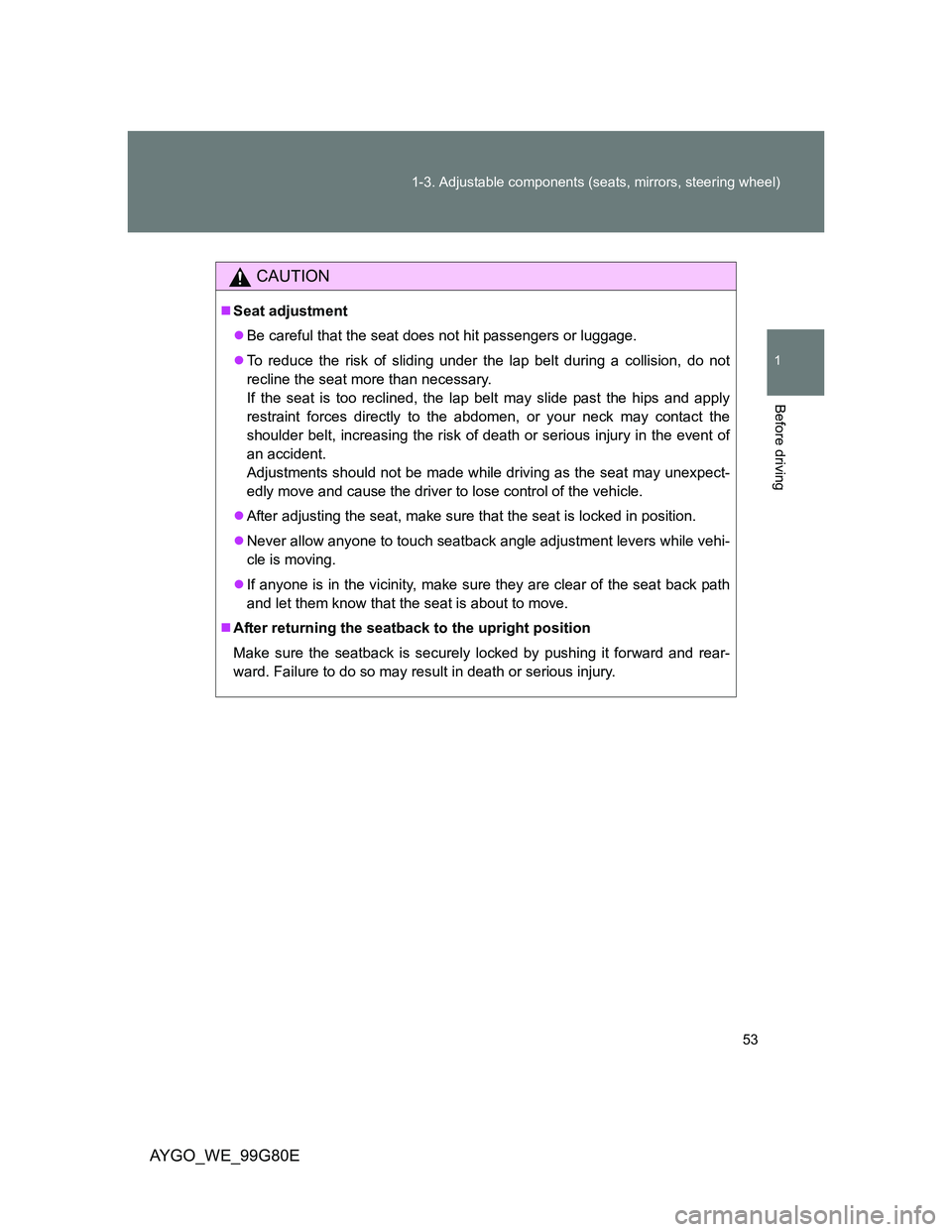

CAUTION
Seat adjustment
Be careful that the seat does not hit passengers or luggage.
To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
After adjusting the seat, make sure that the seat is locked in position.
Never allow anyone to touch seatback angle adjustment levers while vehi-
cle is moving.
If anyone is in the vicinity, make sure they are clear of the seat back path
and let them know that the seat is about to move.
After returning the seatback to the upright position
Make sure the seatback is securely locked by pushing it forward and rear-
ward. Failure to do so may result in death or serious injury.

54
1-3. Adjustable components (seats, mirrors, steering wheel)
AYGO_WE_99G80E

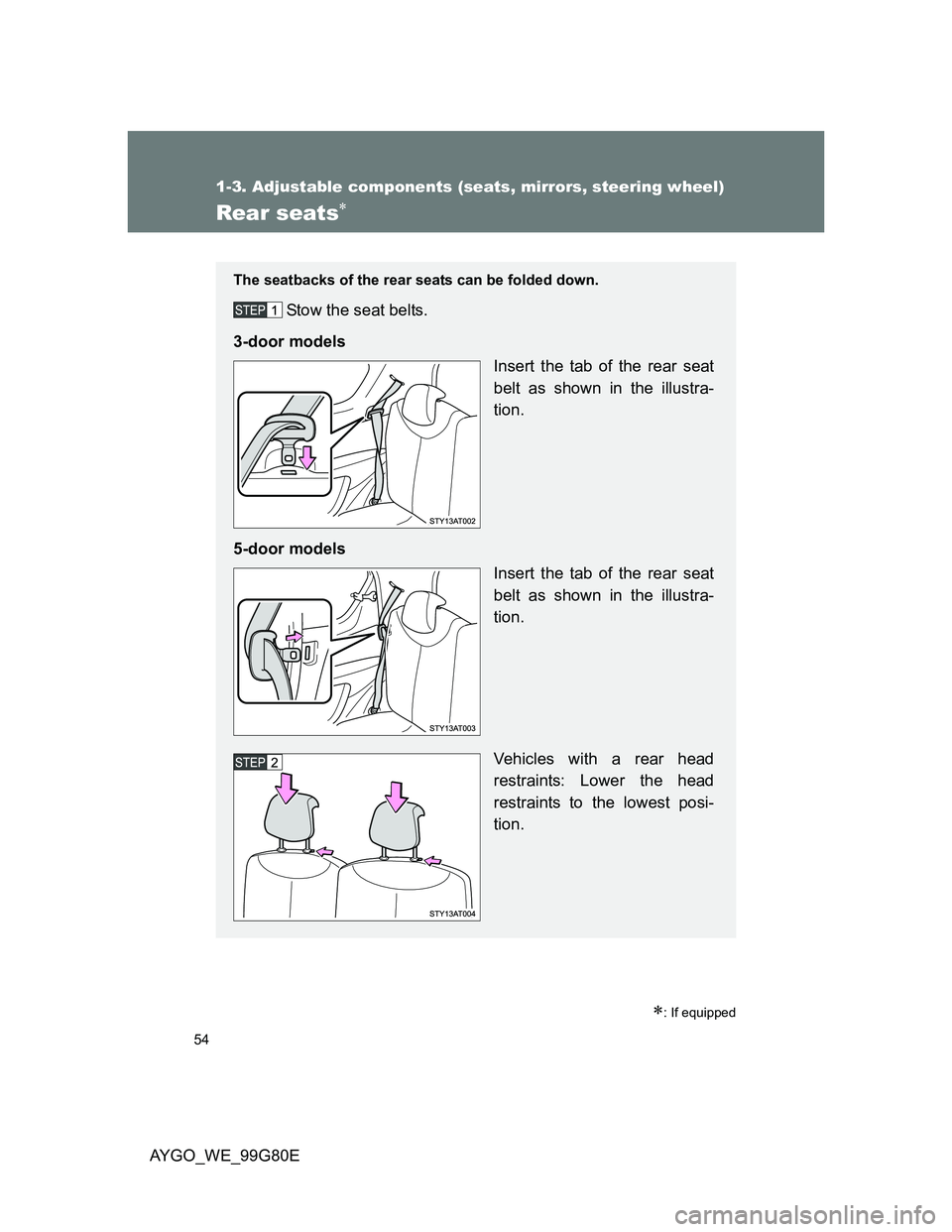

Rear seats
: If equipped
The seatbacks of the rear seats can be folded down.
Stow the seat belts.
3-door models
Insert the tab of the rear seat
belt as shown in the illustra-
tion.
5-door models
Insert the tab of the rear seat
belt as shown in the illustra-
tion.
Vehicles with a rear head
restraints: Lower the head
restraints to the lowest posi-
tion.

55 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
AYGO_WE_99G80E

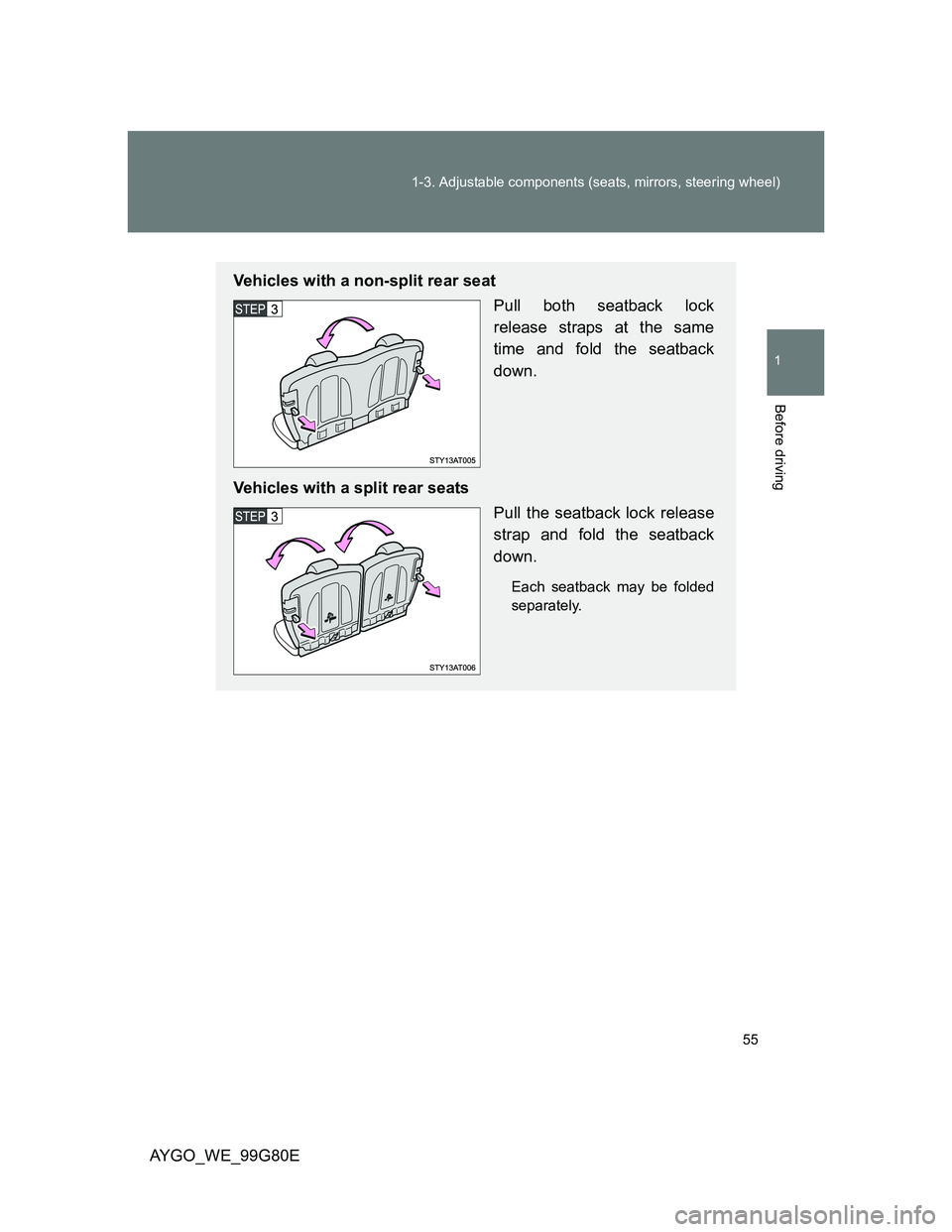

Vehicles with a non-split rear seat
Pull both seatback lock
release straps at the same
time and fold the seatback
down.
Vehicles with a split rear seats
Pull the seatback lock release
strap and fold the seatback
down.
Each seatback may be folded
separately.

56 1-3. Adjustable components (seats, mirrors, steering wheel)
AYGO_WE_99G80E

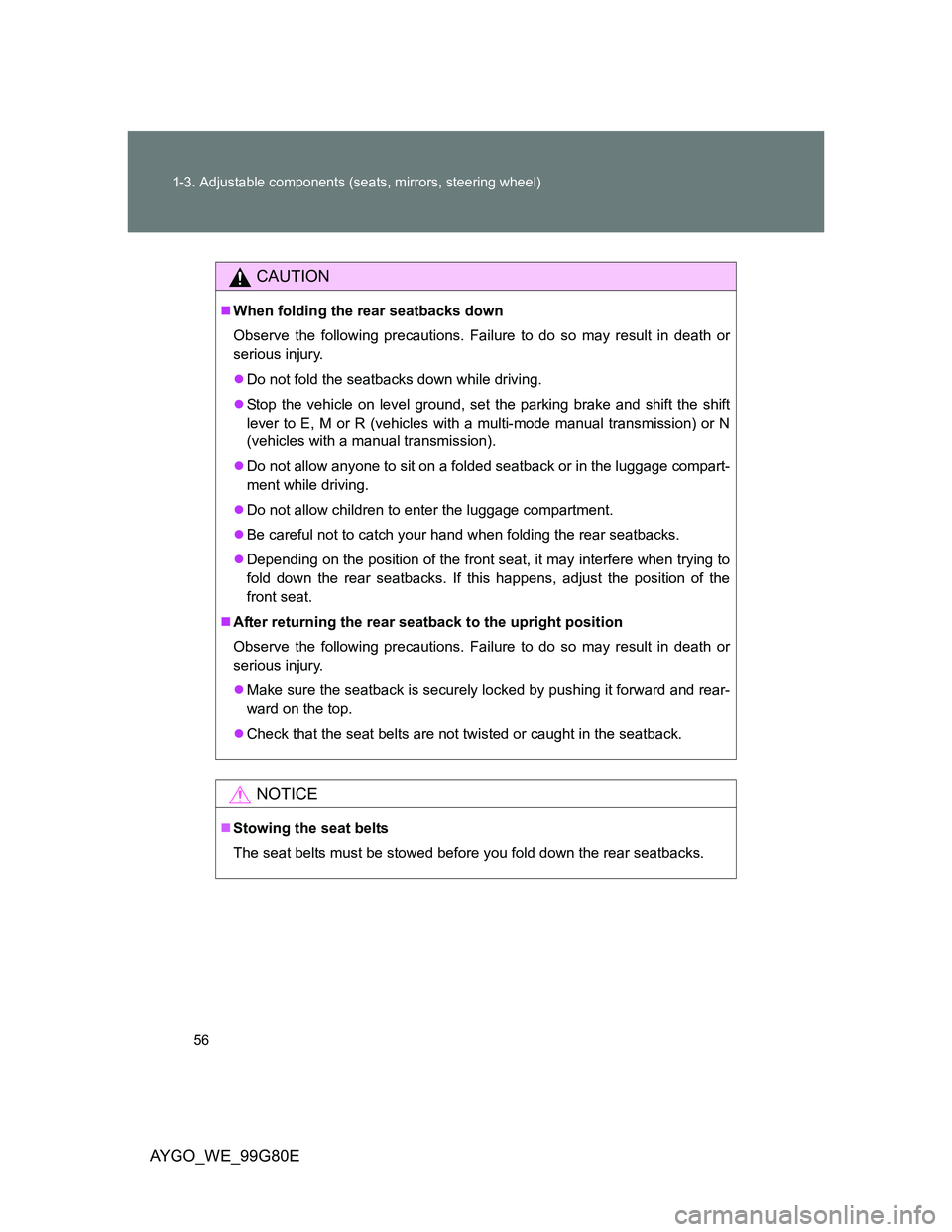

CAUTION
When folding the rear seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
Do not fold the seatbacks down while driving.
Stop the vehicle on level ground, set the parking brake and shift the shift
lever to E, M or R (vehicles with a multi-mode manual transmission) or N
(vehicles with a manual transmission).
Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
Do not allow children to enter the luggage compartment.
Be careful not to catch your hand when folding the rear seatbacks.
Depending on the position of the front seat, it may interfere when trying to
fold down the rear seatbacks. If this happens, adjust the position of the
front seat.
After returning the rear seatback to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
Make sure the seatback is securely locked by pushing it forward and rear-
ward on the top.
Check that the seat belts are not twisted or caught in the seatback.
NOTICE
Stowing the seat belts
The seat belts must be stowed before you fold down the rear seatbacks.

57
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
AYGO_WE_99G80E

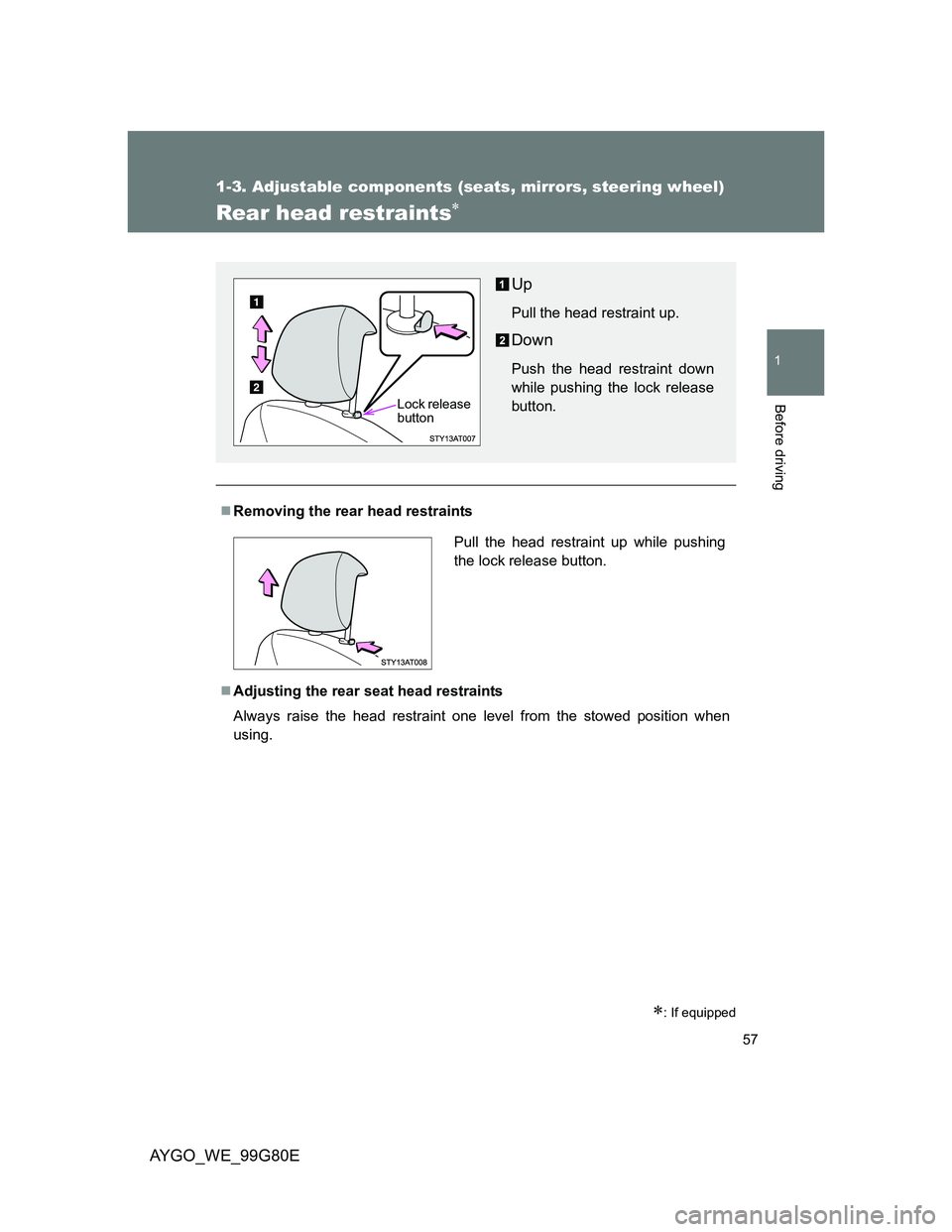

Rear head restraints
: If equipped
Removing the rear head restraints
Adjusting the rear seat head restraints
Always raise the head restraint one level from the stowed position when
using.
Up
Pull the head restraint up.
Down
Push the head restraint down
while pushing the lock release
button.
Lock release
button
Pull the head restraint up while pushing
the lock release button.

58 1-3. Adjustable components (seats, mirrors, steering wheel)
AYGO_WE_99G80E

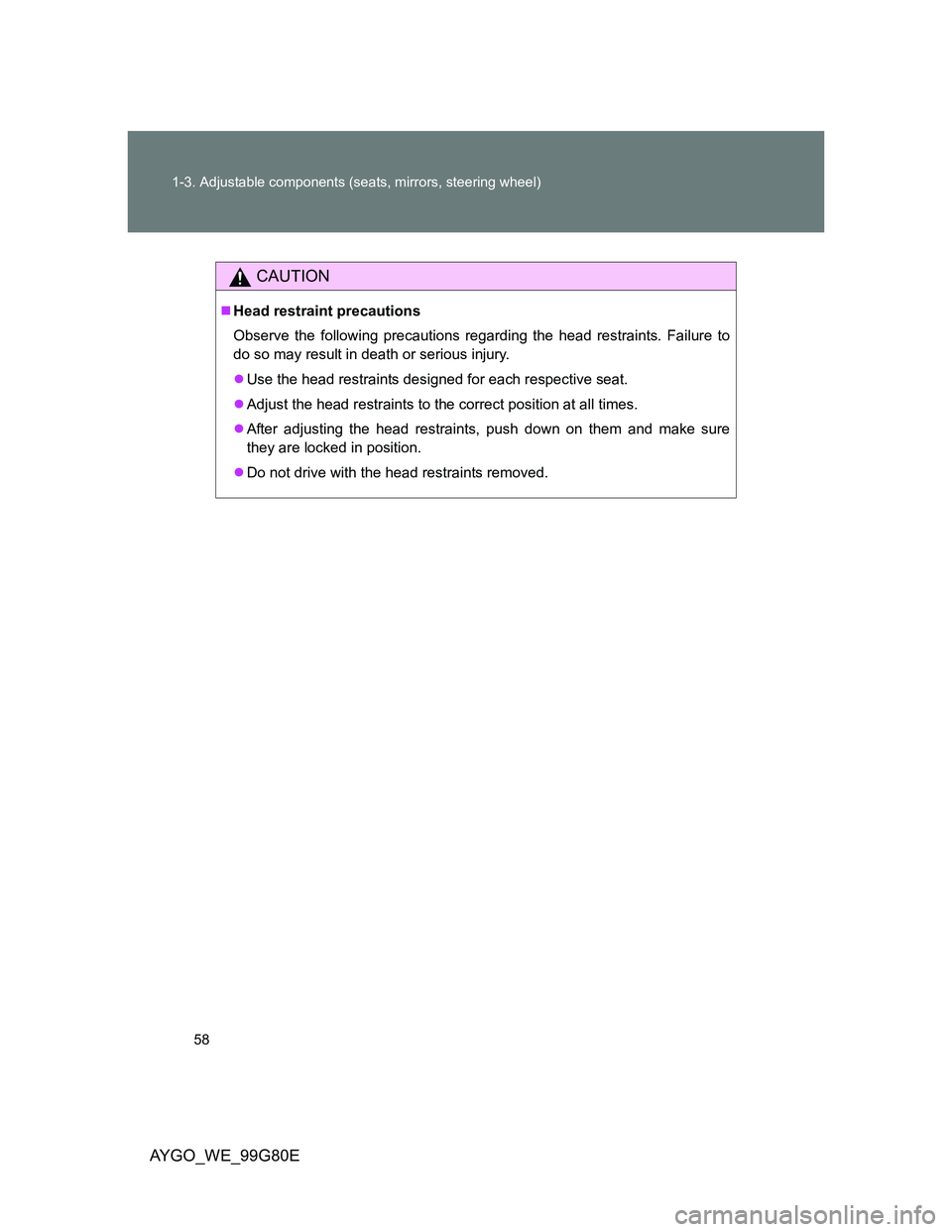

CAUTION
Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
Use the head restraints designed for each respective seat.
Adjust the head restraints to the correct position at all times.
After adjusting the head restraints, push down on them and make sure
they are locked in position.
Do not drive with the head restraints removed.

59
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
AYGO_WE_99G80E

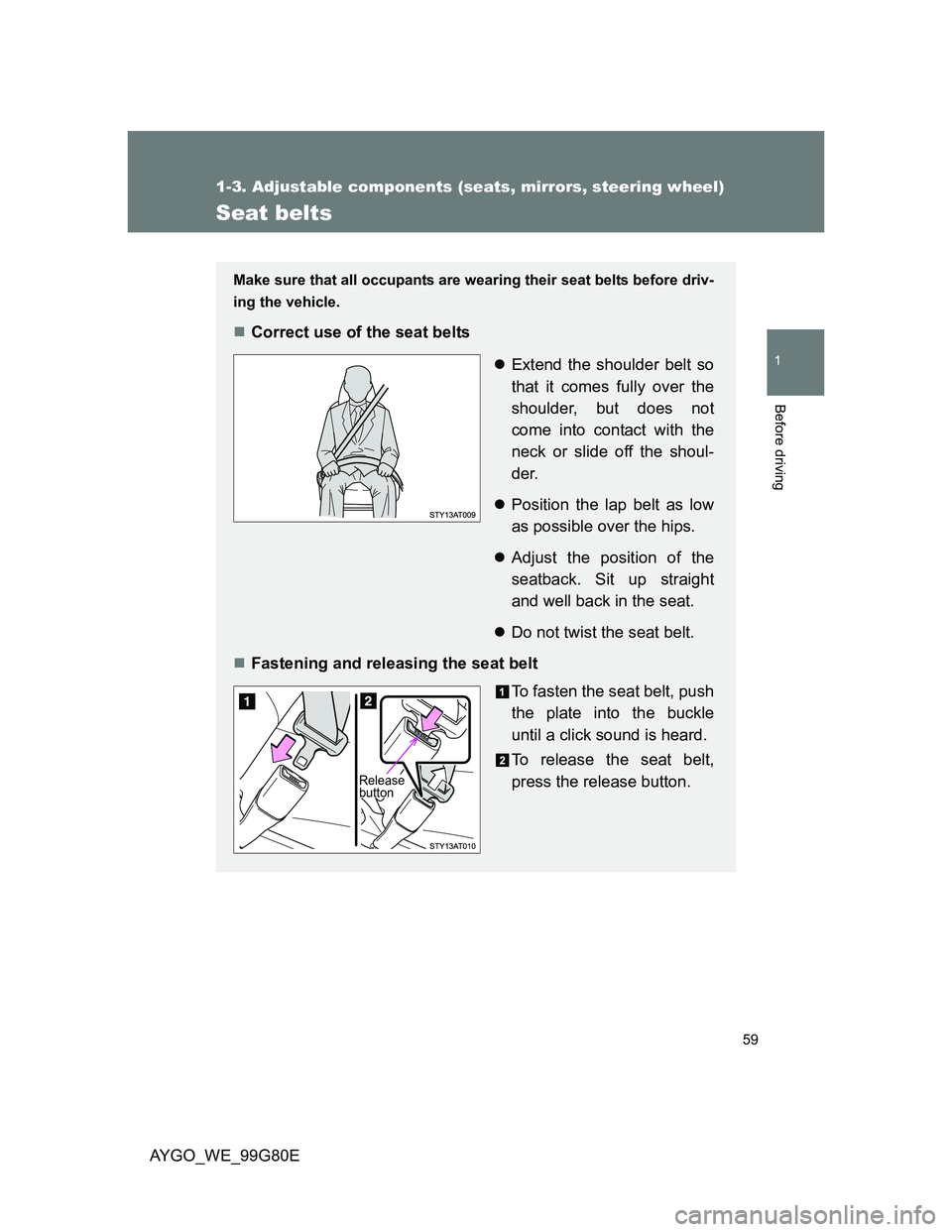

Seat belts
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle.
Correct use of the seat belts
Extend the shoulder belt so
that it comes fully over the
shoulder, but does not
come into contact with the
neck or slide off the shoul-
der.
Position the lap belt as low
as possible over the hips.
Adjust the position of the
seatback. Sit up straight
and well back in the seat.
Do not twist the seat belt.
Fastening and releasing the seat belt
To fasten the seat belt, push
the plate into the buckle
until a click sound is heard.
To release the seat belt,
press the release button.
Release
button

60 1-3. Adjustable components (seats, mirrors, steering wheel)
AYGO_WE_99G80E

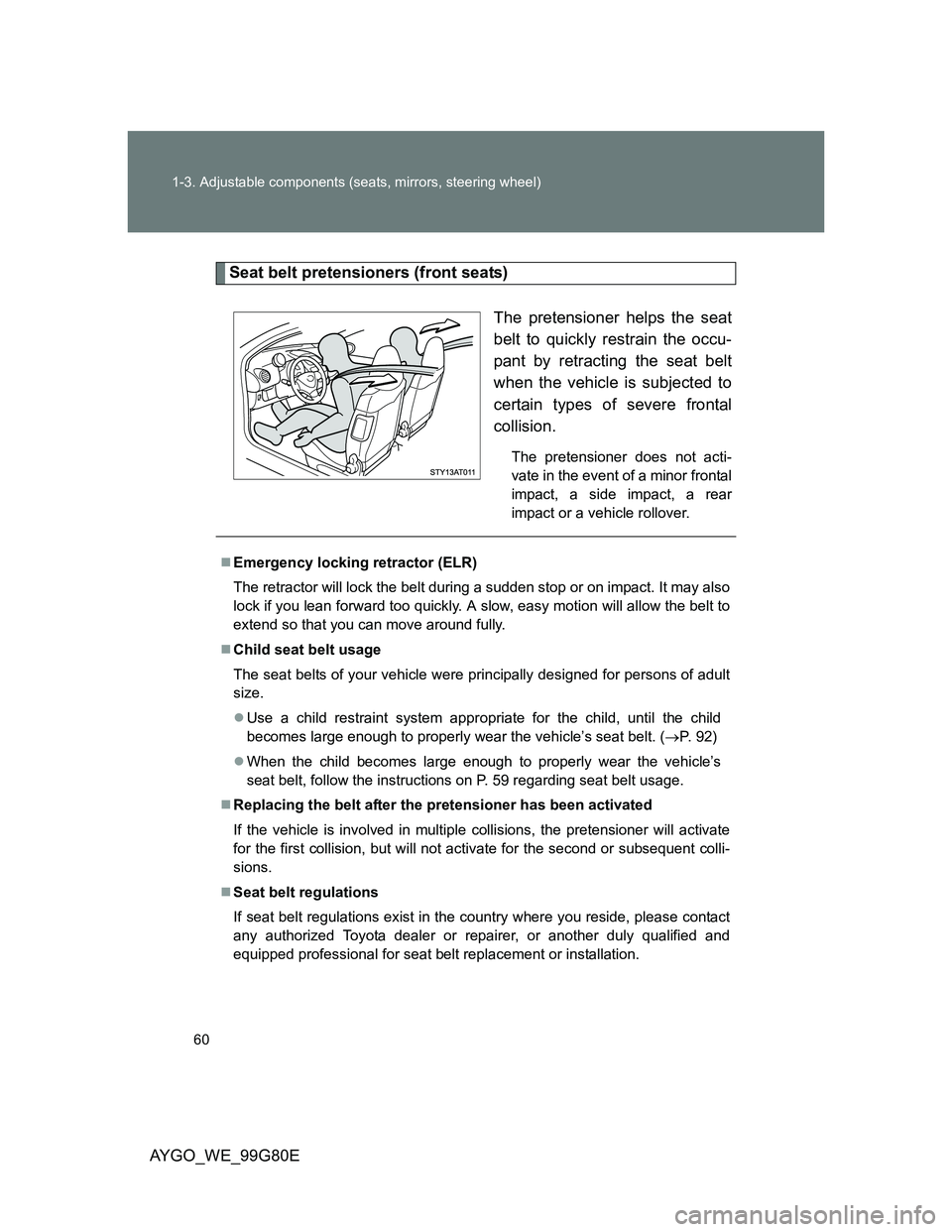

Seat belt pretensioners (front seats)
The pretensioner helps the seat
belt to quickly restrain the occu-
pant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal
collision.
The pretensioner does not acti-
vate in the event of a minor frontal
impact, a side impact, a rear
impact or a vehicle rollover.
Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult
size.
Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle’s seat belt. (P. 92)
When the child becomes large enough to properly wear the vehicle’s
seat belt, follow the instructions on P. 59 regarding seat belt usage.
Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate
for the first collision, but will not activate for the second or subsequent colli-
sions.
Seat belt regulations
If seat belt regulations exist in the country where you reside, please contact
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for seat belt replacement or installation.
