child seat TOYOTA AYGO 2013 Owners Manual (in English)

TABLE OF CONTENTSIndex
AYGO_WE_99G80E
2
1-1. Key information
Keys ...................................... 34
1-2. Opening, closing and locking
the doors
Wireless remote control ........ 36
Side doors............................. 44
Back door.............................. 48
1-3. Adjustable components
(seats, mirrors, steering
wheel)
Front seats ............................ 52
Rear seats ............................ 54
Rear head restraints ............. 57
Seat belts .............................. 59
Steering wheel (vehicles
with an adjustable type) ...... 63
Anti-glare inside rear view
mirror .................................. 64
Outside rear view mirrors...... 65
1-4. Opening and closing
the windows
Power windows ..................... 66
Rear windows
(5-door models) .................. 671-5. Refueling
Opening the fuel tank cap .... 69
1-6. Theft deterrent system
Engine immobilizer
system................................ 73
1-7. Safety information
Correct driving posture ......... 77
SRS airbags ......................... 79
Airbag manual on-off
system................................ 90
Child restraint systems ......... 92
Installing child restraints ..... 103
2-1. Driving procedures
Driving the vehicle .............. 114
Engine (ignition) switch ...... 126
Multi-mode manual
transmission ..................... 129
Manual transmission .......... 134
Turn signal lever................. 136
Parking brake ..................... 137
Horn ................................... 138
2-2. Instrument cluster
Gauges and meters............ 139
Indicators and warning
lights................................. 141
1Before driving
2When driving

AYGO_WE_99G80E
11
Anti-glare inside rear view mirror P. 64
Vanity mirrors P. 232
Interior light P. 228
Sun visors* P. 231
SRS curtain shield airbags P. 79
*: NEVER use a rearward facing child restraint on a
seat protected by an ACTIVE AIRBAG in front of
it, DEATH or SERIOUS INJURY to the CHILD can
occur. (P. 110)
: If equipped

AYGO_WE_99G80E
21
Power window switch P. 66
Inside door lock buttons P. 45
*: NEVER use a rearward facing child restraint on a
seat protected by an ACTIVE AIRBAG in front of
it, DEATH or SERIOUS INJURY to the CHILD can
occur. (P. 110)
: If equipped

1Before driving
33
AYGO_WE_99G80E
1-1. Key information
Keys.................................... 34
1-2. Opening, closing and
locking the doors
Wireless remote control ...... 36
Side doors .......................... 44
Back door ........................... 48
1-3. Adjustable components
(seats, mirrors, steering
wheel)
Front seats.......................... 52
Rear seats .......................... 54
Rear head restraints ........... 57
Seat belts............................ 59
Steering wheel (vehicles
with an adjustable type) .... 63
Anti-glare inside rear view
mirror ................................ 64
Outside rear view mirrors ... 65
1-4. Opening and closing
the windows
Power windows................... 66
Rear windows
(5-door models) ................ 67
1-5. Refueling
Opening the fuel tank cap... 691-6. Theft deterrent system
Engine immobilizer
system .............................. 73
1-7. Safety information
Correct driving posture ....... 77
SRS airbags........................ 79
Airbag manual on-off
system .............................. 90
Child restraint systems ....... 92
Installing child restraints ... 103

47 1-2. Opening, closing and locking the doors
1
Before driving
AYGO_WE_99G80E
CAUTION
To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
Always use a seat belt.
Ensure that all the doors are properly closed.
Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in serious injury or death.
5-door models: Set the rear door child-protector locks when children are
seated in the rear seats.

56 1-3. Adjustable components (seats, mirrors, steering wheel)
AYGO_WE_99G80E
CAUTION
When folding the rear seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
Do not fold the seatbacks down while driving.
Stop the vehicle on level ground, set the parking brake and shift the shift
lever to E, M or R (vehicles with a multi-mode manual transmission) or N
(vehicles with a manual transmission).
Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
Do not allow children to enter the luggage compartment.
Be careful not to catch your hand when folding the rear seatbacks.
Depending on the position of the front seat, it may interfere when trying to
fold down the rear seatbacks. If this happens, adjust the position of the
front seat.
After returning the rear seatback to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
Make sure the seatback is securely locked by pushing it forward and rear-
ward on the top.
Check that the seat belts are not twisted or caught in the seatback.
NOTICE
Stowing the seat belts
The seat belts must be stowed before you fold down the rear seatbacks.

60 1-3. Adjustable components (seats, mirrors, steering wheel)
AYGO_WE_99G80E
Seat belt pretensioners (front seats)
The pretensioner helps the seat
belt to quickly restrain the occu-
pant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal
collision.
The pretensioner does not acti-
vate in the event of a minor frontal
impact, a side impact, a rear
impact or a vehicle rollover.
Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult
size.
Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle’s seat belt. (P. 92)
When the child becomes large enough to properly wear the vehicle’s
seat belt, follow the instructions on P. 59 regarding seat belt usage.
Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate
for the first collision, but will not activate for the second or subsequent colli-
sions.
Seat belt regulations
If seat belt regulations exist in the country where you reside, please contact
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for seat belt replacement or installation.

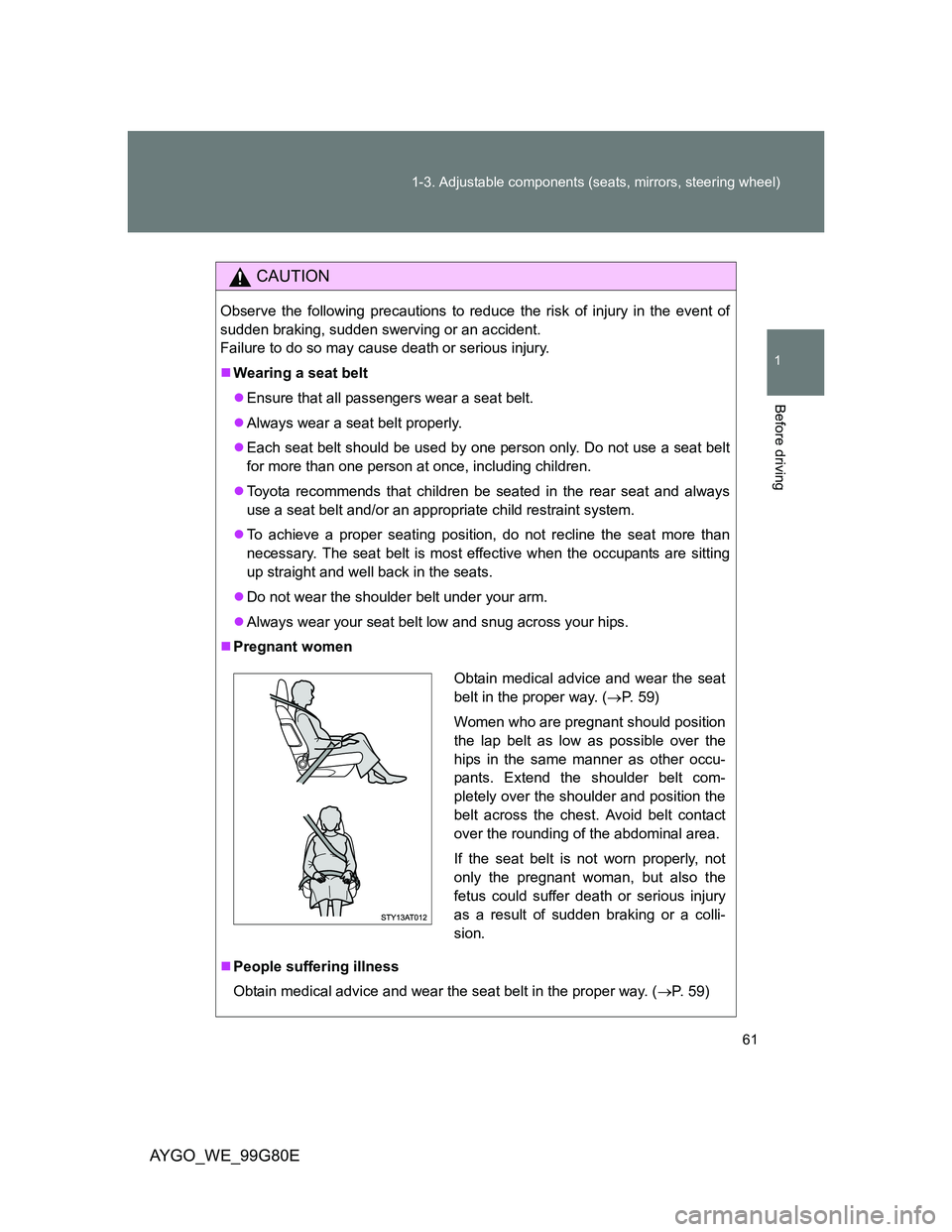

61 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
AYGO_WE_99G80E
CAUTION
Observe the following precautions to reduce the risk of injury in the event of
sudden braking, sudden swerving or an accident.
Failure to do so may cause death or serious injury.
Wearing a seat belt
Ensure that all passengers wear a seat belt.
Always wear a seat belt properly.
Each seat belt should be used by one person only. Do not use a seat belt
for more than one person at once, including children.
Toyota recommends that children be seated in the rear seat and always
use a seat belt and/or an appropriate child restraint system.
To achieve a proper seating position, do not recline the seat more than
necessary. The seat belt is most effective when the occupants are sitting
up straight and well back in the seats.
Do not wear the shoulder belt under your arm.
Always wear your seat belt low and snug across your hips.
Pregnant women
People suffering illness
Obtain medical advice and wear the seat belt in the proper way. (P. 59)
Obtain medical advice and wear the seat
belt in the proper way. (P. 59)
Women who are pregnant should position
the lap belt as low as possible over the
hips in the same manner as other occu-
pants. Extend the shoulder belt com-
pletely over the shoulder and position the
belt across the chest. Avoid belt contact
over the rounding of the abdominal area.
If the seat belt is not worn properly, not
only the pregnant woman, but also the
fetus could suffer death or serious injury
as a result of sudden braking or a colli-
sion.

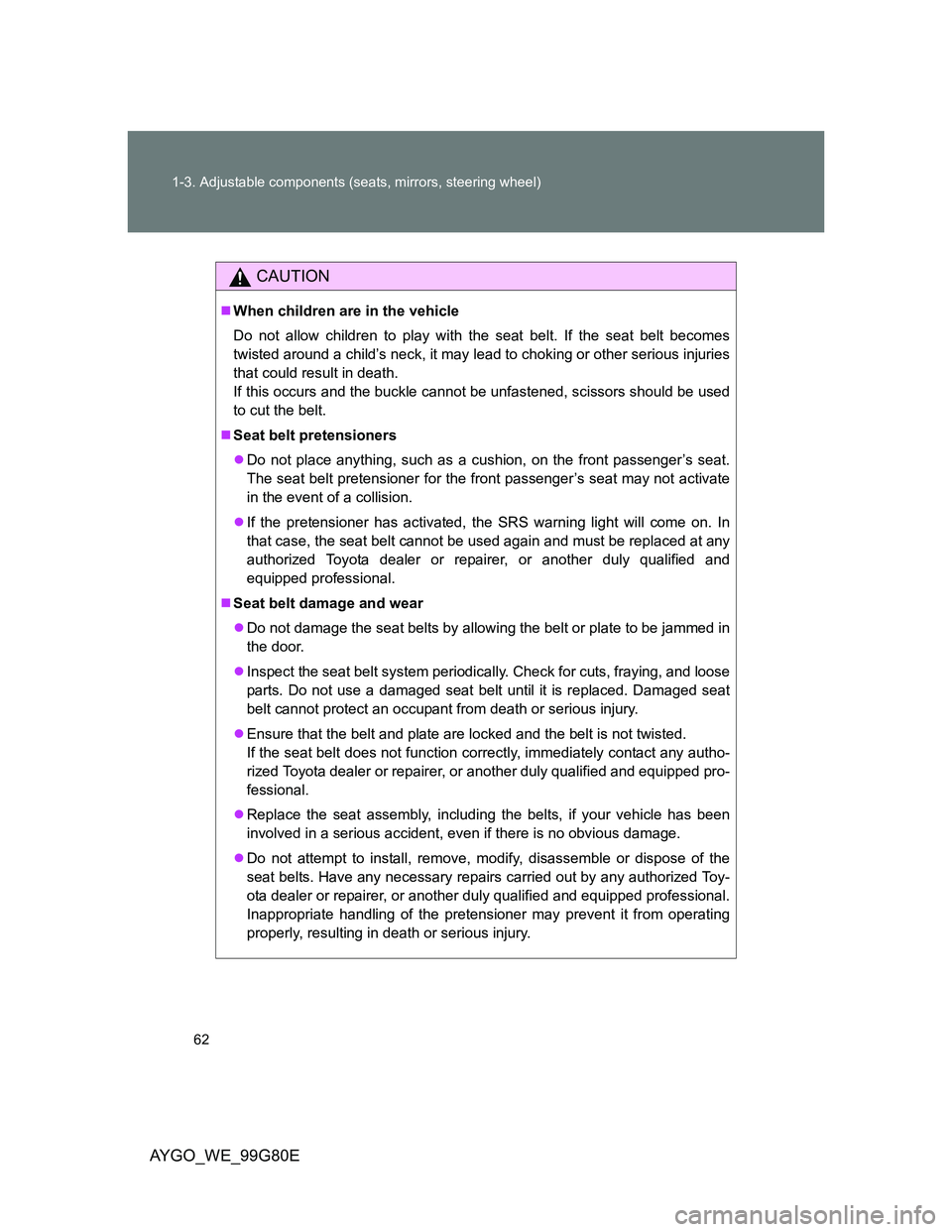

62 1-3. Adjustable components (seats, mirrors, steering wheel)
AYGO_WE_99G80E
CAUTION
When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
Seat belt pretensioners
Do not place anything, such as a cushion, on the front passenger’s seat.
The seat belt pretensioner for the front passenger’s seat may not activate
in the event of a collision.
If the pretensioner has activated, the SRS warning light will come on. In
that case, the seat belt cannot be used again and must be replaced at any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Seat belt damage and wear
Do not damage the seat belts by allowing the belt or plate to be jammed in
the door.
Inspect the seat belt system periodically. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt until it is replaced. Damaged seat
belt cannot protect an occupant from death or serious injury.
Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there is no obvious damage.
Do not attempt to install, remove, modify, disassemble or dispose of the
seat belts. Have any necessary repairs carried out by any authorized Toy-
ota dealer or repairer, or another duly qualified and equipped professional.
Inappropriate handling of the pretensioner may prevent it from operating
properly, resulting in death or serious injury.

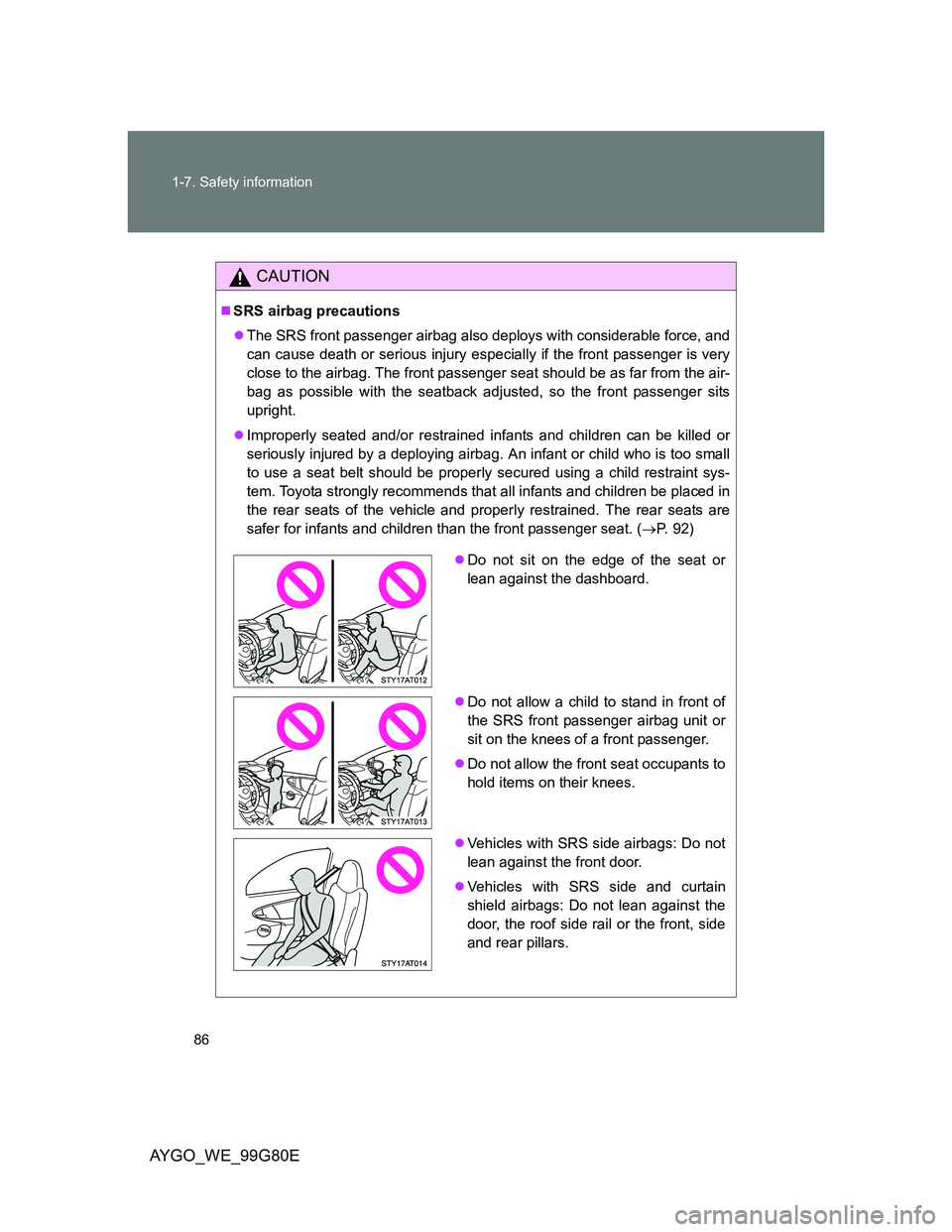

86 1-7. Safety information
AYGO_WE_99G80E
CAUTION
SRS airbag precautions
The SRS front passenger airbag also deploys with considerable force, and
can cause death or serious injury especially if the front passenger is very
close to the airbag. The front passenger seat should be as far from the air-
bag as possible with the seatback adjusted, so the front passenger sits
upright.
Improperly seated and/or restrained infants and children can be killed or
seriously injured by a deploying airbag. An infant or child who is too small
to use a seat belt should be properly secured using a child restraint sys-
tem. Toyota strongly recommends that all infants and children be placed in
the rear seats of the vehicle and properly restrained. The rear seats are
safer for infants and children than the front passenger seat. (P. 92)
Do not sit on the edge of the seat or
lean against the dashboard.
Do not allow a child to stand in front of
the SRS front passenger airbag unit or
sit on the knees of a front passenger.
Do not allow the front seat occupants to
hold items on their knees.
Vehicles with SRS side airbags: Do not
lean against the front door.
Vehicles with SRS side and curtain
shield airbags: Do not lean against the
door, the roof side rail or the front, side
and rear pillars.
