TOYOTA AYGO 2014 Owners Manual (in English)

91 1-7. Safety information
1
Before driving
AYGO_WE_99G80E
Deactivating the front seat passenger airbag
Insert the key into the cylinder
and turn to the “OFF” position.
SRS warning light turns on (only
when the engine switch is in the
“ON” position).
CAUTION
When installing a child restraint system
For safety reasons, always install a child restraint system in a rear seat. In
the event that the rear seat cannot be used, the front seat can be used as
long as the airbag manual on-off system is set to “OFF”.
If the airbag manual on-off system is left “ON”, the strong impact of the air-
bag deployment (inflation) may cause serious injury or even death.
When a child restraint system is not installed on the front passenger
seat
Ensure that the airbag manual on-off system is set to “ON”.
If it is left “OFF”, the airbag may not deploy in the event of an accident, which
may result in serious injury or even death.

92
1-7. Safety information
AYGO_WE_99G80E
Child restraint systems
Points to remember
Studies have shown that installing a child restraint on a rear seat is
much safer than installing one on the front passenger seat.
Choose a child restraint system that suits your vehicle and is
appropriate to the age and size of the child.
For installation details, follow the instructions provided with the
child restraint system.
General installation instructions are provided in this manual.
(P. 103)
If child restraint system regulations exist in the country where you
reside, please contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional for the child
restraint system installation.
Toyota recommends that you use a child restraint system which
conforms to the regulation ECE No.44.
Types of child restraints
Child restraint systems are classified into the following 5 groups
according to the regulation ECE No.44:
Group 0: Up to 10 kg (22 lb.) (0 - 9 months)
Group 0
+: Up to 13 kg (28 lb.) (0 - 2 years)
Group I: 9 to 18 kg (20 to 39 lb.) (9 months - 4 years)
Group II: 15 to 25 kg (34 to 55 lb.) (4 years - 7 years)
Group III: 22 to 36 kg (49 to 79 lb.) (6 years - 12 years)
In this owner’s manual, the following 3 types of popular child restraint
systems that can be secured with the seat belts are explained:
Toyota strongly urges the use of child restraint systems.

93 1-7. Safety information
1
Before driving

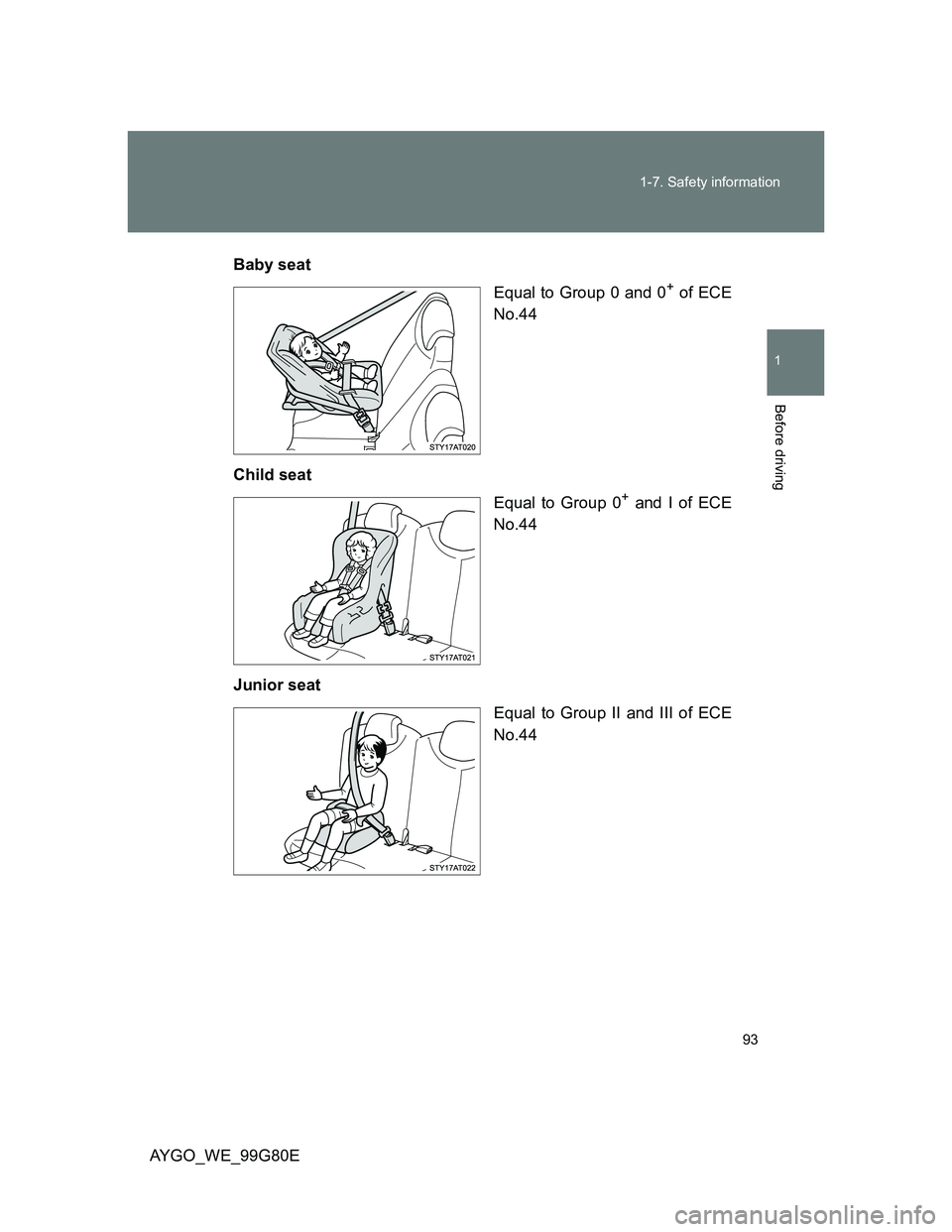

AYGO_WE_99G80EBaby seat
Equal to Group 0 and 0
+ of ECE
No.44
Child seat
Equal to Group 0
+ and I of ECE
No.44
Junior seat
Equal to Group II and III of ECE
No.44

94 1-7. Safety information
AYGO_WE_99G80E

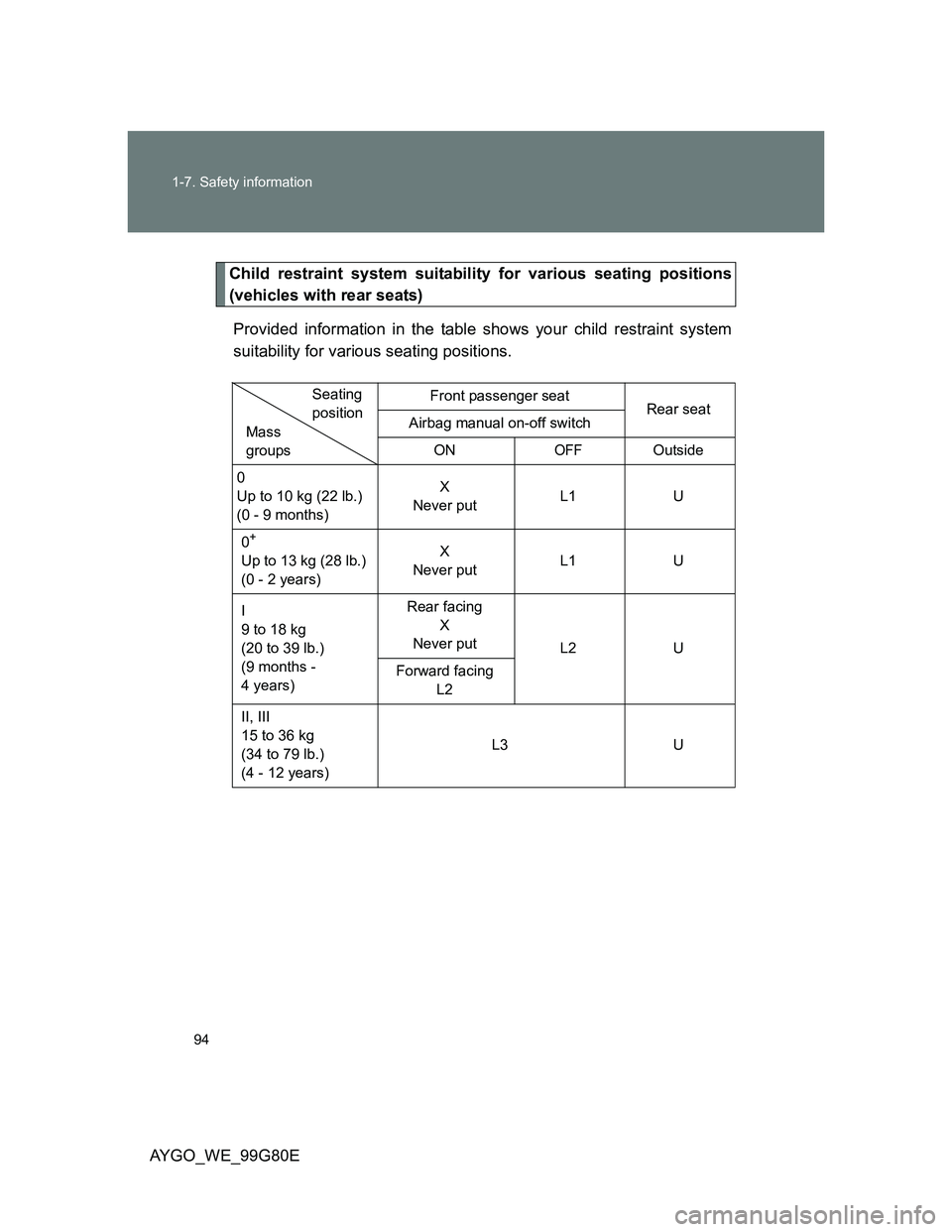

Child restraint system suitability for various seating positions
(vehicles with rear seats)
Provided information in the table shows your child restraint system
suitability for various seating positions.
Front passenger seat
Rear seat
Airbag manual on-off switch
ON
OFFOutside
0
Up to 10 kg (22 lb.)
(0 - 9 months)X
Never putL1 U
0
+
Up to 13 kg (28 lb.)
(0 - 2 years)X
Never putL1 U
I
9 to 18 kg
(20 to 39 lb.)
(9 months -
4 years)Rear facing
X
Never put
L2 U
Forward facing
L2
II, III
15 to 36 kg
(34 to 79 lb.)
(4 - 12 years)L3 U
Mass
groupsSeating
position

95 1-7. Safety information
1
Before driving
AYGO_WE_99G80EKey letters inserted in the above table:
U: Suitable for “universal” category child restraint system approved
for the use in this mass group.
L1: Suitable for “TOYOTA BABY SAFE (0 to 13 kg [0 to 28 lb.])”
approved for the use in this mass group.
L2: Suitable for “TOYOTA DUO+ (without ISOFIX 9 to 18 kg [20 to
39 lb.])” approved for the use in this mass group.
L3: Suitable for “TOYOTA KID (15 to 36 kg [34 to 79 lb.])” approved
for the use in this mass group.
X: Not suitable seat position for children in this mass group.
The child restraint systems mentioned in the table may not be avail-
able outside of the EU area. Other child restraint systems which is dif-
ferent from the systems mentioned in the table can be used, but the
suitability of the systems must be carefully checked with the child
restraint system manufacturer concerned and the seller of those
seats.

96 1-7. Safety information
AYGO_WE_99G80E
Child restraint system suitability for various seating positions
(vehicles without rear seats)
Provided information in the table shows your child restraint system
suitability for various seating positions.
Front passenger seat
Airbag manual on-off switch
ON
OFF
0
Up to 10 kg (22 lb.)
(0 - 9 months)X
Never putL1
0
+
Up to 13 kg (28 lb.)
(0 - 2 years)X
Never putL1
I
9 to 18 kg (20 to 39 lb.)
(9 months - 4 years)Rear facing
X
Never put
L2
Forward facing
L2
II, III
15 to 36 kg (34 to 79 lb.)
(4 - 12 years)L3
Mass
groupsSeating
position

97 1-7. Safety information
1
Before driving
AYGO_WE_99G80EKey letters inserted in the above table:
L1: Suitable for “TOYOTA BABY SAFE (0 to 13 kg [0 to 28 lb.])”
approved for the use in this mass group.
L2: Suitable for “TOYOTA DUO+ (without ISOFIX 9 to 18 kg [20 to
39 lb.])” approved for the use in this mass group.
L3: Suitable for “TOYOTA KID (15 to 36 kg [34 to 79 lb.])” approved
for the use in this mass group.
X: Not suitable seat position for children in this mass group.
The child restraint systems mentioned in the table may not be avail-
able outside of the EU area. Other child restraint systems which is dif-
ferent from the systems mentioned in the table can be used, but the
suitability of the systems must be carefully checked with the child
restraint system manufacturer concerned and the seller of those
seats.

98 1-7. Safety information
AYGO_WE_99G80E
Child restraint system suitability for various seating positions
(with ISOFIX rigid anchor) (vehicles with split rear seats)
Provided information in the table shows your child restraint system
suitability for various seating positions.
Mass groups Size class FixtureVehicle ISOFIX
positions
Rear outboard
CarrycotF
ISO/L1X
G
ISO/L2X
(1)X
Group 0
Up to 10 kg (22 lb.)E
ISO/R1X
(1)X
Group 0
+
Up to 13 kg (28 lb.)E
ISO/R1X
D
ISO/R2X
C
ISO/R3X
(1)X
Group I
9 to 18 kg
(20 to 39 lb.)D
ISO/R2X
C
ISO/R3X
B
ISO/F2IUF
B1
ISO/F2XIUF
A
ISO/F3IUF
(1)X
Group II
15 to 25 kg
(34 to 55 lb.)(1) X
Group III
22 to 36 kg
(49 to 79 lb.)(1) X

99 1-7. Safety information
1
Before driving

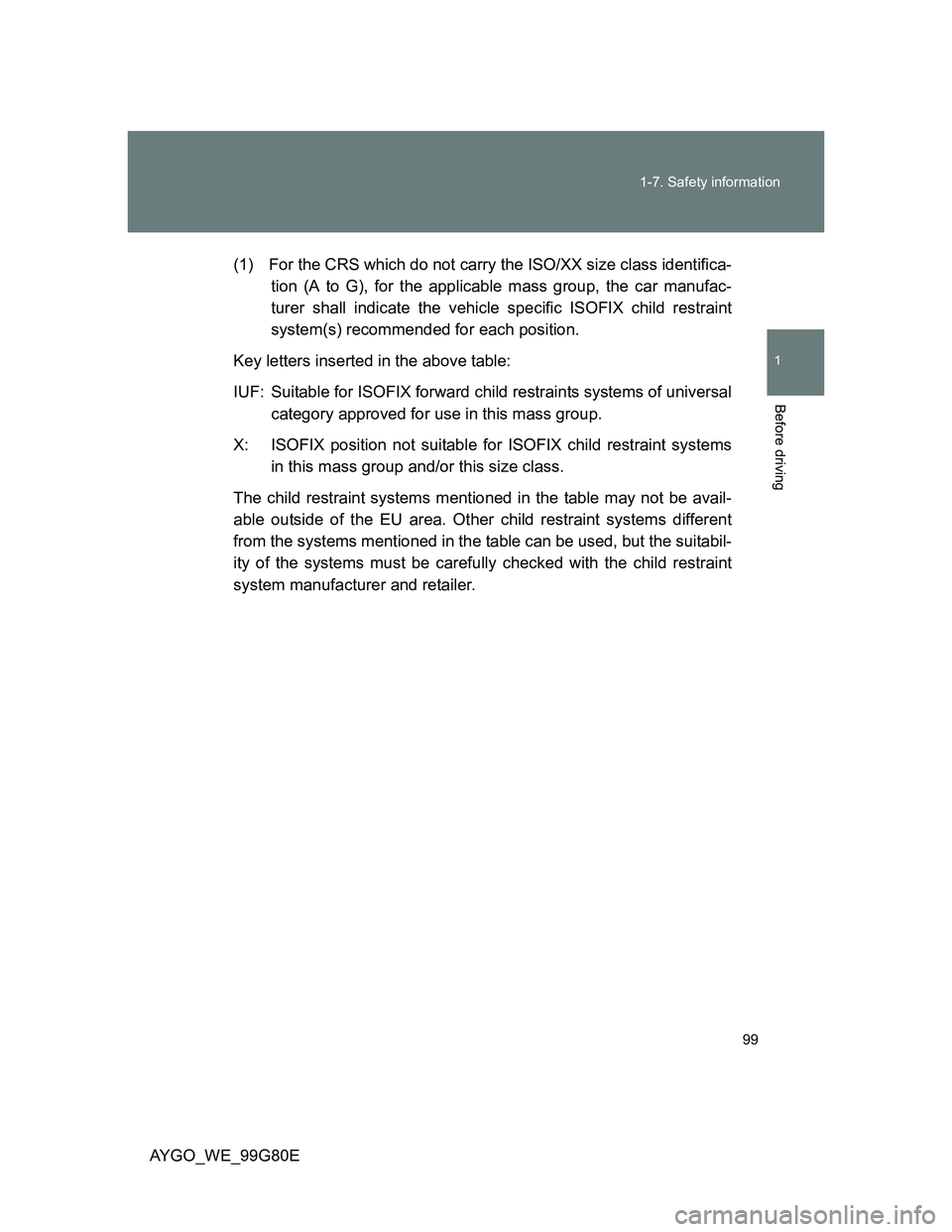

AYGO_WE_99G80E(1) For the CRS which do not carry the ISO/XX size class identifica-
tion (A to G), for the applicable mass group, the car manufac-
turer shall indicate the vehicle specific ISOFIX child restraint
system(s) recommended for each position.
Key letters inserted in the above table:
IUF: Suitable for ISOFIX forward child restraints systems of universal
category approved for use in this mass group.
X: ISOFIX position not suitable for ISOFIX child restraint systems
in this mass group and/or this size class.
The child restraint systems mentioned in the table may not be avail-
able outside of the EU area. Other child restraint systems different
from the systems mentioned in the table can be used, but the suitabil-
ity of the systems must be carefully checked with the child restraint
system manufacturer and retailer.

100 1-7. Safety information
AYGO_WE_99G80E

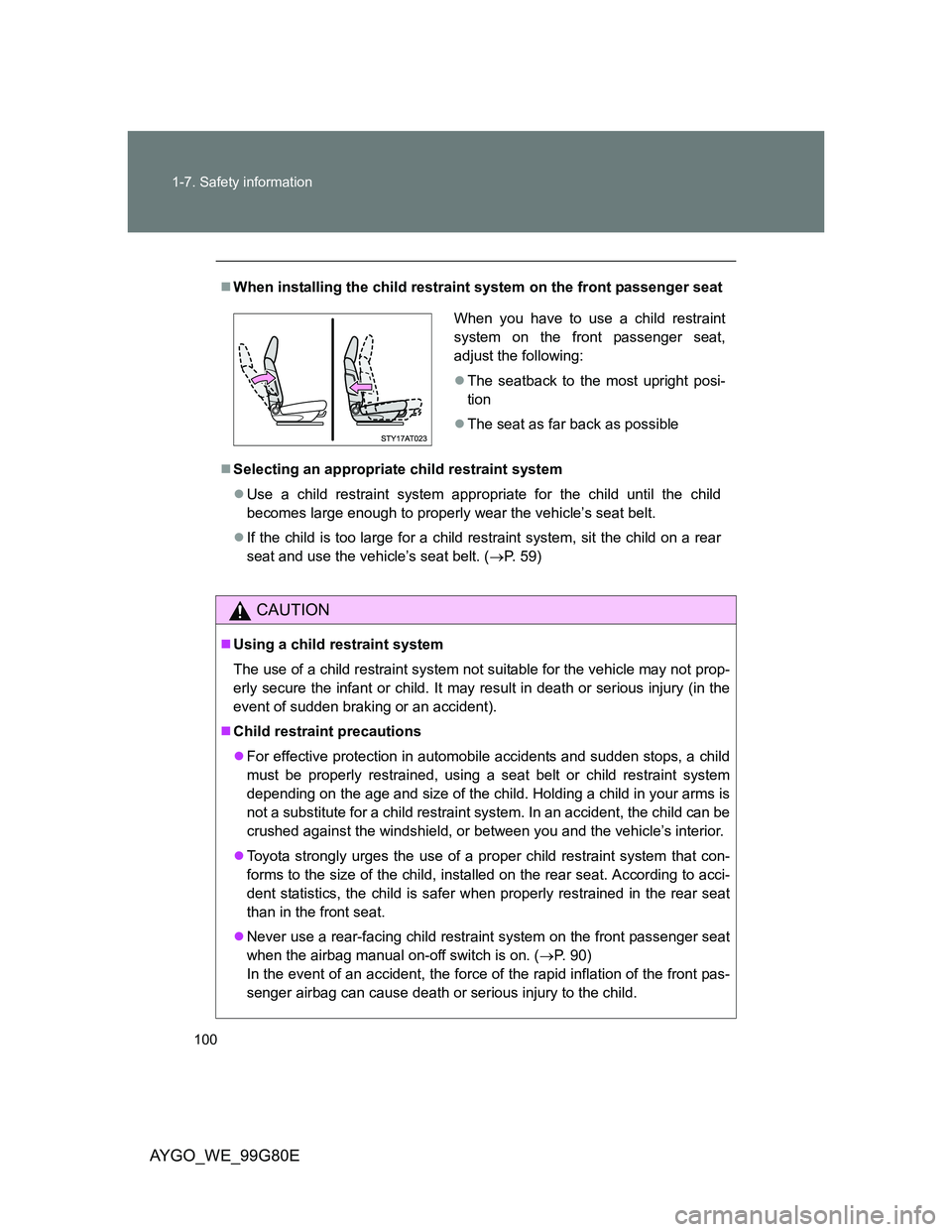

When installing the child restraint system on the front passenger seat
Selecting an appropriate child restraint system
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
If the child is too large for a child restraint system, sit the child on a rear
seat and use the vehicle’s seat belt. (P. 59)
CAUTION
Using a child restraint system
The use of a child restraint system not suitable for the vehicle may not prop-
erly secure the infant or child. It may result in death or serious injury (in the
event of sudden braking or an accident).
Child restraint precautions
For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
depending on the age and size of the child. Holding a child in your arms is
not a substitute for a child restraint system. In an accident, the child can be
crushed against the windshield, or between you and the vehicle’s interior.
Toyota strongly urges the use of a proper child restraint system that con-
forms to the size of the child, installed on the rear seat. According to acci-
dent statistics, the child is safer when properly restrained in the rear seat
than in the front seat.
Never use a rear-facing child restraint system on the front passenger seat
when the airbag manual on-off switch is on. (P. 90)
In the event of an accident, the force of the rapid inflation of the front pas-
senger airbag can cause death or serious injury to the child.
When you have to use a child restraint
system on the front passenger seat,
adjust the following:
The seatback to the most upright posi-
tion
The seat as far back as possible
