101 1-7. Safety information
1
Before driving
AYGO_WE_99G80E
CAUTION
Child restraint precautions
A forward-facing child restraint system may be installed on the front pas-
senger seat only when it is unavoidable. A child restraint system that
requires a top tether strap should not be used in the front passenger seat
since there is no top tether strap anchor for the front passenger seat.
Adjust the seatback as upright as possible and always move the seat as
far back as possible because the front passenger airbag could inflate with
considerable speed and force. Otherwise, the child may be killed or seri-
ously injured.
On vehicles with SRS side airbags, do not allow the child to lean his/her
head or any part of his/her body against the door or the area of the seat
from which the side airbags deploy even if the child is seated in the child
restraint system. It is dangerous if the side airbags inflate, and the impact
could cause death or serious injury to the child.
On vehicles with SRS side and curtain shield airbags, do not allow the
child to lean his/her head or any part of his/her body against the door or
the area of the seat, front and rear pillars or roof side rails from which the
SRS side airbags or SRS curtain shield airbags deploy even if the child is
seated in the child restraint system. It is dangerous if the SRS side airbags
and SRS curtain shield airbags inflate, and the impact could cause death
or serious injury to the child.
Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden stop, sudden swerve or an accident.
When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.

102 1-7. Safety information
AYGO_WE_99G80E

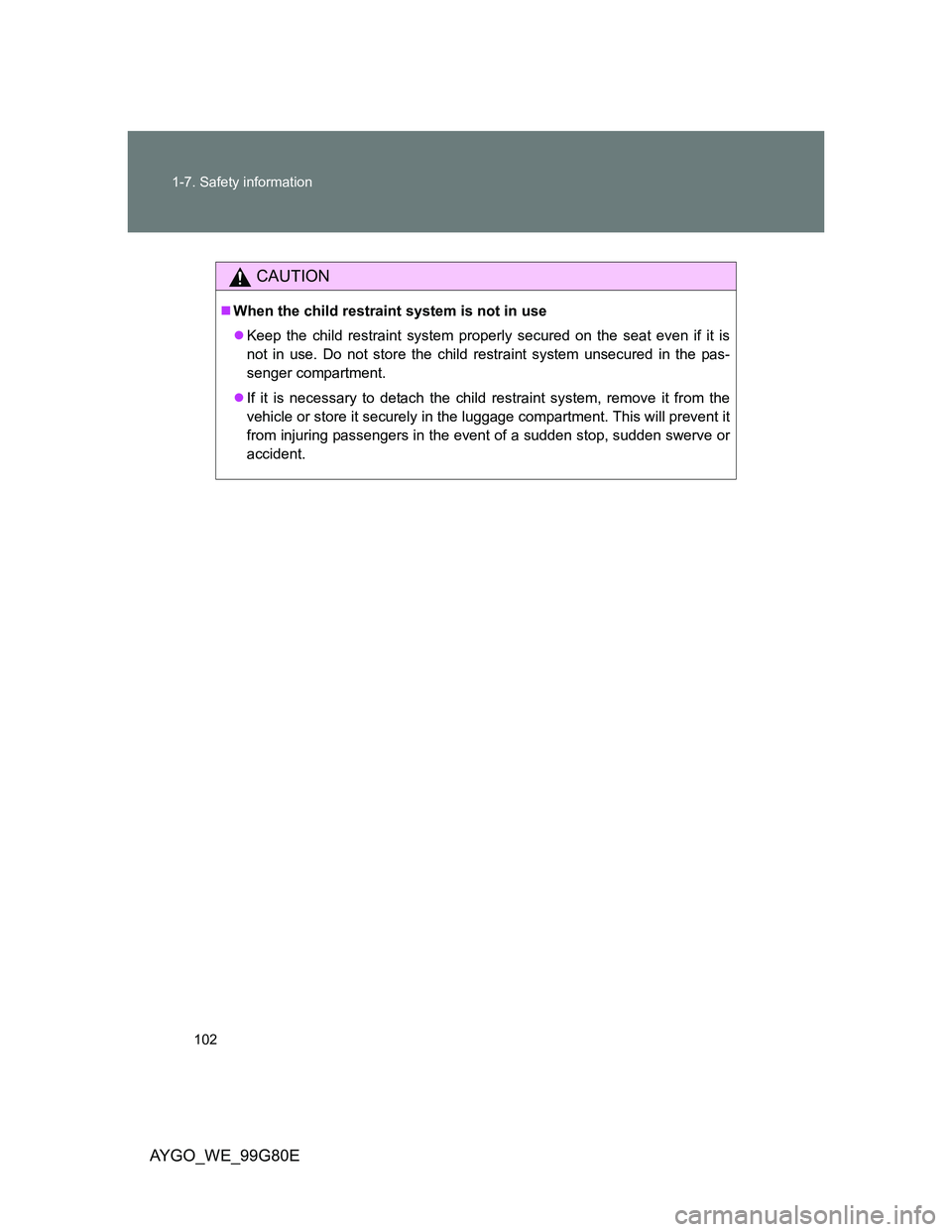

CAUTION
When the child restraint system is not in use
Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the child restraint system unsecured in the pas-
senger compartment.
If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the luggage compartment. This will prevent it
from injuring passengers in the event of a sudden stop, sudden swerve or
accident.

103
1
1-7. Safety information
Before driving
AYGO_WE_99G80E

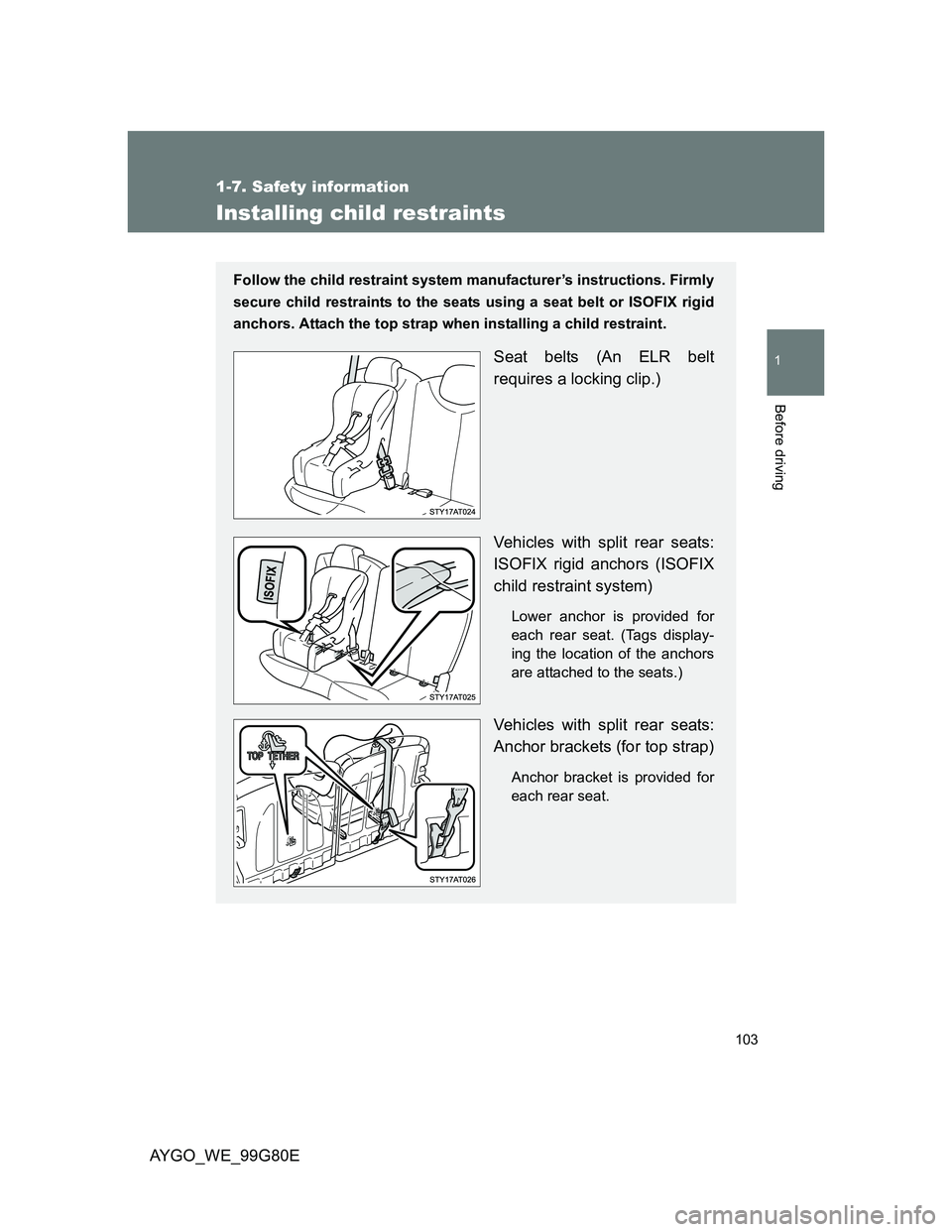

Installing child restraints
Follow the child restraint system manufacturer’s instructions. Firmly
secure child restraints to the seats using a seat belt or ISOFIX rigid
anchors. Attach the top strap when installing a child restraint.
Seat belts (An ELR belt
requires a locking clip.)
Vehicles with split rear seats:
ISOFIX rigid anchors (ISOFIX
child restraint system)
Lower anchor is provided for
each rear seat. (Tags display-
ing the location of the anchors
are attached to the seats.)
Vehicles with split rear seats:
Anchor brackets (for top strap)
Anchor bracket is provided for
each rear seat.

104 1-7. Safety information
AYGO_WE_99G80E
Installing child restraints using a seat belt
Rear-facing — Baby seat/child seat
Place the child restraint system
on the rear seat facing the rear
of the vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Install a locking clip near the tab
of the lap and shoulder belt by
inserting the lap and shoulder
webbing through the recesses of
the locking clip. Buckle the belt
again. If the belt has any slack,
release the buckle and reinstall
the locking clip.

105 1-7. Safety information
1
Before driving

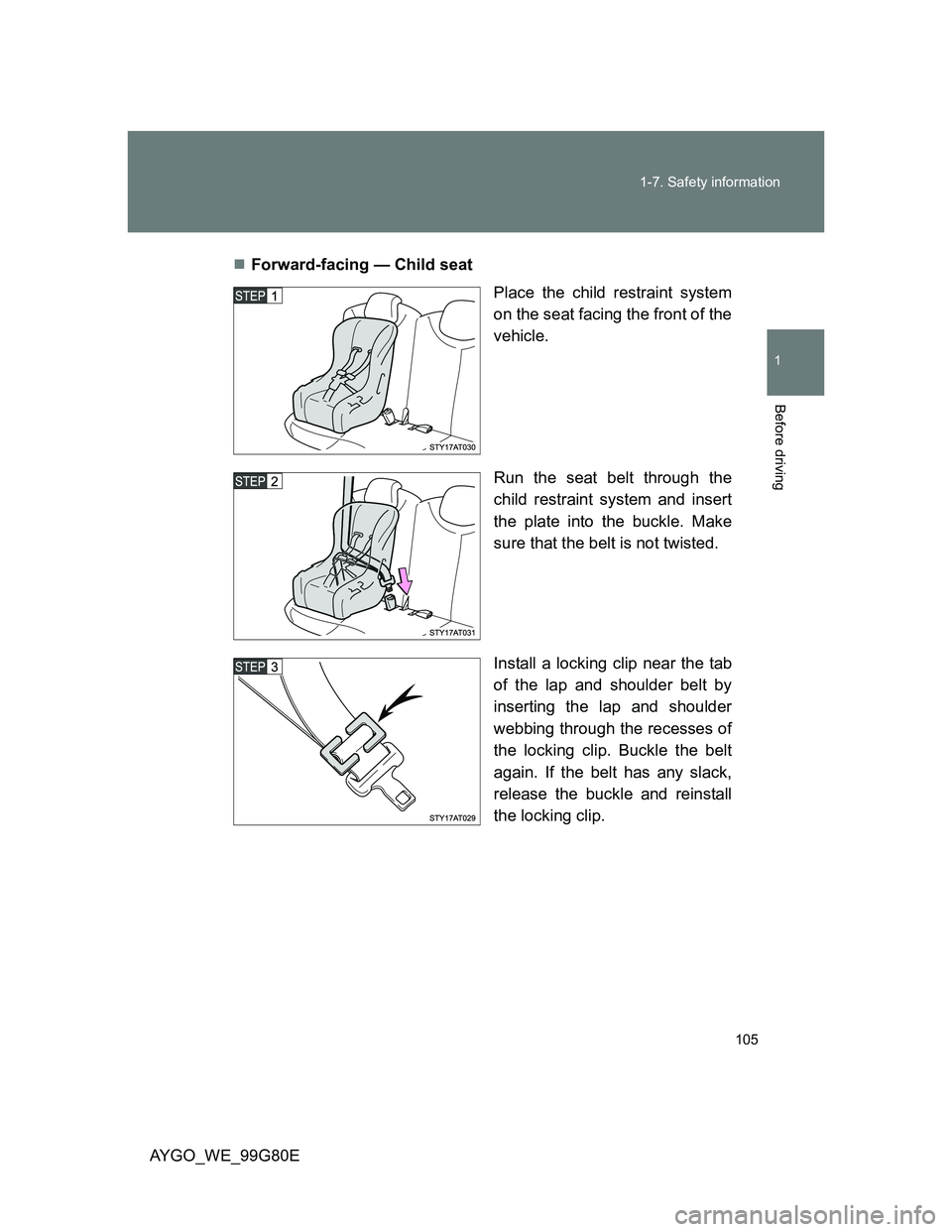

AYGO_WE_99G80EForward-facing — Child seat
Place the child restraint system
on the seat facing the front of the
vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Install a locking clip near the tab
of the lap and shoulder belt by
inserting the lap and shoulder
webbing through the recesses of
the locking clip. Buckle the belt
again. If the belt has any slack,
release the buckle and reinstall
the locking clip.

106 1-7. Safety information
AYGO_WE_99G80EJunior seat
Place the child restraint system
on the seat facing the front of the
vehicle.
Sit the child in the child restraint
system. Fit the seat belt to the
child restraint system according
to the manufacturer’s instruc-
tions and insert the plate into the
buckle. Make sure that the belt is
not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder and that the lap
belt is as low as possible.
(P. 59)
Removing a child restraint installed with a seat belt
Push the buckle release button
and fully retract the seat belt.

107 1-7. Safety information
1
Before driving
AYGO_WE_99G80E
Installation with ISOFIX rigid anchors (ISOFIX child restraint
system) (vehicles with split rear seats)
Widen the gap between
the seat cushion and
seatback slightly.
Latch the buckles onto
the anchors.
If the child restraint has a top
strap, the top strap should be
latched onto the anchor bracket.
Child restraint systems with a top strap (vehicles with split rear seats)
Remove the luggage cover. (P. 239)
Secure the child restraint using a
seat belt or ISOFIX rigid anchors
and move up the head restraint.

108 1-7. Safety information
AYGO_WE_99G80ELatch the hook onto the anchor
bracket and tighten the top strap.
Make sure the top strap is
securely latched.
Move down the head restraint.
When installing a child restraint system
You need a locking clip to install the child restraint system. Follow the
instructions provided by the manufacturer of the system. If your child
restraint system does not provide a locking clip, you can purchase the fol-
lowing item from any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Locking clip for child restraint system
(Part No. 73119-22010)

109 1-7. Safety information
1
Before driving
AYGO_WE_99G80E

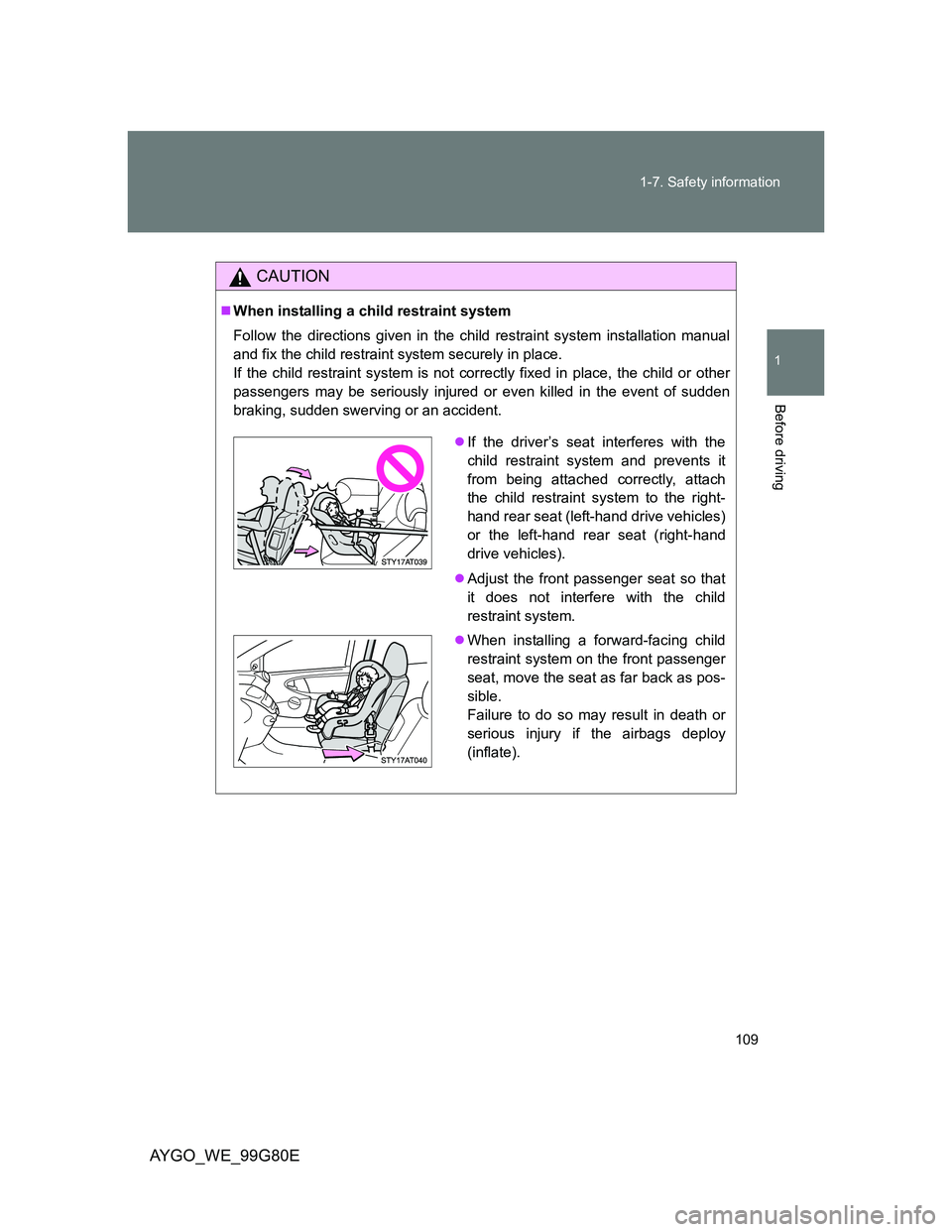

CAUTION
When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of sudden
braking, sudden swerving or an accident.
If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach
the child restraint system to the right-
hand rear seat (left-hand drive vehicles)
or the left-hand rear seat (right-hand
drive vehicles).
Adjust the front passenger seat so that
it does not interfere with the child
restraint system.
When installing a forward-facing child
restraint system on the front passenger
seat, move the seat as far back as pos-
sible.
Failure to do so may result in death or
serious injury if the airbags deploy
(inflate).

110 1-7. Safety information
AYGO_WE_99G80E

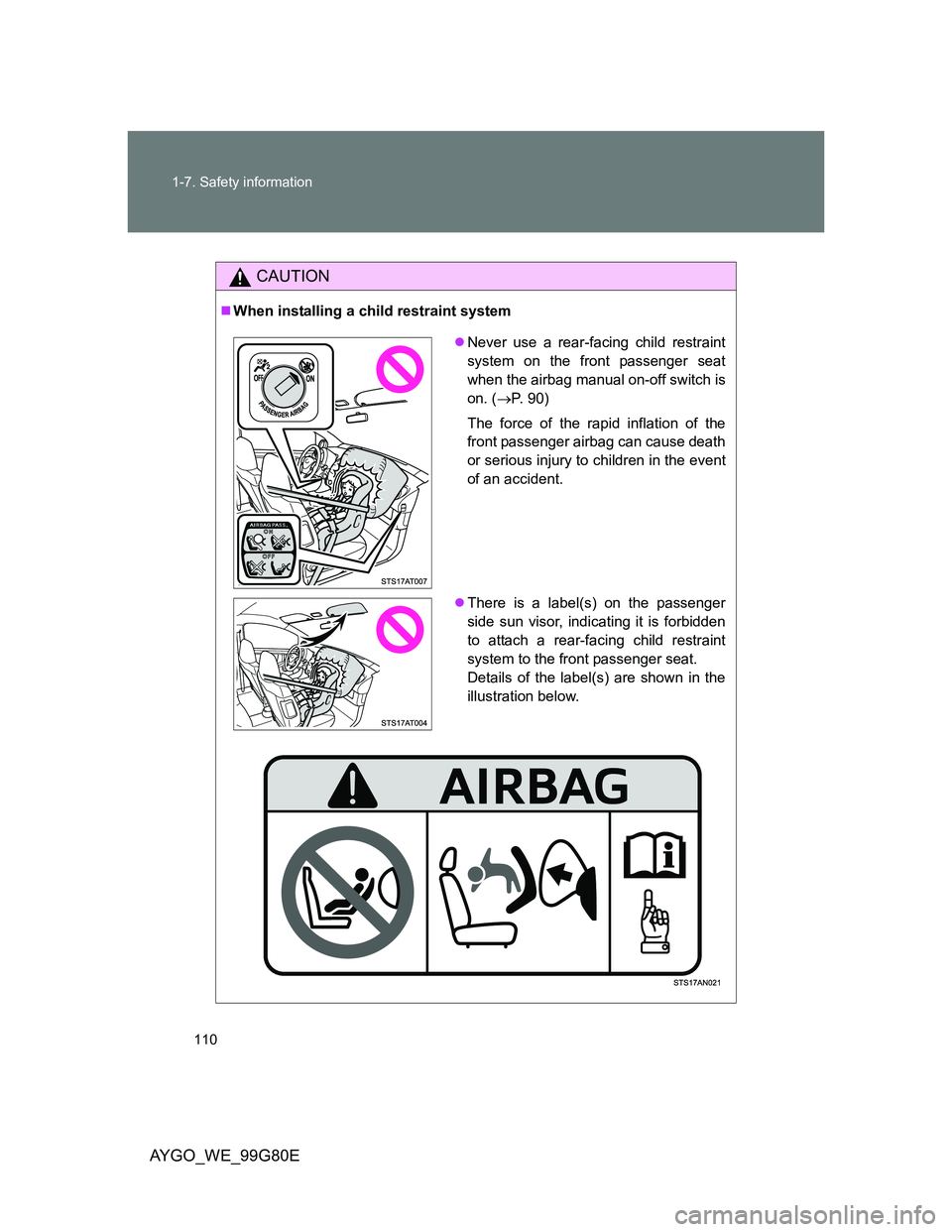

CAUTION
When installing a child restraint system
Never use a rear-facing child restraint
system on the front passenger seat
when the airbag manual on-off switch is
on. (P. 9 0 )
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.
There is a label(s) on the passenger
side sun visor, indicating it is forbidden
to attach a rear-facing child restraint
system to the front passenger seat.
Details of the label(s) are shown in the
illustration below.
