Drive monitor display
The drive monitor display presents the driver with a variety of driving-
related data including the current outside air temperature.
● Outside temperature display
( P. 313)
● Trip information (P. 91)
Displays driving range, fuel con-
sumption and other cruising related
information
● Instrument cluster light control
( P. 9 4 )
● Shift position (vehicles with a multi-mode manual transmission)
Displays the selected shift position (P. 163)
●Speed limiter display (if equipped) (P. 212)
■Switching the display
Items displayed can be
switched by pushing one of the
“DISP” buttons.
Forward
Backward
■Odometer
Displays the total distance the vehicle has been driven.
■Trip meters “A” and “B”
Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters “A” and “B” can be used to record and
display different distances independently.
Push and holding one of the “DISP” buttons will reset the trip meter that
is currently displayed.
Display contents
Trip information
1
2

922. Instrument cluster
AYGO_OM_Europe_OM99Q24E
■Stop & Start system operation time (if equipped)
● Displays the amount of time the engine was stopped due to oper-
ation of the Stop & Start system during the current trip.
Vehicles without a smart entry & start system: From the engine switch in
the “ON” position to the engine switch in the “LOCK” position.
Vehicles with a smart entry & start system: From the engine switch in
IGNITION ON mode to the engine switch off.
● When the Stop & Start system is operating, the presently dis-
played screen is interrupted and the Stop & Start system opera-
tion time automatically displayed.
• Push one of the “DISP” buttons to return to the previous screen.
• The automatically displayed function of the Stop & Start system oper-
ation time activated or deactivated switch over method. ( P. 93)
■Stop & Start system total operation time (if equipped)
Displays the total amount of time that the engine has been stopped
due to operation of the Stop & Start system since the system was
last reset.
Push and hold one of the “DISP” buttons to reset.
■Outside temperature (except manual transmission vehicles
with a 1KR engine)
Displays the outside temperature. (P. 313)
■Current fuel consumption
Displays the current rate of fuel consumption.
■Average fuel consumption
Displays the average fuel consumption since the function was
reset.
• The function can be reset by pushing one of the “DISP” buttons for lon-
ger than 1 second when the average fuel consumption is displayed.
• Use the displayed average fuel consumption as a reference.

932. Instrument cluster
2
Instrument cluster
AYGO_OM_Europe_OM99Q24E
■Driving range
Displays the estimated approximate distance that can be driven
with the quantity of fuel remaining.
• This distance is computed based on your average fuel consumption. As
a result, the actual distance that can be driven may differ from that dis-
played.
• When only a small amount of fuel is added to the tank, the display may
not be updated.
When refueling, turn the engine switch to the “LOCK” position (vehicles
without a smart entry & start system) or off (vehicles with a smart entry
& start system). If the vehicle is refueled without turning the engine
switch to the “LOCK” position or off, the display may not be updated.
• The display shows “LoFUEL” when the remaining is very low.
■Average vehicle speed
Displays the average vehicle speed since the function was reset.
The function can be reset by pushing one of the “DISP” button for longer
than 1 second when the average vehicle speed is displayed.
■Instrument cluster light control
Displays the instrument cluster light control display.
• This screen is only displayed when the tail lights are on.
• The brightness of the instrument cluster light can be adjusted. ( P. 9 4 )
The automatically displayed function of the Stop & Start system oper-
ation time can be activated or deactivated.
Push one of the “DISP” buttons and the Stop & Start system opera-
tion time is displayed, while the vehicle is stopped.
Push and hold the “DISP” buttons for 5 seconds.
Push the “DISP” buttons to
switch activate or deactivate.
Activated
Deactivated
The screen will change back to the
previous screen after 6 seconds or
by push and holding one of the
“DISP” buttons for 2 seconds.
Stop & Start system operation time customization (if equipped)
1
2

942. Instrument cluster
AYGO_OM_Europe_OM99Q24E
Push the one of the “DISP” buttons and the instrument cluster light
control display while the tail lights is turned on and vehicle is
stopped.
Push and hold one of the “DISP” buttons until instrument cluster
light control display flashes.
Push one of the “DISP” buttons.
Brighter
Darker
The illumination level can be set by
push and holding one of the “DISP”
buttons, turning off the tail lights, or
automatically 6 seconds after the
last button push has elapsed.
■ When disconnecting and reconnecting battery terminals
The following information data will be reset:
● Trip meters “A” and “B”
● Stop & Start system total operation time (if equipped)
● Average fuel consumption
● Average vehicle speed
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
Instrument cluster light control
1
2

952. Instrument cluster
2
Instrument cluster
AYGO_OM_Europe_OM99Q24E

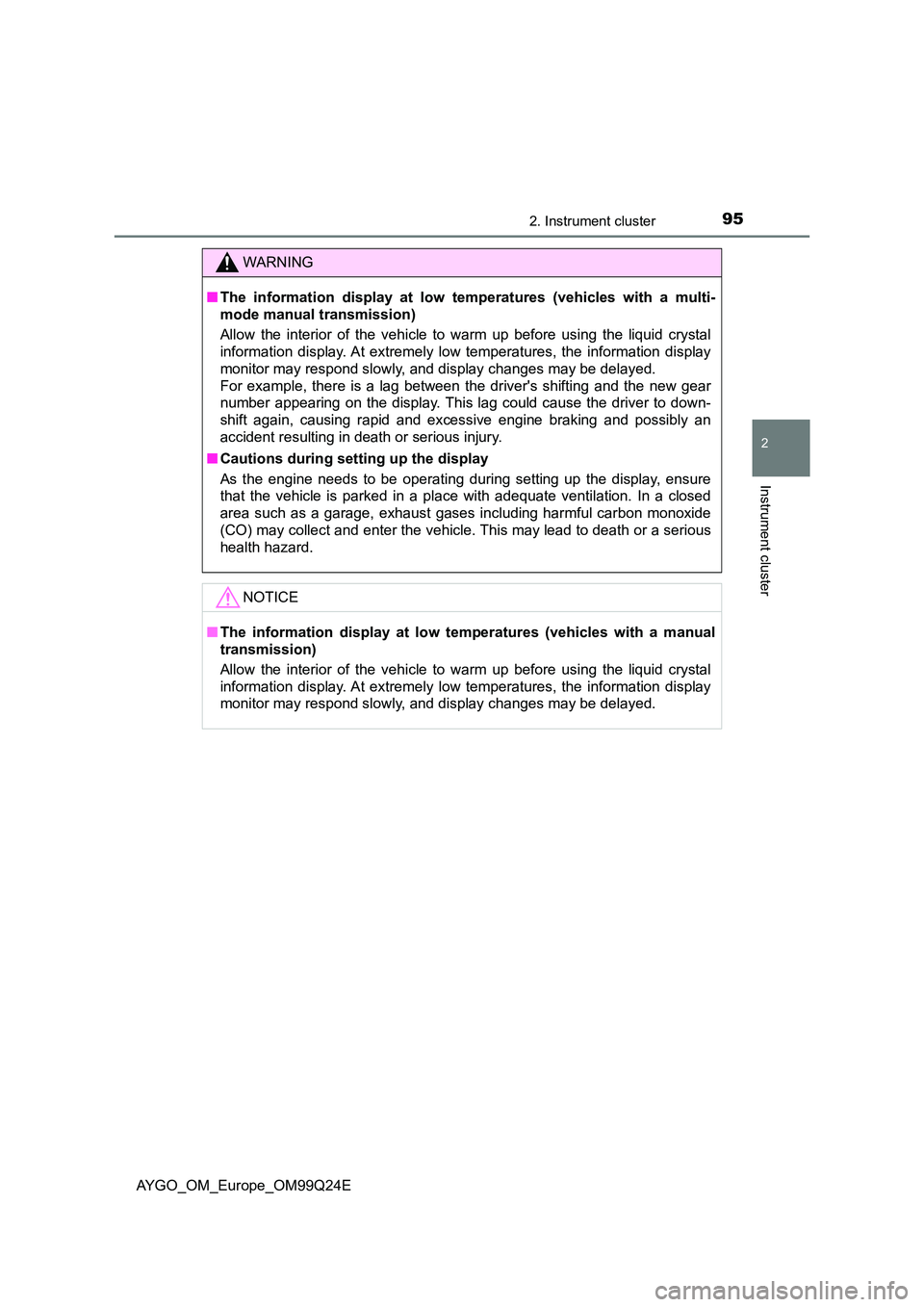

WARNING
■The information display at low temperatures (vehicles with a multi-
mode manual transmission)
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver's shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and exce ssive engine braking and possibly an
accident resulting in death or serious injury.
■ Cautions during setting up the display
As the engine needs to be operating during setting up the display, ensure
that the vehicle is parked in a place with adequate ventilation. In a closed
area such as a garage, exhaust gases including harmful carbon monoxide
(CO) may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■ The information display at low temperatures (vehicles with a manual
transmission)
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.

962. Instrument cluster
AYGO_OM_Europe_OM99Q24E

97
3
Operation of
each component
AYGO_OM_Europe_OM99Q24E
3-1. Key information
Keys ..................................... 98
3-2. Opening, closing and
locking the doors
Side doors.......................... 108
Back door........................... 113
Smart entry & start
system ............................. 119
3-3. Adjusting the seats
Front seats ......................... 127
Rear seats ......................... 129
Head restraints .................. 131
3-4. Adjusting the steering
wheel and mirrors
Steering wheel ................... 132
Inside rear view mirror ....... 134
Outside rear view
mirrors ............................. 135
3-5. Opening, closing
the windows and
canvas top
Power windows .................. 137
Rear side windows
(5-door models) ............... 138
Canvas top......................... 140

983-1. Key information
AYGO_OM_Europe_OM99Q24E
Keys

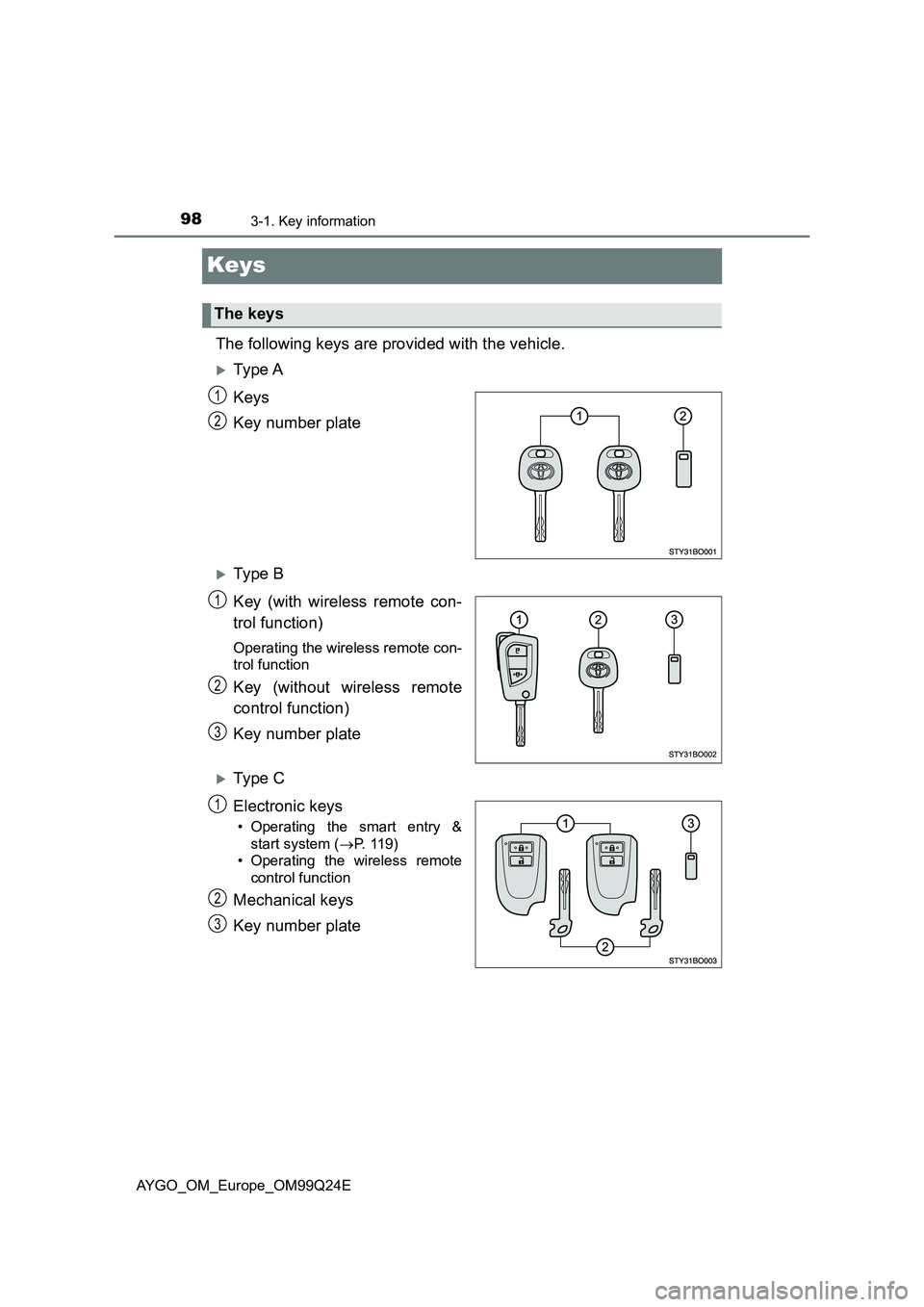

The following keys are provided with the vehicle.
Ty pe A
Keys
Key number plate
Ty pe B
Key (with wireless remote con-
trol function)
Operating the wireless remote con-
trol function
Key (without wireless remote
control function)
Key number plate
Ty pe C
Electronic keys
• Operating the smart entry &
start system ( P. 119)
• Operating the wireless remote
control function
Mechanical keys
Key number plate
The keys
1
2
1
2
3
1
2
3

993-1. Key information
3
Operation of each component
AYGO_OM_Europe_OM99Q24E
Ty pe B
Lock the doors ( P. 108, 113)
Unlock the doors
( P. 108, 113)
Ty pe C
Lock the doors ( P. 108, 113)
Unlock the doors
( P. 108, 113)
Press the button to open the key.
To stow, press the button then fold
the key.

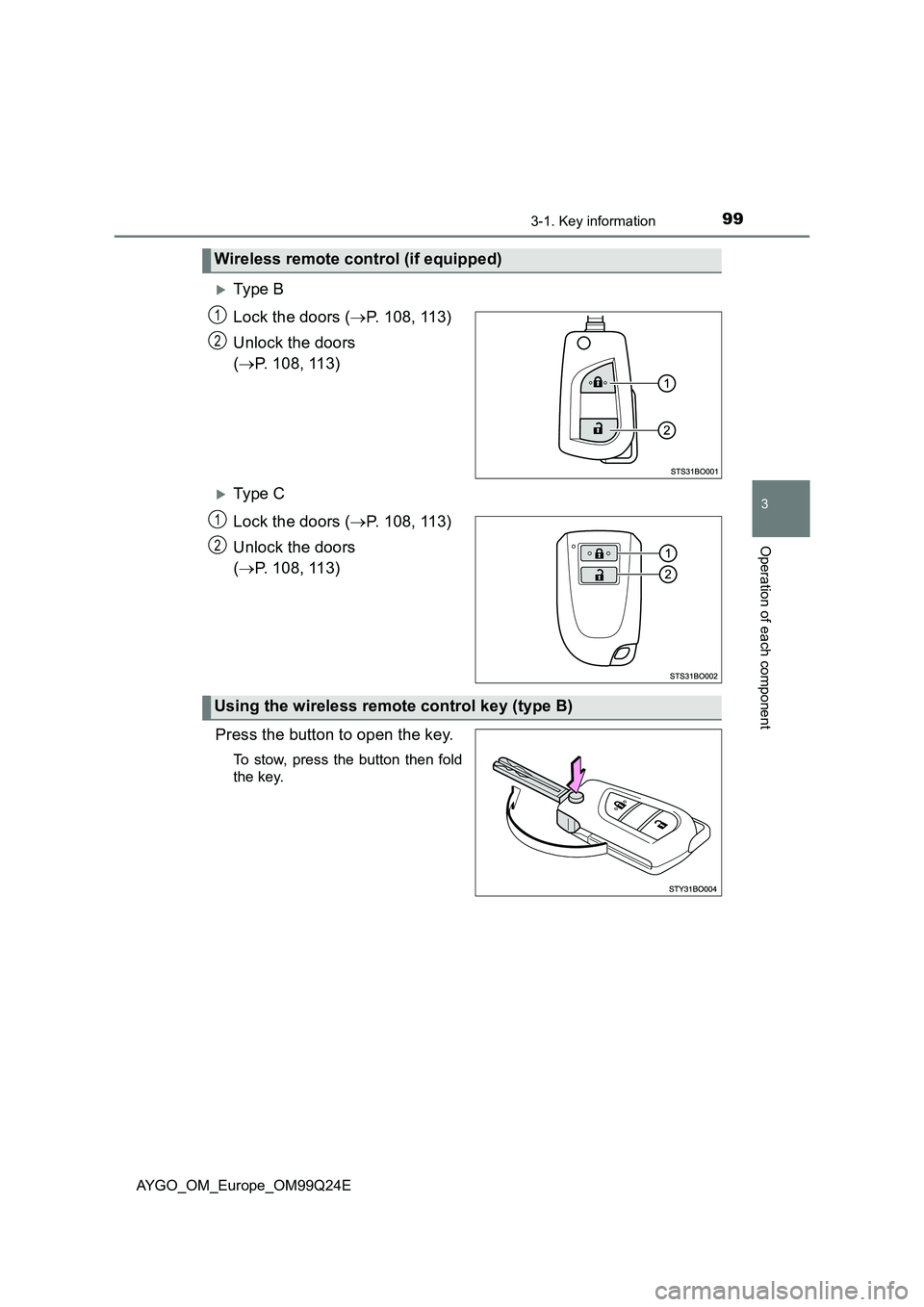

Wireless remote control (if equipped)
1
2
1
2
Using the wireless remote control key (type B)

1003-1. Key information
AYGO_OM_Europe_OM99Q24E

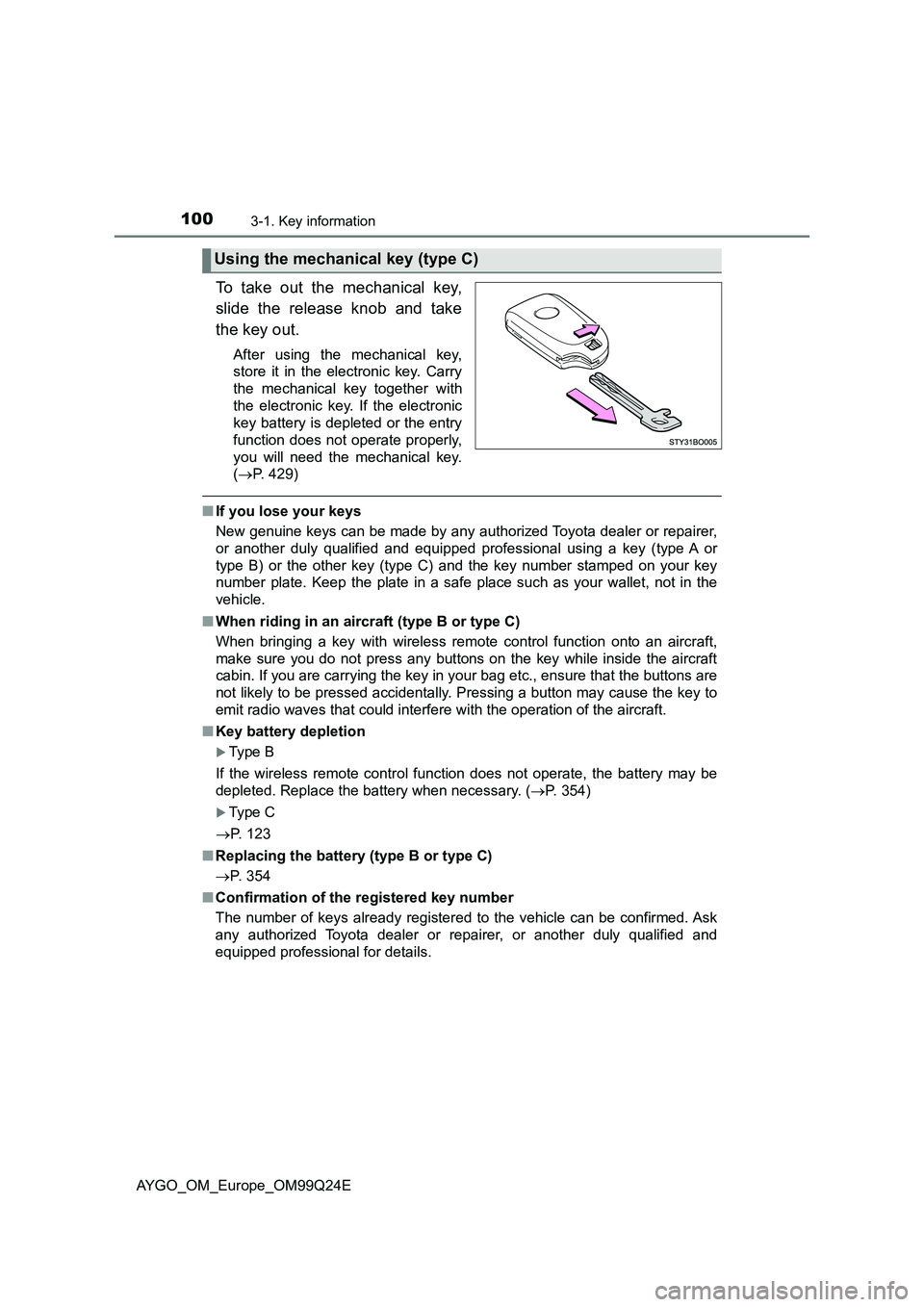

To take out the mechanical key,
