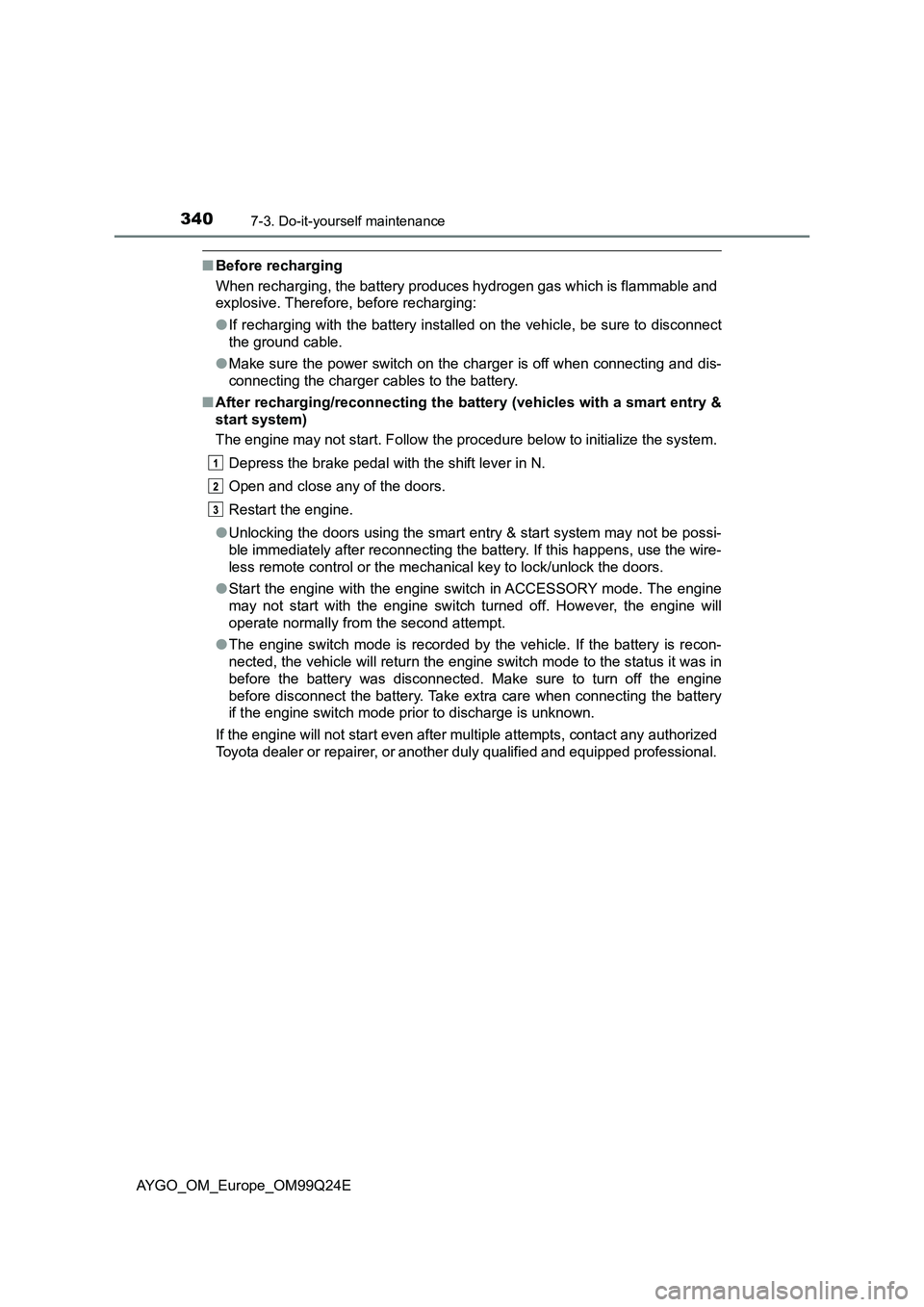

3407-3. Do-it-yourself maintenance
AYGO_OM_Europe_OM99Q24E
■Before recharging
When recharging, the battery produces hydrogen gas which is flammable and
explosive. Therefore, before recharging:
● If recharging with the battery installed on the vehicle, be sure to disconnect
the ground cable.
● Make sure the power switch on the charger is off when connecting and dis-
connecting the charger cables to the battery.
■ After recharging/reconnecting the battery (vehicles with a smart entry &
start system)
The engine may not start. Follow the pr ocedure below to initialize the system.
Depress the brake pedal with the shift lever in N.
Open and close any of the doors.
Restart the engine.
● Unlocking the doors using the smart entry & start system may not be possi-
ble immediately after reconnecting the battery. If this happens, use the wire-
less remote control or the mechanical key to lock/unlock the doors.
● Start the engine with the engine switch in ACCESSORY mode. The engine
may not start with the engine switch turned off. However, the engine will
operate normally from the second attempt.
● The engine switch mode is recorded by the vehicle. If the battery is recon-
nected, the vehicle will return the engine switch mode to the status it was in
before the battery was disconnected. Make sure to turn off the engine
before disconnect the battery. Take extra care when connecting the battery
if the engine switch mode prior to discharge is unknown.
If the engine will not start even after multiple attempts, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional.

3547-3. Do-it-yourself maintenance
AYGO_OM_Europe_OM99Q24E
Wireless remote control/electronic key
battery
● Flathead screwdriver
● Small flathead screwdriver
● Lithium battery CR2016 (vehicles without a smart entry & start sys-
tem), or CR2032 (vehicles with a smart entry & start system)
Vehicles without a smart entry & start system
Lift the cover.
Insert the flathead screwdriver in
the slot and push down.
To prevent damage to the key,
cover the tip of the flathead screw-
driver with a rag.
Remove the cover.
Insert the flathead screwdriver in
the bottom of key and push down.
: If equipped
Replace the battery with a new one if it is depleted.
You will need the following items:
Replacing the battery

3567-3. Do-it-yourself maintenance
AYGO_OM_Europe_OM99Q24E
■Use a CR2016 (vehicles without a smart entry & start system), or CR2032
(vehicles with a smart entry & start system) lithium battery
● Batteries can be purchased at any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional, local electrical appliance
shops or camera stores.
● Replace only with the same or equivalent type recommended by the manu-
facturer.
● Dispose of used batteries according to the local laws.
■ If the key battery is depleted
The following symptoms may occur:
● The smart entry & start system (if equipped) and wireless remote control will
not function properly.
● The operational range will be reduced.
WARNING
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
■ Certification for the electronic key battery
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN
INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO
THE INSTRUCTIONS
NOTICE
■ For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
● Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other component inside the remote control.
● Do not bend either of the battery terminals.

4298-2. Steps to take in an emergency
8
When trouble arises
AYGO_OM_Europe_OM99Q24E
If the electronic key does not operate properly
(vehicles with a smart entry & start system)
Use the mechanical key ( P.
100) in order to perform the fol-
lowing operations:
Locks all the doors
Unlocks all the doors
If communication between the electronic key and vehicle is
interrupted ( P. 121) or the electronic key cannot be used
because the battery is depleted, the smart entry & start system
and wireless remote control cannot be used. In such cases, the
doors can be opened and the engine can be started by following
the procedure below.
Locking and unlocking the doors
1
2

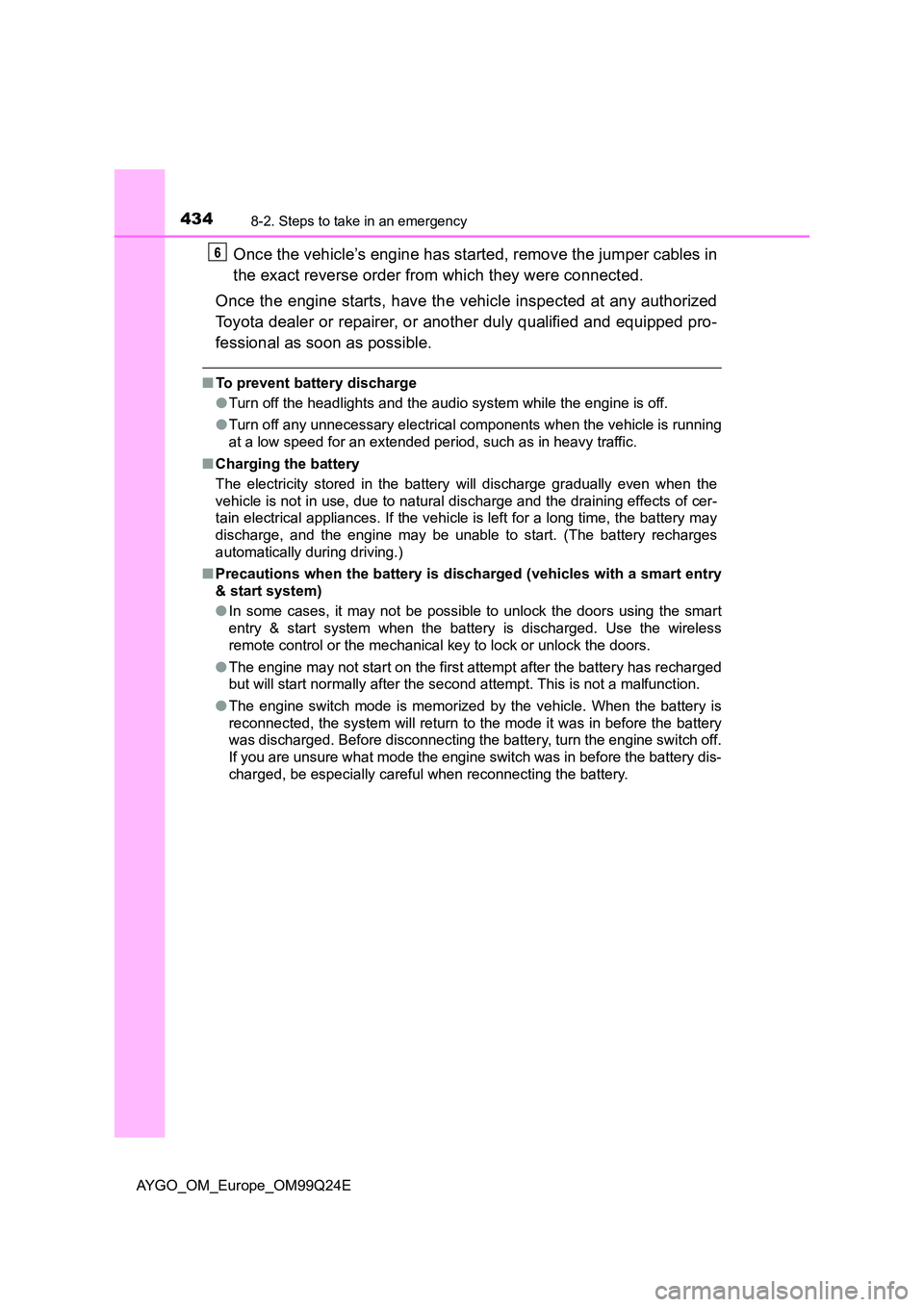

4348-2. Steps to take in an emergency
AYGO_OM_Europe_OM99Q24E
Once the vehicle’s engine has started, remove the jumper cables in
the exact reverse order from which they were connected.
Once the engine starts, have the vehicle inspected at any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional as soon as possible.
■ To prevent battery discharge
● Turn off the headlights and the audio system while the engine is off.
● Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic.
■ Charging the battery
The electricity stored in the battery will discharge gradually even when the
vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long time, the battery may
discharge, and the engine may be unable to start. (The battery recharges
automatically during driving.)
■ Precautions when the battery is discharged (vehicles with a smart entry
& start system)
● In some cases, it may not be possible to unlock the doors using the smart
entry & start system when the battery is discharged. Use the wireless
remote control or the mechanical key to lock or unlock the doors.
● The engine may not start on the first attempt after the battery has recharged
but will start normally after the second attempt. This is not a malfunction.
● The engine switch mode is memorized by the vehicle. When the battery is
reconnected, the system will return to the mode it was in before the battery
was discharged. Before disconnecting the battery, turn the engine switch off.
If you are unsure what mode the engine switch was in before the battery dis-
charged, be especially careful when reconnecting the battery.

471Alphabetical index
AYGO_OM_Europe_OM99Q24E
Identification ............................ 445
Vehicle .................................. 445
Ignition switch
(engine switch) .............. 155, 158
Immobilizer system ................... 76
Indicators.................................... 84
Initialization
Tire pressure warning
system ................................ 344
Inside rear view mirror ............ 134
Instrument cluster light
control ...................................... 94
Interior lights ............................ 304
Switch ................................... 304
Wattage................................. 456
ISOFIX rigid anchors ................. 55
Jack
Positioning a floor jack .......... 330
Vehicle-equipped jack ... 400, 413
Keyless entry
Smart entry &
start system ................ 109, 113
Wireless remote
control......................... 109, 113
Keys ............................................ 98
Battery-saving function ......... 121
Electronic key.......................... 98
Engine switch ................ 155, 158
If the electronic key does not
operate properly ................. 429
If you lose your keys ............. 100
Key number plate.................... 98
Keyless entry .................. 99, 119
Keys ........................................ 98
Replacing the battery ............ 354
Warning buzzer..................... 120
Wireless remote control
key........................................ 99
Lane Departure Alert (LDA) .... 206
LDA (Lane Departure Alert) .... 206
Lever
Auxiliary catch lever .............. 328
Hood lock release lever ........ 328
Shift lever ...................... 163, 168
Turn signal lever ................... 170
Wiper lever............................ 178
License plate lights ................. 172
Light switch ........................... 172
Replacing light bulbs............. 372
Wattage ................................ 456
Light
Fog light switch ..................... 176
Headlight switch.................... 172
Interior light list...................... 304
Interior lights ......................... 304
Luggage compartment
light..................................... 115
Replacing light bulbs............. 365
Turn signal lever ................... 170
Wattage ................................ 456
Light bulbs
Replacing .............................. 365
Wattage ................................ 456
Lock steering column ..... 156, 161
Luggage cover ......................... 309
I
J
K
L
*: For vehicles with a multimedia system , refer to “Multimedia owner’s manual”.
