261
5
5-5. Using Bluetooth® devices
Audio system
AYGO_OM_Europe_OM99Q24E

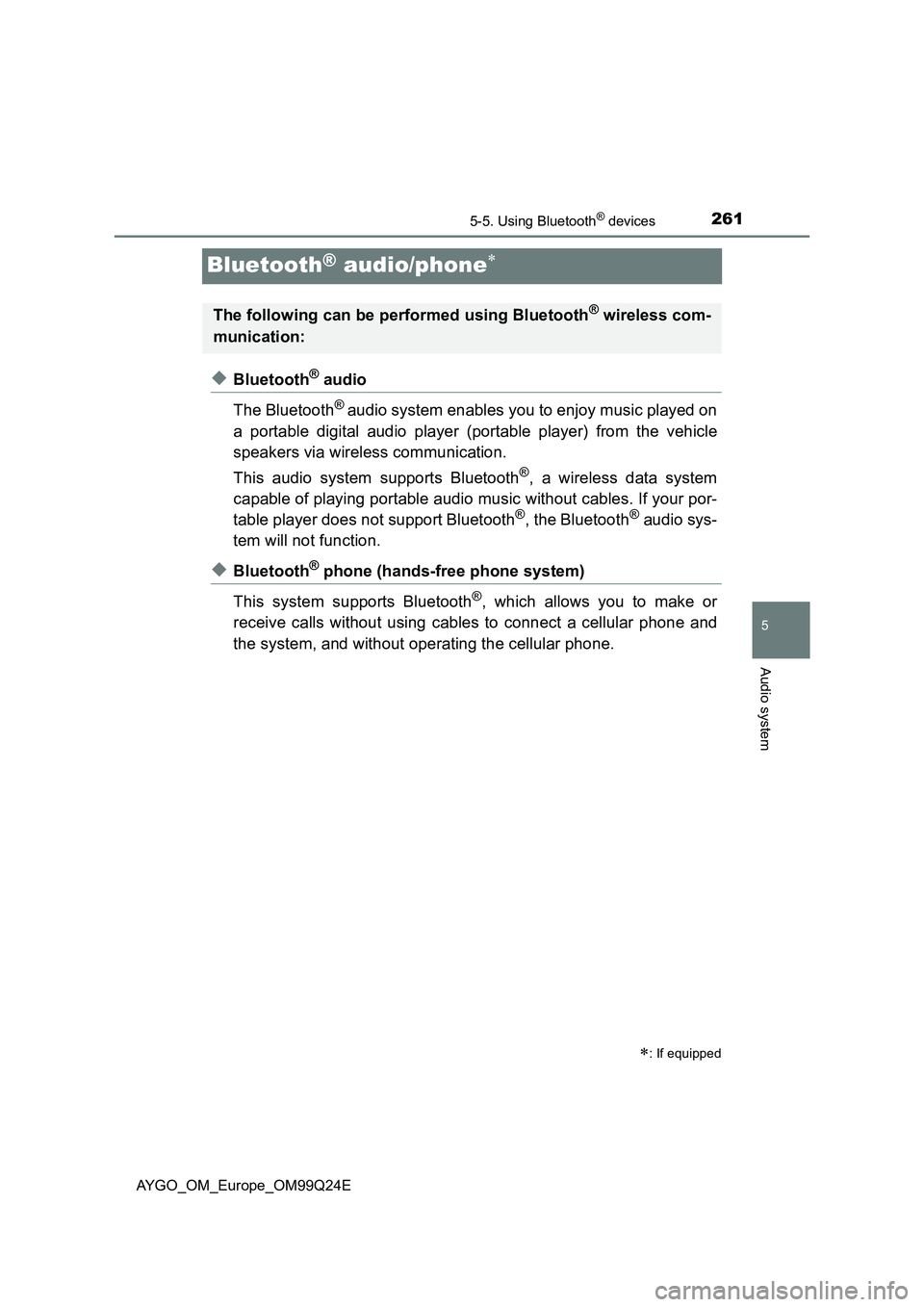

Bluetooth® audio/phone
◆Bluetooth® audio
The Bluetooth® audio system enables you to enjoy music played on
a portable digital audio player (portable player) from the vehicle
speakers via wireless communication.
This audio system supports Bluetooth®, a wireless data system
capable of playing portable audio music without cables. If your por-
table player does not support Bluetooth®, the Bluetooth® audio sys-
tem will not function.
◆Bluetooth® phone (hands-free phone system)
This system supports Bluetooth®, which allows you to make or
receive calls without using cables to connect a cellular phone and
the system, and without operating the cellular phone.
: If equipped
The following can be performed using Bluetooth® wireless com-
munication:

2625-5. Using Bluetooth® devices
AYGO_OM_Europe_OM99Q24E

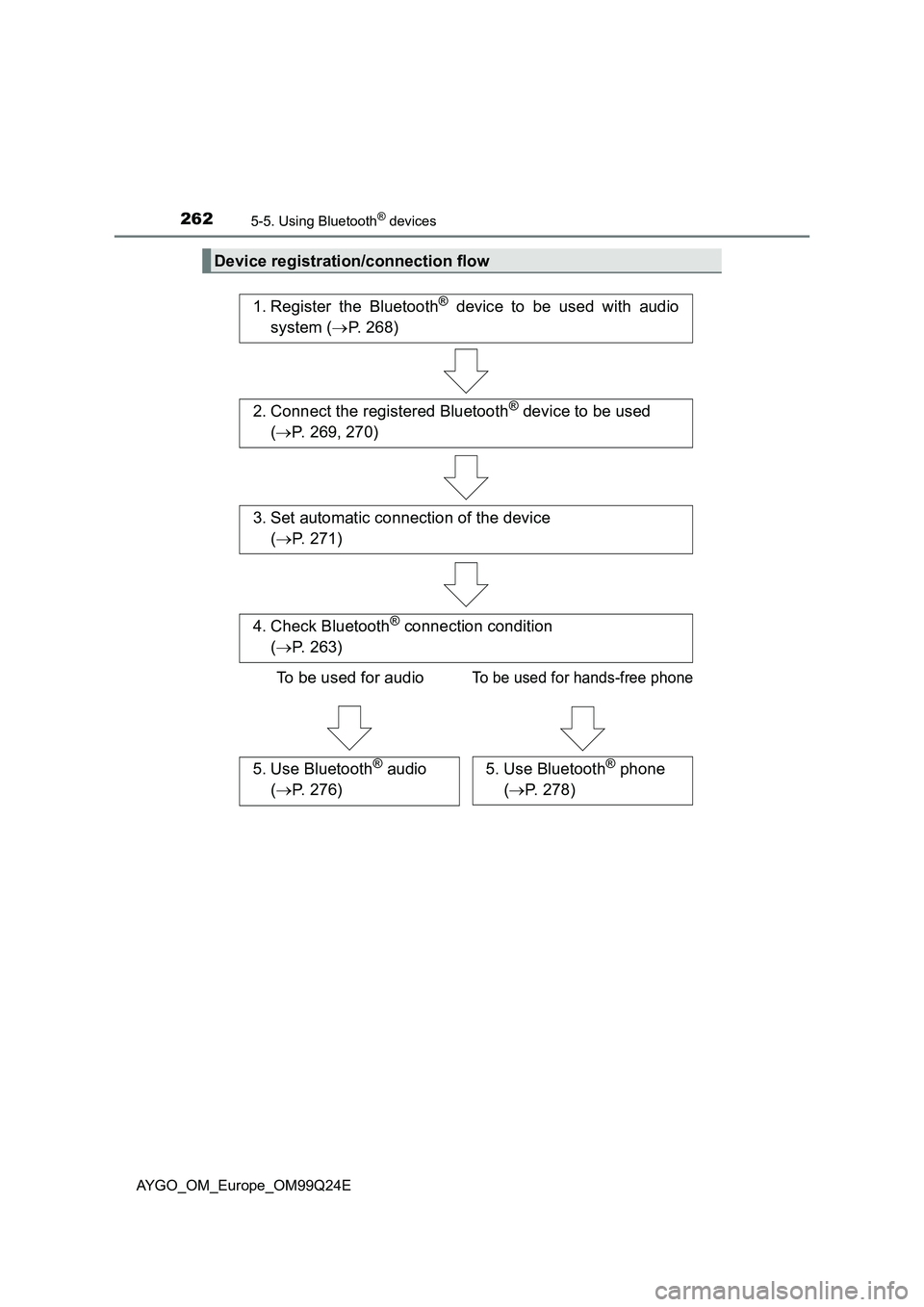

Device registration/connection flow
1. Register the Bluetooth® device to be used with audio
system ( P. 268)
2. Connect the registered Bluetooth® device to be used
( P. 269, 270)
5. Use Bluetooth® audio
( P. 276)
5. Use Bluetooth® phone
( P. 278)
4. Check Bluetooth® connection condition
( P. 263)
To be used for audioTo be used for hands-free phone
3. Set automatic connection of the device
( P. 271)

2635-5. Using Bluetooth® devices
5
Audio system
AYGO_OM_Europe_OM99Q24E

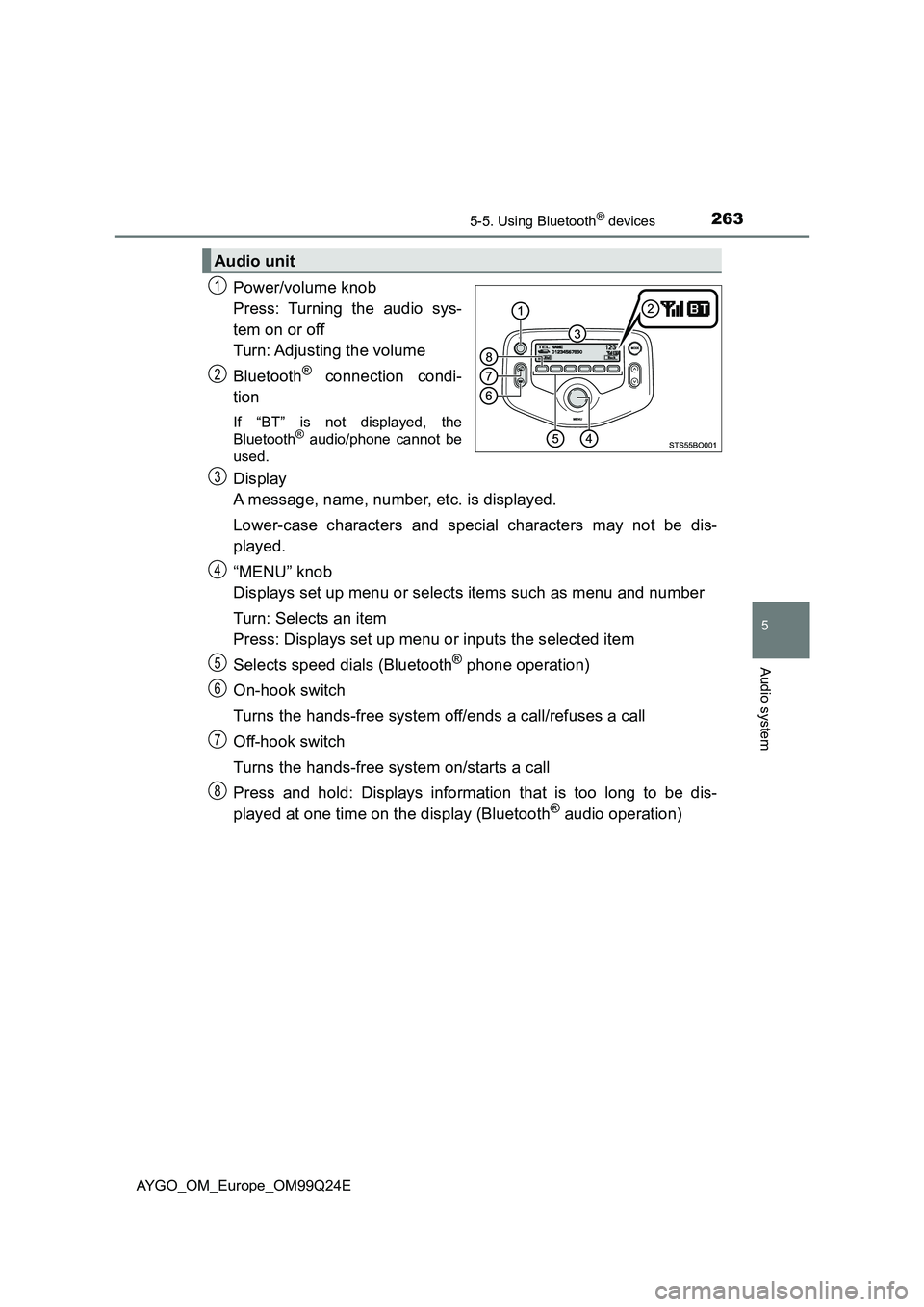

Power/volume knob
Press: Turning the audio sys-
tem on or off
Turn: Adjusting the volume
Bluetooth® connection condi-
tion
If “BT” is not displayed, the
Bluetooth® audio/phone cannot be
used.
Display
A message, name, number, etc. is displayed.
Lower-case characters and special characters may not be dis-
played.
“MENU” knob
Displays set up menu or selects items such as menu and number
Turn: Selects an item
Press: Displays set up menu or inputs the selected item
Selects speed dials (Bluetooth® phone operation)
On-hook switch
Turns the hands-free system off/ends a call/refuses a call
Off-hook switch
Turns the hands-free system on/starts a call
Press and hold: Displays information that is too long to be dis-
played at one time on the display (Bluetooth® audio operation)
Audio unit
1
2
3
4
5
6
7
8

2645-5. Using Bluetooth® devices
AYGO_OM_Europe_OM99Q24E
■When the other party may not hear you clearly
● Driving on an unpaved road. (Making excessive traffic noise.)
● Driving at high speeds.
● The canvas top (if equipped) or windows are open.
● The sound of the air conditioning fan is loud.
● There is a negative effect on sound quality due to the phone and/or network
being used.
Microphone

2655-5. Using Bluetooth® devices
5
Audio system
AYGO_OM_Europe_OM99Q24E
To enter a menu, press the “MENU” knob and navigate menus by
using the knob.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.

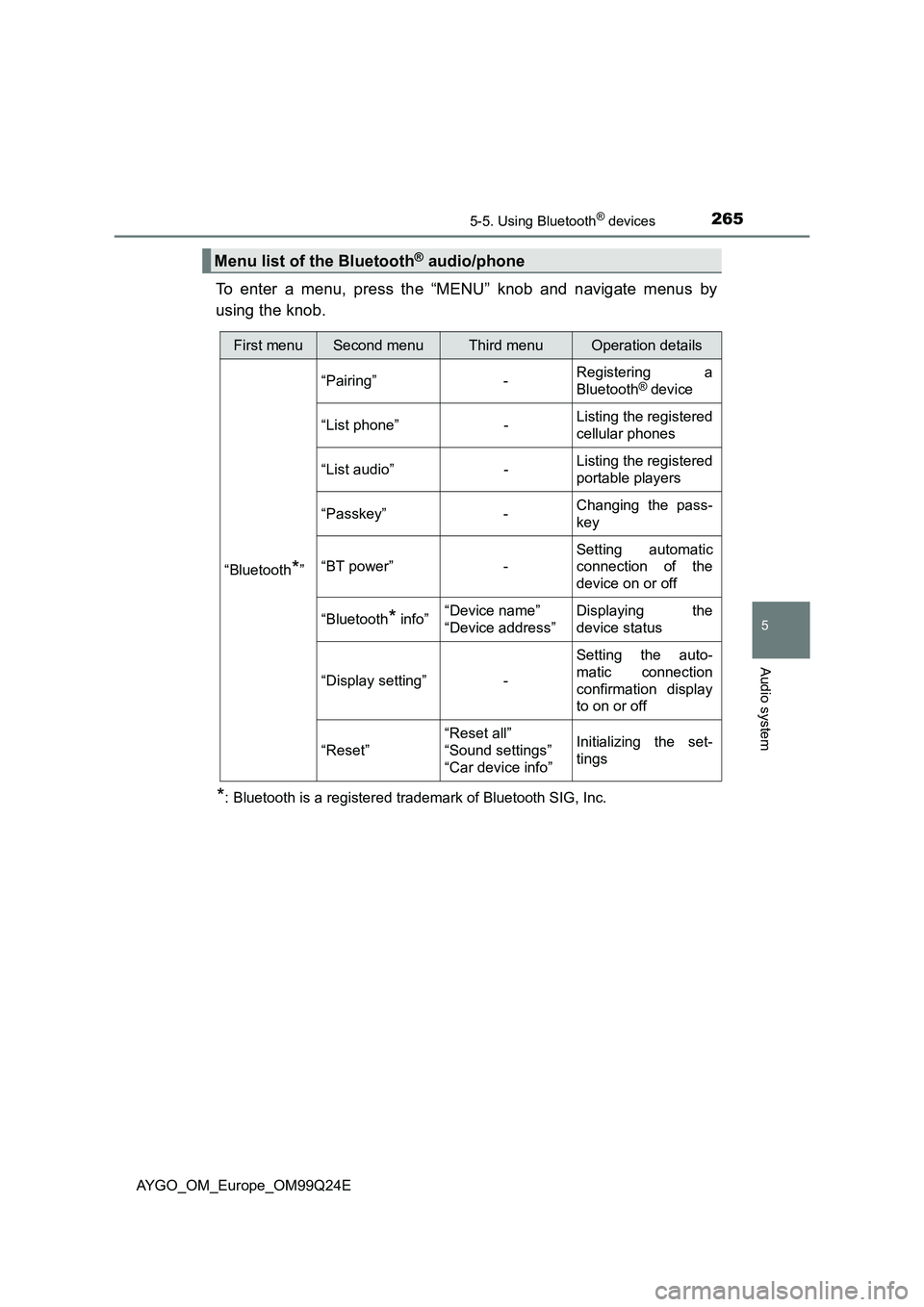

Menu list of the Bluetooth® audio/phone
First menuSecond menuThird menuOperation details
“Bluetooth*”
“Pairing” - Registering a
Bluetooth® device
“List phone” - Listing the registered
cellular phones
“List audio” - Listing the registered
portable players
“Passkey” - Changing the pass-
key
“BT power” -
Setting automatic
connection of the
device on or off
“Bluetooth* info” “Device name”
“Device address”
Displaying the
device status
“Display setting” -
Setting the auto-
matic connection
confirmation display
to on or off
“Reset”
“Reset all”
“Sound settings”
“Car device info”
Initializing the set-
tings

2665-5. Using Bluetooth® devices
AYGO_OM_Europe_OM99Q24E

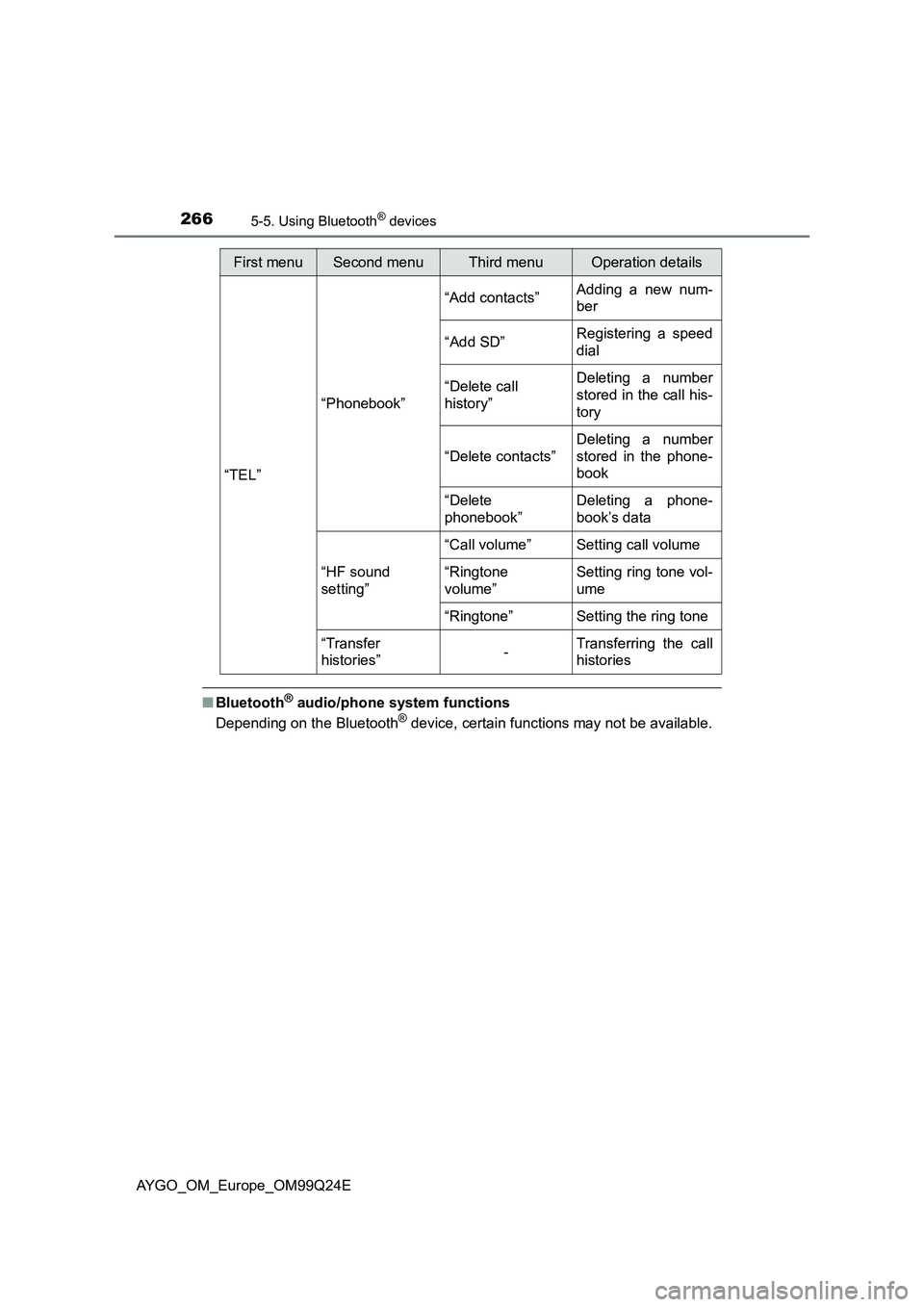

■Bluetooth® audio/phone system functions
Depending on the Bluetooth® device, certain functions may not be available.
First menuSecond menuThird menuOperation details
“TEL”
“Phonebook”
“Add contacts” Adding a new num-
ber
“Add SD” Registering a speed
dial
“Delete call
history”
Deleting a number
stored in the call his-
tory
“Delete contacts”
Deleting a number
stored in the phone-
book
“Delete
phonebook”
Deleting a phone-
book’s data
“HF sound
setting”
“Call volume” Setting call volume
“Ringtone
volume”
Setting ring tone vol-
ume
“Ringtone” Setting the ring tone
“Transfer
histories” - Transferring the call
histories

267
5
5-5. Using Bluetooth® devices
Audio system
AYGO_OM_Europe_OM99Q24E

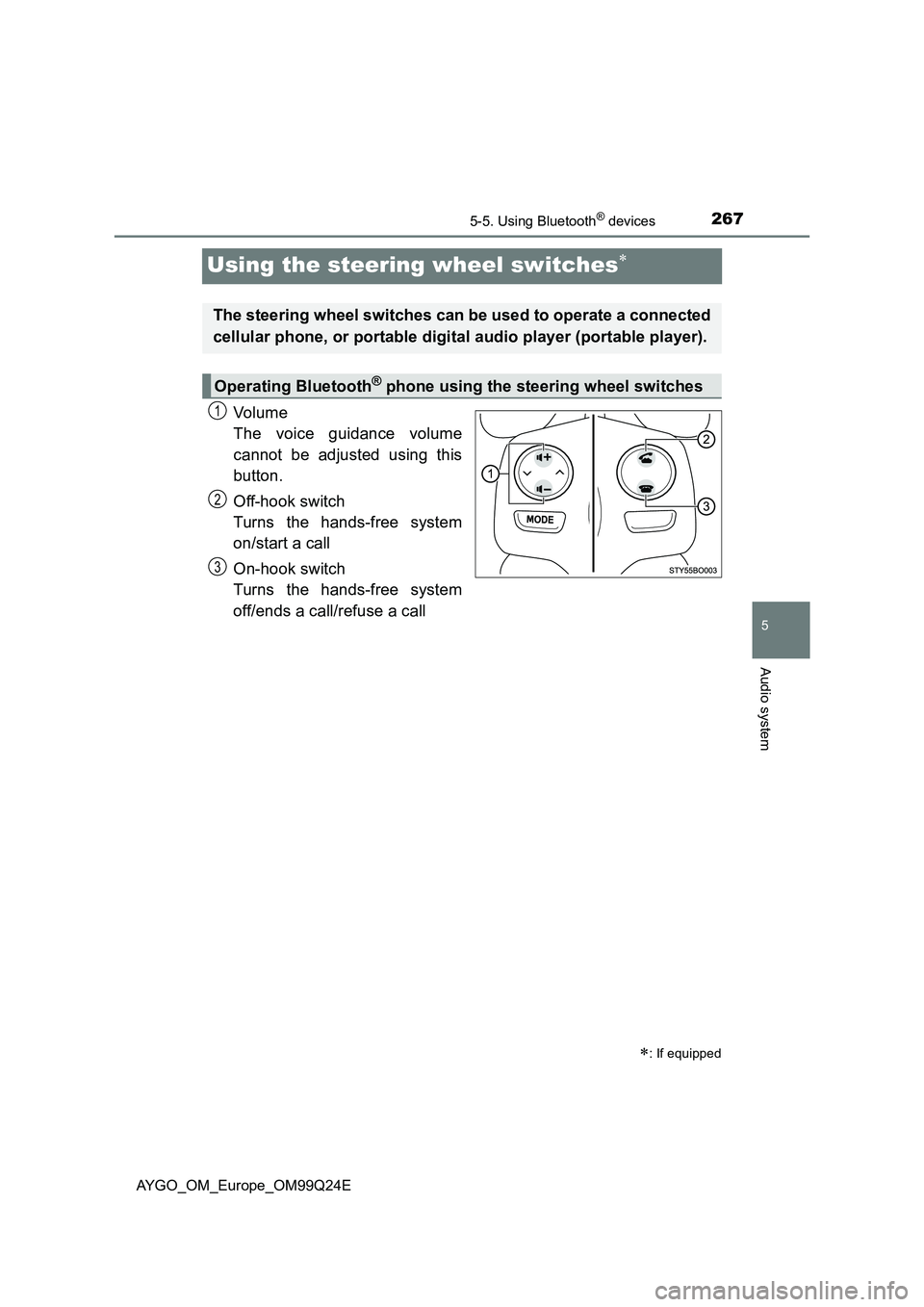

Using the steering wheel switches
Vo lu m e
The voice guidance volume
cannot be adjusted using this
button.
Off-hook switch
Turns the hands-free system
on/start a call
On-hook switch
Turns the hands-free system
off/ends a call/refuse a call
: If equipped
The steering wheel switches can be used to operate a connected
cellular phone, or portable digital audio player (portable player).
Operating Bluetooth® phone using the steering wheel switches
1
2
3

2685-5. Using Bluetooth® devices
AYGO_OM_Europe_OM99Q24E

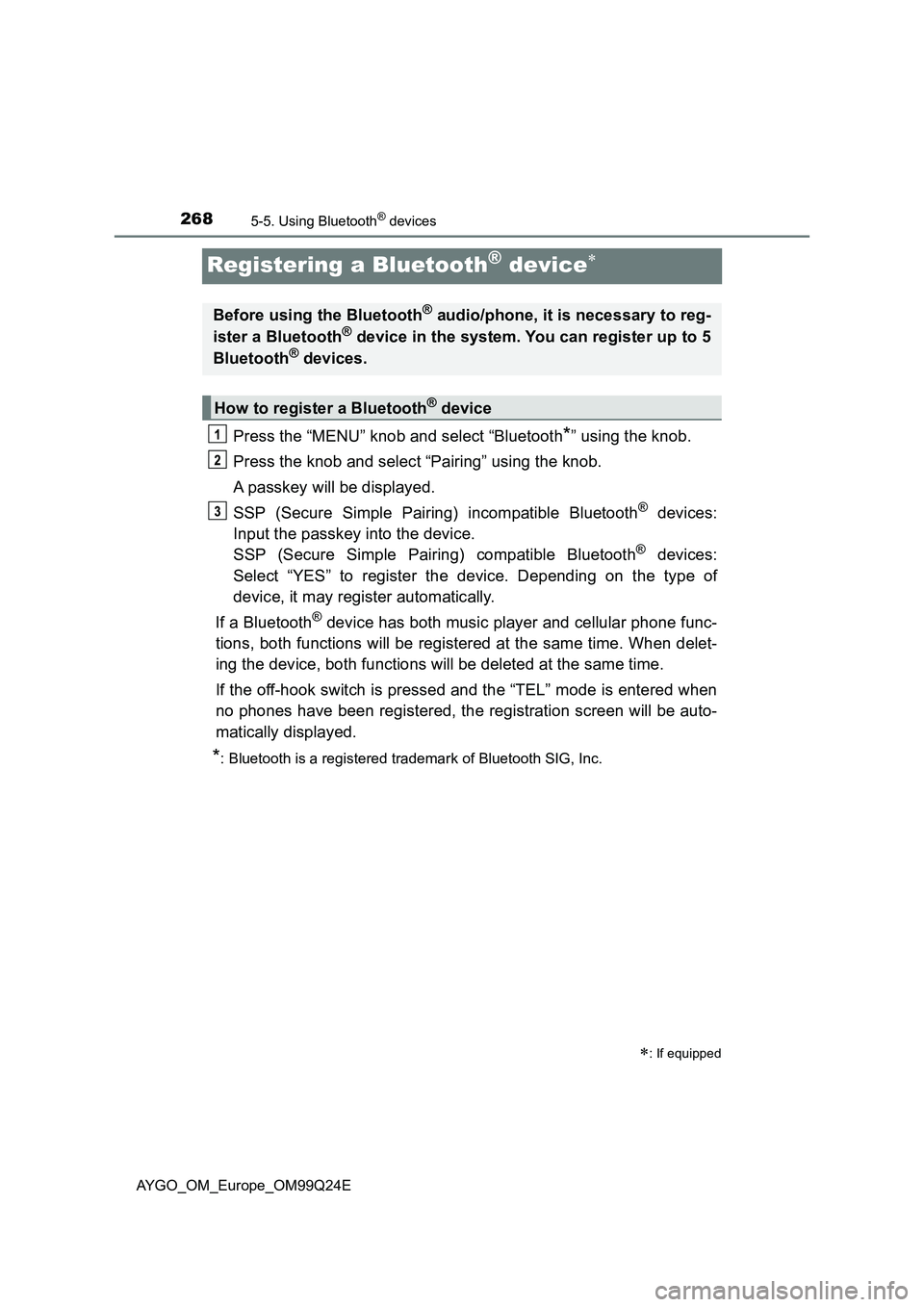

Registering a Bluetooth® device
Press the “MENU” knob and select “Bluetooth*” using the knob.
Press the knob and select “Pairing” using the knob.
A passkey will be displayed.
SSP (Secure Simple Pairing) incompatible Bluetooth® devices:
Input the passkey into the device.
SSP (Secure Simple Pairing) compatible Bluetooth® devices:
Select “YES” to register the device. Depending on the type of
device, it may register automatically.
If a Bluetooth® device has both music player and cellular phone func-
tions, both functions will be registered at the same time. When delet-
ing the device, both functions will be deleted at the same time.
If the off-hook switch is pressed and the “TEL” mode is entered when
no phones have been registered, the registration screen will be auto-
matically displayed.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
: If equipped
Before using the Bluetooth® audio/phone, it is necessary to reg-
ister a Bluetooth® device in the system. You can register up to 5
Bluetooth® devices.
How to register a Bluetooth® device

269
5
5-6. “SETUP” menu
Audio system
AYGO_OM_Europe_OM99Q24E

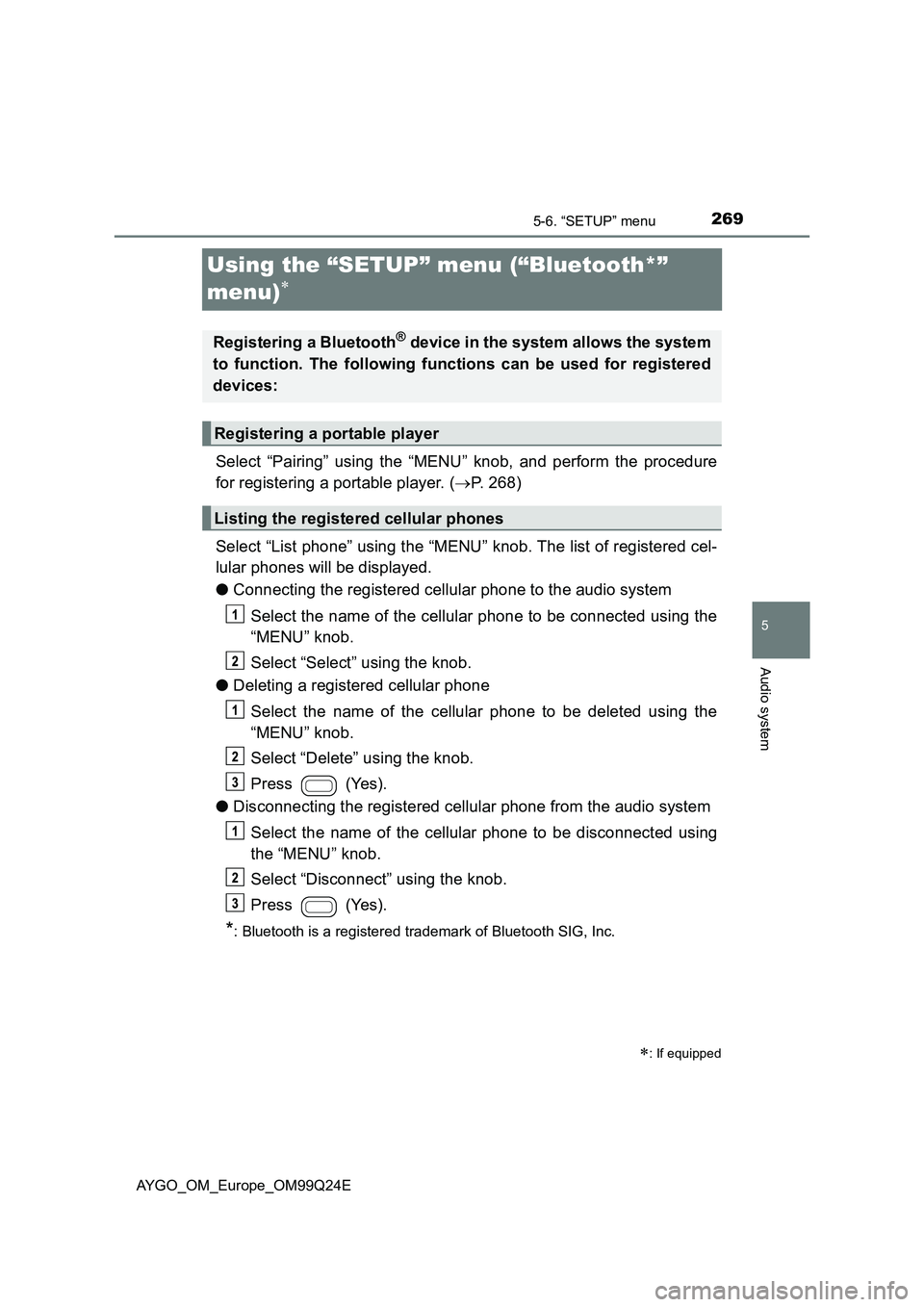

Using the “SETUP” menu (“Bluetooth*”
menu)
Select “Pairing” using the “MENU” knob, and perform the procedure
for registering a portable player. ( P. 268)
Select “List phone” using the “MENU” knob. The list of registered cel-
lular phones will be displayed.
● Connecting the registered cellular phone to the audio system
Select the name of the cellular phone to be connected using the
“MENU” knob.
Select “Select” using the knob.
● Deleting a registered cellular phone
Select the name of the cellular phone to be deleted using the
“MENU” knob.
Select “Delete” using the knob.
Press (Yes).
● Disconnecting the registered cellular phone from the audio system
Select the name of the cellular phone to be disconnected using
the “MENU” knob.
Select “Disconnect” using the knob.
Press (Yes).
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
: If equipped
Registering a Bluetooth® device in the system allows the system
to function. The following functions can be used for registered
devices:
Registering a portable player
Listing the registered cellular phones

2705-6. “SETUP” menu
AYGO_OM_Europe_OM99Q24E

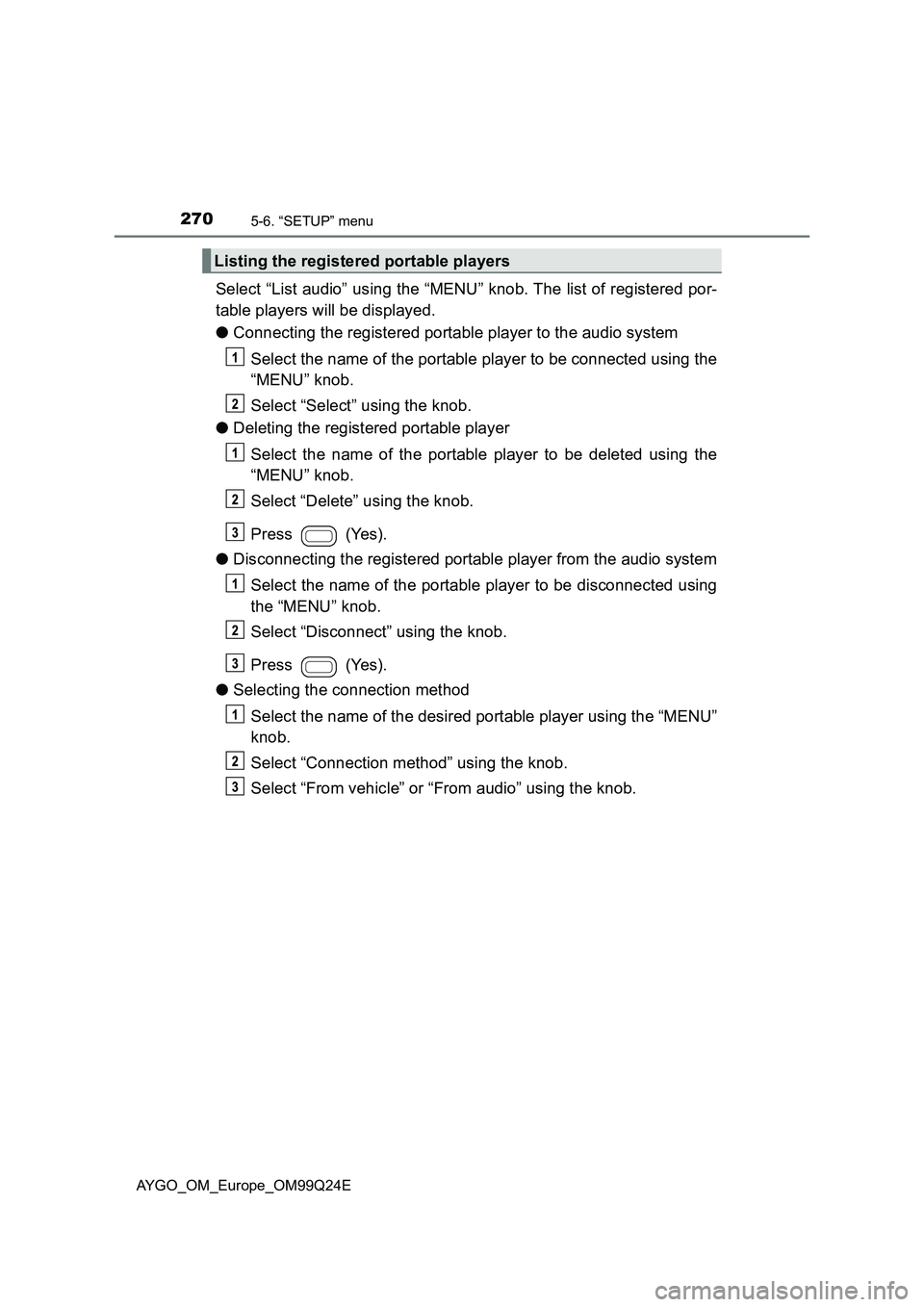

Select “List audio” using the “MENU” knob. The list of registered por-
table players will be displayed.
● Connecting the registered portable player to the audio system
Select the name of the portable player to be connected using the
“MENU” knob.
Select “Select” using the knob.
● Deleting the registered portable player
Select the name of the portable player to be deleted using the
“MENU” knob.
Select “Delete” using the knob.
Press (Yes).
● Disconnecting the registered portable player from the audio system
Select the name of the portable player to be disconnected using
the “MENU” knob.
Select “Disconnect” using the knob.
Press (Yes).
● Selecting the connection method
Select the name of the desired portable player using the “MENU”
knob.
Select “Connection method” using the knob.
Select “From vehicle” or “From audio” using the knob.
Listing the registered portable players
