TOYOTA AYGO 2017 Owners Manual (in English)

2314-7. Driving tips
4
Driving
AYGO_OM_Europe_OM99Q24E
■Tire chain installation
Observe the following precautions when installing and removing chains:
● Install and remove tire chains in a safe location.
● Install tire chains on the front tires only. Do not install tire chains on the rear
tires.
● Install tire chains on front tires as tightly as possible. Retighten chains after
driving 0.5  1.0 km (1/4  1/2 mile).
● Install tire chains following the instructions provided with the tire chains.
● If wheel ornaments are used, they will be scratched by the chain band, so
remove the ornaments before putting on the chains. ( P. 404)
WARNING
■Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in a loss of vehicle control and cause death or
serious injury.
● Use tires of the specified size.
● Maintain the recommended level of air pressure.
● Do not drive at speeds in excess of the speed limit or the speed limit spec-
ified for the snow tires being used.
● Use snow tires on all, not just some wheels.
■ Driving with tire chains (except vehicles with 15-inch tires)
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in the vehicle being unable to be driven safely,
and may cause death or serious injury.
● Do not drive in excess of the speed limit specified for the tire chains being
used, or 50 km/h (30 mph), whichever is lower.
● Avoid driving on bumpy road surfaces or over potholes.
● Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
● Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.
● Do not use LDA (Lane Departure Alert) (if equipped).

2324-7. Driving tips
AYGO_OM_Europe_OM99Q24E

233

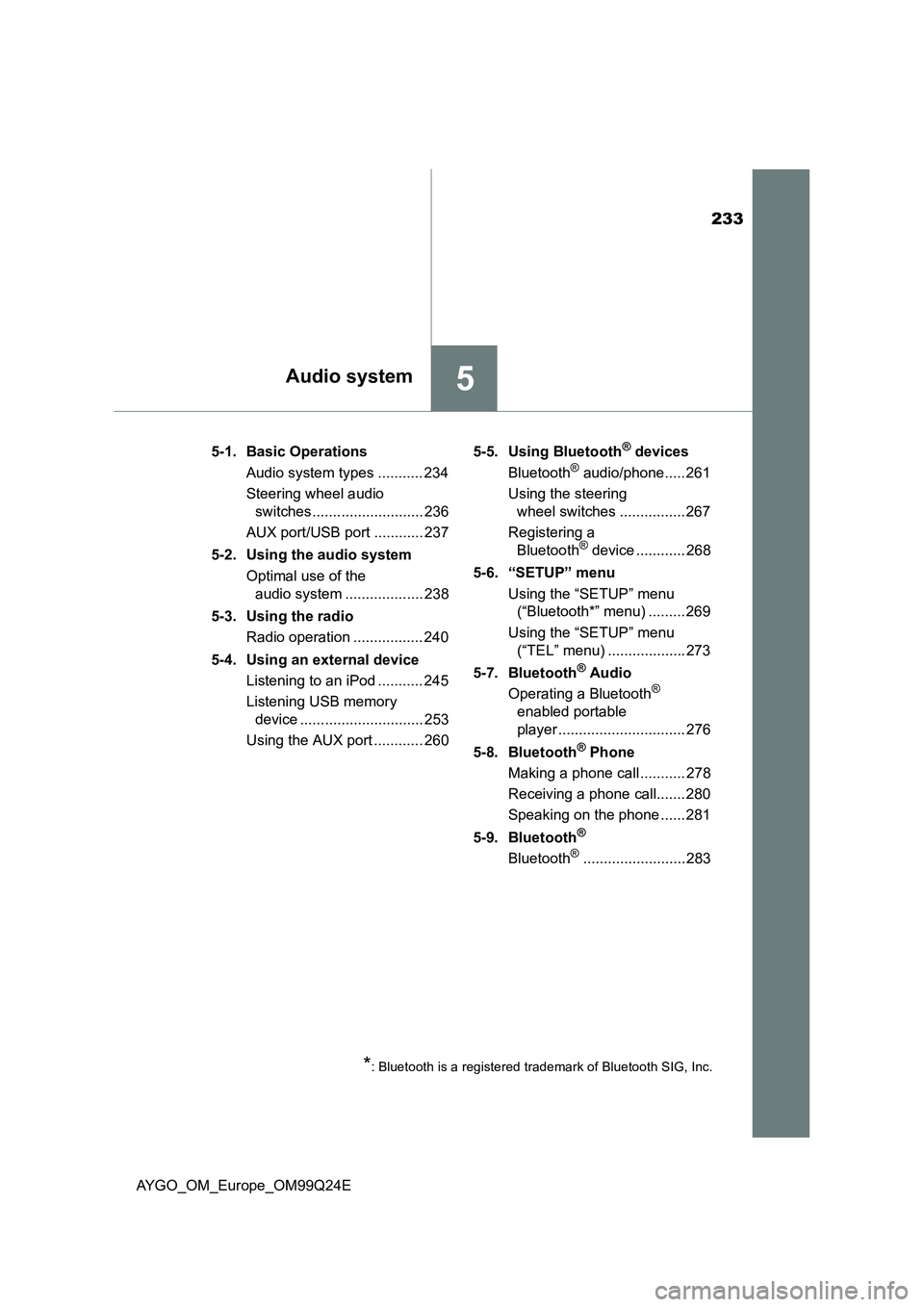

5Audio system
AYGO_OM_Europe_OM99Q24E
5-1. Basic Operations
Audio system types ........... 234
Steering wheel audio
switches ........................... 236
AUX port/USB port ............ 237
5-2. Using the audio system
Optimal use of the
audio system ................... 238
5-3. Using the radio
Radio operation ................. 240
5-4. Using an external device
Listening to an iPod ........... 245
Listening USB memory
device .............................. 253
Using the AUX port ............ 260
5-5. Using Bluetooth® devices
Bluetooth® audio/phone..... 261
Using the steering
wheel switches ................ 267
Registering a
Bluetooth® device ............ 268
5-6. “SETUP” menu
Using the “SETUP” menu
(“Bluetooth*” menu) ......... 269
Using the “SETUP” menu
(“TEL” menu) ................... 273
5-7. Bluetooth® Audio
Operating a Bluetooth®
enabled portable
player ............................... 276
5-8. Bluetooth® Phone
Making a phone call ........... 278
Receiving a phone call....... 280
Speaking on the phone ...... 281
5-9. Bluetooth®
Bluetooth®......................... 283
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.

2345-1. Basic Operations
AYGO_OM_Europe_OM99Q24E

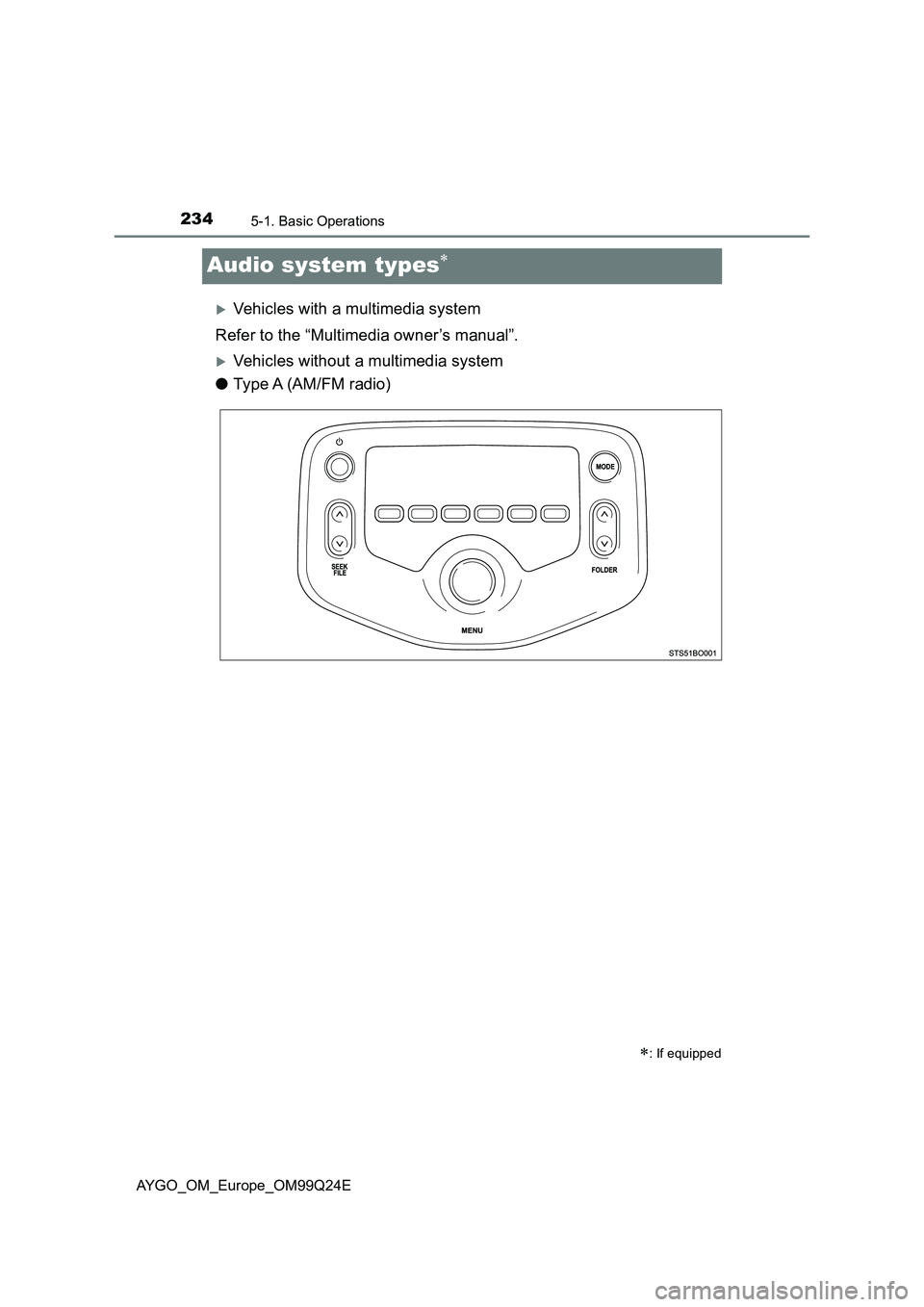

Audio system types
Vehicles with a multimedia system
Refer to the “Multimedia owner’s manual”.
Vehicles without a multimedia system
● Type A (AM/FM radio)
: If equipped

2355-1. Basic Operations
5
Audio system
AYGO_OM_Europe_OM99Q24E
●Type B (AM/FM radio with Bluetooth®)
■Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular
phone is being used inside or close to the vehicle while the audio system is
operating.
NOTICE
■ To prevent battery discharge
Do not leave the audio system on longer than necessary with the engine
stopped.
■ To avoid damaging the audio system
Take care not to spill drinks or other fluids over the audio system.

2365-1. Basic Operations
AYGO_OM_Europe_OM99Q24E
Steering wheel audio switches
Vo lu m e swi tc h
• Increases/decreases volume
• Press and hold: Continuously
increases/decreases volume
Radio mode:
• Press: Select a radio station
• Press and hold: Seek up/
down
Bluetooth®, iPod or USB mode:
• Press: Select a track/file/song
• Press and hold: Select a folder or album (Bluetooth® or USB)
“MODE” switch
• Turns the power on, selects audio source
• Press and hold this switch to mute or pause the current opera-
tion. To cancel the mute or pause, press and hold the switch
again.
: If equipped
Some audio features can be controlled using the switches on
the steering wheel.
Operation may differ depending on the type of audio system or
navigation system. For details, refer to the manual provided with
the audio system or navigation system.
Operating the audio system using the steering wheel switches
1
2
WARNING
■ To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
3

237
5
5-1. Basic Operations
Audio system
AYGO_OM_Europe_OM99Q24E

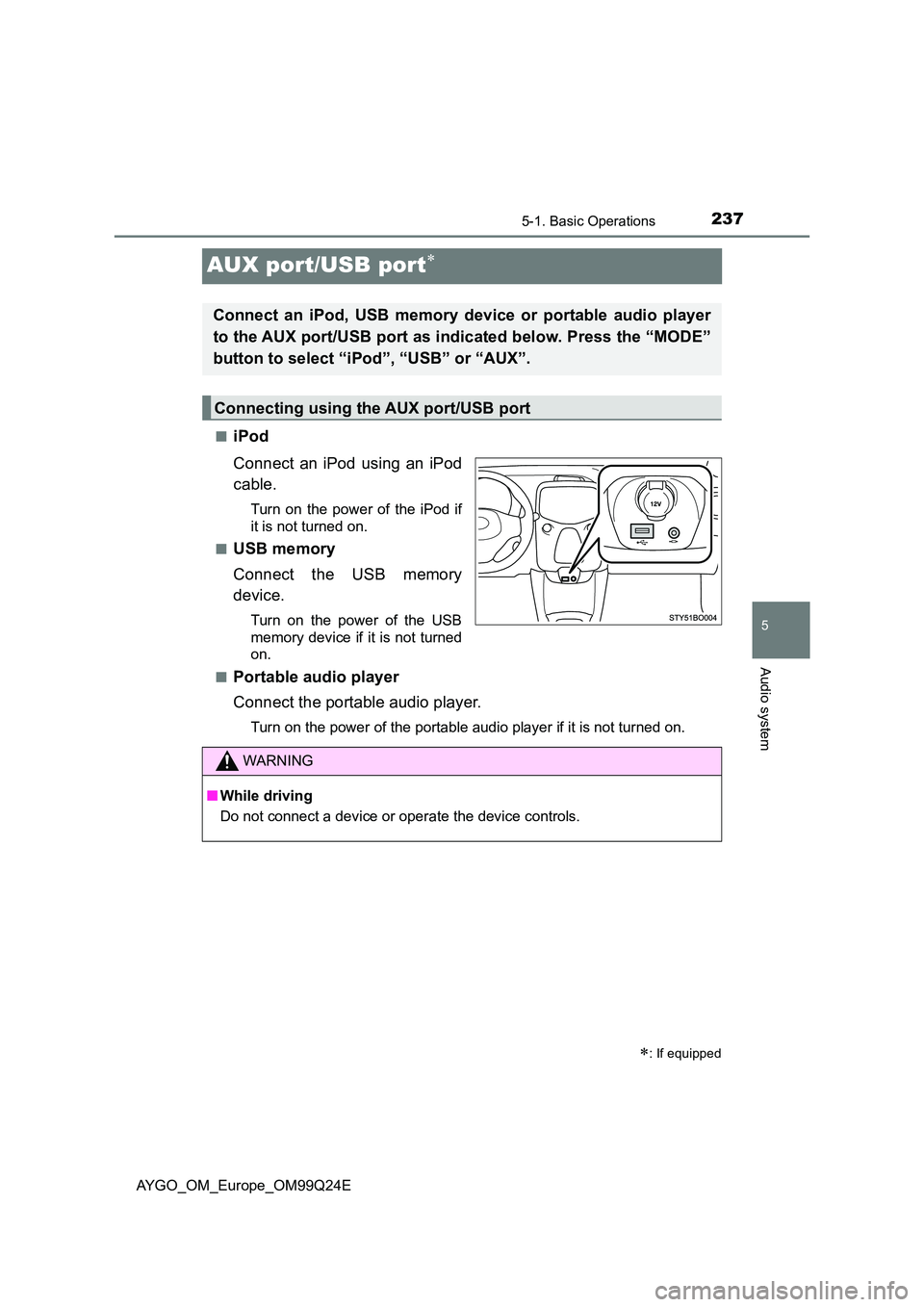

AUX port/USB port
■iPod
Connect an iPod using an iPod
cable.
Turn on the power of the iPod if
it is not turned on.
■USB memory
Connect the USB memory
device.
Turn on the power of the USB
memory device if it is not turned
on.
■Portable audio player
Connect the portable audio player.
Turn on the power of the portable audio player if it is not turned on.
: If equipped
Connect an iPod, USB memory device or portable audio player
to the AUX port/USB port as indicated below. Press the “MODE”
button to select “iPod”, “USB” or “AUX”.
Connecting using the AUX port/USB port
WARNING
■ While driving
Do not connect a device or operate the device controls.

2385-2. Using the audio system
AYGO_OM_Europe_OM99Q24E

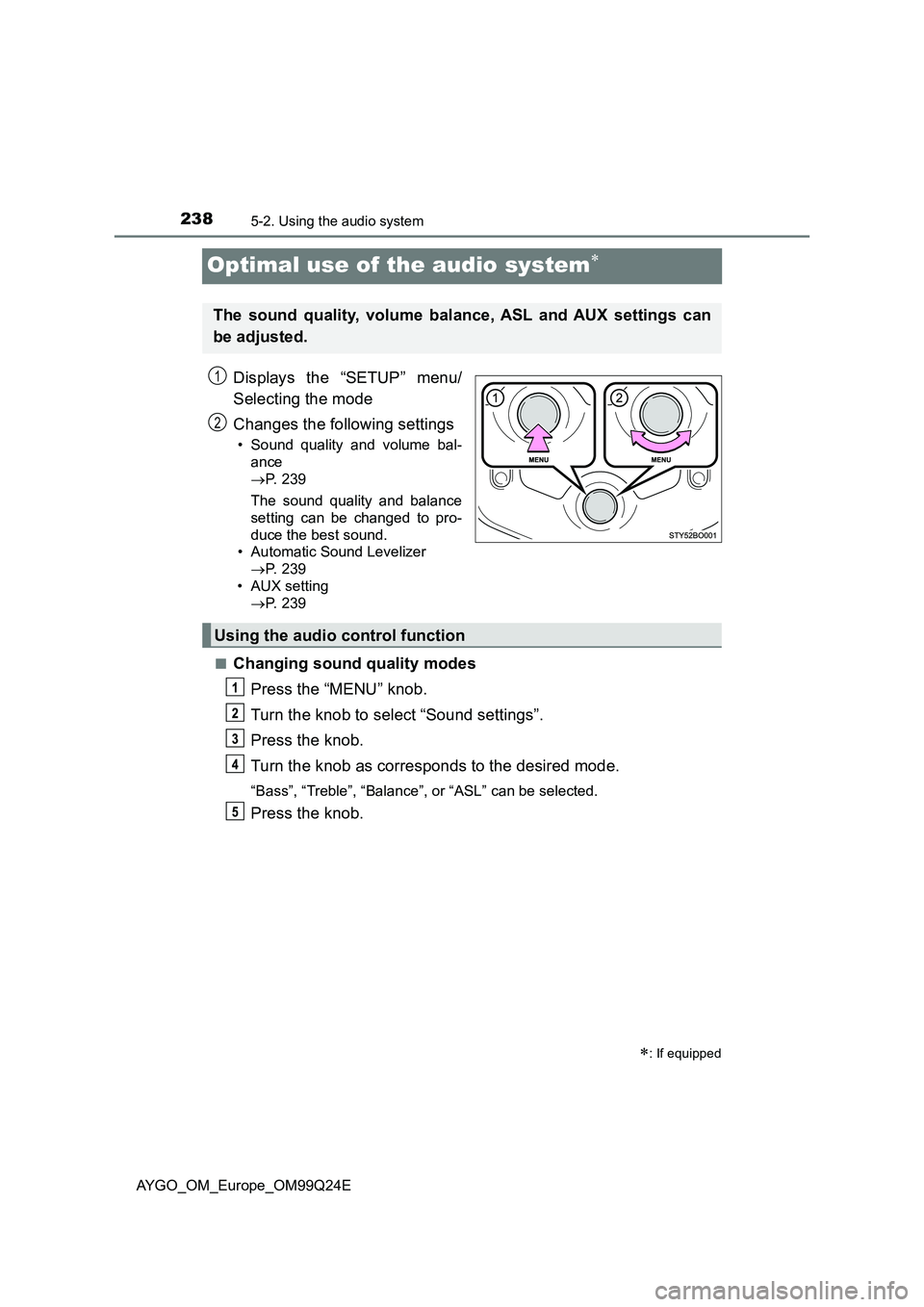

Optimal use of the audio system
Displays the “SETUP” menu/
Selecting the mode
Changes the following settings
• Sound quality and volume bal-
ance
 P. 2 3 9
The sound quality and balance
setting can be changed to pro-
duce the best sound.
• Automatic Sound Levelizer
 P. 2 3 9
• AUX setting
 P. 2 3 9
■Changing sound quality modes
Press the “MENU” knob.
Turn the knob to select “Sound settings”.
Press the knob.
Turn the knob as corresponds to the desired mode.
“Bass”, “Treble”, “Balance”, or “ASL” can be selected.
Press the knob.
: If equipped
The sound quality, volume balance, ASL and AUX settings can
be adjusted.
1
2
Using the audio control function

2395-2. Using the audio system
5
Audio system
AYGO_OM_Europe_OM99Q24E

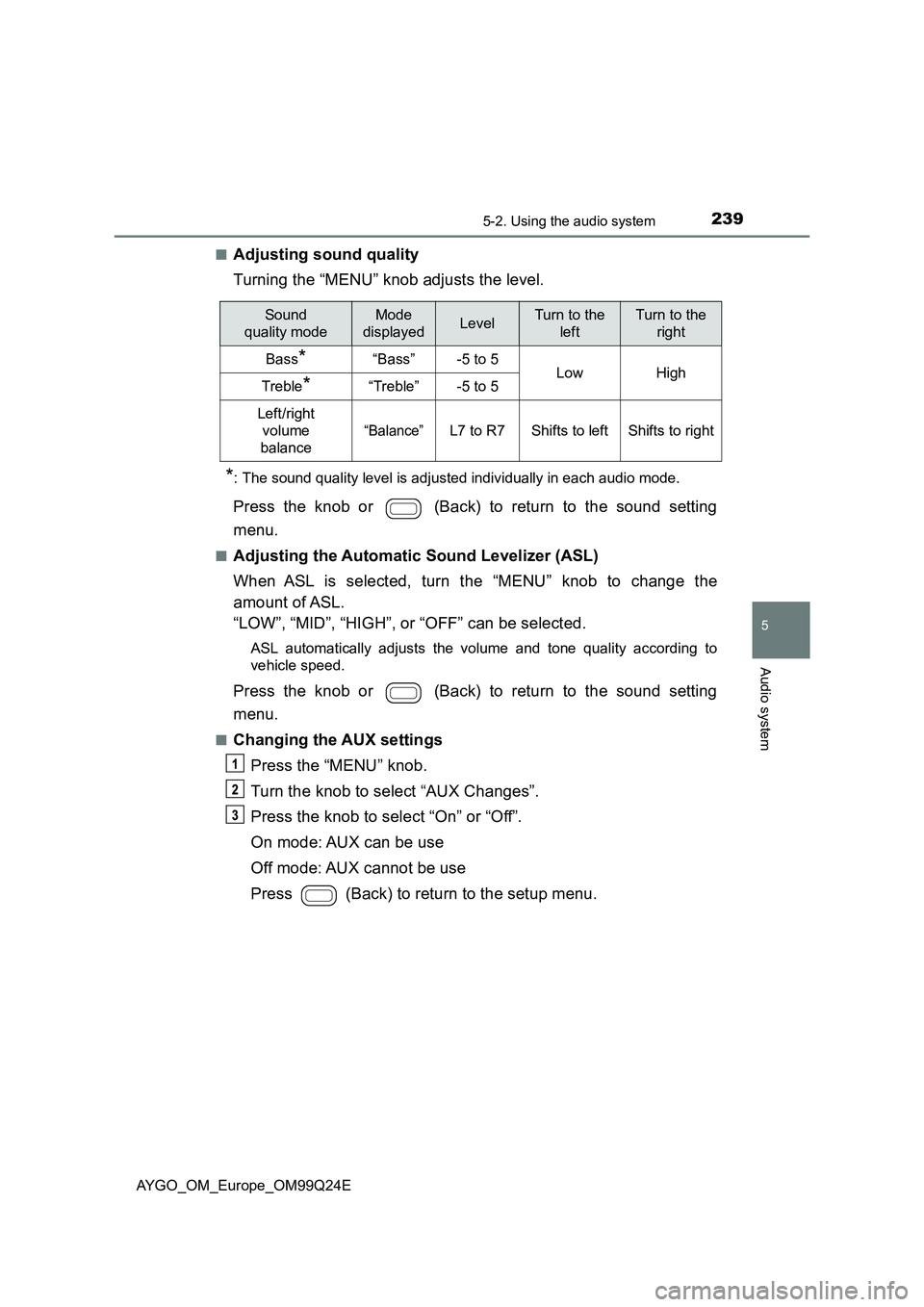

■Adjusting sound quality
Turning the “MENU” knob adjusts the level.
*: The sound quality level is adjusted individually in each audio mode.
Press the knob or (Back) to return to the sound setting
menu.
■Adjusting the Automatic Sound Levelizer (ASL)
When ASL is selected, turn the “MENU” knob to change the
amount of ASL.
“LOW”, “MID”, “HIGH”, or “OFF” can be selected.
ASL automatically adjusts the volume and tone quality according to
vehicle speed.
Press the knob or (Back) to return to the sound setting
menu.
■Changing the AUX settings
Press the “MENU” knob.
Turn the knob to select “AUX Changes”.
Press the knob to select “On” or “Off”.
On mode: AUX can be use
Off mode: AUX cannot be use
Press (Back) to return to the setup menu.
Sound
quality mode
Mode
displayedLevelTurn to the
left
Turn to the
right
Bass*“Bass”-5 to 5LowHighTreble*“Treble”-5 to 5
Left/right
volume
balance
“Balance”L7 to R7Shifts to leftShifts to right

2405-3. Using the radio
AYGO_OM_Europe_OM99Q24E

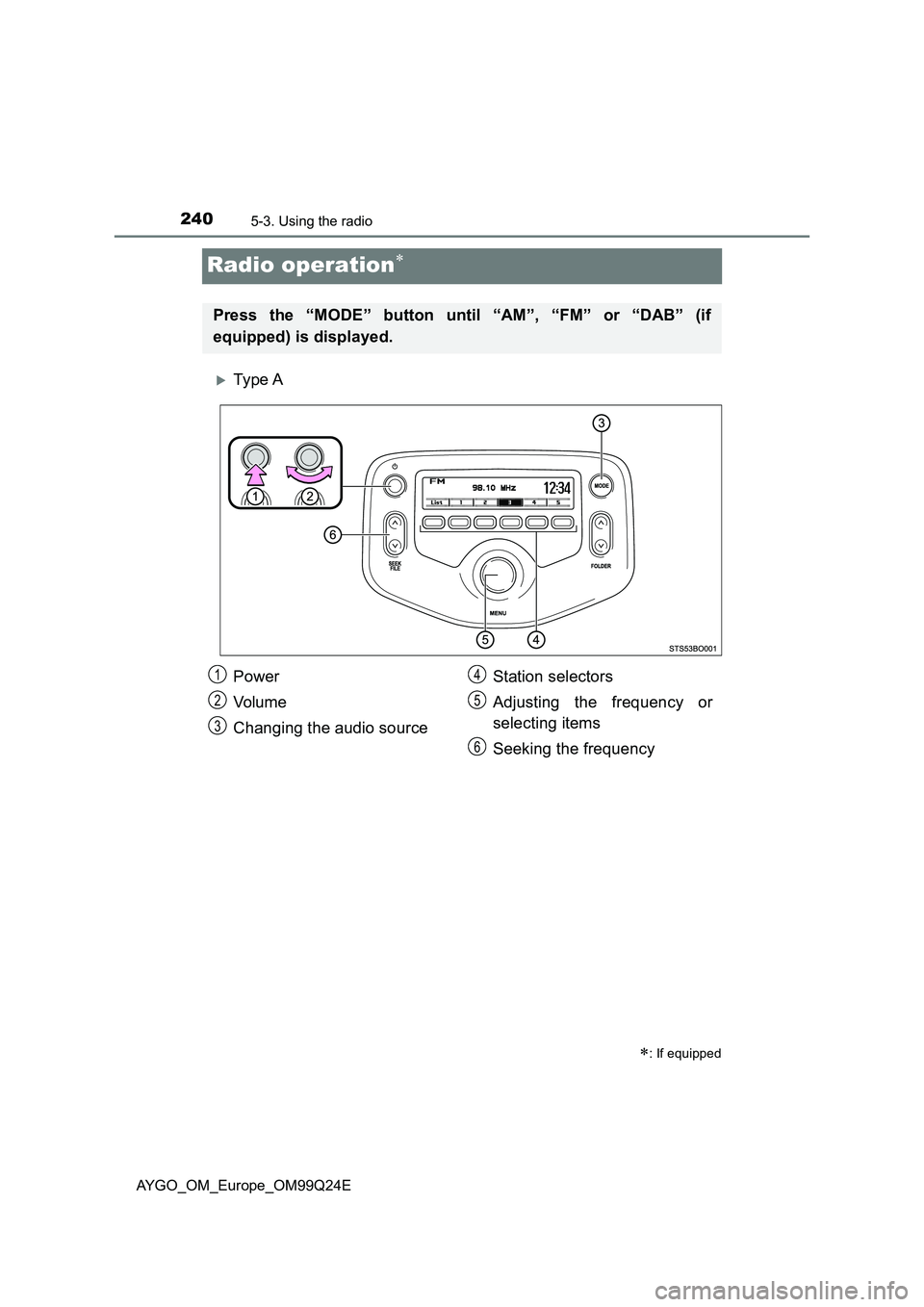

Radio operation
Ty pe A
: If equipped
Press the “MODE” button until “AM”, “FM” or “DAB” (if
equipped) is displayed.
Power
Vo lu m e
Changing the audio source
Station selectors
Adjusting the frequency or
selecting items
Seeking the frequency
1
2
3
4
5
6
