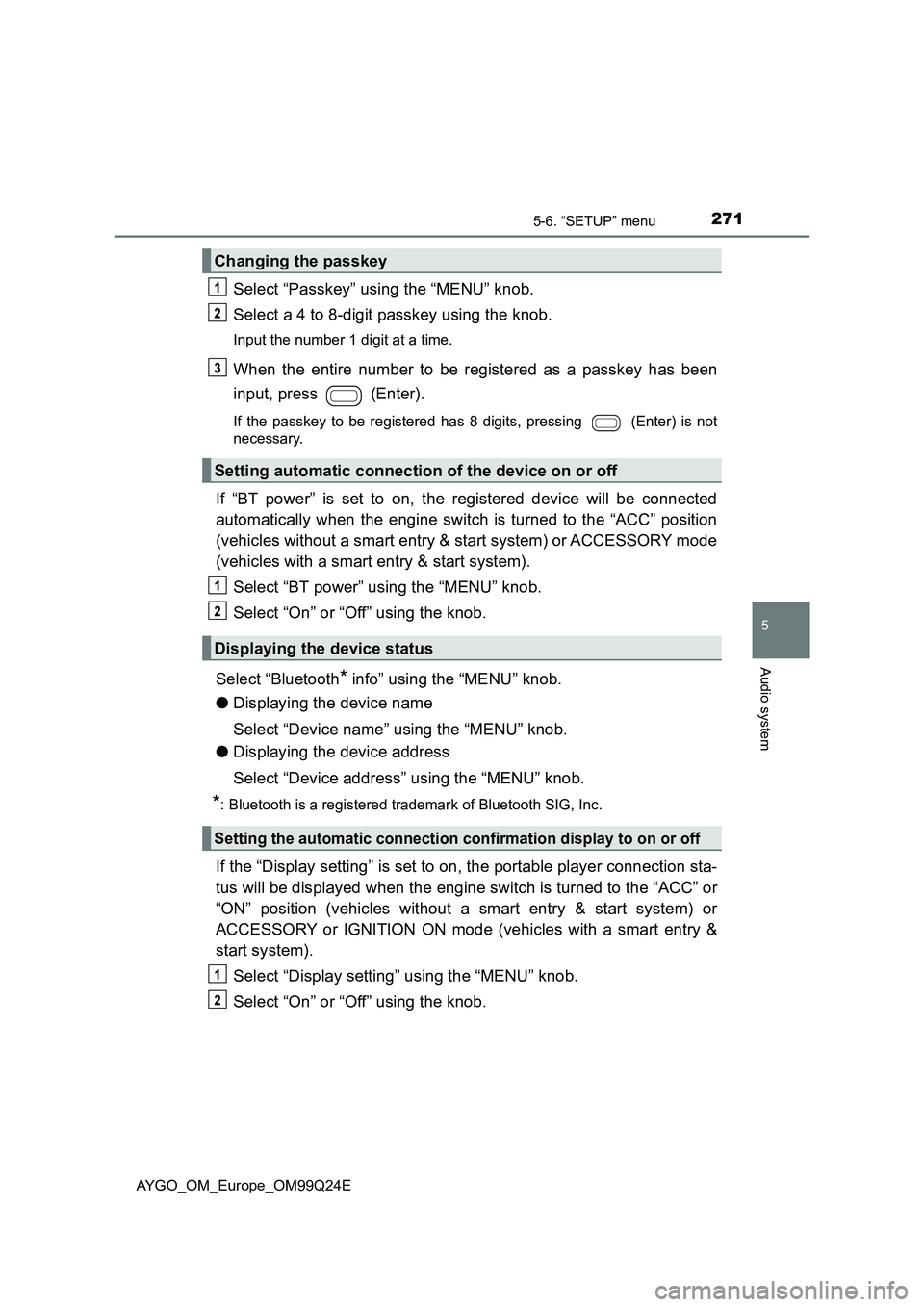

2715-6. “SETUP” menu
5
Audio system
AYGO_OM_Europe_OM99Q24E
Select “Passkey” using the “MENU” knob.
Select a 4 to 8-digit passkey using the knob.
Input the number 1 digit at a time.
When the entire number to be registered as a passkey has been
input, press (Enter).
If the passkey to be registered has 8 digits, pressing (Enter) is not
necessary.
If “BT power” is set to on, the registered device will be connected
automatically when the engine switch is turned to the “ACC” position
(vehicles without a smart entry & start system) or ACCESSORY mode
(vehicles with a smart entry & start system).
Select “BT power” using the “MENU” knob.
Select “On” or “Off” using the knob.
Select “Bluetooth* info” using the “MENU” knob.
● Displaying the device name
Select “Device name” using the “MENU” knob.
● Displaying the device address
Select “Device address” using the “MENU” knob.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
If the “Display setting” is set to on, the portable player connection sta-
tus will be displayed when the engine switch is turned to the “ACC” or
“ON” position (vehicles without a smart entry & start system) or
ACCESSORY or IGNITION ON mode (vehicles with a smart entry &
start system).
Select “Display setting” using the “MENU” knob.
Select “On” or “Off” using the knob.
Changing the passkey
Setting automatic connection of the device on or off
Displaying the device status
Setting the automatic connection confirmation display to on or off

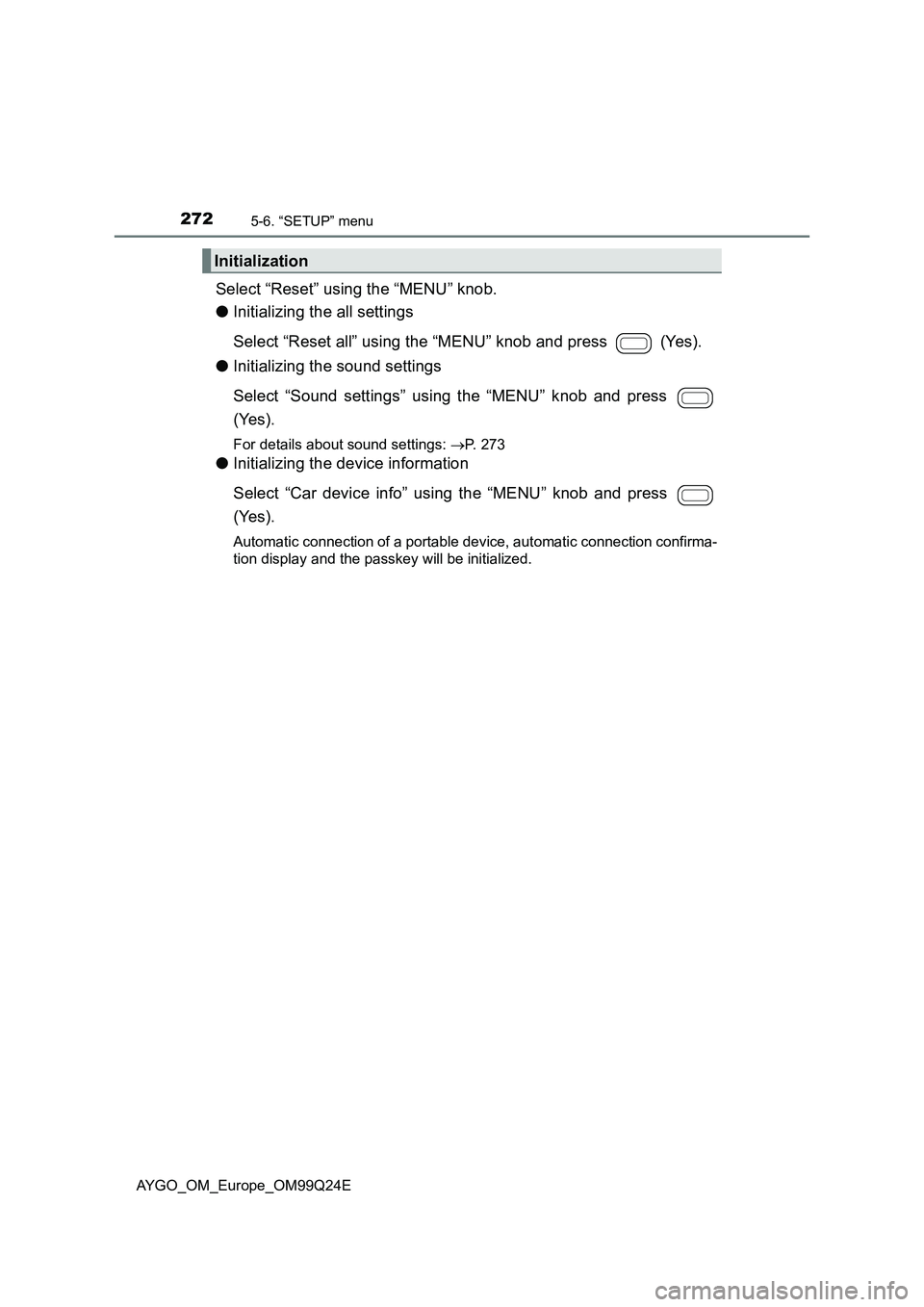

2725-6. “SETUP” menu
AYGO_OM_Europe_OM99Q24E
Select “Reset” using the “MENU” knob.
● Initializing the all settings
Select “Reset all” using the “MENU” knob and press (Yes).
● Initializing the sound settings
Select “Sound settings” using the “MENU” knob and press
(Yes).
For details about sound settings: P. 273
●Initializing the device information
Select “Car device info” using the “MENU” knob and press
(Yes).
Automatic connection of a portable device, automatic connection confirma-
tion display and the passkey will be initialized.
Initialization

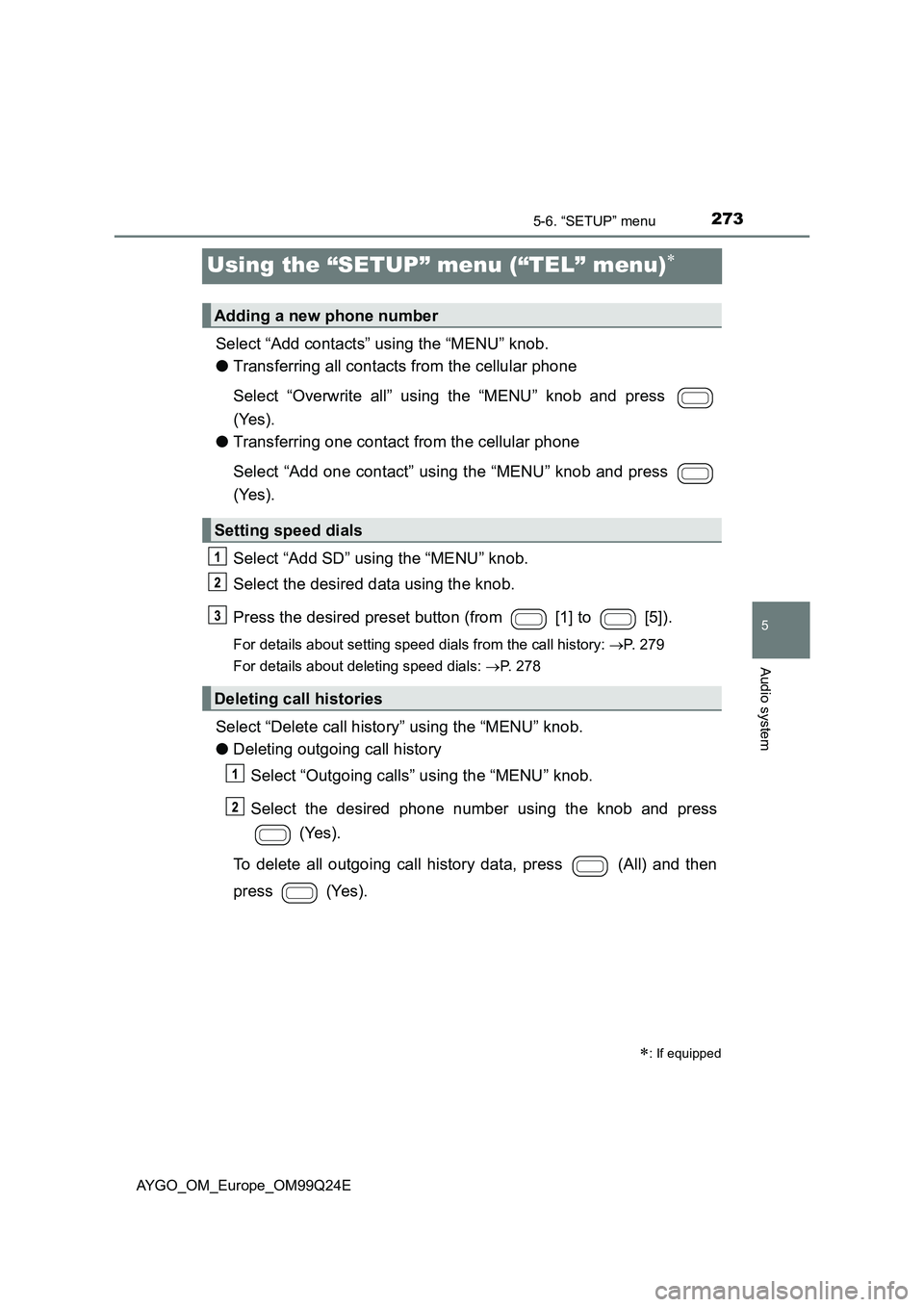

273
5
5-6. “SETUP” menu
Audio system
AYGO_OM_Europe_OM99Q24E
Using the “SETUP” menu (“TEL” menu)
Select “Add contacts” using the “MENU” knob.
● Transferring all contacts from the cellular phone
Select “Overwrite all” using the “MENU” knob and press
(Yes).
● Transferring one contact from the cellular phone
Select “Add one contact” using the “MENU” knob and press
(Yes).
Select “Add SD” using the “MENU” knob.
Select the desired data using the knob.
Press the desired preset button (from [1] to [5]).
For details about setting speed dials from the call history: P. 279
For details about deleting speed dials: P. 278
Select “Delete call history” using the “MENU” knob.
● Deleting outgoing call history
Select “Outgoing calls” using the “MENU” knob.
Select the desired phone number using the knob and press
(Yes).
To delete all outgoing call history data, press (All) and then
press (Yes).
: If equipped
Adding a new phone number
Setting speed dials
Deleting call histories

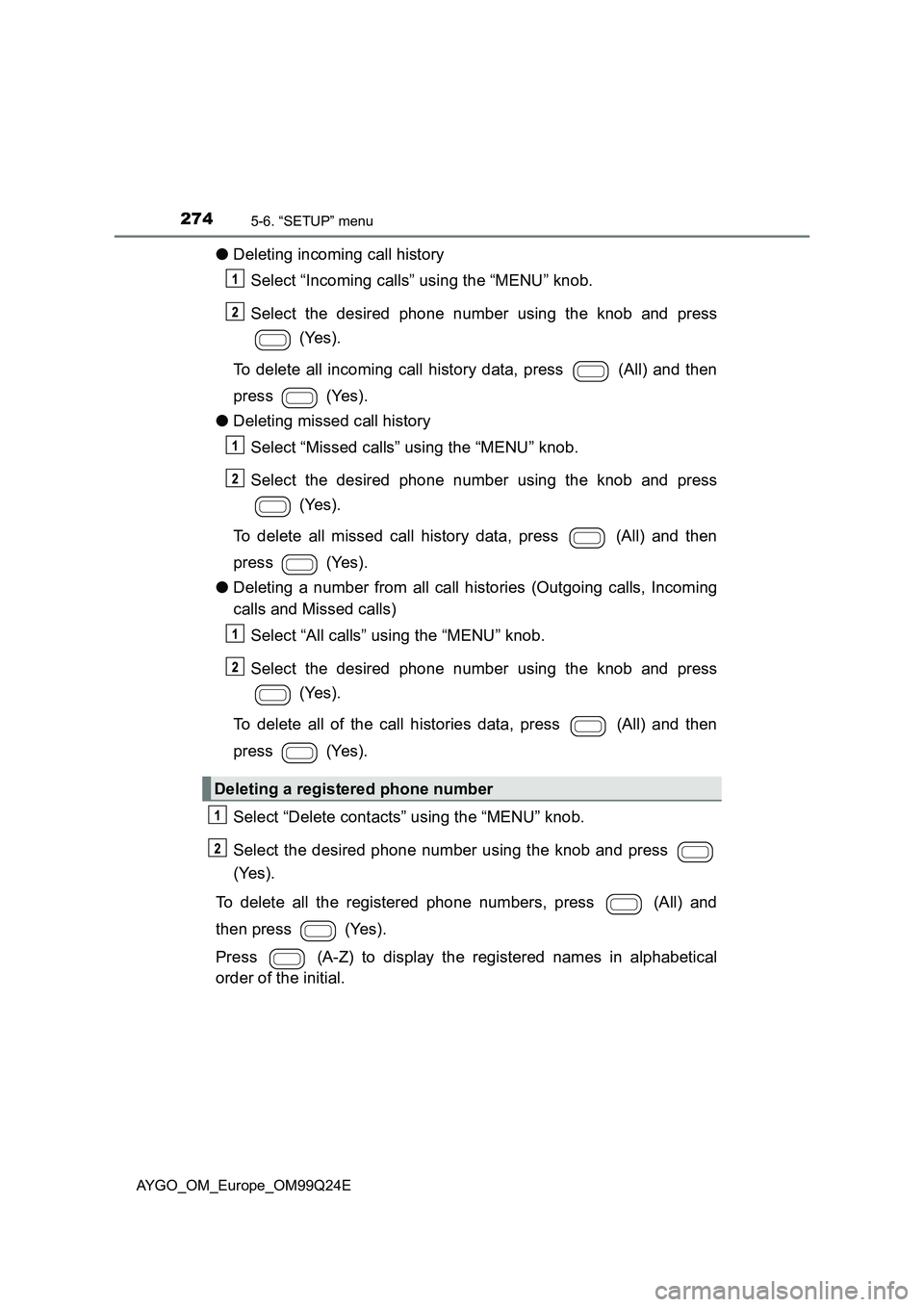

2745-6. “SETUP” menu
AYGO_OM_Europe_OM99Q24E
●Deleting incoming call history
Select “Incoming calls” using the “MENU” knob.
Select the desired phone number using the knob and press
(Yes).
To delete all incoming call history data, press (All) and then
press (Yes).
● Deleting missed call history
Select “Missed calls” using the “MENU” knob.
Select the desired phone number using the knob and press
(Yes).
To delete all missed call history data, press (All) and then
press (Yes).
● Deleting a number from all call histories (Outgoing calls, Incoming
calls and Missed calls)
Select “All calls” using the “MENU” knob.
Select the desired phone number using the knob and press
(Yes).
To delete all of the call histories data, press (All) and then
press (Yes).
Select “Delete contacts” using the “MENU” knob.
Select the desired phone number using the knob and press
(Yes).
To delete all the registered phone numbers, press (All) and
then press (Yes).
Press (A-Z) to display the registered names in alphabetical
order of the initial.
Deleting a registered phone number

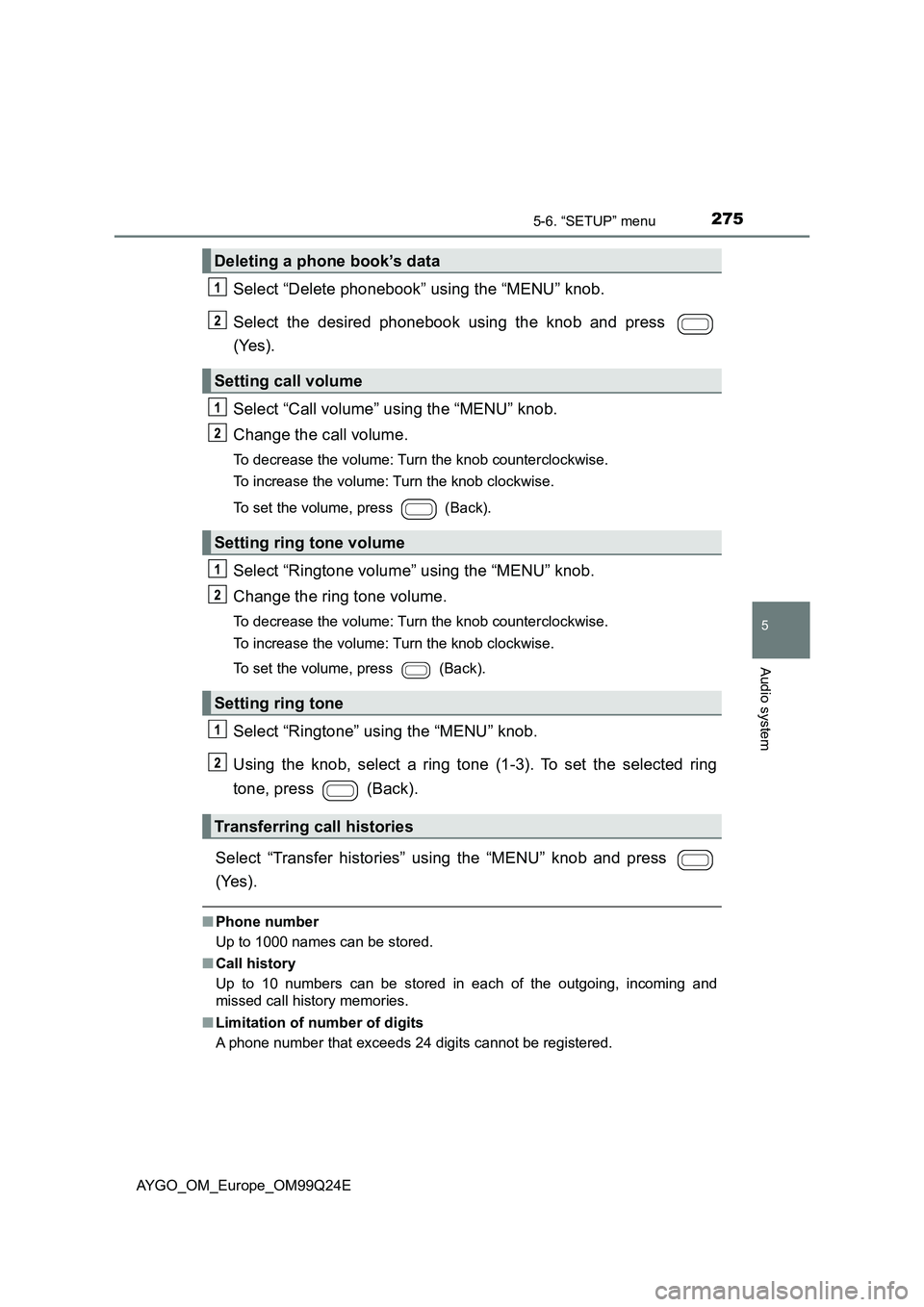

2755-6. “SETUP” menu
5
Audio system
AYGO_OM_Europe_OM99Q24E
Select “Delete phonebook” using the “MENU” knob.
Select the desired phonebook using the knob and press
(Yes).
Select “Call volume” using the “MENU” knob.
Change the call volume.
To decrease the volume: Turn the knob counterclockwise.
To increase the volume: Turn the knob clockwise.
To set the volume, press (Back).
Select “Ringtone volume” using the “MENU” knob.
Change the ring tone volume.
To decrease the volume: Turn the knob counterclockwise.
To increase the volume: Turn the knob clockwise.
To set the volume, press (Back).
Select “Ringtone” using the “MENU” knob.
Using the knob, select a ring tone (1-3). To set the selected ring
tone, press (Back).
Select “Transfer histories” using the “MENU” knob and press
(Yes).
■ Phone number
Up to 1000 names can be stored.
■ Call history
Up to 10 numbers can be stored in each of the outgoing, incoming and
missed call history memories.
■ Limitation of number of digits
A phone number that exceeds 24 digits cannot be registered.
Deleting a phone book’s data
Setting call volume
Setting ring tone volume
Setting ring tone
Transferring call histories

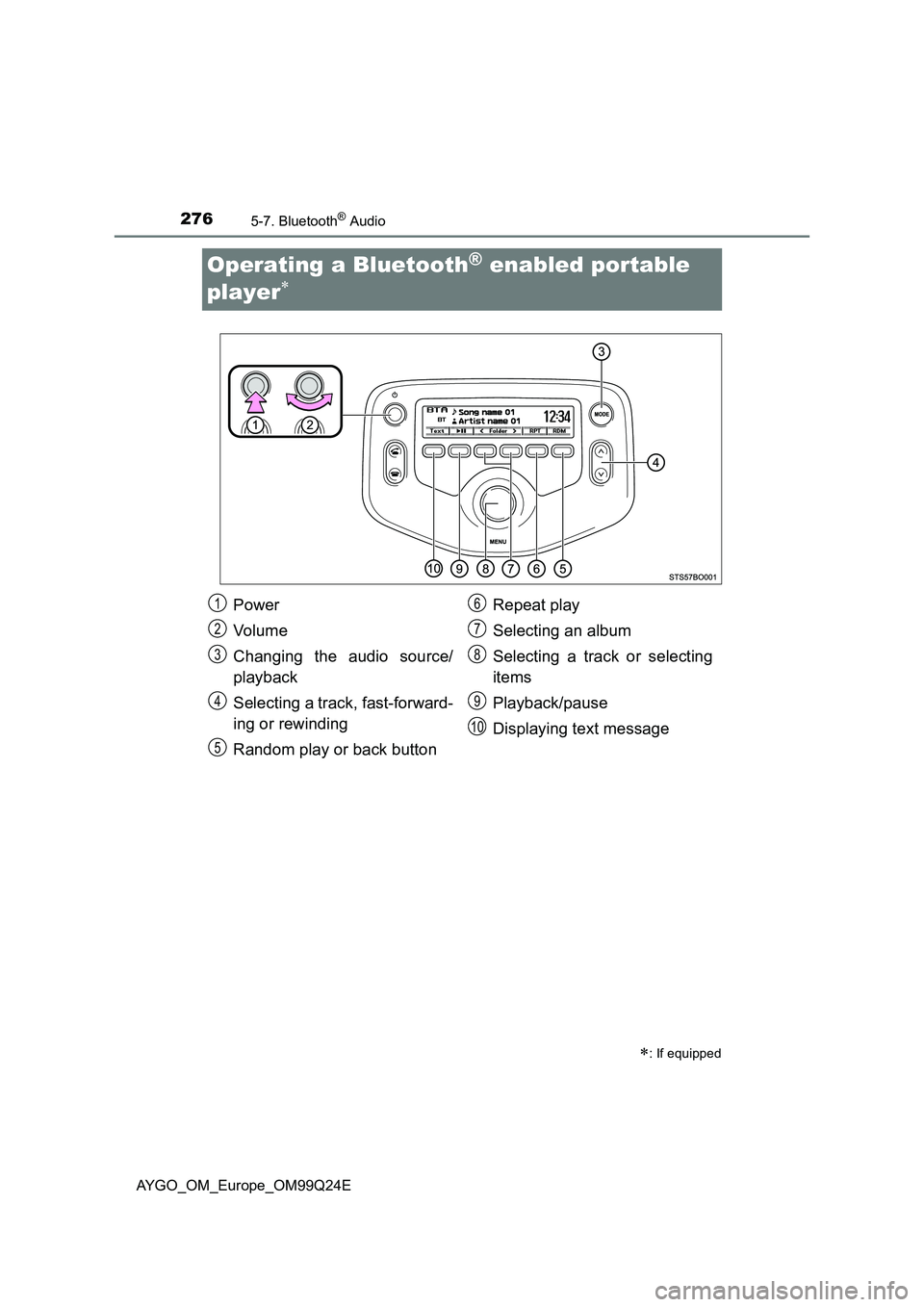

2765-7. Bluetooth® Audio
AYGO_OM_Europe_OM99Q24E
Operating a Bluetooth® enabled portable
player
: If equipped
Power
Vo lu m e
Changing the audio source/
playback
Selecting a track, fast-forward-
ing or rewinding
Random play or back button
Repeat play
Selecting an album
Selecting a track or selecting
items
Playback/pause
Displaying text message
1
2
3
4
5
6
7
8
9
10

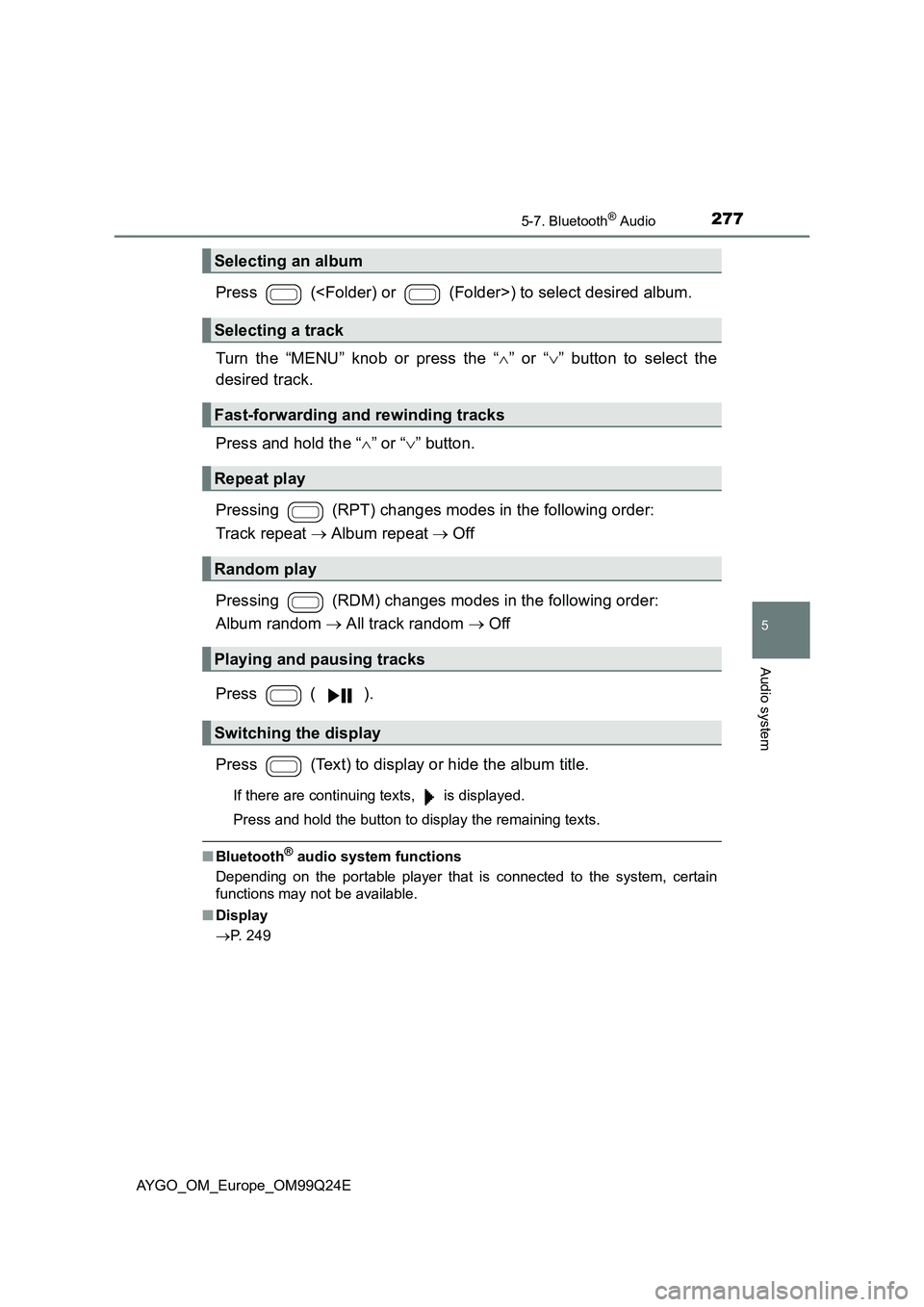

2775-7. Bluetooth® Audio
5
Audio system
AYGO_OM_Europe_OM99Q24E
Press () to select desired album.
Turn the “MENU” knob or press the “ ” or “” button to select the
desired track.
Press and hold the “ ” or “” button.
Pressing (RPT) changes modes in the following order:
Track repeat Album repeat Off
Pressing (RDM) changes modes in the following order:
Album random All track random Off
Press ( ).
Press (Text) to display or hide the album title.
If there are continuing texts, is displayed.
Press and hold the button to display the remaining texts.
■ Bluetooth® audio system functions
Depending on the portable player that is connected to the system, certain
functions may not be available.
■ Display
 P. 249
Selecting an album
Selecting a track
Fast-forwarding and rewinding tracks
Repeat play
Random play
Playing and pausing tracks
Switching the display

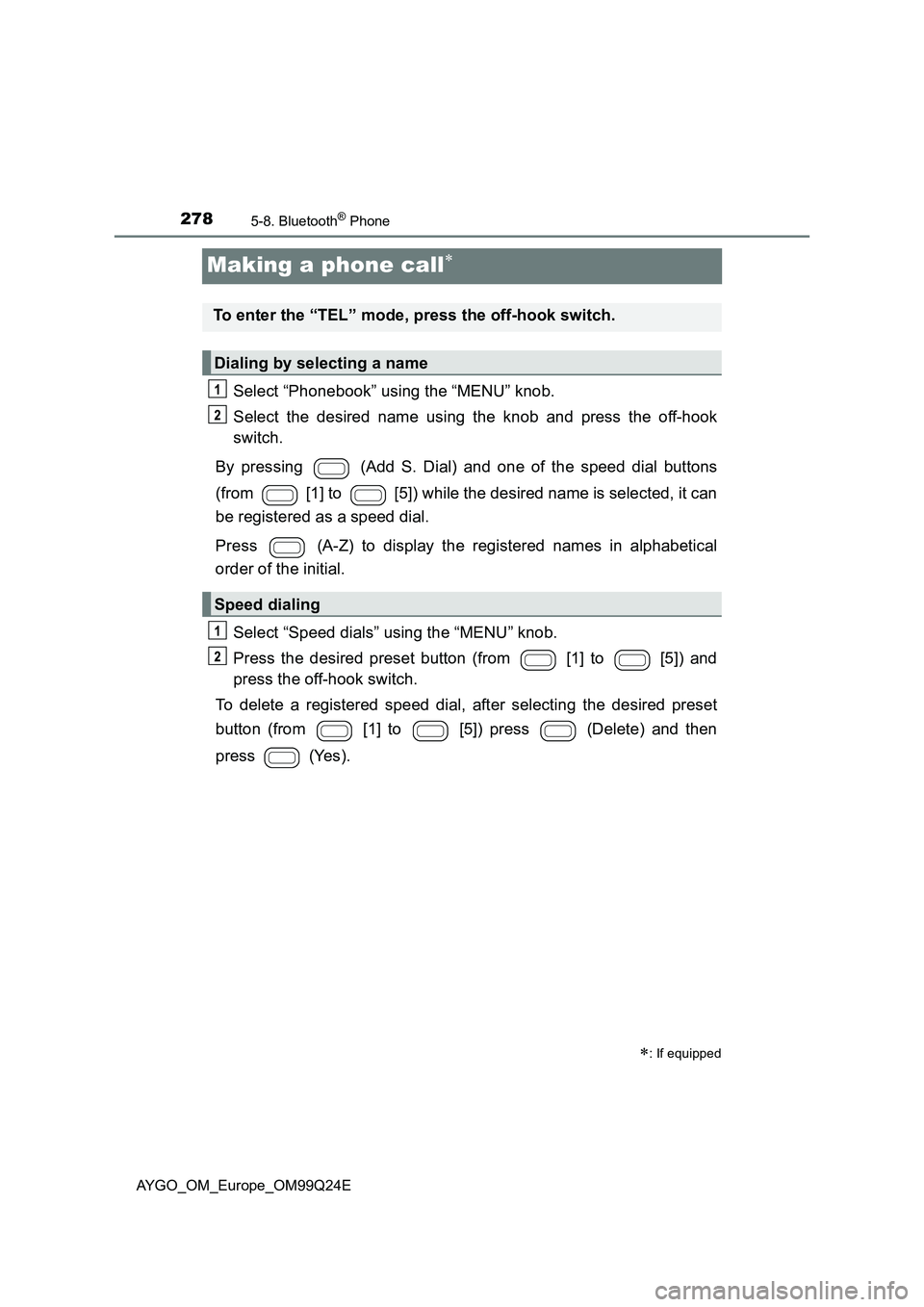

2785-8. Bluetooth® Phone
AYGO_OM_Europe_OM99Q24E
Making a phone call
Select “Phonebook” using the “MENU” knob.
Select the desired name using the knob and press the off-hook
switch.
By pressing (Add S. Dial) and one of the speed dial buttons
(from [1] to [5]) while the desired name is selected, it can
be registered as a speed dial.
Press (A-Z) to display the registered names in alphabetical
order of the initial.
Select “Speed dials” using the “MENU” knob.
Press the desired preset button (from [1] to [5]) and
press the off-hook switch.
To delete a registered speed dial, after selecting the desired preset
button (from [1] to [5]) press (Delete) and then
press (Yes).
: If equipped
To enter the “TEL” mode, press the off-hook switch.
Dialing by selecting a name
Speed dialing

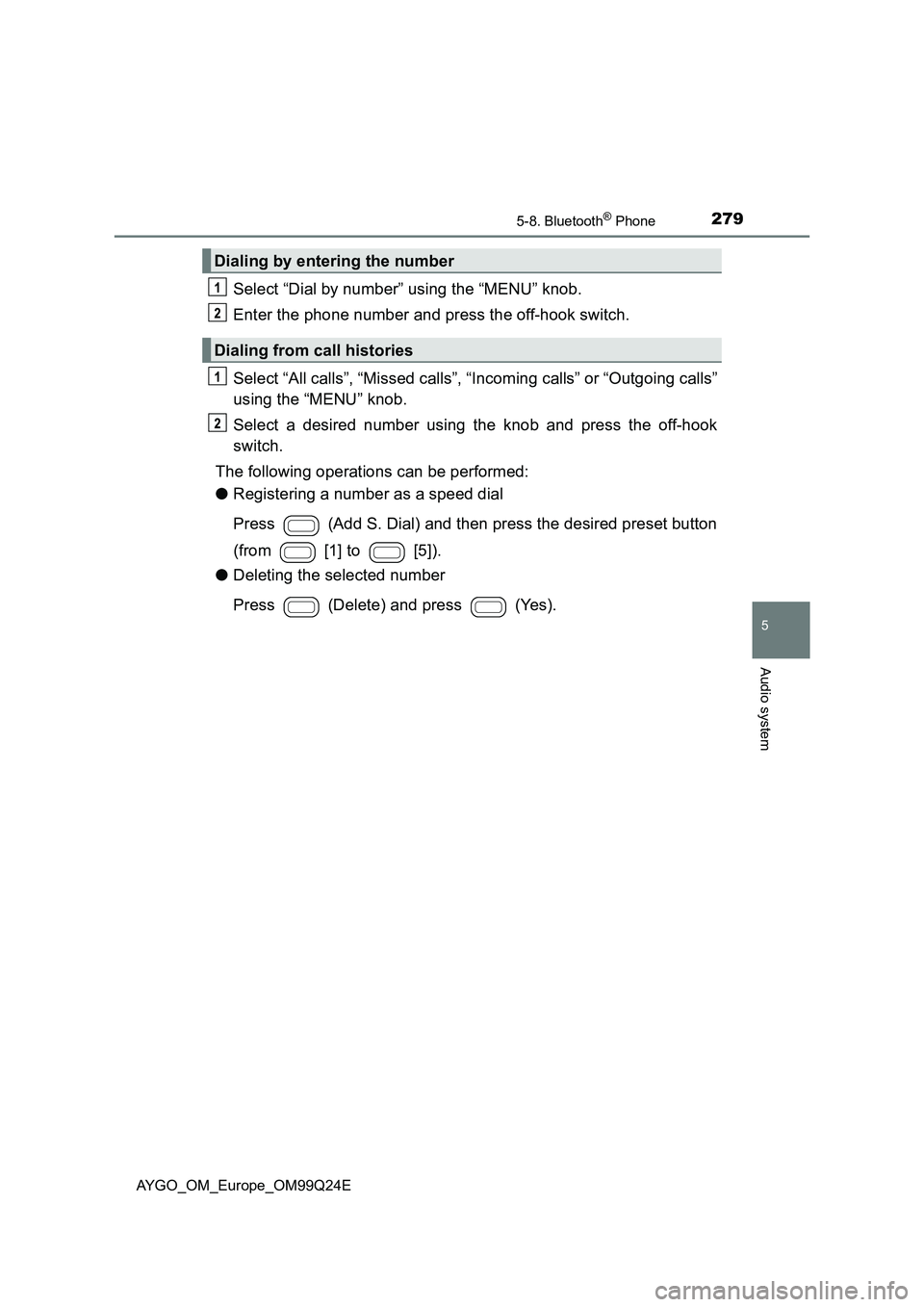

2795-8. Bluetooth® Phone
5
Audio system
AYGO_OM_Europe_OM99Q24E
Select “Dial by number” using the “MENU” knob.
Enter the phone number and press the off-hook switch.
Select “All calls”, “Missed calls”, “Incoming calls” or “Outgoing calls”
using the “MENU” knob.
Select a desired number using the knob and press the off-hook
switch.
The following operations can be performed:
● Registering a number as a speed dial
Press (Add S. Dial) and then press the desired preset button
(from [1] to [5]).
● Deleting the selected number
Press (Delete) and press (Yes).
Dialing by entering the number
Dialing from call histories

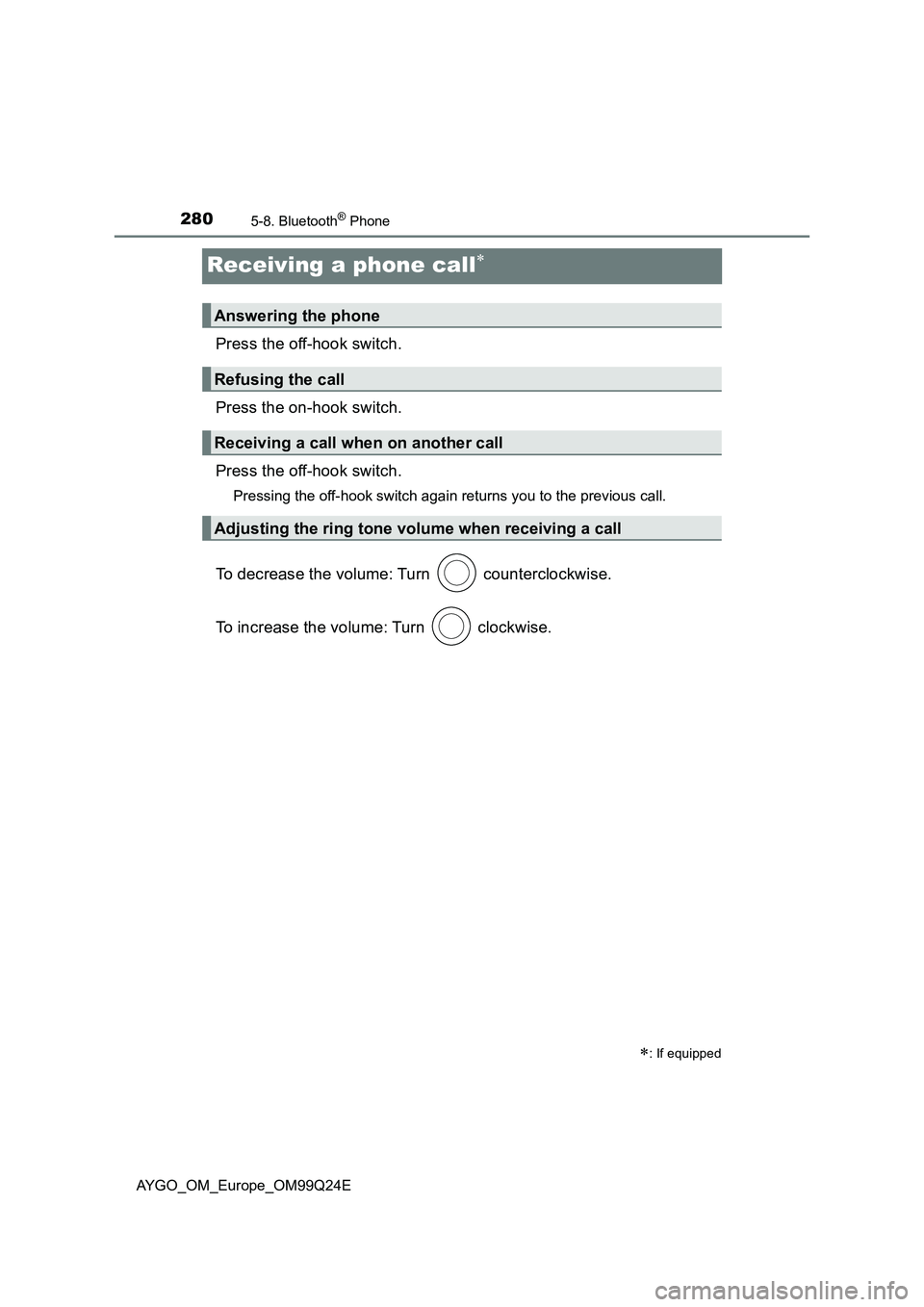

2805-8. Bluetooth® Phone
AYGO_OM_Europe_OM99Q24E
Receiving a phone call
Press the off-hook switch.
Press the on-hook switch.
Press the off-hook switch.
Pressing the off-hook switch again returns you to the previous call.
To decrease the volume: Turn counterclockwise.
To increase the volume: Turn clockwise.
: If equipped
Answering the phone
Refusing the call
Receiving a call when on another call
Adjusting the ring tone volume when receiving a call
