852. Instrument cluster
2
Instrument cluster
AYGO_OM_Europe_OM99Q24E
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1Brake system warning
light ( P. 389)
*1, 2, 6
PCS warning light
( P. 392)
*1
Charging system
warning light ( P. 389)
*2, 3, 4
(Yellow)
Speed limiter indicator
( P. 392)
*1
Low engine oil pressure
warning light ( P. 389)
*2, 5
Speed limiter indicator
( P. 392)
*1High engine coolant
temperature warning
light ( P. 389, 390)
*1, 2, 6
Stop & Start cancel
indicator ( P. 392)
*1“STOP” warning light
( P. 390)
*1, 2
Slip indicator (P. 393)
*1, 2Multi-mode manual
transmission
warning light ( P. 390)
*2
(Yellow)
LDA indicator (P. 393)
*1
Malfunction indicator
lamp ( P. 391)
*2, 9
(Yellow)
Lane marker indicators
( P. 393)
*1
SRS warning light
( P. 391)
*2, 7
(Yellow)
Smart entry & start
system indicator light
( P. 393, 397)
*1
ABS warning light
( P. 391)
Open door warning light
( P. 393)
*1Electric power steering
system warning light
( P. 391)
Driver’s and front pas-
senger’s seat belt
reminder light ( P. 393)

1233-2. Opening, closing and locking the doors
3
Operation of each component
AYGO_OM_Europe_OM99Q24E
■ Electronic key battery depletion
● The standard battery life is 1 to 2 years.
● If the battery becomes low, an alarm will sound in the cabin when the engine
stops. ( P. 398)
● As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. ( P. 354)
• The smart entry & start system or the wireless remote control does not
operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
● To avoid serious deterioration, do not leave the electronic key within 1 m
(3 ft.) of the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers
■ Customization that can be configured at any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional
Settings (e.g. smart entry & start system) can be changed.
(Customizable features: P. 459)
■ If the smart entry & start system has been deactivated in a customized
setting
● Locking and unlocking the doors:
Use the wireless remote control or mechanical key. ( P. 99, 429)
● Starting the engine and changing engine switch modes: P. 430
● Stopping the engine: P. 159

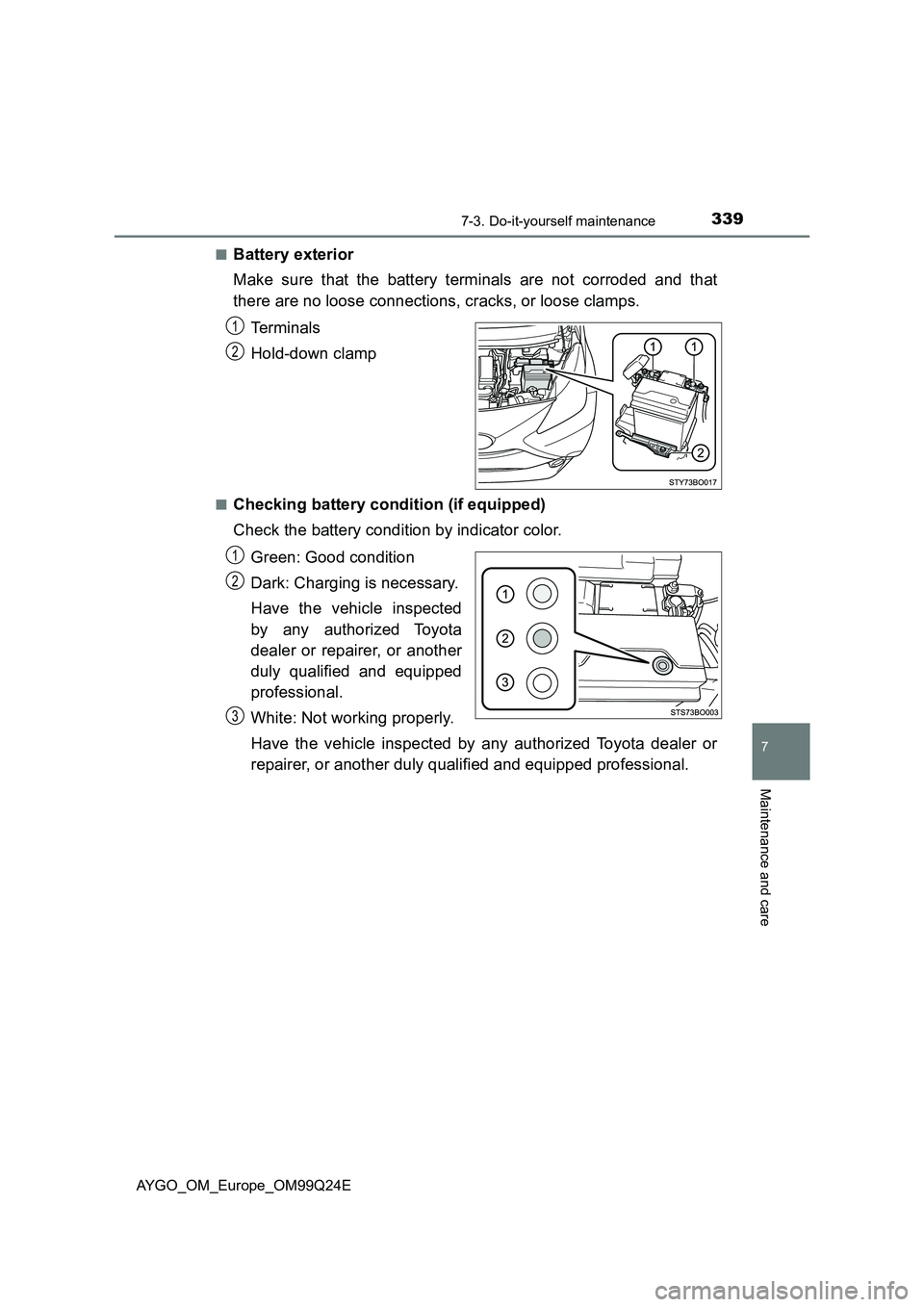

3397-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_OM_Europe_OM99Q24E
■Battery exterior
Make sure that the battery terminals are not corroded and that
there are no loose connections, cracks, or loose clamps.
Te r m i n a l s
Hold-down clamp
■Checking battery condition (if equipped)
Check the battery condition by indicator color.
Green: Good condition
Dark: Charging is necessary.
Have the vehicle inspected
by any authorized Toyota
dealer or repairer, or another
duly qualified and equipped
professional.
White: Not working properly.
Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
1
2
1
2
3

3407-3. Do-it-yourself maintenance
AYGO_OM_Europe_OM99Q24E
■Before recharging
When recharging, the battery produces hydrogen gas which is flammable and
explosive. Therefore, before recharging:
● If recharging with the battery installed on the vehicle, be sure to disconnect
the ground cable.
● Make sure the power switch on the charger is off when connecting and dis-
connecting the charger cables to the battery.
■ After recharging/reconnecting the battery (vehicles with a smart entry &
start system)
The engine may not start. Follow the pr ocedure below to initialize the system.
Depress the brake pedal with the shift lever in N.
Open and close any of the doors.
Restart the engine.
● Unlocking the doors using the smart entry & start system may not be possi-
ble immediately after reconnecting the battery. If this happens, use the wire-
less remote control or the mechanical key to lock/unlock the doors.
● Start the engine with the engine switch in ACCESSORY mode. The engine
may not start with the engine switch turned off. However, the engine will
operate normally from the second attempt.
● The engine switch mode is recorded by the vehicle. If the battery is recon-
nected, the vehicle will return the engine switch mode to the status it was in
before the battery was disconnected. Make sure to turn off the engine
before disconnect the battery. Take extra care when connecting the battery
if the engine switch mode prior to discharge is unknown.
If the engine will not start even after multiple attempts, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional.

3417-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_OM_Europe_OM99Q24E
WARNING
■Chemicals in the battery
A battery contains poisonous and corrosive sulfuric acid and may produce
hydrogen gas which is flammable and explosive. To reduce the risk of death
or serious injury, take the following precautions while working on or near the
battery:
● Do not cause sparks by touching the battery terminals with tools.
● Do not smoke or light a match near the battery.
● Avoid contact with eyes, skin and clothes.
● Never inhale or swallow electrolyte.
● Wear protective safety glasses when working near the battery.
● Keep children away from the battery.
■ Where to safely charge the battery
Always charge the battery in an open area. Do not charge the battery in a
garage or closed room w here there is not sufficient ventilation.
■ How to recharge the battery
Only perform a slow charge (5 A or less). The battery may explode if
charged at a quicker rate.
■ Emergency measures regarding electrolyte
● If electrolyte gets in your eyes
Flush your eyes with clean water for at least 15 minutes and get immedi-
ate medical attention. If possible, continue to apply water with a sponge or
cloth while traveling to the nearest medical facility.
● If electrolyte gets on your skin
Wash the affected area thoroughly. If you feel pain or burning, get medical
attention immediately.
● If electrolyte gets on your clothes
It can soak through clothing on to your skin. Immediately take off the cloth-
ing and follow the procedure above if necessary.
● If you accidentally swallow electrolyte
Drink a large quantity of water or milk. Get emergency medical attention
immediately.
NOTICE
■ When recharging the battery
Never recharge the battery while the engine is running. Also, be sure all
accessories are turned off.

3607-3. Do-it-yourself maintenance
AYGO_OM_Europe_OM99Q24E
13HORN10Horn
14D/C CUT30ECU-B NO.1, ECU-B NO.2, ECU-B NO.3
15ECU-B NO.4*27.5Multi-mode manual transmission
16AM2 NO.27.5Multiport fuel injection system/sequential
multiport fuel injection system
17AM2 NO.37.5Smart entry & start system
18ICS*27.5Charging system
19EFI-MAIN*125EFI NO.3, EFI NO.4, EFI NO.5, RDI
NO.2
20ST30Starting system
21STRG LOCK7.5Steering lock system
22H-LP-MAIN25H-LP RH-LO, H-LP LH-LO, H-LP RH-HI,
H-LP LH-HI
23WIPER-S*27.5Multiport fuel injection system/sequential
multiport fuel injection system
24STA7.5
Multiport fuel injection system/sequential
multiport fuel injection system, starting
system, multi-mode manual transmis-
sion, Stop & Start system
25ECU-B NO.315Audio system, smart entry & start system
26ECU-B NO.17.5Gauges and meters
27ECU-B NO.27.5Vehicle stability control system
28J/B60Instrument fuse box
29ALT*2125
DEF, S/HTR F/R, S/HTR F/L, CANVAS
TOP, ABS NO.1, ABS NO.2, RDI NO.1,
FOG FR, DRL
30AMT*350Multi-mode manual transmission
BBC*440Stop & Start system
31EPS50Electric power steering system
32RDI NO.1
50*1
Electric cooling fan30*5
40*5
FuseAmpereCircuit

3898-2. Steps to take in an emergency
8
When trouble arises
AYGO_OM_Europe_OM99Q24E
If a warning light turns on or a warning
buzzer sounds
Calmly perform the following actions if any of the warning lights
comes on or flashes. If a light comes on or flashes, but then
goes off, this does not necessarily indicate a malfunction in the
system. However, if this continues to occur, have the vehicle
inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
Warning light and warning buzzer list
Warning lightWarning light/Details/Actions
Brake system warning light (warning buzzer)*1
Indicates that:
• The brake fluid level is low; or
• The brake system is malfunctioning
 Immediately stop the vehicle in a safe place and con-
tact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
Continuing to drive the vehicle may be dangerous.
Charging system warning light
Indicates a malfunction in the vehicle’s charging system
 Immediately stop the vehicle in a safe place and con-
tact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
Low engine oil pressure warning light
Indicates that the engine oil pressure is too low.
 Immediately stop the vehicle in a safe place and con-
tact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
(Flashes or comes on)
High engine coolant temperature warning light (for 1KR
engine)
Indicates that the engine is overheating.
As the coolant temperature rise, it changes from flashing
to comes on.
 P. 436

4288-2. Steps to take in an emergency
AYGO_OM_Europe_OM99Q24E
If the shift lever cannot be shifted (vehicles
with a multi-mode manual transmission)
■ Charging the battery
 P. 432
If the shift lever cannot be shifted with your foot on the brake
pedal, there may be a problem with the shift lock system (a sys-
tem to prevent accidental operation of the shift lever). Have the
vehicle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional immediately.
Also, when the vehicle’s battery is discharged, the shift lever
cannot be operated.

4348-2. Steps to take in an emergency
AYGO_OM_Europe_OM99Q24E
Once the vehicle’s engine has started, remove the jumper cables in
the exact reverse order from which they were connected.
Once the engine starts, have the vehicle inspected at any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional as soon as possible.
■ To prevent battery discharge
● Turn off the headlights and the audio system while the engine is off.
● Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic.
■ Charging the battery
The electricity stored in the battery will discharge gradually even when the
vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long time, the battery may
discharge, and the engine may be unable to start. (The battery recharges
automatically during driving.)
■ Precautions when the battery is discharged (vehicles with a smart entry
& start system)
● In some cases, it may not be possible to unlock the doors using the smart
entry & start system when the battery is discharged. Use the wireless
remote control or the mechanical key to lock or unlock the doors.
● The engine may not start on the first attempt after the battery has recharged
but will start normally after the second attempt. This is not a malfunction.
● The engine switch mode is memorized by the vehicle. When the battery is
reconnected, the system will return to the mode it was in before the battery
was discharged. Before disconnecting the battery, turn the engine switch off.
If you are unsure what mode the engine switch was in before the battery dis-
charged, be especially careful when reconnecting the battery.

4529-1. Specifications
AYGO_OM_Europe_OM99Q24E
HM01 engine
Capacity (Reference)4.5 L (4.8 qt., 4.0 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Genuine Premium Long Life Coolant
2WZ-TV”
• Similar high-quality ethylene glycol-based non-
silicate, non-amine, non- nitrite, and non-borate
coolant with long-life hybrid organic acid tech-
nology
Do not use plain water alone.
NOTICE
■ To prevent serious engine damage
Do not mix “Toyota Super Long Life Coolant” with “Toyota Genuine Pre-
mium Long Life Coolant 2WZ-TV”.
Electrical system
Battery
Open voltage* at
20 C (68F):
12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8  12.0 V Discharged
(*: Voltage checked 20 minutes after the
engine and all the lights are turned off)
Charging rates5 A max.
