TOYOTA AYGO 2019 Owners Manual (in English)

301
5
5-6. “SETUP” menu
Audio system
AYGO_OM_Europe_OM99R19E
Using the “SETUP” menu (“TEL” menu)
Select “Add contacts” using the “MENU” knob.
● Transferring all contacts from the cellular phone
Select “Overwrite all” using the “MENU” knob and press
(Yes).
● Transferring one contact from the cellular phone
Select “Add one contact” using the “MENU” knob and press
(Yes).
Select “Add SD” using the “MENU” knob.
Select the desired data using the knob.
Press the desired preset button (from [1] to [5]).
For details about setting speed dials from the call history: P. 307
For details about deleting speed dials: P. 306
Select “Delete call history” using the “MENU” knob.
● Deleting outgoing call history
Select “Outgoing calls” using the “MENU” knob.
Select the desired phone number using the knob and press
(Yes).
To delete all outgoing call history data, press (All) and then
press (Yes).
: If equipped
Adding a new phone number
Setting speed dials
Deleting call histories

3025-6. “SETUP” menu
AYGO_OM_Europe_OM99R19E
●Deleting incoming call history
Select “Incoming calls” using the “MENU” knob.
Select the desired phone number using the knob and press
(Yes).
To delete all incoming call history data, press (All) and then
press (Yes).
● Deleting missed call history
Select “Missed calls” using the “MENU” knob.
Select the desired phone number using the knob and press
(Yes).
To delete all missed call history data, press (All) and then
press (Yes).
● Deleting a number from all call histories (Outgoing calls, Incoming
calls and Missed calls)
Select “All calls” using the “MENU” knob.
Select the desired phone number using the knob and press
(Yes).
To delete all of the call histories data, press (All) and then
press (Yes).
Select “Delete contacts” using the “MENU” knob.
Select the desired phone number using the knob and press
(Yes).
To delete all the registered phone numbers, press (All) and
then press (Yes).
Press (A-Z) to display the registered names in alphabetical
order of the initial.
Deleting a registered phone number

3035-6. “SETUP” menu
5
Audio system
AYGO_OM_Europe_OM99R19E
Select “Delete phonebook” using the “MENU” knob.
Select the desired phonebook using the knob and press
(Yes).
Select “Call volume” using the “MENU” knob.
Change the call volume.
To decrease the volume: Turn the knob counterclockwise.
To increase the volume: Turn the knob clockwise.
To set the volume, press (Back).
Select “Ringtone volume” using the “MENU” knob.
Change the ring tone volume.
To decrease the volume: Turn the knob counterclockwise.
To increase the volume: Turn the knob clockwise.
To set the volume, press (Back).
Select “Ringtone” using the “MENU” knob.
Using the knob, select a ring tone (1-3). To set the selected ring
tone, press (Back).
Select “Transfer histories” using the “MENU” knob and press
(Yes).
■ Phone number
Up to 1000 names can be stored.
■ Call history
Up to 10 numbers can be stored in each of the outgoing, incoming and
missed call history memories.
■ Limitation of number of digits
A phone number that exceeds 24 digits cannot be registered.
Deleting a phone book’s data
Setting call volume
Setting ring tone volume
Setting ring tone
Transferring call histories

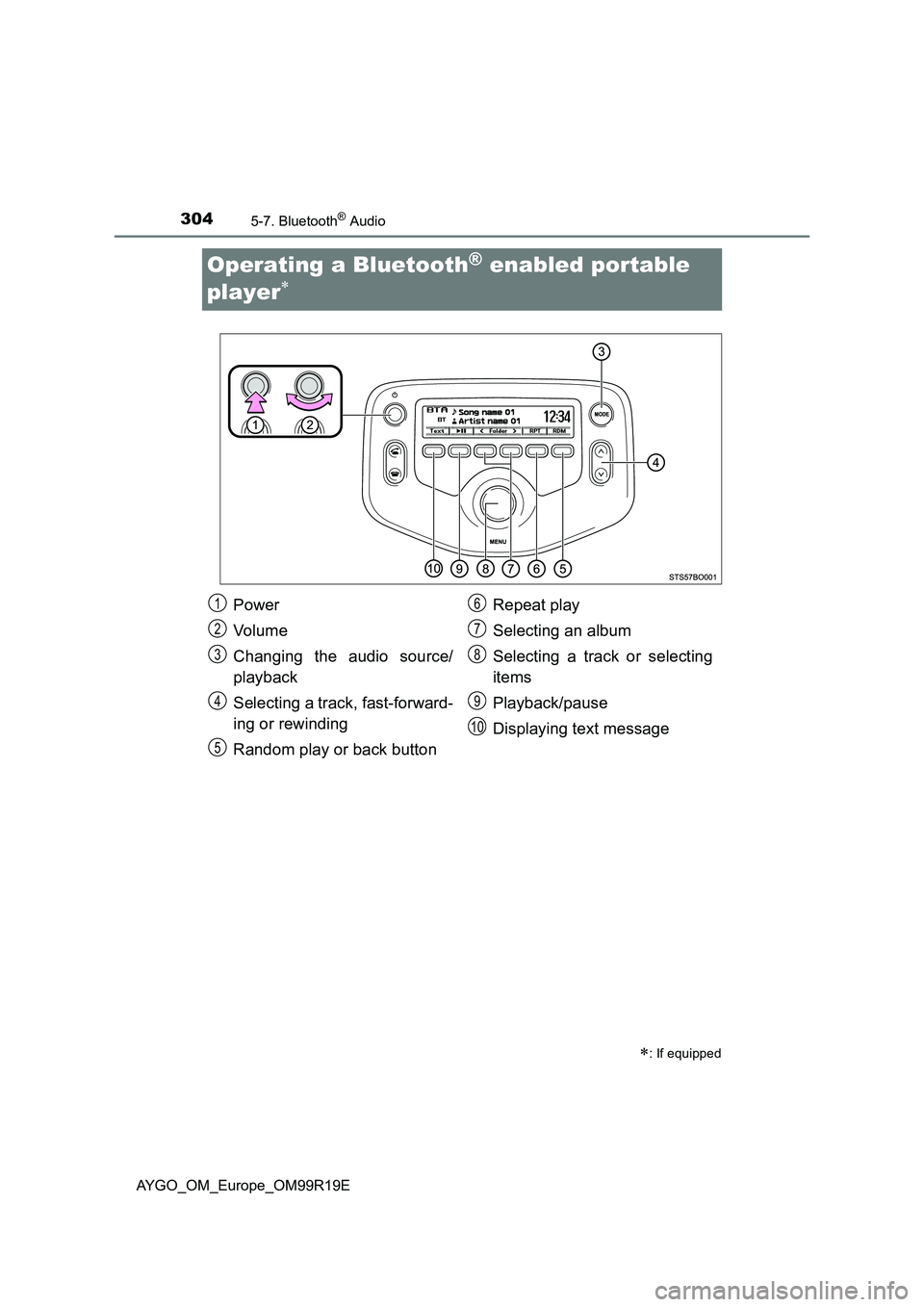

3045-7. Bluetooth® Audio
AYGO_OM_Europe_OM99R19E
Operating a Bluetooth® enabled portable
player
: If equipped
Power
Vo lu m e
Changing the audio source/
playback
Selecting a track, fast-forward-
ing or rewinding
Random play or back button
Repeat play
Selecting an album
Selecting a track or selecting
items
Playback/pause
Displaying text message
1
2
3
4
5
6
7
8
9
10

3055-7. Bluetooth® Audio
5
Audio system
AYGO_OM_Europe_OM99R19E
Press () to select desired album.
Turn the “MENU” knob or press the “ ” or “” button to select the
desired track.
Press and hold the “ ” or “” button.
Pressing (RPT) changes modes in the following order:
Track repeat Album repeat Off
Pressing (RDM) changes modes in the following order:
Album random All track random Off
Press ( ).
Press (Text) to display or hide the album title.
If there are continuing texts, is displayed.
Press and hold the button to display the remaining texts.
■ Bluetooth® audio system functions
Depending on the portable player that is connected to the system, certain
functions may not be available.
■ Display
 P. 277
Selecting an album
Selecting a track
Fast-forwarding and rewinding tracks
Repeat play
Random play
Playing and pausing tracks
Switching the display

3065-8. Bluetooth® Phone
AYGO_OM_Europe_OM99R19E
Making a phone call
Select “Phonebook” using the “MENU” knob.
Select the desired name using the knob and press the off-hook
switch.
By pressing (Add S. Dial) and one of the speed dial buttons
(from [1] to [5]) while the desired name is selected, it can
be registered as a speed dial.
Press (A-Z) to display the registered names in alphabetical
order of the initial.
Select “Speed dials” using the “MENU” knob.
Press the desired preset button (from [1] to [5]) and
press the off-hook switch.
To delete a registered speed dial, after selecting the desired preset
button (from [1] to [5]) press (Delete) and then
press (Yes).
: If equipped
To enter the “TEL” mode, press the off-hook switch.
Dialing by selecting a name
Speed dialing

3075-8. Bluetooth® Phone
5
Audio system
AYGO_OM_Europe_OM99R19E
Select “Dial by number” using the “MENU” knob.
Enter the phone number and press the off-hook switch.
Select “All calls”, “Missed calls”, “Incoming calls” or “Outgoing calls”
using the “MENU” knob.
Select a desired number using the knob and press the off-hook
switch.
The following operations can be performed:
● Registering a number as a speed dial
Press (Add S. Dial) and then press the desired preset button
(from [1] to [5]).
● Deleting the selected number
Press (Delete) and press (Yes).
Dialing by entering the number
Dialing from call histories

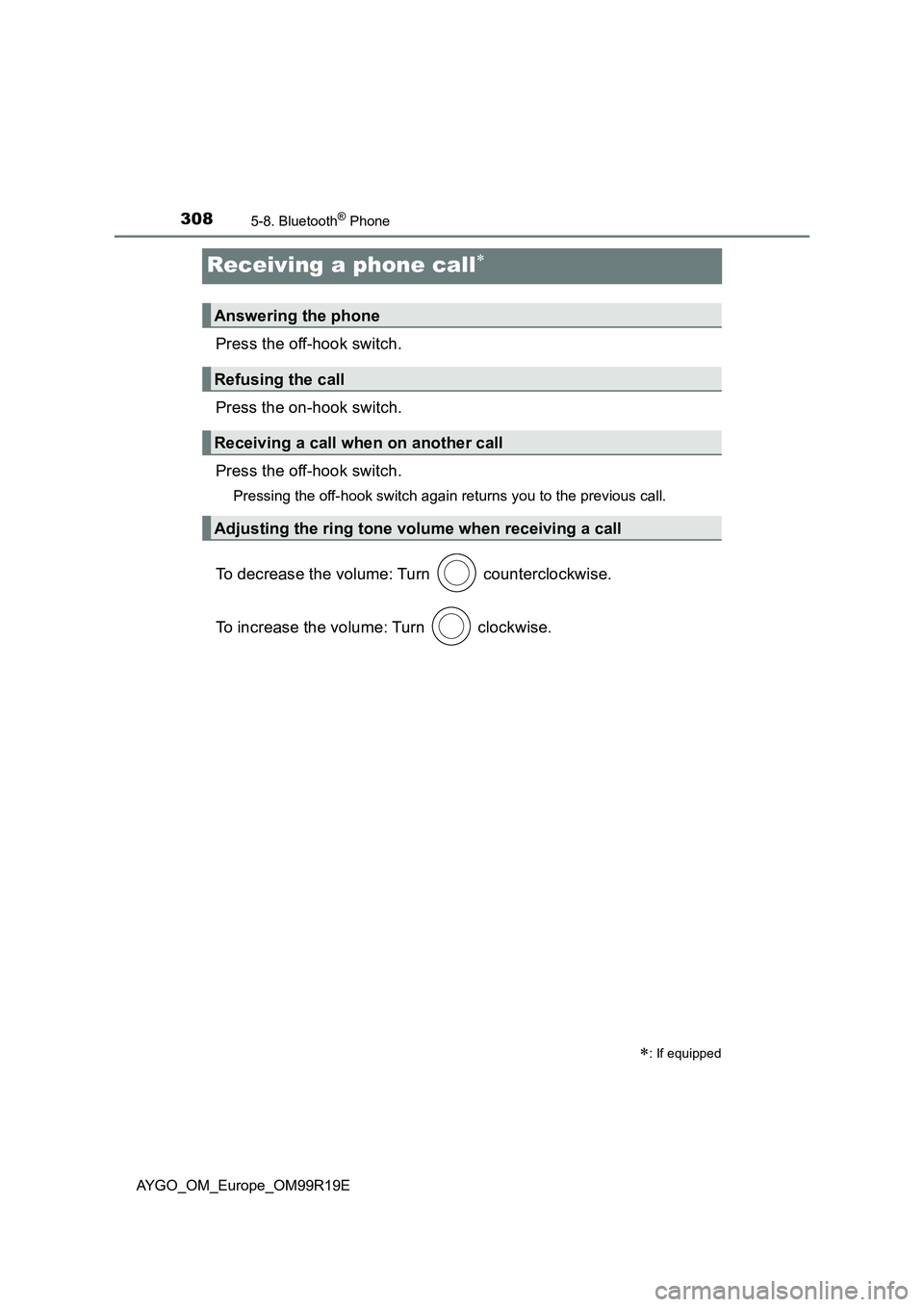

3085-8. Bluetooth® Phone
AYGO_OM_Europe_OM99R19E
Receiving a phone call
Press the off-hook switch.
Press the on-hook switch.
Press the off-hook switch.
Pressing the off-hook switch again returns you to the previous call.
To decrease the volume: Turn counterclockwise.
To increase the volume: Turn clockwise.
: If equipped
Answering the phone
Refusing the call
Receiving a call when on another call
Adjusting the ring tone volume when receiving a call

309
5
5-8. Bluetooth® Phone
Audio system
AYGO_OM_Europe_OM99R19E
Speaking on the phone
A call can be transferred between the cellular phone and system while
dialing, receiving a call, or during a call. Use one of the following
methods:
a. Operate the cellular phone.
Refer to the manual that comes with the cellular phone for the operation
of the phone.
b. Press the (Phone).*
*: This operation can be performed only when transferring a call from the
cellular phone to the system during a call.
Press (Mute).
Press (0-9) and use the “MENU” knob to input the desired dig-
its.
• To send the input digits press (Send).
• When finished, press (Exit) to return to the previous screen.
To decrease the volume: Turn counterclockwise.
To increase the volume: Turn clockwise.
: If equipped
Transferring a call
Muting your voice
Inputting digits
Setting call volume

3105-8. Bluetooth® Phone
AYGO_OM_Europe_OM99R19E

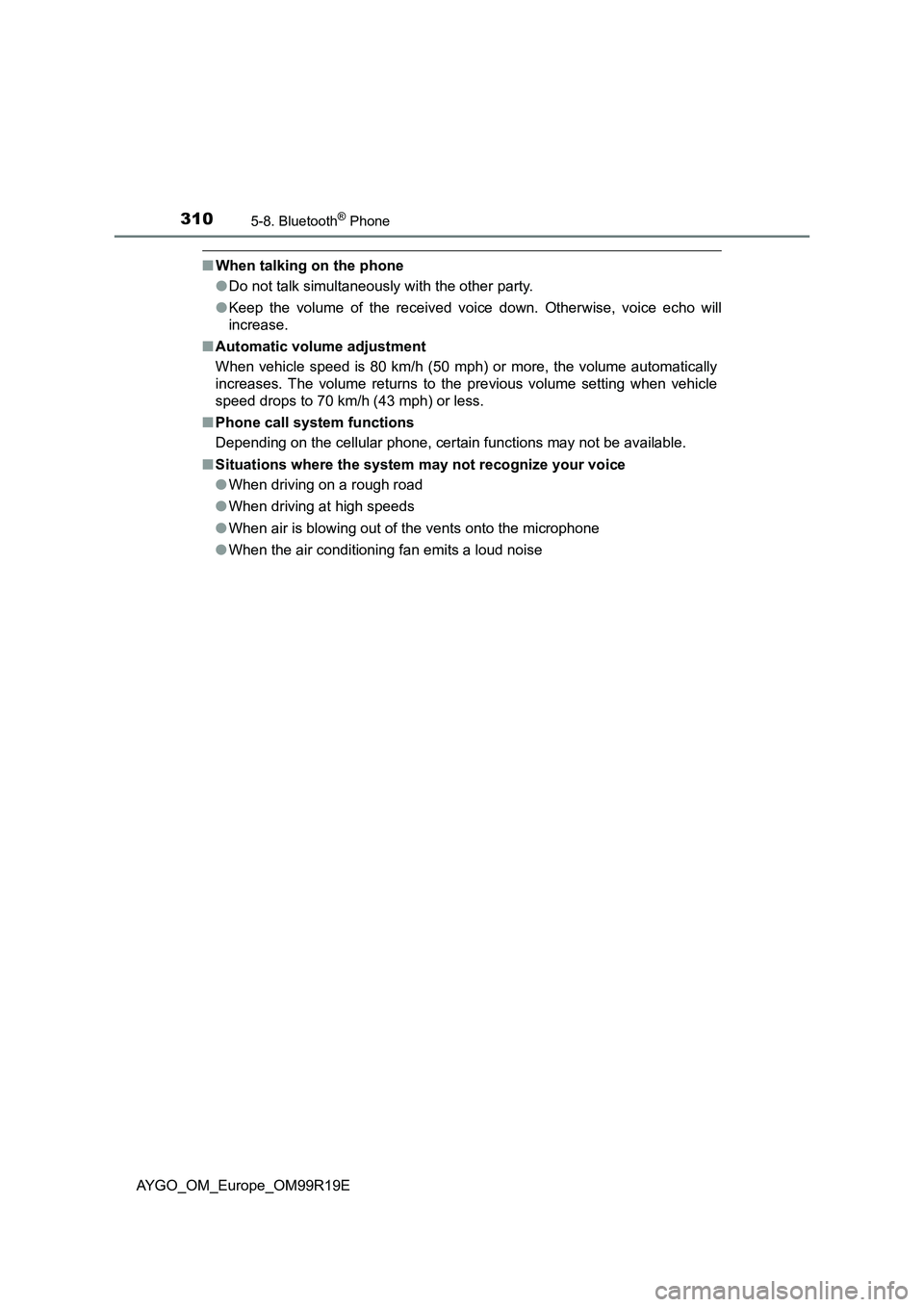

■When talking on the phone
● Do not talk simultaneously with the other party.
● Keep the volume of the received voice down. Otherwise, voice echo will
increase.
■ Automatic volume adjustment
When vehicle speed is 80 km/h (50 mph) or more, the volume automatically
increases. The volume returns to the previous volume setting when vehicle
speed drops to 70 km/h (43 mph) or less.
■ Phone call system functions
Depending on the cellular phone, certain functions may not be available.
■ Situations where the system may not recognize your voice
● When driving on a rough road
● When driving at high speeds
● When air is blowing out of the vents onto the microphone
● When the air conditioning fan emits a loud noise
