5058-2. Steps to take in an emergency
8
When trouble arises
AYGO_OM_Europe_OM9A012E
The coolant level is satisfactory if it is between the “FULL” or “F”
and “LOW” lines on the reservoir.
Radiator cap
Reservoir
“FULL” or “F”
“LOW”
Add coolant if necessary.
Water can be used in an emer-
gency if coolant is unavailable.
Start the engine and turn the air conditioning system on to check
that the radiator cooling fan operate and to check for coolant leaks
from the radiator or hoses.
The fan operate when the air conditioning system is turned on immediately
after a cold start. Confirm that the fan is operating by checking the fan
sound and air flow. If it is difficult to check these, turn the air conditioning
system on and off repeatedly. (The fan may not operate in freezing tem-
peratures.)
Ty pe ATy pe B
1
2
3
4

5129-1. Specifications
AYGO_OM_Europe_OM9A012E
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.

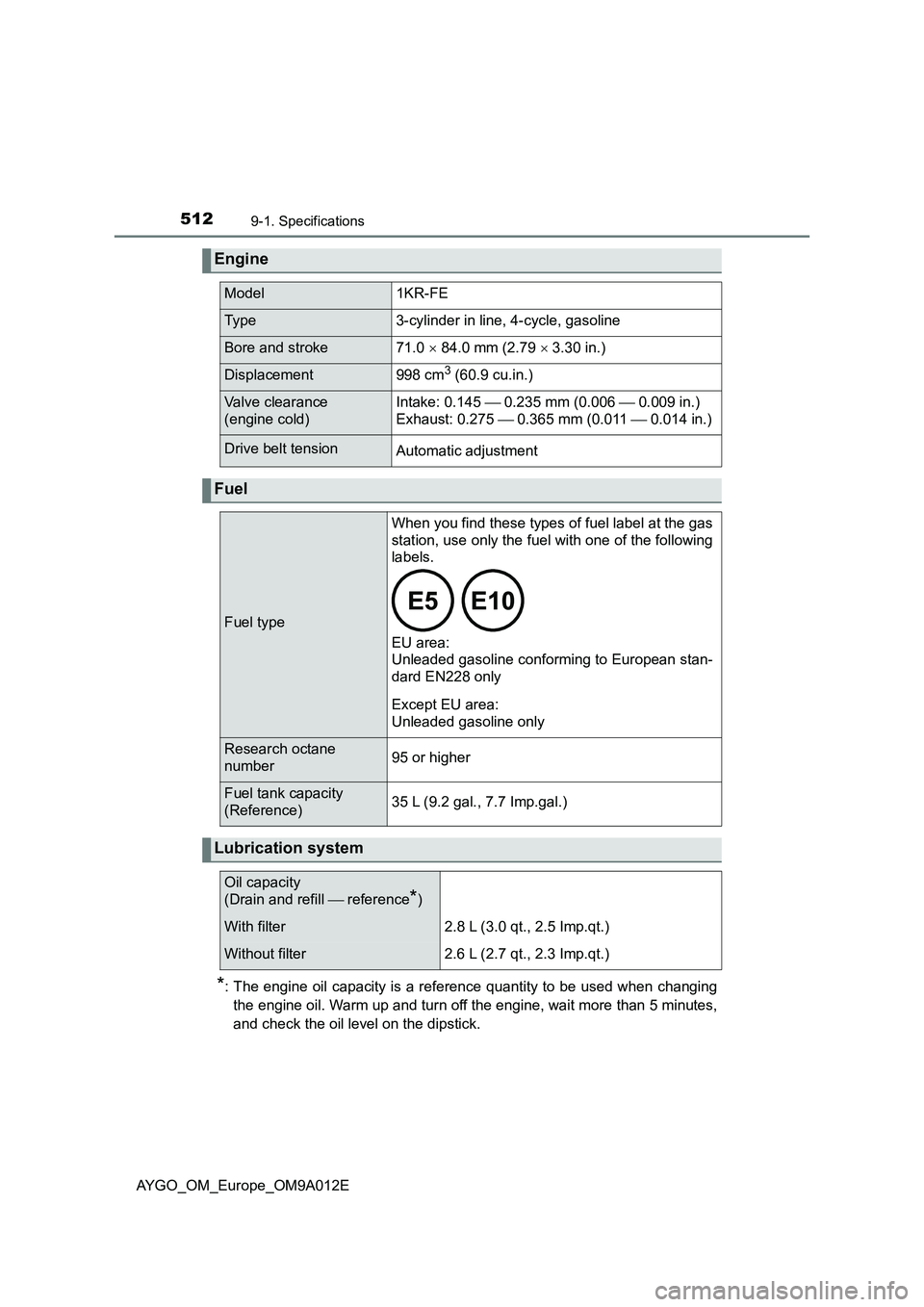

Engine
Model1KR-FE
Ty p e3-cylinder in line, 4-cycle, gasoline
Bore and stroke71.0  84.0 mm (2.79  3.30 in.)
Displacement998 cm3 (60.9 cu.in.)
Valve clearance
(engine cold)Intake: 0.145  0.235 mm (0.006  0.009 in.)
Exhaust: 0.275  0.365 mm (0.011  0.014 in.)
Drive belt tensionAutomatic adjustment
Fuel
Fuel type
When you find these types of fuel label at the gas
station, use only the fuel with one of the following
labels.

EU area:
Unleaded gasoline conforming to European stan-
dard EN228 only
Except EU area:
Unleaded gasoline only
Research octane
number95 or higher
Fuel tank capacity
(Reference)35 L (9.2 gal., 7.7 Imp.gal.)
Lubrication system
Oil capacity
(Drain and refill  reference
*)
With filter2.8 L (3.0 qt., 2.5 Imp.qt.)
Without filter2.6 L (2.7 qt., 2.3 Imp.qt.)

5169-1. Specifications
AYGO_OM_Europe_OM9A012E
Ignition system
Spark plug
MakeDENSO FC16HR-Q8
Gap0.8 mm (0.031 in.)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system
Battery
Open voltage* at
20 C (68F):
12.3 V or higher
If the specific voltage is lower than the stan-
dard value, charge the battery.
(*: Voltage checked 20 minutes after the
engine and all the lights are turned off)
Charging rates5 A max.

526What to do if... (Troubleshooting)
AYGO_OM_Europe_OM9A012E

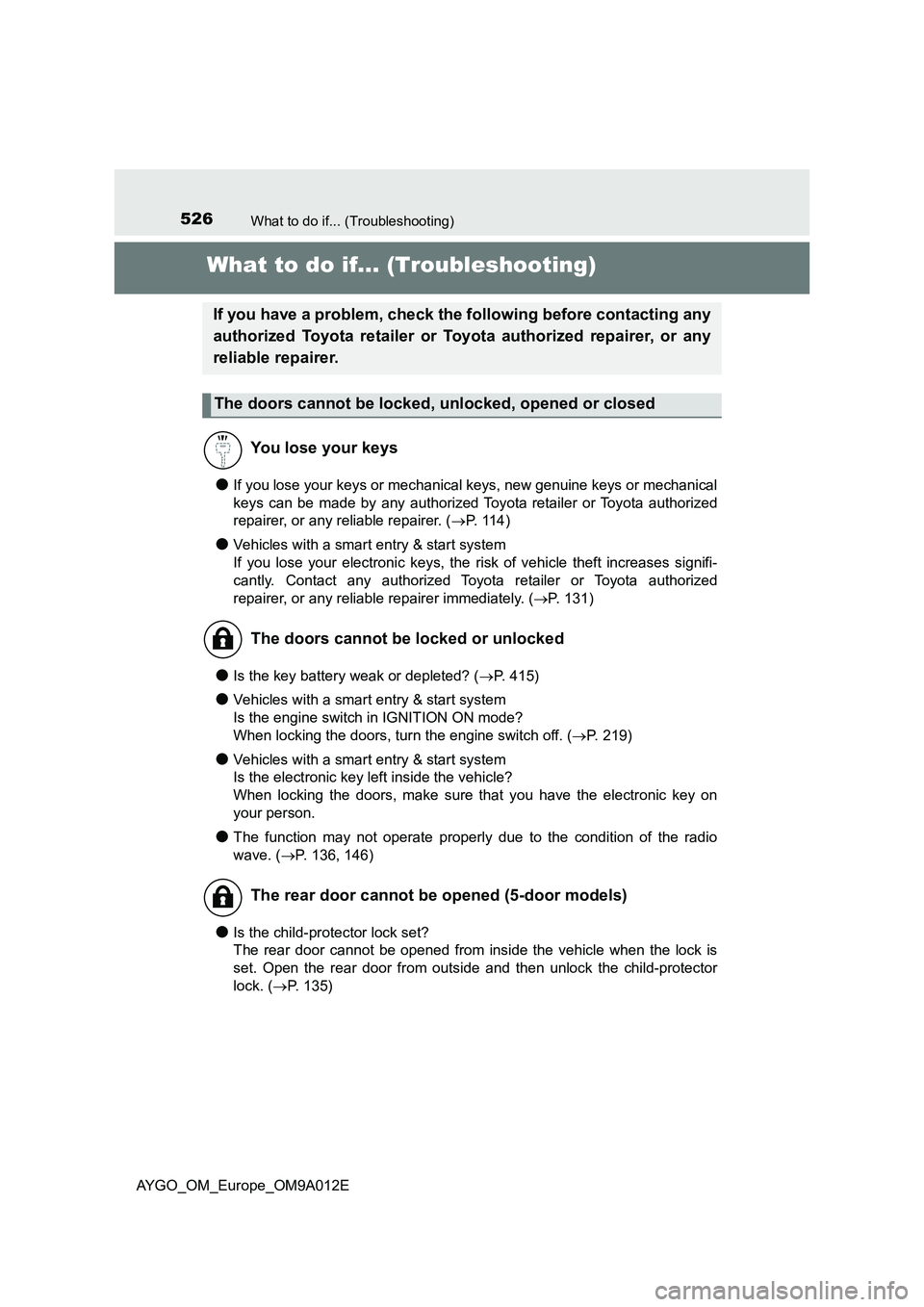

What to do if... (Troubleshooting)
●If you lose your keys or mechanical keys, new genuine keys or mechanical
keys can be made by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer. (P. 1 1 4 )
●Vehicles with a smart entry & start system
If you lose your electronic keys, the risk of vehicle theft increases signifi-
cantly. Contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer immediately. (P. 131)
●Is the key battery weak or depleted? (P. 415)
●Vehicles with a smart entry & start system
Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. (P. 219)
●Vehicles with a smart entry & start system
Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on
your person.
●The function may not operate properly due to the condition of the radio
wave. (P. 136, 146)
●Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is
set. Open the rear door from outside and then unlock the child-protector
lock. (P. 135)
If you have a problem, check the following before contacting any
authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened (5-door models)
