491-2. Child safety
1
For safety and security
AYGO_OM_Europe_OM9A012E

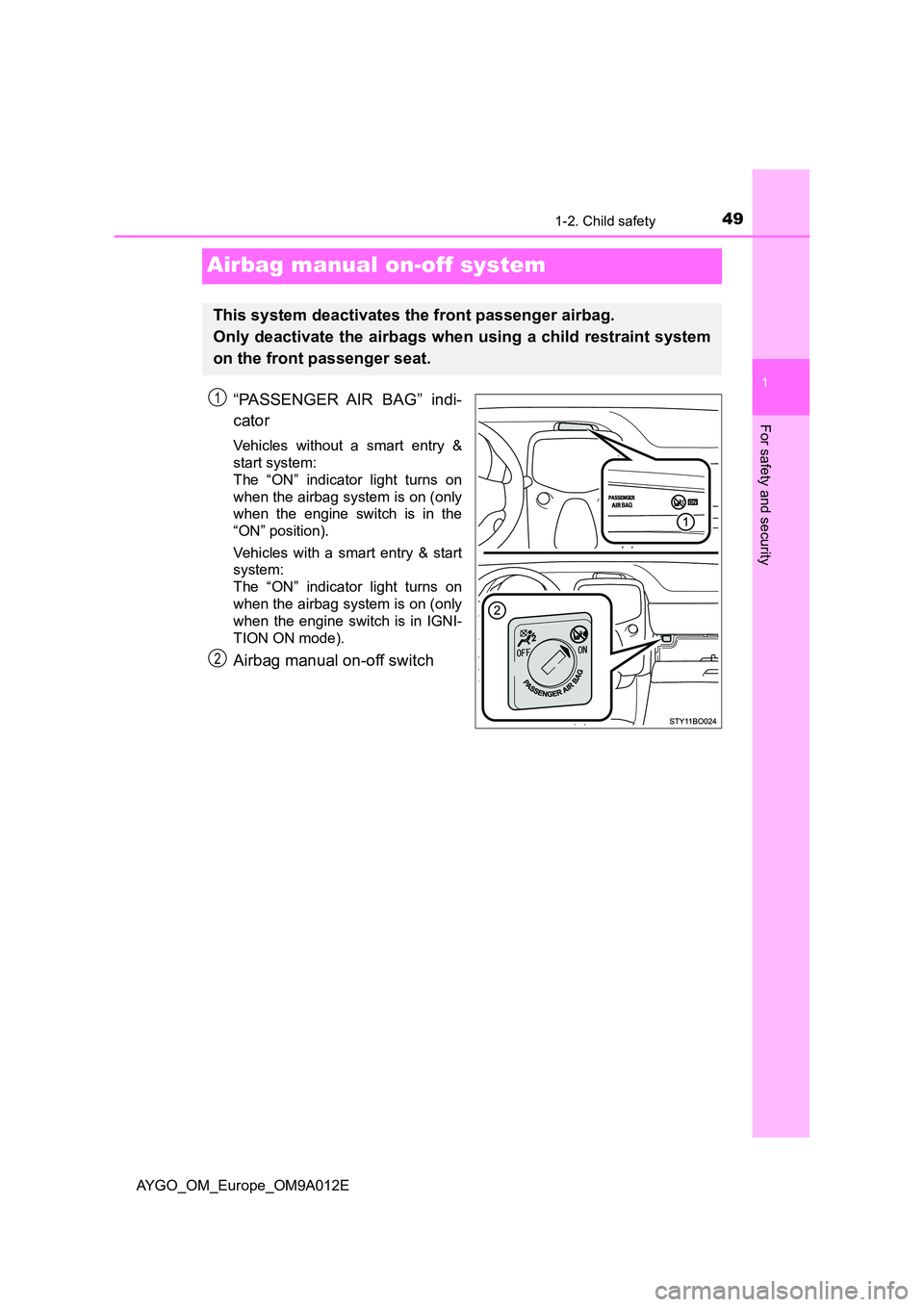

Airbag manual on-off system
“PASSENGER AIR BAG” indi-
cator
Vehicles without a smart entry &
start system:
The “ON” indicator light turns on
when the airbag system is on (only
when the engine switch is in the
“ON” position).
Vehicles with a smart entry & start
system:
The “ON” indicator light turns on
when the airbag system is on (only
when the engine switch is in IGNI-
TION ON mode).
Airbag manual on-off switch
This system deactivates the front passenger airbag.
Only deactivate the airbags when using a child restraint system
on the front passenger seat.
1
2

501-2. Child safety
AYGO_OM_Europe_OM9A012E
Vehicles without a smart entry
& start system
Insert the key into the cylinder and
turn to the “OFF” position.
The “OFF” indicator light turns on
(only when the engine switch is in
the “ON” position).
Vehicles with a smart entry & start system
Insert the mechanical key into the cylinder and turn to the “OFF” posi-
tion.
The “OFF” indicator light turns on (only when the engine switch is in IGNI-
TION ON mode).
■ “PASSENGER AIR BAG” indicator information
If any of the following problems occur, it is possible that there is a malfunction
in the system. Have the vehicle inspected by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
● Neither “ON” nor “OFF” comes on.
● The indicator light does not change when the airbag manual on-off switch is
switched to “ON” or “OFF”.
Deactivating the airbags for the front passenger
WARNING
■ When installing a child restraint system
For safety reasons, always install a child restraint system in a rear seat. In
the event that the rear seat cannot be used, the front seat can be used as
long as the airbag manual on-off system is set to “OFF”.
If the airbag manual on-off system is left on, the strong impact of the airbag
deployment (inflation) may cause serious injury or even death.
■ When a child restraint system is not installed on the front passenger
seat
Ensure that the airbag manual on-off system is set to “ON”.
If it is left off, the airbag may not deploy in the event of an accident, which
may result in serious injury or even death.

511-2. Child safety
1
For safety and security
AYGO_OM_Europe_OM9A012E
Riding with children
●It is recommended that children sit in the rear seats to avoid acci-
dental contact with the shift lever, wiper switch etc.
● 5-door models: Use the rear door child-protector lock to avoid chil-
dren opening the door, accidentally, while driving. ( P. 135)
● Do not let small children operate equipment which may catch or
pinch body parts, such as the power window, hood, back door,
seats, etc.
Observe the following precautions when children are in the vehi-
cle.
Use a child restraint system appropriate for the child, until the
child becomes large enough to properly wear the vehicle’s seat
belt.
WARNING
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows, the canvas top or other features of the vehicle. In addition,
heat build-up or extremely cold temperatures inside the vehicle can be fatal
to children.

521-2. Child safety
AYGO_OM_Europe_OM9A012E

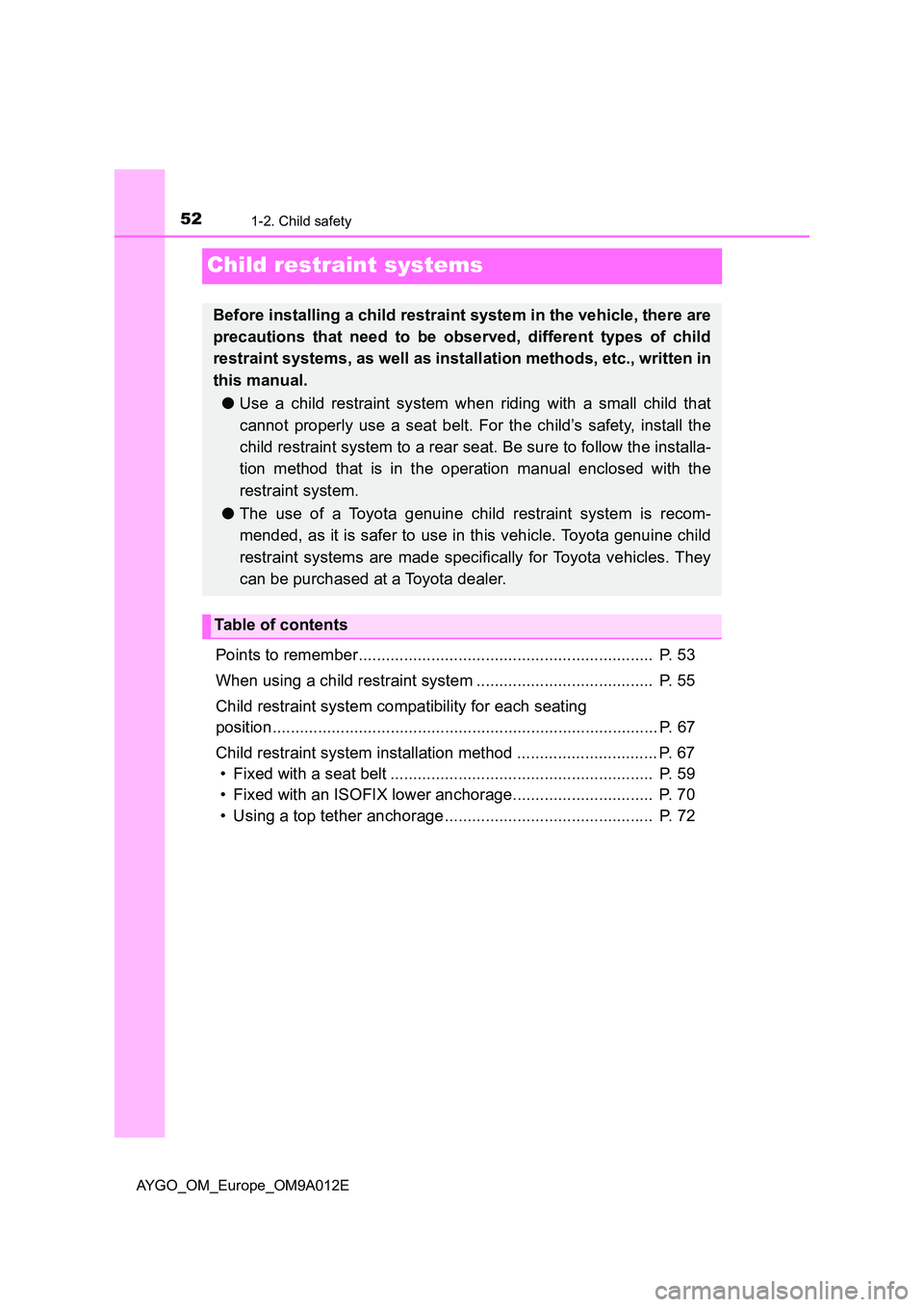

Child restraint systems
Points to remember................................................................. P. 53
When using a child restraint system ....................................... P. 55
Child restraint system compatibility for each seating
position..................................................................................... P. 67
Child restraint system installation method ............................... P. 67
• Fixed with a seat belt .......................................................... P. 59
• Fixed with an ISOFIX lower anchorage............................... P. 70
• Using a top tether anchorage .............................................. P. 72
Before installing a child restraint system in the vehicle, there are
precautions that need to be observed, different types of child
restraint systems, as well as installation methods, etc., written in
this manual.
● Use a child restraint system when riding with a small child that
cannot properly use a seat belt. For the child’s safety, install the
child restraint system to a rear seat. Be sure to follow the installa-
tion method that is in the operation manual enclosed with the
restraint system.
● The use of a Toyota genuine child restraint system is recom-
mended, as it is safer to use in this vehicle. Toyota genuine child
restraint systems are made specifically for Toyota vehicles. They
can be purchased at a Toyota dealer.
Table of contents

531-2. Child safety
1
For safety and security
AYGO_OM_Europe_OM9A012E
●Prioritize and observe the warnings, as well as the laws and regula-
tions for child restraint systems.
● Use a child restraint system until the child becomes large enough to
properly wear the vehicle’s seat belt.
● Choose a child restraint system appropriate to the age and size of
the child.
● Note that not all child restraint systems can fit in all vehicles.
Before using or purchasing a child restraint system, check the com-
patibility of the child restraint system with seat positions. ( P. 5 9 )

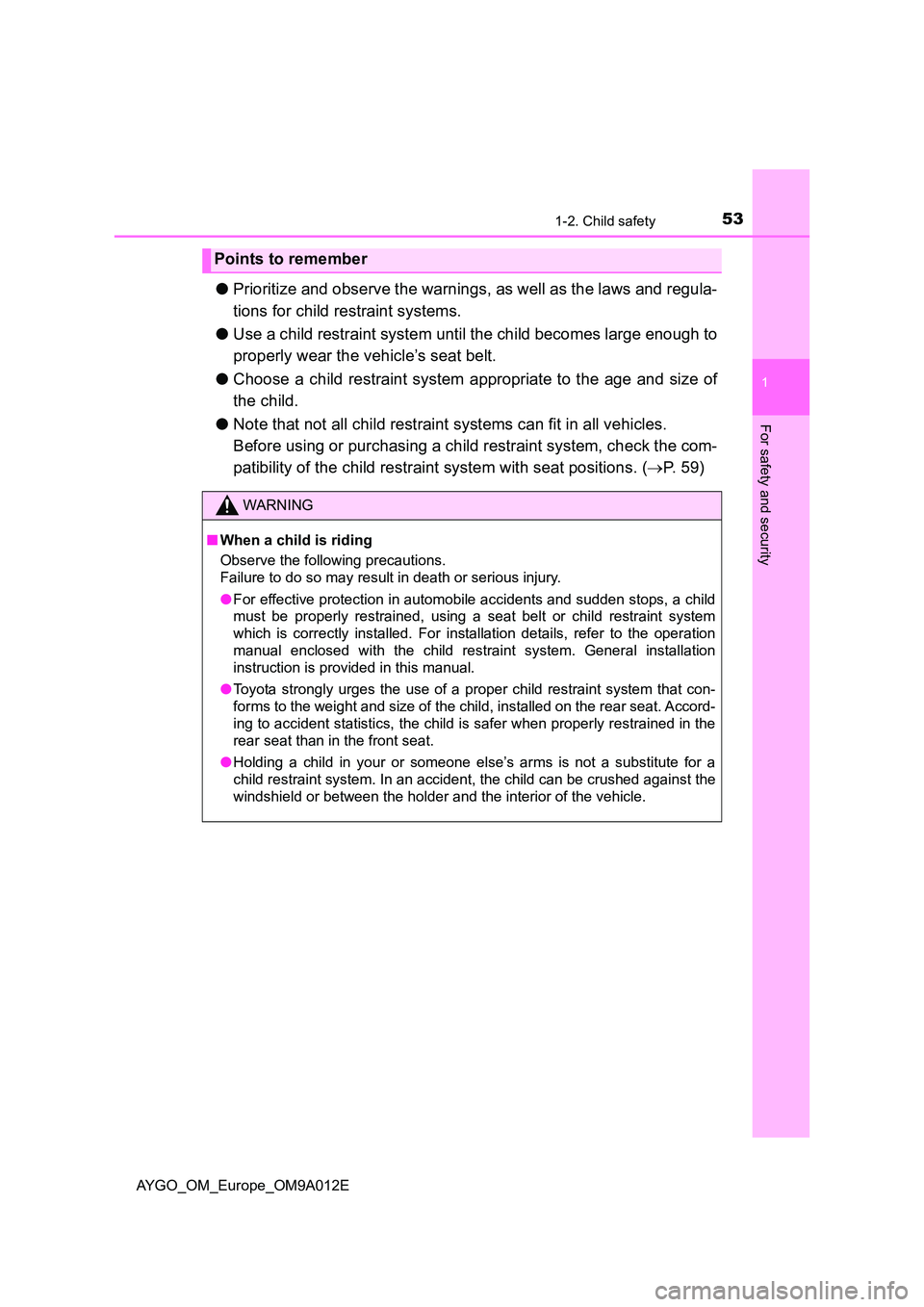

Points to remember
WARNING
■When a child is riding
Observe the following precautions.
Failure to do so may result in death or serious injury.
● For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
which is correctly installed. For inst allation details, refer to the operation
manual enclosed with the child restraint system. General installation
instruction is provided in this manual.
● Toyota strongly urges the use of a proper child restraint system that con-
forms to the weight and size of the child, installed on the rear seat. Accord-
ing to accident statistics, the child is safer when properly restrained in the
rear seat than in the front seat.
● Holding a child in your or someone else’s arms is not a substitute for a
child restraint system. In an accident, the child can be crushed against the
windshield or between the holder and the interior of the vehicle.

541-2. Child safety
AYGO_OM_Europe_OM9A012E

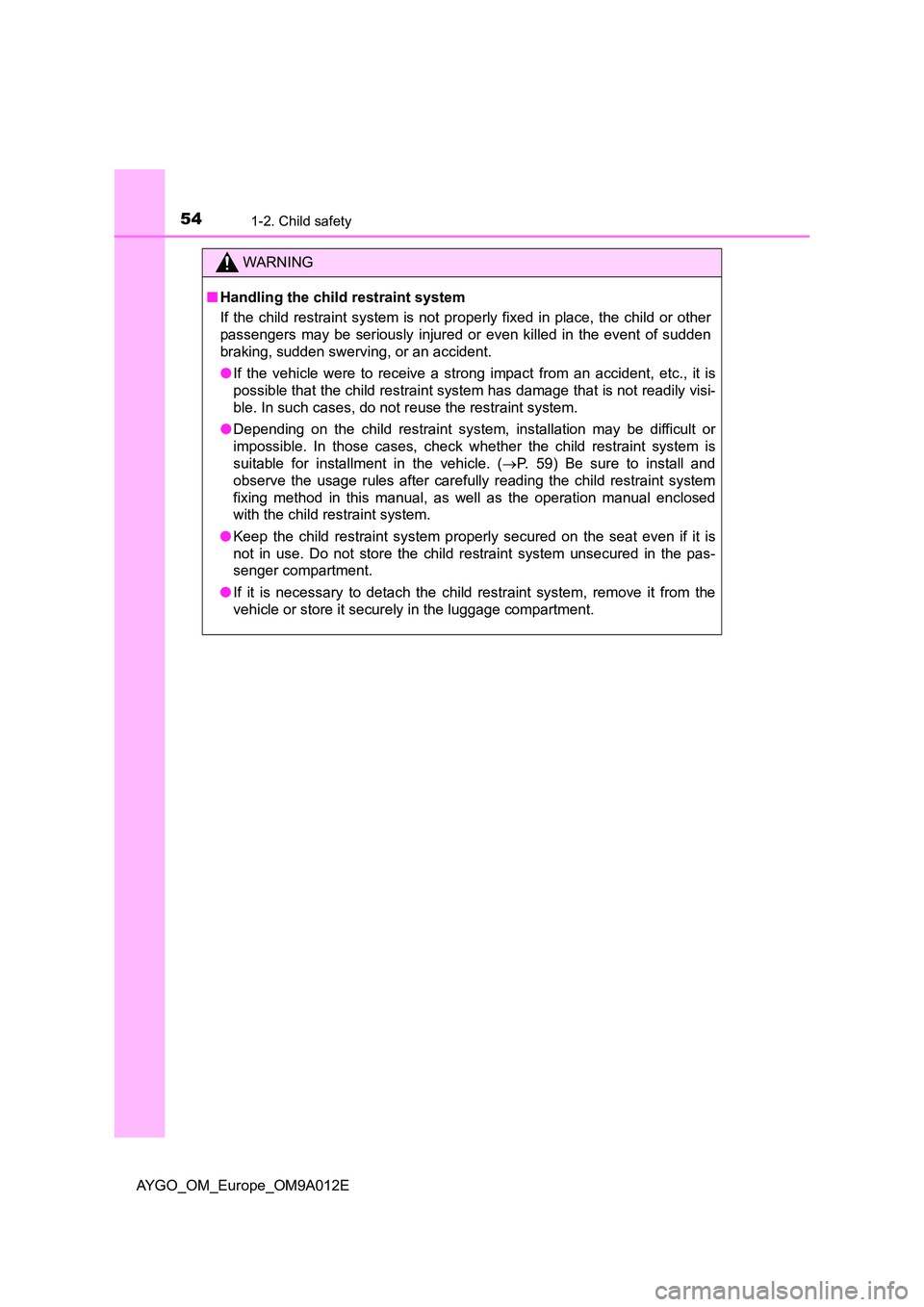

WARNING
■Handling the child restraint system
If the child restraint system is not properly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of sudden
braking, sudden swerving, or an accident.
● If the vehicle were to receive a strong impact from an accident, etc., it is
possible that the child restraint system has damage that is not readily visi-
ble. In such cases, do not reuse the restraint system.
● Depending on the child restraint system, installation may be difficult or
impossible. In those cases, check whether the child restraint system is
suitable for installment in the vehicle. ( P. 59) Be sure to install and
observe the usage rules after carefully reading the child restraint system
fixing method in this manual, as well as the operation manual enclosed
with the child restraint system.
● Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the child restraint system unsecured in the pas-
senger compartment.
● If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the luggage compartment.

551-2. Child safety
1
For safety and security
AYGO_OM_Europe_OM9A012E

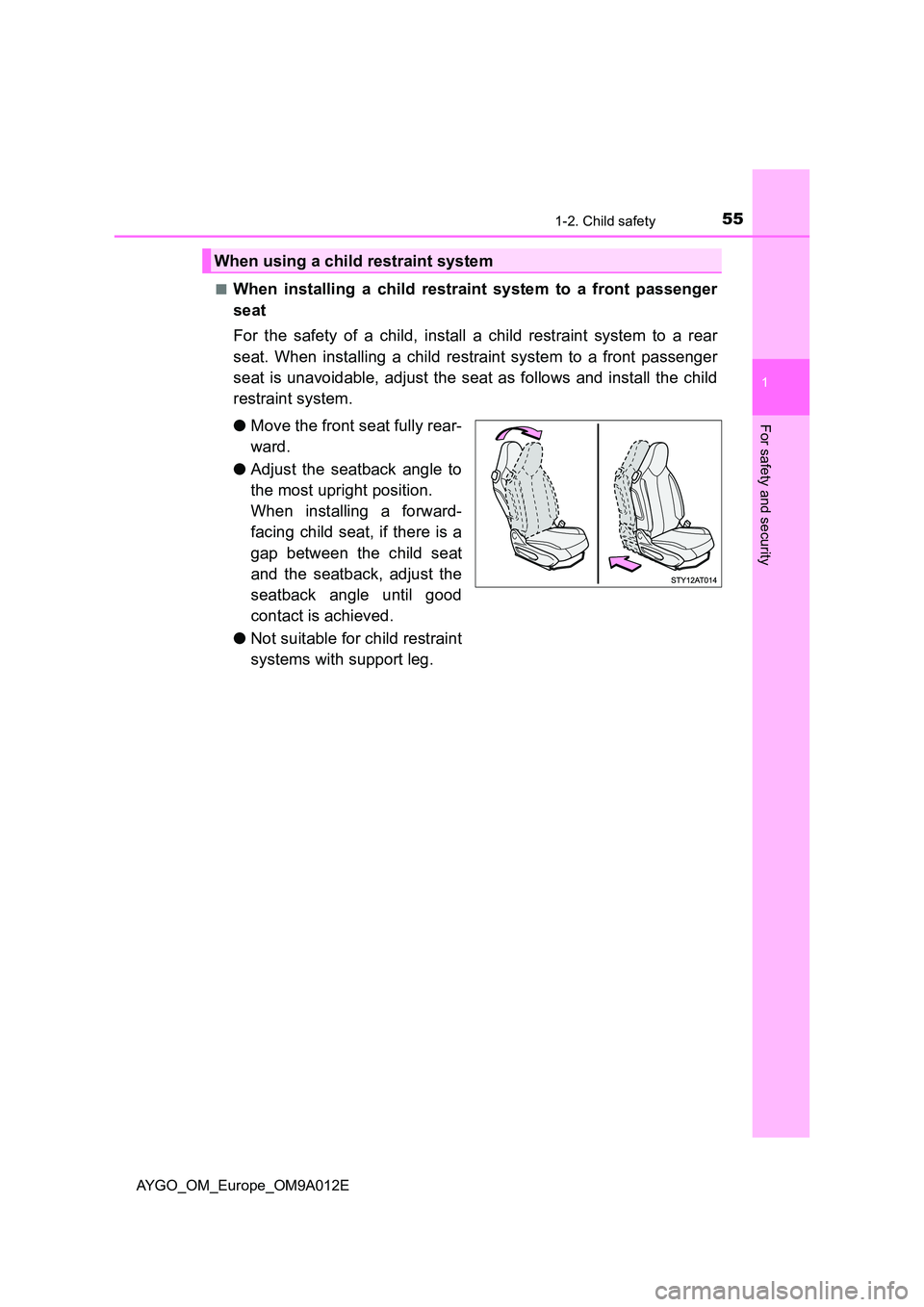

■When installing a child restraint system to a front passenger
seat
For the safety of a child, install a child restraint system to a rear
seat. When installing a child restraint system to a front passenger
seat is unavoidable, adjust the seat as follows and install the child
restraint system.
● Move the front seat fully rear-
ward.
● Adjust the seatback angle to
the most upright position.
When installing a forward-
facing child seat, if there is a
gap between the child seat
and the seatback, adjust the
seatback angle until good
contact is achieved.
● Not suitable for child restraint
systems with support leg.
When using a child restraint system

561-2. Child safety
AYGO_OM_Europe_OM9A012E

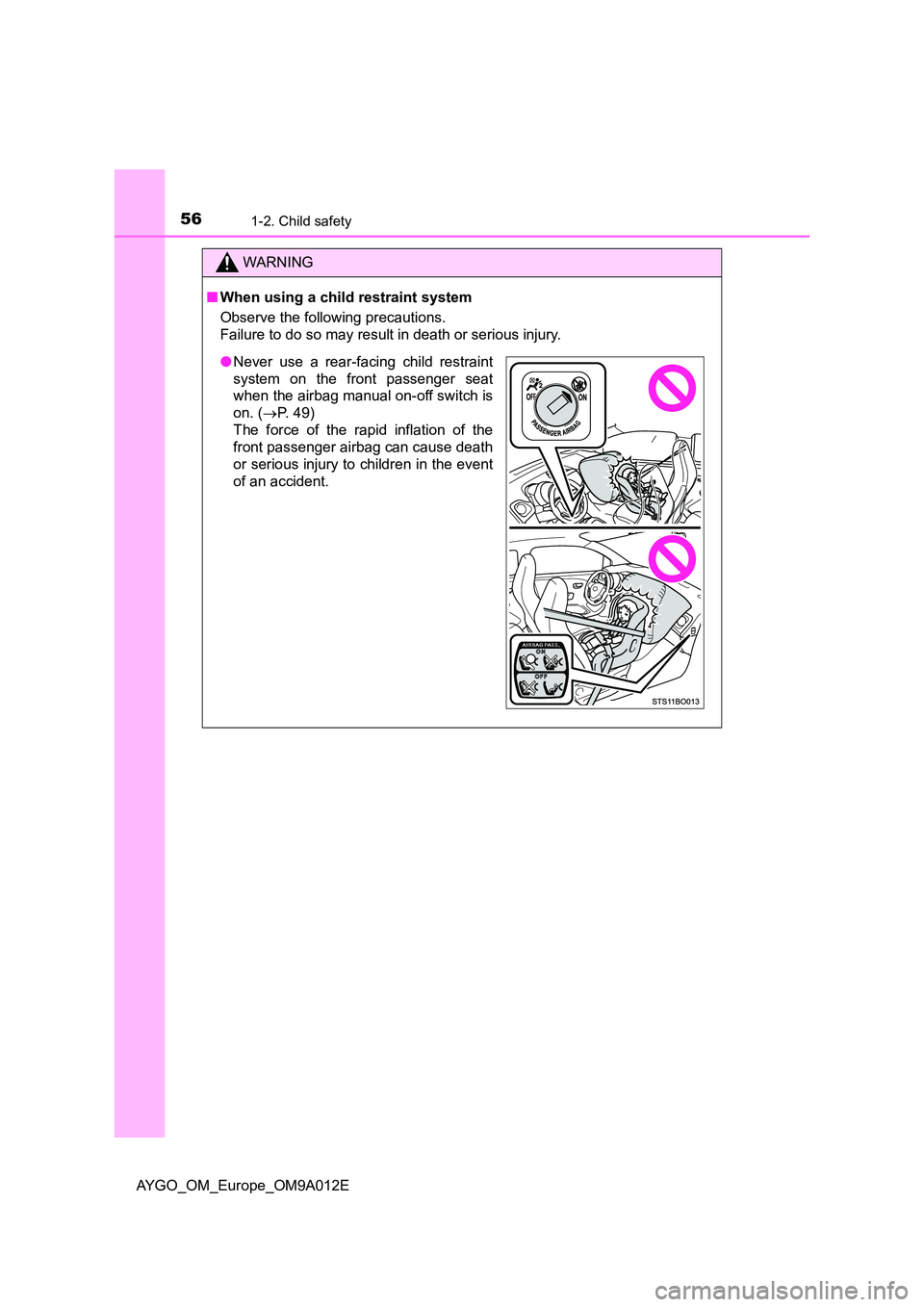

WARNING
■When using a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Never use a rear-facing child restraint
system on the front passenger seat
when the airbag manual on-off switch is
on. ( P. 49)
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.

571-2. Child safety
1
For safety and security
AYGO_OM_Europe_OM9A012E
WARNING
■When using a child restraint system
●There is a label(s) on the passenger
side sun visor, indicating it is forbidden
to attach a rear-facing child restraint
system to the front passenger seat.
Details of the label(s) are shown in the
illustration below.
●Only put a forward-facing child restraint
system on the front seat when unavoid-
able. When installing a forward-facing
child restraint on the front passenger
seat, move the seat as far back as pos-
sible. Failing to do so may result in
death or serious injury if the airbags
deploy (inflate).

581-2. Child safety
AYGO_OM_Europe_OM9A012E

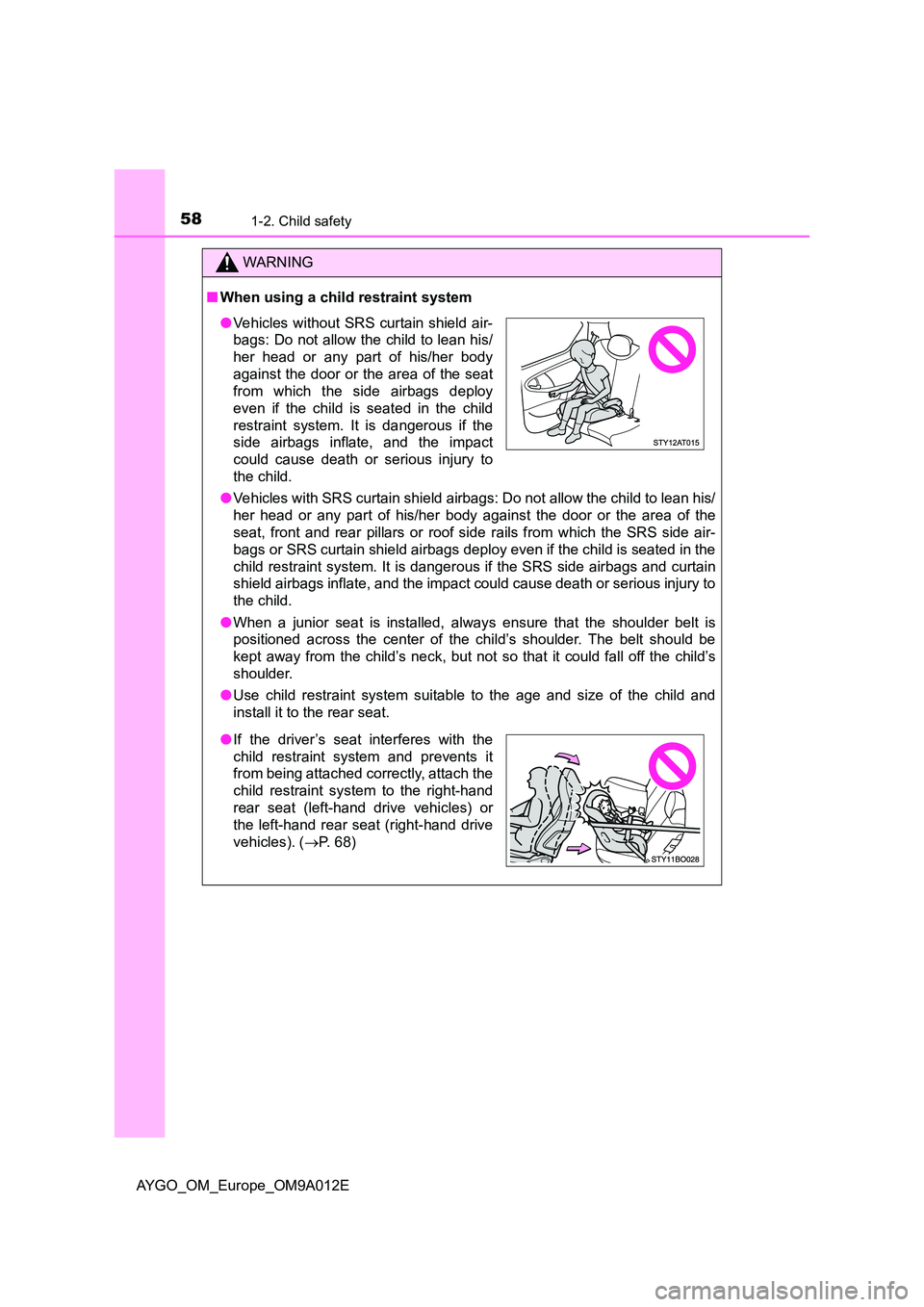

WARNING
■When using a child restraint system
● Vehicles with SRS curtain shield airbags: Do not allow the child to lean his/
her head or any part of his/her body against the door or the area of the
seat, front and rear pillars or roof side rails from which the SRS side air-
bags or SRS curtain shield airbags deploy even if the child is seated in the
child restraint system. It is dangerous if the SRS side airbags and curtain
shield airbags inflate, and the impact could cause death or serious injury to
the child.
● When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder.
● Use child restraint system suitable to the age and size of the child and
install it to the rear seat.
● Vehicles without SRS curtain shield air-
bags: Do not allow the child to lean his/
her head or any part of his/her body
against the door or the area of the seat
from which the side airbags deploy
even if the child is seated in the child
restraint system. It is dangerous if the
side airbags inflate, and the impact
could cause death or serious injury to
the child.
● If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach the
child restraint system to the right-hand
rear seat (left-hand drive vehicles) or
the left-hand rear seat (right-hand drive
vehicles). ( P. 6 8 )
