691-2. Child safety
1
For safety and security
AYGO_OM_Europe_OM9A012E

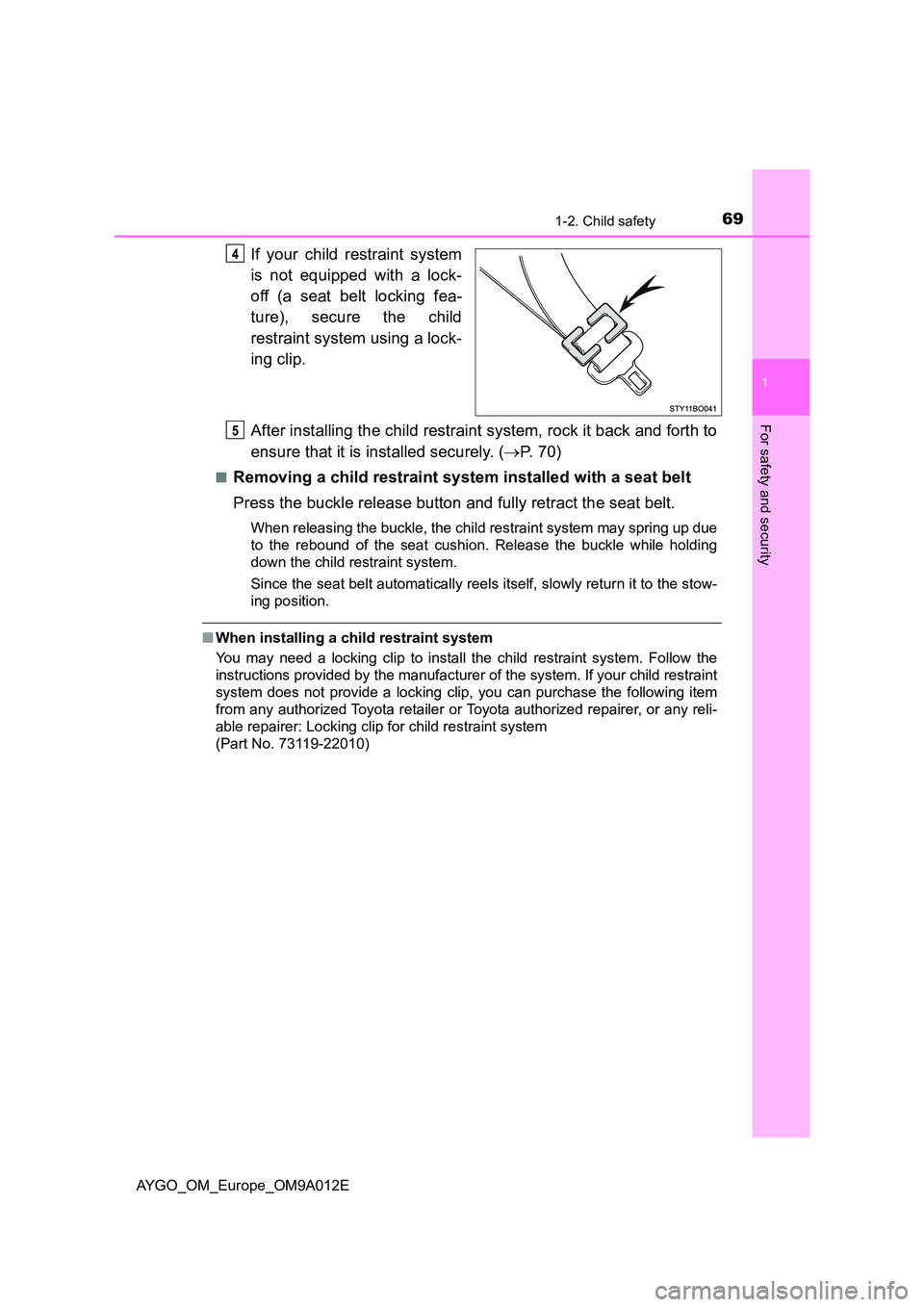

If your child restraint system
is not equipped with a lock-
off (a seat belt locking fea-
ture), secure the child
restraint system using a lock-
ing clip.
After installing the child restraint system, rock it back and forth to
ensure that it is installed securely. ( P. 7 0 )
■Removing a child restraint system installed with a seat belt
Press the buckle release button and fully retract the seat belt.
When releasing the buckle, the chil d restraint system may spring up due
to the rebound of the seat cushion. Release the buckle while holding
down the child restraint system.
Since the seat belt automatically reels itself, slowly return it to the stow-
ing position.
■ When installing a child restraint system
You may need a locking clip to install the child restraint system. Follow the
instructions provided by the manufacturer of the system. If your child restraint
system does not provide a locking clip, you can purchase the following item
from any authorized Toyota retailer or Toyota authorized repairer, or any reli-
able repairer: Locking clip for child restraint system
(Part No. 73119-22010)

701-2. Child safety
AYGO_OM_Europe_OM9A012E
■ISOFIX lower anchorages (ISOFIX child restraint system)
Lower anchorages are provided
for the each rear seat. (Buttons
displaying the location of the
anchorages are attached to the
seats.)
WARNING
■ When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious inju-
ries that could result in death. If this occurs and the buckle cannot be
unfastened, scissors should be used to cut the belt.
● Ensure that the belt and plate are securely locked and the seat belt is not
twisted.
● Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.
● After securing a child restraint system, never adjust the seat.
● When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder.
● Follow all installation instructions provided by the child restraint system
manufacturer.
Child restraint system fixed with an ISOFIX lower anchorage

711-2. Child safety
1
For safety and security
AYGO_OM_Europe_OM9A012E

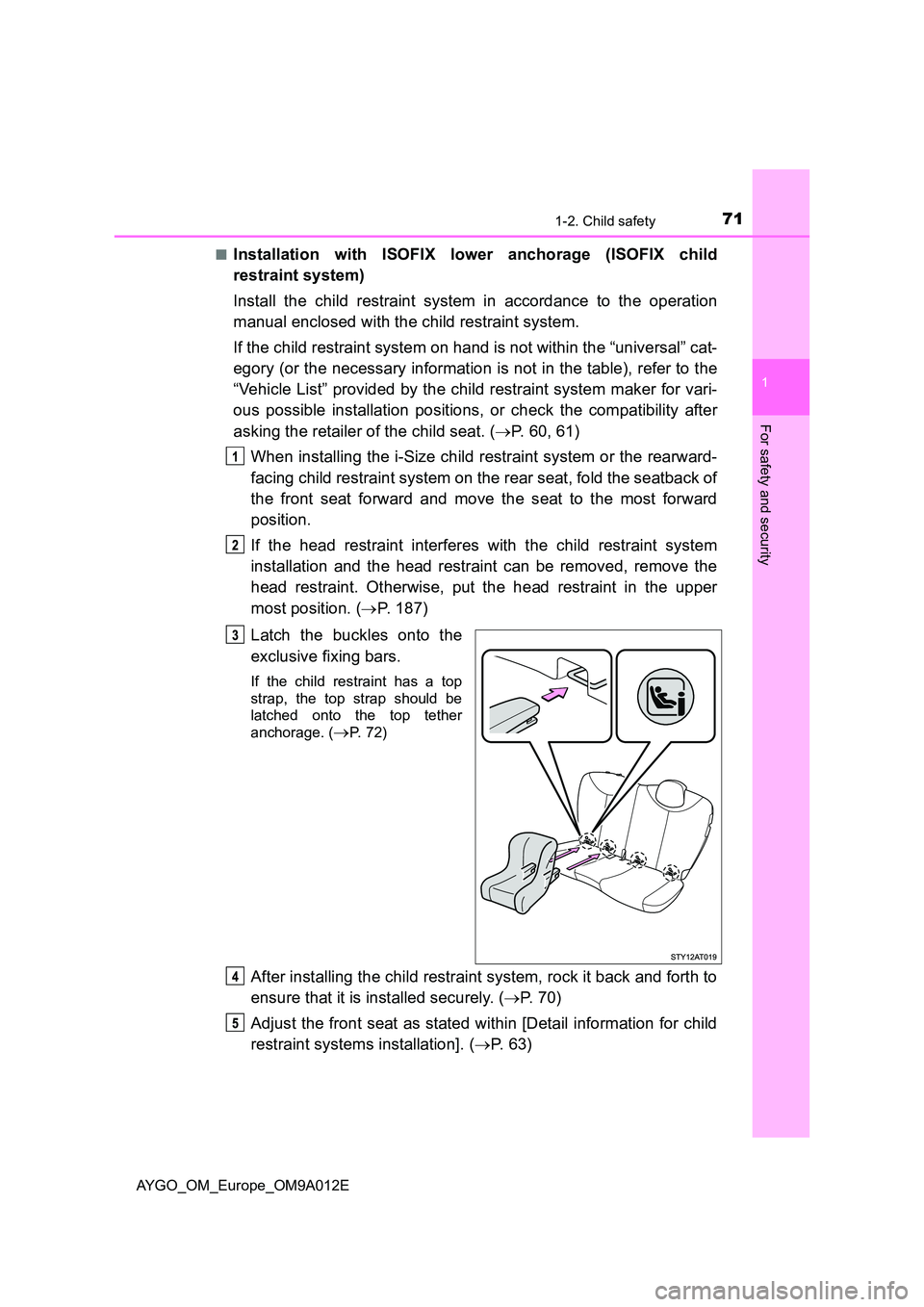

■Installation with ISOFIX lower anchorage (ISOFIX child
restraint system)
Install the child restraint system in accordance to the operation
manual enclosed with the child restraint system.
If the child restraint system on hand is not within the “universal” cat-
egory (or the necessary information is not in the table), refer to the
“Vehicle List” provided by the child restraint system maker for vari-
ous possible installation positions, or check the compatibility after
asking the retailer of the child seat. ( P. 60, 61)
When installing the i-Size child restraint system or the rearward-
facing child restraint system on the rear seat, fold the seatback of
the front seat forward and move the seat to the most forward
position.
If the head restraint interferes with the child restraint system
installation and the head restraint can be removed, remove the
head restraint. Otherwise, put the head restraint in the upper
most position. ( P. 187)
Latch the buckles onto the
exclusive fixing bars.
If the child restraint has a top
strap, the top strap should be
latched onto the top tether
anchorage. (P. 72)
After installing the child restraint system, rock it back and forth to
ensure that it is installed securely. ( P. 7 0 )
Adjust the front seat as stated within [Detail information for child
restraint systems installation]. ( P. 6 3 )

721-2. Child safety
AYGO_OM_Europe_OM9A012E

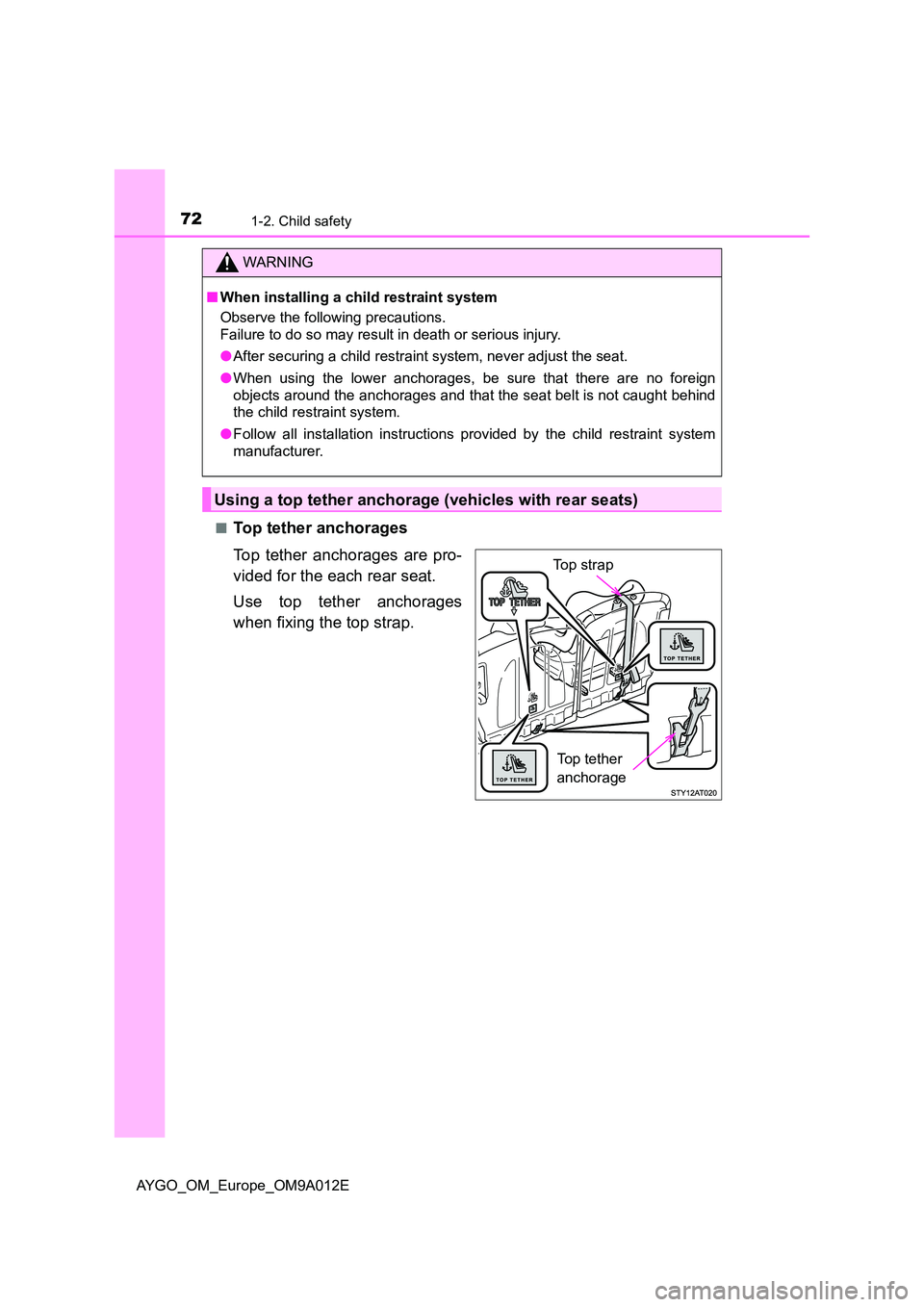

■Top tether anchorages
Top tether anchorages are pro-
vided for the each rear seat.
Use top tether anchorages
when fixing the top strap.
WARNING
■ When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● After securing a child restraint system, never adjust the seat.
● When using the lower anchorages, be sure that there are no foreign
objects around the anchorages and that the seat belt is not caught behind
the child restraint system.
● Follow all installation instructions provided by the child restraint system
manufacturer.
Using a top tether anchorage (vehicles with rear seats)
Top tether
anchorage
Top strap

731-2. Child safety
1
For safety and security
AYGO_OM_Europe_OM9A012E
■Fixing the top strap to the top tether anchorage
Install the child restraint system in accordance to the operation
manual enclosed with the child restraint system.
Vehicles with a luggage cover: Remove the luggage cover.
(P. 371)
Adjust the head restraint to
the upmost position.
If the head restraint interferes
with the child restraint system or
top strap installation and the
head restraint can be removed,
remove the head restraint.
(P. 187)
Secure the child restraint system using the seat belt or ISOFIX
lower anchorages.
Latch the hook onto the top
tether anchorage and tighten
the top strap.
Make sure the top strap is
securely latched. ( P. 7 0 )
When installing the child
restraint system with the head
restraint being raised, be sure to
have the top strap pass under-
neath the head restraint.
Top strap
Top tether anchorage

741-2. Child safety
AYGO_OM_Europe_OM9A012E

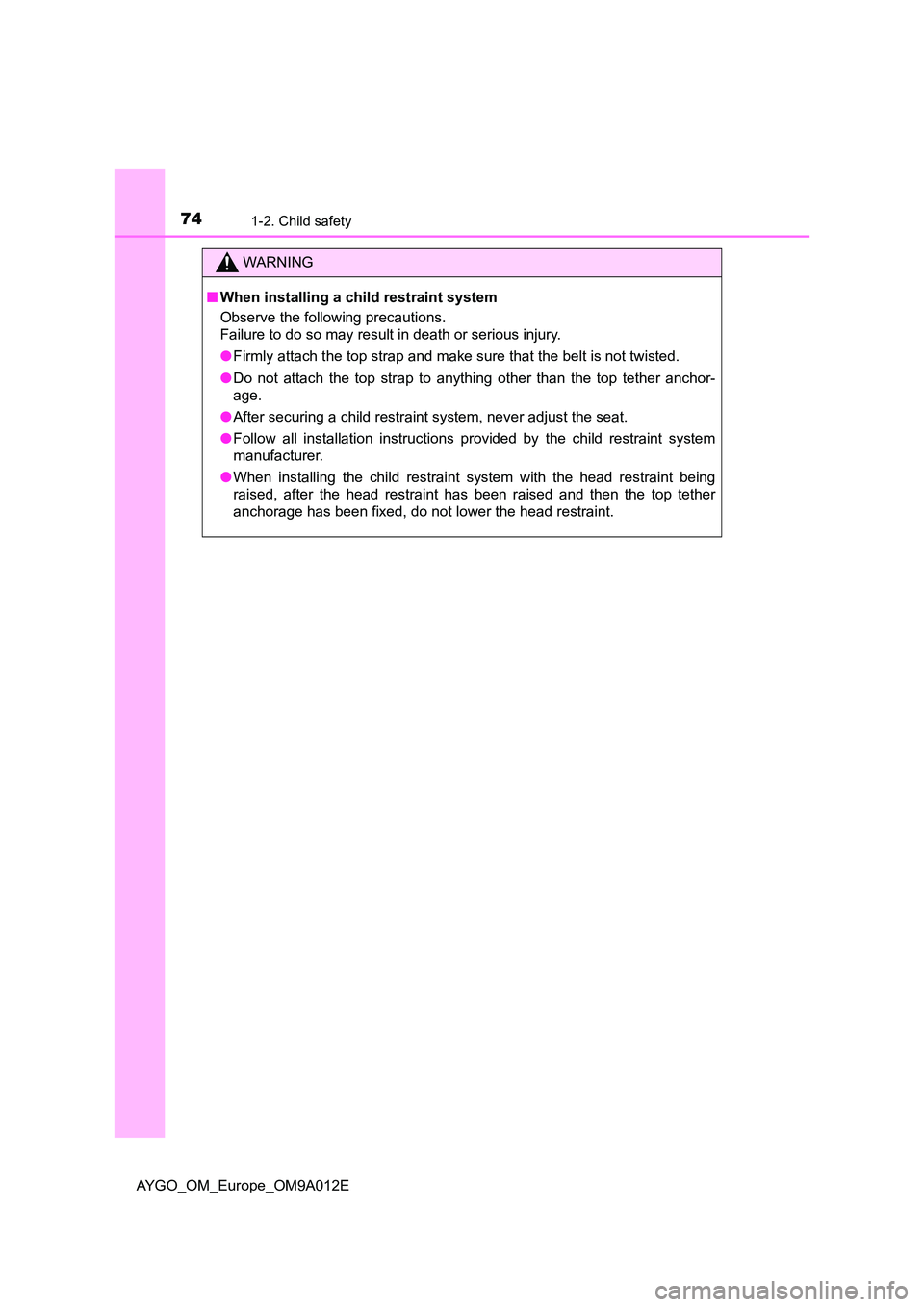

WARNING
■When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Firmly attach the top strap and make sure that the belt is not twisted.
● Do not attach the top strap to anything other than the top tether anchor-
age.
● After securing a child restraint system, never adjust the seat.
● Follow all installation instructions provided by the child restraint system
manufacturer.
● When installing the child restraint system with the head restraint being
raised, after the head restraint has been raised and then the top tether
anchorage has been fixed, do not lower the head restraint.

75
1
1-3. Theft deterrent system
For safety and security
AYGO_OM_Europe_OM9A012E
Engine immobilizer system
Vehicles without a smart entry & start system
The system begins operating after the engine switch is turned from
the “ON” to the “LOCK” position.
The system is canceled after the registered key has been inserted into
the engine switch and turned to the “ON” position.
Vehicles with a smart entry & start system
The system begins operating after the engine switch has been turned
off.
The system is canceled after the engine switch has been turned to
IGNITION ON mode.
■ System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■ Conditions that may cause the system to malfunction
● If the grip portion of the key is in contact with a metallic object
● If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle
The vehicle’s keys have built-in transponder chips that prevent
the engine from starting if a key has not been previously regis-
tered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.

761-3. Theft deterrent system
AYGO_OM_Europe_OM9A012E

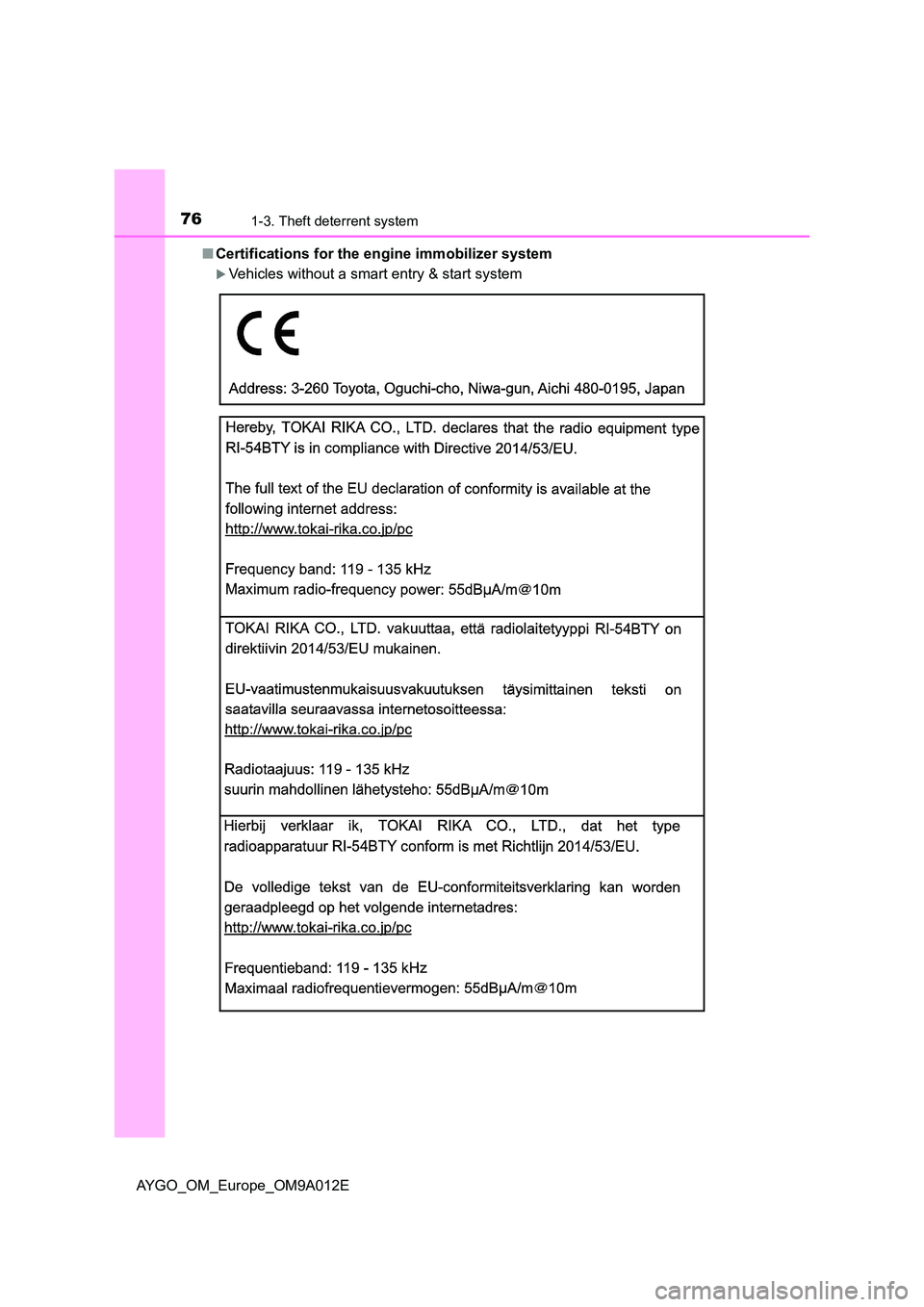

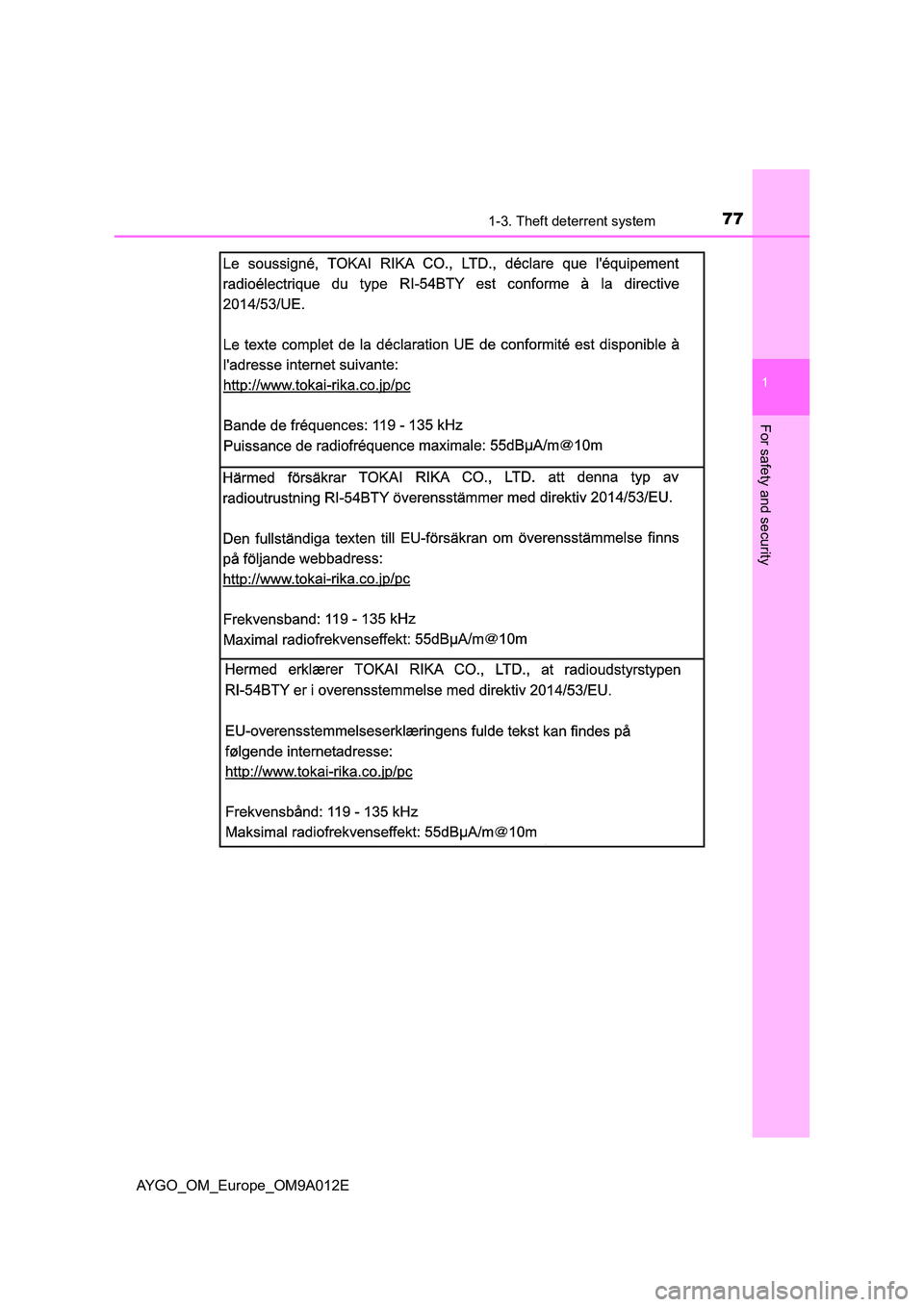

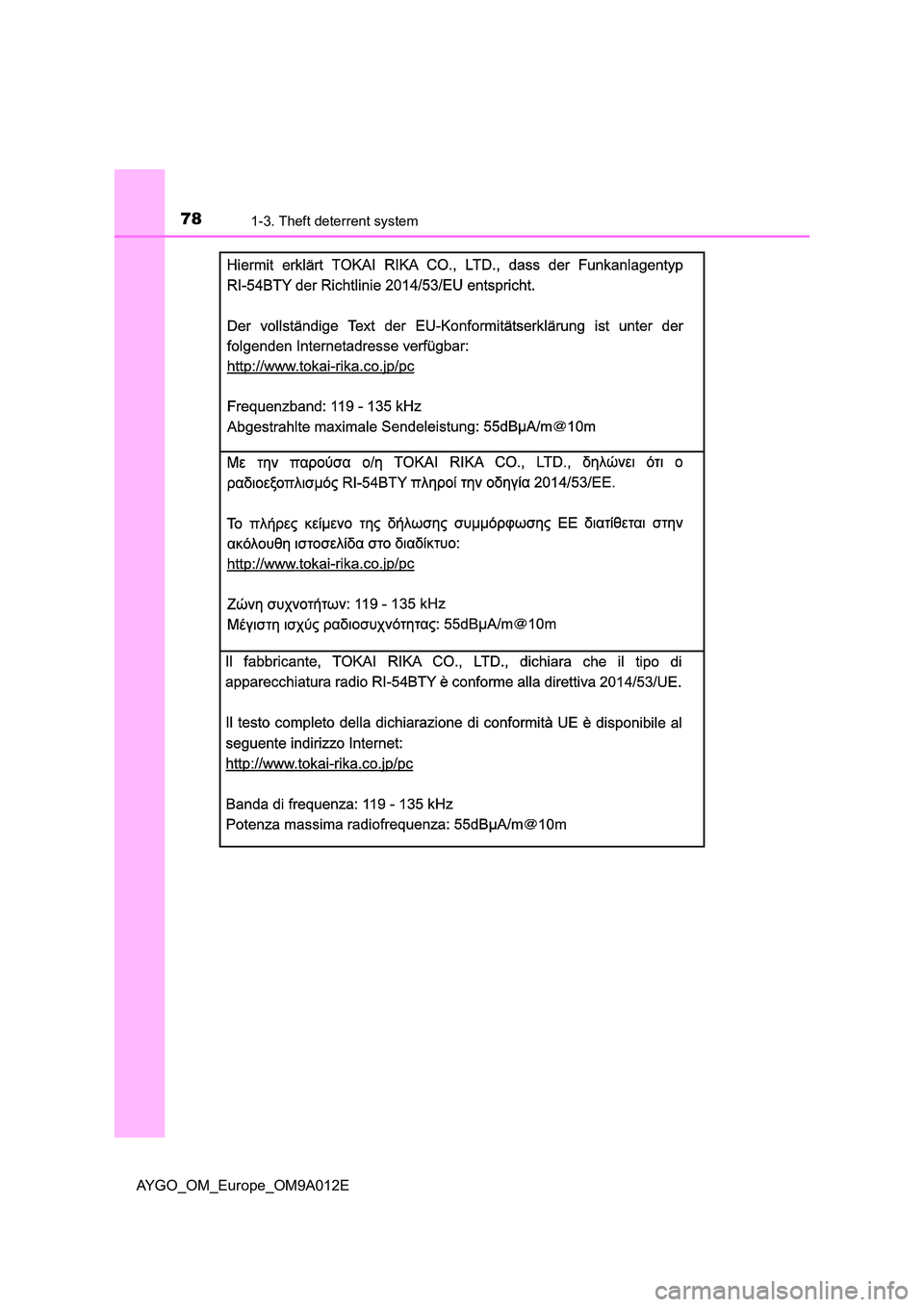

■ Certifications for the engine immobilizer system
Vehicles without a smart entry & start system

771-3. Theft deterrent system
1
For safety and security
AYGO_OM_Europe_OM9A012E

781-3. Theft deterrent system
AYGO_OM_Europe_OM9A012E
