headlight bulb TOYOTA AYGO 2021 Owners Manual

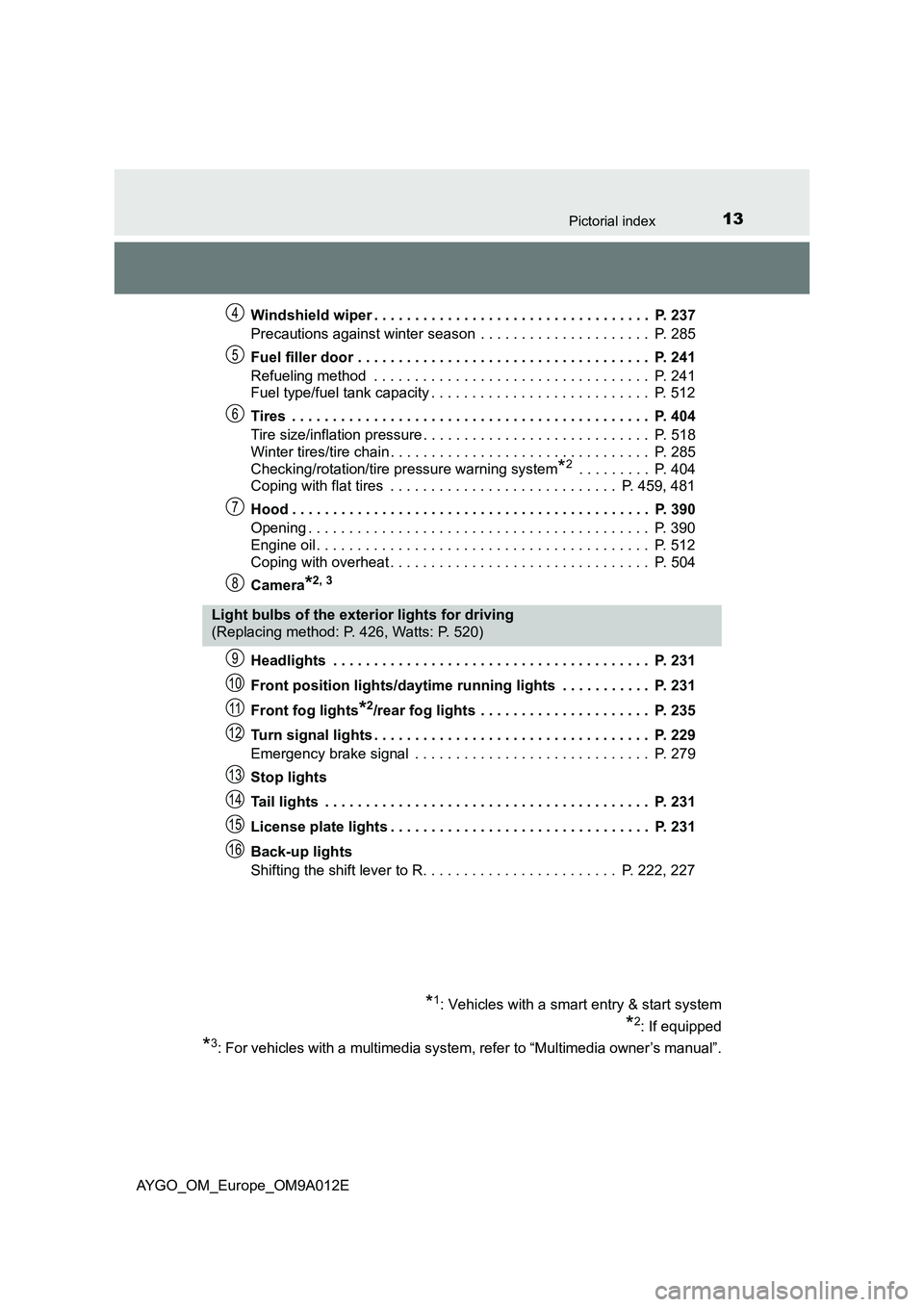

13Pictorial index
AYGO_OM_Europe_OM9A012EWindshield wiper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 237
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 285
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 512
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 404
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 518
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 285
Checking/rotation/tire pressure warning system
*2 . . . . . . . . . P. 404
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 459, 481
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 390
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 390
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 512
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 504
Camera
*2, 3
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 231
Front position lights/daytime running lights . . . . . . . . . . . P. 231
Front fog lights
*2/rear fog lights . . . . . . . . . . . . . . . . . . . . . P. 235
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 229
Emergency brake signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 279
Stop lights
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 231
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 231
Back-up lights
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . P. 222, 227
4
5
6
7
8
Light bulbs of the exterior lights for driving
(Replacing method: P. 426, Watts: P. 520)
*1: Vehicles with a smart entry & start system
*2: If equipped
*3: For vehicles with a multimedia system, refer to “Multimedia owner’s manual”.
9
10
11
12
13
14
15
16

4267-3. Do-it-yourself maintenance
AYGO_OM_Europe_OM9A012E

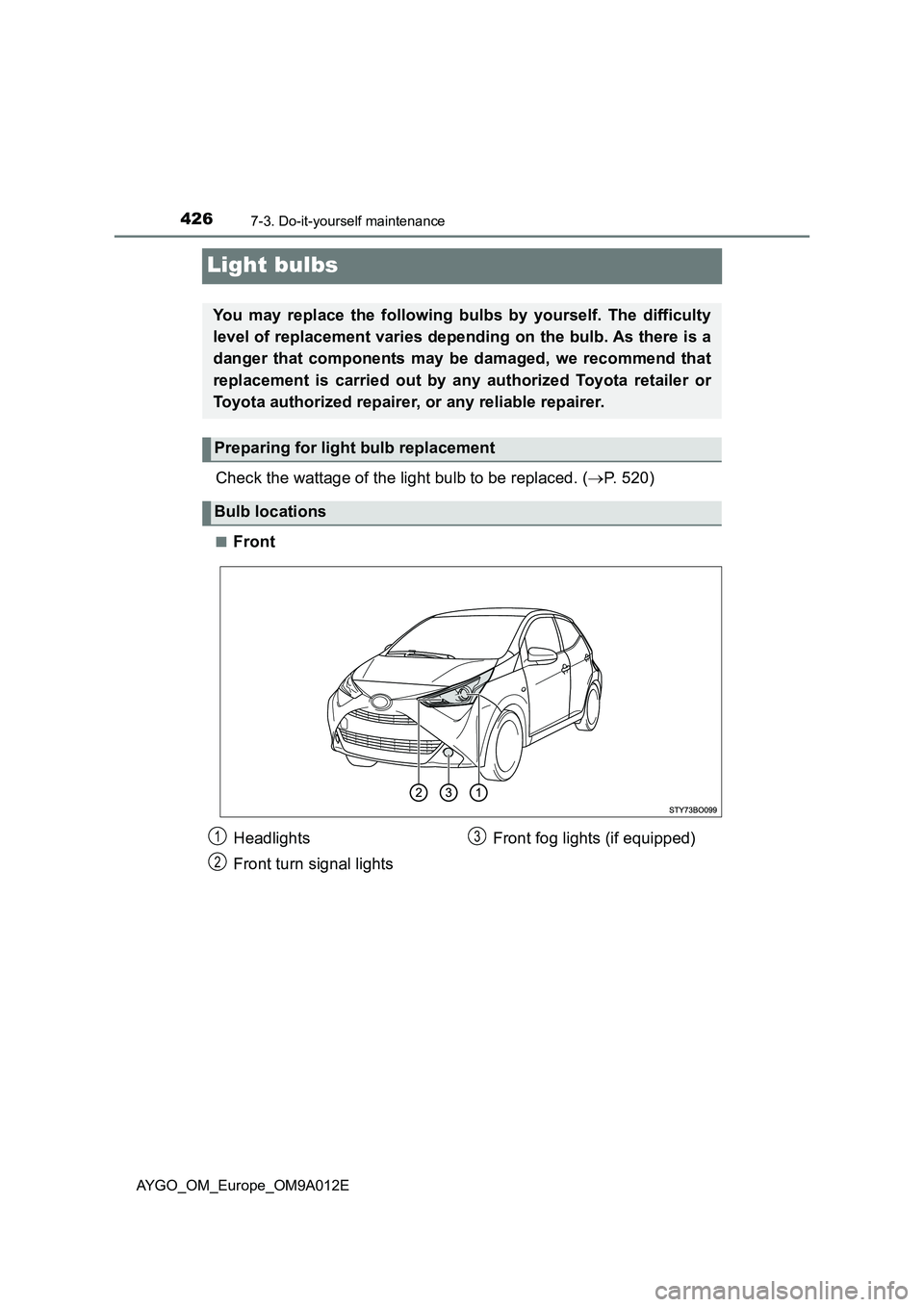

Light bulbs
Check the wattage of the light bulb to be replaced. (P. 520)
■Front
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. As there is a
danger that components may be damaged, we recommend that
replacement is carried out by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
Preparing for light bulb replacement
Bulb locations
Headlights
Front turn signal lightsFront fog lights (if equipped)1
2
3

4287-3. Do-it-yourself maintenance
AYGO_OM_Europe_OM9A012E■

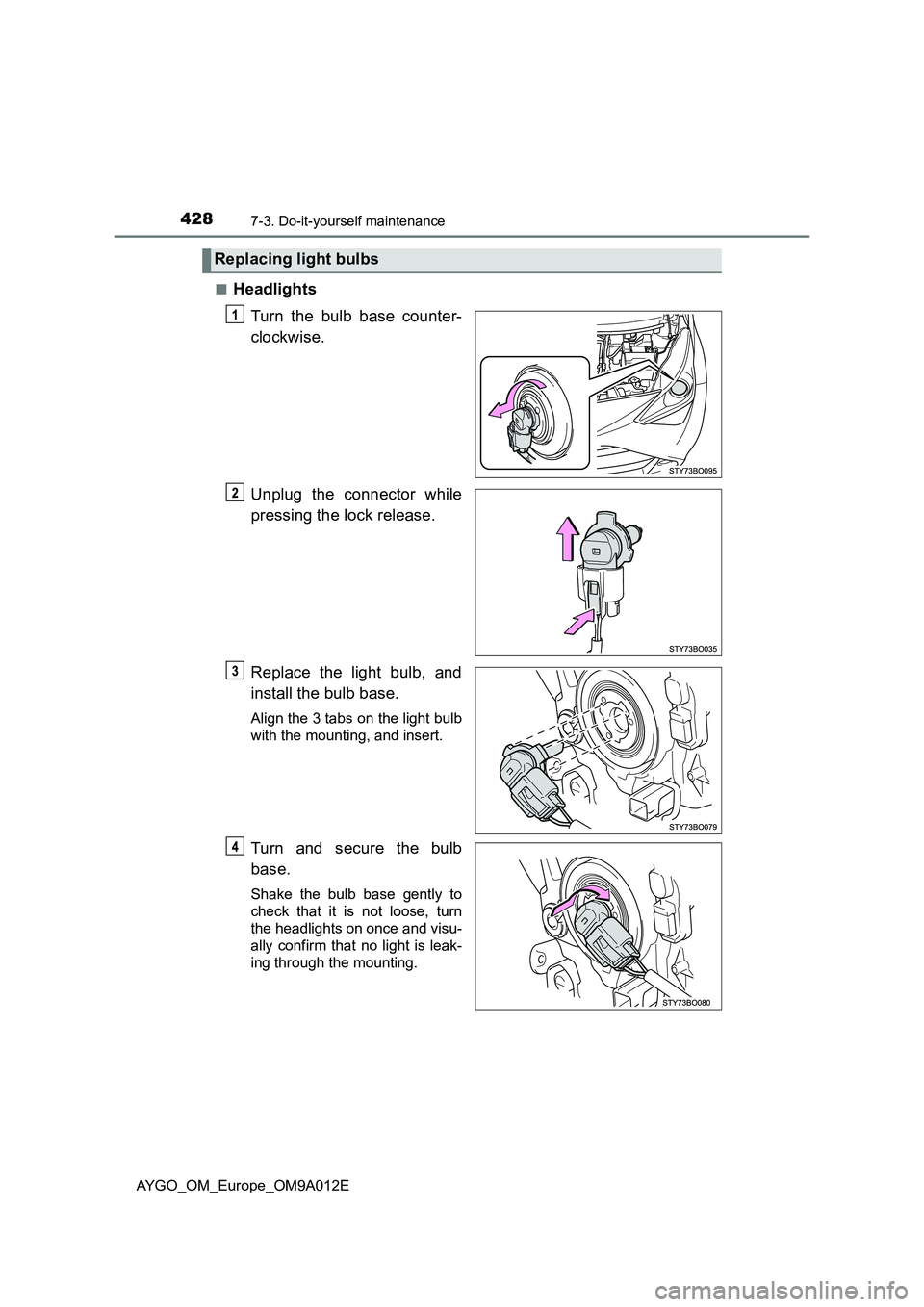

Headlights
Turn the bulb base counter-
clockwise.
Unplug the connector while
pressing the lock release.
Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
Replacing light bulbs

4367-3. Do-it-yourself maintenance
AYGO_OM_Europe_OM9A012E

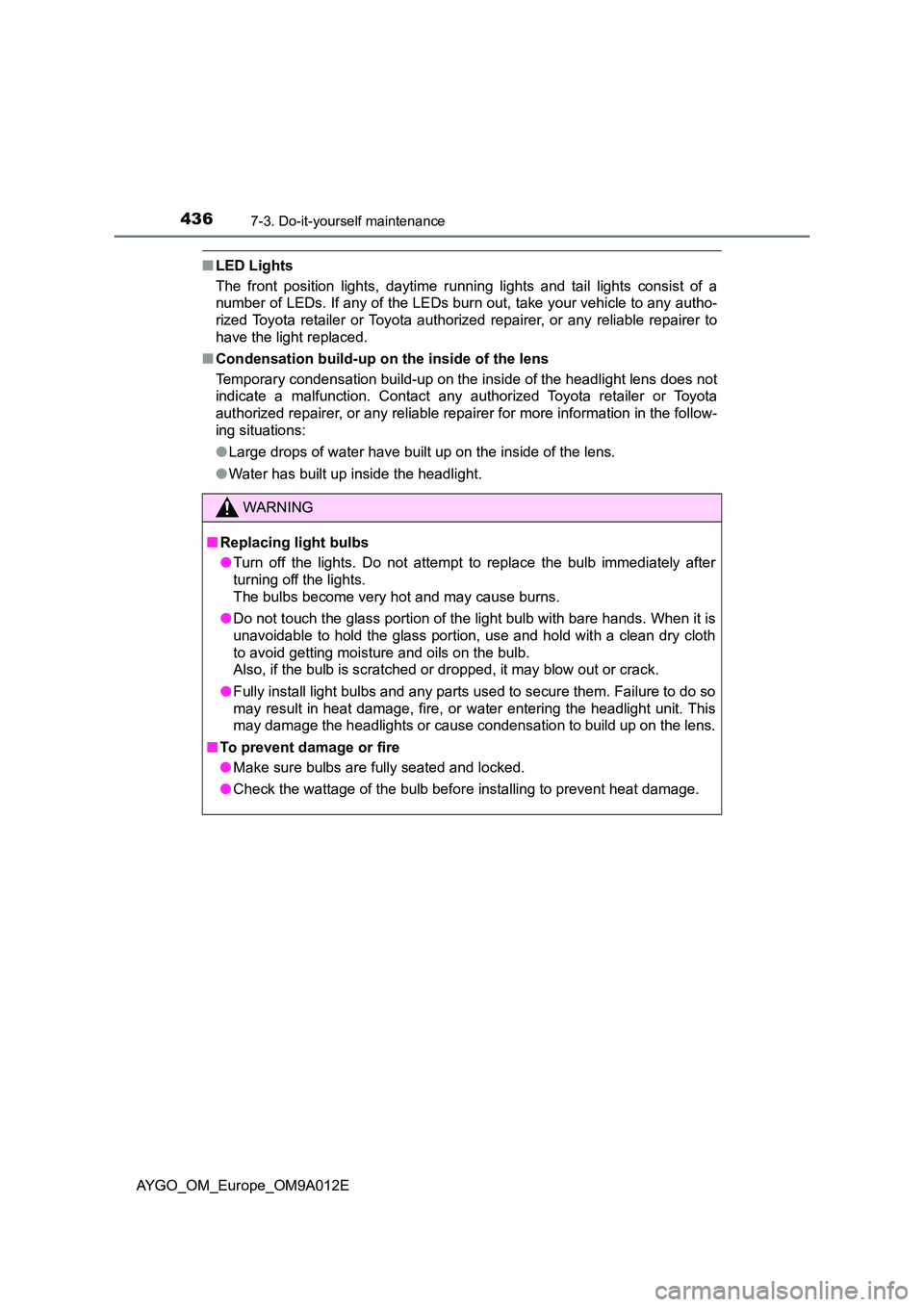

■LED Lights
The front position lights, daytime running lights and tail lights consist of a
number of LEDs. If any of the LEDs burn out, take your vehicle to any autho-
rized Toyota retailer or Toyota author ized repairer, or any reliable repairer to
have the light replaced.
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction. Contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer for more information in the follow-
ing situations:
● Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
WARNING
■Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■ To prevent damage or fire
● Make sure bulbs are fully seated and locked.
● Check the wattage of the bulb before installing to prevent heat damage.

5209-1. Specifications
AYGO_OM_Europe_OM9A012E

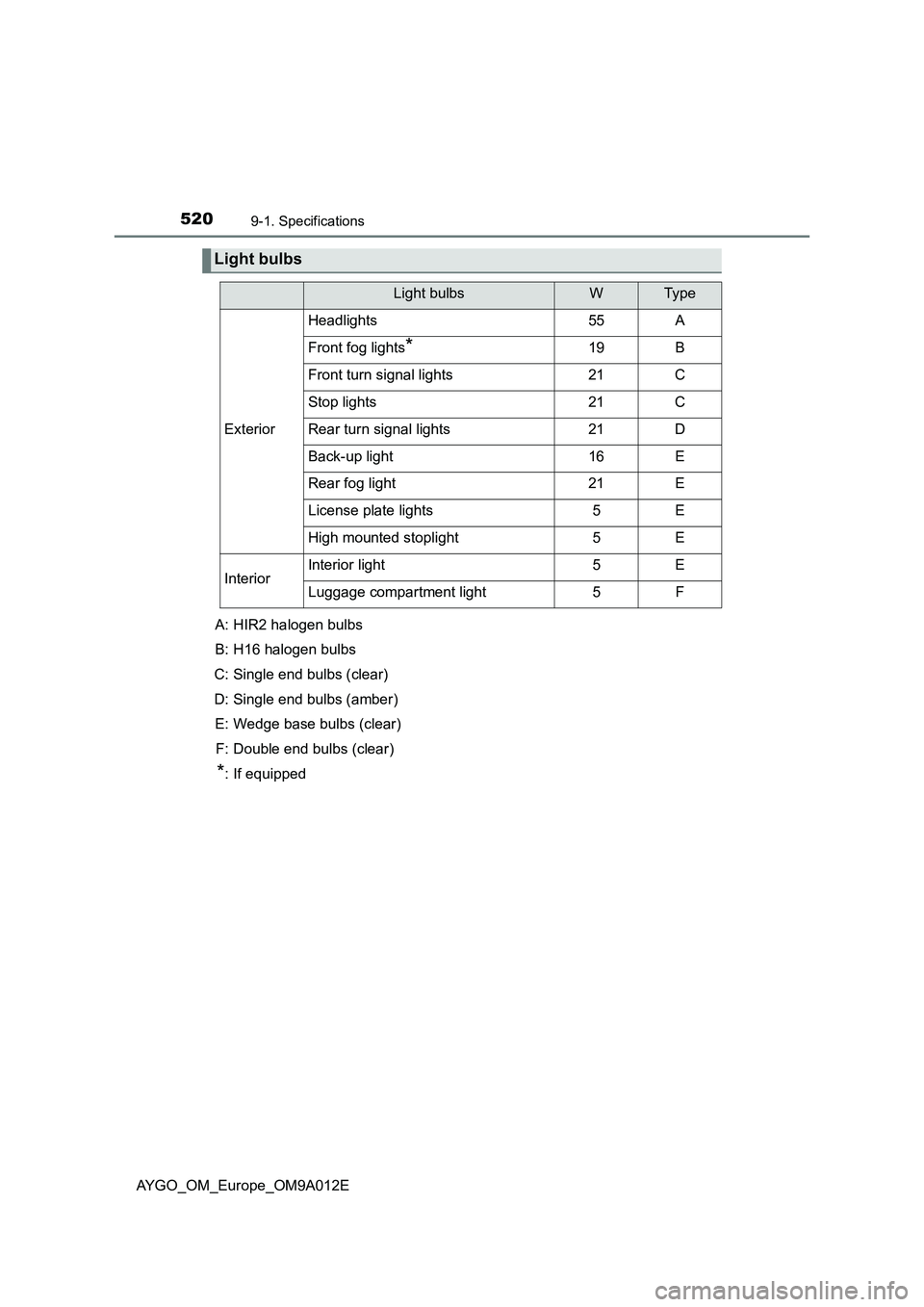

Light bulbs
Light bulbsWTy p e
Exterior
Headlights55A
Front fog lights*19B
Front turn signal lights21C
Stop lights21C
Rear turn signal lights21D
Back-up light16E
Rear fog light21E
License plate lights5E
High mounted stoplight5E
InteriorInterior light5E
Luggage compartment light5F
A: HIR2 halogen bulbs
B: H16 halogen bulbs
C: Single end bulbs (clear)
D: Single end bulbs (amber)
E: Wedge base bulbs (clear)
F: Double end bulbs (clear)
*: If equipped

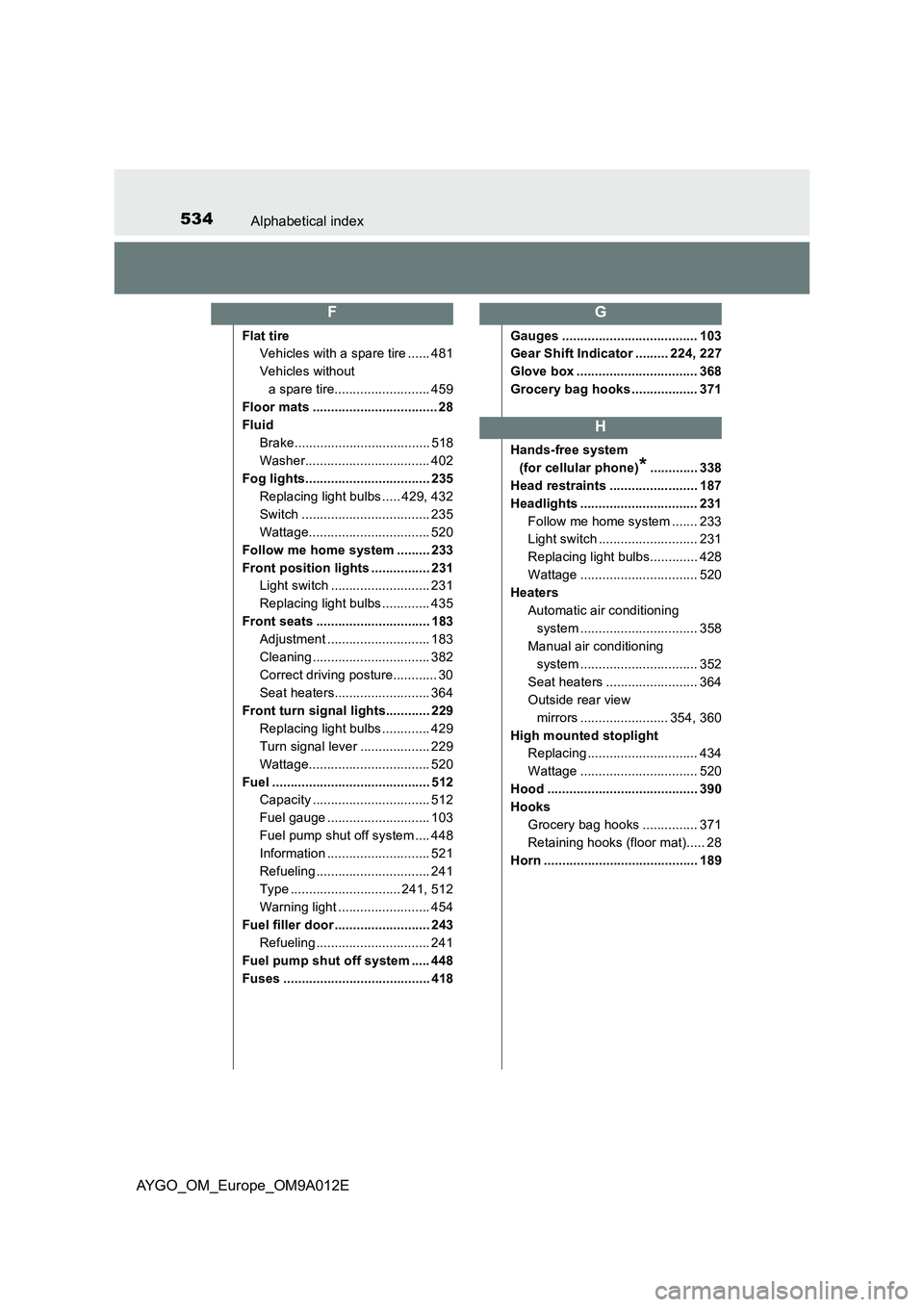

534Alphabetical index
AYGO_OM_Europe_OM9A012E
Flat tire
Vehicles with a spare tire ...... 481
Vehicles without
a spare tire.......................... 459
Floor mats .................................. 28
Fluid
Brake..................................... 518
Washer.................................. 402
Fog lights.................................. 235
Replacing light bulbs ..... 429, 432
Switch ................................... 235
Wattage................................. 520
Follow me home system ......... 233
Front position lights ................ 231
Light switch ........................... 231
Replacing light bulbs ............. 435
Front seats ............................... 183
Adjustment ............................ 183
Cleaning ................................ 382
Correct driving posture............ 30
Seat heaters.......................... 364
Front turn signal lights............ 229
Replacing light bulbs ............. 429
Turn signal lever ................... 229
Wattage................................. 520
Fuel ........................................... 512
Capacity ................................ 512
Fuel gauge ............................ 103
Fuel pump shut off system .... 448
Information ............................ 521
Refueling ............................... 241
Type .............................. 241, 512
Warning light ......................... 454
Fuel filler door .......................... 243
Refueling ............................... 241
Fuel pump shut off system ..... 448
Fuses ........................................ 418Gauges ..................................... 103
Gear Shift Indicator ......... 224, 227
Glove box ................................. 368
Grocery bag hooks .................. 371
Hands-free system
(for cellular phone)
*............. 338
Head restraints ........................ 187
Headlights ................................ 231
Follow me home system ....... 233
Light switch ........................... 231
Replacing light bulbs............. 428
Wattage ................................ 520
Heaters
Automatic air conditioning
system ................................ 358
Manual air conditioning
system ................................ 352
Seat heaters ......................... 364
Outside rear view
mirrors ........................ 354, 360
High mounted stoplight
Replacing .............................. 434
Wattage ................................ 520
Hood ......................................... 390
Hooks
Grocery bag hooks ............... 371
Retaining hooks (floor mat)..... 28
Horn .......................................... 189
FG
H

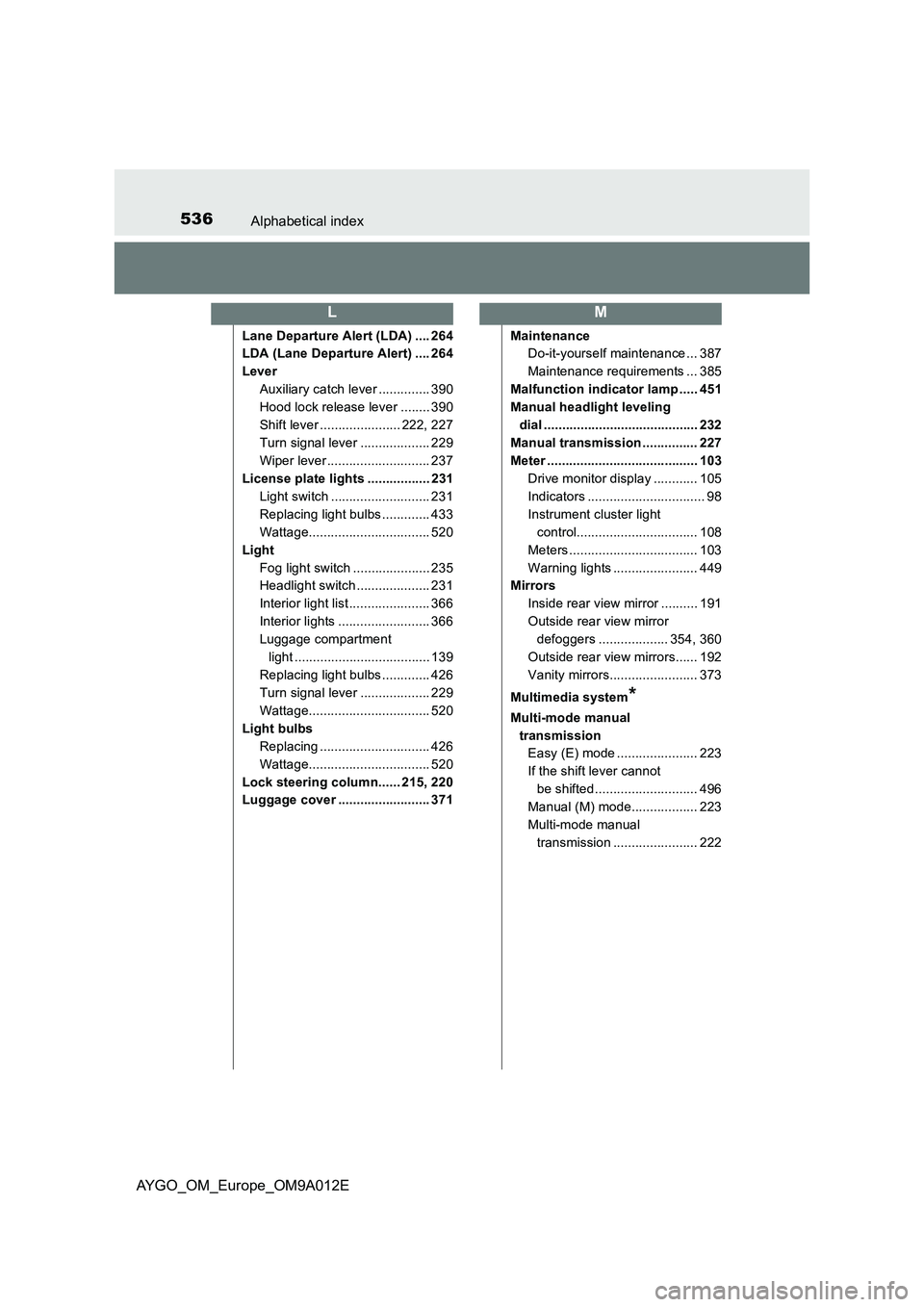

536Alphabetical index
AYGO_OM_Europe_OM9A012E
Lane Departure Alert (LDA) .... 264
LDA (Lane Departure Alert) .... 264
Lever
Auxiliary catch lever .............. 390
Hood lock release lever ........ 390
Shift lever ...................... 222, 227
Turn signal lever ................... 229
Wiper lever ............................ 237
License plate lights ................. 231
Light switch ........................... 231
Replacing light bulbs ............. 433
Wattage................................. 520
Light
Fog light switch ..................... 235
Headlight switch .................... 231
Interior light list ...................... 366
Interior lights ......................... 366
Luggage compartment
light ..................................... 139
Replacing light bulbs ............. 426
Turn signal lever ................... 229
Wattage................................. 520
Light bulbs
Replacing .............................. 426
Wattage................................. 520
Lock steering column...... 215, 220
Luggage cover ......................... 371Maintenance
Do-it-yourself maintenance ... 387
Maintenance requirements ... 385
Malfunction indicator lamp ..... 451
Manual headlight leveling
dial .......................................... 232
Manual transmission ............... 227
Meter ......................................... 103
Drive monitor display ............ 105
Indicators ................................ 98
Instrument cluster light
control................................. 108
Meters ................................... 103
Warning lights ....................... 449
Mirrors
Inside rear view mirror .......... 191
Outside rear view mirror
defoggers ................... 354, 360
Outside rear view mirrors...... 192
Vanity mirrors........................ 373
Multimedia system
*
Multi-mode manual
transmission
Easy (E) mode ...................... 223
If the shift lever cannot
be shifted ............................ 496
Manual (M) mode.................. 223
Multi-mode manual
transmission ....................... 222
LM

539Alphabetical index
AYGO_OM_Europe_OM9A012E
Sensor
Automatic headlight
system ................................ 233
LDA
(Lane Departure Alert) ........ 246
PCS (Pre-Collision
system) ............................... 246
Service reminder indicators ..... 98
Shift lever
If the shift lever cannot be
shifted ................................. 496
Manual transmission ............. 227
Multi-mode manual
transmission ....................... 222
Shift lock system ..................... 496
Shopping bag hooks ............... 371
Side airbags ............................... 36
Side mirrors.............................. 192
Adjusting and folding............. 192
Side turn signal lights ............. 229
Replacing light bulbs ............. 435
Turn signal lever ................... 229
Smart entry & start system ..... 143
Antenna location ................... 143
Entry functions .............. 133, 137
Starting the engine ................ 217
Warning light ................. 453, 457Snow tires ................................ 287
Spare tire .................................. 481
Inflation pressure .................. 518
Storage location .................... 482
Specifications .......................... 510
Speed limiter ............................ 269
Speedometer ............................ 103
Steering lock .................... 215, 220
Steering lock system
warning light ....................... 458
Steering wheel ......................... 189
Adjustment ............................ 189
Audio switches ...................... 292
Stop & Start system ................ 272
Stop/tail lights
Replacing light bulbs............. 432
Wattage ................................ 520
Storage feature ........................ 367
Stuck
If the vehicle becomes
stuck ................................... 507
Sun visors ................................ 373
*: For vehicles with a multimedia system, refer to “Multimedia owner’s manual”.
