park assist TOYOTA AYGO 2021 Owners Manual

3
1
7
8
6
5
4
3
2
9
AYGO_OM_Europe_OM9A012E
4-2. Driving procedures
Engine (ignition) switch
(vehicles without a smart
entry & start system)........214
Engine (ignition) switch
(vehicles with a smart
entry & start system)........217
Multi-mode manual
transmission ....................222
Manual transmission ..........227
Turn signal lever ................229
Parking brake.....................230
4-3. Operating the lights
and wipers
Headlight switch.................231
Fog light switch ..................235
Windshield wiper
and washer ......................237
Rear window wiper
and washer ......................239
4-4. Refueling
Opening the fuel tank
cap ...................................241
4-5. Toyota Safety Sense
Toyota Safety Sense .........245
PCS (Pre-Collision
system) ............................251
LDA (Lane Departure
Alert) ................................264
4-6. Using the driving support
systems
Speed limiter ......................269
Stop & Start system ...........272
Driving assist systems .......279
4-7. Driving tips
Winter driving tips ..............285
5-1. Basic Operations
Audio system types ........... 290
Steering wheel audio
switches .......................... 292
AUX port/USB port ............ 293
5-2. Using the audio system
Optimal use of the
audio system ................... 294
5-3. Using the radio
Radio operation ................. 296
5-4. Using an external device
Listening to an iPod........... 305
Listening USB memory
device.............................. 313
Using the AUX port ........... 320
5-5. Using Bluetooth® devices
Bluetooth® audio/phone .... 321
Using the steering
wheel switches ................ 327
Registering a
Bluetooth® device ........... 328
5-6. “SETUP” menu
Using the “SETUP” menu
(“Bluetooth*” menu)......... 329
Using the “SETUP” menu
(“TEL” menu)................... 333
5-7. Bluetooth® Audio
Operating a Bluetooth®
enabled portable
player .............................. 336
5Audio system
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.

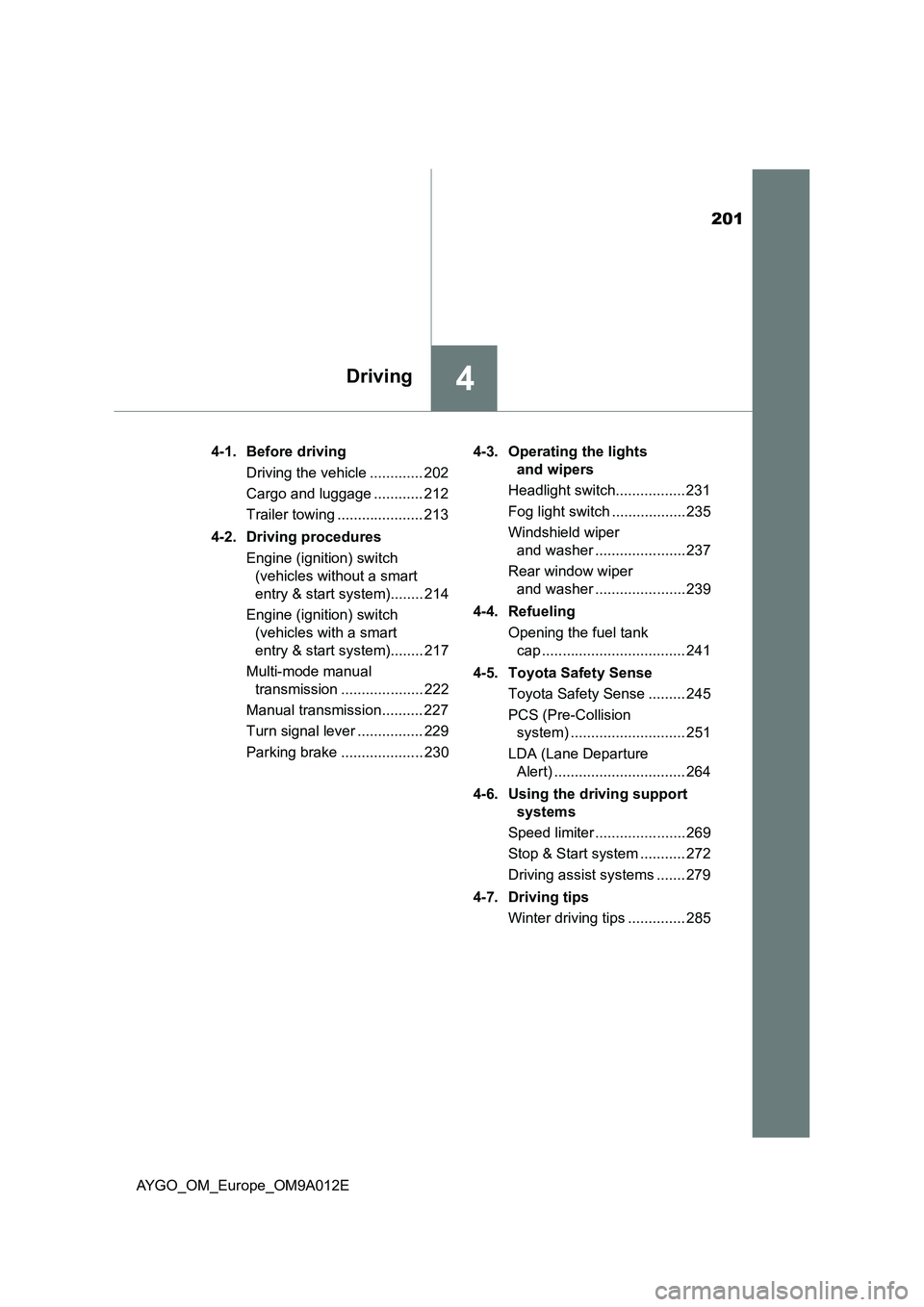

201
4Driving
AYGO_OM_Europe_OM9A012E4-1. Before driving
Driving the vehicle ............. 202
Cargo and luggage ............ 212
Trailer towing ..................... 213
4-2. Driving procedures
Engine (ignition) switch
(vehicles without a smart
entry & start system)........ 214
Engine (ignition) switch
(vehicles with a smart
entry & start system)........ 217
Multi-mode manual
transmission .................... 222
Manual transmission.......... 227
Turn signal lever ................ 229
Parking brake .................... 2304-3. Operating the lights
and wipers
Headlight switch................. 231
Fog light switch .................. 235
Windshield wiper
and washer ...................... 237
Rear window wiper
and washer ...................... 239
4-4. Refueling
Opening the fuel tank
cap ................................... 241
4-5. Toyota Safety Sense
Toyota Safety Sense ......... 245
PCS (Pre-Collision
system) ............................ 251
LDA (Lane Departure
Alert) ................................ 264
4-6. Using the driving support
systems
Speed limiter ...................... 269
Stop & Start system ........... 272
Driving assist systems ....... 279
4-7. Driving tips
Winter driving tips .............. 285

2094-1. Before driving
4
Driving
AYGO_OM_Europe_OM9A012E

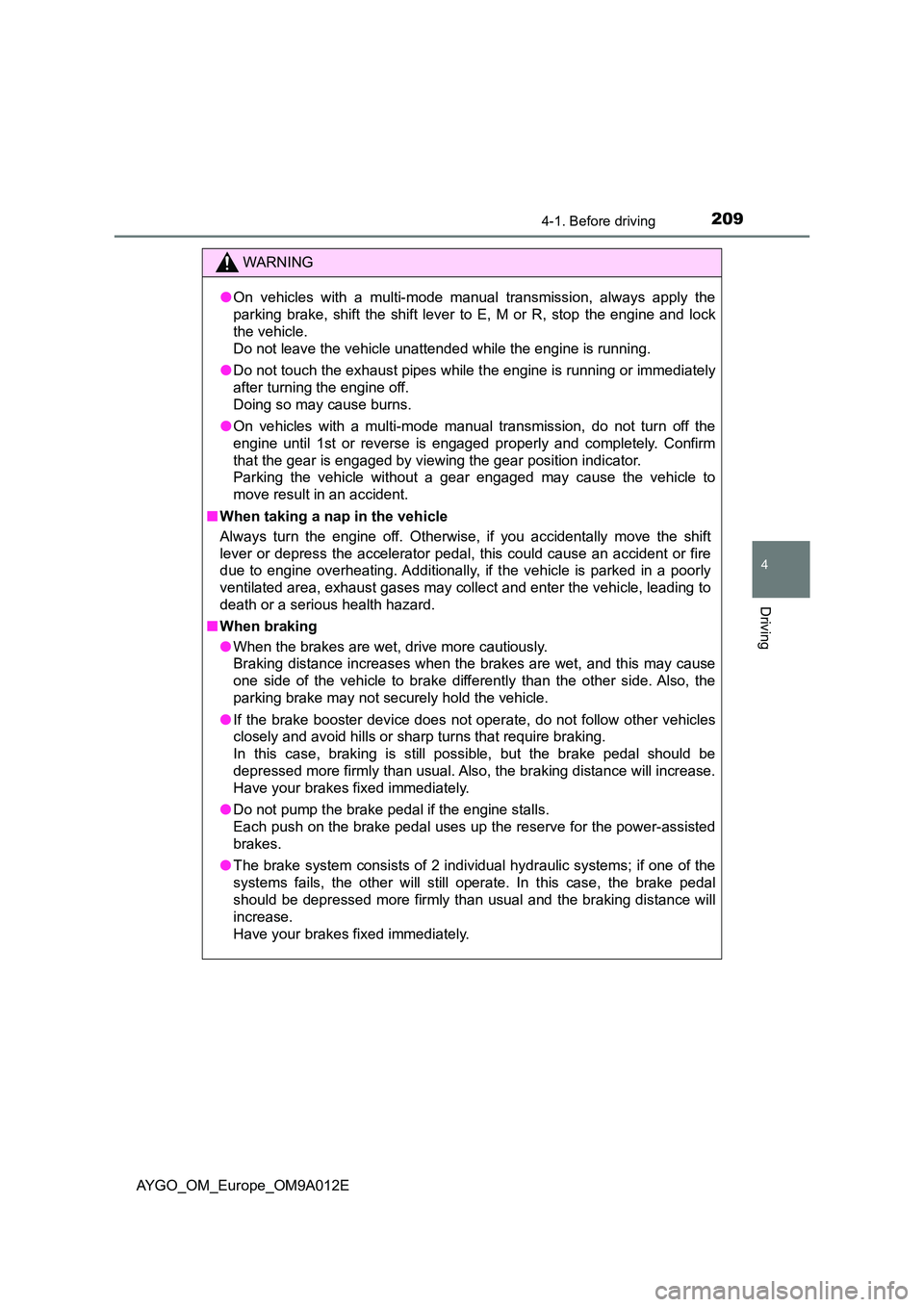

WARNING
●On vehicles with a multi-mode manual transmission, always apply the
parking brake, shift the shift lever to E, M or R, stop the engine and lock
the vehicle.
Do not leave the vehicle unattended while the engine is running.
● Do not touch the exhaust pipes while the engine is running or immediately
after turning the engine off.
Doing so may cause burns.
● On vehicles with a multi-mode manual transmission, do not turn off the
engine until 1st or reverse is engaged properly and completely. Confirm
that the gear is engaged by viewing the gear position indicator.
Parking the vehicle without a gear engaged may cause the vehicle to
move result in an accident.
■ When taking a nap in the vehicle
Always turn the engine off. Otherwise, if you accidentally move the shift
lever or depress the accelerator pedal, this could cause an accident or fire
due to engine overheating. Additionally, if the vehicle is parked in a poorly
ventilated area, exhaust gases may collect and enter the vehicle, leading to
death or a serious health hazard.
■ When braking
● When the brakes are wet, drive more cautiously.
Braking distance increases when the brakes are wet, and this may cause
one side of the vehicle to brake differently than the other side. Also, the
parking brake may not securely hold the vehicle.
● If the brake booster device does not operate, do not follow other vehicles
closely and avoid hills or sharp turns that require braking.
In this case, braking is still possible, but the brake pedal should be
depressed more firmly than usual. Also, the braking distance will increase.
Have your brakes fixed immediately.
● Do not pump the brake pedal if the engine stalls.
Each push on the brake pedal uses up the reserve for the power-assisted
brakes.
● The brake system consists of 2 individual hydraulic systems; if one of the
systems fails, the other will still operate. In this case, the brake pedal
should be depressed more firmly than usual and the braking distance will
increase.
Have your brakes fixed immediately.

2634-5. Toyota Safety Sense
4
Driving
AYGO_OM_Europe_OM9A012E■If the PCS warning light flashes or illuminates
The pre-collision system may be temporarily unavailable or there may be a
malfunction in the system.
●In the following situations, the warning light will be cleared and the system
will become operational when normal operating conditions return:
• When the area around the front sensor is hot, such as after the vehicle
has been parked in the sun
• When the windshield is fogged up or covered with condensation or ice
(P. 354, 360)
• When driving in conditions where the front sensor cannot detect an
object, such as in the dark (at night on a road without street lights or other
lights, etc.), when bright light is shining into the sensor, or in snow or fog.
• When the front sensor or the area around either sensor is cold, such as in
an extremely cold environment
• If the area in front of the front sensor is obstructed, such as when the
hood is open
●If the PCS warning light continues to flash or illuminate, the system may be
malfunctioning. Have the vehicle inspected by any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer immediately.
■If VSC is disabled
●If TRC and VSC are disabled (P. 280), the pre-collision brake assist and
pre-collision braking functions are also disabled. However, the pre-collision
warning function will still operate.
●The PCS warning light illuminates.

2814-6. Using the driving support systems
4
Driving
AYGO_OM_Europe_OM9A012E■When the “TRC OFF” indicator light comes on even if has not been
pressed
TRC is temporary deactivated. If the indicator light continues to remain on,
contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
■Operating conditions of hill-start assist control
When the following four conditions are met, the hill-start assist control will
operate:
●Vehicles with a multi-mode manual transmission: The shift lever is in a posi-
tion other than N (when starting off forward/backward on an upward incline)
●Vehicles with a manual transmission: The shift lever is in a position other
than R when starting off forward on an upward incline, or the shift lever is in
R when starting off backward on an upward incline
●The vehicle is stopped
●The accelerator pedal is not depressed
●The parking brake is not engaged
■Automatic system cancelation of hill-start assist control
The hill-start assist control will turn off in any of the following situations:
●Vehicles with a multi-mode manual transmission: The shift lever is shifted to
N
●Vehicles with a manual transmission: The shift lever is shifted to R when
starting off forward on an upward incline, or the shift lever is shifted to other
than R when starting off backward on an upward incline
●The accelerator pedal is depressed
●The parking brake is engaged
●2 seconds at maximum elapsed after the brake pedal is released
■Sounds and vibrations caused by the ABS, brake assist, VSC, TRC and
hill-start assist control systems
●A sound may be heard from the engine compartment when the brake pedal
is depressed repeatedly, when the engine is started or just after the vehicle
begins to move. This sound does not indicate that a malfunction has
occurred in any of these systems.
●Any of the following conditions may occur when the above systems are
operating. None of these indicates that a malfunction has occurred.
• Vibrations may be felt through the vehicle body and steering.
• A motor sound may be heard also after the vehicle comes to a stop.
• The brake pedal may pulsate slightly after the ABS is activated.
• The brake pedal may move down slightly after the ABS is activated.

2834-6. Using the driving support systems
4
Driving
AYGO_OM_Europe_OM9A012E
WARNING
■The ABS does not operate effectively when
● The limits of tire gripping performance have been exceeded (such as
excessively worn tires on a snow covered road).
● The vehicle hydroplanes while driving at high speed on wet or slick roads.
■ Stopping distance when the ABS is operating may exceed that of nor-
mal conditions
The ABS is not designed to shorten t he vehicle’s stopping distance. Always
maintain a safe distance from the vehicle in front of you, especially in the
following situations:
● When driving on dirt, gravel or snow-covered roads
● When driving with tire chains
● When driving over bumps in the road
● When driving over roads with potholes or uneven surfaces
■ TRC/VSC may not operate effectively when
Directional control and power may not be achievable while driving on slip-
pery road surfaces, even if the TRC/VSC system is operating. Drive the
vehicle carefully in conditions where stability and power may be lost.
■ Hill-start assist control does not operate effectively when
● Do not overly rely on hill-start assist control. Hill-start assist control may
not operate effectively on steep inclines and roads covered with ice.
● Unlike the parking brake, hill-start assist control is not intended to hold the
vehicle stationary for an extended period of time. Do not attempt to use
hill-start assist control to hold the vehicle on an incline, as doing so may
lead to an accident.

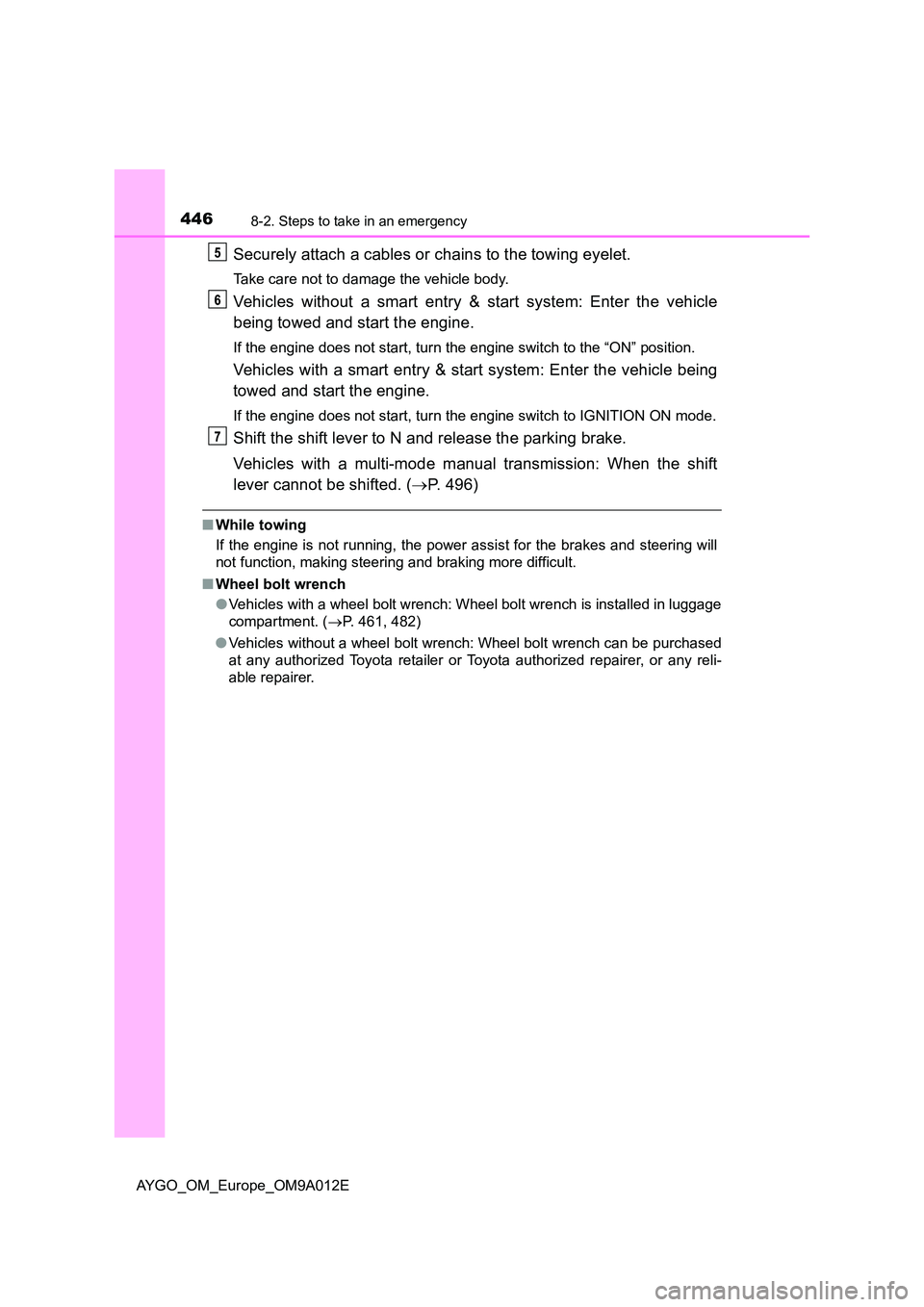

4468-2. Steps to take in an emergency
AYGO_OM_Europe_OM9A012E
Securely attach a cables or chains to the towing eyelet.
Take care not to damage the vehicle body.
Vehicles without a smart entry & start system: Enter the vehicle
being towed and start the engine.
If the engine does not start, turn the engine switch to the “ON” position.
Vehicles with a smart entry & start system: Enter the vehicle being
towed and start the engine.
If the engine does not start, turn the engine switch to IGNITION ON mode.
Shift the shift lever to N and release the parking brake.
Vehicles with a multi-mode manual transmission: When the shift
lever cannot be shifted. ( P. 496)
■While towing
If the engine is not running, the power assist for the brakes and steering will
not function, making steering and braking more difficult.
■ Wheel bolt wrench
● Vehicles with a wheel bolt wrench: Wheel bolt wrench is installed in luggage
compartment. ( P. 461, 482)
● Vehicles without a wheel bolt wrench: Wheel bolt wrench can be purchased
at any authorized Toyota retailer or Toyota authorized repairer, or any reli-
able repairer.

531Alphabetical index
AYGO_OM_Europe_OM9A012E
Back door ................................. 137
Back-up lights
Replacing light bulbs ............. 432
Wattage................................. 520
Battery ...................................... 399
Battery checking ................... 399
If the vehicle battery is
discharged .......................... 500
Preparing and checking
before winter....................... 285
Replacing .............................. 502
Warning light ......................... 449
Bluetooth
®*
Audio system ........................ 336
Hands-free system
(for cellular phone).............. 338
Bottle holders........................... 369
Brake
Emergency brake signal ....... 279
Fluid ...................................... 518
Parking brake ........................ 230
Warning light ......................... 449
Brake assist.............................. 279
Break-in tips ............................ 205
Brightness control
Instrument cluster light
control................................. 108Canvas top ............................... 197
Care................................... 378, 382
Aluminum wheels.................. 379
Canvas top............................ 378
Exterior ................................. 378
Interior................................... 382
Seat belts .............................. 383
Chains....................................... 285
Child restraint system ............... 52
Fixed with a seat belt .............. 59
Fixed with an ISOFIX
lower anchorage ................... 70
Points to remember ................ 53
Riding with children................. 51
Types of child restraint system
installation method ............... 67
Using a top tether
anchorage ............................ 72
Child safety ................................ 51
Airbag precautions .................. 39
Back door precautions .......... 140
Battery precautions ....... 399, 503
Canvas top precautions ........ 198
Child restraint system ............. 52
How your child should wear
the seat belt.......................... 33
Installing child restraints ......... 67
Power window precautions ... 194
Rear door child-protectors .... 135
Removed key battery
precautions......................... 417
Seat belt precautions .............. 34
Seat heater precautions........ 365
BC
*: For vehicles with a multimedia system, refer to “Multimedia owner’s manual”.
