TOYOTA AYGO X 2022 Owners Manual (in English)

229
5
Owner's Manual_Europe_M99V08_en
5-1. Using the air conditioning system and defogger
Interior features
When the seat heater is on, the indica-
tor illuminates on the seat heater
switch.
Turn the seat heater off by pressing the
switch. The indicator will turn off.
*: Vehicles with automatic air condition-
ing system
■The seat heaters can be used when
The engine switch is in ON.
WARNING
■To prevent overheating and minor burn injuries
Observe the following precautions
when using the seat heaters.
●Do not cover the seat with a blanket
or cushion when using the seat heater.
●Do not use seat heater more than necessary.

230
Owner's Manual_Europe_M99V08_en

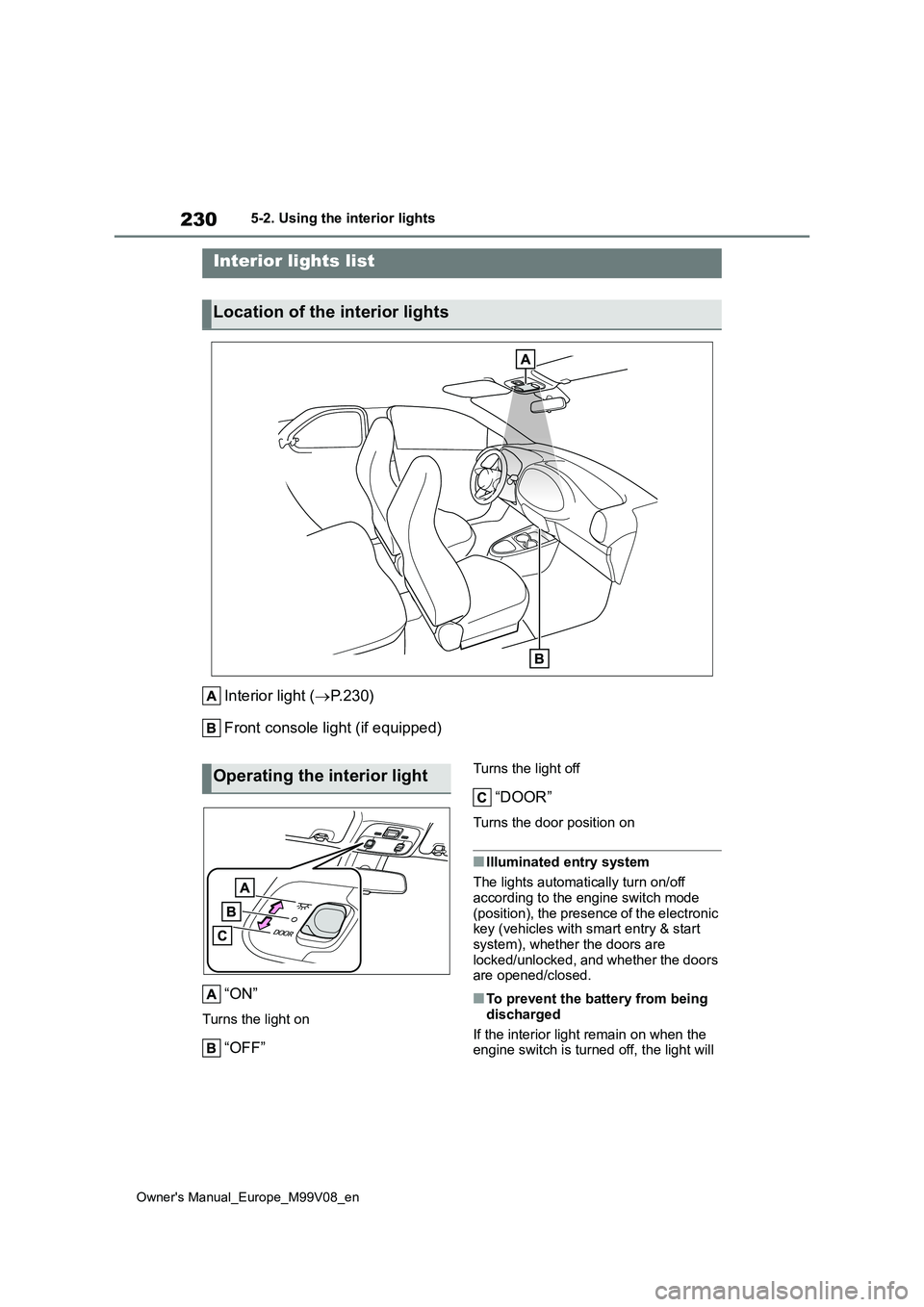

5-2. Using the interior lights
5-2.Using the interior lights
Interior light (P. 2 3 0 )
Front console light (if equipped)
“ON”
Turns the light on
“OFF”
Turns the light off
“DOOR”
Turns the door position on
■Illuminated entry system
The lights automatically turn on/off
according to the engine switch mode (position), the presence of the electronic key (vehicles with smart entry & start
system), whether the doors are locked/unlocked, and whether the doors are opened/closed.
■To prevent the battery from being
discharged
If the interior light remain on when the engine switch is turned off, the light will
Interior lights list
Location of the interior lights
Operating the interior light

231
5
Owner's Manual_Europe_M99V08_en
5-2. Using the interior lights
Interior features

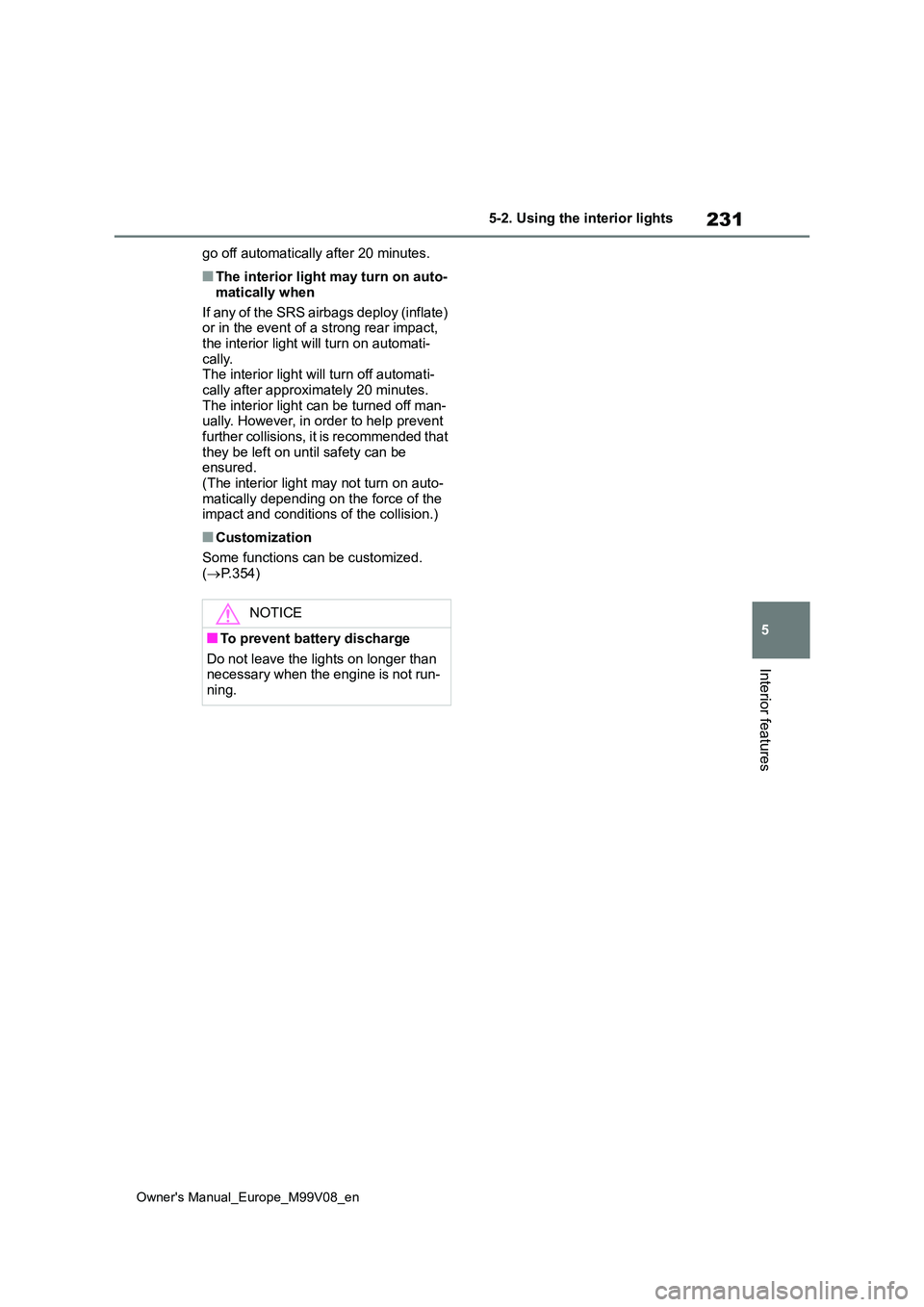

go off automatically after 20 minutes.
■The interior light may turn on auto-
matically when
If any of the SRS airbags deploy (inflate) or in the event of a strong rear impact,
the interior light will turn on automati- cally.The interior light will turn off automati-
cally after approximately 20 minutes. The interior light can be turned off man-ually. However, in order to help prevent
further collisions, it is recommended that they be left on until safety can be ensured.
(The interior light may not turn on auto- matically depending on the force of the impact and conditions of the collision.)
■Customization
Some functions can be customized. ( P.354)
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not run-ning.

232
Owner's Manual_Europe_M99V08_en

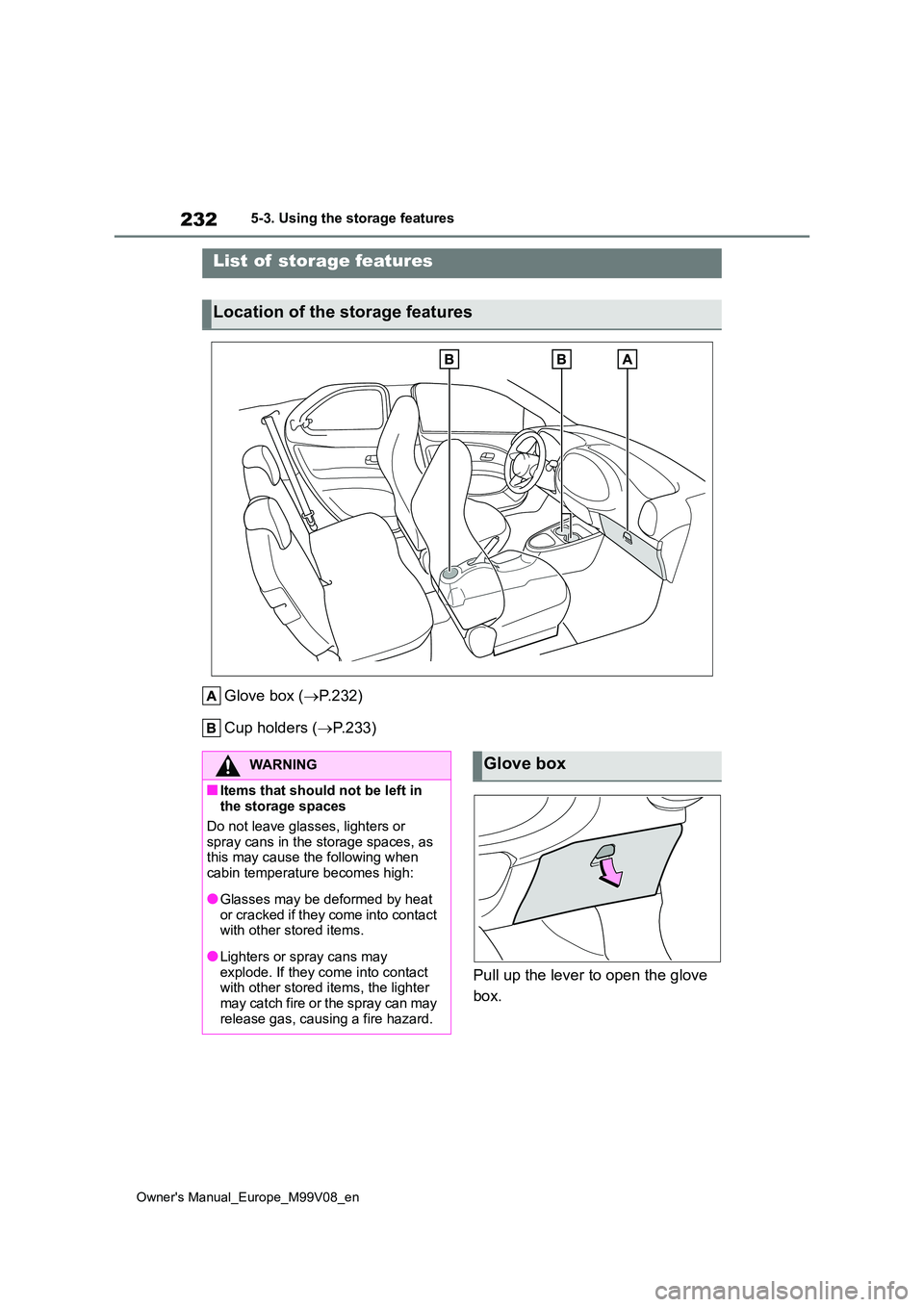

5-3. Using the storage features
5-3.Using the s torage feature s
Glove box (P.232)
Cup holders ( P.233)
Pull up the lever to open the glove
box.
List of storage features
Location of the storage features
WARNING
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this may cause the following when
cabin temperature becomes high:
●Glasses may be deformed by heat
or cracked if they come into contact with other stored items.
●Lighters or spray cans may explode. If they come into contact with other stored items, the lighter
may catch fire or the spray can may release gas, causing a fire hazard.
Glove box

233
5
Owner's Manual_Europe_M99V08_en
5-3. Using the storage features
Interior features

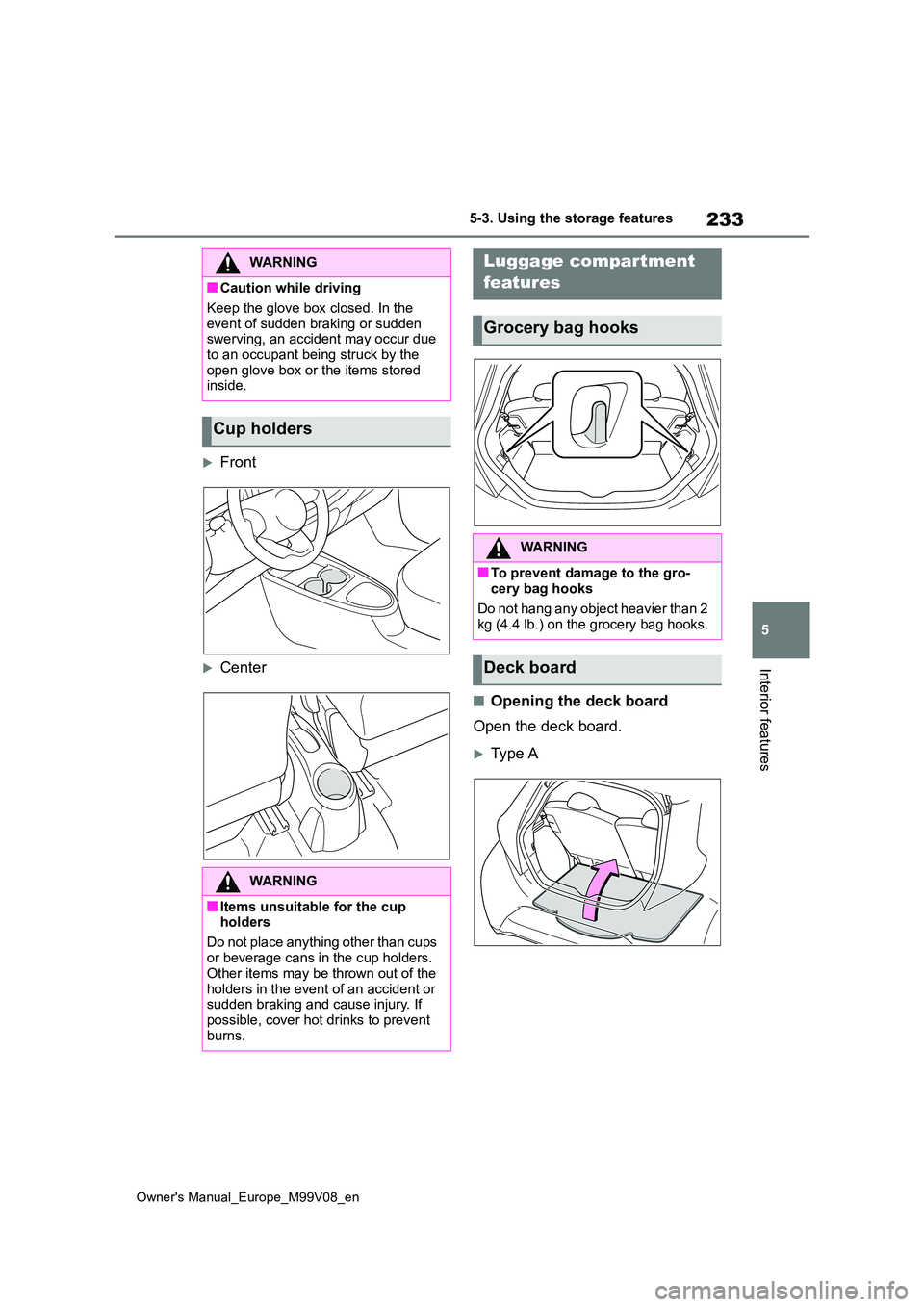

Front
Center
■Opening the deck board
Open the deck board.
Typ e A
WARNING
■Caution while driving
Keep the glove box closed. In the
event of sudden braking or sudden swerving, an accident may occur due to an occupant being struck by the
open glove box or the items stored inside.
Cup holders
WARNING
■Items unsuitable for the cup holders
Do n ot p la ce an y th i ng ot h er t h an cu ps
or beverage cans in the cup holders. Other items may be thrown out of the
holders in the event of an accident or sudden braking and cause injury. If possible, cover hot drinks to prevent
burns.
Luggage compartment
features
Grocery bag hooks
WARNING
■To prevent damage to the gro- cery bag hooks
Do not hang any object heavier than 2 kg (4.4 lb.) on the grocery bag hooks.
Deck board

234
Owner's Manual_Europe_M99V08_en
5-3. Using the storage features

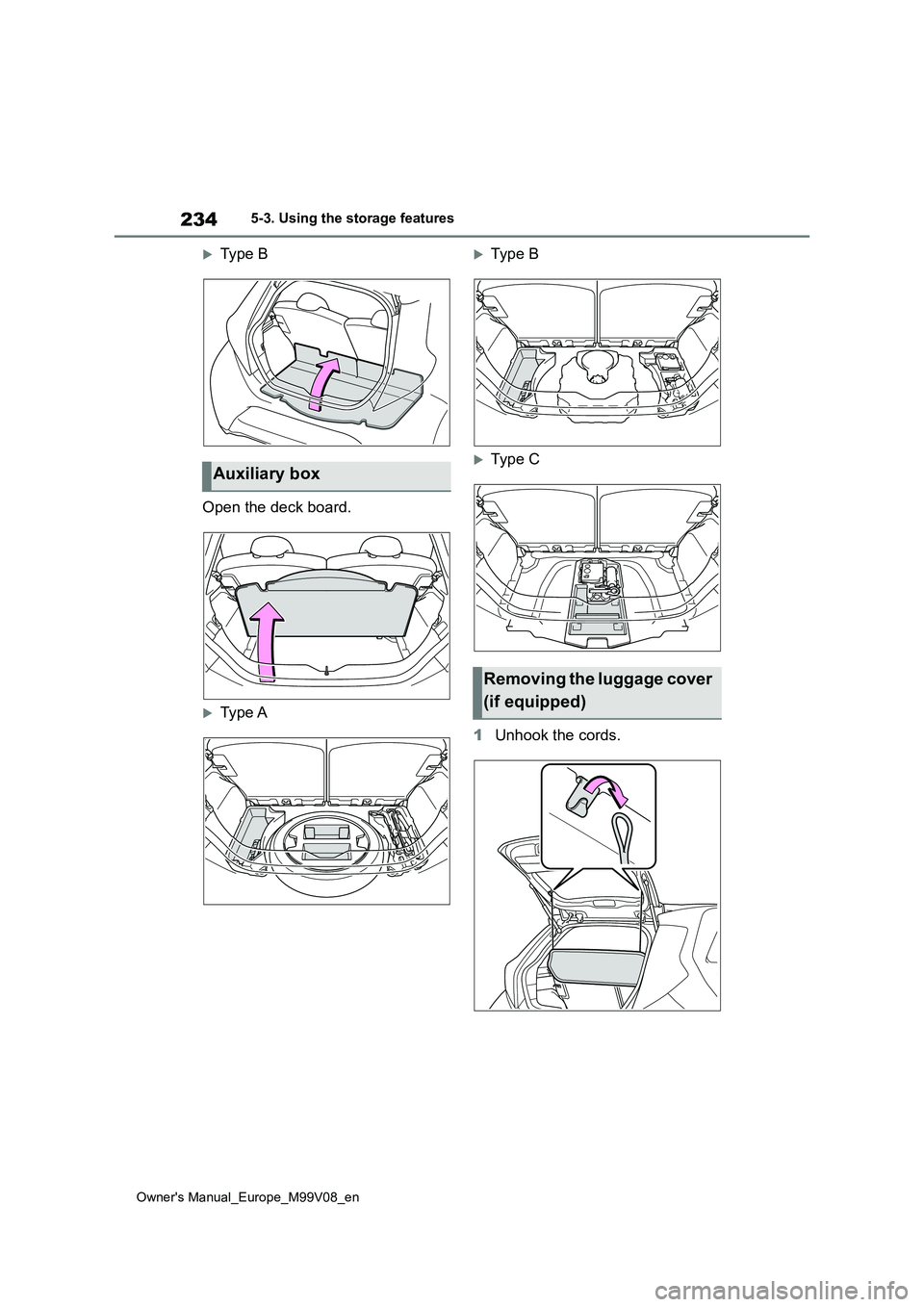

Type B
Open the deck board.
Type A
Typ e B
Typ e C
1 Unhook the cords.
Auxiliary box
Removing the luggage cover
(if equipped)

235
5
Owner's Manual_Europe_M99V08_en
5-3. Using the storage features
Interior features

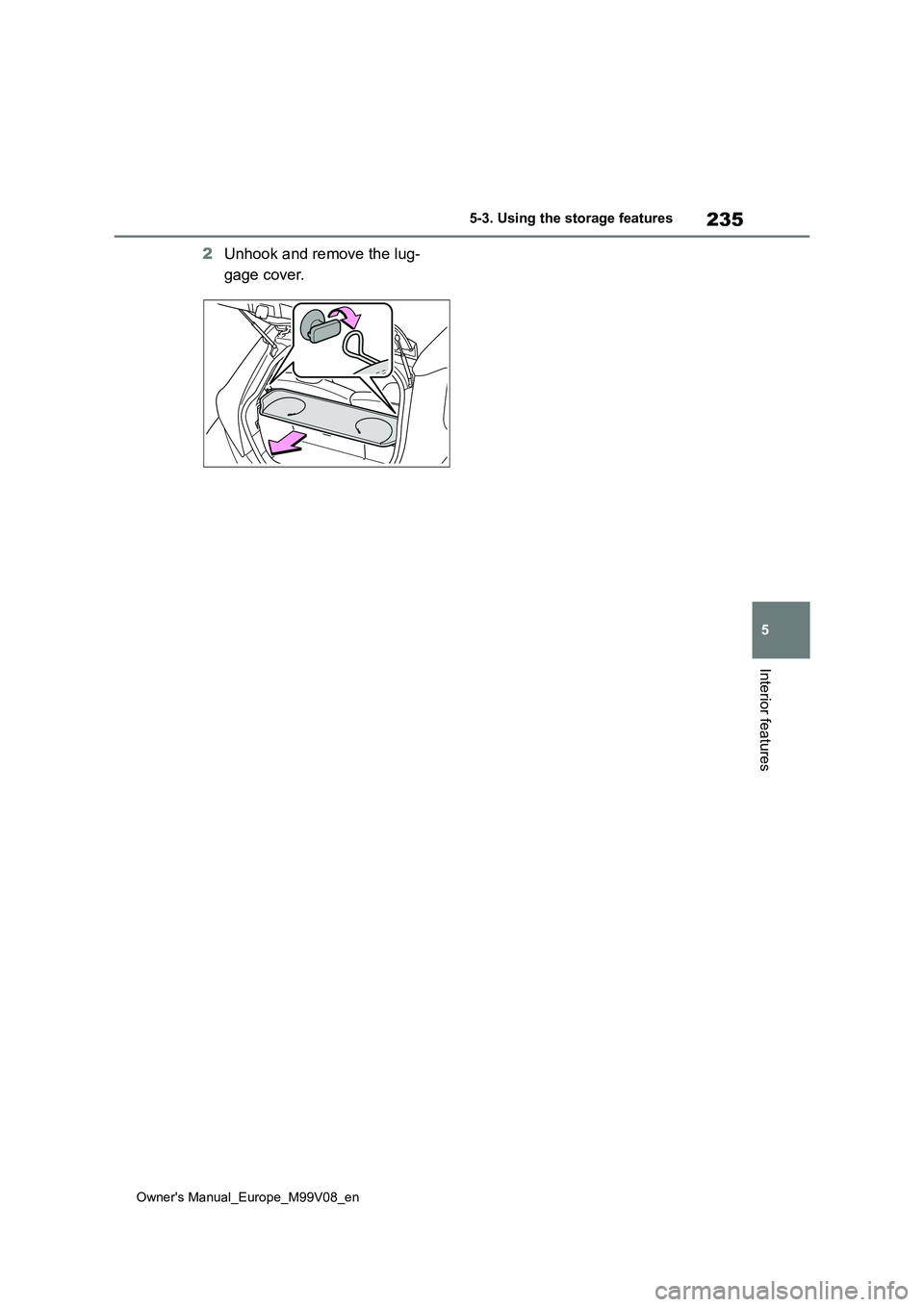

2Unhook and remove the lug-
gage cover.

236
Owner's Manual_Europe_M99V08_en
5-4. Other interior features
5-4.Other interior features
The USB charging port are used to
supply 2.1 A of electricity at 5 V to
external devices.
The USB charging port are for
charging only. They are not
designed for data transfer or other
purposes.
Depending on the external device,
it may not charge properly. Refer to
the manual included with the device
before using a USB charging port.
■Using the USB charging port
■The USB charging port can be used when
The engine switch is in ACC or ON.
■Situations in which the USB charging port may not operate cor-rectly
●If a device which consumes more than 2.1 A at 5 V is connected
●If a device designed to communicate with a personal computer, such as a
USB memory device, is connected
●If the connected external device is
turned off (depending on device)
●If the temperature inside the vehicle is
high, such as after the vehicle has
been parked in the sun
■About connected external device
Depending on the connected external device, charging may occasionally be
suspended and then start again. This is not a malfunction.
The power outlet can be used for
12 V accessories that run on less
than 10 A.
Open the lid.
Other interior features
USB charging port (if
equipped)
NOTICE
■To prevent damage to the USB
charging port
●Do not insert foreign objects into the port.
●Do not spill water or other liquids into the port.
●Do not apply excessive force to or impact the USB charging port.
●Do not disassemble or modify the USB charging port.
■To prevent damage to external devices
●Do not leave external devices in the vehicle. The temperature inside the vehicle may become high, resulting
in damage to an external device.
●Do not push down on or apply
unnecessary force to an external device or the cable of an external device while it is connected.
■To prevent battery discharge
Do not use the USB charging port for
a long period of time with the engine stopped.
Power outlet

237
5
Owner's Manual_Europe_M99V08_en
5-4. Other interior features
Interior features

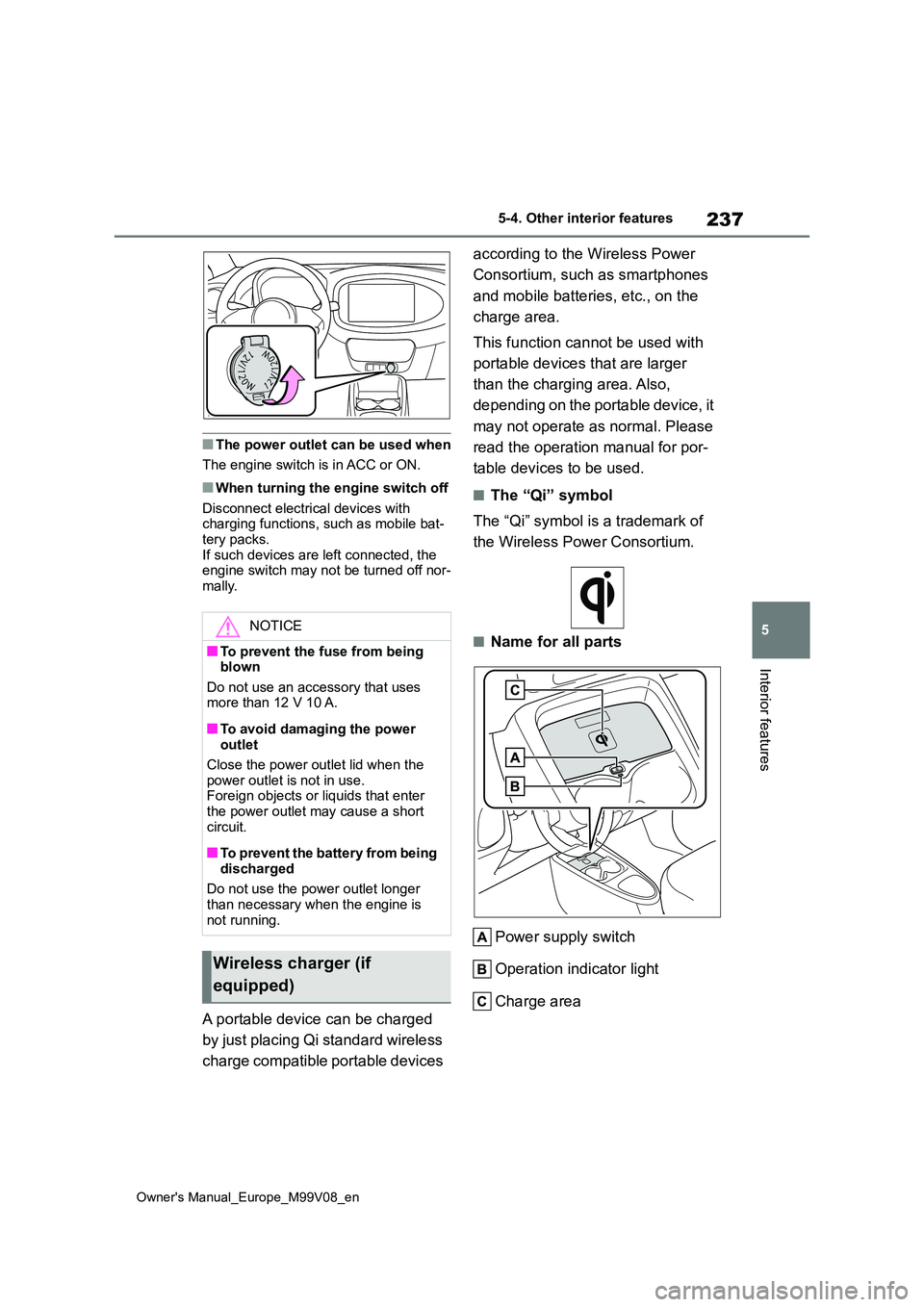

■The power outlet can be used when
The engine switch is in ACC or ON.
■When turning the engine switch off
Disconnect electrical devices with charging functions, such as mobile bat-tery packs.
If such devices are left connected, the engine switch may not be turned off nor-mally.
A portable device can be charged
by just placing Qi standard wireless
charge compatible portable devices
according to the Wireless Power
Consortium, such as smartphones
and mobile batteries, etc., on the
charge area.
This function cannot be used with
portable devices that are larger
than the charging area. Also,
depending on the portable device, it
may not operate as normal. Please
read the operation manual for por-
table devices to be used.
■The “Qi” symbol
The “Qi” symbol is a trademark of
the Wireless Power Consortium.
■Name for all parts
Power supply switch
Operation indicator light
Charge area
NOTICE
■To prevent the fuse from being blown
Do not use an accessory that uses more than 12 V 10 A.
■To avoid damaging the power outlet
Close the power outlet lid when the
power outlet is not in use. Foreign objects or liquids that enter the power outlet may cause a short
circuit.
■To prevent the battery from being
discharged
Do not use the power outlet longer than necessary when the engine is
not running.
Wireless charger (if
equipped)

238
Owner's Manual_Europe_M99V08_en
5-4. Other interior features

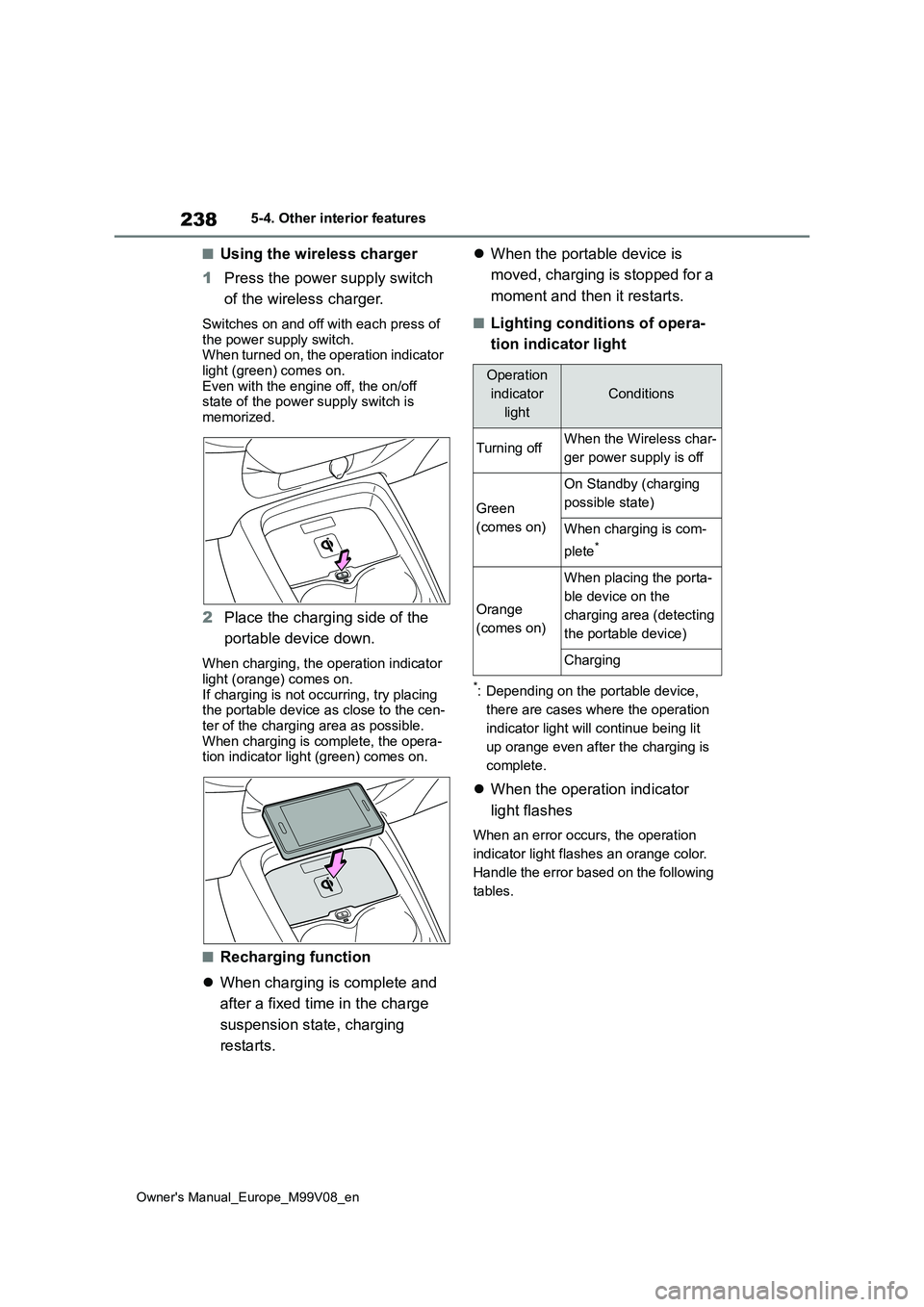

■Using the wireless charger
1 Press the power supply switch
of the wireless charger.
Switches on and off with each press of
the power supply switch. When turned on, the operation indicator light (green) comes on.
Even with the engine off, the on/off state of the power supply switch is memorized.
2 Place the charging side of the
portable device down.
When charging, the operation indicator light (orange) comes on.
If charging is not occurring, try placing the portable device as close to the cen-ter of the charging area as possible.
When charging is complete, the opera- tion indicator light (green) comes on.
■Recharging function
 When charging is complete and
after a fixed time in the charge
suspension state, charging
restarts.
 When the portable device is
moved, charging is stopped for a
moment and then it restarts.
■Lighting conditi ons of opera-
tion indicator light
*: Depending on the portable device,
there are cases where the operation
indicator light will continue being lit
up orange even after the charging is
complete.
 When the operation indicator
light flashes
When an error occurs, the operation
indicator light flashes an orange color.
Handle the error based on the following
tables.
Operation
indicator
light
Conditions
Turning offWhen the Wireless char-
ger power supply is off
Green
(comes on)
On Standby (charging
possible state)
When charging is com-
plete*
Orange
(comes on)
When placing the porta-
ble device on the
charging area (detecting
the portable device)
Charging
