6-1. Using the air conditioning system and defogger
The AUTO indicator and/or level
indicator illuminates during opera-
tion.
■Rear (outboard rear seats)
Each time the switch is pressed,
the operation condition changes as
follows.
Hi (3 segments lit)  Mid (2 seg-
ments lit)  Lo (1 segment lit) 
Off
When not in use, put the switch in
the neutral position. The indicator
will turn off.
■The seat heaters can be used when
The power switch is in ON.
Turns the seat ventilators on/off
Each time the switch is pressed, the
operation condition changes as follows.
AUTO (lit)  Hi (3 segments lit)  Mid
(2 segments lit)  Lo (1 segment lit) 
Off
The AUTO indicator and/or level
indicator illuminates during opera-
tion.
■The seat ventilators can be used when
The power switch is in ON.
■Air conditioning system-linked control mode
When the seat ventilator fan speed level
is Hi, the seat ventilator fan speed becomes higher according to the fan speed of the air conditioning system.
WARNING
■To prevent causes of overheating and minor burn injuries
Observe the following precautions when using a seat heater
●Do not cover the seat with a blanket
or cushion when using the seat heater.
●Do not use seat heater more than necessary.
Seat ventilators (front seats)

456
Owners Manual_Europe_M42D76_en
7-1. Maintenance and care
7-1.Mainte nance a nd care

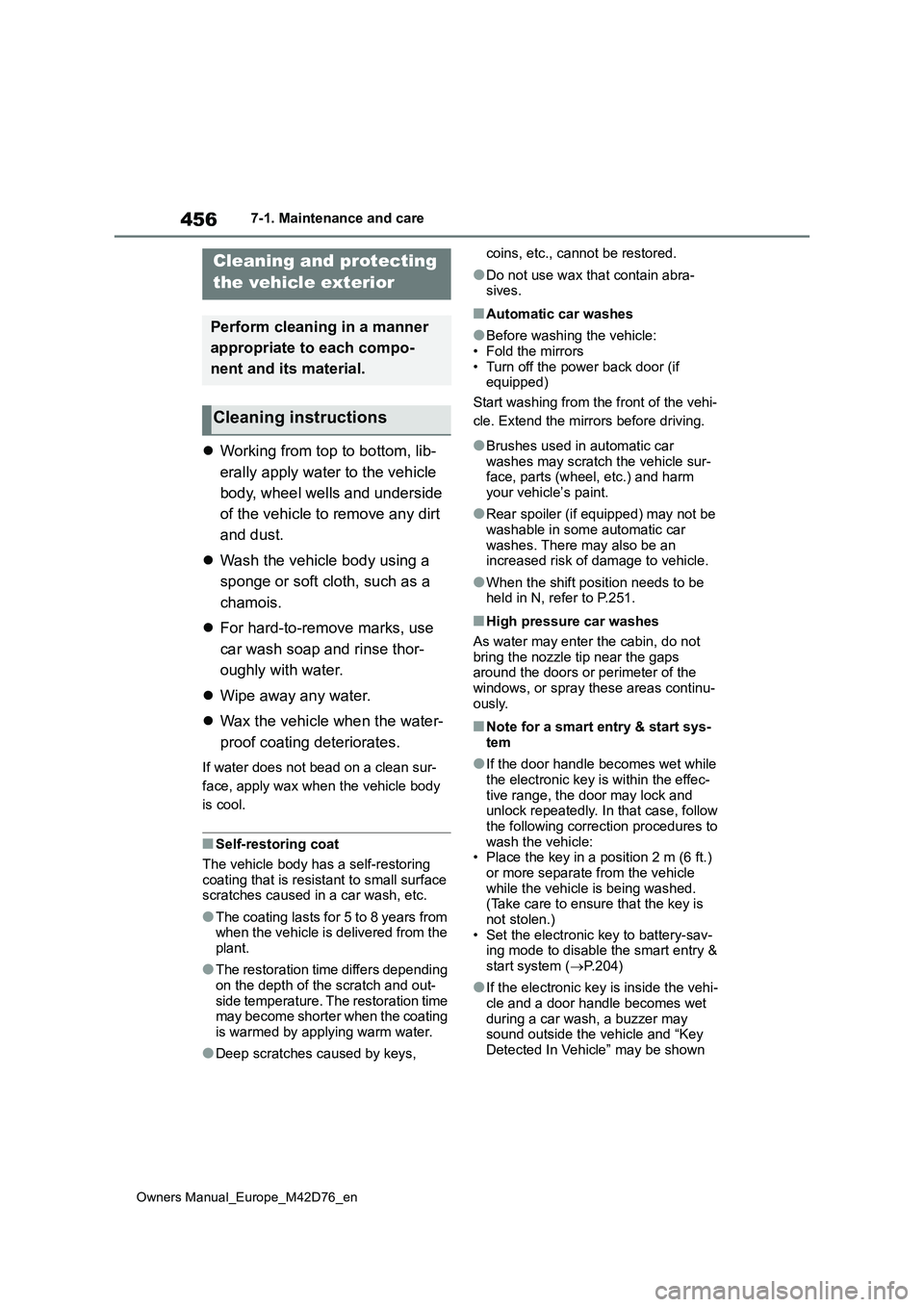

Working from top to bottom, lib-
erally apply water to the vehicle
body, wheel wells and underside
of the vehicle to remove any dirt
and dust.
 Wash the vehicle body using a
sponge or soft cloth, such as a
chamois.
 For hard-to-remove marks, use
car wash soap and rinse thor-
oughly with water.
 Wipe away any water.
 Wax the vehicle when the water-
proof coating deteriorates.
If water does not bead on a clean sur-
face, apply wax when the vehicle body
is cool.
■Self-restoring coat
The vehicle body has a self-restoring coating that is resistant to small surface scratches caused in a car wash, etc.
●The coating lasts for 5 to 8 years from when the vehicle is delivered from the
plant.
●The restoration time differs depending
on the depth of the scratch and out- side temperature. The restoration time may become shorter when the coating
is warmed by applying warm water.
●Deep scratches caused by keys,
coins, etc., cannot be restored.
●Do not use wax that contain abra- sives.
■Automatic car washes
●Before washing the vehicle:• Fold the mirrors
• Turn off the power back door (if equipped)
Start washing from the front of the vehi-
cle. Extend the mirrors before driving.
●Brushes used in automatic car washes may scratch the vehicle sur-face, parts (wheel, etc.) and harm
your vehicle’s paint.
●Rear spoiler (if equipped) may not be
washable in some automatic car washes. There may also be an increased risk of damage to vehicle.
●When the shift position needs to be held in N, refer to P.251.
■High pressure car washes
As water may enter the cabin, do not bring the nozzle tip near the gaps around the doors or perimeter of the
windows, or spray these areas continu- ously.
■Note for a smart entry & start sys-tem
●If the door handle becomes wet while the electronic key is within the effec-
tive range, the door may lock and unlock repeatedly. In that case, follow the following correction procedures to
wash the vehicle: • Place the key in a position 2 m (6 ft.) or more separate from the vehicle
while the vehicle is being washed. (Take care to ensure that the key is not stolen.)
• Set the electronic key to battery-sav- ing mode to disable the smart entry & start system ( P.204)
●If the electronic key is inside the vehi- cle and a door handle becomes wet
during a car wash, a buzzer may sound outside the vehicle and “Key Detected In Vehicle” may be shown
Cleaning and protecting
the vehicle exterior
Perform cleaning in a manner
appropriate to each compo-
nent and its material.
Cleaning instructions

474
Owners Manual_Europe_M42D76_en
7-3. Do-it-yourself maintenance
connect the ground cable.
●Make sure the power switch on the charger is off when connecting and
disconnecting the charger cables to the 12-volt battery.
■After recharging/reconnecting the 12-volt battery
●The EV system may not start. Follow the procedure below to initialize the
system.
1 Shift the shift position to P.
2 Open and close any of the doors.
3 Restart the EV system.
●Unlocking the doors using the smart
entry & start system may not be possi- ble immediately after reconnecting the 12-volt battery. If this happens, use
the wireless remote control or the mechanical key to lock/unlock the doors.
●Start the EV system with the power switch in ACC. The EV system may
not start with the power switch turned off. However, the EV system will oper-ate normally from the second attempt.
●The power switch mode is recorded by the vehicle. If the 12-volt battery is
disconnected and reconnected, the vehicle will return the power switch mode to the status it was in before the
12-volt battery was disconnected. Make sure to turn off the power switch before disconnecting the 12-volt bat-
tery. Take extra care when connecting the 12-volt battery if the power switch mode prior to the 12-volt battery being
disconnected is unknown.
If the EV system will not start even after
multiple attempts at all the methods
above, contact any authorized Toyota
retailer or Toyota authorized repairer, or
any reliable repairer.
WARNING
■Chemicals in the 12-volt battery
Batteries contain poisonous and cor-
rosive sulfuric acid and may produce hydrogen gas which is flammable and explosive. To reduce the risk of death
or serious injury, take the following precautions while working on or near the 12-volt battery:
●Do not cause sparks by touching the 12-volt battery terminals with tools.
●Do not smoke or light a match near the 12-volt battery.
●Avoid contact with eyes, skin and clothes.
●Never inhale or swallow electrolyte.
●Wear protective safety glasses when working near the 12-volt bat-tery.
●Keep children away from the 12-volt battery.
■Where to safely charge the 12-volt battery
Always charge the 12-volt battery in an open area. Do not charge the 12-volt battery in a garage or closed
room where there is insufficient venti- lation.
■Emergency measures regarding electrolyte
●If electrolyte gets in your eyes
Flush your eyes with clean water for at least 15 minutes and get immedi-ate medical attention. If possible,
continue to apply water with a sponge or cloth while traveling to the nearest medical facility.
●If electrolyte gets on your skinWash the affected area thoroughly.
If you feel pain or burning, get med- ical attention immediately.

477
7
Owners Manual_Europe_M42D76_en
7-3. Do-it-yourself maintenance
Maintenance and care
Rotate the tires in the order shown.
Front
To equalize tire wear and help extend
tire life, Toyota recommends that tire
rotation is carried out approximately
every 10000 km (6000 miles).
Do not fail to initialize the tire pressure
warning system after tire rotation.
■When rotating the tires
Make sure that the power switch is OFF. If the tires are rotated while the power
switch is in ON, the tire position informa- tion will not be updated. If this accidentally occurs, either turn the
power switch to OFF and then to ON, or initialize the tire pressure warning sys-tem after checking that the tire pressure
is properly adjusted.
Your vehicle is equipped with a tire
pressure warning system that uses
tire pressure warning valves and
WARNING
■When inspecting or replacing tires
Observe the following precautions to prevent accidents. Failure to do so may cause damage
to parts of the drivetrain as well as dangerous handling characteristics, which may lead to an accident result-
ing in death or serious injury.
●Do not mix tires of different makes,
models or tread patterns. Also, do not mix tires of remarkably different treadwear.
●Do not use tire sizes other than those recommended by Toyota.
●Do not mix differently constructed tires (radial, bias-belted or bias-ply
tires).
●Do not mix summer, all season and
snow tires.
●Do not use tires that have been
used on another vehicle. Do not use tires if you do not know how they were used previously.
●Do not tow anything if a tire that has been repaired using the emergency
tire puncture repair kit is installed. The load on the tire may cause unexpected damage to the tire.
NOTICE
■Driving on rough roads
Take particular care when driving on roads with loose surfaces or potholes. These conditions may cause losses in
tire inflation pressure, reducing the cushioning ability of the tires. In addi-tion, driving on rough roads may
cause damage to the tires them- selves, as well as the vehicle’s wheels and body.
■If tire inflation pressure of each tire becomes low while driving
Do not continue driving, or your tires
and/or wheels may be ruined.
Tire rotation
Tire pressure warning sys-
tem

480
Owners Manual_Europe_M42D76_en
7-3. Do-it-yourself maintenance
■When rotating the tires
It is necessary to register the posi-
tion of each wheel after performing
a tire rotation.
Wheel position registration can be
performed by oneself. Wheel posi-
tion registration is performed by
driving forward with moderate left
and right turns. However, depend-
ing on the driving conditions and
driving environment, registration
may take some time to complete.
■Registration of the tire posi-
tion
1 Park the vehicle in a safe place
and stop the EV system for 15
minutes or more.
2 Start the EV system (P.243)
Registration cannot be performed while the vehicle is moving.
3 Press or of the meter
control switches and select .
4 Press or of the meter
control switches and select
“Vehicle Settings”, and then
press and hold the “OK”.
5 Press or of the meter
control switches and select
“TPWS Setting”, and then press
“OK”.
6 Press or of the meter
control switches and select
“Tyre Rotation”, and then press
“OK”.
NOTICE
■Repairing or replacing tires, wheels, tire pressure warning
valves, transmitters and tire valve caps
●When removing or fitting the
wheels, tires or the tire pressure warning valves and transmitters, contact any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer as the tire pressure warning valves
and transmitters may be damaged if not handled correctly.
●Make sure to install the tire valve caps. If the tire valve caps are not installed, water could enter the tire
pressure warning valves and the tire pressure warning valves could be bound.
●When replacing tire valve caps, do not use tire valve caps other than
those specified. The cap may become stuck.
■To avoid damage to the tire pres-sure warning valves and trans-mitters
When a tire is repaired with liquid sealants, the tire pressure warning valve and transmitter may not operate
properly. If a liquid sealant is used, contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer or other qualified ser- vice shop as soon as possible. After use of liquid sealant, make sure to
replace the tire pressure warning valve and transmitter when repairing or replacing the tire.
Registration of the position
of each wheel after perform-
ing a tire rotation

544
Owners Manual_Europe_M42D76_en
8-2. Steps to take in an emergency
■Stopping the EV system
Set the parking brake, shift the shift
position to P and press the power switch as you normally do when stopping the EV system.
■Electronic key battery
As the above procedure is a temporary measure, it is recommended that the electronic key battery be replaced
immediately when the battery is depleted. ( P.499)
■Alarm (if equipped)
Using the mechanical key to lock the
doors will not set the alarm system. If a door is unlocked using the mechani-cal key when the alarm system is set,
the alarm may be triggered. ( P. 7 7 )
■Changing power switch modes
Release the brake pedal and press the power switch in step 3 above.
The EV system does not start and modes will be changed each time the switch is pressed. ( P.246)
If you have a set of jumper (or
booster) cables and a second vehi-
cle with a 12-volt battery, you can
jump start your vehicle by following
the steps below.
1 Confirm that the electronic key
is being carried.
When connecting the jumper (or
booster) cables, depending on the situ- ation, the alarm may activate and the doors may lock. ( P.78)
2Open the hood (P.467).
3 Open the positive (+) battery ter-
minal cover.
While pressing on the claw, open the
If the 12-volt batter y is
discharged
The following procedures may
be used to start the EV system
if the vehicle’s 12-volt battery
is discharged.
You can also call any autho-
rized Toyota retailer or Toyota
authorized repairer, or any reli-
able repairer.
Restarting the EV system

547
8
Owners Manual_Europe_M42D76_en
8-2. Steps to take in an emergency
When trouble arises
order from which they were con-
nected.
10 Close the positive (+) battery
terminal cover.
Once the EV system starts, have
the vehicle inspected at any autho-
rized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer as soon as possible.
■Starting the EV system when the 12-volt battery is discharged
The EV system cannot be started by push-starting.
■To prevent 12-volt battery dis-charge
●Turn off the headlights, the air condi-tioning system, the audio system, etc.
while the EV system is off.
●Turn off any unnecessary electrical
components when the vehicle is run- ning at a low speed for an extended period, such as in heavy traffic.
■Charging the 12-volt battery
The electricity stored in the 12-volt bat- tery will discharge gradually even when the vehicle is not in use, due to natural
discharge and the draining effects of certain electrical appliances. If the vehi-cle is left for a long time, the 12-volt bat-
tery may discharge, and the EV system may be unable to start. (The 12-volt bat-tery recharges automatically while the
EV system is operating.)
■When the 12-volt battery is removed or discharged
●Information stored in the ECU is cleared. When the 12-volt battery is depleted, have the vehicle inspected
at any authorized Toyota retailer or Toyota authorized repairer, or any reli-able repairer.
●In some cases, it may not be possible to unlock the doors using the smart
entry & start system when the 12-volt
battery is discharged. Use the wire-
less remote control or the mechanical key to lock or unlock the doors.
●The EV system may not start on the first attempt after the 12-volt battery has recharged but will start normally
after the second attempt. This is not a malfunction.
●The power switch mode is memorized by the vehicle. When the 12-volt bat-tery is reconnected, the system will
return to the mode it was in before the 12-volt battery was discharged. Before disconnecting the 12-volt bat-
tery, turn the power switch off. If you are unsure what mode the power switch was in before the 12-volt
battery discharged, be especially careful when reconnecting the 12-volt battery.
●If the 12-volt battery discharges, it may not be possible to shift the shift
position to other positions. In this case, the vehicle cannot be towed without lifting both front wheels
because the front wheels will be locked.
●The power back door (if equipped) must be initialized. ( P.198)
■When replacing the 12-volt battery
●Use a 12-volt battery that conforms to European regulations.
●Use a 12-volt battery that the case size is same as the previous one (LN1), 20 hour rate capacity (20HR) is
equivalent (45Ah) or greater, and per- formance rating (CCA) is equivalent (286A) or greater.
• If the sizes differ, the 12-volt battery cannot be properly secured.• If an improper 12-volt battery is used,
battery performance may decrease and the EV system may not be able to restart.
• If the 20 hour rate capacity is low, even if the time period where the vehi-cle is not used is a short time, the 12-
volt battery may discharge and EV system may not be able to start.

567
9
Owners Manual_Europe_M42D76_en
9-2. Customization
Vehicle specifications
■Reverse warning buzzer
■Power switch (P.246)
■Automatic light control system (P.259)
■Lights (P.259)
■AHS (Adaptive High-beam System)*1 (P.262)
FunctionDefault settingCustomized set-
ting
Signal (buzzer) when the shift
position is in RContinualMuteO
FunctionCustomized setting
ACC modeON/OFFOO
FunctionDefault settingCustomized set-
ting
Light sensor sensitivityStandard-2 to 2OO
Time elapsed before headlights
turn off (Extended Headlight
Lighting system)
30 seconds
60 seconds
O90 seconds
120 seconds
FunctionDefault settingCustomized set-
ting
Light reminder buzzerOnOffO
FunctionCustomized setting
Adaptive High-beam SystemOn/OffO
Brightness and illuminated area
adjustment of the high beams
according to the vehicle speed
15 km/h (9 mph)/30 km/h (19
mph)/60 km/h (37 mph)O
Intensity adjustment of the high
beams when driving around a
curve (illuminates the area in the
direction vehicle is turning more
brightly)
On/OffO

579
Owners Manual_Europe_M42D76_en
Alphabetical Index
Alphabetical Index
A
A/C ................................................. 420
Air conditioning filter................... 496
Automatic air conditioning system
................................................. 420
Front seat concentrated airflow
mode (S-FLOW) ...................... 425
Heated Windshield Defroster ..... 426
My Room Mode.......................... 145
Remote Air Conditioning System427
“SYNC”mode.............................. 423
ABS (Anti-lock Brake System) .... 406
Function ..................................... 406
Warning light .............................. 516
AC charging .................................. 121
AC charging cable .......................... 98
AC charging cable types ............ 100
CCID (Charging Circuit Interrupting
Device) .................................... 100
If the charging connector cannot be
unlocked .................................. 111
Indicator ..................................... 102
Maintenance .............................. 106
Replacing the plug-cord ............. 104
Safety functions ......................... 101
ACA (Active Cornering Assist) .... 406
Acoustic Vehicle Alerting System. 84
Active Cornering Assist (ACA) .... 406
Adaptive High-beam System (AHS)
..................................................... 262
AHB (Automatic High Beam) ....... 265
AHS (Adaptive High-beam System)
..................................................... 262
Air conditioning filter ................... 496
Air conditioning system............... 420
Air conditioning filter................... 496
Automatic air conditioning system
................................................. 420
Front seat concentrated airflow
mode (S-FLOW) ...................... 425
Heated Windshield Defroster ..... 426
Remote Air Conditioning System427
“SYNC” mode .............................423
Airbag manual on-off system ........ 47
Airbags ............................................ 39
Airbag manual on-off system ....... 47
Airbag operating conditions.......... 41
Airbag precautions for your child.. 44
Correct driving posture ................. 33
Curtain shield airbag operating con-
ditions......................................... 41
Curtain shield airbag precautions. 44
Front seat center airbag operating
conditions ................................... 41
General airbag precautions .......... 44
Locations of airbags ..................... 39
Modification and disposal of airbags
................................................... 46
Side airbag operating conditions .. 41
Side airbag precautions ............... 44
Side and curtain shield airbags oper-
ating conditions .......................... 41
Side and curtain shield airbags pre-
cautions...................................... 44
SRS airbags ................................. 39
SRS warning light.......................516
Alarm
Alarm ............................................ 77
Warning buzzer .......................... 515
ALL AUTO (“ECO”) control .......... 418
Antenna (smart entry & start system)
..................................................... 203
Anti-lock Brake System (ABS)..... 406
Function ..................................... 406
Warning light .............................. 516
Approach warning ........................ 313
Armrest .......................................... 452
Assist grips ...................................453
Audio system-linked display ....... 177
Automatic air conditioning system
..................................................... 420

583
Owners Manual_Europe_M42D76_en
Alphabetical Index
Driving range ................................ 172
Driving support system information
display ......................................... 177
Dynamic radar cruise control .... 307,
316
Approach warning ...................... 313
Curve speed reduction function . 313
Road Sign Assist (RSA) ............. 314
Warning lights ............................ 520
E
eCall ................................................. 65
ECB (Electronically Controlled Brake
System) ....................................... 406
Warning light .............................. 515
Eco mode ...................................... 252
Elapsed time ................................. 178
Electric motor (traction motor)
Identification number.................. 555
Location ....................................... 82
Electric Power Steering (EPS)
Function ..................................... 406
Warning light .............................. 517
Electric Vehicle system features ... 82
Electric Vehicle system precautions
....................................................... 86
Electronic key
Battery-saving function .............. 204
If the electronic key does not operate
properly.................................... 542
Replacing the battery ................. 499
Electronic sunshade .................... 442
Operation ................................... 442
Electronically Controlled Brake Sys-
tem (ECB) .................................... 406
Warning light .............................. 515
Emergency brake signal .............. 406
Emergency Driving Stop System 321
Emergency flashers ..................... 506
Emergency tire puncture repair kit
..................................................... 528
Storage location ......................... 530
Emergency, in case of
If a warning buzzer sounds ........ 515
If a warning light turns on ........... 515
If a warning message is displayed
................................................. 523
If the 12-volt battery is discharged
................................................. 544
If the electronic key does not operate
properly .................................... 542
If the EV system will not start ..... 539
If the vehicle is submerged or water
on the road is rising..................507
If you have a flat tire ................... 528
If you lose your keys ..................541
If you think something is wrong .. 513
If your vehicle becomes stuck .... 551
If your vehicle has to be stopped in
an emergency .......................... 506
If your vehicle needs to be towed
................................................. 509
If your vehicle overheats ............549
EPS (Electric Power Steering)
Function ..................................... 406
Warning light .............................. 517
EV system........................................ 82
Acoustic Vehicle Alerting System . 84
Battery Electric Vehicle driving tips
................................................... 91
Brake Override System .............. 230
Drive-start control .......................234
Driving range ................................ 93
Electric Vehicle system precautions
................................................... 86
Emergency shut off system .......... 90
Features ....................................... 82
How to use AC charging............. 121
How to use DC charging ............129
If the EV system will not start ..... 539
If your vehicle has to be stopped in
an emergency .......................... 506
