7-3. Do-it-yourself maintenance
Maintenance and care
Guide pin*
Towing eyelet
Wheel bolt wrench
Jack*
Jack handle*
Wheel bolt socket*
*: They can be purchased at any authorized Toyota retailer or Toy ota authorized
repairer, or any reliable repairer.

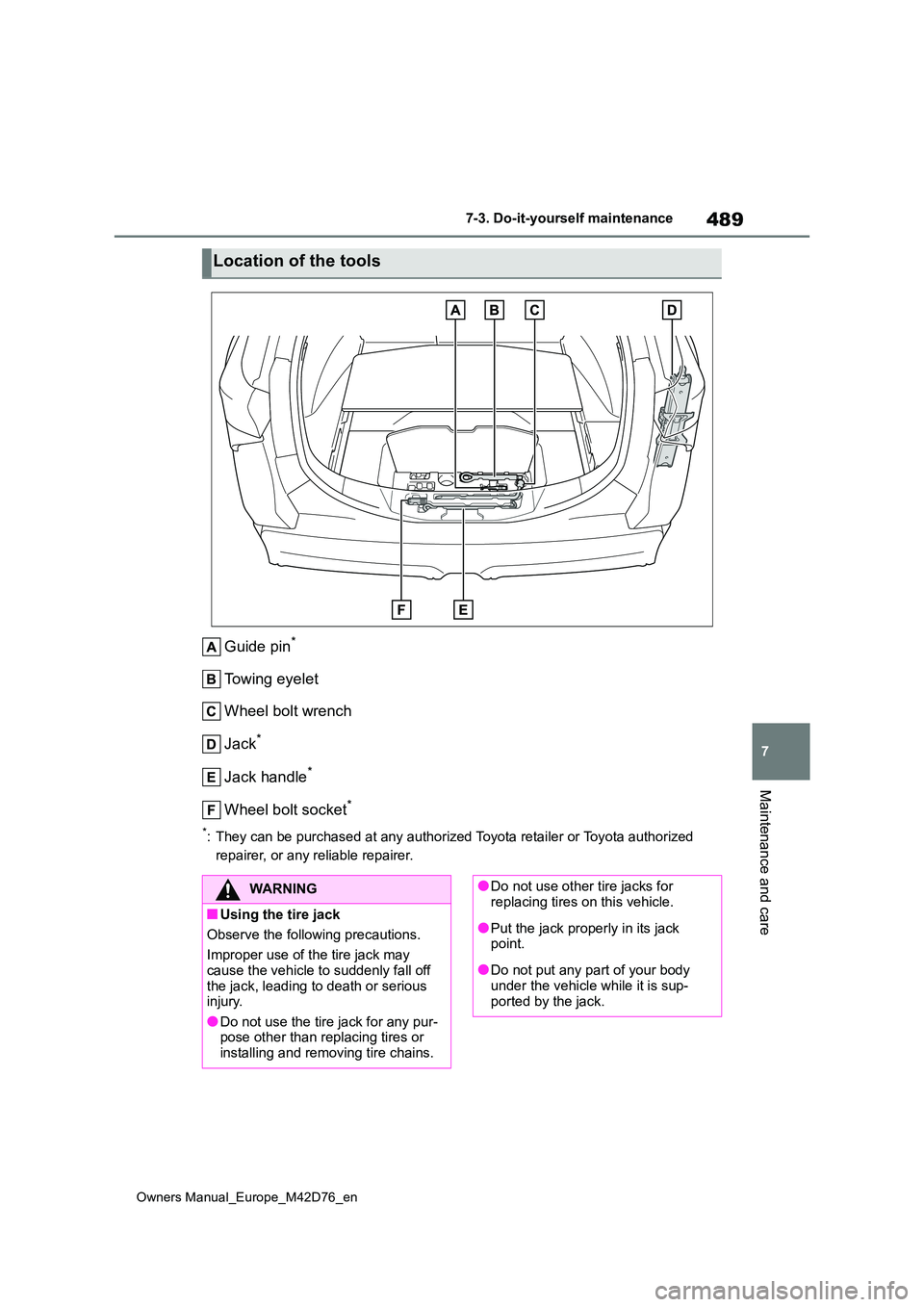

Location of the tools
WARNING
■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may
cause the vehicle to suddenly fall off the jack, leading to death or serious injury.
●Do not use the tire jack for any pur-pose other than replacing tires or installing and removing tire chains.
●Do not use other tire jacks for replacing tires on this vehicle.
●Put the jack properly in its jack point.
●Do not put any part of your body under the vehicle while it is sup-
ported by the jack.

490
Owners Manual_Europe_M42D76_en
7-3. Do-it-yourself maintenance
1Chock the tires.
2 Slightly loosen the wheel bolts
(one turn).
3 Turn the part of the jack by
hand and place the top of the
jack in the position shown in the
illustration.
WARNING
●Do not start the EV system or drive the vehicle while the vehicle is sup-
ported by the jack.
●Do not raise the vehicle while
someone is inside.
●When raising the vehicle, do not put
an object on or under the jack.
●Do not raise the vehicle to a height
greater than that required to replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●When lowering the vehicle, make sure that there is no-one near the vehicle. If there are people nearby,
warn them vocally before lowering.

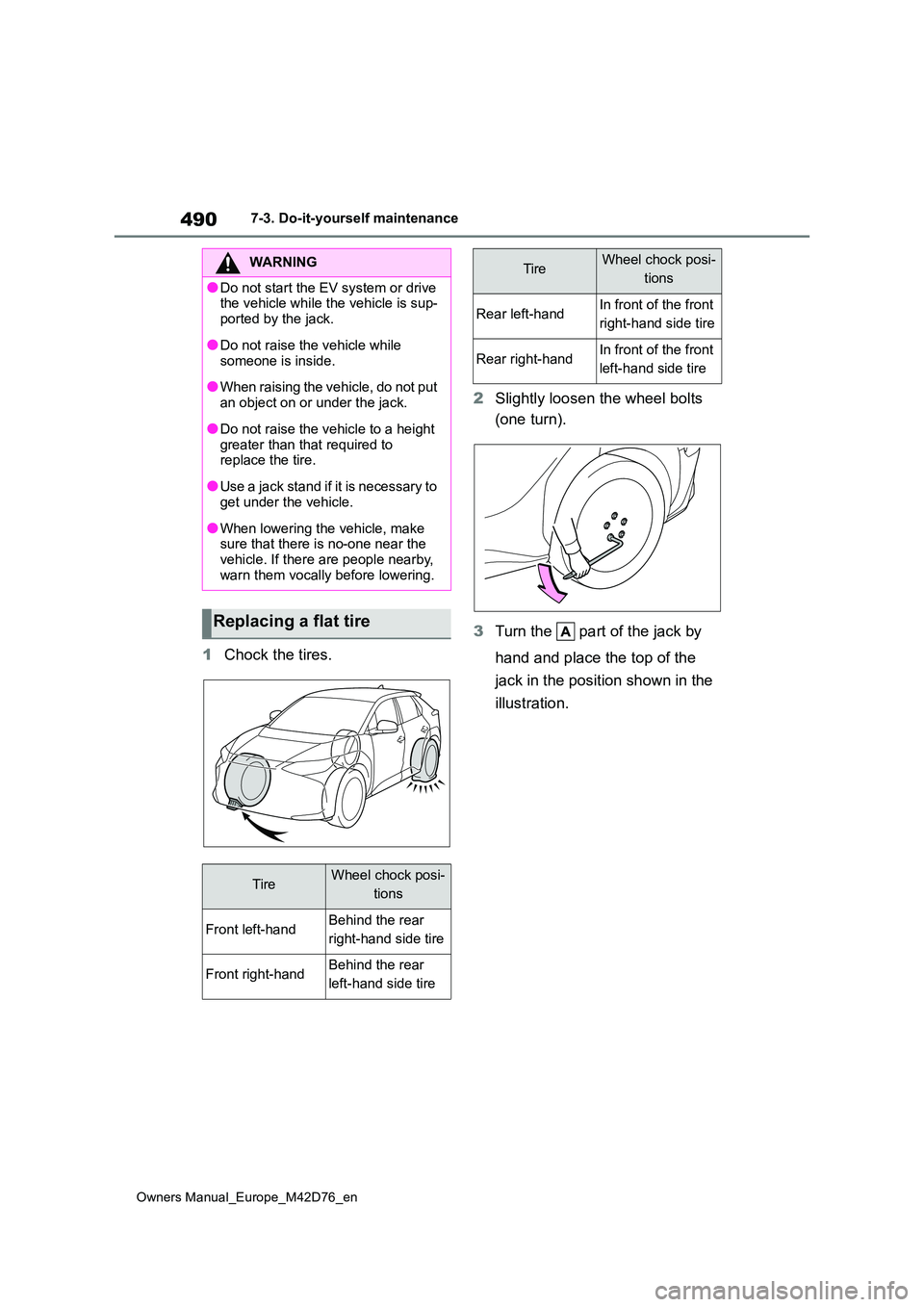

Replacing a flat tire
TireWheel chock posi-
tions
Front left-handBehind the rear
right-hand side tire
Front right-handBehind the rear
left-hand side tire
Rear left-handIn front of the front
right-hand side tire
Rear right-handIn front of the front
left-hand side tire
TireWheel chock posi-
tions

491
7
Owners Manual_Europe_M42D76_en
7-3. Do-it-yourself maintenance
Maintenance and care

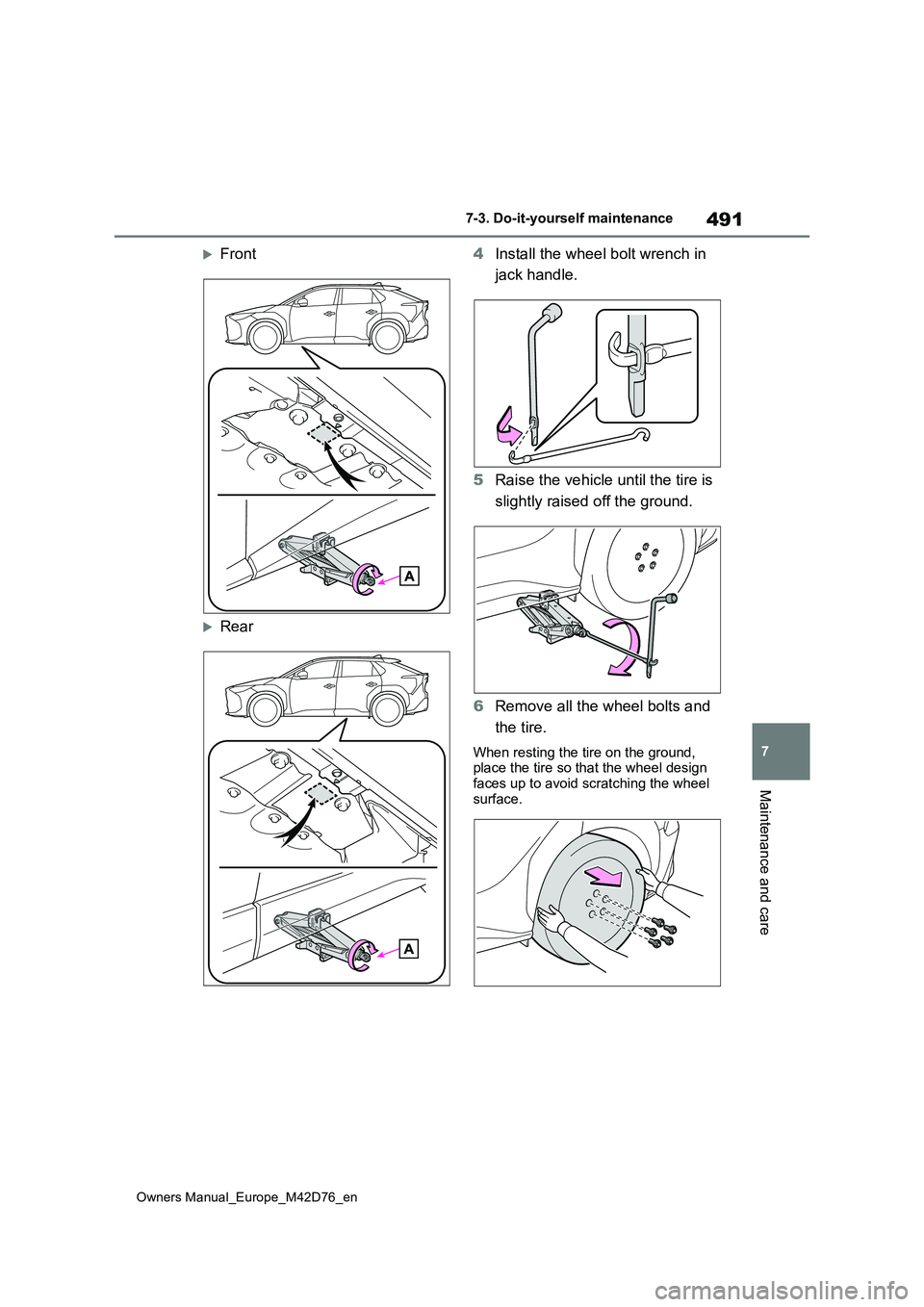

Front
Rear
4 Install the wheel bolt wrench in
jack handle.
5 Raise the vehicle until the tire is
slightly raised off the ground.
6 Remove all the wheel bolts and
the tire.
When resting the tire on the ground, place the tire so that the wheel design
faces up to avoid scratching the wheel surface.

492
Owners Manual_Europe_M42D76_en
7-3. Do-it-yourself maintenance
1Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel contact
surface, the wheel bolts may loosen while the vehicle is in motion, causing

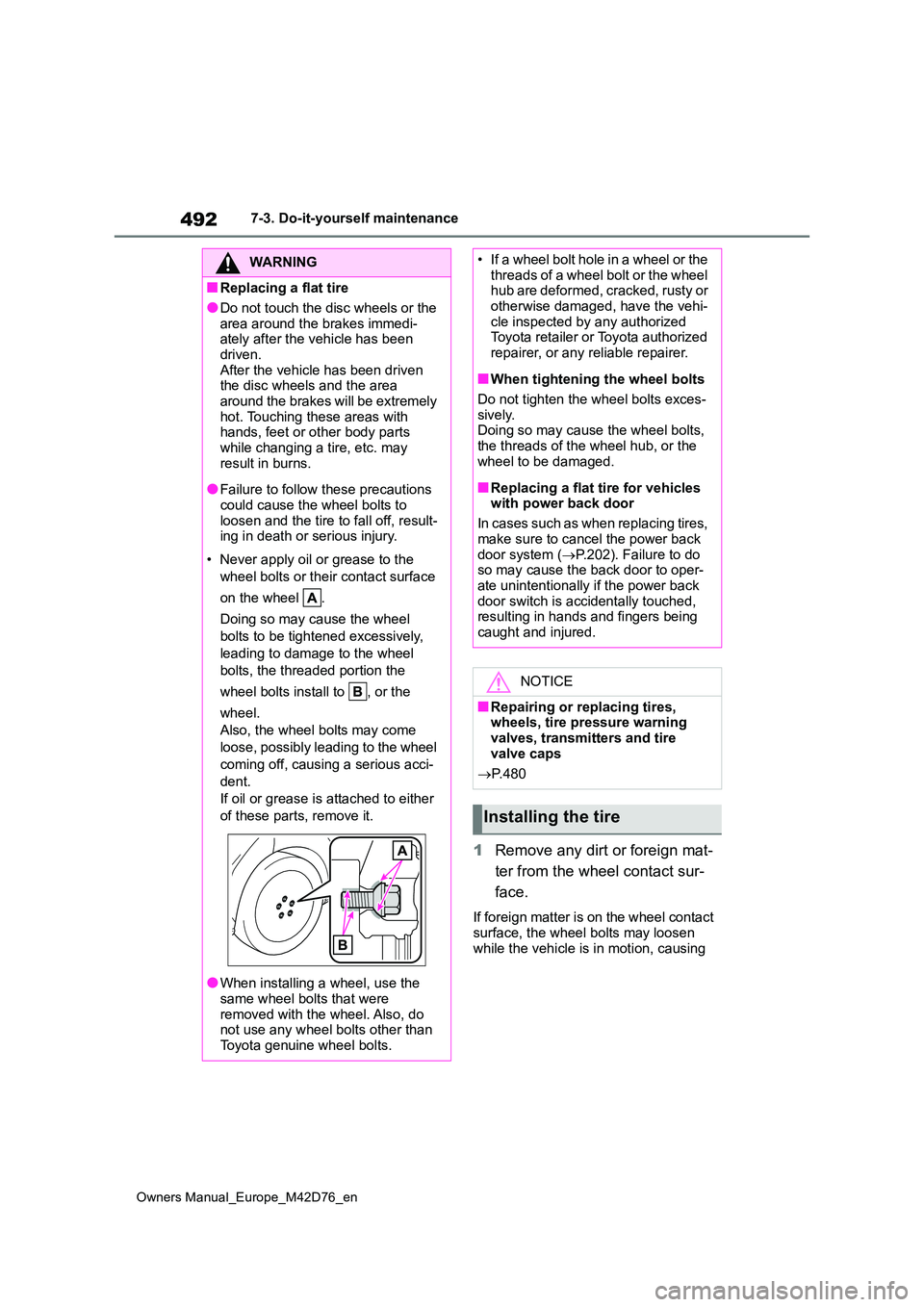

WARNING
■Replacing a flat tire
●Do not touch the disc wheels or the
area around the brakes immedi- ately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around the brakes will be extremely
hot. Touching these areas with hands, feet or other body parts while changing a tire, etc. may
result in burns.
●Failure to follow these precautions
could cause the wheel bolts to loosen and the tire to fall off, result-ing in death or serious injury.
• Never apply oil or grease to the
wheel bolts or their contact surface
on the wheel .
Doing so may cause the wheel
bolts to be tightened excessively,
leading to damage to the wheel
bolts, the threaded portion the
wheel bolts install to , or the
wheel.
Also, the wheel bolts may come
loose, possibly leading to the wheel
coming off, causing a serious acci-
dent.
If oil or grease is attached to either
of these parts, remove it.
●When installing a wheel, use the
same wheel bolts that were removed with the wheel. Also, do not use any wheel bolts other than
Toyota genuine wheel bolts.
• If a wheel bolt hole in a wheel or the threads of a wheel bolt or the wheel hub are deformed, cracked, rusty or
otherwise damaged, have the vehi- cle inspected by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
■When tightening the wheel bolts
Do not tighten the wheel bolts exces- sively.Doing so may cause the wheel bolts,
the threads of the wheel hub, or the wheel to be damaged.
■Replacing a flat tire for vehicles with power back door
In cases such as when replacing tires,
make sure to cancel the power back door system ( P.202). Failure to do so may cause the back door to oper-
ate unintentionally if the power back door switch is accidentally touched, resulting in hands and fingers being
caught and injured.
NOTICE
■Repairing or replacing tires, wheels, tire pressure warning
valves, transmitters and tire valve caps
 P. 4 8 0
Installing the tire

493
7
Owners Manual_Europe_M42D76_en
7-3. Do-it-yourself maintenance
Maintenance and care
the tire to come off.
2Install the tire and loosely
tighten each wheel bolts by
hand by approximately the
same amount.
Tighten the wheel bolts until the spheri-
cal portion comes into loose contact
with the disc wheel seat .
Spherical portion
Disc wheel
3 Lower the vehicle.
4 Firmly tighten each wheel bolt
two or three times in the order
shown in the illustration.
Tightening torque: 140 N•m (14.3 kgf•m, 103 ft•lbf)
5 Stow all the tools.

494
Owners Manual_Europe_M42D76_en
7-3. Do-it-yourself maintenance
■Effects of incorrect tire inflation
pressure
Driving with incorrect tire inflation pres- sure may result in the following:
●Reduced electricity consumption effi-ciency
●Reduced driving comfort and poor handling
●Reduced tire life due to wear
●Reduced safety
●Damage to the drive train
If a tire needs frequent inflating, have it checked by any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer.
■Instructions for checking tire infla- tion pressure
When checking tire inflation pressure,
observe the following:
●Check only when the tires are cold.
If your vehicle has been parked for at least 3 hours or has not been driven for more than 1.5 km or 1 mile, you
will get an accurate cold tire inflation pressure reading.
●Always use a tire pressure gauge.It is difficult to judge if a tire is properly inflated based only on its appearance.
●It is normal for the tire inflation pres-sure to be higher after driving as heat
is generated in the tire. Do not reduce tire inflation pressure after driving.
●Passengers and luggage weight
should be placed so that the vehicle is balanced.

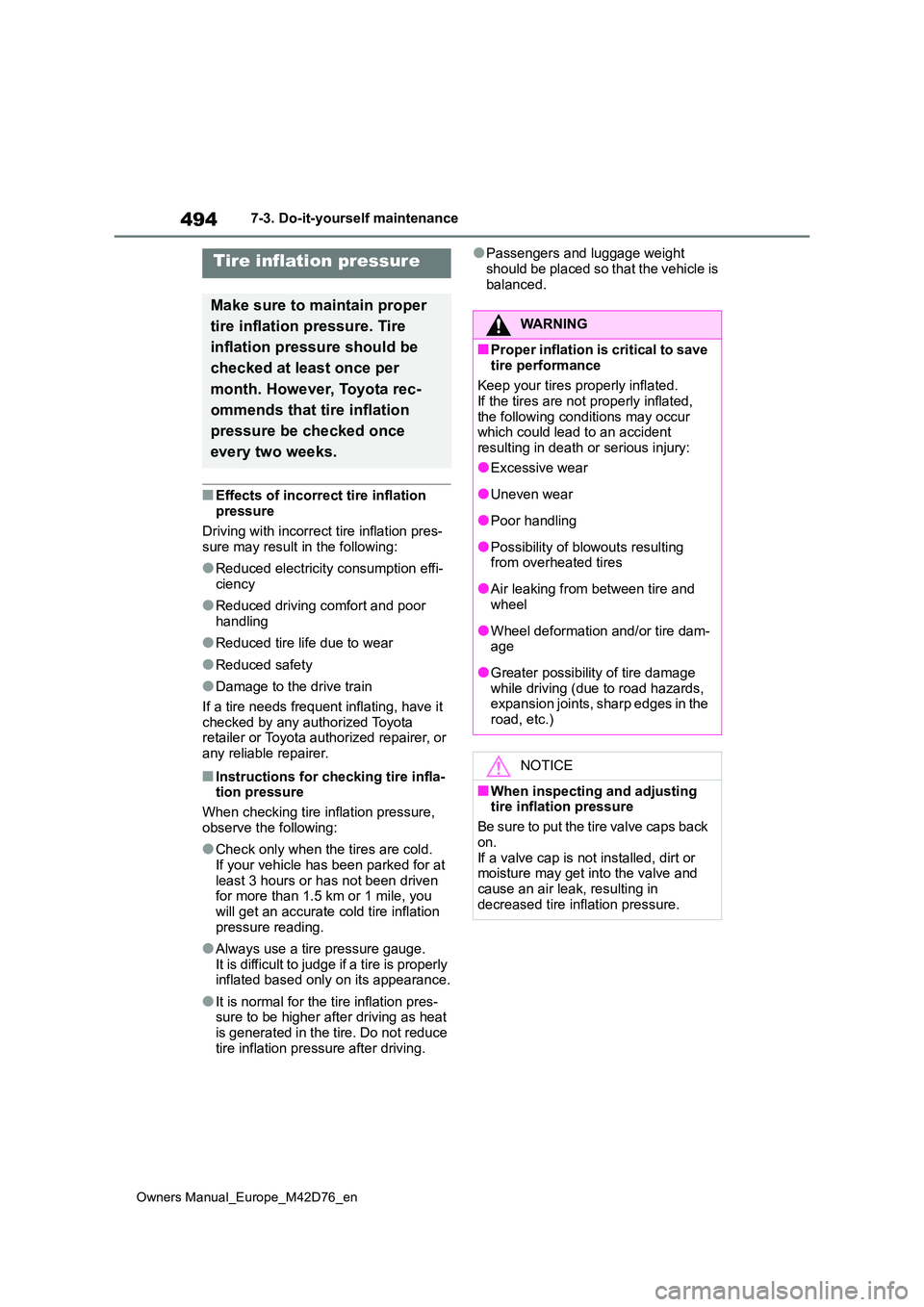

Tire inflation pressure
Make sure to maintain proper
tire inflation pressure. Tire
inflation pressure should be
checked at least once per
month. However, Toyota rec-
ommends that tire inflation
pressure be checked once
every two weeks.
WARNING
■Proper inflation is critical to save
tire performance
Keep your tires properly inflated. If the tires are not properly inflated,
the following conditions may occur which could lead to an accident resulting in death or serious injury:
●Excessive wear
●Uneven wear
●Poor handling
●Possibility of blowouts resulting from overheated tires
●Air leaking from between tire and wheel
●Wheel deformation and/or tire dam-age
●Greater possibility of tire damage while driving (due to road hazards, expansion joints, sharp edges in the
road, etc.)
NOTICE
■When inspecting and adjusting tire inflation pressure
Be sure to put the tire valve caps back
on. If a valve cap is not installed, dirt or moisture may get into the valve and
cause an air leak, resulting in decreased tire inflation pressure.

495
7
Owners Manual_Europe_M42D76_en
7-3. Do-it-yourself maintenance
Maintenance and care
When replacing wheels, care
should be taken to ensure that they
are equivalent to those removed in
load capacity, diameter, rim width
and inset*.
Replacement wheels are available
at any authorized Toyota retailer or
Toyota authorized repairer, or any
reliable repairer.
*: Conventionally referred to as offset.
Toyota does not recommend using
the following:
 Wheels of different sizes or types
 Used wheels
 Bent wheels that have been
straightened
■When replacing wheels
The wheels of your vehicle are equipped with tire pressure warning valves and
transmitters that allow the tire pressure warning system to provide advance warning in the event of a loss in tire
inflation pressure. Whenever wheels are replaced, tire pressure warning valves and transmitters must be installed.
( P.479)
Wheels
If a wheel is bent, cracked or
heavily corroded, it should be
replaced. Otherwise, the tire
may separate from the wheel
or cause a loss of handling
control.
Wheel selection
WARNING
■When replacing wheels
●Do not use wheels that are a differ-
ent size from those recommended in the Owner’s Manual, as this may result in a loss of handling control.
●Never use an inner tube in a leak-ing wheel which is designed for a
tubeless tire. Doing so may result in an accident, causing death or seri-ous injury.
■Wheel bolts
Observe the following precautions to
reduce the risk of death or serious injury:
●Do not over tighten.
●Never use oil or grease on the
wheel bolts. Oil and grease may cause the wheel bolts to be exces-sively tightened, leading to bolt or
disc wheel damage. In addition, the oil or grease can cause the wheel bolts to loosen and the wheel may
fall off, causing a serious accident. Remove any oil or grease from the wheel bolts.
●If there are any cracks or deforma-tions in the wheel bolts, or if the sur-
face treatment becomes worn, have the wheel bolts replaced at your any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer. Failure to follow these precautions could cause the
wheel bolts to loosen and the tire to fall off, resulting in death or serious injury.
■Use of defective wheels prohib-ited
Do not use cracked or deformed wheels.Doing so could cause the tire to leak
air during driving, possibly causing an accident.

496
Owners Manual_Europe_M42D76_en
7-3. Do-it-yourself maintenance
Use only Toyota wheel bolts and
wrenches designed for use with
your aluminum wheels.
 When rotating, repairing or
changing your tires, check that
the wheel bolts are still tight after
driving 1600 km (1000 miles).
 Be careful not to damage the
aluminum wheels when using
tire chains.
 Use only Toyota genuine balance
weights or equivalent and a plas-
tic or rubber hammer when bal-
ancing your wheels.
1 Turn the power switch off.
Confirm that the charging connector is
not connected. Also, do not use the Remote Air Conditioning System during the procedure.
2 Open the front passenger’s
door.
By keeping the door open, unexpected operation of the Remote Air Condition-
ing System can be prevent. ( P.427)
3While pressing the claw, hold
handle and remove the
panel.
NOTICE
■Replacing tire pressure warning valves and transmitters
●Because tire repair or replacement may affect the tire pressure warning valves and transmitters, make sure
to have tires serviced by any autho- rized Toyota retailer or Toyota authorized repairer, or any reliable
repairer or other qualified service shop. In addition, make sure to pur-chase your tire pressure warning
valves and transmitters at any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
●Ensure that only genuine Toyota
wheels are used on your vehicle. Tire pressure warning valves and transmitters may not work properly
with non-genuine wheels.
Aluminum wheel precau-
tions
Air conditioning filter
The air conditioning filter must
be changed regularly to main-
tain air conditioning efficiency.
Removing the air condition-
ing filter

497
7
Owners Manual_Europe_M42D76_en
7-3. Do-it-yourself maintenance
Maintenance and care
4Vehicles with Footwell lights:
Unplug the connector.
5 Unlock the filter cover ( ), pull
the filter cover out of the claws
( ), and remove the filter
cover.
6 Hold the filter case and
remove the lower filter case.
7 Hold the filter case and pull
down the upper filter case.
8 Hold the filter case and
remove the upper filter case.
9 Remove the air conditioning fil-
ter from the upper and lower fil-

498
Owners Manual_Europe_M42D76_en
7-3. Do-it-yourself maintenance
ter case and replace it with a
new one.
Install so that the arrow points to the rear of the vehicle.
10 When installing, reverse the
steps listed.
■When installing the filter cover
Slide the recessed part of the filter
cover on the upper surface of the upper
filter case as shown in the figure,
and attach it so that it is lifted toward the
insertion part of the cover attachment.
Left-hand drive vehicles
Right-hand drive vehicles
■Checking interval
Inspect and replace the air conditioning
filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement may be required. (For scheduled main-
tenance information, please refer to the “Toyota Service Booklet” or “Toyota War-ranty Booklet”.)
■If air flow from the vents decreases
dramatically
The filter may be clogged. Check the fil- ter and replace if necessary.
WARNING
■When replacing the air condition-ing filter
Observe the following precautions.
Failure to do so may result in the air conditioning system operating during the procedure, possibly resulting in
injury.
●Check that the charging connector is not connected
●Do not use the Remote Air Condi-tioning System
NOTICE
■When using the air conditioning
system
●Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the system.
●The filter is replaceable. When cleaning the filter, do not clean with
water or an air gun.
