3345-4. Using the driving support systems
Owners Manual_USA_M42C01_enstronger-than-normal brake opera-
tion is necessary.
Multimedia display: “BRAKE!”
Multi-information
display: “BRAKE!”
Driving assist information indicator:
Not illuminated
Buzzer: Short beep
 Brake control is operating
The system determ ined that emer-
gency braking is necessary.
Multimedia display: “BRAKE!”
Multi-information display: “BRAKE!”
Driving assist information indicator:
Not illuminated
Buzzer: Short beep
 Vehicle stopped by system
operation
The vehicle has been stopped by
brake control operation.
Multimedia display: “Press Brake
Pedal”
Multi-information display: “Acceler-
ator Pedal is Pressed Press Brake
Pedal” (If the accelerator pedal is
not depressed, “Press Brake Pedal”
will be displayed.)
Driving assist information indicator:
Illuminated
Buzzer: Sounds repeatedly
If the Parking Support Brake
determines that a collision with a
detected object or pedestrian is
possible, the EV system output
will be restricted to restrain any
increase in the vehicle speed. (EV system output restriction
control: See figure 2.)
Additionally, if the accelerator
pedal continues to be
depressed, the brakes will be
applied automatically to reduce
the vehicle speed. (Brake con-
trol: See figure 3.)


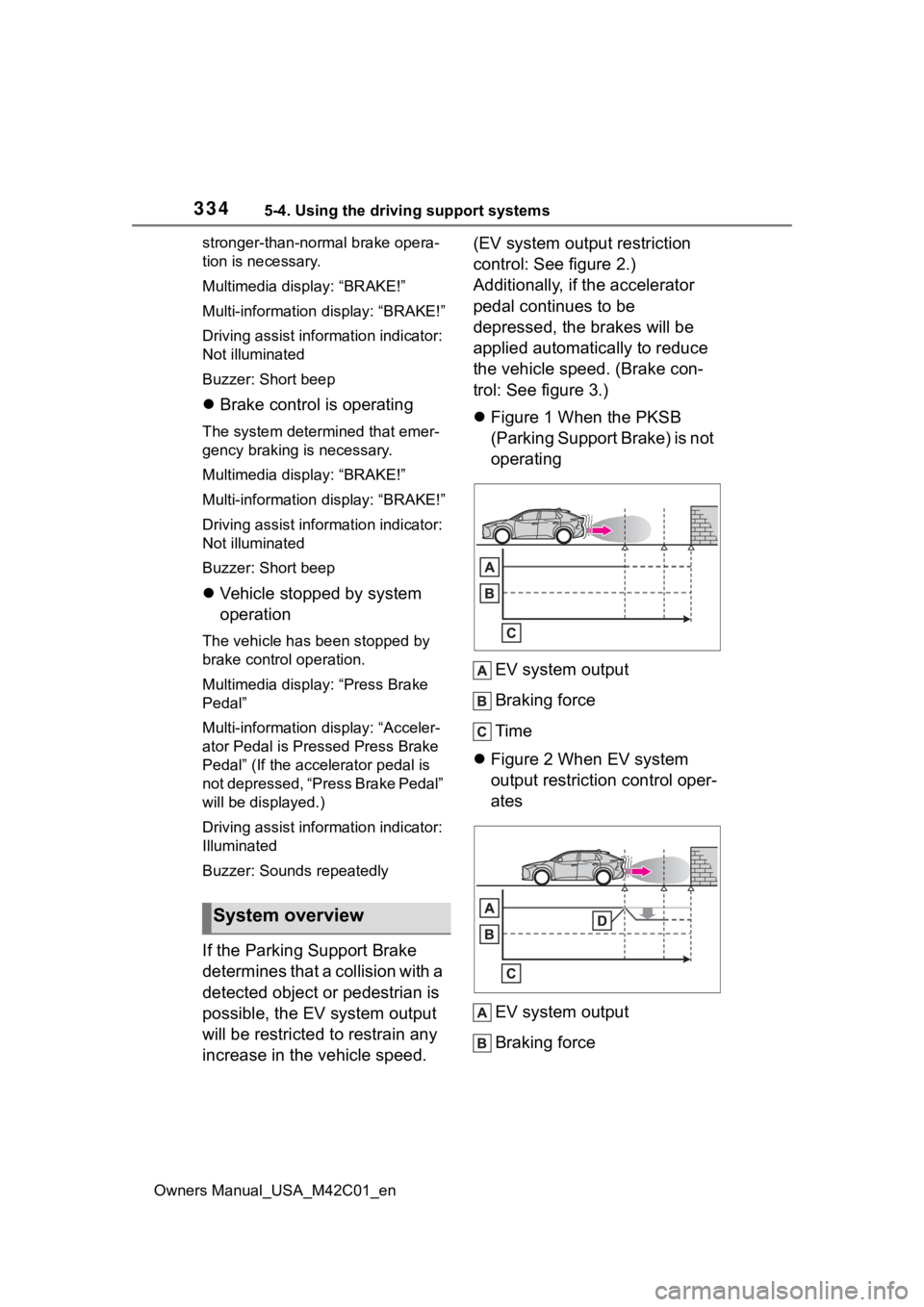

Figure 1 When the PKSB
(Parking Support Brake) is not
operating
EV system output
Braking force
Time
 Figure 2 When EV system
output restriction control oper-
ates
EV system output
Braking force
System overview

3405-4. Using the driving support systems
Owners Manual_USA_M42C01_en
●Brake control
• The Parking Support Brake is dis- abled.
• Approximately 2 seconds have elapsed since the vehicle was
stopped by brake control.
• The brake pedal is depressed after the vehicle is stopped by
brake control.
• A vehicle is no longer approaching from the right or left at the rear of
the vehicle.
■Detection range
The detection area of the moving
vehicles rear of the vehicle differs
from the detection area of the RCTA
function ( P.324). Therefore, even
if the RCTA function detects a vehi-
cle and provides an alert, the mov-
ing vehicles rear of the vehicle may
not start operating.
■RCTA buzzer
Regardless of weather the RCTA
function is on o r off, if the PKSB
(Parking Support Brake) system is
not disabled, when the brake control
operates, the buzze r will sounds to
alert the driver.
■Situations in which the system
may not operate properly
 P. 3 2 5
■Situations in which the system
may operate even if there is no
possibility of a collision
 P. 3 2 6
*: If equipped
When a pedestrian is detected
behind the vehicle while backing
up, the brake pedal is not
depressed or is depressed late.

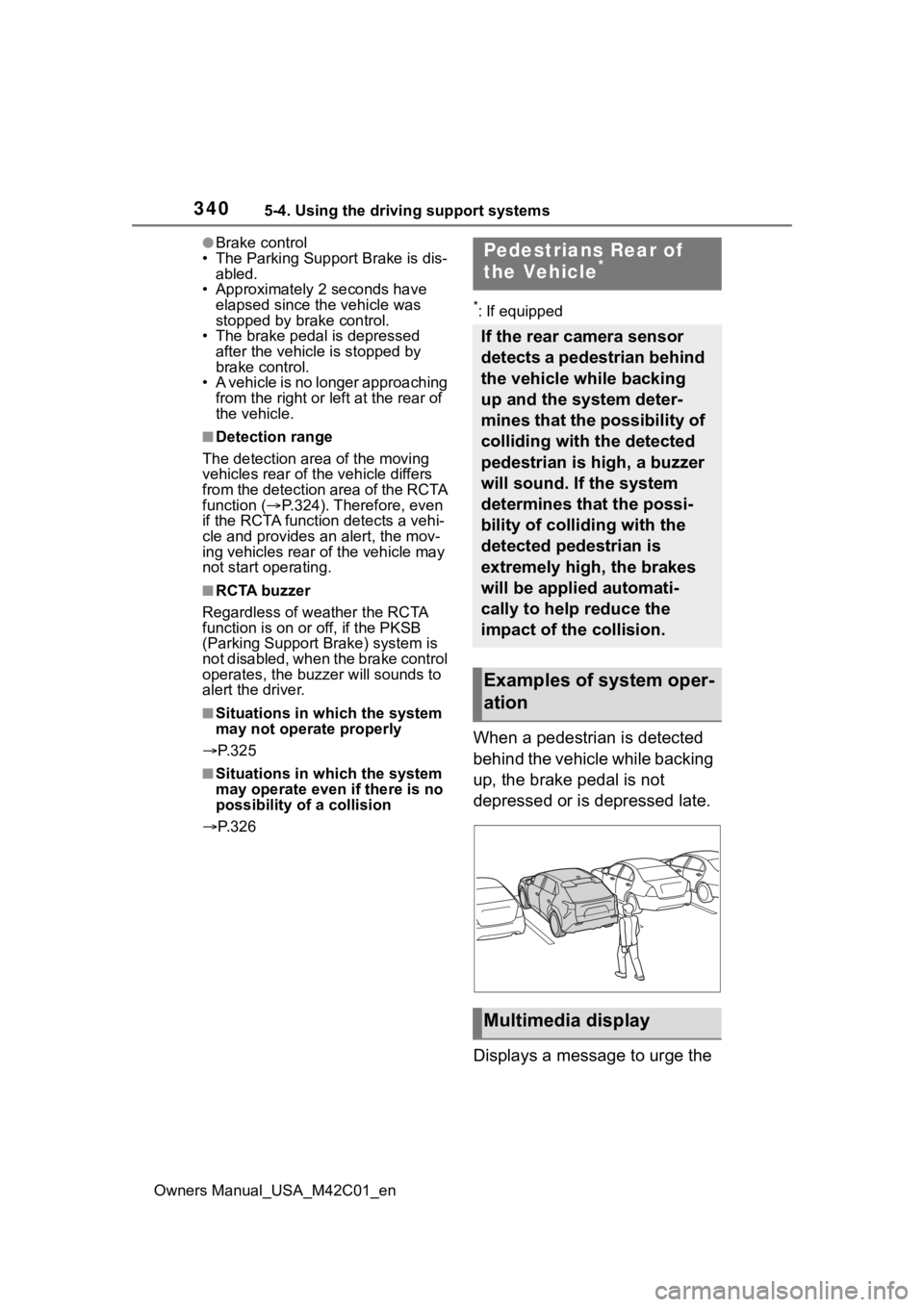

Displays a message to urge the
Pedestrians Rear of
the Vehicle*
If the rear camera sensor
detects a pedestrian behind
the vehicle while backing
up and the system deter-
mines that the possibility of
colliding with the detected
pedestrian is high, a buzzer
will sound. If the system
determines that the possi-
bility of colliding with the
detected pedestrian is
extremely high, the brakes
will be applied automati-
cally to help reduce the
impact of the collision.
Examples of system oper-
ation
Multimedia display

3415-4. Using the driving support systems
Owners Manual_USA_M42C01_en
5
Driving

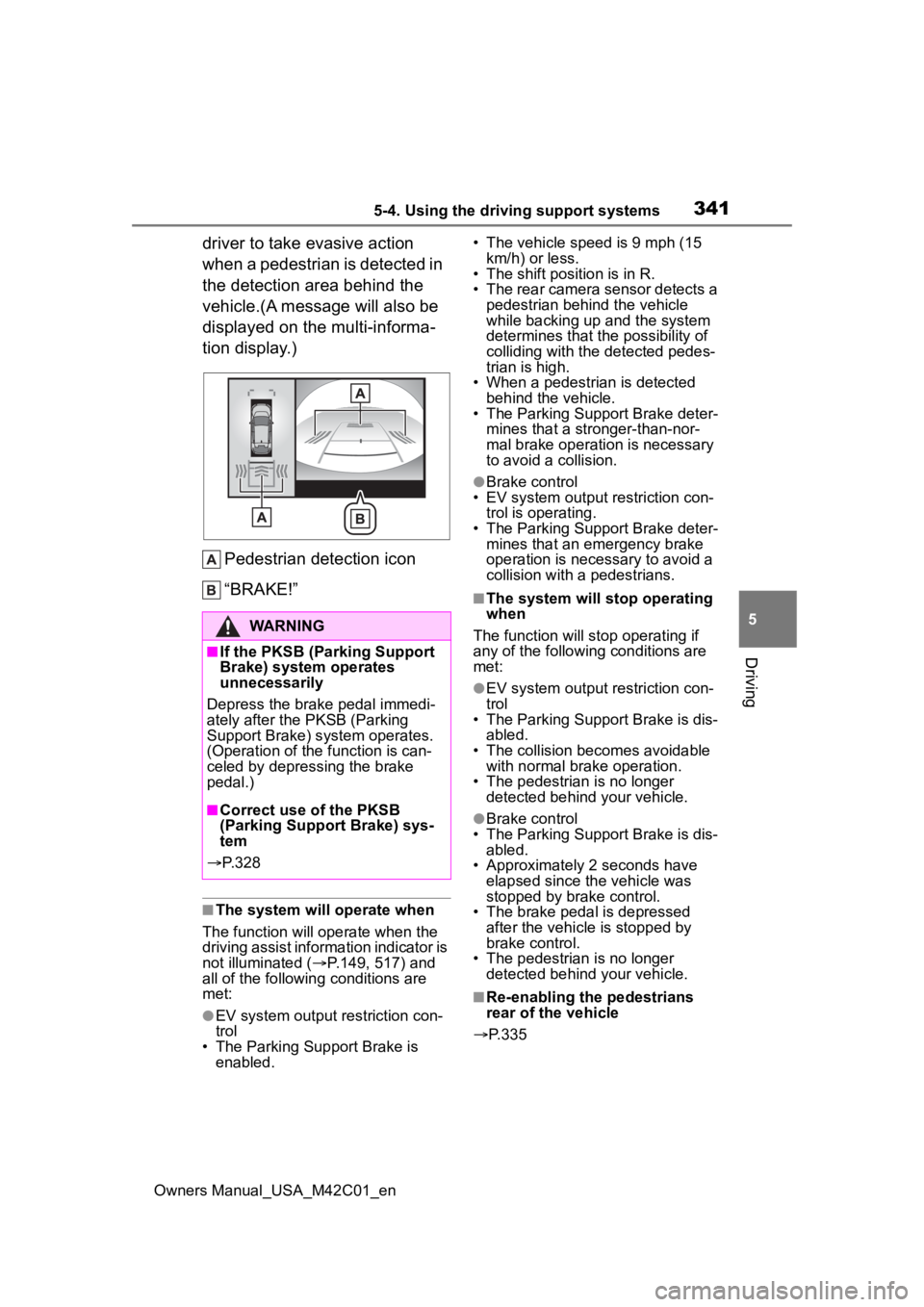

driver to take evasive action
when a pedestrian is detected in
the detection area behind the
vehicle.(A message will also be
displayed on the multi-informa-
tion display.) Pedestrian detection icon
“BRAKE!”
■The system will operate when
The function will operate when the
driving assist information indicator is
not illuminated ( P.149, 517) and
all of the followin g conditions are
met:
●EV system output restriction con-
trol
• The Parking Support Brake is enabled. • The vehicle speed is 9 mph (15
km/h) or less.
• The shift position is in R.
• The rear camera sensor detects a
pedestrian behind the vehicle
while backing up and the system
determines that the possibility of
colliding with the detected pedes-
trian is high.
• When a pedestrian is detected behind the vehicle.
• The Parking Support Brake deter-
mines that a stronger-than-nor-
mal brake operation is necessary
to avoid a collision.
●Brake control
• EV system output restriction con-
trol is operating.
• The Parking Support Brake deter- mines that an emergency brake
operation is necessary to avoid a
collision with a pedestrians.
■The system will stop operating
when
The function will stop operating if
any of the following conditions are
met:
●EV system output restriction con-
trol
• The Parking Support Brake is dis- abled.
• The collision becomes avoidable with normal brake operation.
• The pedestrian is no longer
detected behind your vehicle.
●Brake control
• The Parking Support Brake is dis- abled.
• Approximately 2 seconds have
elapsed since the vehicle was
stopped by brake control.
• The brake pedal is depressed
after the vehicle is stopped by
brake control.
• The pedestrian is no longer detected behind your vehicle.
■Re-enabling the pedestrians
rear of the vehicle
 P.335
WARNING
■If the PKSB (Parking Support
Brake) system operates
unnecessarily
Depress the brake pedal immedi-
ately after the PKSB (Parking
Support Brake) s ystem operates.
(Operation of the function is can-
celed by depressing the brake
pedal.)
■Correct use of the PKSB
(Parking Support Brake) sys-
tem
 P. 3 2 8

3445-4. Using the driving support systems
Owners Manual_USA_M42C01_endetected by a side sensors or side
cameras, but then leaves the
detection area of the side sensors
or side cameras, the system will
assume the object has not moved.
*: If equipped
The Advanced Park is a system
which assists in safely and
smoothly parking in a target
parking space by displaying the
blind spots around the vehicle
and the parking spot through a
bird’s eye view, delivering oper-
ation guidance through displays
and buzzer operation, and
changing the shift position,
operating the steering wheel,
accelerator pedal, and brake
pedal.
Additionally, the panoramic view
monitor can display the area in
front, behind, and from above
the vehicle, helping confirm the
condition of the area around the
vehicle.
For details on the panoramic
view monitor refer to “MULTIME-
DIA OWNER’S MANUAL”.
Depending on the condition of
the road surface or the vehicle,
the distance between the vehi-
cle and a parking space, etc., it
may not be possible to assist in
parking in the target space.
■Preparation before using
 P.375
Toyota Teammate
Advanced Park*
Purpose of the Advanced
Park

3465-4. Using the driving support systems
Owners Manual_USA_M42C01_en
WARNING
●Depending on the condition of
the road surface or the vehicle,
the distance between the vehi-
cle and a parking space, etc., it
may not be possible to detect a
parking space or the system
may not be able to provide
assistance to the point the vehi-
cle is fully parked.
●This system will guide the vehi-
cle to appropriate positions for
changing the direction of travel,
however, if you feel that the
vehicle is approaching too close
to an adjacent parked vehicle at
any time, depress the brake
pedal and change the shift posi-
tion. However, if this is per-
formed, the number of times the
vehicle changes direction may
increase, and the vehicle may
be parked at an angle.
●As following objects may not be
detected, make sure to check
the safety of the area around
your vehicle and depress the
brake pedal to stop the vehicle if
it may collide with an object.
• Thin objects such as wire, fences, rope, etc.
• Cotton, snow and other materi- als that absorb sound waves
• Sharply-angled objects
• Low objects (curb stones, park- ing blocks, etc.)
• Tall objects with upper sections that protrude outward
●Even if there is an object in the
target parking space, it may not
be detected and assistance
may be performed.
●While the system is operating, if
it is likely that your vehicle will
collide with a nearby vehicle,
parking block, object, or person,
depress the brake pedal to stop
the vehicle and press the
Advanced Park main switch to
disable the system.
●Never use only the multimedia
display to view the area behind
the vehicle. The image dis-
played may dif fer than the
actual situation. Using only the
screen when backing up may
lead to an accident, such as a
collision with another vehicle.
When backing up, make sure to
look directly or use the mirrors
to check the safe ty of the area
around your vehicle, especially
behind the vehicle.
●When the ambient temperature
is extremely low, the screen
may appear dark or the dis-
played image may become
unclear. Also, as moving objects
may appear distorted or may
not be able to be seen on the
screen, make sure to directly
check the safety of the area
around your vehicle.
In the following situations, while
the vehicle is stopped and held
by Advanced Park, it may be
canceled and th e vehicle may
start moving. Immediately
depress the brake pedal. Fail-
ure to do so may lead to an
accident.
• When the driver’s door is opened
• When operations instructed by the system are not performed
within a certain amount of time
• When the brake pedal is depressed and th e vehicle is
stopped for a certain amount of
time

3505-4. Using the driving support systems
Owners Manual_USA_M42C01_en
WARNING
●Only use Remote control func-
tion on level road surfaces
which are not slick. Do not use
Remote control function for
parking spaces on a downward
or upward incline.
●While Remote control function
is operating, if a malfunction or
system limitation is detected,
the following will occur automat-
ically:
• Remote control function will be canceled
• The vehicle will stop
• The shift position will change to P and the parking brake will be
engaged
• The power switch will turn off
(for some malfunctions, the
power switch will not turn off or
cannot be turned off. Enter the
vehicle and take corrective
action accordin g to the mes-
sage displayed on the smart-
phone.)
• The doors will remain locked
●When starting Remote control
function, unlock the doors with
wireless remote control by elec-
tronic key.
●When Remote control function
is operating, the driver should
remain within approximately 9.8
ft. (3 m) of the vehicle. If the
driver becomes more than
approximately 9.8 ft. (3 m)
away, Remote control function
will be suspend ed and a mes-
sage will be displayed on the
smartphone. Re mote control
function operation can be
resumed by approaching the
vehicle.
●The headlights will be turned on
if the surrounding area is dark.
●If system operation is canceled
due to a malfunction, the emer-
gency flashers will flash.
The emergency flashers will
turn off if any of the following
conditions are met:
• A door is opened
• 3 minutes have elapsed since the emergency flashers began
flashing
●Remote control function can
only be started when the follow-
ing conditions are met:
• When the EV system is starting, after assist mode is selected
• When the power switch is off
• When the remote air condition- ing is operating
●After unlocking the doors using
the wireless remote control, if
the doors are lo cked using the
smart entry function, the lock
operation may be delayed.
NOTICE
■Precautions for use
Advanced Park
If the 12-volt battery was dis-
charged or has been removed
and installed, fold and extend the
outside rear view mirrors.
■When using Remote control
function

3525-4. Using the driving support systems
Owners Manual_USA_M42C01_en

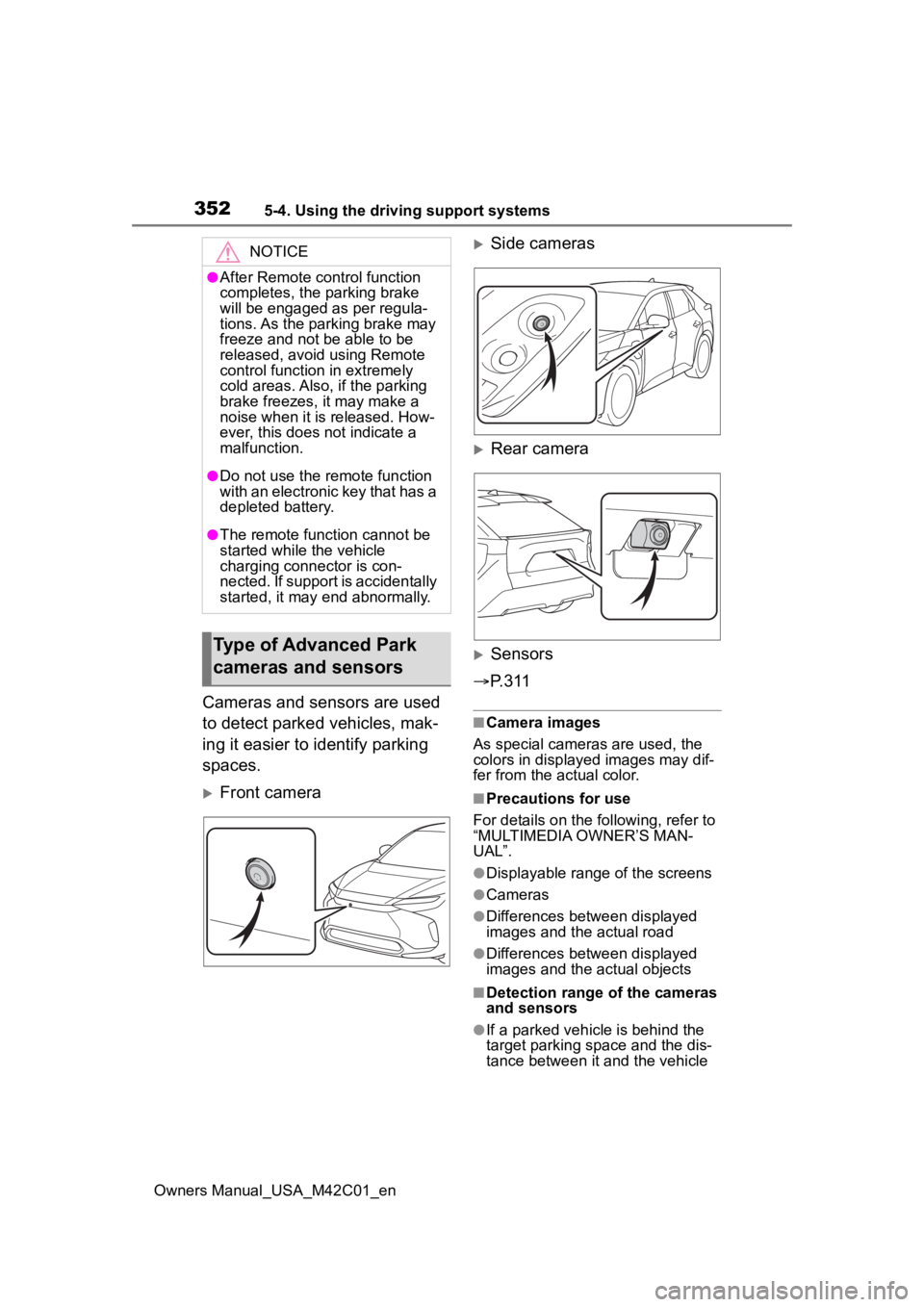

Cameras and sensors are used
to detect parked vehicles, mak-
ing it easier to identify parking
spaces.
Front camera
Side cameras
Rear camera
Sensors
 P.311
■Camera images
As special cameras are used, the
colors in displaye d images may dif-
fer from the actual color.
■Precautions for use
For details on the following, refer to
“MULTIMEDIA OWNER’S MAN-
UAL”.
●Displayable range of the screens
●Cameras
●Differences between displayed
images and the actual road
●Differences between displayed
images and the actual objects
■Detection range of the cameras
and sensors
●If a parked vehicle is behind the
target parking space and the dis-
tance between it and the vehicle
NOTICE
●After Remote control function
completes, the parking brake
will be engaged as per regula-
tions. As the parking brake may
freeze and not be able to be
released, avoid using Remote
control function in extremely
cold areas. Also, if the parking
brake freezes, it may make a
noise when it is released. How-
ever, this does not indicate a
malfunction.
●Do not use the remote function
with an electronic key that has a
depleted battery.
●The remote function cannot be
started while the vehicle
charging connector is con-
nected. If support is accidentally
started, it may end abnormally.
Type of Advanced Park
cameras and sensors

3545-4. Using the driving support systems
Owners Manual_USA_M42C01_en
■Situations in which parking
assistance may not operate
even if there is no possibility of
a collision
 P. 3 1 5

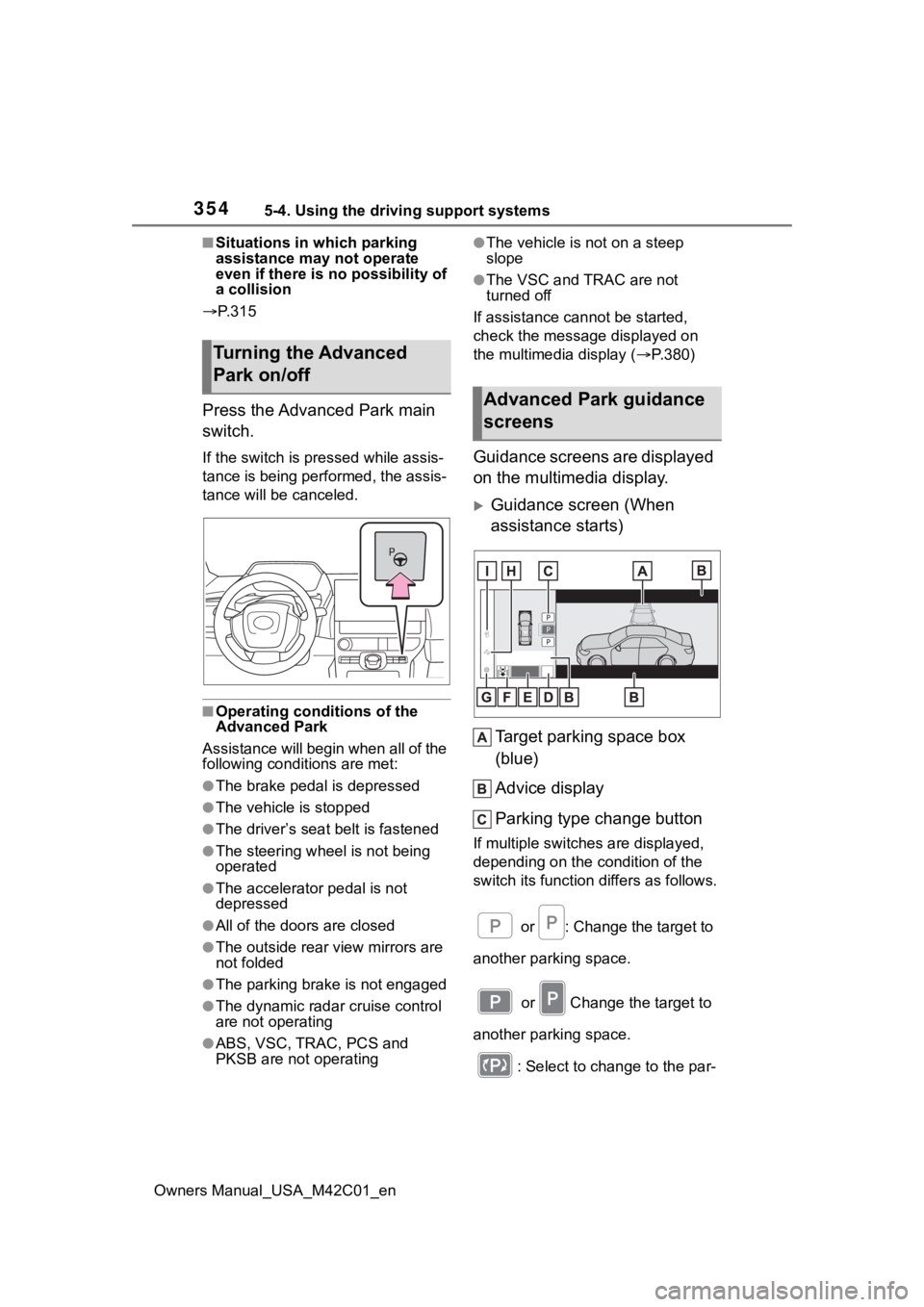

Press the Advanced Park main
switch.
If the switch is pr essed while assis-
tance is being performed, the assis-
tance will be canceled.
■Operating conditions of the
Advanced Park
Assistance will begin when all of the
following conditions are met:
●The brake pedal is depressed
●The vehicle is stopped
●The driver’s seat belt is fastened
●The steering wheel is not being
operated
●The accelerator pedal is not
depressed
●All of the doors are closed
●The outside rear view mirrors are
not folded
●The parking brake is not engaged
●The dynamic radar cruise control
are not operating
●ABS, VSC, TRAC, PCS and
PKSB are not operating
●The vehicle is not on a steep
slope
●The VSC and TRAC are not
turned off
If assistance can not be started,
check the message displayed on
the multimedia display ( P.380)
Guidance screens are displayed
on the multimedia display.
Guidance screen (When
assistance starts)
Target parking space box
(blue)
Advice display
Parking type change button
If multiple switches are displayed,
depending on the condition of the
switch its function differs as follows. or : Change the target to
another parking space.
or Change the target to
another parking space.
: Select to change to the par-
Turning the Advanced
Park on/off
Advanced Park guidance
screens

3555-4. Using the driving support systems
Owners Manual_USA_M42C01_en
5
Driving
allel parking function : Change the perpendicular
parking (forward/reverse) function
“MODE” button
Select to change between the
memory function and the perpen-
dicular parking (forward/reverse)
function and parallel parking func-
tion. ( P.368)
“Start” button
Select to start par king assistance.
Perpendicular parking direc-
tion change button
Select to change b etween the park-
ing (forward) function and parking
(reverse) function
: Change the perpendicular
parking (forward) function
: Change the perpendicular
parking (reverse) function
Customize setting button
Select to display the Advanced
Park setting screen. ( P.379)
Registration button
Select to begin registering a park-
ing space.
Remote control function start
button
Select to start parking assistance
operation on the smartphone dis-
play.
Guidance screen (When
reversing)
Operation icon
Displayed when the Advanced Park
is operating.
Guide lines (yellow and red)
Display points from the center of
the edge of the front or rear bumper
to the target stopp ing position (yel-
low)
* and approximately 1 ft. (0.3
m) (red) from the vehicle.
Moving object warning icon
Emergency support brake
control operation display
“BRAKE!” is displayed.
Intuitive parking assist-sen-
sor display
 P.312
*: When the target stop position is
8.2 ft. (2.5 m) or more, the hori-
zontal line (yello w) will be hidden.
■Intuitive parking assist-sensor
pop-up display
Regardless of whethe r the intuitive
parking assist-sensor is off or on
(  P.312), if an object is detected by
the intuitive park ing assist-sensor
when the Advanced Park is operat-
ing, the intuit ive parking assist-sen-
sor pop up display will automatically

3565-4. Using the driving support systems
Owners Manual_USA_M42C01_enbe displayed over the guidance dis-
play.
■Brake control operation when
Advanced Park is operating
While the Advanced Park is operat-
ing, if the system determines that
the possibility of collision with
detected moving or stationary object
is high, the EV system output
restriction control and brake control
will operate.
If brake control operates, Advanced
Park operation will be suspended
and a message will be displayed on
the multi-information display.
■Buzzer
Depending on surrounding sounds
or sounds from other systems, it
may be difficult to hear the buzzer of
this system.
■If a black screen is displayed on
the multimedia display when
the Advanced Park is operating
The system is being affected by
radio waves or may be malfunction-
ing. If a radio antenna is installed
near a camera, move it to a location
as far from the cameras as possible.
If a radio antenna is not installed
near a camera, and the screen does
not return to normal after turning the
power switch off and then starting
the EV system agai n, have the vehi-
cle inspected by your Toyota dealer.
■Function description
The perpendicular parking (for-
ward/reverse) function can be
used if the target parking space
can be detected when the vehi-
cle is stopped close and perpen-
dicular to the center of the parking space. Also, depending
on the condition of the parking
space, etc., if it is necessary to
change the direction of travel of
the vehicle, the shift position can
be changed by assistance con-
trol.
■Parking using the perpen-
dicular parking (for-
ward/reverse) function

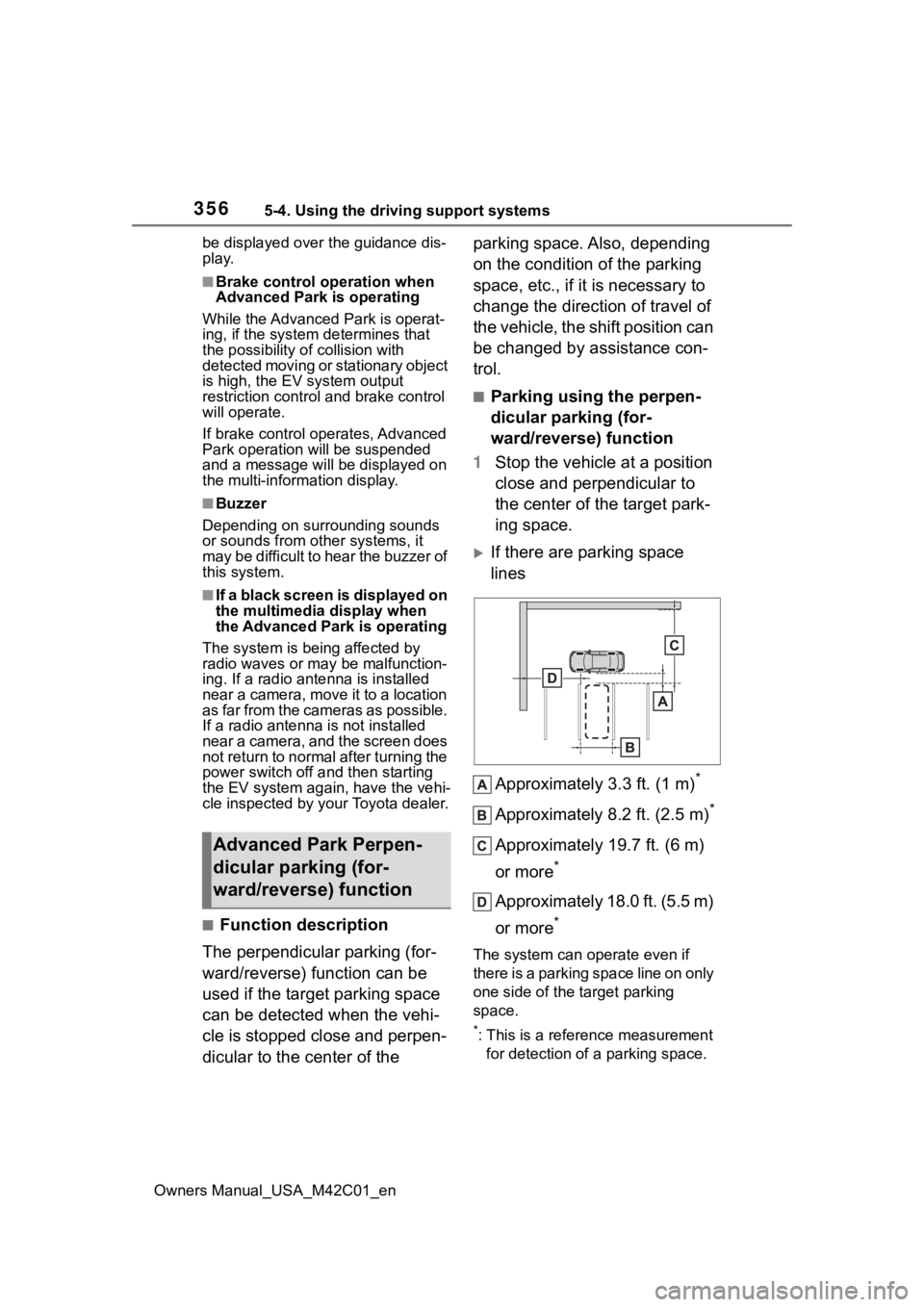

1 Stop the vehicle at a position
close and perpendicular to
the center of the target park-
ing space.
If there are parking space
lines
Approximately 3.3 ft. (1 m)
*
Approximately 8.2 ft. (2.5 m)*
Approximately 19.7 ft. (6 m)
or more
*
Approximately 18.0 ft. (5.5 m)
or more
*
The system can o perate even if
there is a parking space line on only
one side of the target parking
space.
*: This is a reference measurement for detection of a parking space.
Advanced Park Perpen-
dicular parking (for-
ward/reverse) function
