2434-2. Driving procedures
4
Driving
C-HR_OM_Europe_OM10528E

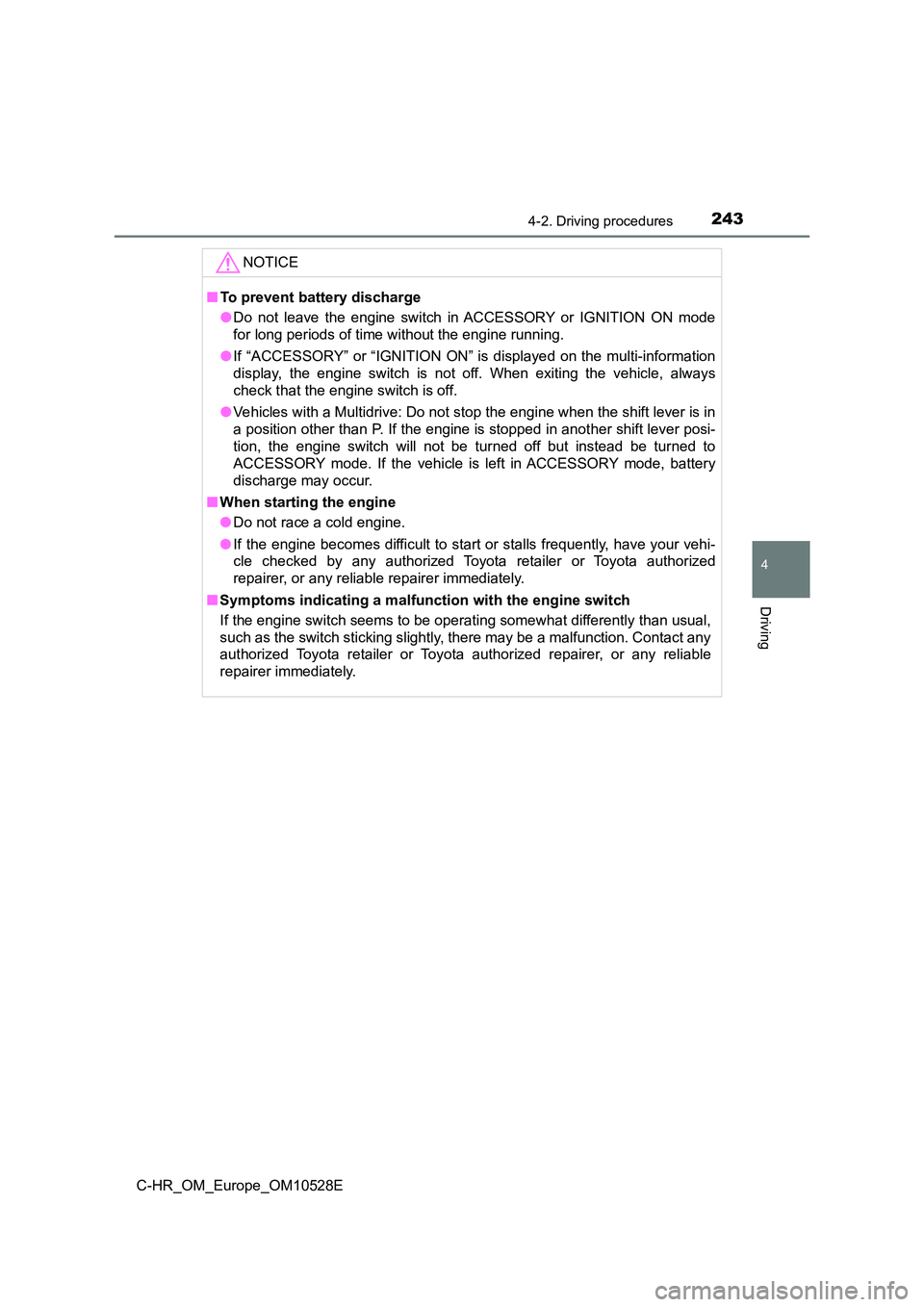

NOTICE
■To prevent battery discharge
● Do not leave the engine switch in ACCESSORY or IGNITION ON mode
for long periods of time without the engine running.
● If “ACCESSORY” or “IGNITION ON” is displayed on the multi-information
display, the engine switch is not off. When exiting the vehicle, always
check that the engine switch is off.
● Vehicles with a Multidrive: Do not stop the engine when the shift lever is in
a position other than P. If the engine is stopped in another shift lever posi-
tion, the engine switch will not be turned off but instead be turned to
ACCESSORY mode. If the vehicle is left in ACCESSORY mode, battery
discharge may occur.
■ When starting the engine
● Do not race a cold engine.
● If the engine becomes difficult to start or stalls frequently, have your vehi-
cle checked by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer immediately.
■ Symptoms indicating a malfunction with the engine switch
If the engine switch seems to be operating somewhat differently than usual,
such as the switch sticking slightly, there may be a malfunction. Contact any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer immediately.

2484-2. Driving procedures
C-HR_OM_Europe_OM10528E

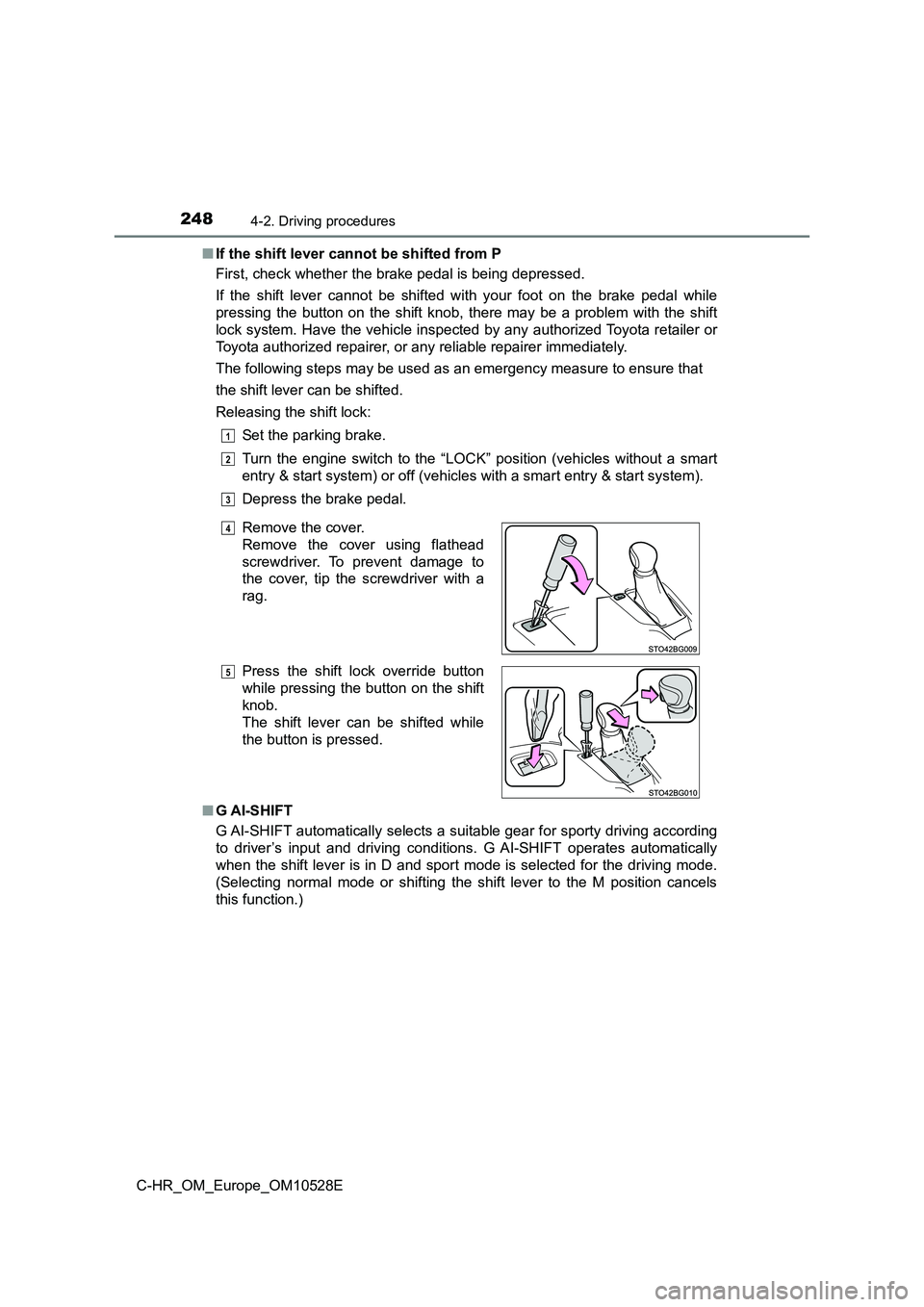

■ If the shift lever cannot be shifted from P
First, check whether the brake pedal is being depressed.
If the shift lever cannot be shifted with your foot on the brake pedal while
pressing the button on the shift knob, there may be a problem with the shift
lock system. Have the vehicle inspected by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer immediately.
The following steps may be used as an emergency measure to ensure that
the shift lever can be shifted.
Releasing the shift lock:
Set the parking brake.
Turn the engine switch to the “LOCK” position (vehicles without a smart
entry & start system) or off (vehicles with a smart entry & start system).
Depress the brake pedal.
■ G AI-SHIFT
G AI-SHIFT automatically selects a suitable gear for sporty driving according
to driver’s input and driving conditions. G AI-SHIFT operates automatically
when the shift lever is in D and sport mode is selected for the driving mode.
(Selecting normal mode or shifting the shift lever to the M position cancels
this function.)
1
2
3
Remove the cover.
Remove the cover using flathead
screwdriver. To prevent damage to
the cover, tip the screwdriver with a
rag.
Press the shift lock override button
while pressing the button on the shift
knob.
The shift lever can be shifted while
the button is pressed.
4
5

255
4
4-2. Driving procedures
Driving
C-HR_OM_Europe_OM10528E

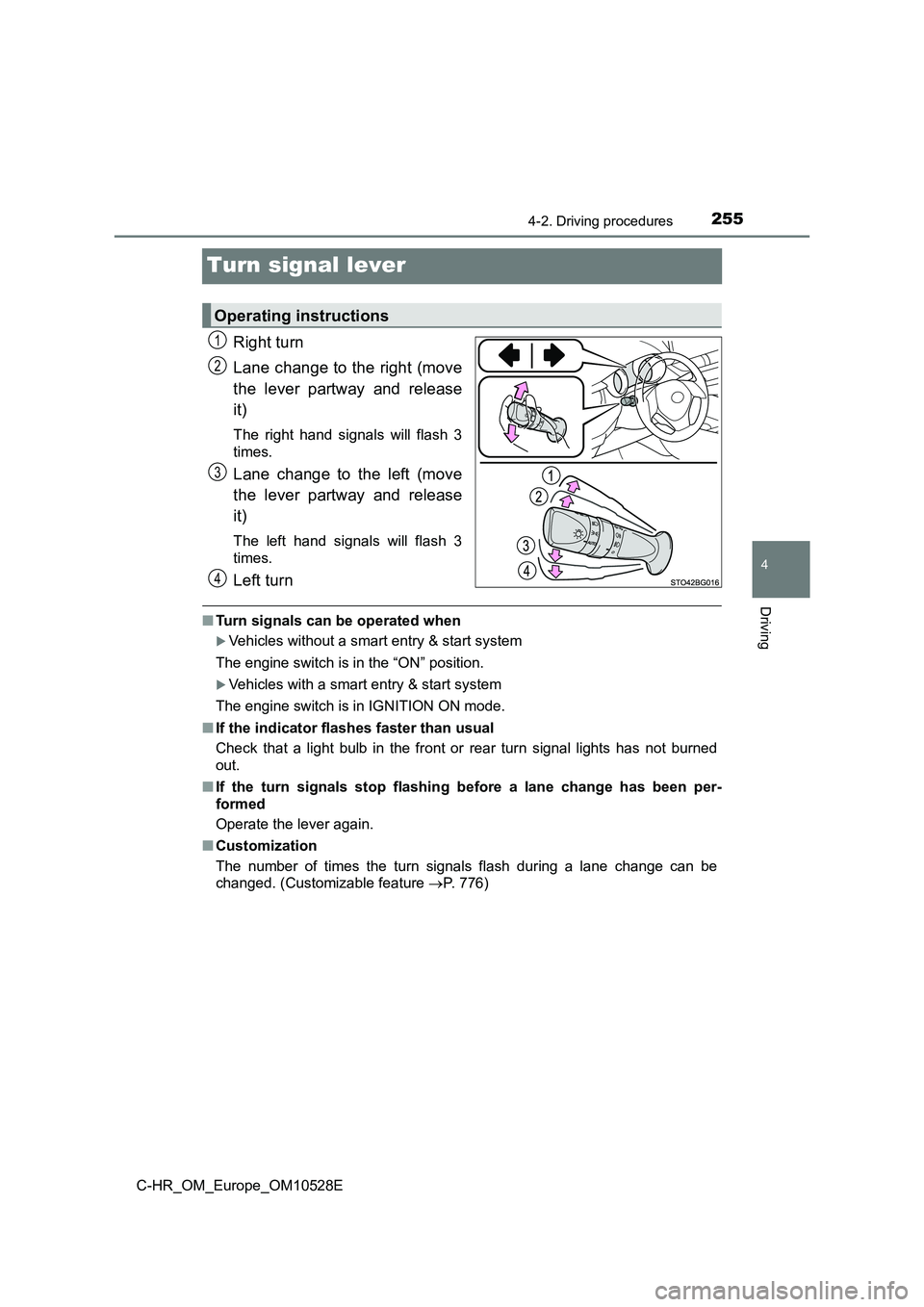

Turn signal lever
Right turn
Lane change to the right (move
the lever partway and release
it)
The right hand signals will flash 3
times.
Lane change to the left (move
the lever partway and release
it)
The left hand signals will flash 3
times.
Left turn
■ Turn signals can be operated when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
■ If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
■ If the turn signals stop flashing before a lane change has been per-
formed
Operate the lever again.
■ Customization
The number of times the turn signals flash during a lane change can be
changed. (Customizable feature P. 776)
Operating instructions
1
2
3
4

2814-3. Operating the lights and wipers
4
Driving
C-HR_OM_Europe_OM10528E
■The windshield wiper and washer can be operated when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
■ Effects of vehicle speed on wiper operation (vehicles with rain-sensing
windshield wipers)
Even when the wipers are not in “AUTO” mode, wiper operation varies
depending on vehicle speed when the washer is being used (delay until drip
prevention wiper sweep occurs).
■ Raindrop sensor (vehicles with rain-sensing windshield wipers)
● If the wiper switch is turned to the “AUTO” position while the engine switch is
in IGNITION ON mode, the wiper will operate once to show that “AUTO”
mode is activated.
● If the temperature of the raindrop sensor is 90C (194F) or higher, or -15C
(5 F) or lower, automatic operation may not occur. In this case, operate the
wipers in any mode other than “AUTO”.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
● The raindrop sensor judges the amount
of raindrops.
An optical sensor is adopted. It may not
operate properly when sunlight from the
rising or setting of the sun intermittently
strikes the windshield, or if bugs, etc.,
are present on the windshield.

2844-3. Operating the lights and wipers
C-HR_OM_Europe_OM10528E

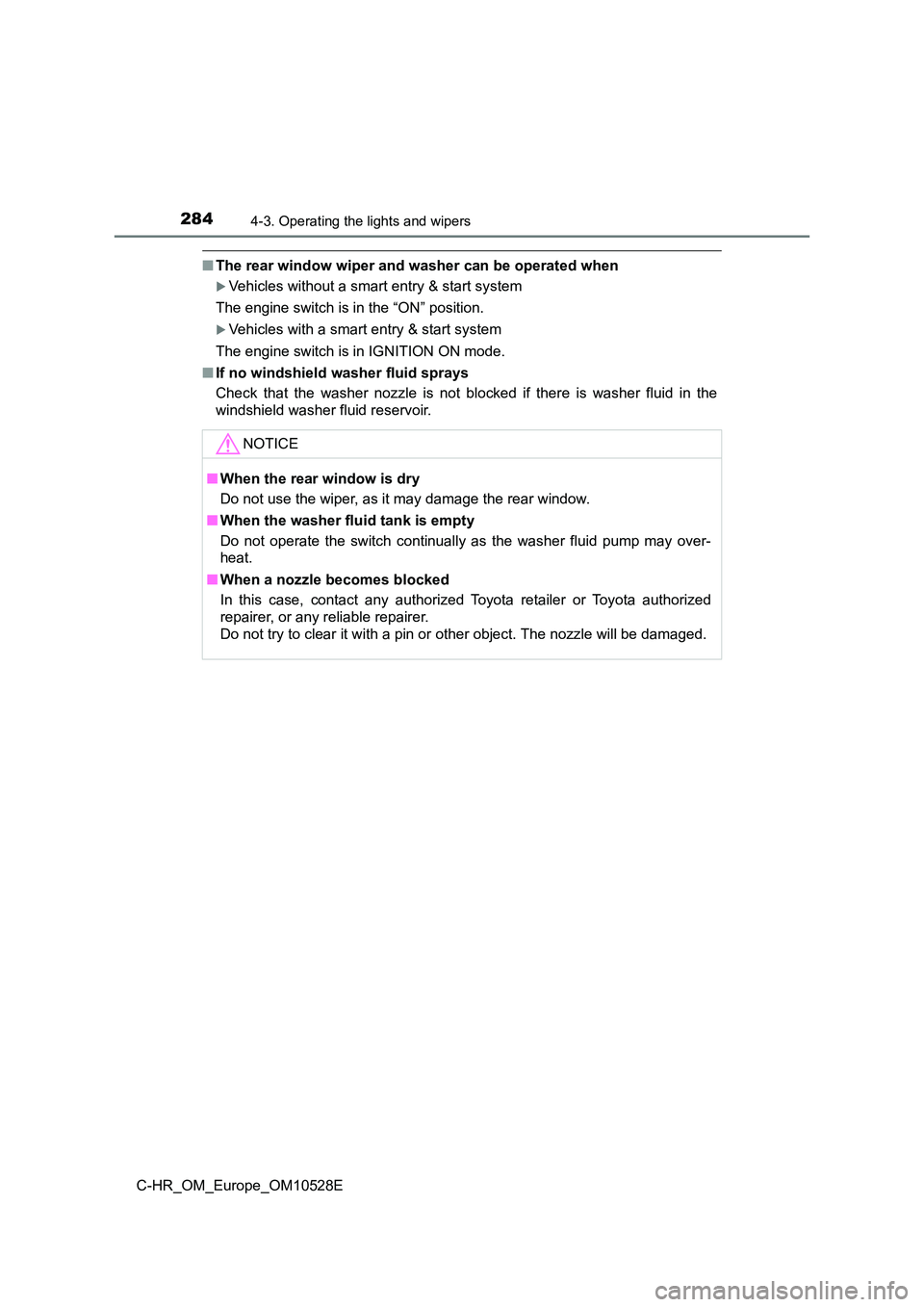

■The rear window wiper and washer can be operated when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
■ If no windshield washer fluid sprays
Check that the washer nozzle is not blocked if there is washer fluid in the
windshield washer fluid reservoir.
NOTICE
■ When the rear window is dry
Do not use the wiper, as it may damage the rear window.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
■ When a nozzle becomes blocked
In this case, contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

3744-5. Using the driving support systems
C-HR_OM_Europe_OM10528E

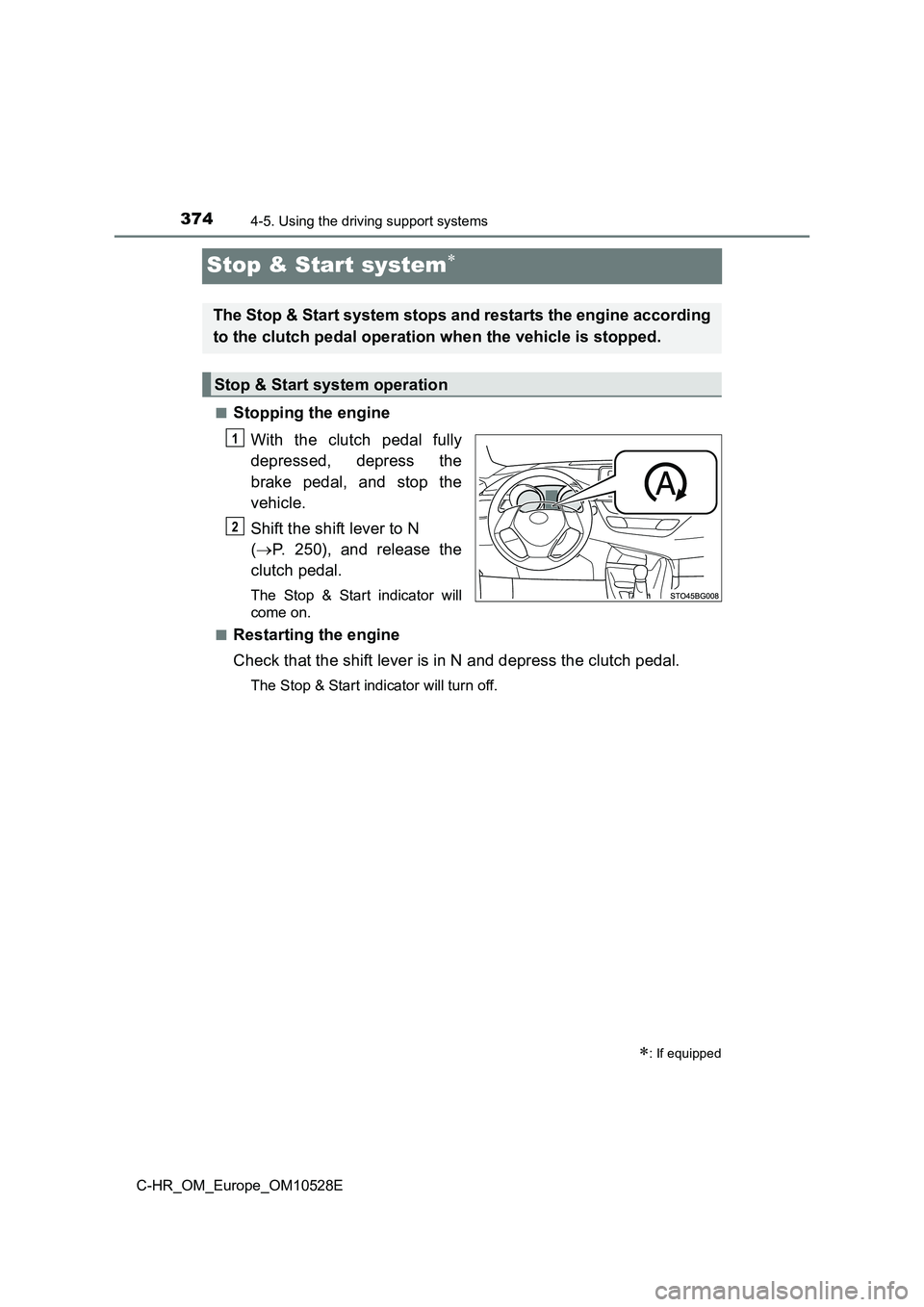

Stop & Start system
■Stopping the engine
With the clutch pedal fully
depressed, depress the
brake pedal, and stop the
vehicle.
Shift the shift lever to N
( P. 250), and release the
clutch pedal.
The Stop & Start indicator will
come on.
■Restarting the engine
Check that the shift lever is in N and depress the clutch pedal.
The Stop & Start indicator will turn off.
: If equipped
The Stop & Start system stops and restarts the engine according
to the clutch pedal operation when the vehicle is stopped.
Stop & Start system operation
1
2

3844-5. Using the driving support systems
C-HR_OM_Europe_OM10528E

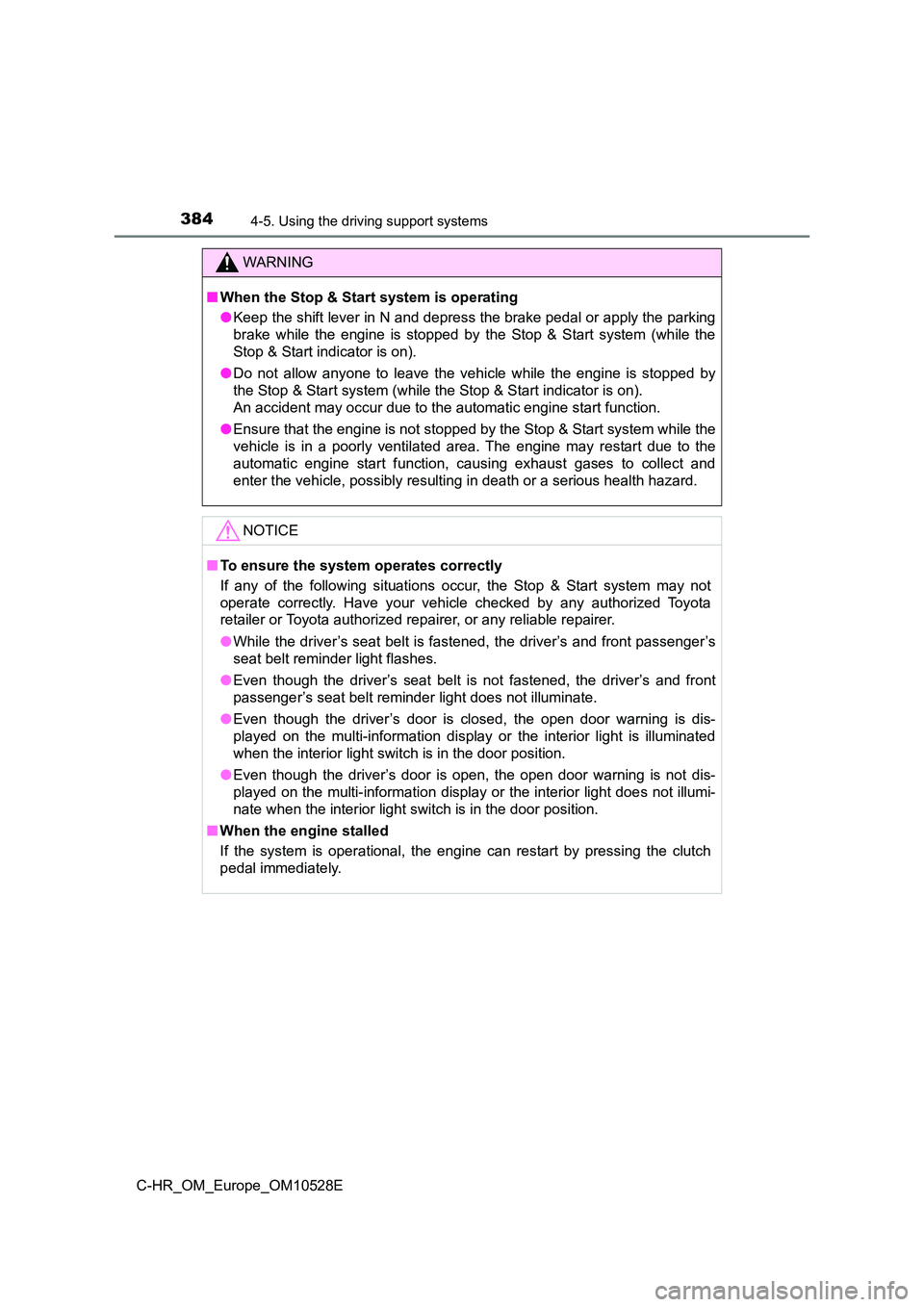

WARNING
■When the Stop & Start system is operating
● Keep the shift lever in N and depress the brake pedal or apply the parking
brake while the engine is stopped by the Stop & Start system (while the
Stop & Start indicator is on).
● Do not allow anyone to leave the vehicle while the engine is stopped by
the Stop & Start system (while the Stop & Start indicator is on).
An accident may occur due to the automatic engine start function.
● Ensure that the engine is not stopped by the Stop & Start system while the
vehicle is in a poorly ventilated area. The engine may restart due to the
automatic engine start function, causing exhaust gases to collect and
enter the vehicle, possibly resulting in death or a serious health hazard.
NOTICE
■ To ensure the system operates correctly
If any of the following situations occur, the Stop & Start system may not
operate correctly. Have your vehicle checked by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
● While the driver’s seat belt is fastened, the driver’s and front passenger’s
seat belt reminder light flashes.
● Even though the driver’s seat belt is not fastened, the driver’s and front
passenger’s seat belt reminder light does not illuminate.
● Even though the driver’s door is closed, the open door warning is dis-
played on the multi-information display or the interior light is illuminated
when the interior light switch is in the door position.
● Even though the driver’s door is open, the open door warning is not dis-
played on the multi-information display or the interior light does not illumi-
nate when the interior light switch is in the door position.
■ When the engine stalled
If the system is operational, the engine can restart by pressing the clutch
pedal immediately.

3904-5. Using the driving support systems
C-HR_OM_Europe_OM10528E

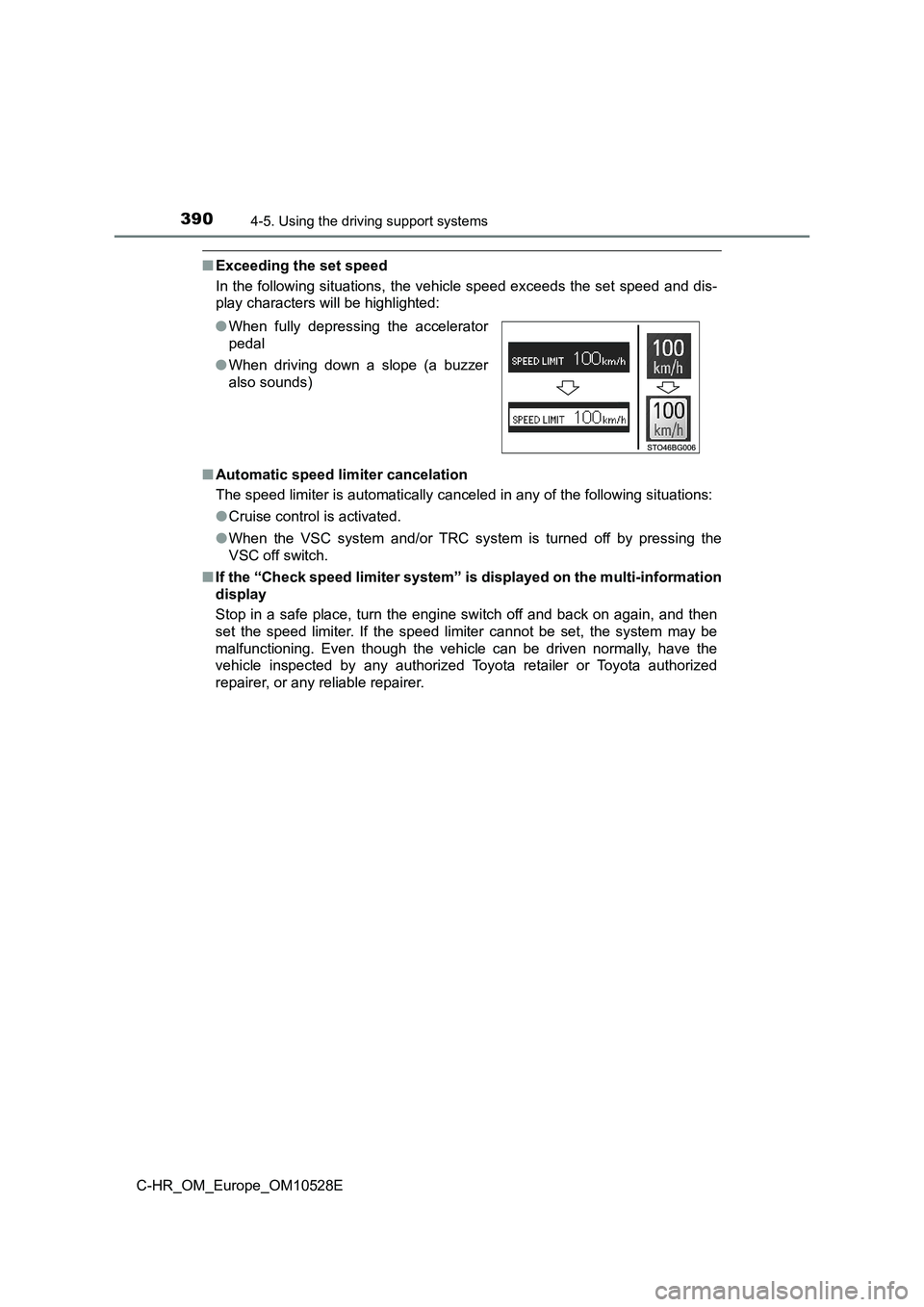

■Exceeding the set speed
In the following situations, the vehicle speed exceeds the set speed and dis-
play characters will be highlighted:
■ Automatic speed limiter cancelation
The speed limiter is automatically canceled in any of the following situations:
● Cruise control is activated.
● When the VSC system and/or TRC system is turned off by pressing the
VSC off switch.
■ If the “Check speed limiter system” is displayed on the multi-information
display
Stop in a safe place, turn the engine switch off and back on again, and then
set the speed limiter. If the speed limiter cannot be set, the system may be
malfunctioning. Even though the vehicle can be driven normally, have the
vehicle inspected by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
● When fully depressing the accelerator
pedal
● When driving down a slope (a buzzer
also sounds)

4394-5. Using the driving support systems
4
Driving
C-HR_OM_Europe_OM10528E
Shift the shift lever to R.
While the steering wheel is turning, keep the vehicle at a complete stop.
When the steering wheel stops turning, reverse the vehicle slowly while
checking the safety of the area behind the vehicle and assistance level
indicator.
Repeat steps through until the parking assist operation
has completed.
When the parking assist operation has completed, the buzzer sounds,
the S-IPA indicator turns off and the multi-information display changes.
Adjust the vehicle position and/or angle as necessary to complete park-
ing the vehicle.
■ Operation conditions of S-IPA
● The engine is started.
● The switch is on.
■ Perpendicular parking assist mode operating conditions
● In order to operate the function correctly, drive slowly (at a speed at which
the vehicle can be quickly stopped).
● The function cannot be used when the vehicle speed is approximately
20 km/h (13 mph) or higher.
● The front side sensors and rear side sensors are used to detect parked
vehicles and determine the parking spot. Therefore, when detection is not
possible ( P. 460), guidance is not issued.
● If there are no parked vehicles, the parking spot cannot be determined.
Therefore, the perpendicular parking assist mode cannot be operated.
● If unable to detect the environment surrounding the parking space, the per-
pendicular parking assist mode may not be able to operate.
10
11610

599

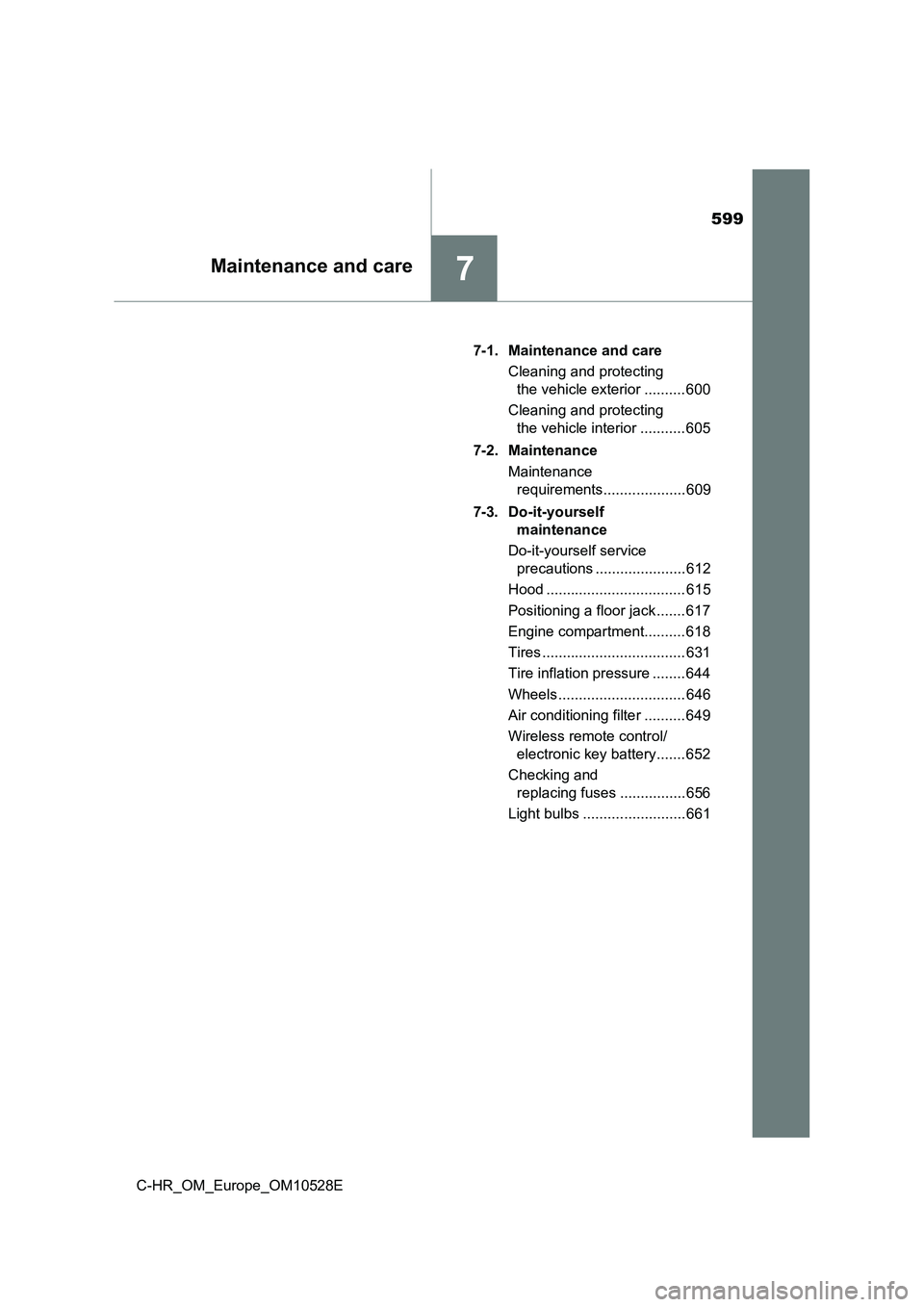

7Maintenance and care
C-HR_OM_Europe_OM10528E
7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior .......... 600
Cleaning and protecting
the vehicle interior ........... 605
7-2. Maintenance
Maintenance
requirements.................... 609
7-3. Do-it-yourself
maintenance
Do-it-yourself service
precautions ...................... 612
Hood .................................. 615
Positioning a floor jack ....... 617
Engine compartment.......... 618
Tires ................................... 631
Tire inflation pressure ........ 644
Wheels ............................... 646
Air conditioning filter .......... 649
Wireless remote control/
electronic key battery....... 652
Checking and
replacing fuses ................ 656
Light bulbs ......................... 661
