TOYOTA C-HR 2016 Owners Manual

7719-1. Specifications
9
Vehicle specifications
C-HR_OM_Europe_OM10528E
Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at the
factory.
Use Toyota approved “Toyota Genuine Differential Gear Oil” or an equivalent
of matching quality to satisfy the above specification.
Please contact any authorized Toyota re tailer or Toyota authorized repairer,
or any reliable repairer for further details.
*: Minimum pedal clearance when depressed with a force of 300 N (30.6 kgf,
67.4 lbf) while the engine is running

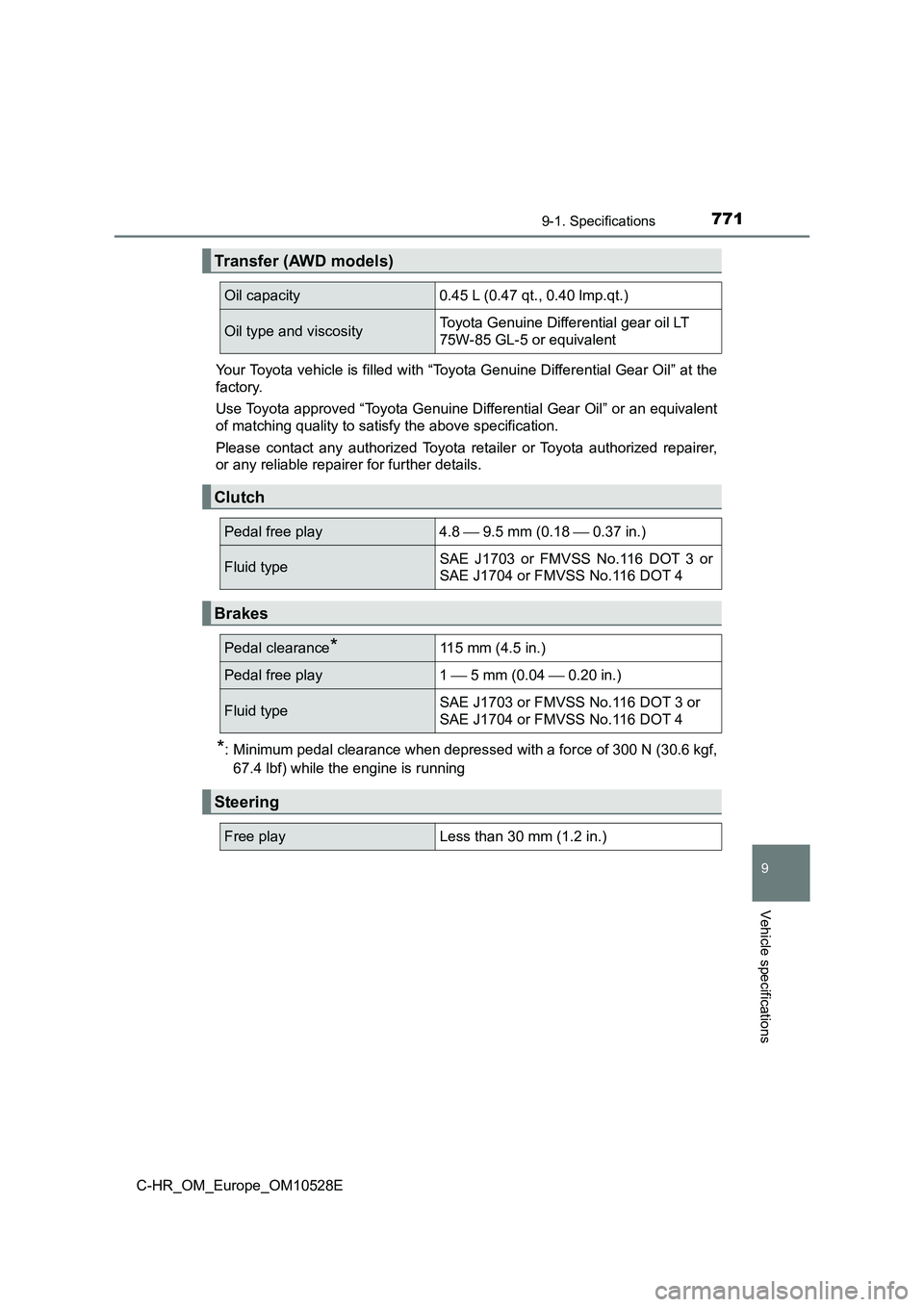

Transfer (AWD models)
Oil capacity 0.45 L (0.47 qt., 0.40 lmp.qt.)
Oil type and viscosity Toyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
Clutch
Pedal free play 4.8  9.5 mm (0.18  0.37 in.)
Fluid type SAE J1703 or FMVSS No.116 DOT 3 or
SAE J1704 or FMVSS No.116 DOT 4
Brakes
Pedal clearance*115 mm (4.5 in.)
Pedal free play 1  5 mm (0.04  0.20 in.)
Fluid type SAE J1703 or FMVSS No.116 DOT 3 or
SAE J1704 or FMVSS No.116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)

7729-1. Specifications
C-HR_OM_Europe_OM10528E
16-inch tires
17-inch tires
18-inch tires

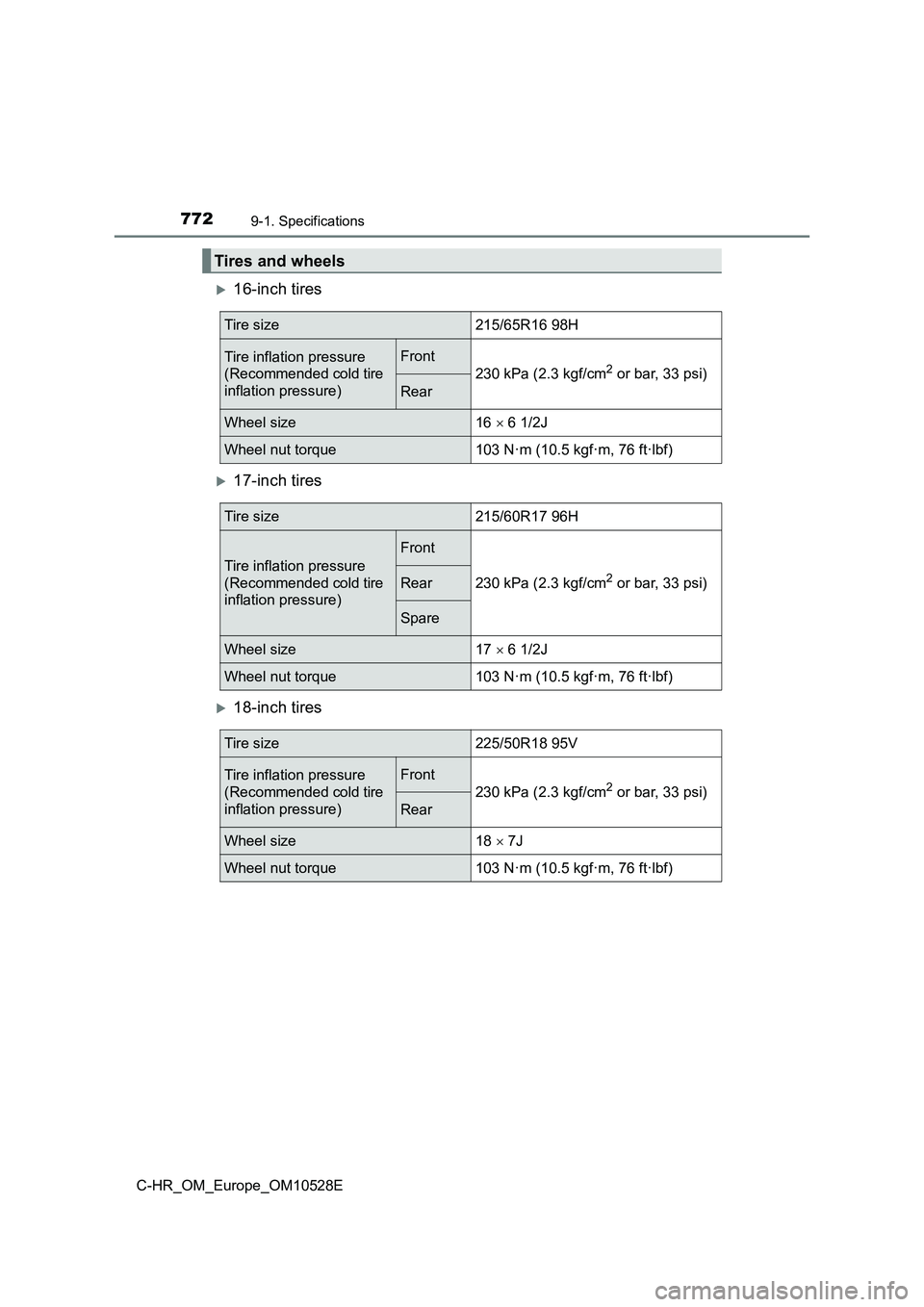

Tires and wheels
Tire size215/65R16 98H
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front
230 kPa (2.3 kgf/cm2 or bar, 33 psi)
Rear
Wheel size16  6 1/2J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire size215/60R17 96H
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front
230 kPa (2.3 kgf/cm2 or bar, 33 psi)Rear
Spare
Wheel size17  6 1/2J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire size225/50R18 95V
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front
230 kPa (2.3 kgf/cm2 or bar, 33 psi)
Rear
Wheel size18  7J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)

7739-1. Specifications
9
Vehicle specifications
C-HR_OM_Europe_OM10528E

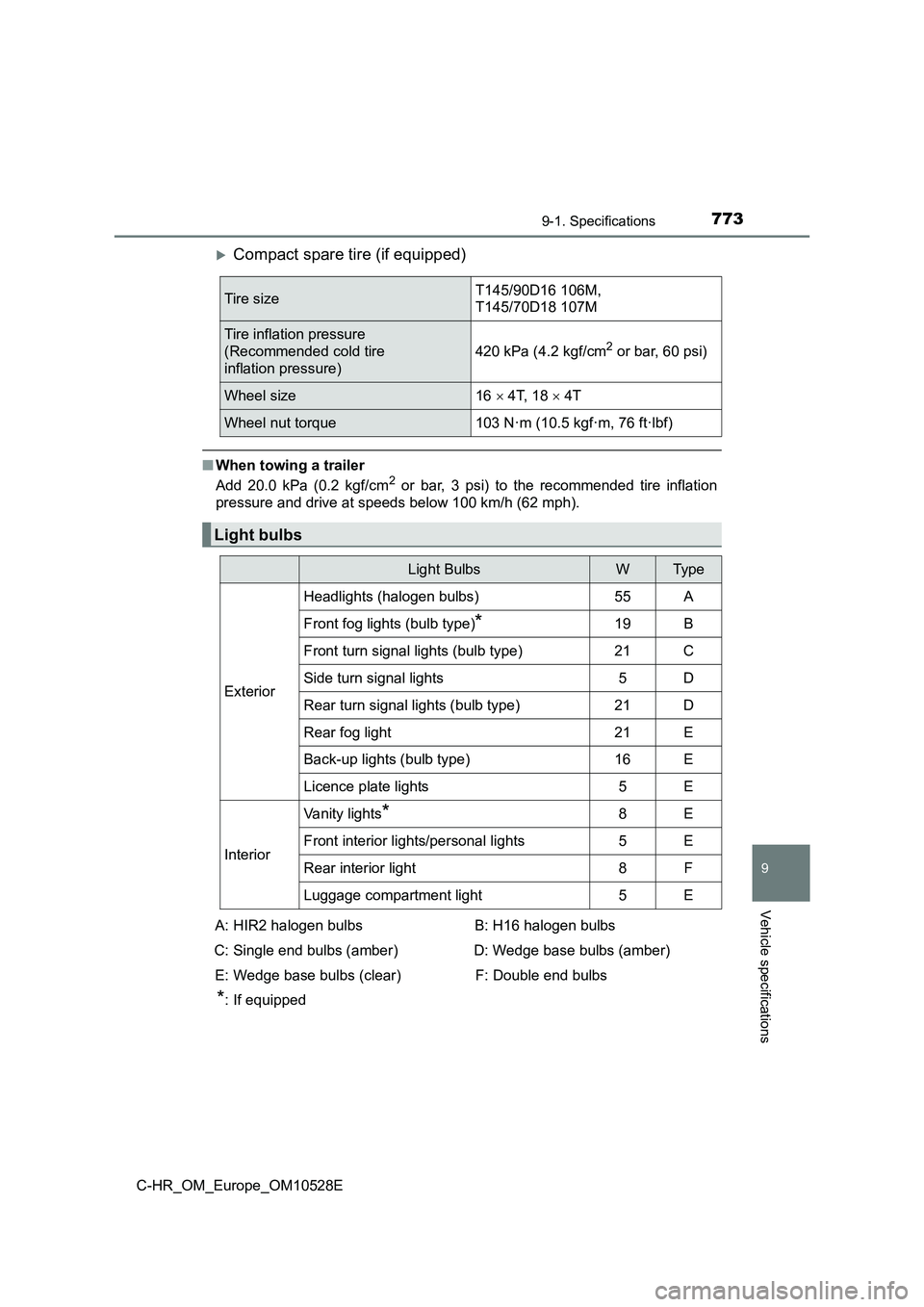

Compact spare tire (if equipped)
■When towing a trailer
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended tire inflation
pressure and drive at speeds below 100 km/h (62 mph).
Tire sizeT145/90D16 106M,
T145/70D18 107M
Tire inflation pressure
(Recommended cold tire
inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size16  4T, 18  4T
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Light bulbs
Light BulbsWTyp e
Exterior
Headlights (halogen bulbs)55A
Front fog lights (bulb type)*19B
Front turn signal lights (bulb type)21C
Side turn signal lights5D
Rear turn signal lights (bulb type)21D
Rear fog light21E
Back-up lights (bulb type)16E
Licence plate lights5E
Interior
Vanity lights*8E
Front interior lights/personal lights5E
Rear interior light8F
Luggage compartment light5E
A: HIR2 halogen bulbs
C: Single end bulbs (amber)
E: Wedge base bulbs (clear)
*: If equipped
B: H16 halogen bulbs
D: Wedge base bulbs (amber)
F: Double end bulbs

7749-1. Specifications
C-HR_OM_Europe_OM10528E

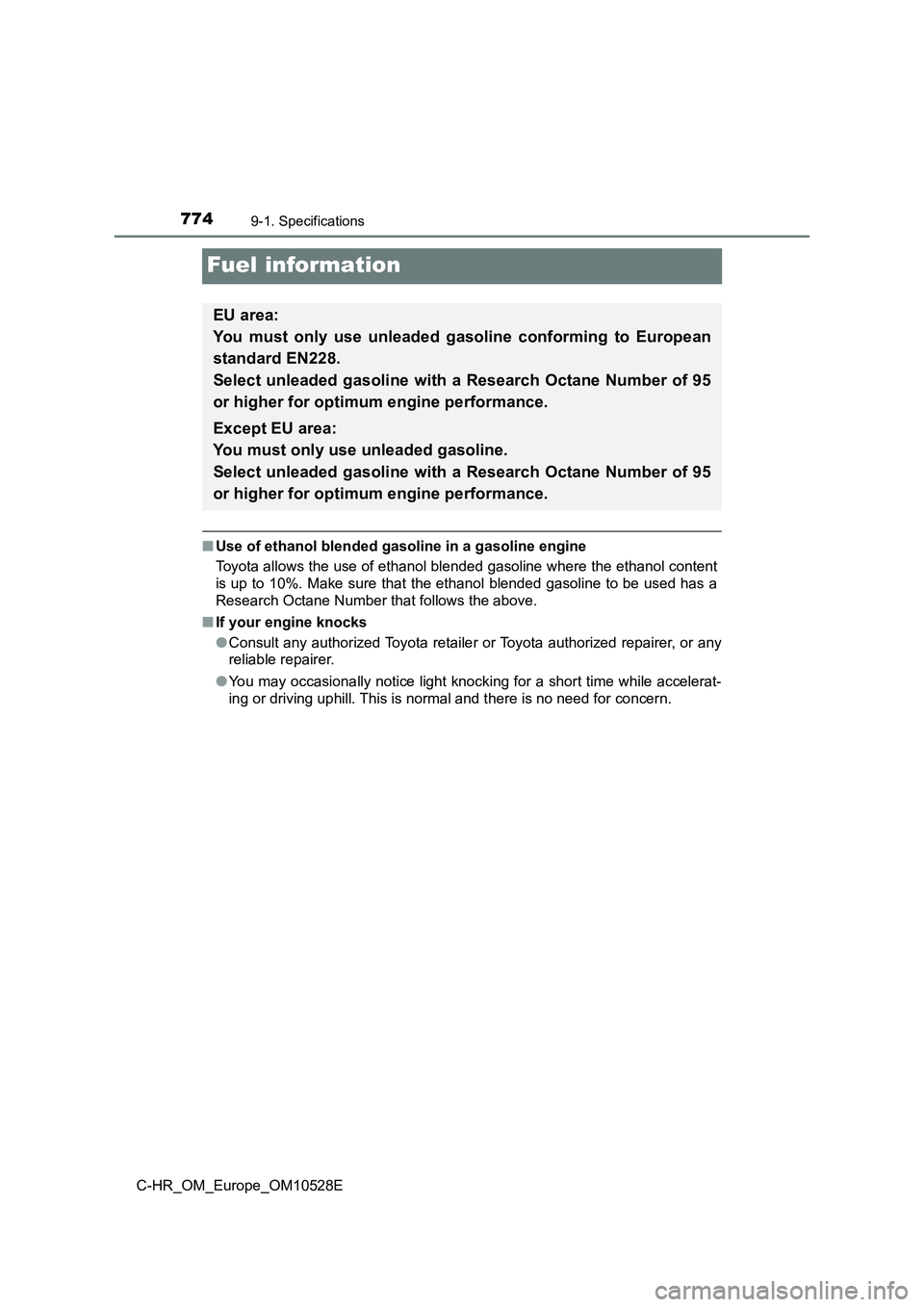

Fuel information
■Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
■ If your engine knocks
● Consult any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
● You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
EU area:
You must only use unleaded gasoline conforming to European
standard EN228.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.

7759-1. Specifications
9
Vehicle specifications
C-HR_OM_Europe_OM10528E

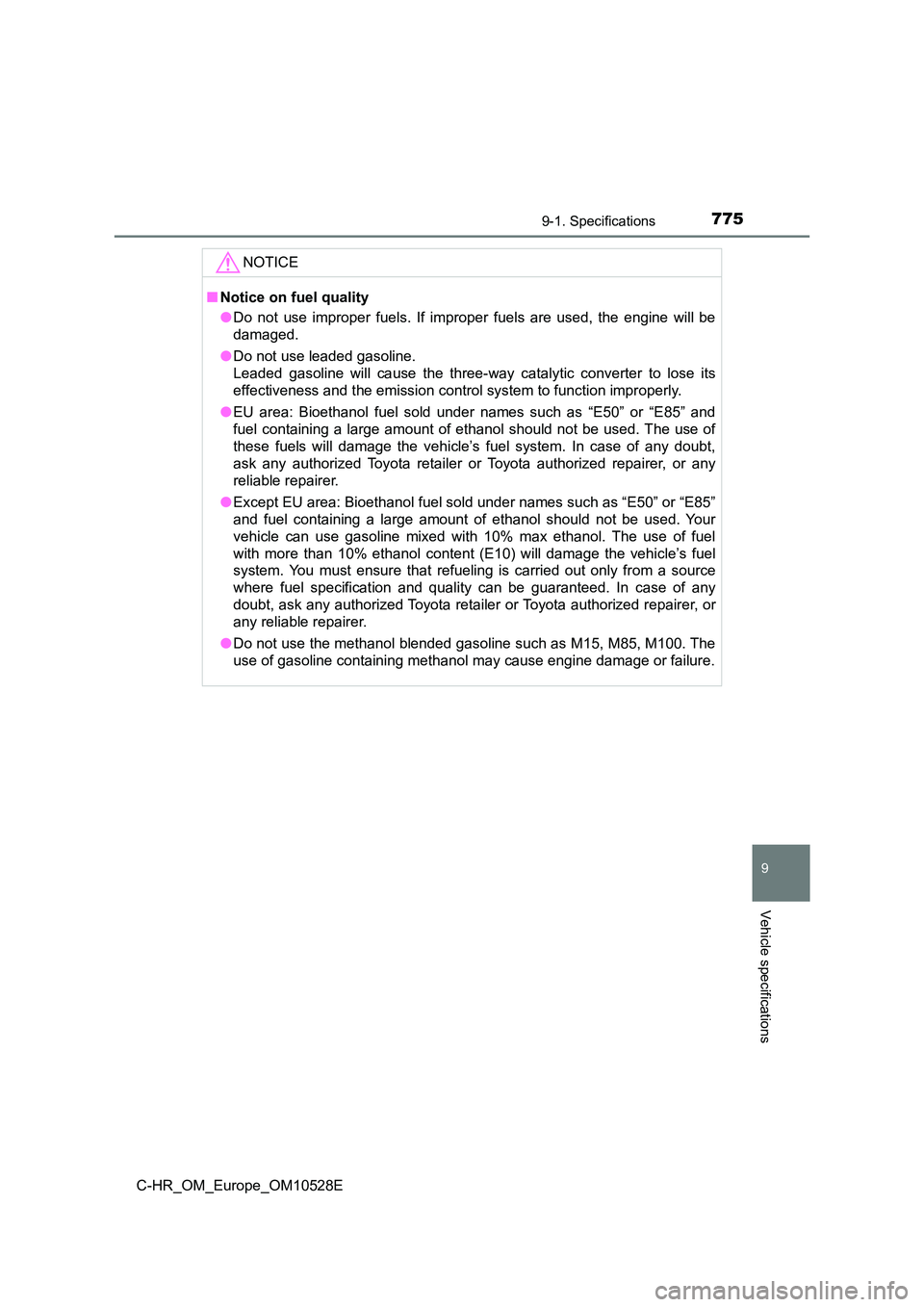

NOTICE
■Notice on fuel quality
● Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
● Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and the emission control system to function improperly.
● EU area: Bioethanol fuel sold under names such as “E50” or “E85” and
fuel containing a large amount of ethanol should not be used. The use of
these fuels will damage the vehicle’s fuel system. In case of any doubt,
ask any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
● Except EU area: Bioethanol fuel sold under names such as “E50” or “E85”
and fuel containing a large amount of ethanol should not be used. Your
vehicle can use gasoline mixed with 10% max ethanol. The use of fuel
with more than 10% ethanol content (E10) will damage the vehicle’s fuel
system. You must ensure that refueling is carried out only from a source
where fuel specification and quality can be guaranteed. In case of any
doubt, ask any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer.
● Do not use the methanol blended gasoline such as M15, M85, M100. The
use of gasoline containing methanol may cause engine damage or failure.

7769-2. Customization
C-HR_OM_Europe_OM10528E

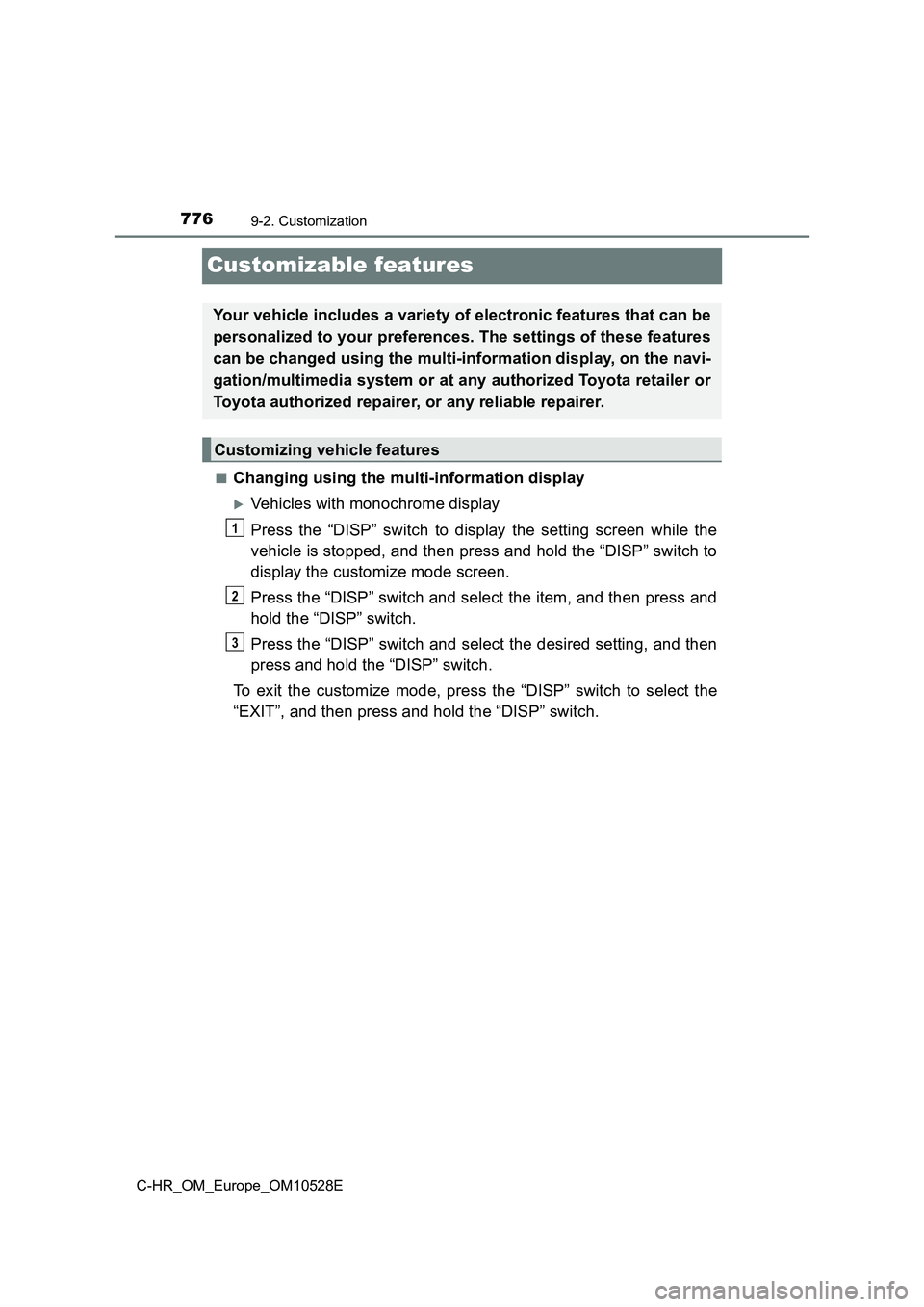

Customizable features
■Changing using the multi-information display
Vehicles with monochrome display
Press the “DISP” switch to display the setting screen while the
vehicle is stopped, and then press and hold the “DISP” switch to
display the customize mode screen.
Press the “DISP” switch and select the item, and then press and
hold the “DISP” switch.
Press the “DISP” switch and select the desired setting, and then
press and hold the “DISP” switch.
To exit the customize mode, press the “DISP” switch to select the
“EXIT”, and then press and hold the “DISP” switch.
Your vehicle includes a variety of electronic features that can be
personalized to your preferences. The settings of these features
can be changed using the multi-information display, on the navi-
gation/multimedia system or at any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
Customizing vehicle features
1
2
3

7779-2. Customization
9
Vehicle specifications
C-HR_OM_Europe_OM10528E

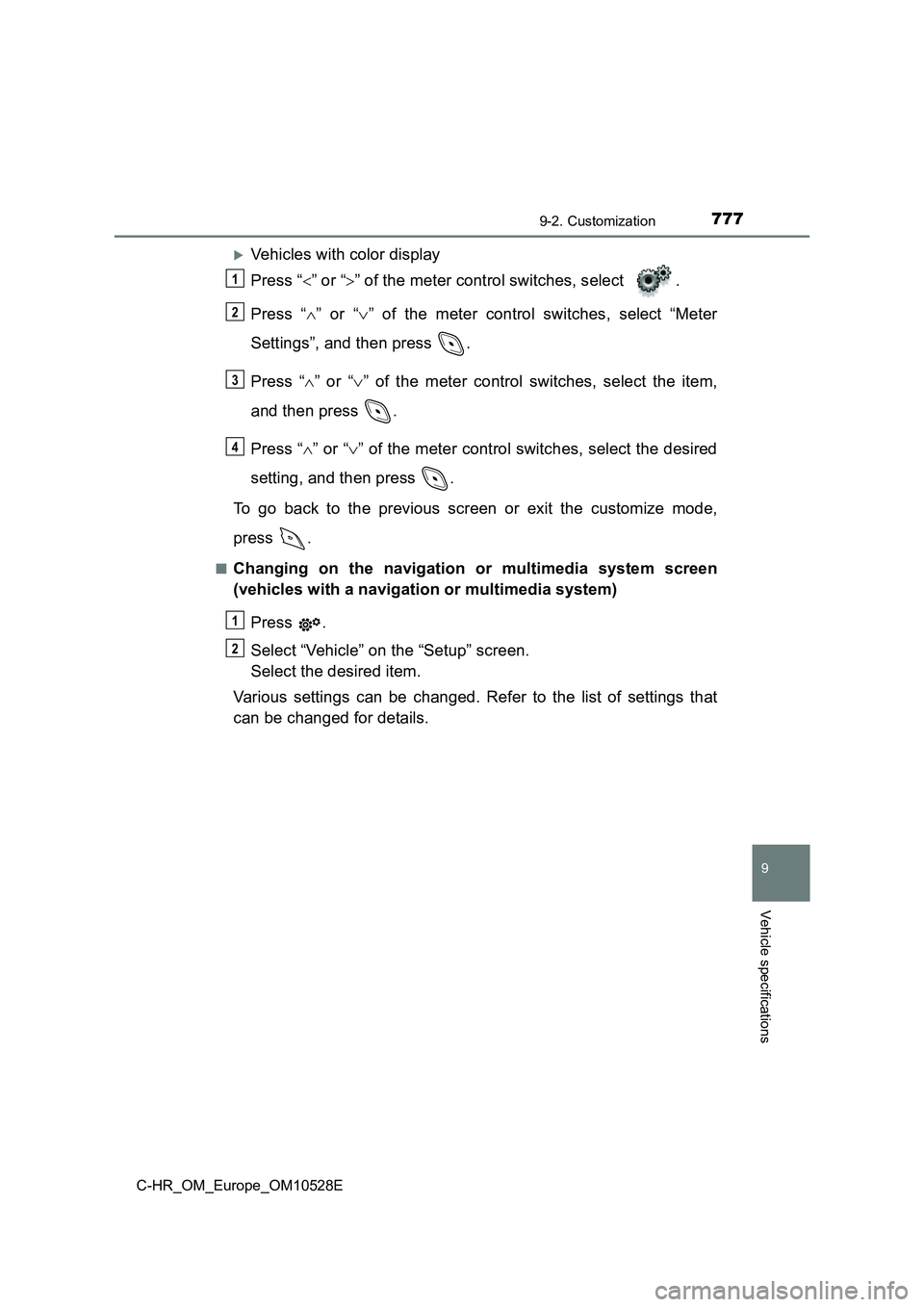

Vehicles with color display
Press “ ” or “” of the meter control switches, select .
Press “ ” or “” of the meter control switches, select “Meter
Settings”, and then press .
Press “ ” or “” of the meter control switches, select the item,
and then press .
Press “ ” or “” of the meter control switches, select the desired
setting, and then press .
To go back to the previous screen or exit the customize mode,
press .
■Changing on the navigation or multimedia system screen
(vehicles with a navigation or multimedia system)
Press .
Select “Vehicle” on the “Setup” screen.
Select the desired item.
Various settings can be changed. Refer to the list of settings that
can be changed for details.
1
2
3
4
1
2

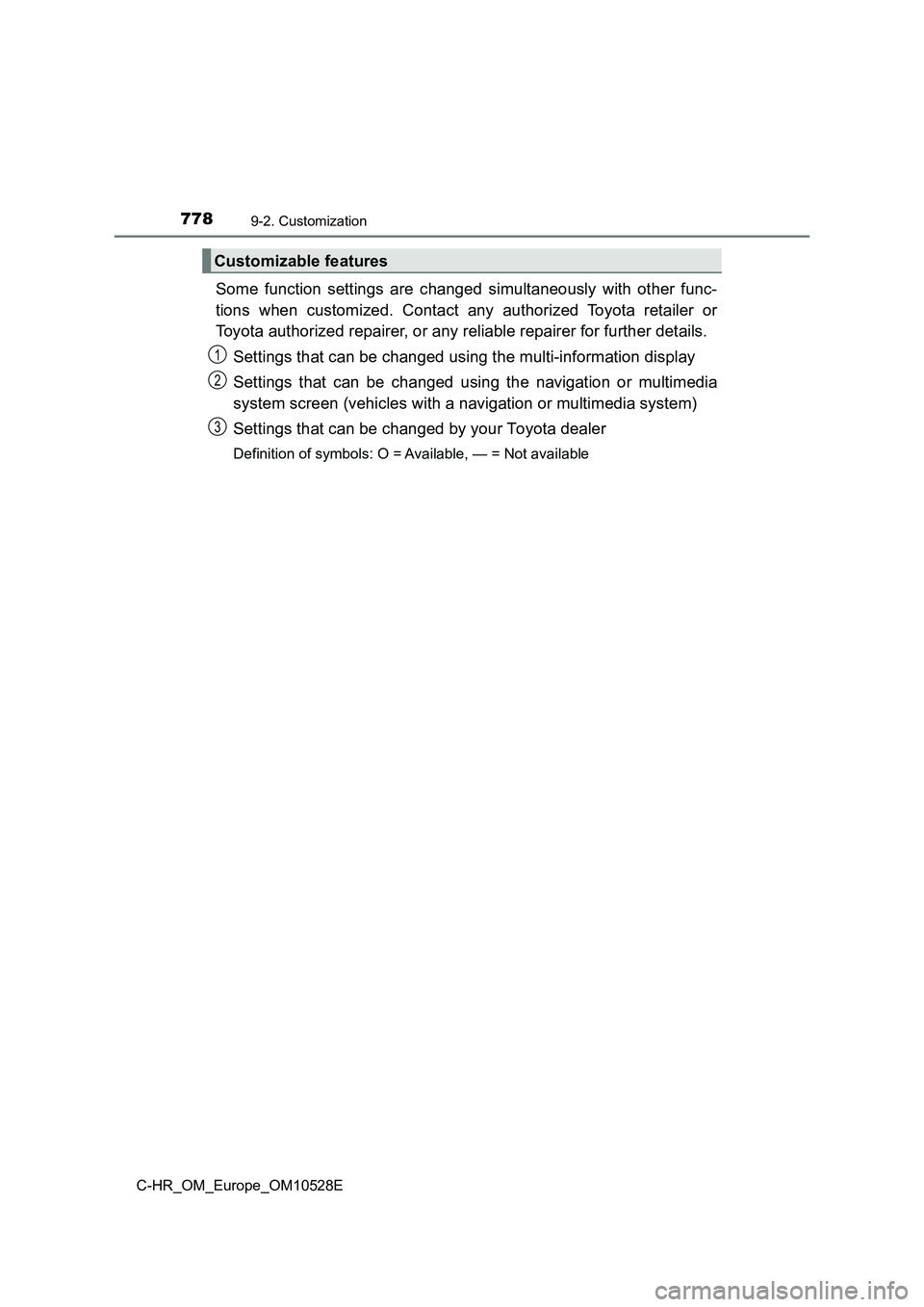

7789-2. Customization
C-HR_OM_Europe_OM10528E
Some function settings are changed simultaneously with other func-
tions when customized. Contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer for further details.
Settings that can be changed using the multi-information display
Settings that can be changed using the navigation or multimedia
system screen (vehicles with a navigation or multimedia system)
Settings that can be changed by your Toyota dealer
Definition of symbols: O = Av ailable, — = Not available
Customizable features
1
2
3

7799-2. Customization
9
Vehicle specifications
C-HR_OM_Europe_OM10528E

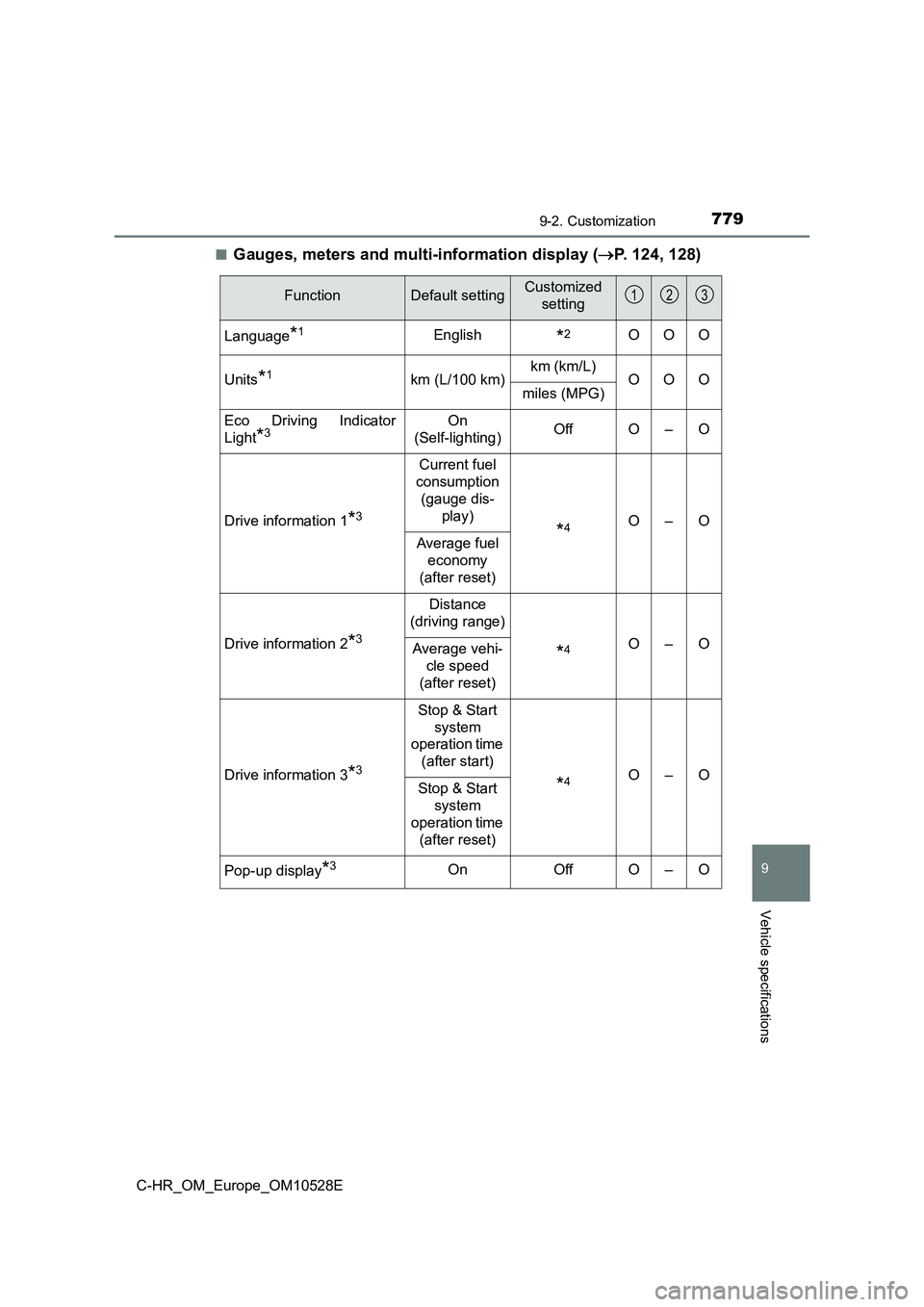

■Gauges, meters and multi-information display ( P. 124, 128)
FunctionDefault settingCustomized
setting
Language*1English*2OOO
Units*1km (L/100 km)km (km/L)OOOmiles (MPG)
Eco Driving Indicator
Light*3On
(Self-lighting)OffO–O
Drive information 1*3
Current fuel
consumption
(gauge dis-
play)
*4O–O
Average fuel
economy
(after reset)
Drive information 2*3
Distance
(driving range)
*4O–OAverage vehi-
cle speed
(after reset)
Drive information 3*3
Stop & Start
system
operation time
(after start)
*4O–OStop & Start
system
operation time
(after reset)
Pop-up display*3OnOffO–O
123

7809-2. Customization
C-HR_OM_Europe_OM10528E
*1: The default setting varies according to country.
*2: Vehicles with monochrome display:
French, German, Spanish, Italian, Portuguese, Russian, Turkish
Vehicles with color display:
German, French, Spanish, Italian, Portuguese, Dutch, Swedish, Norwe-
gian, Danish, Russian, Finnish, Greek, Polish, Ukrainian, Turkish, Hungar-
ian, Czech, Slovak, Romanian
*3: Vehicles with color display only
*4: 2 of the following items: current fuel consumption (gauge display), current
fuel consumption (numerical display), average fuel economy (after reset),
average fuel economy (after start), average fuel economy (after refuel),
average vehicle speed (after reset), average vehicle speed (after start),
elapsed time (after reset), elapsed ti me (after start), distance (driving
range), distance (after start), blank.
■Instrument cluster ( P. 122, 132)
FunctionDefault settingCustomized
setting
Sensor sensitivity for
darkening the brightness
of the instrument cluster
depending on the outside
brightness
Standard-2 to 2––O
Sensor sensitivity for
returning the brightness of
the instrument cluster to
the original level depend-
ing on the outside bright-
ness
Standard-2 to 2––O
