This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
<0022004e00460053004a00440042000d0003002a004f0044000f00030058004a005400490003005a005000560003004e0042004f005a0003005a00460042005300540003005000470003005400420055004a0054006d00460045000300450053004a005700
4a004f00480003004a004f0003005a0050005600530003>
new C-HR.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of C-HR operations. Every
C-HR owner should review the Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed
information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of printing.
Toyota reserves the right to make changes at any time without notice.
Page 3 of 48
1
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.

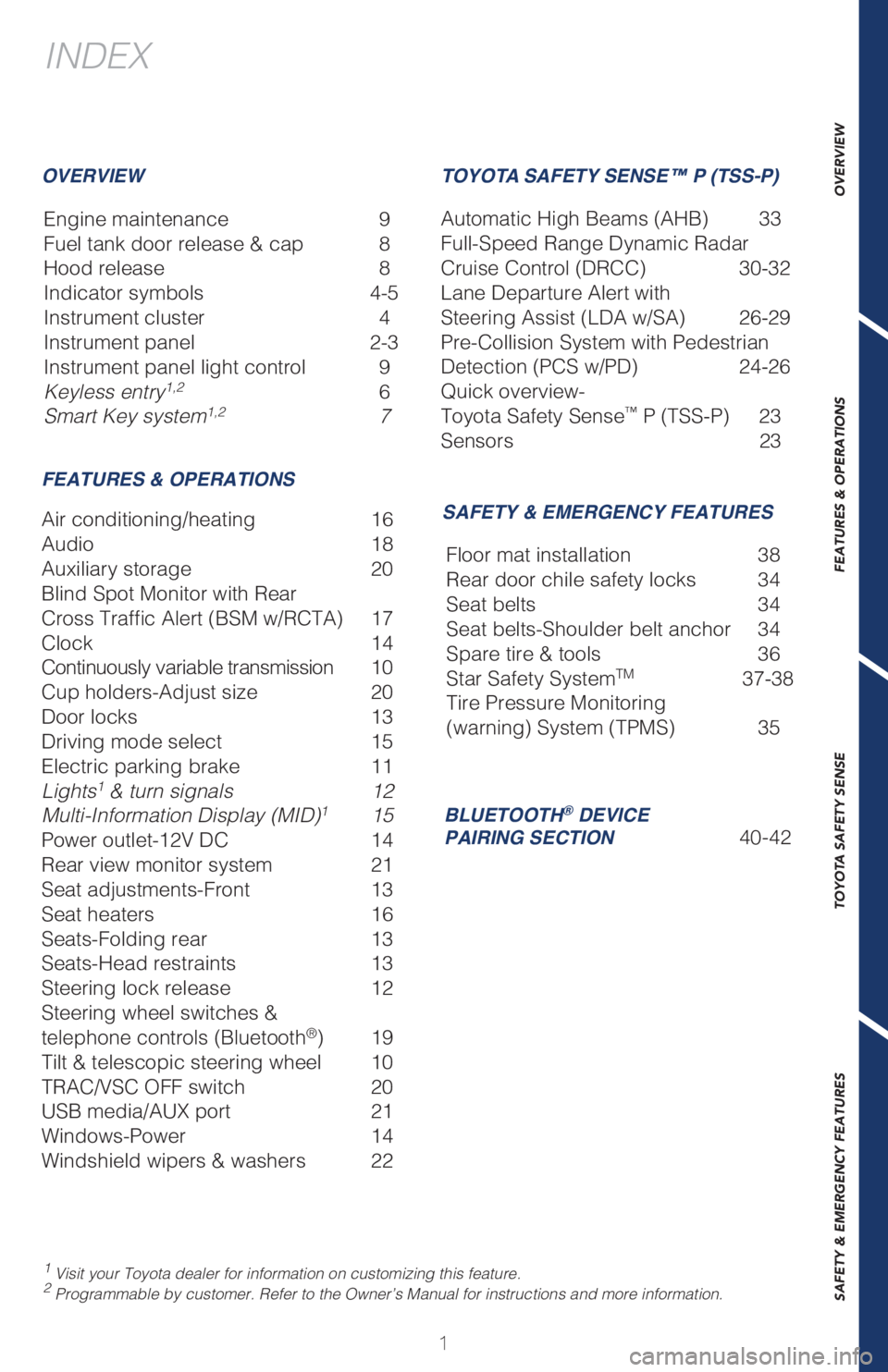

INDEX
Engine maintenance 9
Fuel tank door release & cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 9
Keyless entry
1,2 6
Smart Key system1,27
OVERVIEW
FEATURES & OPERATIONS
Air conditioning/heating 16
Audio 18
Auxiliary storage 20
Blind Spot Monitor with Rear
$ S P T T 5 S B G m D " M F S U # 4 . X 3 $ 5 "
Clock 14
Continuously variable transmission 10
Cup holders-Adjust size 20
Door locks 13
Driving mode select 15
Electric parking brake 11
Lights
1 & turn signals 12
Multi-Information Display (MID)1 15
Power outlet-12V DC 14
Rear view monitor system 21
Seat adjustments-Front 13
Seat heaters 16
Seats-Folding rear 13
Seats-Head restraints 13
Steering lock release 12
Steering wheel switches &
U F M F Q I P O F D P O U S P M T # M V F U P P U I
®
Tilt & telescopic steering wheel 10
TRAC/VSC OFF switch 20
USB media/AUX port 21
Windows-Power 14
Windshield wipers & washers 22
SAFETY & EMERGENCY FEATURES
TOYOTA SAFETY SENSE™ P (TSS-P)
" V U P N B U J D ) J H I # F B N T " ) #
Full-Speed Range Dynamic Radar
$ S V J T F $ P O U S P M % 3 $ $
Lane Departure Alert with
4 U F F S J O H " T T J T U - % " X 4 "
Pre-Collision System with Pedestrian
% F U F D U J P O 1 $ 4 X 1 %
Quick overview-
Toyota Safety Sense
™ 1 5 4 4 1
23
Sensors 23
BLUETOOTH® DEVICE
PAIRING SECTION 40-42
Floor mat installation 38
Rear door chile safety locks 34
Seat belts 34
Seat belts-Shoulder belt anchor 34
Spare tire & tools 36
Star Safety System
TM
Tire Pressure Monitoring
X B S O J O H
4 Z T U F N 5 1 . 4
Page 4 of 48
2
OVERVIEW

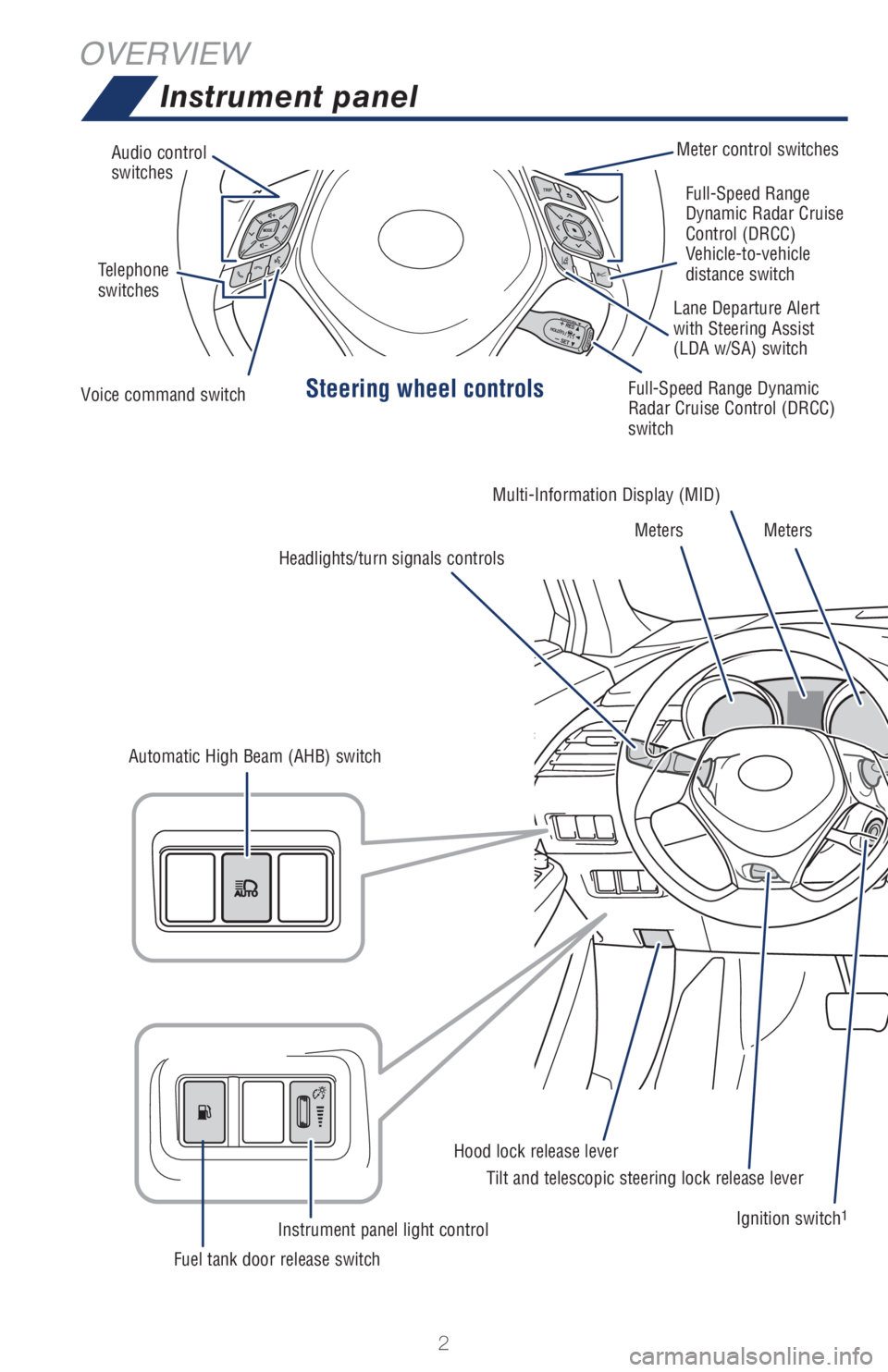

Instrument panel
Steering wheel controls
Audio control
switchesMeter control switches
Voice command switchFull-Speed Range Dynamic
Radar Cruise Control (DRCC)
switch
Ignition switch
1
Hood lock release leverMulti-Information Display (MID)
Meters Meters
Fuel tank door release switchInstrument panel light control Automatic High Beam (AHB) switch
Tilt and telescopic steering lock release leverFull-Speed Range
Dynamic Radar Cruise
Control (DRCC)
Vehicle-to-vehicle
distance switch Telephone
switches
Lane Departure Alert
with Steering Assist
(LDA w/SA) switch
Headlights/turn signals controls
Page 5 of 48
3
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

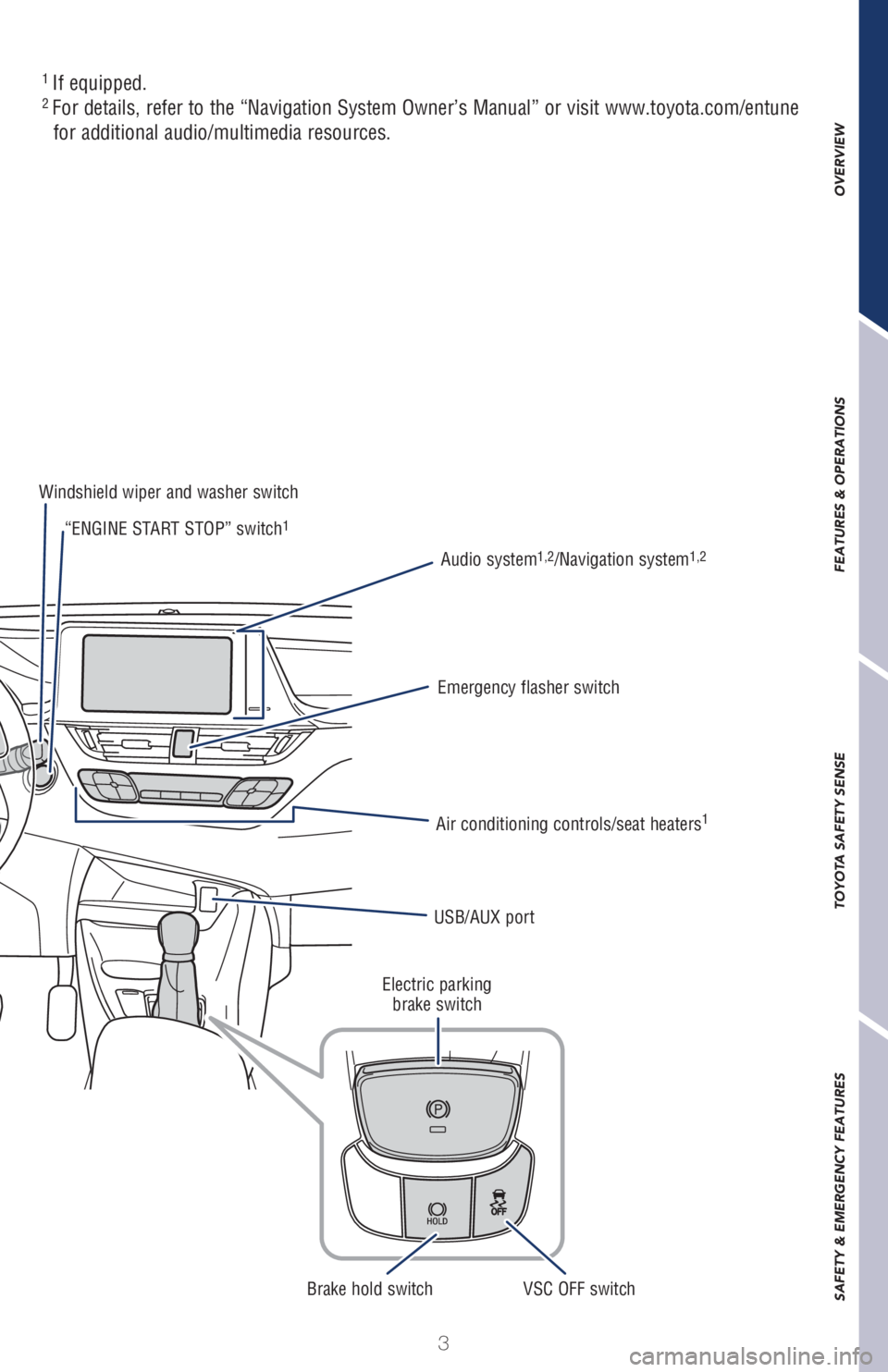

Air conditioning controls/seat heaters1
USB/AUX port Windshield wiper and washer switch
Emergency flasher switchAudio system
1,2/Navigation system1,2
Electric parking
brake switch
VSC OFF switch Brake hold switch “ENGINE START STOP” switch
1 1
If equipped.2
For details, refer to the “Navigation System Owner’s Manual” or visit www.toyota.com/entune
for additional audio/multimedia resources.
Page 6 of 48
4
OVERVIEW

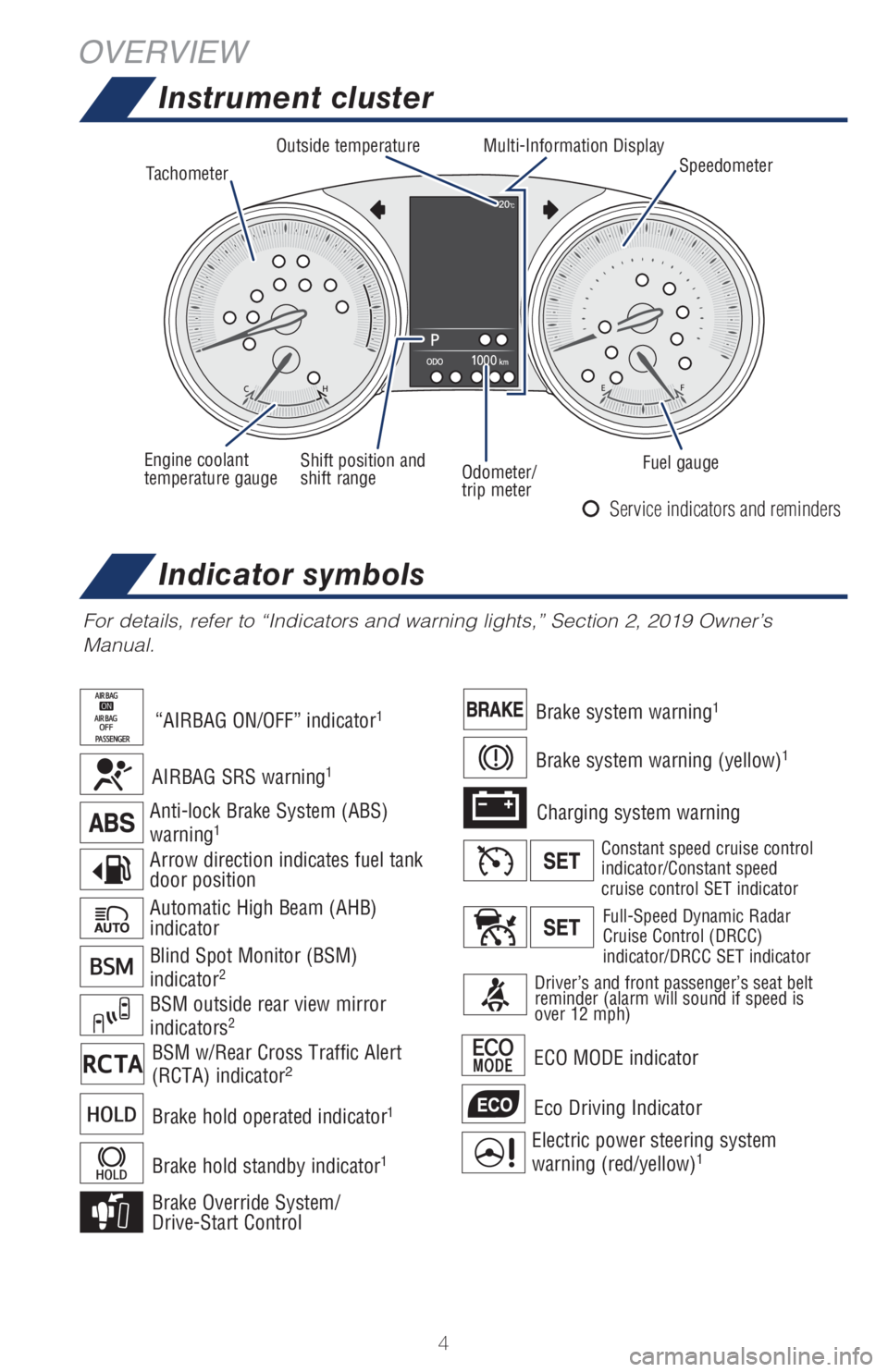

Instrument cluster
Indicator symbols
For details, refer to “Indicators and warning lights,” Section 2, 2019 Owner’s
Manual.
Automatic High Beam (AHB)
indicator
Electric power steering system
warning (red/yellow)1
BSM outside rear view mirror
indicators2
Charging system warning
Brake Override System/
Drive-Start ControlECO MODE indicator
Eco Driving Indicator
Arrow direction indicates fuel tank
door position
Anti-lock Brake System (ABS)
warning1
Blind Spot Monitor (BSM)
indicator2
Brake system warning1
Brake system warning (yellow)1
Brake hold operated indicator1
Brake hold standby indicator1
“AIRBAG ON/OFF” indicator1
AIRBAG SRS warning1
Service indicators and reminders
BSM w/Rear Cross Traffic Alert
(RCTA) indicator2
Driver’s and front passenger’s seat belt
reminder (alarm will sound if speed is
over 12 mph)
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
Full-Speed Dynamic Radar
Cruise Control (DRCC)
indicator/DRCC SET indicator
TachometerOutside temperature
Fuel gauge Shift position and
shift range Engine coolant
temperature gaugeOdometer/
trip meterMulti-Information Display
Speedometer
Page 7 of 48
5
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

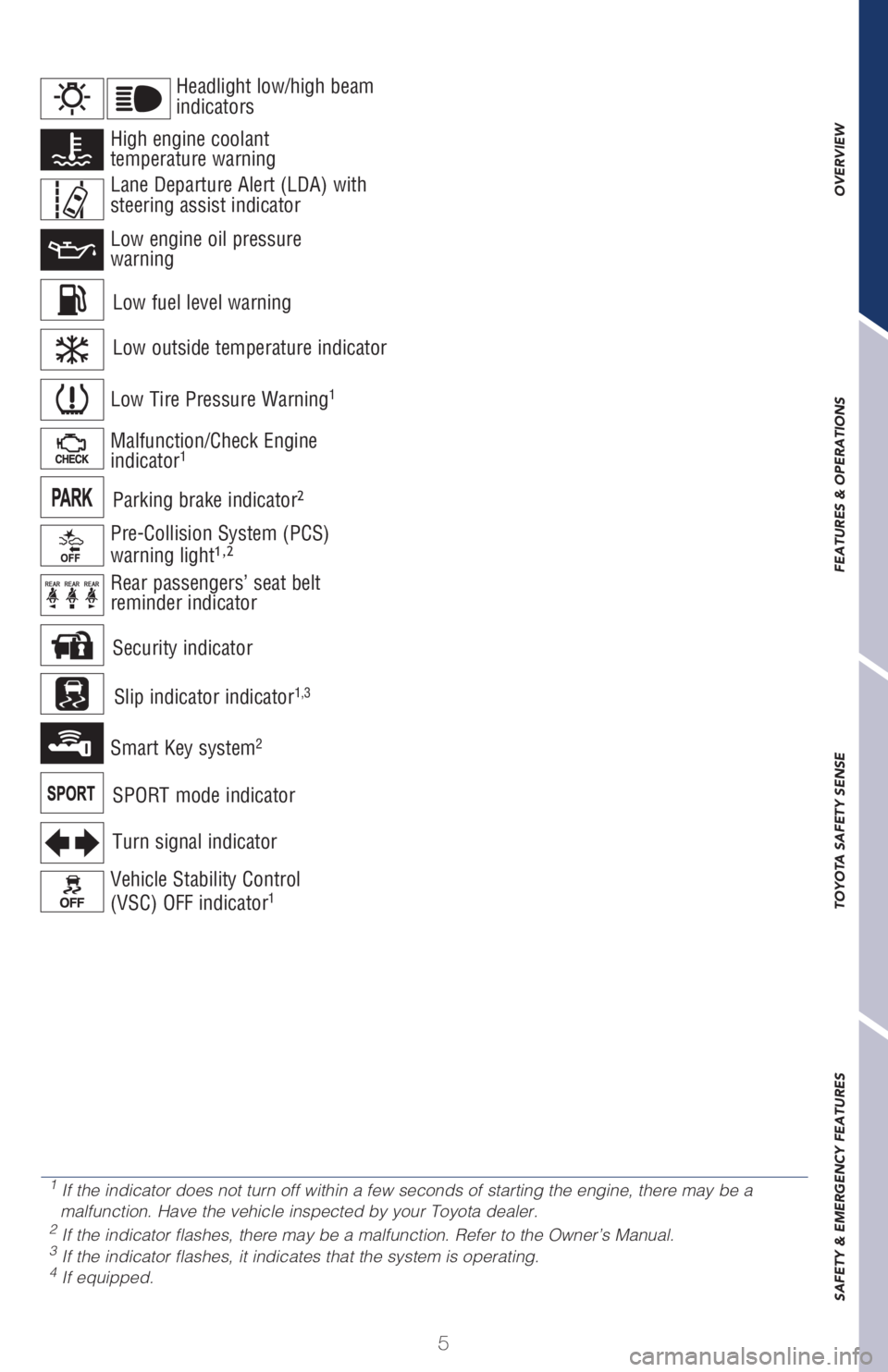

Low fuel level warning
Turn signal indicator
Low Tire Pressure Warning1
Vehicle Stability Control
(VSC) OFF indicator1
Malfunction/Check Engine
indicator1
Low engine oil pressure
warning
High engine coolant
temperature warning
Smart Key system2
SPORT mode indicator
Parking brake indicator2
Headlight low/high beam
indicators
Pre-Collision System (PCS)
warning light1,2
Rear passengers’ seat belt
reminder indicator Lane Departure Alert (LDA) with
steering assist indicator
Slip indicator indicator1,3
Security indicator
Low outside temperature indicator
1
If the indicator does not turn off within a few seconds of starting the engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.
Page 8 of 48
6
OVERVIEW

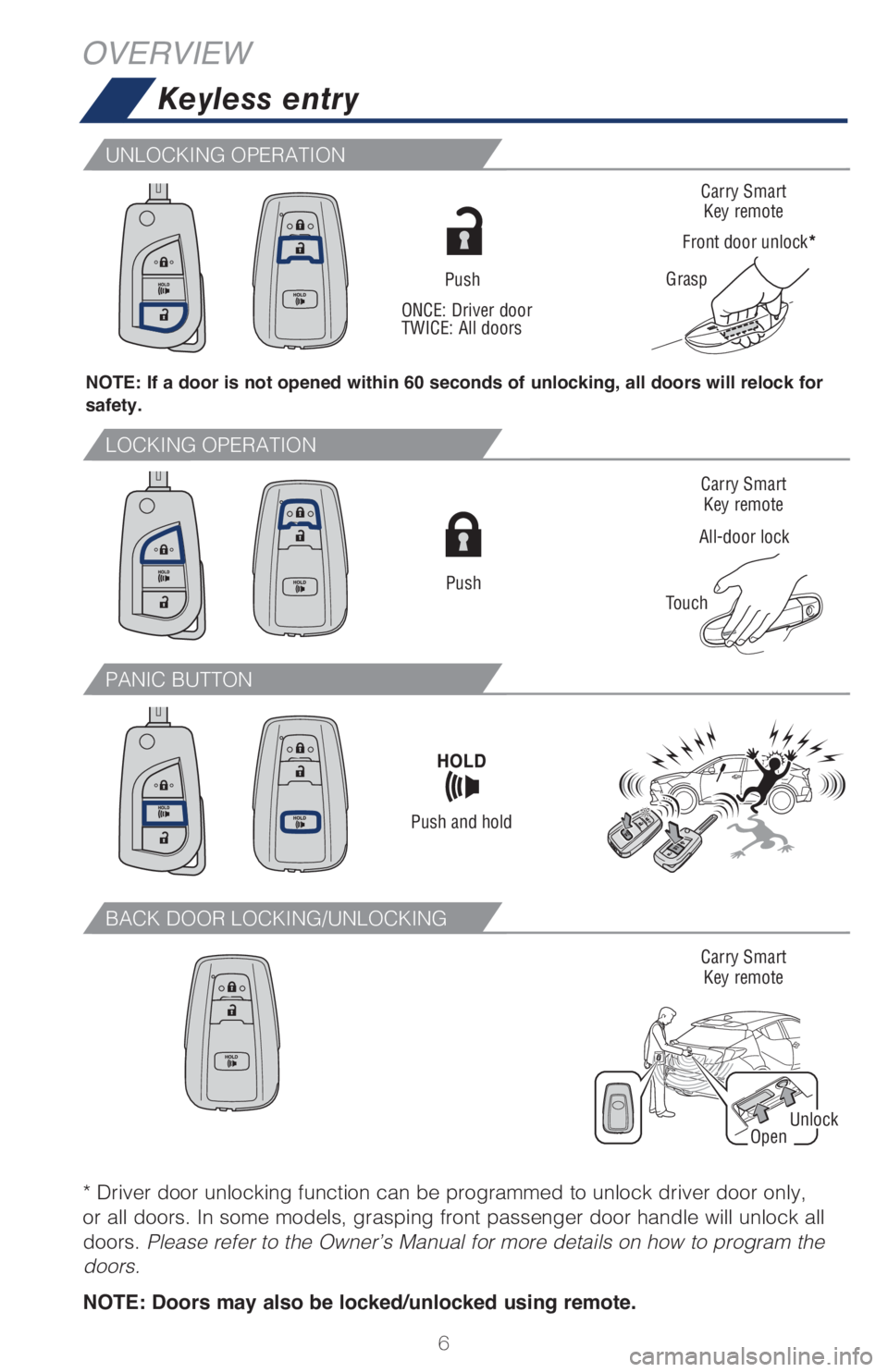

Keyless entry
Push
All-door lock
TouchCarry Smart
Key remote
Carry Smart Key remote
Carry Smart Key remote
Grasp
Front door unlock*
Push
Push and hold
ONCE: Driver door
TWICE: All doors
UnlockOpen
NOTE: If a door is not opened within 60 seconds of unlocking, all doors \
will relock for
safety.
LOCKING OPERATION
PANIC BUTTON
BACK DOOR LOCKING/UNLOCKING
UNLOCKING OPERATION
* Driver door unlocking function can be programmed to unlock driver door o\
nly,
or all doors. In some models, grasping front passenger door handle will \
unlock all
doors.
Please refer to the Owner’s Manual for more details on how to program\
the
doors.
NOTE: Doors may also be locked/unlocked using remote.
