TOYOTA C-HR 2019 (in English) Owner's Manual

19
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Bluetooth® technology allows dialing or receipt of calls without taking hands from\

the steering wheel or using a cable to connect the compatible telephone \
and the
system.
*Push and hold to access Mobile Assistant. When a compatible smartphone i\
s
Bluetooth® connected push and hold the off hook switch 2-3 seconds to access
Siri® Eyes Free.

Refer to the “Bluetooth
® Device Pairing Section” in this guide for more information
about phone connections and compatibility.
Refer to the “Navigation System Owner’s Manual” for more detail\
s.
NOTE: Concentrating on the road should always be your first priority whi\
le
driving. Do not use the hands-free phone system if it will distract you.\

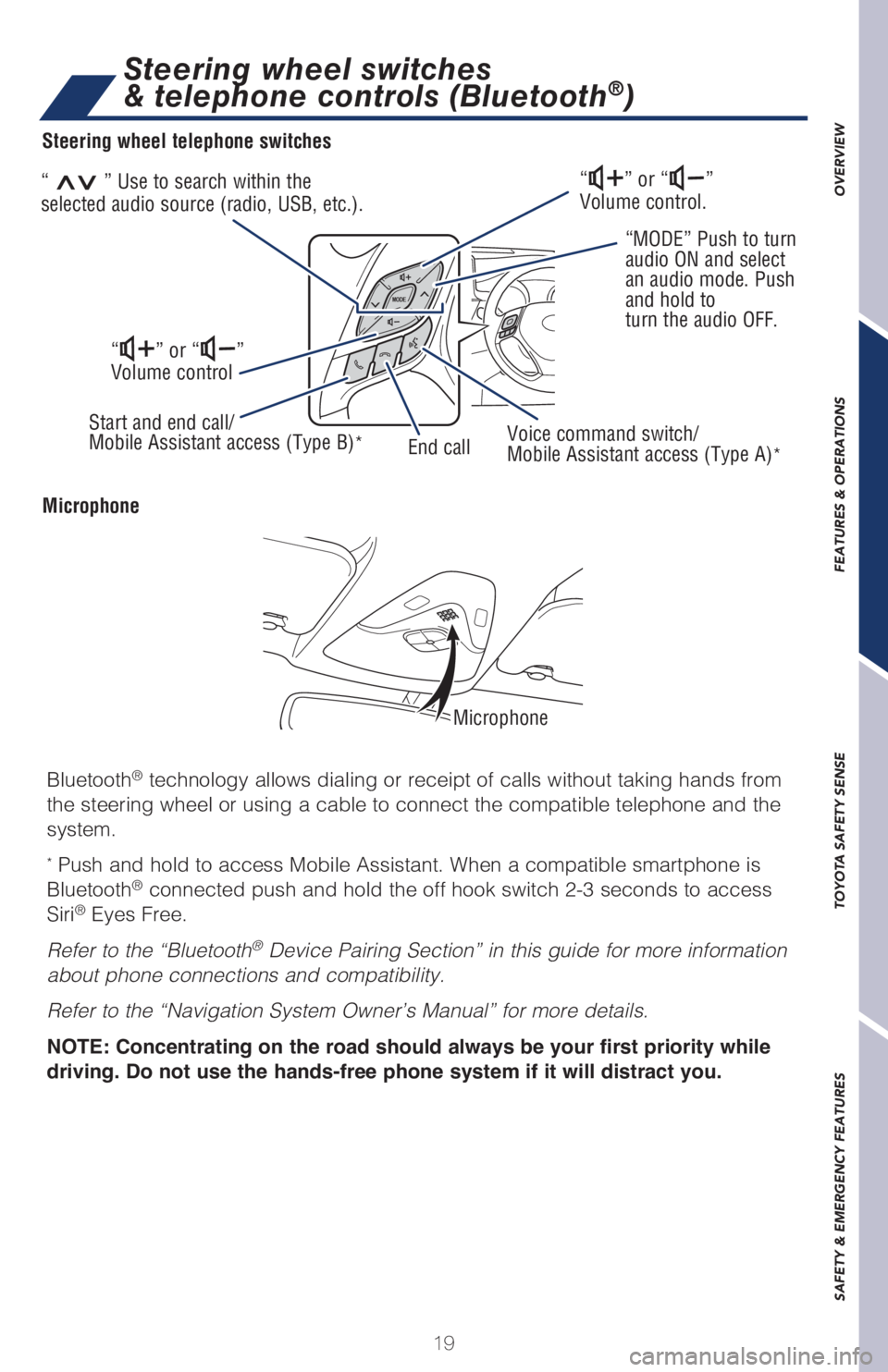

Steering wheel telephone switches
Microphone
Microphone
Steering wheel switches
& telephone controls (Bluetooth®)
“” or “”
Volume control “
” or “”
Volume control.
Voice command switch/
Mobile Assistant access (Type A)
*End call
Start and end call/
Mobile Assistant access (Type B)*
“>>” Use to search within the
selected audio source (radio, USB, etc.).
“MODE” Push to turn
audio ON and select
an audio mode. Push
and hold to
turn the audio OFF.

20
FEATURES & OPERATIONS
TRAC/VSC OFF switch
The VSC OFF switch can be used to help free a stuck vehicle in surroundings like
mud, dirt or snow. While car is stopped, press switch to disable the TRAC system.
To disable both VSC and TRAC systems, press and hold the switch for at least 3
seconds.
Refer to the Owner’s Manual for more details.
Cup holders-Adjust size
Auxiliary storage
Console boxLuggage compartment auxiliary boxes
Pull up
Side
storage Change depth

21
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

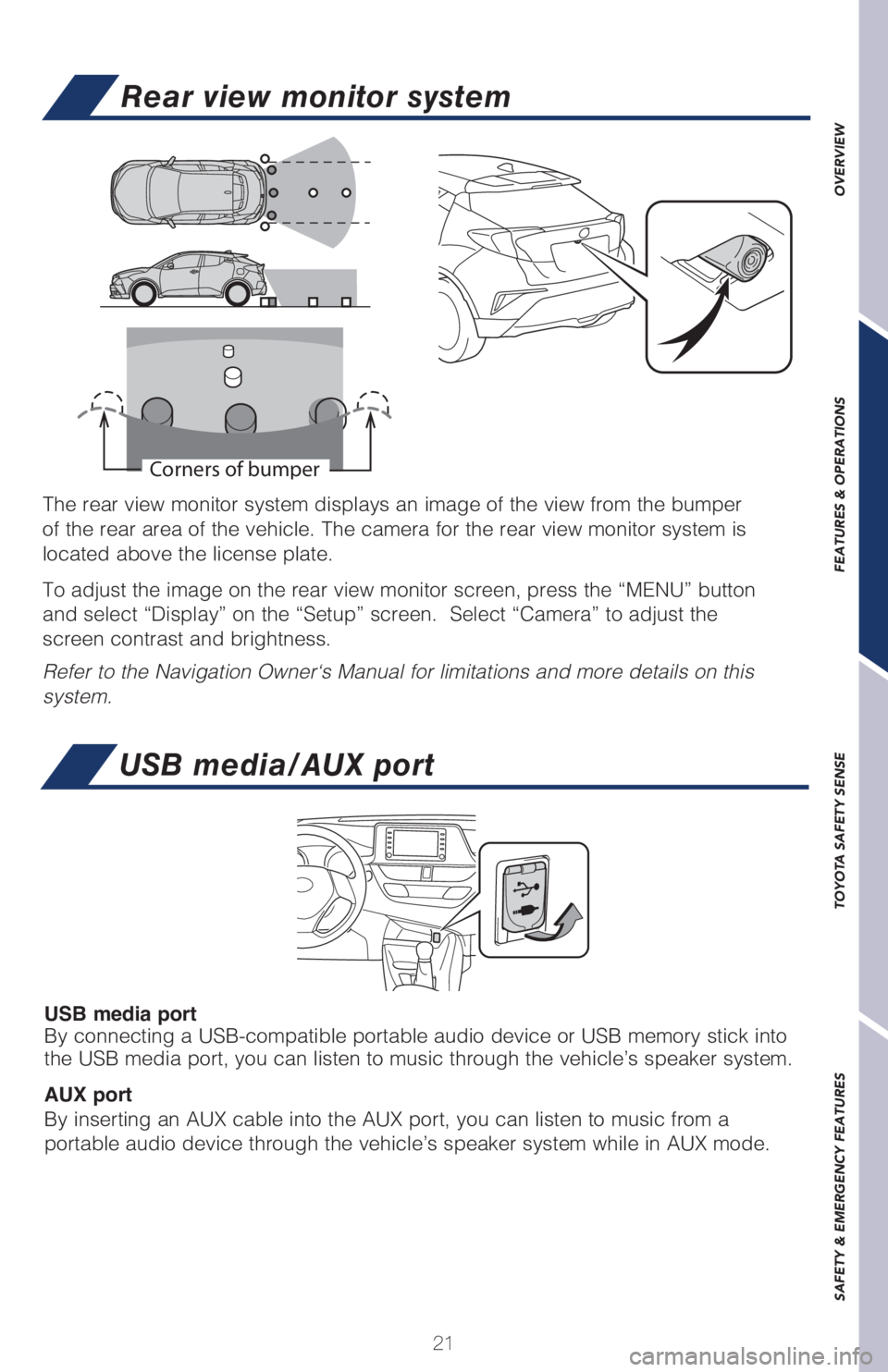

The rear view monitor system displays an image of the view from the bumper
of the rear area of the vehicle. The camera for the rear view monitor system is
located above the license plate.
5PBEKVTUUIFJNBHFPOUIFSFBSWJFXNPOJUPSTDSFFO
QSFTTUIFi.&/6wCVUUPO
BOETFMFDUi%JTQMBZwPOUIFi4FUVQwTDSFFO4FMFDUi$BNFSBwUPBEKVTUUIF
screen contrast and brightness.
Refer to the Navigation Owner‘s Manual for limitations and more details on this
system.
Corners of bumper
USB media/AUX port
USB media port
By connecting a USB-compatible portable audio device or USB memory stick into
the USB media port, you can listen to music through the vehicle’s speaker system.
AUX port
By inserting an AUX cable into the AUX port, you can listen to music from a
portable audio device through the vehicle’s speaker system while in AUX mode.
Rear view monitor system

22
FEATURES & OPERATIONS

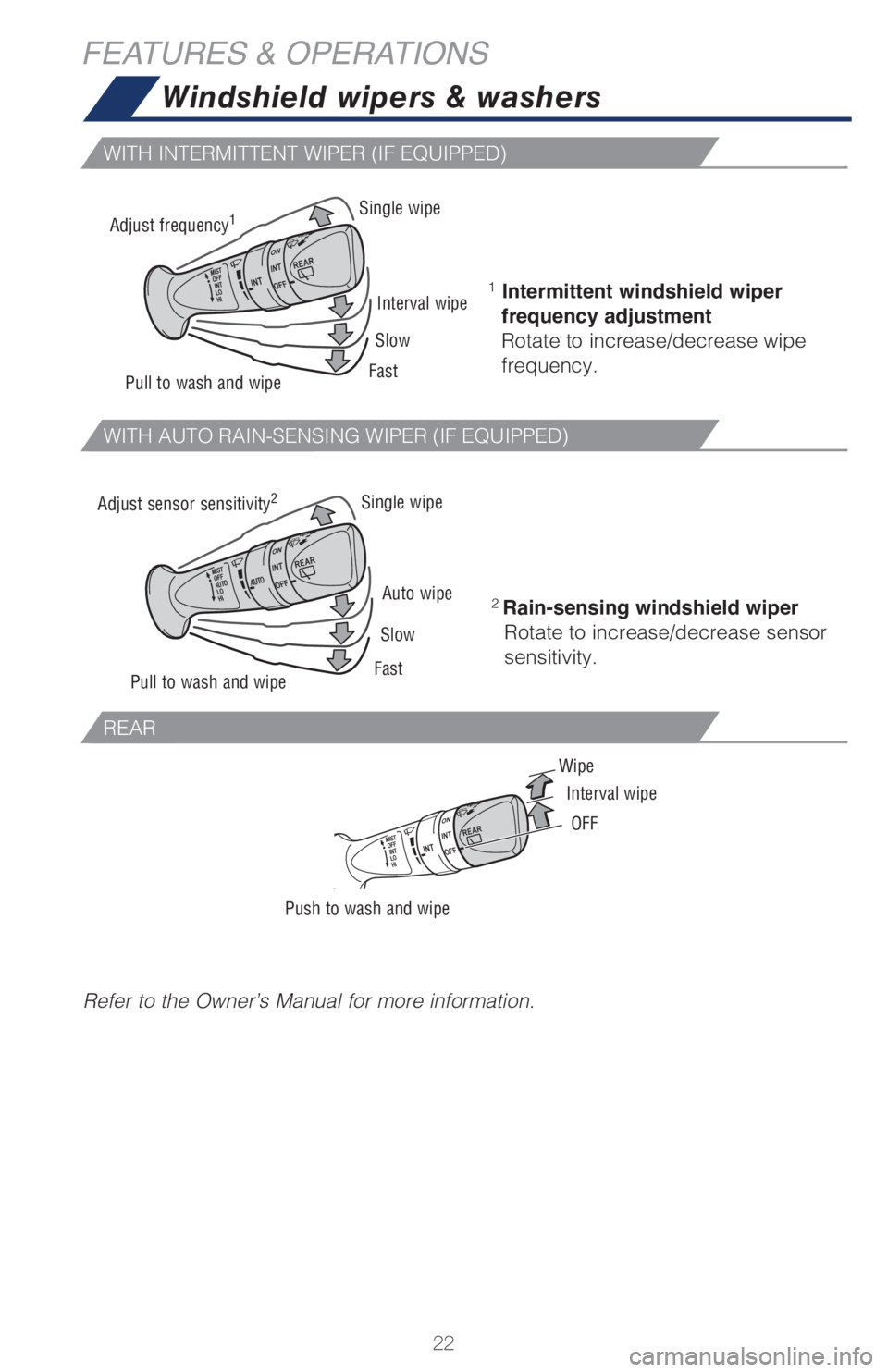

Adjust sensor sensitivity2
Pull to wash and wipe
Push to wash and wipe
Single wipe
Auto wipe
Slow
Fast
1 Intermittent windshield wiper
frequency adjustment
Rotate to increase/decrease wipe
GSFRVFODZ
Refer to the Owner’s Manual for more information.
2 Rain-sensing windshield wiper
Rotate to increase/decrease sensor
sensitivity.
Pull to wash and wipe
Single wipe
Interval wipe
Slow
Fast Adjust frequency
1
8*5)"6503"*/4&/4*/(8*1&3 *'&26*11&%

REAR
8*5)*/5&3.*55&/58*1&3 *'&26*11&%

OFF Wipe
Interval wipe
Windshield wipers & washers

23
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

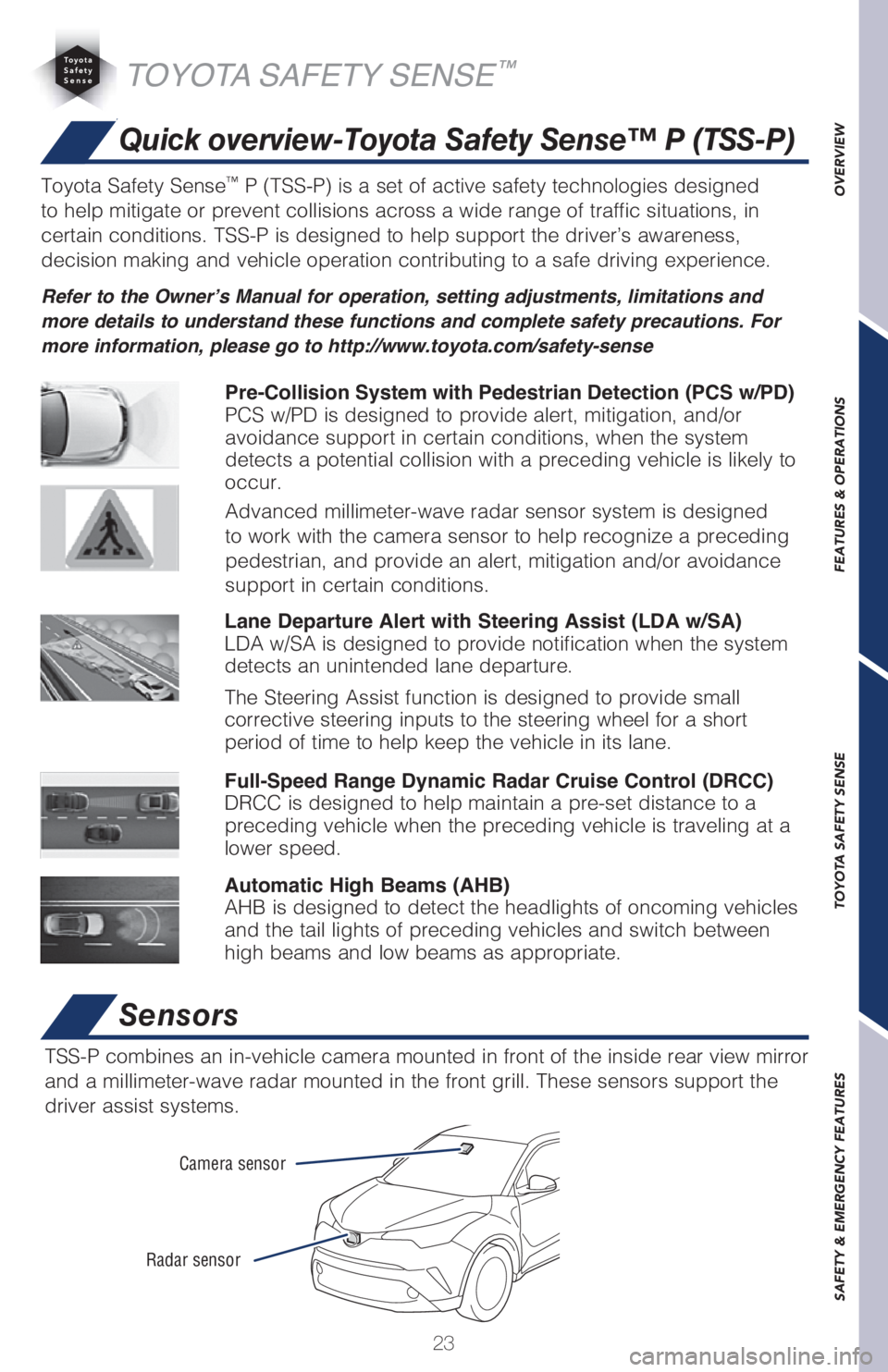

Quick overview-Toyota Safety Sense™ P (TSS-P)
Sensors
TSS-P combines an in-vehicle camera mounted in front of the inside rear view mirror
and a millimeter-wave radar mounted in the front grill. These sensors support the
driver assist systems.
Camera sensor
Radar sensor
TOYOTA SAFETY SENSE™
Toyota Safety Sense™1 5441
JTBTFUPGBDUJWFTBGFUZUFDIOPMPHJFTEFTJHOFE
to help mitigate or prevent collisions across a wide range of traffic situations, in
certain conditions. TSS-P is designed to help support the driver’s awareness,
decision making and vehicle operation contributing to a safe driving experience.
5HIHUWRWKH2ZQHU

24
TOYOTA SAFETY SENSE™

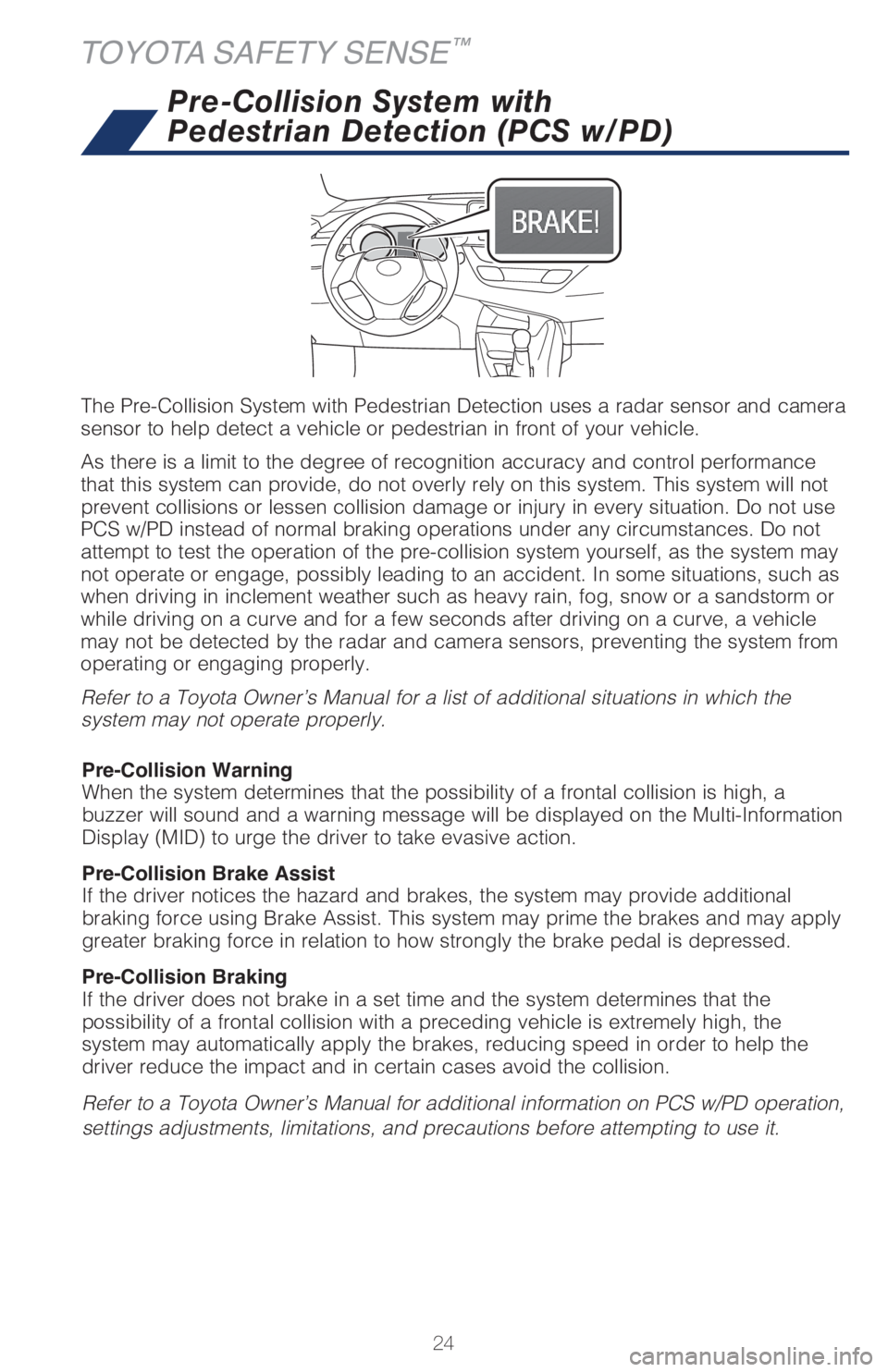

The Pre-Collision System with Pedestrian Detection uses a radar sensor and camera
sensor to help detect a vehicle or pedestrian in front of your vehicle.
As there is a limit to the degree of recognition accuracy and control performance
that this system can provide, do not overly rely on this system. This system will not
prevent collisions or lessen collision damage or injury in every situation. Do not use
PCS w/PD instead of normal braking operations under any circumstances. Do not
attempt to test the operation of the pre-collision system yourself, as the system may
not operate or engage, possibly leading to an accident. In some situations, such as
when driving in inclement weather such as heavy rain, fog, snow or a sandstorm or
while driving on a curve and for a few seconds after driving on a curve, a vehicle
may not be detected by the radar and camera sensors, preventing the system from
operating or engaging properly.
Refer to a Toyota Owner’s Manual for a list of additional situations in which the
system may not operate properly.
Refer to a Toyota Owner’s Manual for additional information on PCS w/PD operation,
settings adjustments, limitations, and precautions before attempting to use it. Pre-Collision Warning
When the system determines that the possibility of a frontal collision is high, a
buzzer will sound and a warning message will be displayed on the Multi-Information
%JTQMBZ .*%
UPVSHFUIFESJWFSUPUBLFFWBTJWFBDUJPO
Pre-Collision Brake Assist
If the driver notices the hazard and brakes, the system may provide additional
braking force using Brake Assist. This system may prime the brakes and may apply
greater braking force in relation to how strongly the brake pedal is depressed.
Pre-Collision Braking
If the driver does not brake in a set time and the system determines that the
possibility of a frontal collision with a preceding vehicle is extremely high, the
system may automatically apply the brakes, reducing speed in order to help the
driver reduce the impact and in certain cases avoid the collision.
Pre-Collision System with
Pedestrian Detection (PCS w/PD)

25
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
$)"/(*/(1$4"-&355*.*/(

1SFTTiwTXJUDIFTBOETFMFDUfrom UIF.VMUJ*OGPSNBUJPO%JTQMBZ .*%


1SFTTi
wTXJUDIFTBOETFMFDUUIFsetting function and then press “w
The setting screen is displayed.

1SFTT “
w switches and select “4FOTJUJWJUZwGSPNUIF.*%BOEUIFOQSFTT
“
wUPTFMFDUUIFEFTJSFETFUUJOH:PVDBOQSFTTiwUPHPCBDLUPUIFNFOV
Note: PCS is enabled each time the engine switch is turned to Ignition O\
n. The
system can be disabled/enabled and the alert timing of the system can be\
changed.
(Alert timing only, brake operation remains the same).
Far Middle
(default) Near
Monocular camera sensor
Millimeter
wave radar

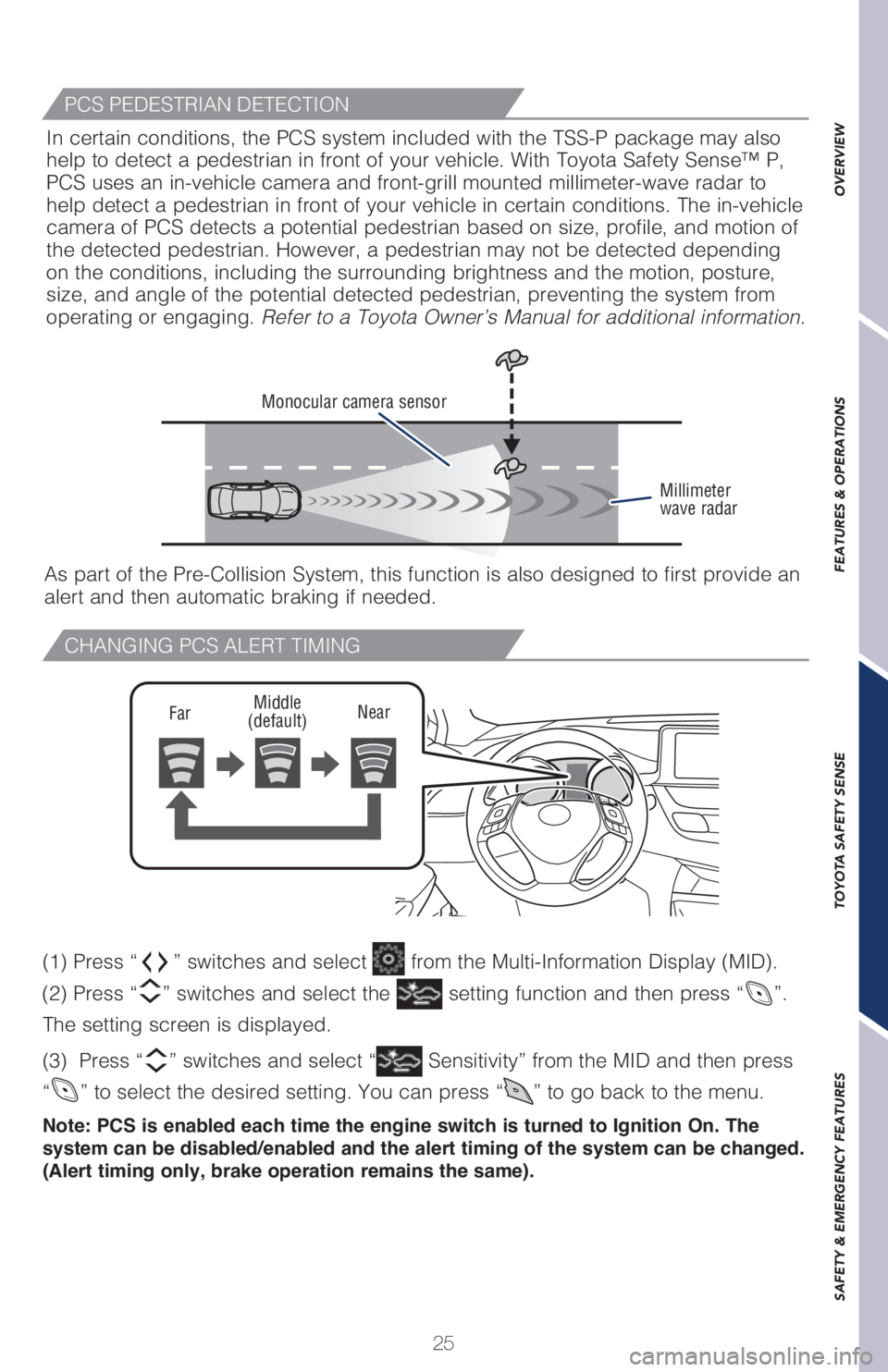

As part of the Pre-Collision System, this function is also designed to f\
irst provide an
alert and then automatic braking if needed.In certain conditions, the PCS system included with the TSS-P package ma\
y also
help to detect a pedestrian in front of your vehicle. With Toyota Safety\
Sense™ P,
PCS uses an in-vehicle camera and front-grill mounted millimeter-wave ra\
dar to
help detect a pedestrian in front of your vehicle in certain conditions.\
The in-vehicle
camera of PCS detects a potential pedestrian based on size, profile, and\
motion of
the detected pedestrian. However, a pedestrian may not be detected depen\
ding
on the conditions, including the surrounding brightness and the motion, \
posture,
size, and angle of the potential detected pedestrian, preventing the sys\
tem from
operating or engaging. Refer to a Toyota Owner’s Manual for additional information.
PCS PEDESTRIAN DETECTION

26

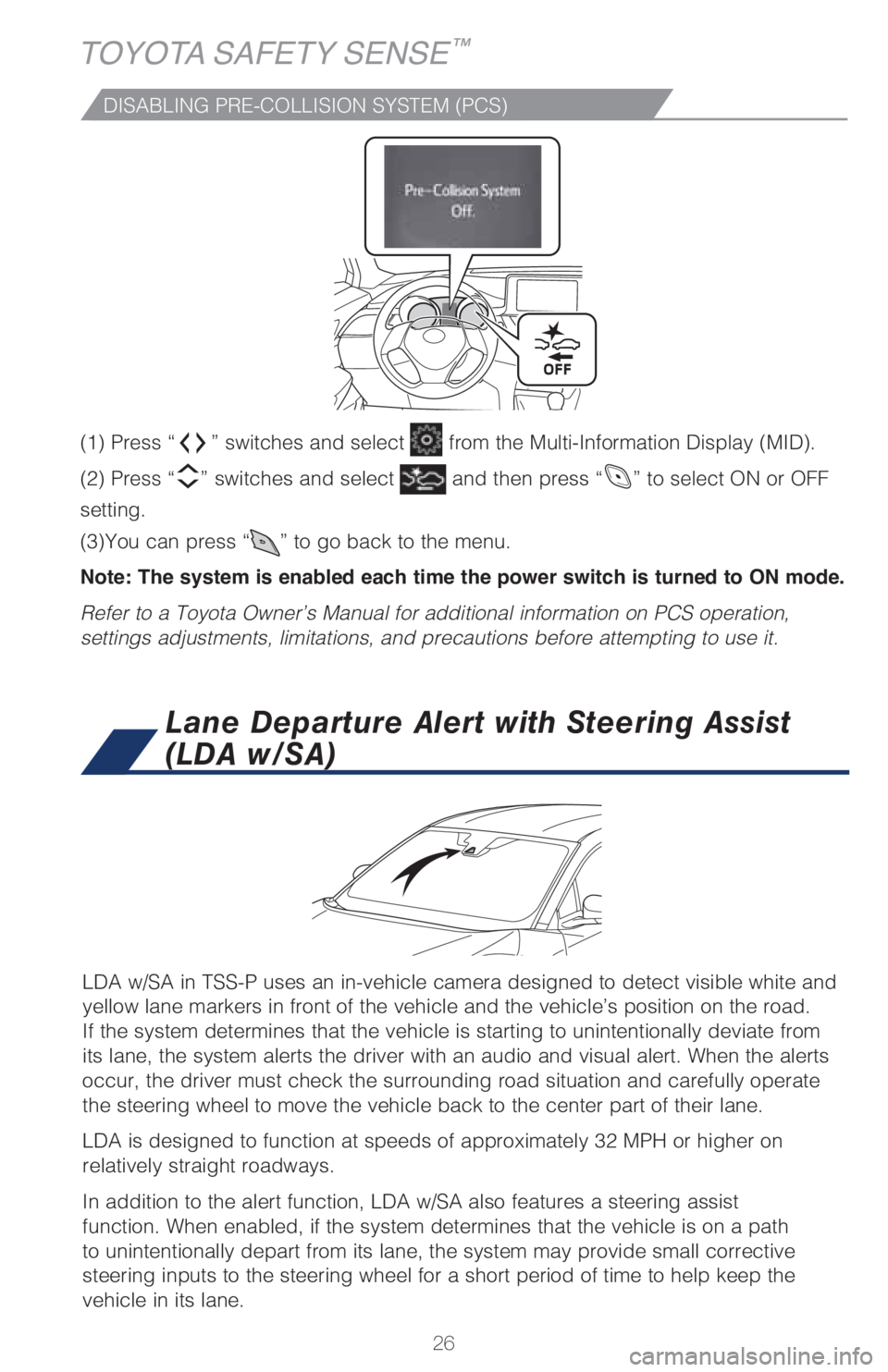

1SFTTiwTXJUDIFTBOETFMFDUfrom UIF.VMUJ*OGPSNBUJPO%JTQMBZ .*%


1SFTT “
w switches and selectand then press “wUPTFMFDU0/PS0''
setting.

:PVDBOQSFTTi
wUPHPCBDLUPUIFNFOV
Note: The system is enabled each time the power switch is turned to ON m\
ode.
Refer to a Toyota Owner’s Manual for additional information on PCS op\
eration,
settings adjustments, limitations, and precautions before attempting to \
use it.
%*4"#-*/(13&$0--*4*0/4:45&. 1$4

LDA w/SA in TSS-P uses an in-vehicle camera designed to detect visible w\
hite and
yellow lane markers in front of the vehicle and the vehicle’s positio\
n on the road.
If the system determines that the vehicle is starting to unintentionally\
deviate from
its lane, the system alerts the driver with an audio and visual alert. W\
hen the alerts
occur, the driver must check the surrounding road situation and carefull\
y operate
the steering wheel to move the vehicle back to the center part of their \
lane.
LDA is designed to function at speeds of approximately 32 MPH or higher \
on
relatively straight roadways.
In addition to the alert function, LDA w/SA also features a steering ass\
ist
function. When enabled, if the system determines that the vehicle is on \
a path
to unintentionally depart from its lane, the system may provide small co\
rrective
steering inputs to the steering wheel for a short period of time to help\
keep the
vehicle in its lane.
Lane Departure Alert with Steering Assist
(LDA w/SA)
TOYOTA SAFETY SENSE
™

27
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
(2)
(1)

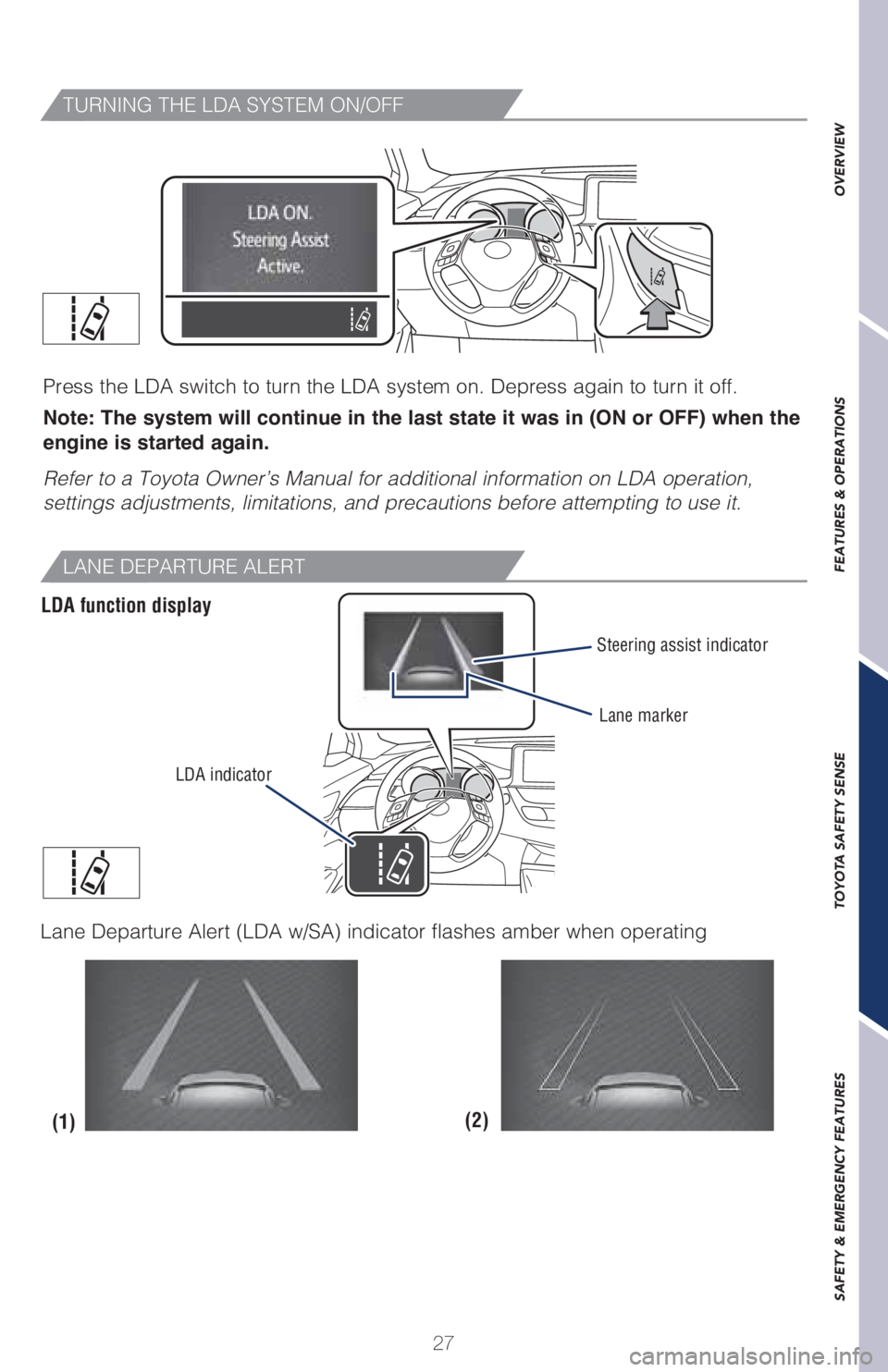

563/*/(5)&-%"4:45&.0/0''
Press the LDA switch to turn the LDA system on. Depress again to turn it off.
Note: The system will continue in the last state it was in (ON or OFF) when the
engine is started again.
Refer to a Toyota Owner’s Manual for additional information on LDA operation,
settings adjustments, limitations, and precautions before attempting to use it.
LANE DEPARTURE ALERT
LDA function display
Lane marker Steering assist indicator
LDA indicator
-BOF%FQBSUVSF"MFSU -%"X4"
JOEJDBUPSGMBTIFTBNCFSXIFOPQFSBUJOH

28

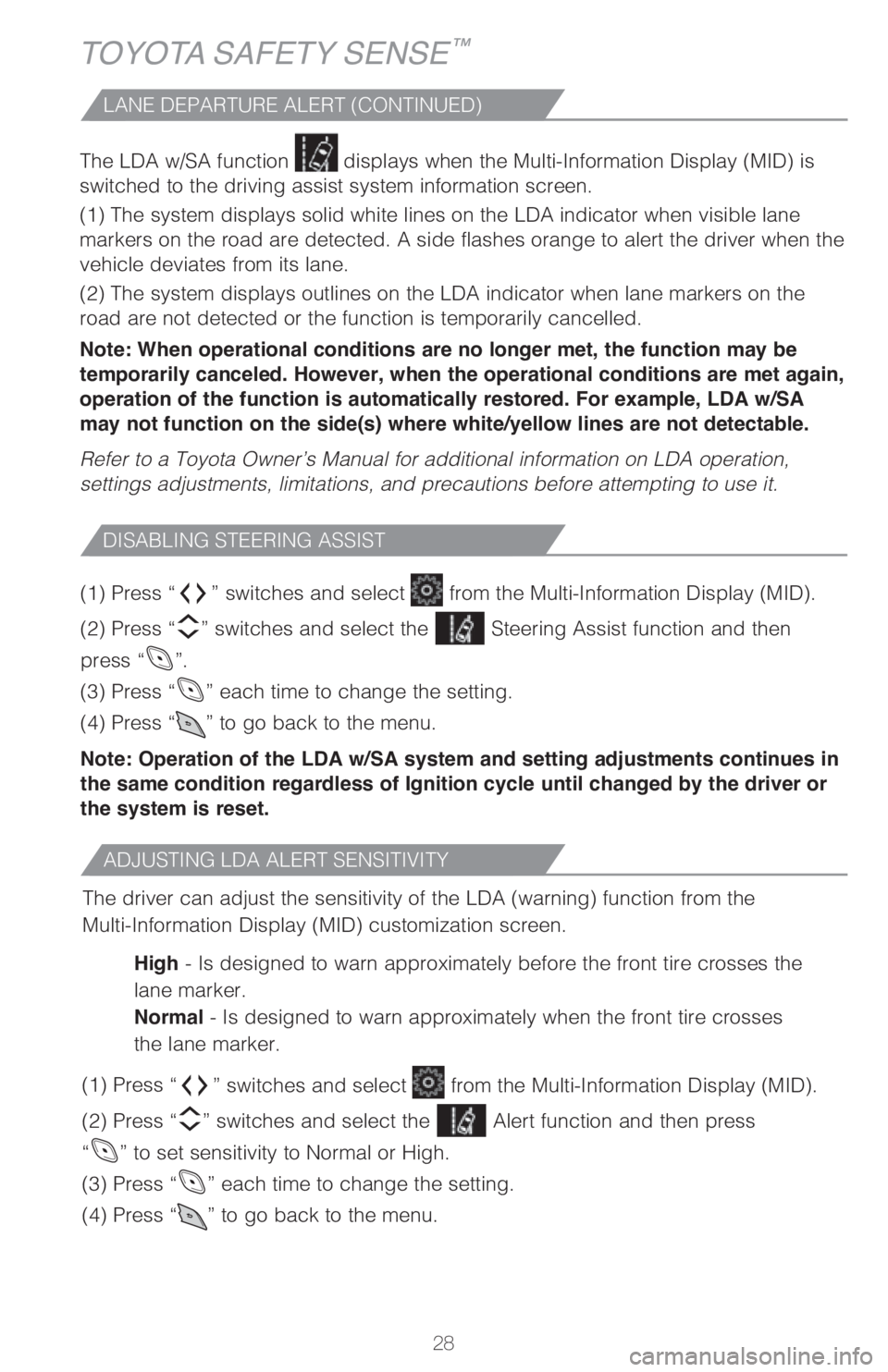

The LDA w/SA function
displays when the Multi-Information Display (MID) is
switched to the driving assist system information screen.
(1) The system displays solid white lines on the LDA indicator when visible \
lane
markers on the road are detected. A side flashes orange to alert the dri\
ver when the
vehicle deviates from its lane.
(2) The system displays outlines on the LDA indicator when lane markers on t\
he
road are not detected or the function is temporarily cancelled.
Note: When operational conditions are no longer met, the function may be\

temporarily canceled. However, when the operational conditions are met a\
gain,
operation of the function is automatically restored. For example, LDA w/\
SA
may not function on the side(s) where white/yellow lines are not detec\
table.
Refer to a Toyota Owner’s Manual for additional information on LDA op\
eration,
settings adjustments, limitations, and precautions before attempting to \
use it.
LANE DEPARTURE ALERT (CONTINUED)
DISABLING STEERING ASSIST
(1) Press “” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select the Steering Assist function and then
press “
”.
(3) Press “
” each time to change the setting.
(4) Press “
” to go back to the menu.
Note: Operation of the LDA w/SA system and setting adjustments continues\
in
the same condition regardless of Ignition cycle until changed by the dri\
ver or
the system is reset.
TOYOTA SAFETY SENSE™
ADJUSTING LDA ALERT SENSITIVITY
The driver can adjust the sensitivity of the LDA (warning) function fr\
om the
Multi-Information Display (MID) customization screen.
High - Is designed to warn approximately before the front tire crosses the
lane marker.
Normal - Is designed to warn approximately when the front tire crosses
the lane marker.
(1) Press “
” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select the Alert function and then press
“
” to set sensitivity to Normal or High.
(3) Press “
” each time to change the setting.
(4) Press “
” to go back to the menu.
