sensor TOYOTA C-HR 2021 (in English) Owner's Guide

2944-5. Using the driving support systems
C-HR_OM_USA_OM10684U
The RCTA functions when your vehicle is in reverse. It can dete ct
other vehicles approaching from the right or left rear of the v ehicle. It
uses radar sensors to alert the driver of the other vehicle’s existence
through flashing the outside rear view mirror indicators and so unding
a buzzer.
RCTA function
Approaching vehicles Detection areas
WARNING
■Cautions regarding the use of the function
The driver is solely responsible for safe driving. Always drive safely, taking
care to observe your surroundings.
The RCTA function is only a supplementary function which alerts the driver
that a vehicle is approaching from the right or left at the rea r of the vehicle.
As the RCTA function may not function correctly under certain c onditions,
the driver’s own visual confirmation of safety is necessary. Ov er reliance on
this function may lead to an accident resulting death or seriou s injury.

2974-5. Using the driving support systems
4
Driving
C-HR_OM_USA_OM10684U■
Conditions under which the RCTA function will not detect a vehicle
The RCTA function is not designed to detect the following types of vehicles
and/or objects:
● Vehicles approaching from directly behind
● Vehicles backing up in a parking space next to your vehicle
● Guardrails, walls, signs, parked vehicles and similar stationar y objects
*
●Small motorcycles, bicycles, pedestrians, etc.*
●Vehicles moving away from your vehicle
● Vehicles approaching from the parking spaces next to your vehic le
*
*
: Depending on the conditions, detection of a vehicle and/or obj ect may
occur.
●
Vehicles that the sensors cannot detect
due to obstructions

2984-5. Using the driving support systems
C-HR_OM_USA_OM10684U■
Conditions under which the RCTA function may not function corre ctly
● The RCTA function may not detect vehicles correctly in the following situa-
tions:
• When the sensor is misaligned due to a strong impact to the se nsor or its
surrounding area
• When mud, snow, ice, a sticker, etc., is covering the sensor o r surround-
ing area on the rear bumper
• When driving on a road surface that is wet with standing water during bad
weather, such as heavy rain, snow, or fog
• When multiple vehicles are approaching with only a small gap b etween
each vehicle
• When a vehicle is approaching at high speed
• Immediately after the RCTA function is set to on
• Immediately after the engine is started with the RCTA function is set to on
• When backing up on a slope with a
sharp change in grade
• When backing out of a shallow angle parking spot
• When the sensors cannot detect a vehicle due to obstructions

4357-2. Steps to take in an emergency
7
When trouble arises
C-HR_OM_USA_OM10684U

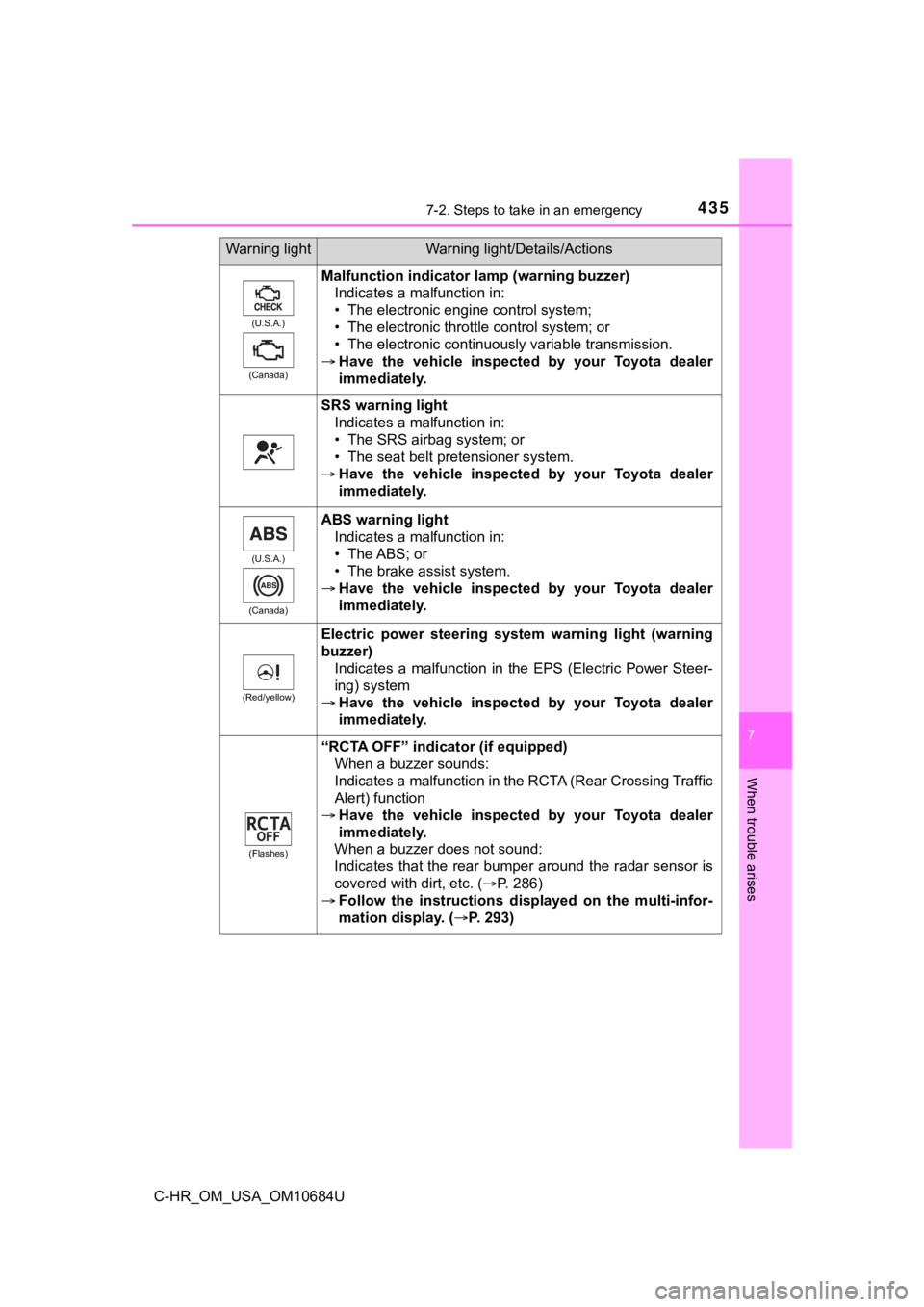

(U.S.A.)
(Canada)
Malfunction indicator lamp (warning buzzer) Indicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic continuously variable transmission.
 Have the vehicle inspected by your Toyota dealer
immediately.
SRS warning light
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system.
 Have the vehicle inspected by your Toyota dealer
immediately.
(U.S.A.)
(Canada)
ABS warning light Indicates a malfunction in:
• The ABS; or
• The brake assist system.
 Have the vehicle inspected by your Toyota dealer
immediately.
(Red/yellow)
Electric power steering system warning light (warning
buzzer)
Indicates a malfunction in the EPS (Electric Power Steer-
ing) system
 Have the vehicle inspected by your Toyota dealer
immediately.
(Flashes)
“RCTA OFF” indicator (if equipped)
When a buzzer sounds:
Indicates a malfunction in the RCTA (Rear Crossing Traffic
Alert) function
 Have the vehicle inspected by your Toyota dealer
immediately.
When a buzzer does not sound:
Indicates that the rear bumper around the radar sensor is
covered with dirt, etc. (P. 286)
 Follow the instructions dis played on the multi-infor-
mation display. (P. 293)
Warning lightWarning light/Details/Actions

4397-2. Steps to take in an emergency
7
When trouble arises
C-HR_OM_USA_OM10684U
■SRS warning light
This warning light system monitors the airbag sensor assembly, front impact
sensors, side impact sensors (front door), side impact sensors (front), side
impact sensors (rear), driver’s seat position sensor, driver’s seat belt buckle
switch, front passenger occupant classification system, “AIR BA G ON” indica-
tor light, “AIR BAG OFF” indicator light, front passenger’s sea t belt buckle
switch, seat belt pretensioners, airbags, interconnecting wirin g and power
sources. ( P. 34)
■ Electric power steering system wa rning light (warning buzzer)
When the battery charge becomes insufficient or the voltage tem porarily
drops, the electric power steering system warning light may com e on and the
warning buzzer may sound.
■ If the malfunction indicator lamp comes on while driving
For some models, the malfunction indicator lamp will come on if the fuel tank
becomes completely empty. If the fuel tank is empty, refuel the vehicle imme-
diately. The malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact your Toyota dealer.
■ Front passenger detection sensor, seat belt reminder and warnin g
buzzer
● If luggage is placed on the front passenger seat, the front pas senger detec-
tion sensor may cause the warning light to flash and the warnin g buzzer to
sound even if a passenger is not sitting in the seat.
● If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.
■ Warning light operat ions for unfastened rear passenger seat bel ts
● When opening and closing the rear door, the warning light comes on for
approximately 34 seconds.
● When any of the rear seat belts are unfastened, the warning lig ht comes on.
When the rear doors are opened and closed while the warning lig ht is on,
the warning light will turn off after approximately 34 seconds.

4487-2. Steps to take in an emergency
C-HR_OM_USA_OM10684U■
If “A New Key has been Registere d. Contact Your Dealer for Details.” is
shown (vehicles with a smart key system)
This message will be displayed each time the driver’s door is opened when
the doors are unlocked from the outside for approximately one w eek after a
new electronic key has been registered.
If this message is displayed but you have not had a new electro nic key regis-
tered, ask your Toyota dealer to check if an unknown electronic key (other
than those in your possession) has been registered.
■ If a message that indicates the malfunction of front camera is displayed
The following systems may be suspended until the problem shown in the
message is resolved. ( P. 229, 434)
● PCS (Pre-Collision System)
● LTA (Lane Tracing Assist)
● Dynamic radar cruise control with full-speed range
● RSA (Road Sign Assist) (if equipped)
● Automatic High Beam
■
If a message that indicates the ma lfunction of radar sensor is displayed
The following systems may be suspended until the problem shown in the
message is resolved. ( P. 229, 434)
● PCS (Pre-Collision System)
● LTA (Lane Tracing Assist)
● Dynamic radar cruise control with full-speed range
■ If “Radar Cruise Control Unavailable See Owner’s Manual” is sho wn
The dynamic radar cruise control with full-speed range system is suspended
temporarily or until the problem shown in the message is resolv ed. (causes
and coping methods: P. 229)
■ If “Radar Cruise Control unavailable.” is shown
The dynamic radar cruise control with full-speed range system c annot be
used temporarily. Use the system when it becomes available agai n.
■ Warning buzzer
P. 440

5038-2. Customization
8
Vehicle specifications
C-HR_OM_USA_OM10684U■
Instrument cluster (
P. 98)
FunctionDefault settingCustomized
setting
Sensor sensitivity for
darkening the bright-
ness of the instrument
cluster depending on
the outside brightness
Standard-2 to 2——O
Sensor sensitivity for
returning the bright-
ness of the instrument
cluster to the original
level depending on
the outside brightness
Standard-2 to 2——O

5078-2. Customization
8
Vehicle specifications
C-HR_OM_USA_OM10684U■
Automatic light control system (
P. 204)
■PCS (Pre-Collision System) ( P. 231)
■LTA (Lane Tracing Assist) ( P. 246)
FunctionDefault settingCustomized
setting
Light sensor sensitiv-
ity Level 0 Level -2 to 2—OO
Time elapsed before
headlights automati-
cally turn off after
doors are closed
30 seconds
Off
—OO60 seconds
90 seconds
Daytime running lights
(except for Canada) On Off—OO
FunctionDefault settingCustomized
setting
Pre-collision systemOnOffO——
Warning timingMiddleEarlyO——Late
FunctionDefault settingCustomized setting
Lane centering func-
tionOnOffO——
Alert sensitivityHighStandardO——
Vehicle sway warning
functionOnOffO——
Vehicle sway warning
sensitivityStandardLowO——High

542Alphabetical index
C-HR_OM_USA_OM10684U
Safety Connect .......................... 76
Seat belt reminder light........... 437
Seat belts.................................... 28Adjusting the seat belt ............ 29
Automatic Locking Retractor (ALR) .................................... 30
Child restra int system
installation ............................ 57
Cleaning and maintaining the seat belt ........................ 345
Emergency Locking
Retractor (ELR) .................... 30
How to wear your seat belt ..... 28
How your child should wear the seat belt ................. 30
Pregnant women, proper seat belt use.............. 31
Reminder light and buzzer .... 437
Seat belt extender................... 30
Seat belt pretensioners ........... 29
SRS warning light ................. 435
Seat heaters ............................. 321
Seats ................................. 143, 145 Adjustment ............................ 143
Adjustment precautions ........ 144
Child seats/child restraint system installation . ............... 57
Cleaning................................ 344
Front seats ............................ 143
Head restraints ..................... 147
Properly sitting in the seat ...... 26
Rear seats ............................ 145
Seat heaters ......................... 321 Sensor
Automatic headlight
system .......... ...................... 206
Automatic High Beam system .......... ...................... 209
LTA (Lane Tracing Assist) .... 246
PCS (Pre-Collision system) ........ 231
RSA (Road Sign Assist) ....... 261
Shift lever ................................. 190 Continuously variable
transmission ....................... 190
If the shift lever cannot be shifted from P ..................... 193
Shift lock system ..................... 192
Side airbags ............................... 34
Side marker lights ................... 204 Light switch ........................... 204
Replacing light bulbs ........... 409, 410, 417
Wattage ................................ 483
Side mirrors ............................. 154 Adjustment............................ 154
Blind Spot Monitor ................ 283
Folding .................................. 155
Heaters ................................. 315
Rear Cross Traffic Alert ........ 292
Side turn signal lights ............. 195 Replacing light bulbs ............ 414
Turn signal lever ................... 195
Wattage ................................ 483
Smart key system .................... 133 Antenna location ................... 133
Entry functions .............. 120, 127
Starting the engine ............... 183
S
