QUICK
REFERENCE
GUIDE
2021
Quick Reference Guide 2021
toyota.com
Printed in U. S. A . 7/2 0
2 0 - M KG -14 8 25
64380_Cvr_MY21_C-HR.indd 17/21/20 9:47 AM
Page 2 of 56
C-HR 2021
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and sup-
plementary manuals so you will have a better understanding of
your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
America, Inc. wish you many years of satisfied driving in your
new C-HR.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of C-HR operations. Every
C-HR owner should review the Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of printing.
Toyota reserves the right to make changes at any time without notice.
64380_Cvr_MY21_C-HR.indd 27/21/20 9:47 AM
Page 3 of 56
1
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.
INDEX
Engine maintenance 9
Fuel tank door release & cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 9
Keyless entry
1,2 6
Smart Key system1,2 7
OVERVIEW
FEATURES & OPERATIONS
Air conditioning/heating 18
Audio 20
Auxiliary storage 17
Blind Spot Monitor (BSM) and
Rear Cross Traffic Alert (RCTA 22
Clock 19
Continuously variable transmission 10
Cup holders 17
Door locks 16
Driving mode select 10
Electric parking brake 11
Heated seats 19
Lights
1 & turn signals 12
Multi-Information Display (MID)1 15
Power outlet-12V DC 20
Power windows 17
Rear seats-Folding 14
Rear view monitor system 23
Seat adjustments-Front 14
Seats-Head restraints 14
Steering lock release 16
Steering wheel switches &
telephone controls (Bluetooth
®) 21
Tilt & telescopic steering wheel 16
Vehicle Stability Control (VSC)/
TRAC OFF switch 23
USB media port 21
Windshield wipers & washers 13
SAFETY & EMERGENCY FEATURES
TOYOTA SAFETY SENSE™ 2.5 (TSS 2.5)
BLUETOOTH
® DEVICE
PAIRING SECTION 48-50
Floor mat installation
46
Rear door chile safety locks 41
Safety Connect
® 43
Seat belts 41
Seat belts-Shoulder belt anchor 41
Spare tire & tools 44
Star Safety System
TM 45-46
Tire Pressure Monitoring
(warning) System (TPMS) 42 Automatic High Beams (AHB) 39
Full-Speed Range Dynamic Radar
Cruise Control (DRCC) 36-38
Lane Departure Alert with
Steering Assist (LDA w/SA) 28-31
Lane Tracing Assist (LTA) 32-35
Pre-Collision System with Pedestrian
Detection (PCS w/PD) 25-27
Quick overview-Toyota Safety
Sense
™ 2.5 (TSS 2.5) 24
Road Sign Assist (RSA) 40
Sensors 25
64380_Txt_MY21_C-HR.indd 17/21/20 10:32 AM
Page 4 of 56
2

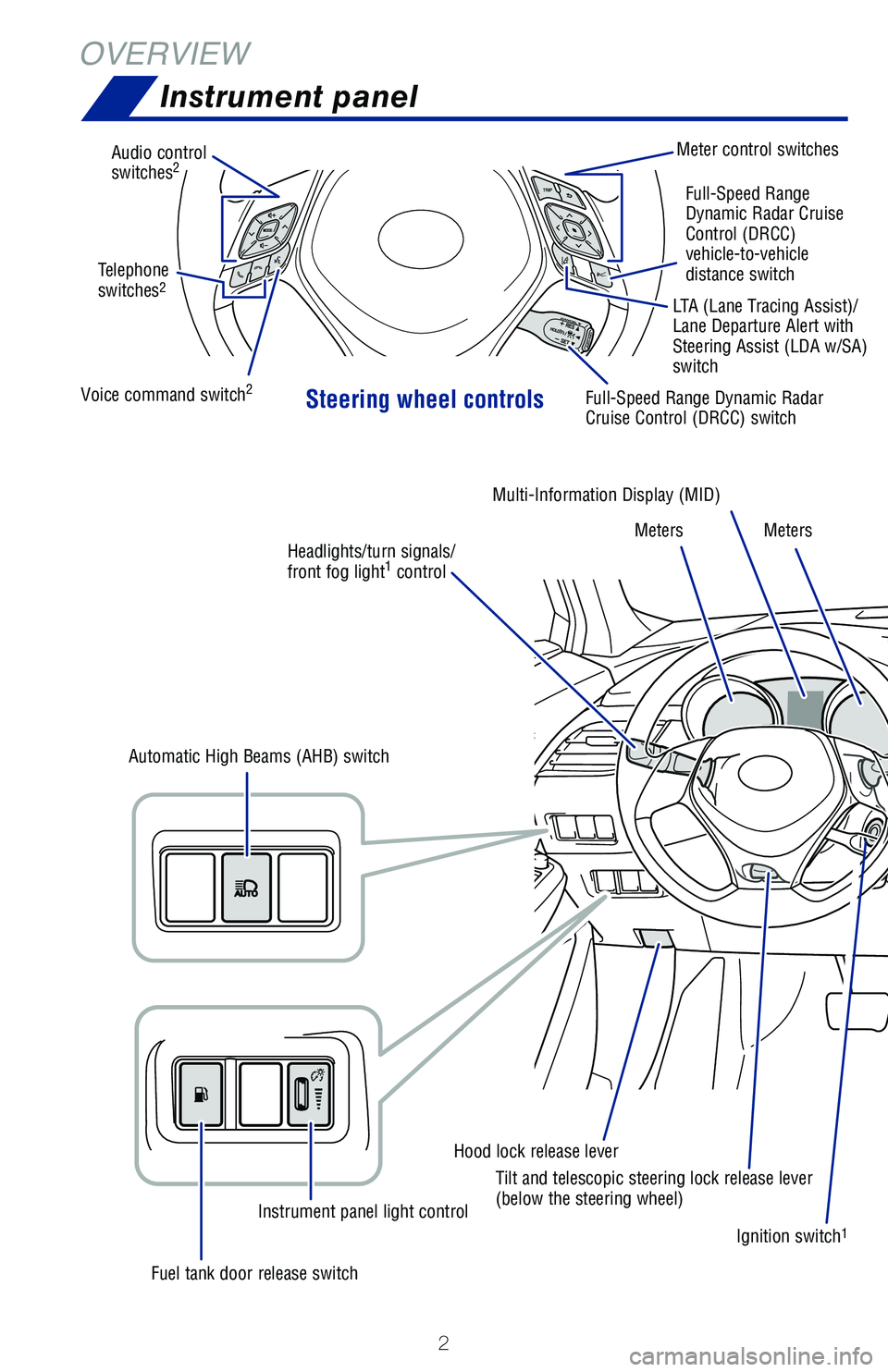

OVERVIEWInstrument panel
Steering wheel controls
Audio control
switches2Meter control switches
Voice command switch
2Full-Speed Range Dynamic Radar
Cruise Control (DRCC) switch
Ignition switch
1
Hood lock release leverMulti-Information Display (MID)
Meters Meters
Fuel tank door release switch Instrument panel light control
Automatic High Beams (AHB) switch
Tilt and telescopic steering lock release lever
(below the steering wheel)Full-Speed Range
Dynamic Radar Cruise
Control (DRCC)
vehicle-to-vehicle
distance switch
Telephone
switches
2LTA (Lane Tracing Assist)/
Lane Departure Alert with
Steering Assist (LDA w/SA)
switch
Headlights/turn signals/
front fog light
1 control
64380_Txt_MY21_C-HR.indd 27/21/20 10:32 AM
Page 5 of 56
3
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

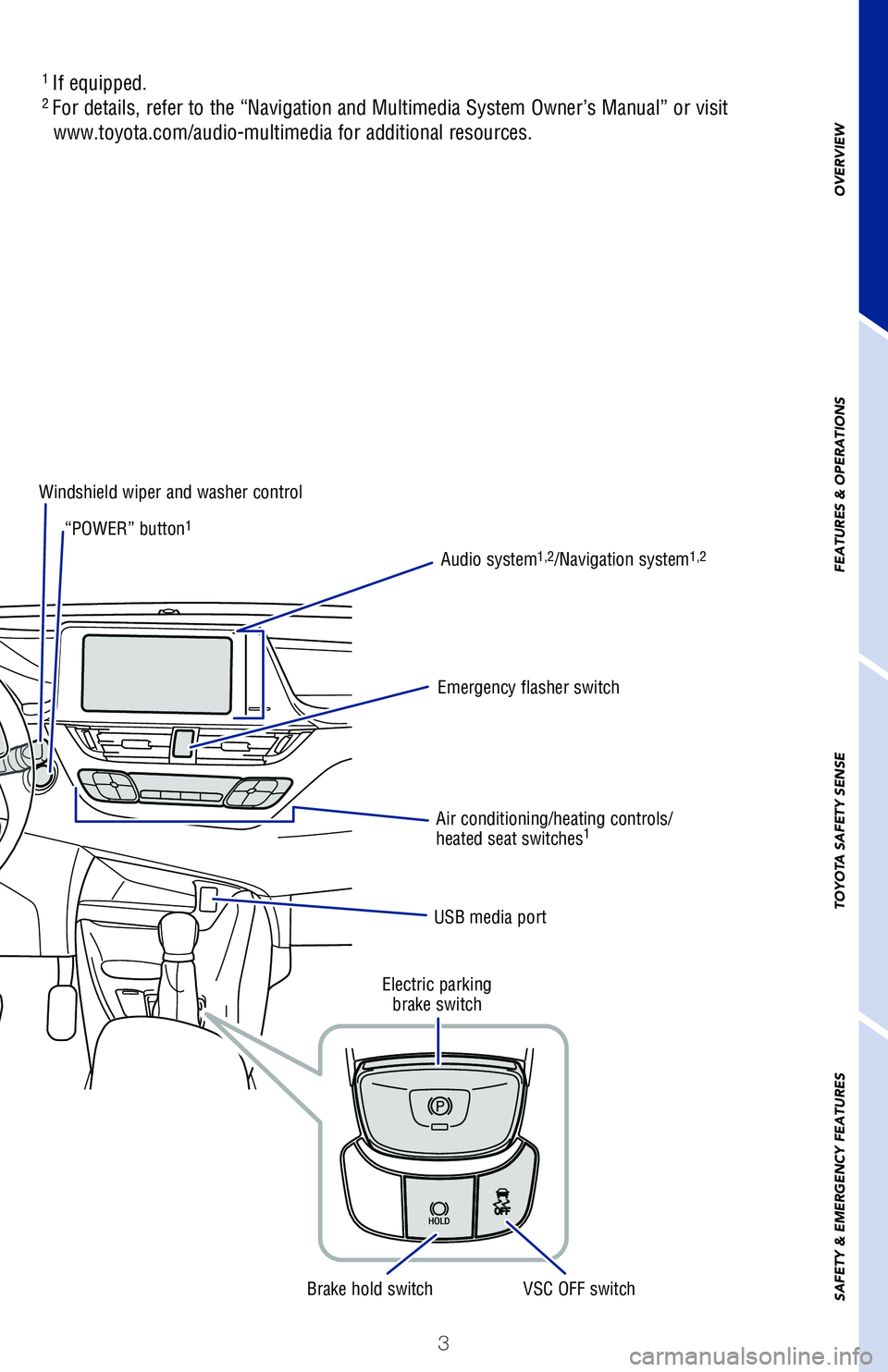

Air conditioning/heating controls/
heated seat switches1
USB media port
Windshield wiper and washer control
Emergency flasher switchAudio system
1,2/Navigation system1,2
Electric parking
brake switch
VSC OFF switch
Brake hold switch
“POWER” button
1
LTA (Lane Tracing Assist)/
Lane Departure Alert with
Steering Assist (LDA w/SA)
switch
1
If equipped.2 For details, refer to the “Navigation and Multimedia System Owner’s Manual” or visit
www.toyota.com/audio-multimedia for additional resources.
64380_Txt_MY21_C-HR.indd 37/21/20 10:32 AM
Page 6 of 56
4

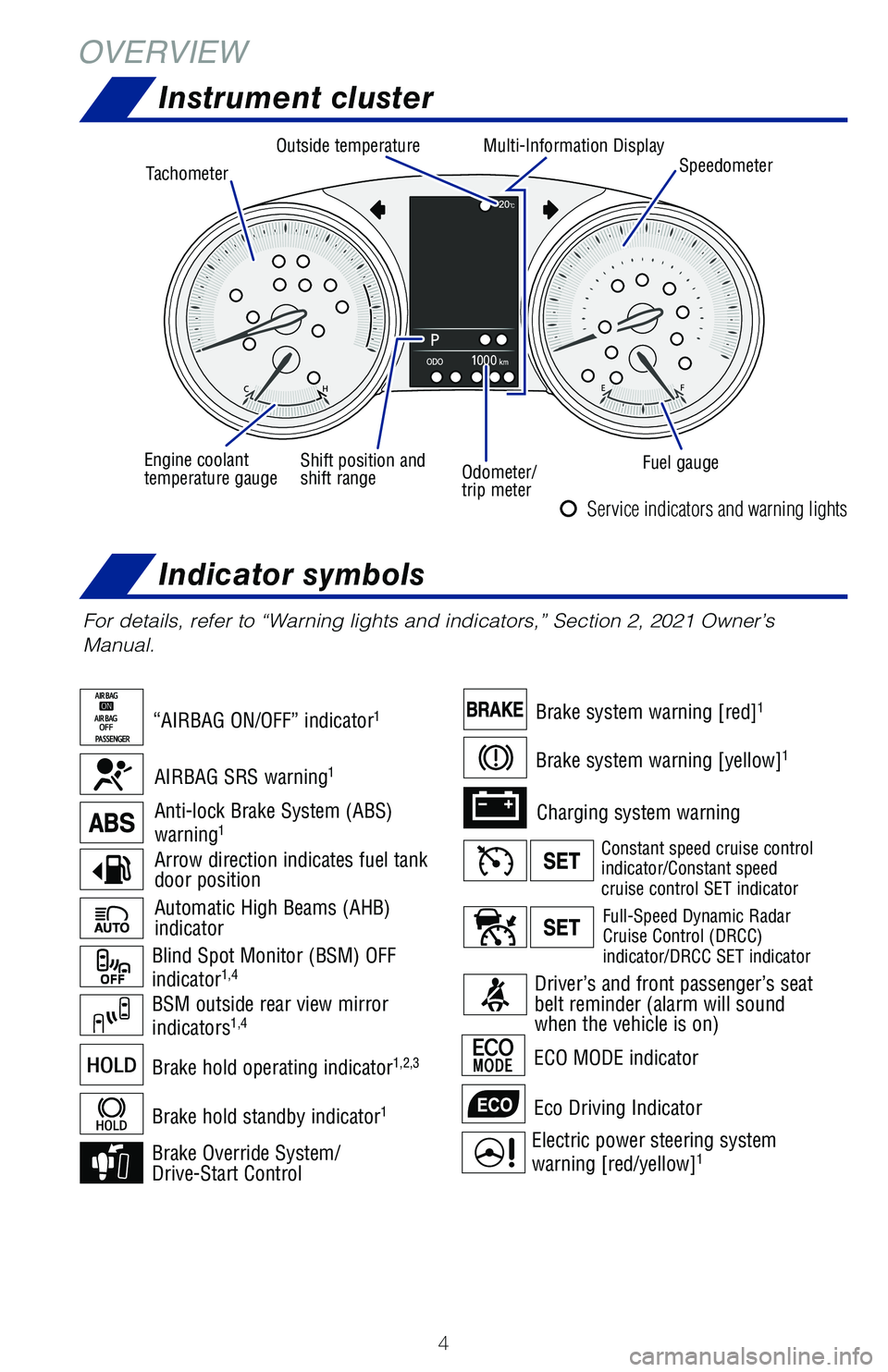

OVERVIEWInstrument cluster
Indicator symbols
For details, refer to “Warning lights and indicators,” Section 2, 2021 Owner’s
Manual.
Automatic High Beams (AHB)
indicator
Electric power steering system
warning [red/yellow]1
BSM outside rear view mirror
indicators1,4
Charging system warning
Brake Override System/
Drive-Start Control ECO MODE indicator
Eco Driving Indicator
Arrow direction indicates fuel tank
door position
Anti-lock Brake System (ABS)
warning1
Blind Spot Monitor (BSM) OFF
indicator1,4
Brake system warning [red]1
Brake system warning [yellow]1
Brake hold operating indicator1,2,3
Brake hold standby indicator1
“AIRBAG ON/OFF” indicator1
AIRBAG SRS warning1
Service indicators and warning lights
Driver’s and front passenger’s seat
belt reminder (alarm will sound
when the vehicle is on)
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
Full-Speed Dynamic Radar
Cruise Control (DRCC)
indicator/DRCC SET indicator
Tachometer
Outside temperature
Fuel gauge
Shift position and
shift range
Engine coolant
temperature gauge
Odometer/
trip meterMulti-Information Display
Speedometer
64380_Txt_MY21_C-HR.indd 47/21/20 10:32 AM
Page 7 of 56
5
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

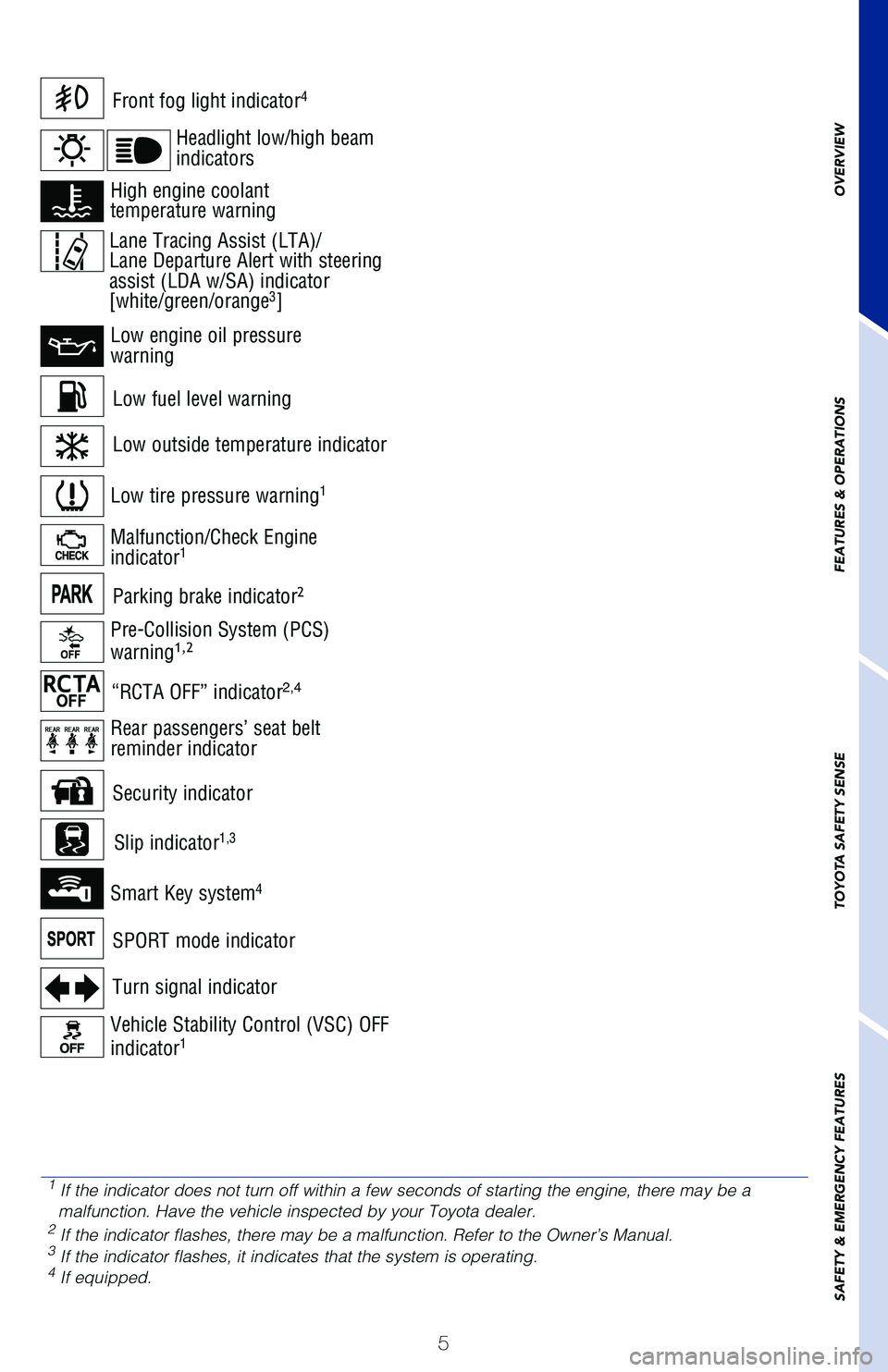

Low fuel level warning
Front fog light indicator4
Turn signal indicator
Low tire pressure warning1
Vehicle Stability Control (VSC) OFF
indicator1
Malfunction/Check Engine
indicator1
Low engine oil pressure
warning
High engine coolant
temperature warning
Smart Key system4
ECO MODE indicator
SPORT mode indicator
Parking brake indicator2
Headlight low/high beam
indicators
Pre-Collision System (PCS)
warning1,2
Rear passengers’ seat belt
reminder indicator
Slip indicator
1,3
Security indicator
Low outside temperature indicator
“RCTA OFF” indicator2,4
1 If the indicator does not turn off within a few seconds of starting the engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.
Lane Tracing Assist (LTA)/
Lane Departure Alert with steering
assist (LDA w/SA) indicator
[white/green/orange
3]
64380_Txt_MY21_C-HR.indd 57/21/20 10:32 AM
Page 8 of 56
6
OVERVIEW

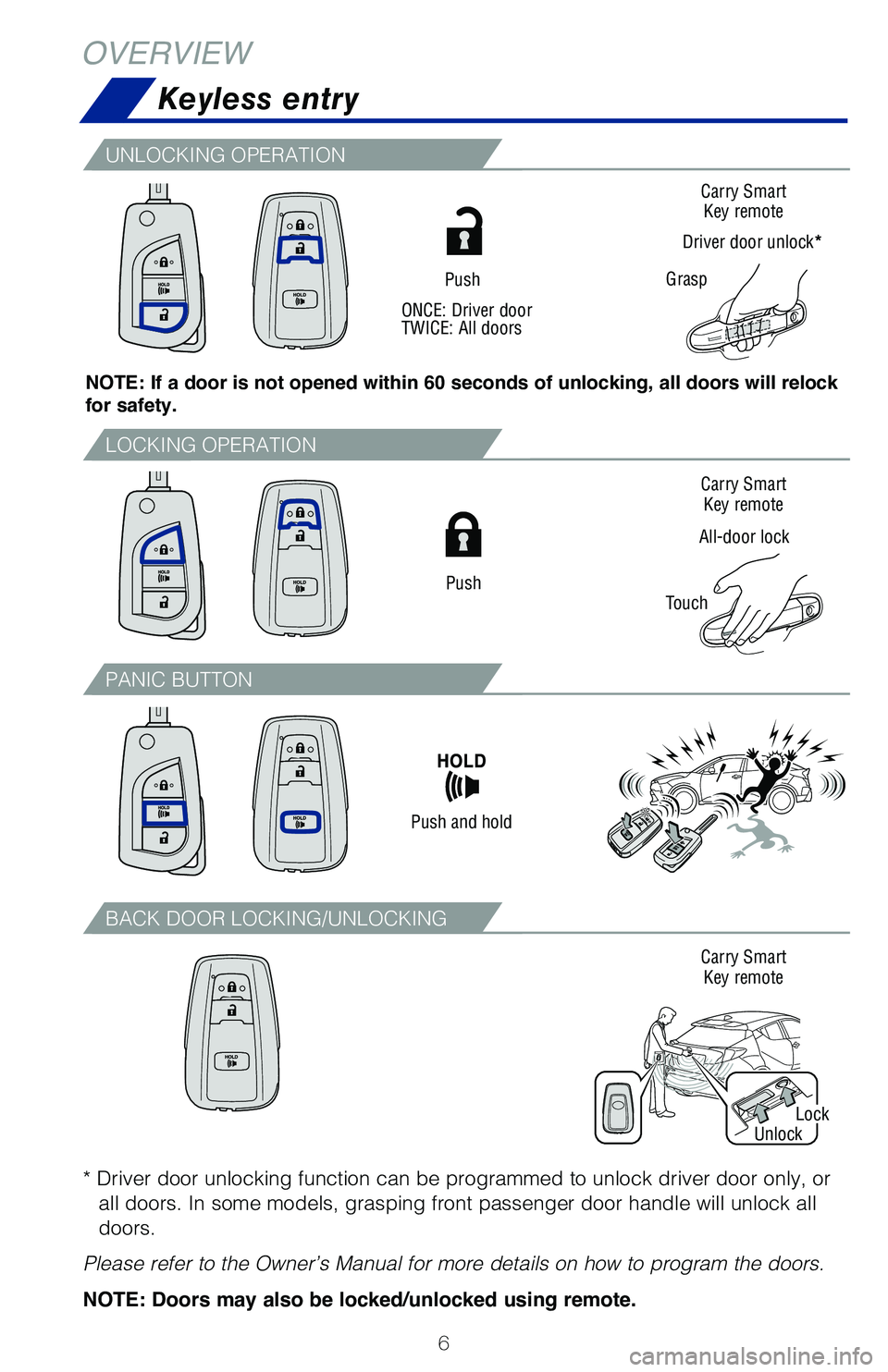

Keyless entry
Push
All-door lock
TouchCarry Smart
Key remote
Carry Smart Key remote
Carry Smart Key remote
Grasp
Driver door unlock*
Push
Push and hold
ONCE: Driver door
TWICE: All doors
Lock
Unlock
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock
for safety.
LOCKING OPERATION
PANIC BUTTON
BACK DOOR LOCKING/UNLOCKING
UNLOCKING OPERATION
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. In some models, grasping front passenger door handle will unlock all
doors.
Please refer to the Owner’s Manual for more details on how to program the doors.
NOTE: Doors may also be locked/unlocked using remote.
64380_Txt_MY21_C-HR.indd 67/21/20 10:32 AM
Page 9 of 56
7
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

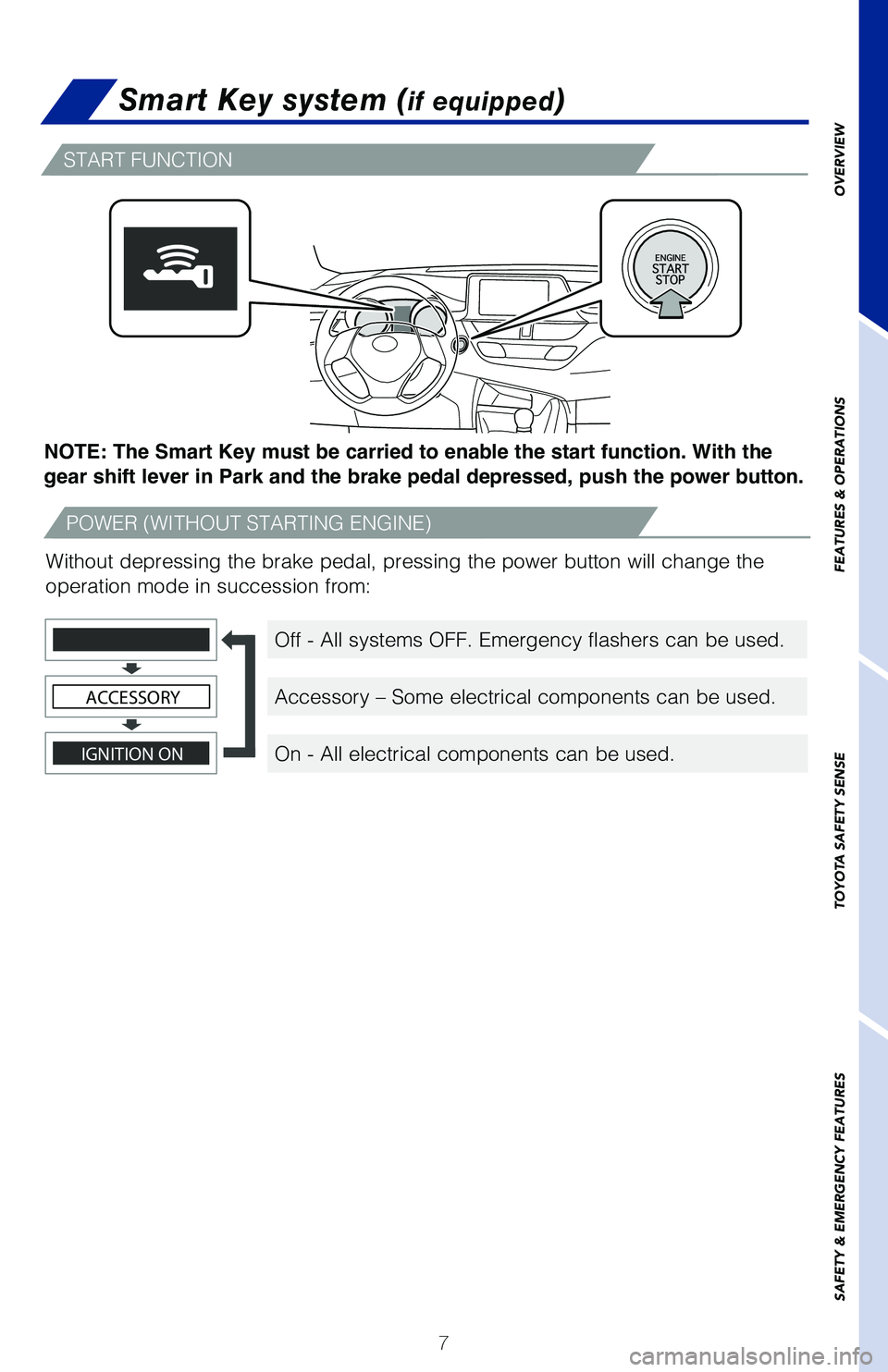

Smart Key system (if equipped)
START FUNCTION
POWER (WITHOUT STARTING ENGINE)
Off - All systems OFF. Emergency flashers can be used.
Accessory – Some electrical components can be used.
On - All electrical components can be used.
NOTE: The Smart Key must be carried to enable the start function. With the
gear shift lever in Park and the brake pedal depressed, push the power button.
Without depressing the brake pedal, pressing the power button will change the
operation mode in succession from:
IGNITION ON
ACCESSORY
64380_Txt_MY21_C-HR.indd 77/21/20 10:32 AM
Page 10 of 56
8
OVERVIEW
Slide latch lever
and raise hoodPull
NOTE: Tighten until one click is heard. If the cap is not locked or tightened,
check Engine “
” indicator may illuminate.
Push
Turn to open
Turn to closeStore
Insert rod to hold hood open

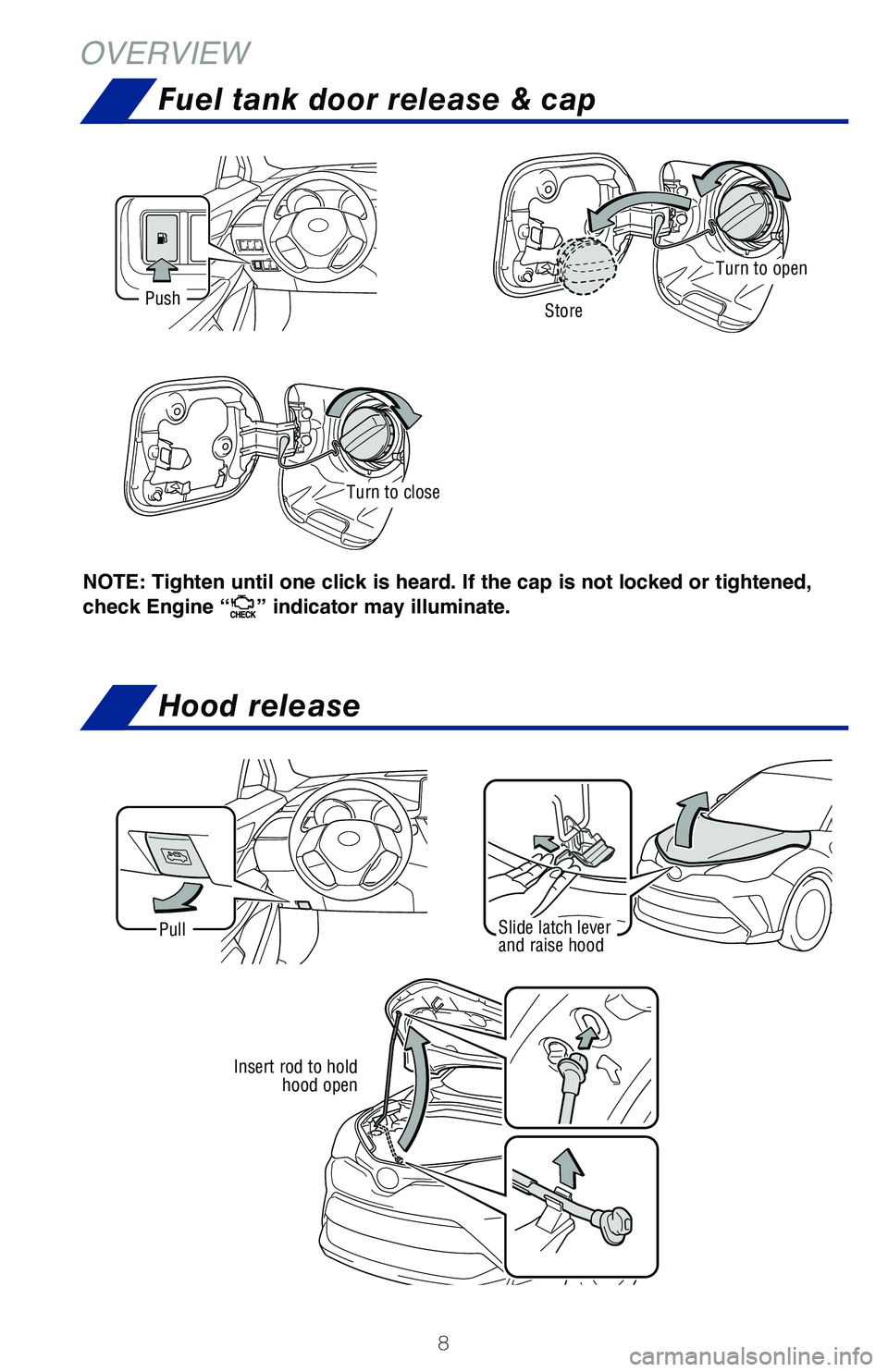

Fuel tank door release & cap
Hood release
64380_Txt_MY21_C-HR.indd 87/21/20 10:32 AM
