TOYOTA C-HR 2021 Owners Manual (in English)

4016-3. Do-it-yourself maintenance
6
Maintenance and care
C-HR_OM_USA_OM10684U
Checking and replacing fuses
Turn the engine switch off.
Open the fuse box cover.
Engine compartment type A fuse box
While pushing the 2 claws, lift
up the cover.
When closing the cover, make sure
to attach the 2 claws.
Engine compartment type B fuse box
While pushing the 3 claws, lift
up the cover.
When closing the cover, make sure
to attach the 3 claws.
Engine compartment type C fuse box
While pushing the 2 claws, lift
up the cover.
When closing the cover, make sure
to attach the 2 claws.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2

4026-3. Do-it-yourself maintenance
C-HR_OM_USA_OM10684U

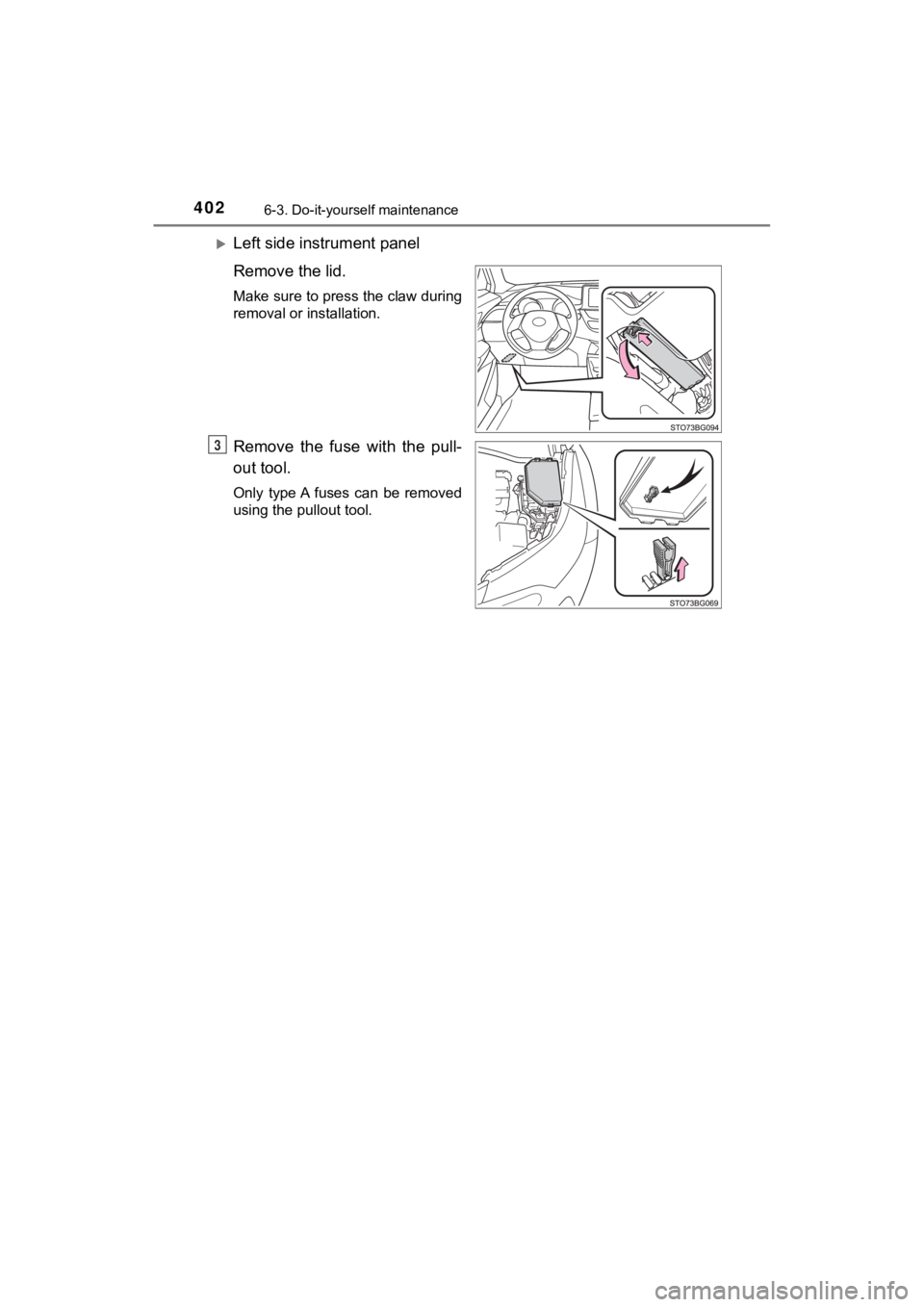

Left side instrument panel
Remove the lid.
Make sure to press the claw during
removal or installation.
Remove the fuse with the pull-
out tool.
Only type A fuses can be removed
using the pullout tool.
3

4036-3. Do-it-yourself maintenance
6
Maintenance and care
C-HR_OM_USA_OM10684U
Check if the fuse is blown.Normal fuse
Blown fuse
Except for type E:
Replace the blown fuse with a new fuse of an appropriate ampera ge rat-
ing. The amperage rating can be found on the fuse box lid.
Type E:
Contact your Toyota dealer.
4
Ty p e AType B
Ty p e CType D
Ty p e E

4046-3. Do-it-yourself maintenance
C-HR_OM_USA_OM10684U
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been repla ced, a bulb may
need replacement. ( P. 407)
● If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness f rom damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicate d, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired b y your
Toyota dealer as soon as possible.

4056-3. Do-it-yourself maintenance
6
Maintenance and care
C-HR_OM_USA_OM10684U

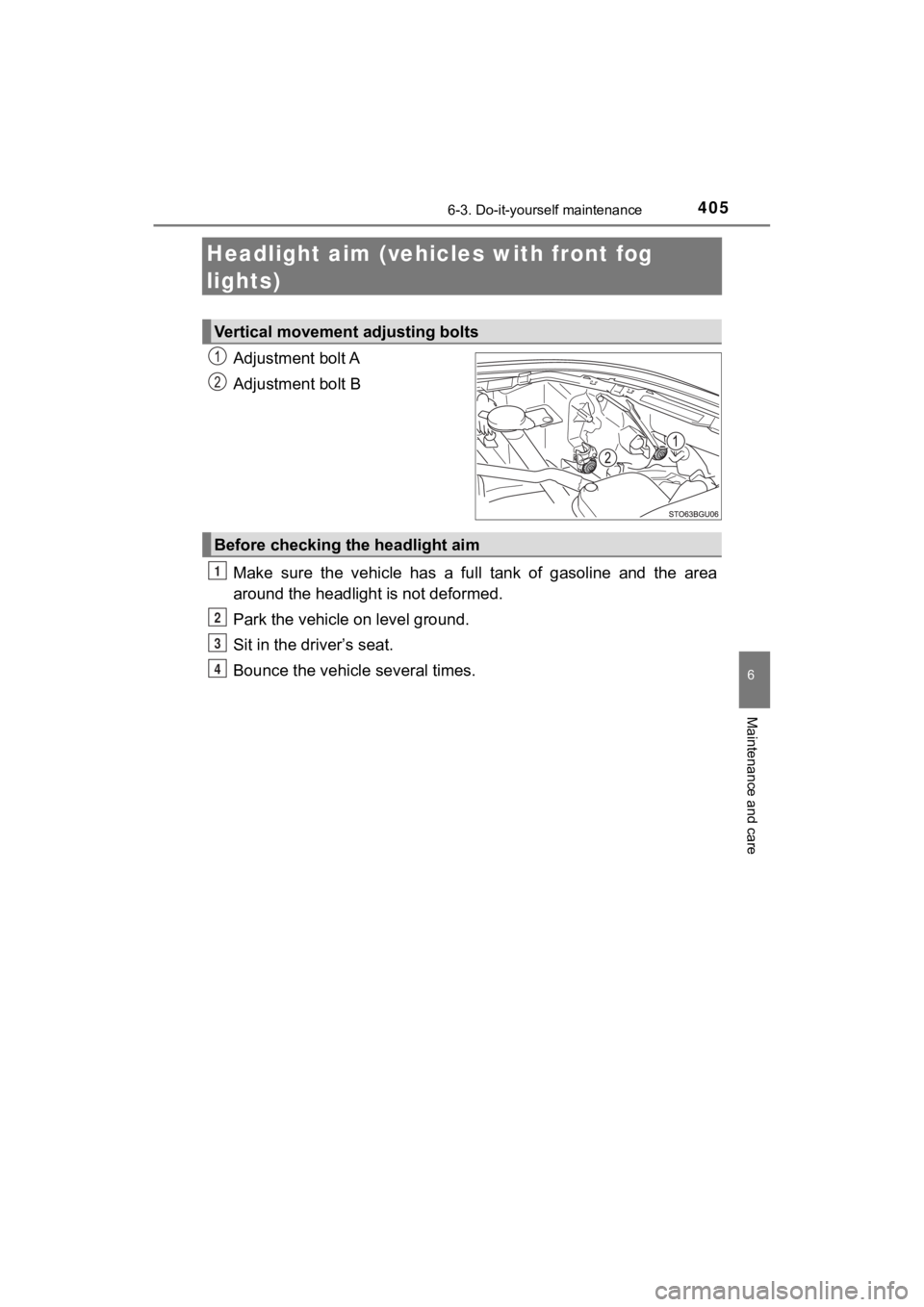

Headlight aim (vehicles with front fog
lights)
Adjustment bolt A
Adjustment bolt B
Make sure the vehicle has a full tank of gasoline and the area
around the headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.
Vertical movement adjusting bolts
Before checking the headlight aim
1
2
3
4

4066-3. Do-it-yourself maintenance
C-HR_OM_USA_OM10684U

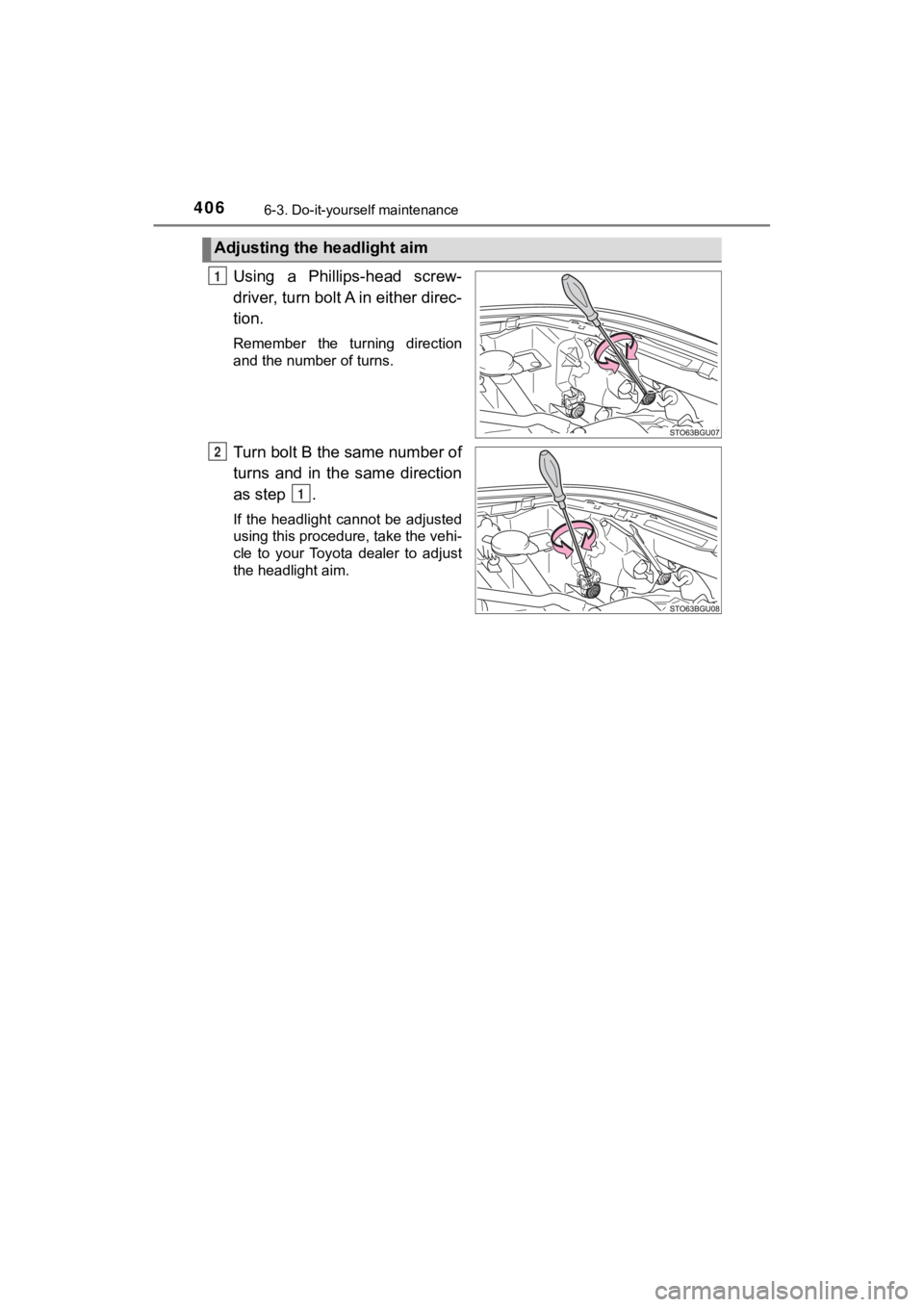

Using a Phillips-head screw-
driver, turn bolt A in either direc-
tion.
Remember the turning direction
and the number of turns.
Turn bolt B the same number of
turns and in the same direction
as step .
If the headlight cannot be adjusted
using this procedure, take the vehi-
cle to your Toyota dealer to adjust
the headlight aim.
Adjusting the headlight aim
1
2
1

4076-3. Do-it-yourself maintenance
6
Maintenance and care
C-HR_OM_USA_OM10684U

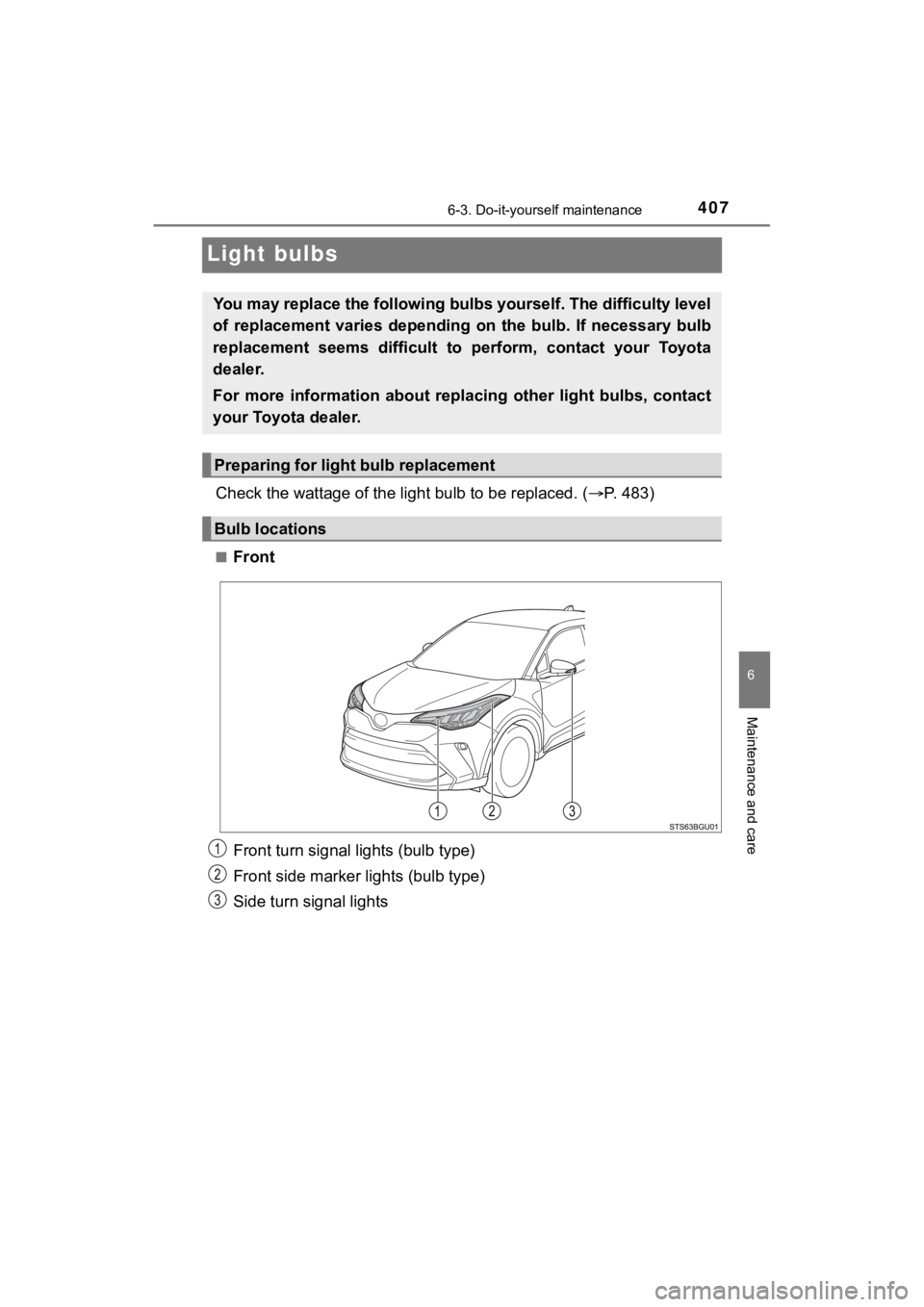

Light bulbs
Check the wattage of the light bulb to be replaced. ( P. 483)
■Front
Front turn signal lights (bulb type)
Front side marker lights (bulb type)
Side turn signal lights
You may replace the following bu lbs yourself. The difficulty level
of replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact your Toyota
dealer.
For more information about replacing other light bulbs, contact
your Toyota dealer.
Preparing for light bulb replacement
Bulb locations

4086-3. Do-it-yourself maintenance
C-HR_OM_USA_OM10684U■

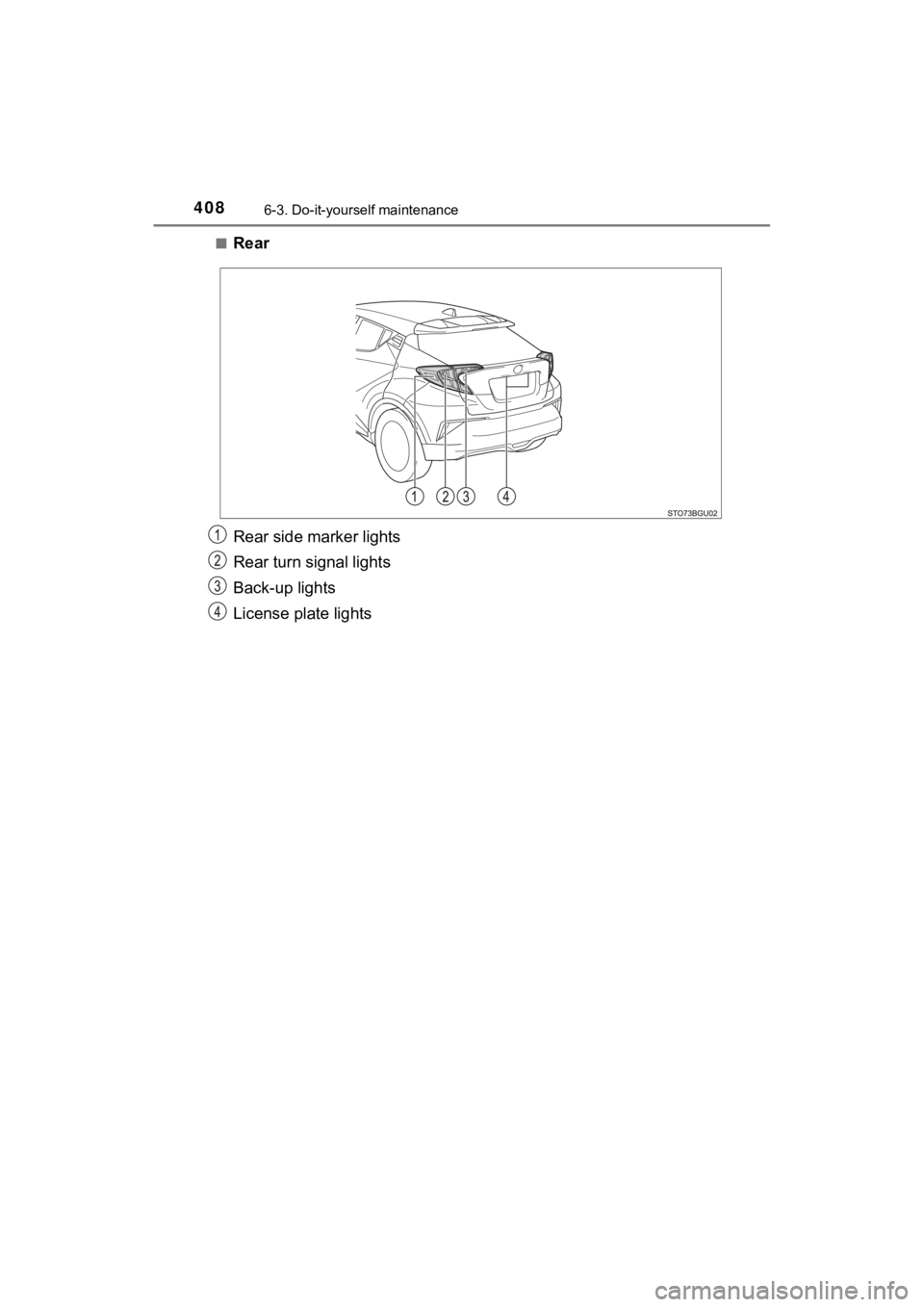

Rear
Rear side marker lights
Rear turn signal lights
Back-up lights
License plate lights

4096-3. Do-it-yourself maintenance
6
Maintenance and care
C-HR_OM_USA_OM10684U■

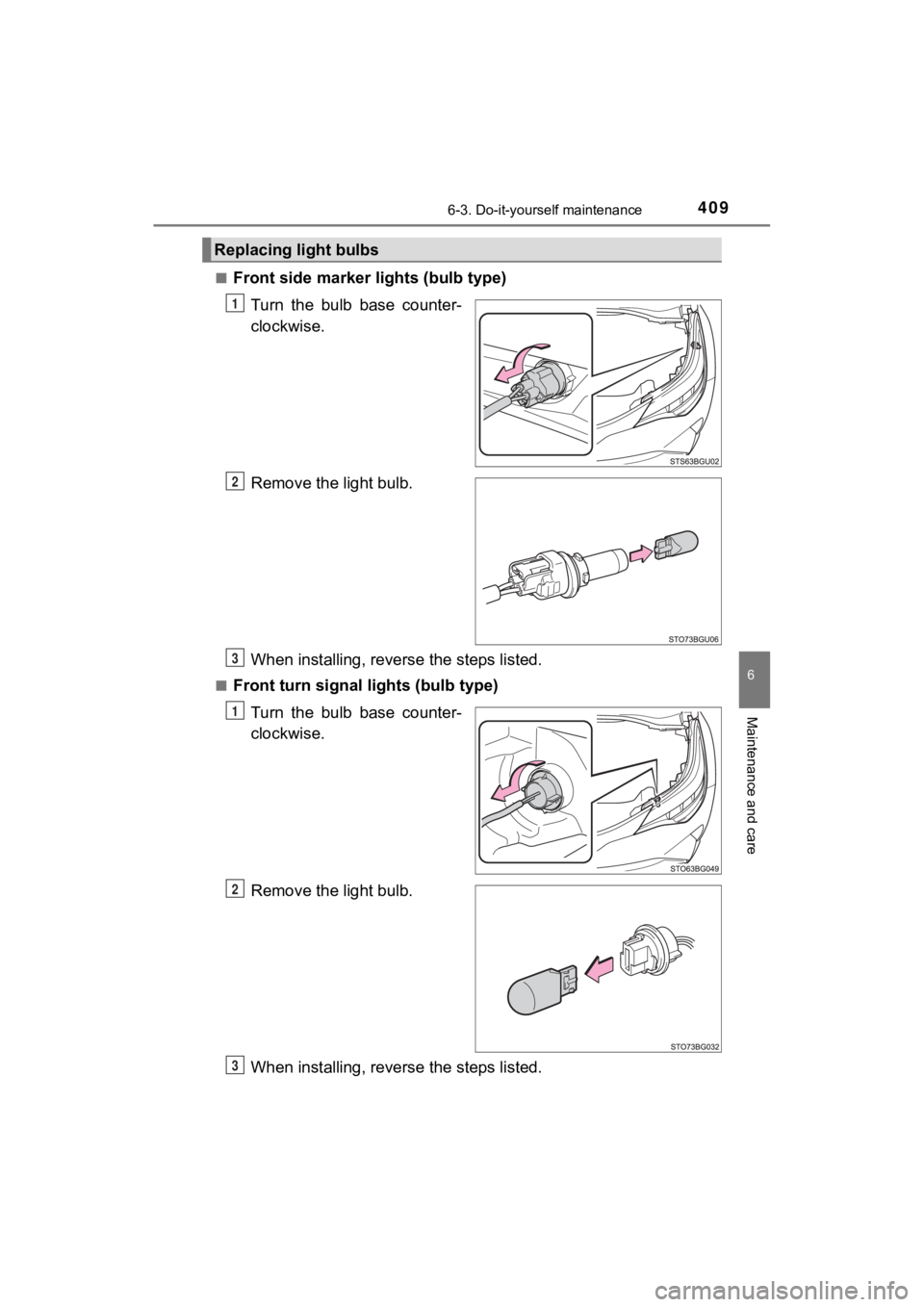

Front side marker l
ights (bulb type)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
■Front turn signal lights (bulb type) Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
Replacing light bulbs
1
2
3
1
2
3

4106-3. Do-it-yourself maintenance
C-HR_OM_USA_OM10684U■

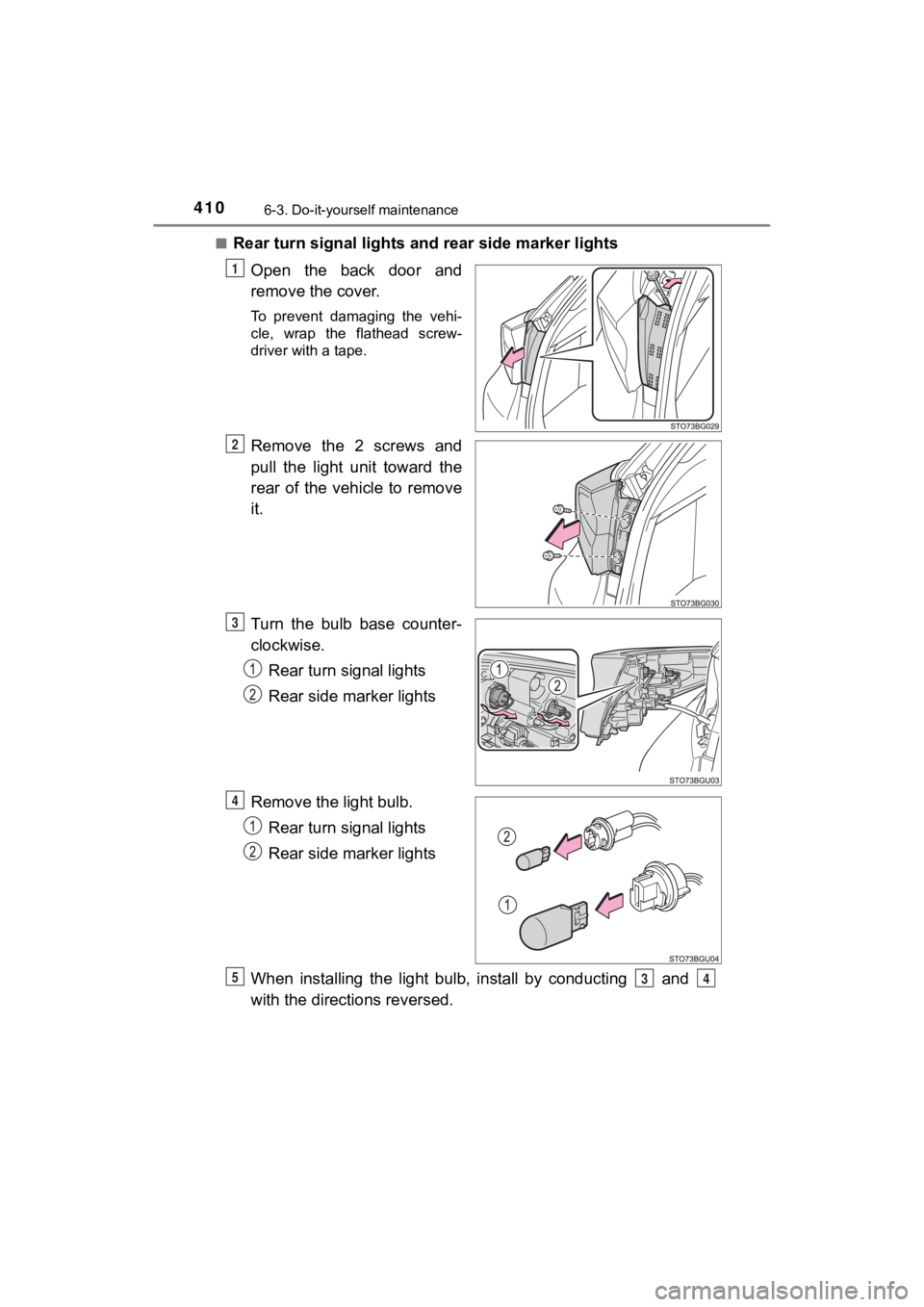

Rear turn signal lights and
rear side marker lights
Open the back door and
remove the cover.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Remove the 2 screws and
pull the light unit toward the
rear of the vehicle to remove
it.
Turn the bulb base counter-
clockwise. Rear turn signal lights
Rear side marker lights
Remove the light bulb. Rear turn signal lights
Rear side marker lights
When installing the light bulb, install by conducting and
with the directions reversed.
1
2
3
4
