Page 4 of 548
TABLE OF CONTENTS4
C-HR_OM_USA_OM10684U5-1. Using the air conditioning
system and defogger
Air conditioning system ..... 312
Heated steering wheel/ seat heaters .................... 321
5-2. Using the interior lights Interior lights list ................ 323• Interior lights ................. 324
• Personal lights .............. 325
5-3. Using the storage features List of storage features...... 326• Glove box...................... 327
• Console box .................. 327
• Bottle holders ................ 328
• Cup holders .................. 329
Luggage compartment features ........................... 330
5-4. Using the other interior features
Other interior features ....... 336 • Sun visors ..................... 336
• Vanity mirrors................ 336
• Power outlet .................. 337
• Assist grips ................... 338 6-1. Maintenance and care
Cleaning and protecting the vehicle exterior .......... 340
Cleaning and protecting the vehicle interior ................. 344
6-2. Maintenance Maintenance requirements ................... 347
General maintenance ........ 350
Emission inspection and maintenance (I/M)
programs ......................... 354
6-3. Do-it-yourself maintenance Do-it-yourself service precautions ...................... 355
Hood .................................. 358
Positioning a floor jack....... 360
Engine compartment ......... 361
Tires................................... 376
Tire inflation pressure ........ 386
Wheels............................... 390
Air conditioning filter .......... 393
Wireless remote control/ electronic key battery ...... 397
Checking and replacing fuses ................................ 401
Headlight aim (vehicles with front fog lights)................. 405
Light bulbs ......................... 407
5Interior features6Maintenance and care
Page 10 of 548
10
C-HR_OM_USA_OM10684UThe SRS airbag and seat belt pretensioner devices in your Toyot
a contain
explosive chemicals. If the vehicle is scrapped with the airbag s and seat belt
pretensioners left as they are, this may cause an accident such as a fire. Be
sure to have the systems of the SRS airbag and seat belt preten sioner
removed and disposed of by a qualified service shop or by your Toyota dealer
before you scrap your vehicle.
Special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These compo-
nents may include airbag, seat belt pretensioners, and wireless remote con-
trol batteries.
Scrapping of your Toyota
Perchlorate Material
WARNING
■ General precautions while driving
Driving under the influence: Never drive your vehicle when unde r the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judg ment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistake s that other
drivers or pedestrians might make and be ready to avoid acciden ts.
Driver distraction: Always give your full attention to driving. Anything that
distracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serio us injury to you,
your occupants or others.
■ General precaution regar ding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by p laying with
the windows, or other features of the vehicle. In addition, hea t build-up or
extremely cold temperatures inside the vehicle can be fatal to children.
Page 19 of 548
19Pictorial index
C-HR_OM_USA_OM10684UMeter control switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 100
Vehicle-to-vehicle distance switch . . . . . . . . . . . . . . . . . . . . P. 273
LTA (Lane Tracing Assist) switch . . . . . . . . . . . . . . . . . . . . . P. 246
Cruise control switch
Dynamic radar cruise control with full-speed range . . . . . . . . . P. 266
Talk switch
*2
Telephone switches*2
Audio remote control switches*2
*1: If equipped
*2: Refer to “MULTIMEDIA OWNER’S MANUAL”.
Page 112 of 548
1123-1. Key information
C-HR_OM_USA_OM10684U
Keys
The following keys are provided with the vehicle.
Vehicles without a smart key system
Key (with a wireless remote
control function)
Operating the wireless remote con-
trol function
Key number plate
Vehicles with a smart key system
Electronic keys
• Operating the smart key system
(P. 133)
• Operating the wireless remote control function
Mechanical keys
Key number plate
The keys
Page 113 of 548
1133-1. Key information
3
Operation of each component
C-HR_OM_USA_OM10684U
Vehicles without a smart key system
Locks all the doors
(P. 120)
Sounds the alarm ( P. 1 1 4)
Unlocks the door (P. 120)
Pressing the button unlocks the
driver’s door. Pressing the button
again within 3 seconds unlocks the
other doors.
Opens the windows* ( P. 1 2 0)
*: These settings must be customized at your Toyota dealer.
Vehicles with a smart key system
Locks all the doors
(P. 120)
Sounds the alarm ( P. 1 1 4)
Unlocks the door (P. 120)
Pressing the button unlocks the
driver’s door. Pressing the button
again within 3 seconds unlocks the
other doors.
Opens the windows* ( P. 1 2 0)
*: These settings must be customized at your Toyota dealer.
Press the button to open the key.
To stow, press the button then fold
the key.
Wireless remote control
Using the key (vehicles without a smart key system)
Page 114 of 548
1143-1. Key information
C-HR_OM_USA_OM10684U
To take out the mechanical key,
slide the release lever and take
the key out.
The mechanical key can only be
inserted in one direction, as the
key only has grooves on one side.
If the key cannot be inserted in a
lock cylinder, turn it over and re-
attempt to insert it.
After using the mechanical key, store it in the electronic key. Carry the
mechanical key together with the electronic key. If the electro nic key bat-
tery is depleted or the entry function does not operate properl y, you will
need the mechanical key. ( P. 462)
■Panic mode
■ If you lose your keys
New genuine keys can be made by your Toyota dealer using the ot her key
(vehicles without a smart key system) or mechanical key (vehicles with a
smart key system) and the key number stamped on your key number plate.
Keep the plate in a safe place such as your wallet, not in the vehicle.
Using the mechanical key (vehicles with a smart key system)
When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on the
key (with a wireless remote control func-
tion) or electronic key.
Page 115 of 548
1153-1. Key information
3
Operation of each component
C-HR_OM_USA_OM10684U■
When riding in an aircraft
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag, etc., ensure th at the buttons are
not likely to be pressed accidentally. Pressing a button may cause the key to
emit radio waves that could interfere with the operation of the aircraft.
■ Conditions affecting the operation of the smart key system or w ireless
remote control
Vehicles without a smart key system
The wireless remote control function may not operate normally i n the follow-
ing situations:
● When the wireless key battery is depleted
● Near a TV tower, electric power plant, gas station, radio stati on, large dis-
play, airport or other facility that generates strong radio wav es or electrical
noise
● When carrying a portable radio, cellular phone or other wireles s communi-
cation devices
● When multiple wireless keys are in the vicinity
● When the wireless key is in contact with, or is covered by a me tallic object
● When a wireless key (that emits radio waves) is being used near by
● When the wireless key has been left near an electrical applianc e such as a
personal computer
● If window tint with a metallic content or metallic objects are attached to the
rear window
Vehicles with a smart key system
P. 136
Page 116 of 548
1163-1. Key information
C-HR_OM_USA_OM10684U■
Key battery depletion
Vehicles without a smart key system
If the wireless remote control function does not operate, the b attery may be
depleted. Replace the battery when necessary. ( P. 397)
Vehicles with a smart key system
● The standard battery life is 1 to 2 years.
● If the battery becomes low, an alarm will sound in the cabin wh en the engine
stops. ( P. 397)
● As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. ( P. 397)
• The smart key system or the wireless remote control does not o perate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
The battery can be exchanged by the users. ( P. 397) However, as there
may be damage to the key when exchanging, it is recommended to have
the battery exchanged at your Toyota Dealer.
● To avoid serious deterioration, do not leave the electronic key within 3 ft.
(1 m) of the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers
■ When the key battery is fully depleted
P. 397
■ Confirmation of the registered key number (vehicles with a smar t key
system)
The number of keys already registered to the vehicle can be confirmed. Ask
your Toyota dealer for details.
■ Customization
Settings (e.g. wireless remote control system) can be changed.
(Customizable features: P. 504)
Page 117 of 548
1173-1. Key information
3
Operation of each component
C-HR_OM_USA_OM10684U■

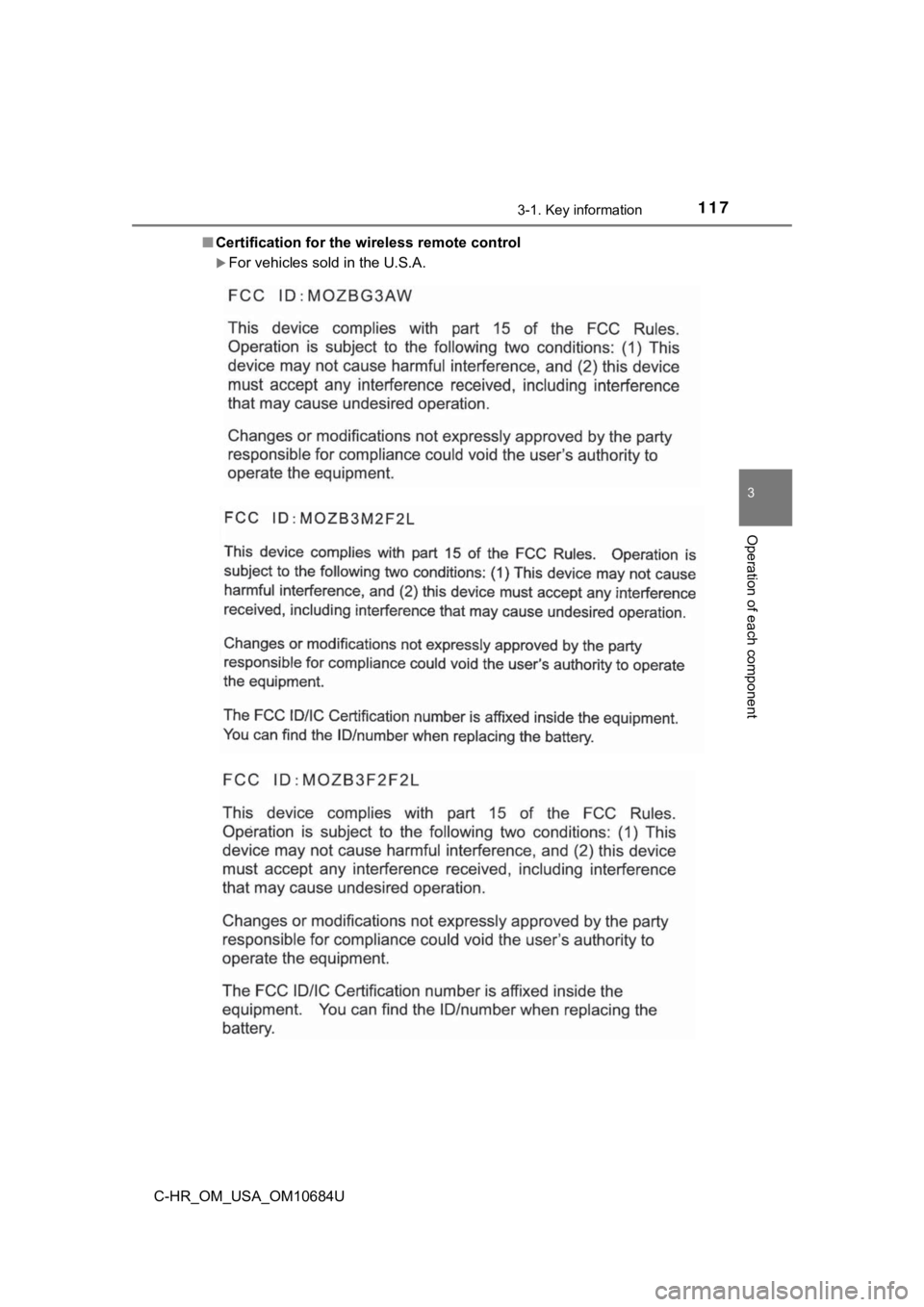

Certification for the wireless remote control
For vehicles sold in the U.S.A.
Page 119 of 548
1193-1. Key information
3
Operation of each component
C-HR_OM_USA_OM10684U
NOTICE
■To prevent key damage
● Do not drop the keys, subject them to strong shocks, or bend them.
● Do not expose the keys to high temperatures for long periods of time.
● Do not get the keys wet or wash them in an ultrasonic washer, e tc.
● Do not attach metallic or magnetic materials to the keys or pla ce the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else to the surface of the electronic key
and key (with a wireless remote control function).
● Vehicles with a smart key system: Do not place the keys near ob jects that
produce magnetic fields, such as TVs, audio systems and inducti on cook-
ers, or medical electrical equipment, such as low-frequency the rapy equip-
ment.
■ Carrying the electronic key on your person (vehicles with a sma rt key
system)
Carry the electronic key 3.9 in. (10 cm) or more away from elec tric appli-
ances that are turned on. Radio waves emitted from electric app liances
within 3.9 in. (10 cm) of the electronic key may interfere with the key, caus-
ing the key to not function properly.
■ In case of a smart key system malfunction or other key-related prob-
lems (vehicles with a smart key system)
Take your vehicle with all the electronic keys provided with yo ur vehicle to
your Toyota dealer.
■ When an electronic key is lost (vehicles with a smart key system)
If the electronic key remains lost, the risk of vehicle theft i ncreases signifi-
cantly. Visit your Toyota dealer immediately with all remaining electronic
keys that were provided with your vehicle.
