39Maintenance Log
MAINTENANCE LOG
MAINTENANCE
15,000 miles or 18 months
■Check installation of driver’s floor mat
■������� ��� ������ ��� ����� �������
■������� ����� ������
■������ �����
■ �������� ������� ����� ������������� ��� ����� ����������
NOTE: If 0W-20 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Inspect the following: _Ball joints and dust covers _ Exhaust pipes and mountings _Brake lines and hoses _ Radiator and condenser _Cabin air filter _ Steering gear _Drive shaft boots _ Steering linkage and boots _Engine coolant4
NOTE: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten the life of the cabin air filter. Replacement may be needed if you notice reduced airflow from the air conditioner and heater or if the windows fog easily when you use the “Fresh” mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads: ■Inspect engine air filter
■������� ������ ��� ��� ��� �������
■������� ���� ��� ����� �� ������� ��� ����
Driving while towing, using a car-top carrier, or heavy vehicle loading:5
■Replace engine oil and oil filter2
■ ������� ���� ��� ����� �� ������� ��� ����
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
■Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use:
■Replace engine oil and oil filter2
Dealer Service verification:
Date:Mileage:
1 inspect sealed transmissions, transfer cases and differentials for signs of leakage. if any leakage from a sealed component is suspected, it is recommended that you have the sealed component inspected by a toyota dealer. inspect power steering fluid (if equipped) and brake fluid level/condition. inspect engine and inverter (if equipped) coolant level/condition/freezing point. Your dealer may recommend services (Dealer-recommended Maintenance) based on inspection results.2 reset the oil replacement reminder light (“Maint reQD”) or the message “oil Maintenance reQUireD” on the multi-information display after maintenance at every 5,000 miles.3 Perform these service items only if you drive primarily under the conditions indicated.4 refer to “engine coolant” in the “explanation of Maintenance items” section in the back of this guide for more information.5 not all vehicles are designed for towing. refer to your vehicle Owner’s Manual for details.
126976_19-TCS-14199 MY 21 WMG CHR_GUTS 1_R1.indd 39126976_19-TCS-14199 MY 21 WMG CHR_GUTS 1_R1.indd 397/22/20 2:58 PM7/22/20 2:58 PM

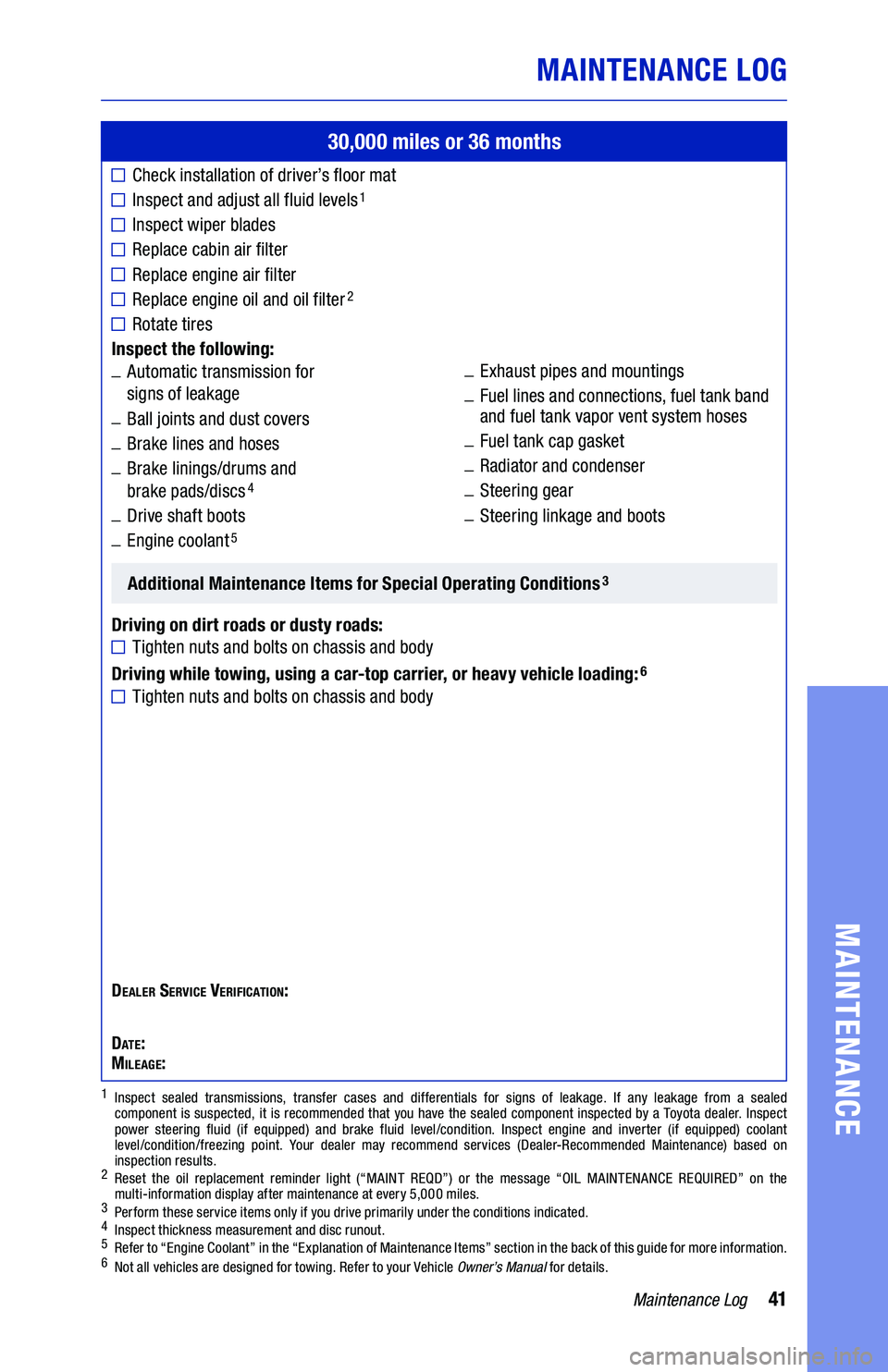

41Maintenance Log
MAINTENANCE LOG
MAINTENANCE
30,000 miles or 36 months
■Check installation of driver’s floor mat
■������� ��� ������ ��� ����� �������
■������� ����� ������
■������� ����� ��� ������
■������� ������ ��� ������
■������� ������ ��� ��� ��� �������
■������ �����
Inspect the following: _ Automatic transmission for signs of leakage _Ball joints and dust covers _Brake lines and hoses _ Brake linings/drums and brake pads/discs4
_Drive shaft boots _Engine coolant5
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads: ■Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
■Tighten nuts and bolts on chassis and body
Dealer Service verification:
Date:Mileage:
_exhaust pipes and mountings _ fuel lines and connections, fuel tank band and fuel tank vapor vent system hoses _fuel tank cap gasket _radiator and condenser _Steering gear _Steering linkage and boots
1 inspect sealed transmissions, transfer cases and differentials for signs of leakage. if any leakage from a sealed component is suspected, it is recommended that you have the sealed component inspected by a toyota dealer. inspect power steering fluid (if equipped) and brake fluid level/condition. inspect engine and inverter (if equipped) coolant level/condition/freezing point. Your dealer may recommend services (Dealer-recommended Maintenance) based on inspection results.2 reset the oil replacement reminder light (“Maint reQD”) or the message “oil Maintenance reQUireD” on the multi-information display after maintenance at every 5,000 miles.3 Perform these service items only if you drive primarily under the conditions indicated.4 inspect thickness measurement and disc runout.5 refer to “engine coolant” in the “explanation of Maintenance items” section in the back of this guide for more information.6 not all vehicles are designed for towing. refer to your vehicle Owner’s Manual for details.
126976_19-TCS-14199 MY 21 WMG CHR_GUTS 1_R1.indd 41126976_19-TCS-14199 MY 21 WMG CHR_GUTS 1_R1.indd 417/22/20 2:58 PM7/22/20 2:58 PM

43Maintenance Log
MAINTENANCE LOG
MAINTENANCE
45,000 miles or 54 months
■Check installation of driver’s floor mat
■������� ��� ������ ��� ����� �������
■������� ����� ������
■������ �����
■ �������� ������� ����� ������������� ��� ����� ����������
NOTE: If 0W-20 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Inspect the following: _Ball joints and dust covers _ Exhaust pipes and mountings _Brake lines and hoses _ Radiator and condenser _Cabin air filter _ Steering gear _Drive shaft boots _ Steering linkage and boots _Engine coolant4
NOTE: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten the life of the cabin air filter. Replacement may be needed if you notice reduced airflow from the air conditioner and heater or if the windows fog easily when you use the “Fresh” mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads: ■Inspect engine air filter
■������� ������ ��� ��� ��� �������
■������� ���� ��� ����� �� ������� ��� ����
Driving while towing, using a car-top carrier, or heavy vehicle loading:5
■Replace engine oil and oil filter2
■ ������� ���� ��� ����� �� ������� ��� ����
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
■Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use:
■Replace engine oil and oil filter2
Dealer Service verification:
Date:Mileage:
1 inspect sealed transmissions, transfer cases and differentials for signs of leakage. if any leakage from a sealed component is suspected, it is recommended that you have the sealed component inspected by a toyota dealer. inspect power steering fluid (if equipped) and brake fluid level/condition. inspect engine and inverter (if equipped) coolant level/condition/freezing point. Your dealer may recommend services (Dealer-recommended Maintenance) based on inspection results.2 reset the oil replacement reminder light (“Maint reQD”) or the message “oil Maintenance reQUireD” on the multi-information display after maintenance at every 5,000 miles.3 Perform these service items only if you drive primarily under the conditions indicated.4 refer to “engine coolant” in the “explanation of Maintenance items” section in the back of this guide for more information.5 not all vehicles are designed for towing. refer to your vehicle Owner’s Manual for details.
126976_19-TCS-14199 MY 21 WMG CHR_GUTS 1_R1.indd 43126976_19-TCS-14199 MY 21 WMG CHR_GUTS 1_R1.indd 437/22/20 2:58 PM7/22/20 2:58 PM

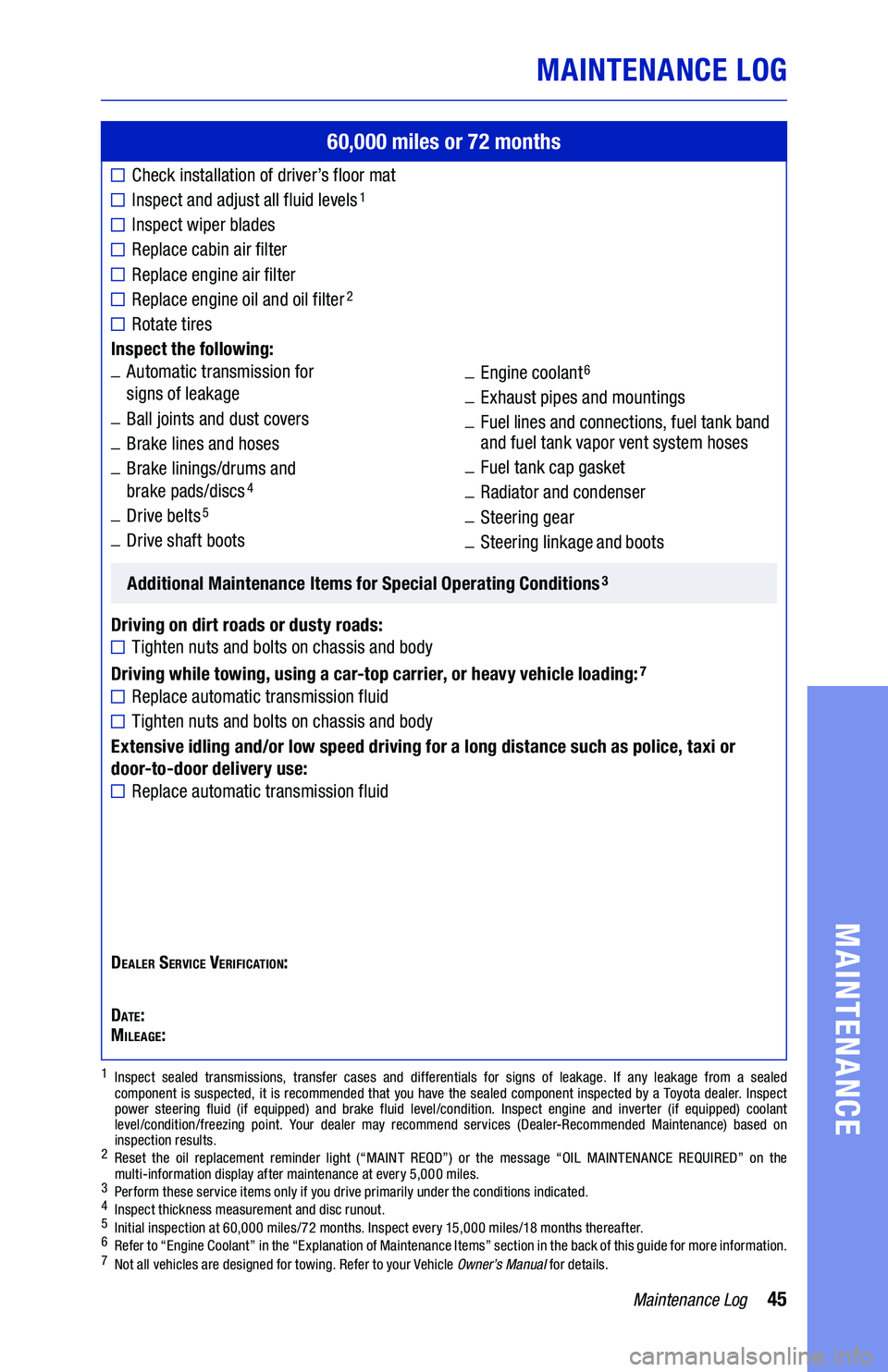

45Maintenance Log
MAINTENANCE LOG
MAINTENANCE
60,000 miles or 72 months
■Check installation of driver’s floor mat
■������� ��� ������ ��� ����� �������
■������� ����� ������
■������� ����� ��� ������
■������� ������ ��� ������
■������� ������ ��� ��� ��� �������
■������ �����
Inspect the following: _ Automatic transmission for signs of leakage _Ball joints and dust covers _Brake lines and hoses _ Brake linings/drums and brake pads/discs4
_Drive belts5
_Drive shaft boots
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads: ■Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:7
■Replace automatic transmission fluid
■������� ���� ��� ����� �� ������� ��� ����
Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use:
■Replace automatic transmission fluid
Dealer Service verification:
Date:Mileage:
_engine coolant6
_exhaust pipes and mountings _ fuel lines and connections, fuel tank band and fuel tank vapor vent system hoses _fuel tank cap gasket _radiator and condenser _Steering gear _Steering linkage and boots
1 inspect sealed transmissions, transfer cases and differentials for signs of leakage. if any leakage from a sealed component is suspected, it is recommended that you have the sealed component inspected by a toyota dealer. inspect power steering fluid (if equipped) and brake fluid level/condition. inspect engine and inverter (if equipped) coolant level/condition/freezing point. Your dealer may recommend services (Dealer-recommended Maintenance) based on inspection results.2 reset the oil replacement reminder light (“Maint reQD”) or the message “oil Maintenance reQUireD” on the multi-information display after maintenance at every 5,000 miles.3 Perform these service items only if you drive primarily under the conditions indicated.4 inspect thickness measurement and disc runout.5 initial inspection at 60,000 miles/ 72 months. inspect every 15,000 miles/18 months thereafter. 6 refer to “engine coolant” in the “explanation of Maintenance items” section in the back of this guide for more information.7 not all vehicles are designed for towing. refer to your vehicle Owner’s Manual for details.
126976_19-TCS-14199 MY 21 WMG CHR_GUTS 1_R1.indd 45126976_19-TCS-14199 MY 21 WMG CHR_GUTS 1_R1.indd 457/22/20 2:58 PM7/22/20 2:58 PM

47Maintenance Log
MAINTENANCE LOG
MAINTENANCE
75,000 miles or 90 months
■Check installation of driver’s floor mat
■������� ��� ������ ��� ����� �������
■������� ����� ������
■������ �����
■ �������� ������� ����� ������������� ��� ����� ����������
NOTE: If 0W-20 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Inspect the following: _Ball joints and dust covers _ Engine coolant4
_Brake lines and hoses _ Exhaust pipes and mountings _Cabin air filter _ Radiator and condenser _Drive belts _ Steering gear _Drive shaft boots _ Steering linkage and boots
NOTE: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten the life of the cabin air filter. Replacement may be needed if you notice reduced airflow from the air conditioner and heater or if the windows fog easily when you use the “Fresh” mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads: ■Inspect engine air filter
■������� ������ ��� ��� ��� �������
■������� ���� ��� ����� �� ������� ��� ����
Driving while towing, using a car-top carrier, or heavy vehicle loading:5
■Replace engine oil and oil filter2
■ ������� ���� ��� ����� �� ������� ��� ����
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
■Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use:
■Replace engine oil and oil filter2
Dealer Service verification:
Date:Mileage:
1 inspect sealed transmissions, transfer cases and differentials for signs of leakage. if any leakage from a sealed component is suspected, it is recommended that you have the sealed component inspected by a toyota dealer. inspect power steering fluid (if equipped) and brake fluid level/condition. inspect engine and inverter (if equipped) coolant level/condition/freezing point. Your dealer may recommend services (Dealer-recommended Maintenance) based on inspection results.2 reset the oil replacement reminder light (“Maint reQD”) or the message “oil Maintenance reQUireD” on the multi-information display after maintenance at every 5,000 miles.3 Perform these service items only if you drive primarily under the conditions indicated.4 refer to “engine coolant” in the “explanation of Maintenance items” section in the back of this guide for more information.5 not all vehicles are designed for towing. refer to your vehicle Owner’s Manual for details.
126976_19-TCS-14199 MY 21 WMG CHR_GUTS 1_R1.indd 47126976_19-TCS-14199 MY 21 WMG CHR_GUTS 1_R1.indd 477/22/20 2:58 PM7/22/20 2:58 PM

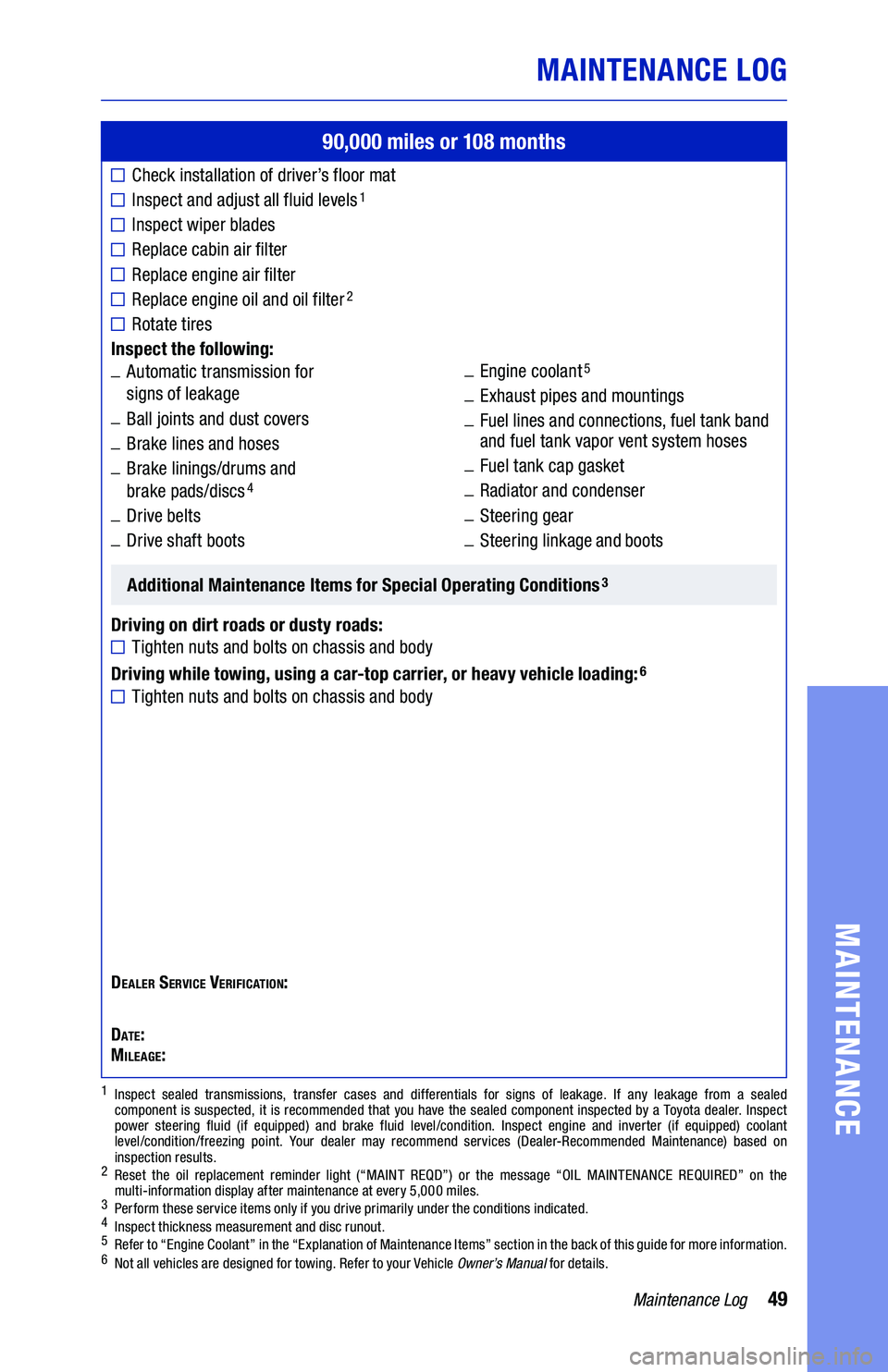

49Maintenance Log
MAINTENANCE LOG
MAINTENANCE
90,000 miles or 108 months
■Check installation of driver’s floor mat
■������� ��� ������ ��� ����� �������
■������� ����� ������
■������� ����� ��� ������
■������� ������ ��� ������
■������� ������ ��� ��� ��� �������
■������ �����
Inspect the following: _ Automatic transmission for signs of leakage _Ball joints and dust covers _Brake lines and hoses _ Brake linings/drums and brake pads/discs4
_Drive belts _Drive shaft boots
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads: ■Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
■Tighten nuts and bolts on chassis and body
Dealer Service verification:
Date:Mileage:
_engine coolant5
_exhaust pipes and mountings _ fuel lines and connections, fuel tank band and fuel tank vapor vent system hoses _fuel tank cap gasket _radiator and condenser _Steering gear _Steering linkage and boots
1 inspect sealed transmissions, transfer cases and differentials for signs of leakage. if any leakage from a sealed component is suspected, it is recommended that you have the sealed component inspected by a toyota dealer. inspect power steering fluid (if equipped) and brake fluid level/condition. inspect engine and inverter (if equipped) coolant level/condition/freezing point. Your dealer may recommend services (Dealer-recommended Maintenance) based on inspection results.2 reset the oil replacement reminder light (“Maint reQD”) or the message “oil Maintenance reQUireD” on the multi-information display after maintenance at every 5,000 miles.3 Perform these service items only if you drive primarily under the conditions indicated.4 inspect thickness measurement and disc runout.5 refer to “engine coolant” in the “explanation of Maintenance items” section in the back of this guide for more information.6 not all vehicles are designed for towing. refer to your vehicle Owner’s Manual for details.
126976_19-TCS-14199 MY 21 WMG CHR_GUTS 1_R1.indd 49126976_19-TCS-14199 MY 21 WMG CHR_GUTS 1_R1.indd 497/22/20 2:58 PM7/22/20 2:58 PM

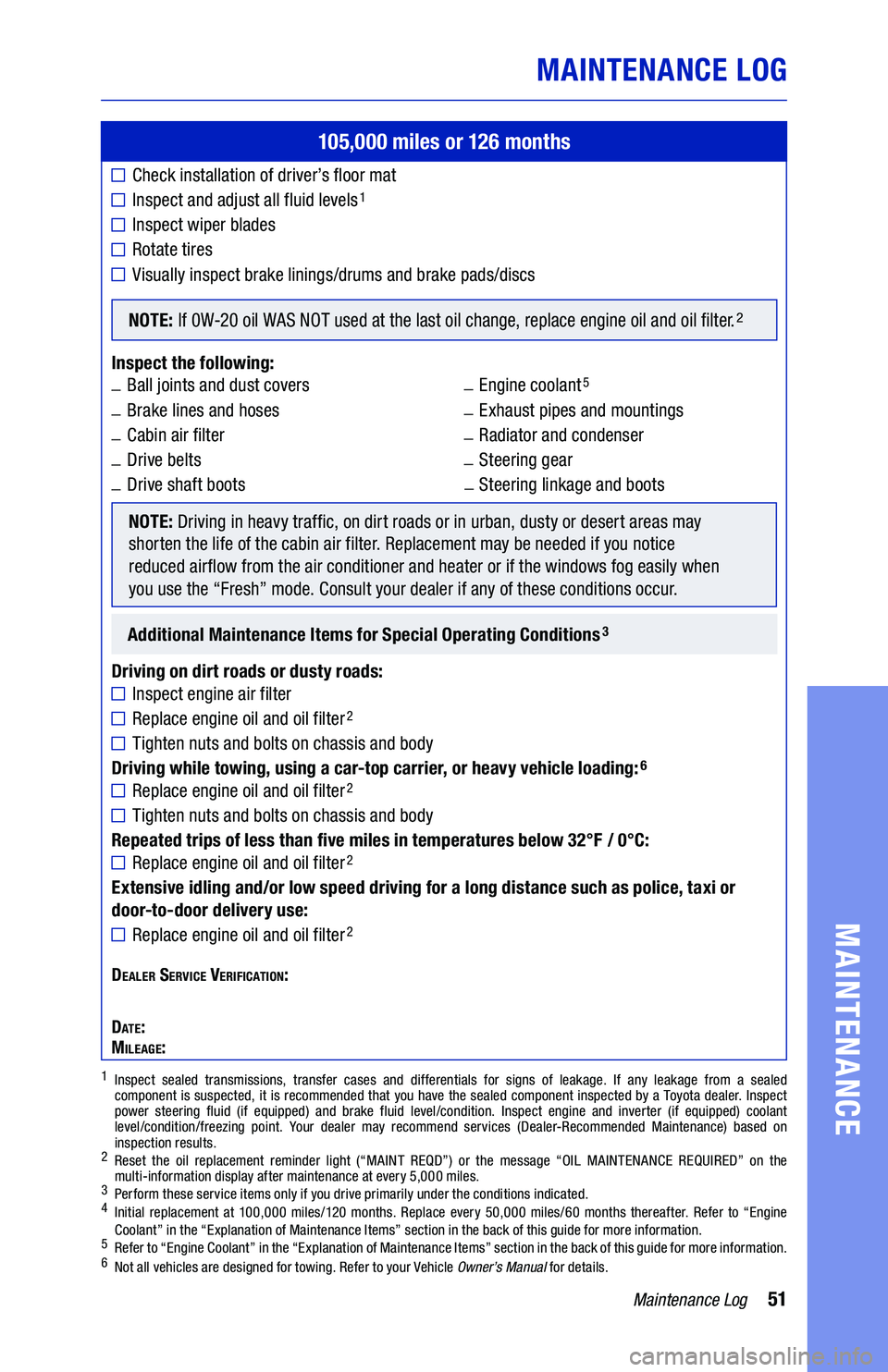

51Maintenance Log
MAINTENANCE LOG
MAINTENANCE
105,000 miles or 126 months
■Check installation of driver’s floor mat
■������� ��� ������ ��� ����� �������
■������� ����� ������
■������ �����
■ �������� ������� ����� ������������� ��� ����� ����������
NOTE: If 0W-20 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Inspect the following: _Ball joints and dust covers _ Engine coolant5
_Brake lines and hoses _ Exhaust pipes and mountings _Cabin air filter _ Radiator and condenser _Drive belts _ Steering gear _Drive shaft boots _ Steering linkage and boots
NOTE: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten the life of the cabin air filter. Replacement may be needed if you notice reduced airflow from the air conditioner and heater or if the windows fog easily when you use the “Fresh” mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads: ■Inspect engine air filter
■������� ������ ��� ��� ��� �������
■������� ���� ��� ����� �� ������� ��� ����
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
■Replace engine oil and oil filter2
■ ������� ���� ��� ����� �� ������� ��� ����
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
■Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use:
■Replace engine oil and oil filter2
Dealer Service verification:
Date:Mileage:
1 inspect sealed transmissions, transfer cases and differentials for signs of leakage. if any leakage from a sealed component is suspected, it is recommended that you have the sealed component inspected by a toyota dealer. inspect power steering fluid (if equipped) and brake fluid level/condition. inspect engine and inverter (if equipped) coolant level/condition/freezing point. Your dealer may recommend services (Dealer-recommended Maintenance) based on inspection results.2 reset the oil replacement reminder light (“Maint reQD”) or the message “oil Maintenance reQUireD” on the multi-information display after maintenance at every 5,000 miles.3 Perform these service items only if you drive primarily under the conditions indicated.4 initial replacement at 100,000 miles/120 months. replace every 50,000 miles/60 months thereafter. refer to “engine coolant” in the “explanation of Maintenance items” section in the back of this guide for more information.5 refer to “engine coolant” in the “explanation of Maintenance items” section in the back of this guide for more information.6 not all vehicles are designed for towing. refer to your vehicle Owner’s Manual for details.
126976_19-TCS-14199 MY 21 WMG CHR_GUTS 1_R1.indd 51126976_19-TCS-14199 MY 21 WMG CHR_GUTS 1_R1.indd 517/22/20 2:58 PM7/22/20 2:58 PM

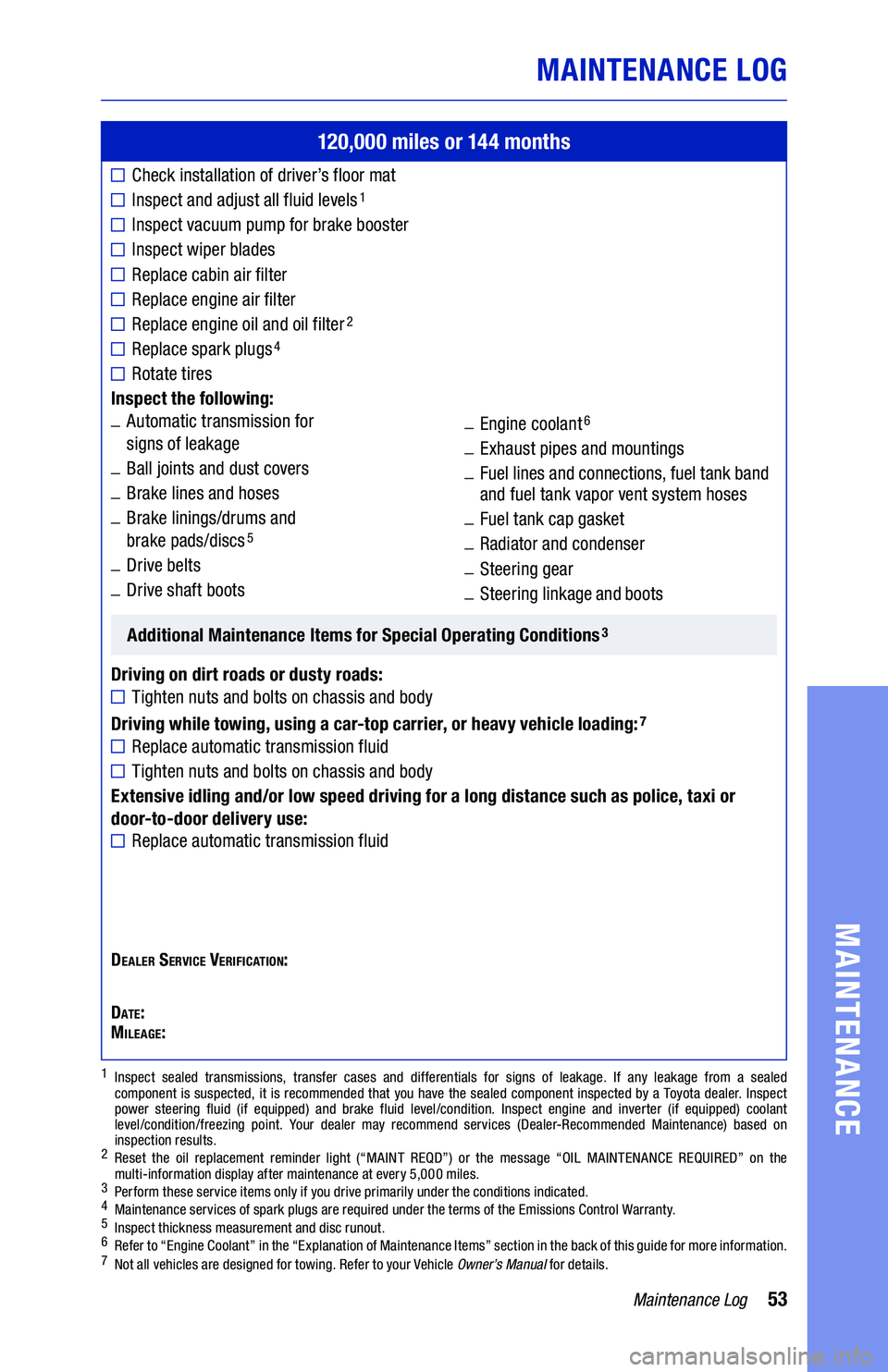

53Maintenance Log
MAINTENANCE LOG
MAINTENANCE
120,000 miles or 144 months
■Check installation of driver’s floor mat
■������� ��� ������ ��� ����� �������
■������� ������ ���� ��� ����� �������
■������� ����� ������
■������� ����� ��� ������
■������� ������ ��� ������
■������� ������ ��� ��� ��� �������
■������� ����� ������
■������ �����
Inspect the following: _ Automatic transmission for signs of leakage _Ball joints and dust covers _Brake lines and hoses _ Brake linings/drums and brake pads/discs5
_Drive belts _Drive shaft boots
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads: ■Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:7
■Replace automatic transmission fluid
■������� ���� ��� ����� �� ������� ��� ����
Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use:
■Replace automatic transmission fluid
Dealer Service verification:
Date:Mileage:
_engine coolant6
_exhaust pipes and mountings _ fuel lines and connections, fuel tank band and fuel tank vapor vent system hoses _fuel tank cap gasket _radiator and condenser _Steering gear _Steering linkage and boots
1 inspect sealed transmissions, transfer cases and differentials for signs of leakage. if any leakage from a sealed component is suspected, it is recommended that you have the sealed component inspected by a toyota dealer. inspect power steering fluid (if equipped) and brake fluid level/condition. inspect engine and inverter (if equipped) coolant level/condition/freezing point. Your dealer may recommend services (Dealer-recommended Maintenance) based on inspection results.2 reset the oil replacement reminder light (“Maint reQD”) or the message “oil Maintenance reQUireD” on the multi-information display after maintenance at every 5,000 miles.3 Perform these service items only if you drive primarily under the conditions indicated.4 Maintenance services of spark plugs are required under the terms of the emissions control Warranty. 5 inspect thickness measurement and disc runout.6 refer to “engine coolant” in the “explanation of Maintenance items” section in the back of this guide for more information.7 not all vehicles are designed for towing. refer to your vehicle Owner’s Manual for details.
126976_19-TCS-14199 MY 21 WMG CHR_GUTS 1_R1.indd 53126976_19-TCS-14199 MY 21 WMG CHR_GUTS 1_R1.indd 537/22/20 2:58 PM7/22/20 2:58 PM

55Maintenance Log
MAINTENANCE
Drive Shaft Boots
Check the drive shaft boots and clamps for
cracks, deterioration and damage. Replace
any deteriorated or damaged parts and, if
necessary, repack the grease. A qualified
technician should perform these operations.
Driver’s Floor Mat
• Only use the driver’s floor mat
designed specifically for the model
and model year of your vehicle.
• Always properly secure the driver’s
floor mat using the retaining hooks.
• Never install another floor mat on top
of the existing driver’s floor mat.
• Never install the driver’s floor mat
upside down.
Engine Air Filter
Inspect or replace at specified intervals.
When performing inspections, check for
damage, excessive wear and oiliness, and
replace if necessary.
Engine Coolant
Drain the cooling system and refill with an
ethylene-glycol type coolant. Inspect hoses
and connections for corrosion and leaks.
Tighten connections and replace parts
when necessary. A qualified technician
should perform these operations. (For
further details, refer to “Radiator, Condenser
and Hoses” in the “Maintenance and Care”
section of the Owner’s Manual).
Your Toyota is equipped with Genuine
Toyota Super Long-Life Coolant. The
replacement intervals for engine coolant
recommended in this booklet are based
on replacement with Genuine Toyota
Super Long-Life Coolant or similar
high-quality non-silicate, non-amine,
non-borate ethylene-glycol coolant with
long-life hybrid organic acid technology
(i.e., a combination of low phosphates
and organic acids). If another type of
ethylene-glycol coolant is used,
replacement intervals may be different.

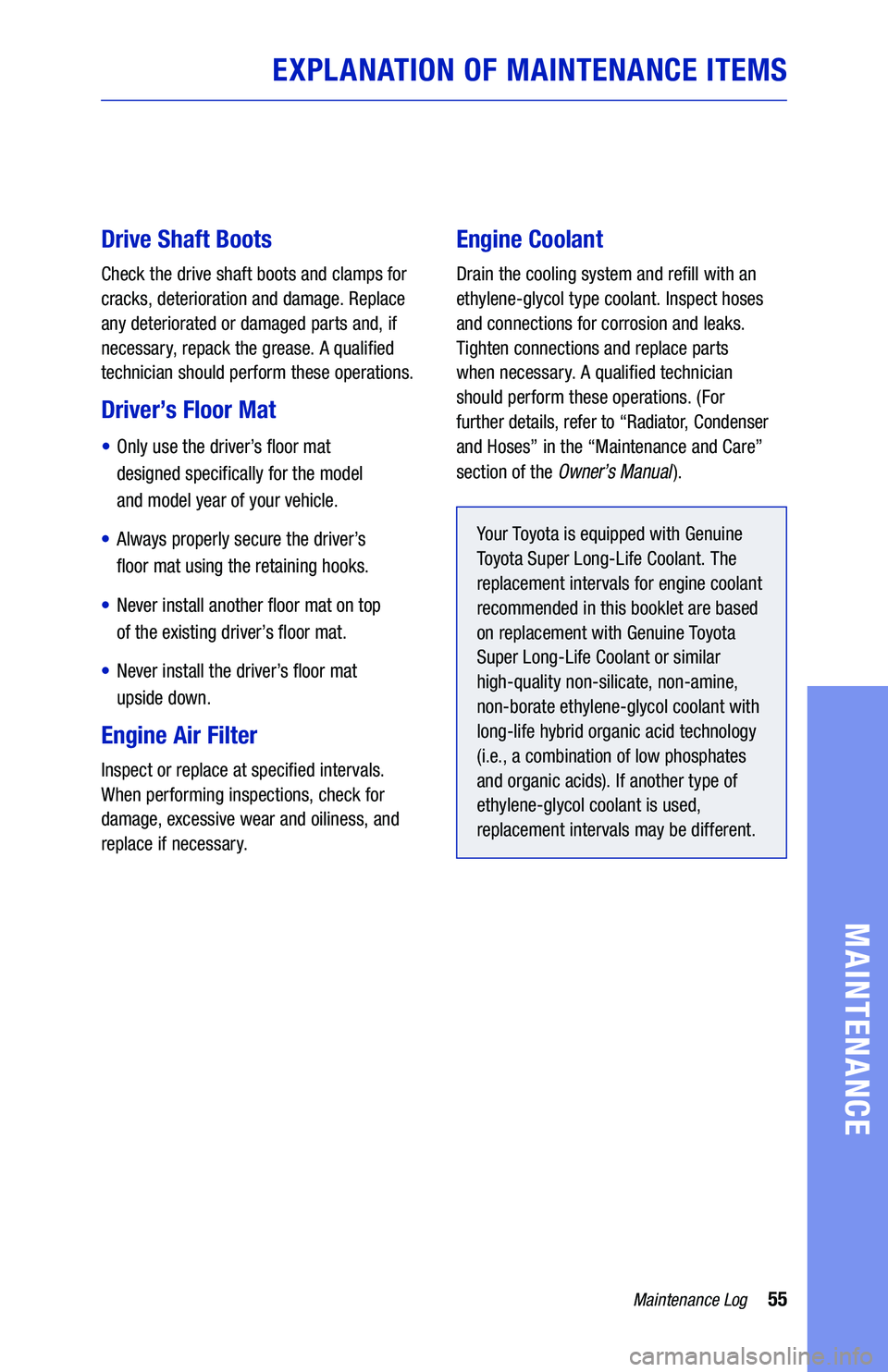

EXPLANATION OF MAINTENANCE ITEMS
126976_19-TCS-14199 MY 21 WMG CHR_GUTS 1_R1.indd 55126976_19-TCS-14199 MY 21 WMG CHR_GUTS 1_R1.indd 557/22/20 2:58 PM7/22/20 2:58 PM

56Maintenance Log
MAINTENANCE
Engine Oil and Oil Filter
Replace the oil filter and drain and refill
the engine oil at specified intervals. For
recommended oil grade and viscosity,
refer to the Owner’s Manual.
NOTE: Your vehicle is certified with
Genuine Toyota 0W-20 motor oil. For
VEHICLES CERTIFIED FOR 0W-20 motor
oil, the oil change interval is 10,000 miles
or 12 months IF 0W-20 MOTOR OIL IS
BEING USED. If 0W-20 is not available,
5W-20 mineral oil may be used. However,
it must be replaced at a 5,000-mile or
six-month INTERVAL with 0W-20 motor oil.
For customers who primarily drive their
vehicle under any of the listed Special
Operating Conditions, the motor oil and
filter should be replaced at 5,000 miles or
six months, REGARDLESS OF THE OIL USED
(OR CERTIFICATION OF THE VEHICLE).
Exhaust Pipes and Mountings
Visually inspect the exhaust pipes, muffler
and hangers for cracks, deterioration and
damage. Start the engine and listen
carefully for any exhaust gas leakage.
Tighten connections or replace parts
as necessary.
Fuel Lines and Connections,
Fuel Tank Band and Fuel Tank
Vapor Vent System Hoses
Visually inspect for corrosion, damage,
cracks, and loose or leaking connections.
Tighten connections or replace parts
as necessary.
Fuel Tank Cap Gasket
Visually inspect for cracks, deterioration
and damage and replace if necessary.
Nuts and Bolts on Chassis
and Body
Retighten the seat-mounting bolts and
front /rear suspension member retaining
bolts to specified torque.
Radiator and Condenser
Inspect for debris, corrosion and signs
of damage. Have any problem repaired
immediately by a qualified technician.
EXPLANATION OF MAINTENANCE ITEMS
