TOYOTA C-HR 2022 Owners Manual

5896-1. Maintenance and care
6
Maintenance and care
C-HR_HV_OM_Europe_OM10720E
NOTICE
■Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deteri oration of
leather surfaces:
● Remove any dust or dirt from leather surfaces immediately.
● Do not expose the vehicle to direct sunlight for extended periods of time.
Park the vehicle in the shade, especially during summer.
● Do not place items made of vinyl, plastic, or containing wax on the uphol-
stery, as they may stick to the leather surface if the vehicle interior heats
up significantly.
■ Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if wate r comes
into contact with electrical components such as the audio syste m above or
under the floor of the vehicle. Water may also cause the body t o rust.
■ When cleaning the inside of the windshield (vehicles with Toyota
Safety Sense)
Do not allow glass cleaner to contact the lens. Also, do not to uch the lens.
( P. 357)
■ Cleaning the inside of the rear window
● Do not use a glass cleaner to clean the rear window, as this may cause
damage to the rear window defogger heater wires. Use a cloth da mpened
with lukewarm water to gently wipe the window clean. Wipe the w indow in
strokes running parallel to the heater wires.
● Be careful not to scratch or damage the heater wires.

5906-2. Maintenance
C-HR_HV_OM_Europe_OM10720E

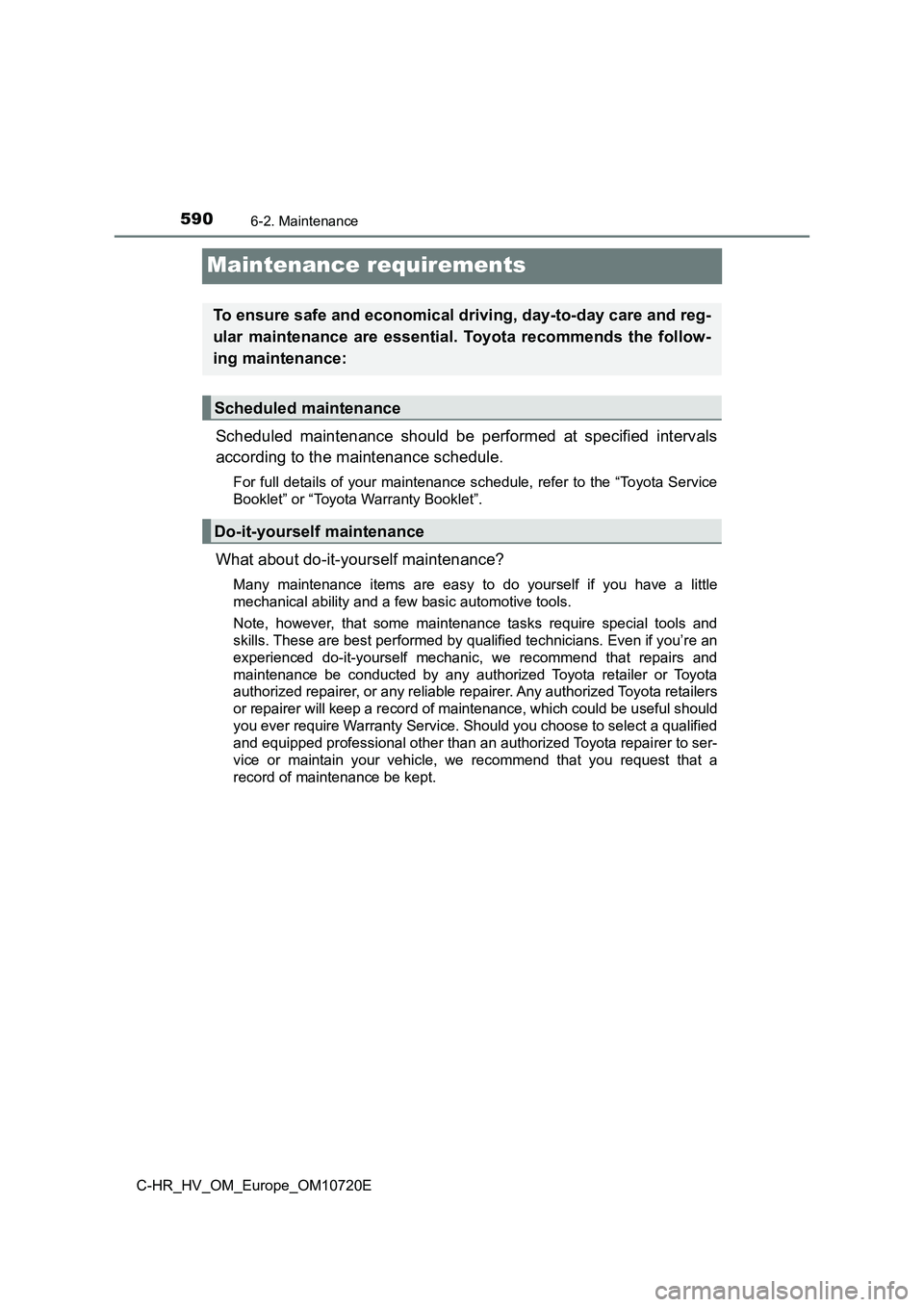

Maintenance requirements
Scheduled maintenance should be performed at specified intervals
according to the maintenance schedule.
For full details of your maintenance schedule, refer to the “To yota Service
Booklet” or “Toyota Warranty Booklet”.
What about do-it-yourself maintenance?
Many maintenance items are easy to do yourself if you have a li ttle
mechanical ability and a few basic automotive tools.
Note, however, that some maintenance tasks require special tool s and
skills. These are best performed by qualified technicians. Even if you’re an
experienced do-it-yourself mechanic, we recommend that repairs and
maintenance be conducted by any authorized Toyota retailer or T oyota
authorized repairer, or any reliable repairer. Any authorized T oyota retailers
or repairer will keep a record of maintenance, which could be u seful should
you ever require Warranty Service. Should you choose to select a qualified
and equipped professional other than an authorized Toyota repai rer to ser-
vice or maintain your vehicle, we recommend that you request th at a
record of maintenance be kept.
To ensure safe and economical driving, day-to-day care and reg-
ular maintenance are essential. Toyota recommends the follow-
ing maintenance:
Scheduled maintenance
Do-it-yourself maintenance

5916-2. Maintenance
C-HR_HV_OM_Europe_OM10720E
6
Maintenance and care

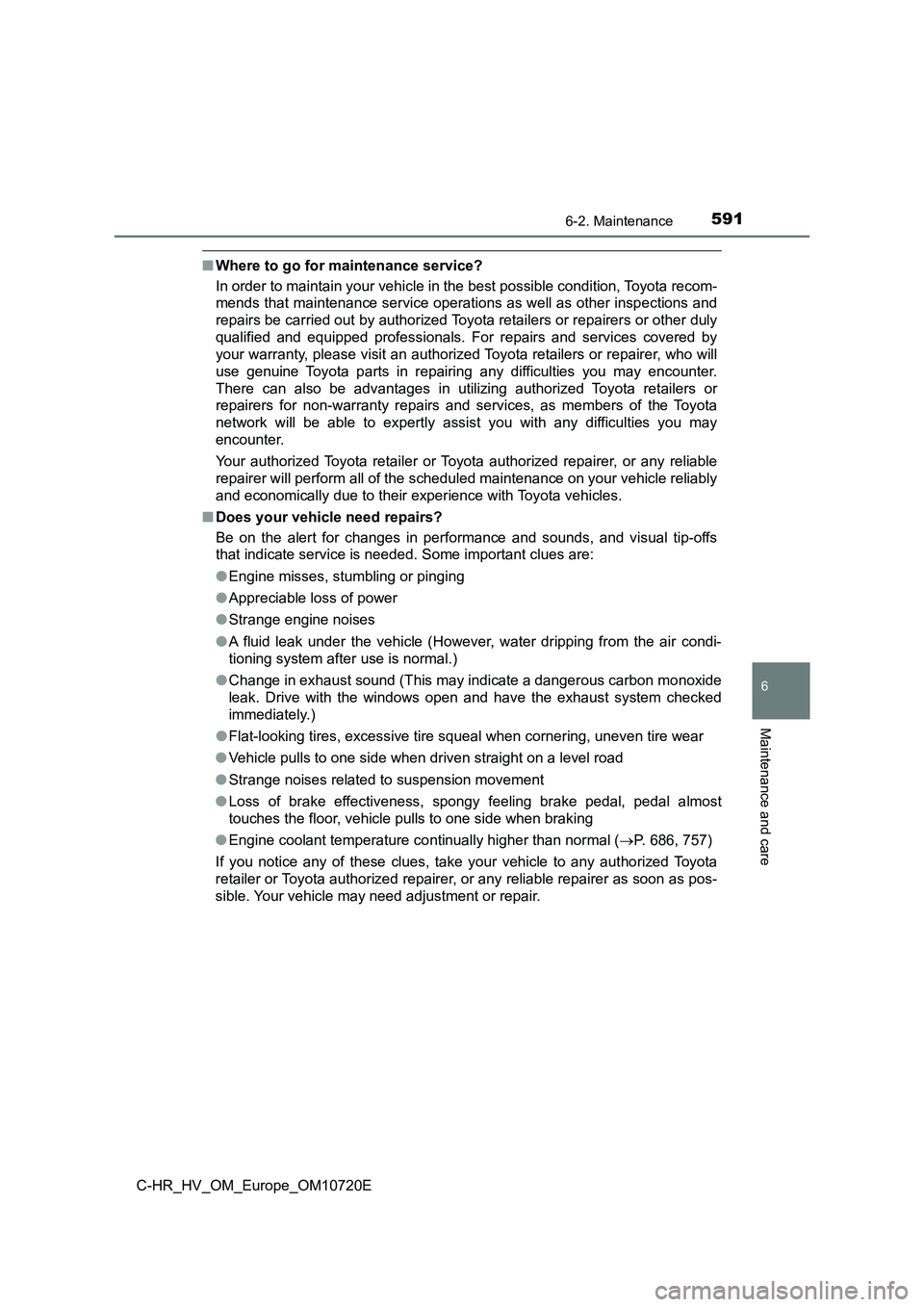

■Where to go for maintenance service?
In order to maintain your vehicle in the best possible conditio n, Toyota recom-
mends that maintenance service operations as well as other insp ections and
repairs be carried out by authorized Toyota retailers or repair ers or other duly
qualified and equipped professionals. For repairs and services covered by
your warranty, please visit an authorized Toyota retailers or r epairer, who will
use genuine Toyota parts in repairing any difficulties you may encounter.
There can also be advantages in utilizing authorized Toyota ret ailers or
repairers for non-warranty repairs and services, as members of the Toyota
network will be able to expertly assist you with any difficulti es you may
encounter.
Your authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer will perform all of the scheduled maintenance on your vehicle reliably
and economically due to their experience with Toyota vehicles.
■ Does your vehicle need repairs?
Be on the alert for changes in performance and sounds, and visu al tip-offs
that indicate service is needed. Some important clues are:
● Engine misses, stumbling or pinging
● Appreciable loss of power
● Strange engine noises
● A fluid leak under the vehicle (However, water dripping from the air condi-
tioning system after use is normal.)
● Change in exhaust sound (This may indicate a dangerous carbon monoxide
leak. Drive with the windows open and have the exhaust system c hecked
immediately.)
● Flat-looking tires, excessive tire squeal when cornering, uneven tire wear
● Vehicle pulls to one side when driven straight on a level road
● Strange noises related to suspension movement
● Loss of brake effectiveness, spongy feeling brake pedal, pedal almost
touches the floor, vehicle pulls to one side when braking
● Engine coolant temperature continually higher than normal (P. 686, 757)
If you notice any of these clues, take your vehicle to any auth orized Toyota
retailer or Toyota authorized repairer, or any reliable repaire r as soon as pos-
sible. Your vehicle may need adjustment or repair.

5926-2. Maintenance
C-HR_HV_OM_Europe_OM10720E

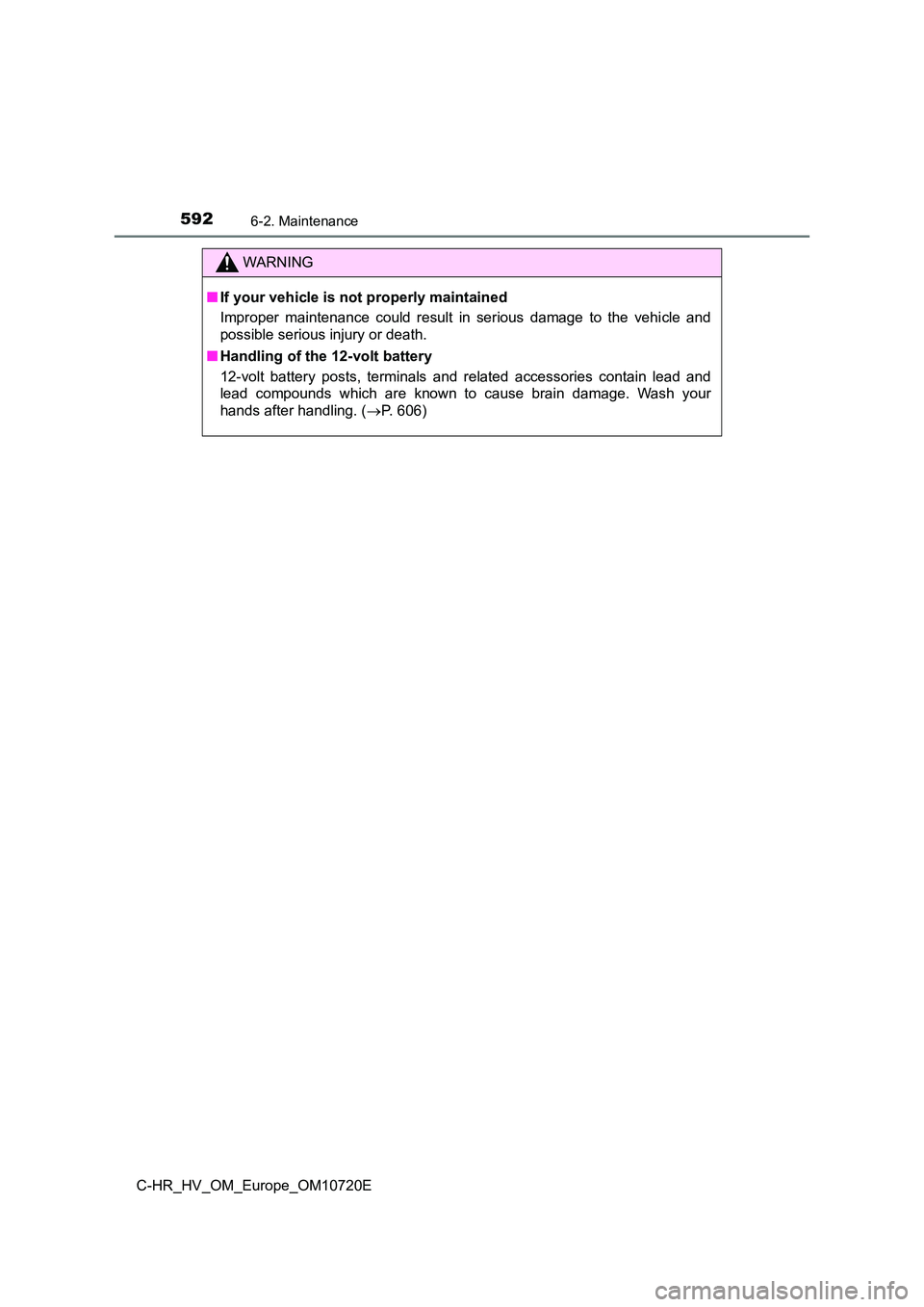

WARNING
■If your vehicle is not properly maintained
Improper maintenance could result in serious damage to the vehi cle and
possible serious injury or death.
■ Handling of the 12-volt battery
12-volt battery posts, terminals and related accessories contai n lead and
lead compounds which are known to cause brain damage. Wash your
hands after handling. ( P. 606)

5936-3. Do-it-yourself maintenance
C-HR_HV_OM_Europe_OM10720E
6
Maintenance and care

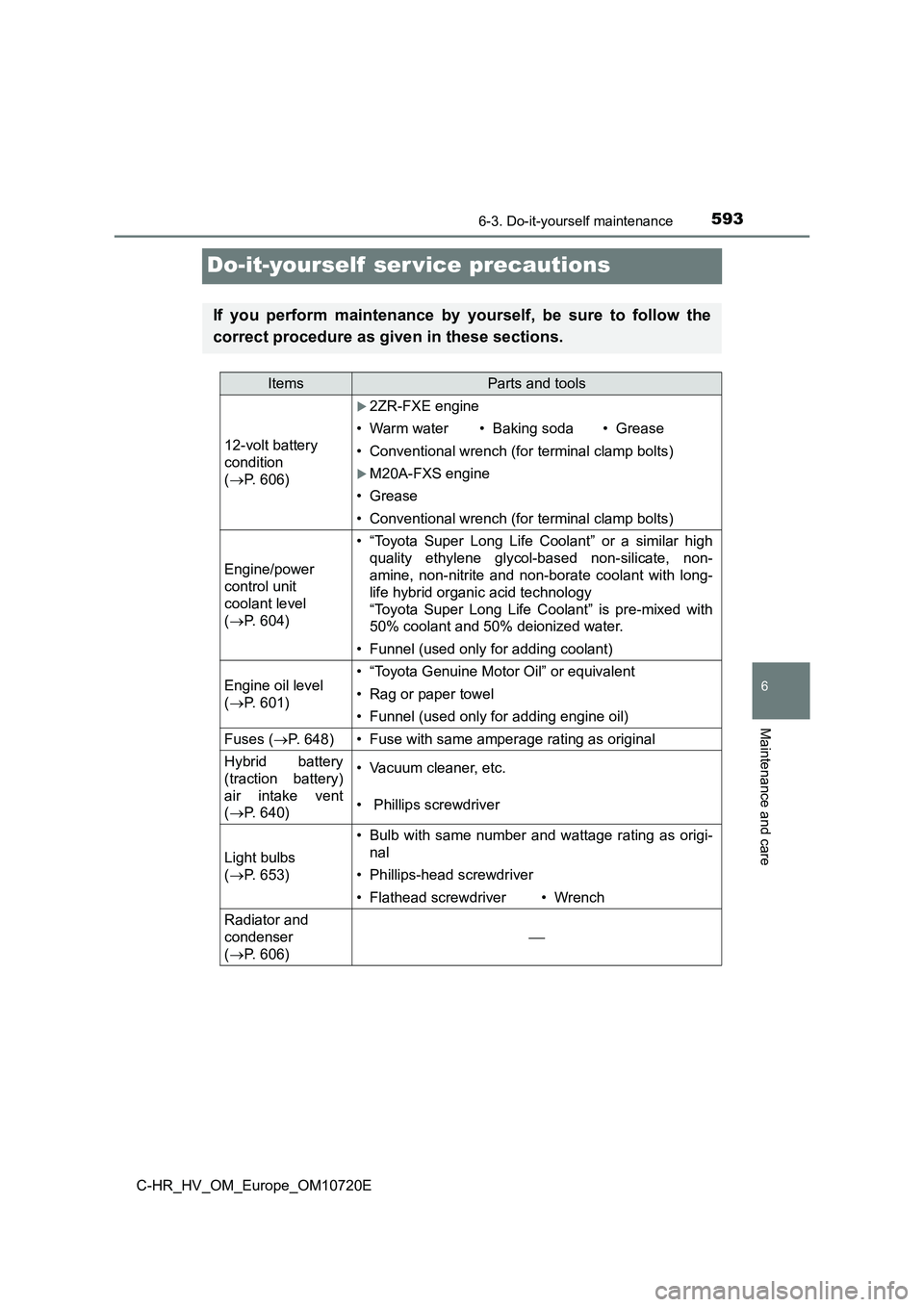

Do-it-yourself ser vice precautions
If you perform maintenance by yourself, be sure to follow the
correct procedure as given in these sections.
ItemsParts and tools
12-volt battery
condition
( P. 606)
2ZR-FXE engine
• Warm water • Baking soda • Grease
• Conventional wrench (for terminal clamp bolts)
M20A-FXS engine
• Grease
• Conventional wrench (for terminal clamp bolts)
Engine/power
control unit
coolant level
( P. 604)
• “Toyota Super Long Life Coolant” or a similar high
quality ethylene glycol-based non-silicate, non-
amine, non-nitrite and non-borate coolant with long-
life hybrid organic acid technology
“Toyota Super Long Life Coolant” is pre-mixed with
50% coolant and 50% deionized water.
• Funnel (used only for adding coolant)
Engine oil level
( P. 601)
• “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses (P. 6 4 8 )• Fuse with same amperage rating as original
Hybrid battery
(traction battery)
air intake vent
( P. 640)
• Vacuum cleaner, etc.
• Phillips screwdriver
Light bulbs
( P. 653)
• Bulb with same number and wattage rating as origi-
nal
• Phillips-head screwdriver
• Flathead screwdriver•Wrench
Radiator and
condenser
( P. 606)


5946-3. Do-it-yourself maintenance
C-HR_HV_OM_Europe_OM10720E
Tire inflation
pressure
( P. 632)
• Tire pressure gauge
• Compressed air source
Washer fluid
( P. 6 1 1 )
• Water or washer fluid containing antifreeze (for win-
ter use)
• Funnel (used only for adding water or washer fluid)
WARNING
The engine compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury, observe the following precautions.
■ When working on the engine compartment
● Make sure that the “ACCESSORY” or “IGNITION ON” on the multi-infor-
mation display and the “READY” indicator are both off.
● Keep hands, clothing and tools away from the moving fan.
● Be careful not to touch the engine, power control unit, radiator, exhaust
manifold, etc., right after driving as they may be hot. Oil and other fluids
may also be hot.
● Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.
● Do not smoke, cause sparks or expose an open flame to fuel or the 12-volt
battery. Fuel and 12-volt battery fumes are flammable.
● Be extremely cautious when working on the 12-volt battery. It contains poi-
sonous and corrosive sulfuric acid.
● Take care because brake fluid can harm your hands or eyes and damage
painted surfaces. If fluid gets on your hands or in your eyes, flush the
affected area with clean water immediately. If you still experi ence discom-
fort, consult a doctor.
■ When working near the electric cooling fans or radiator grille
Be sure the power switch is off.
With the power switch in ON mode, the electric cooling fans may automati-
cally start to run if the air conditioning is on and/or the coo lant temperature
is high. ( P. 606)
■ Safety glasses
Wear safety glasses to prevent flying or falling material, flui d spray, etc.,
from getting in your eyes.
ItemsParts and tools

5956-3. Do-it-yourself maintenance
C-HR_HV_OM_Europe_OM10720E
6
Maintenance and care

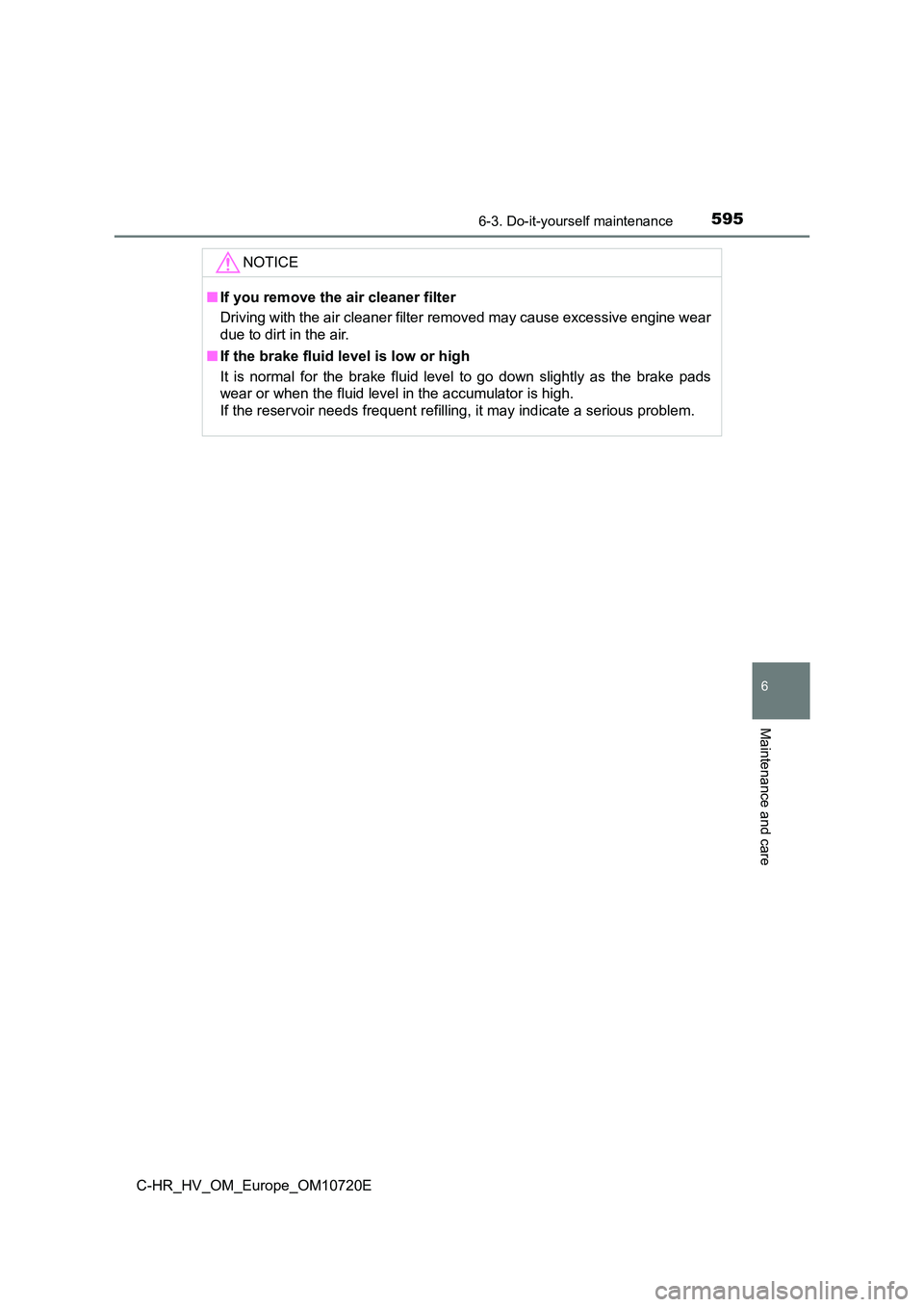

NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.
■ If the brake fluid level is low or high
It is normal for the brake fluid level to go down slightly as t he brake pads
wear or when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a se rious problem.

5966-3. Do-it-yourself maintenance
C-HR_HV_OM_Europe_OM10720E

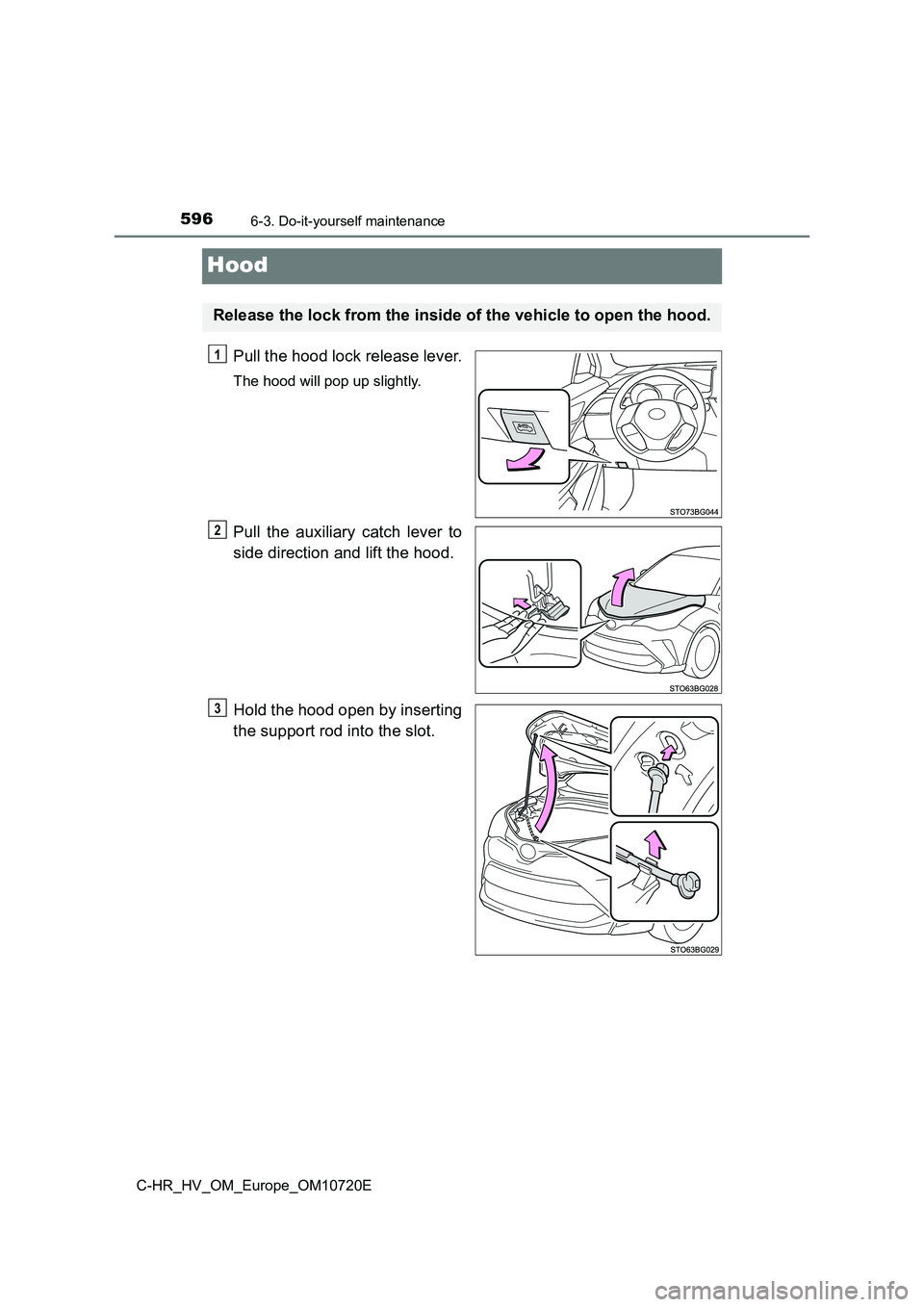

Hood
Pull the hood lock release lever.
The hood will pop up slightly.
Pull the auxiliary catch lever to
side direction and lift the hood.
Hold the hood open by inserting
the support rod into the slot.
Release the lock from the inside of the vehicle to open the hoo d.
1
2
3

5976-3. Do-it-yourself maintenance
C-HR_HV_OM_Europe_OM10720E
6
Maintenance and care

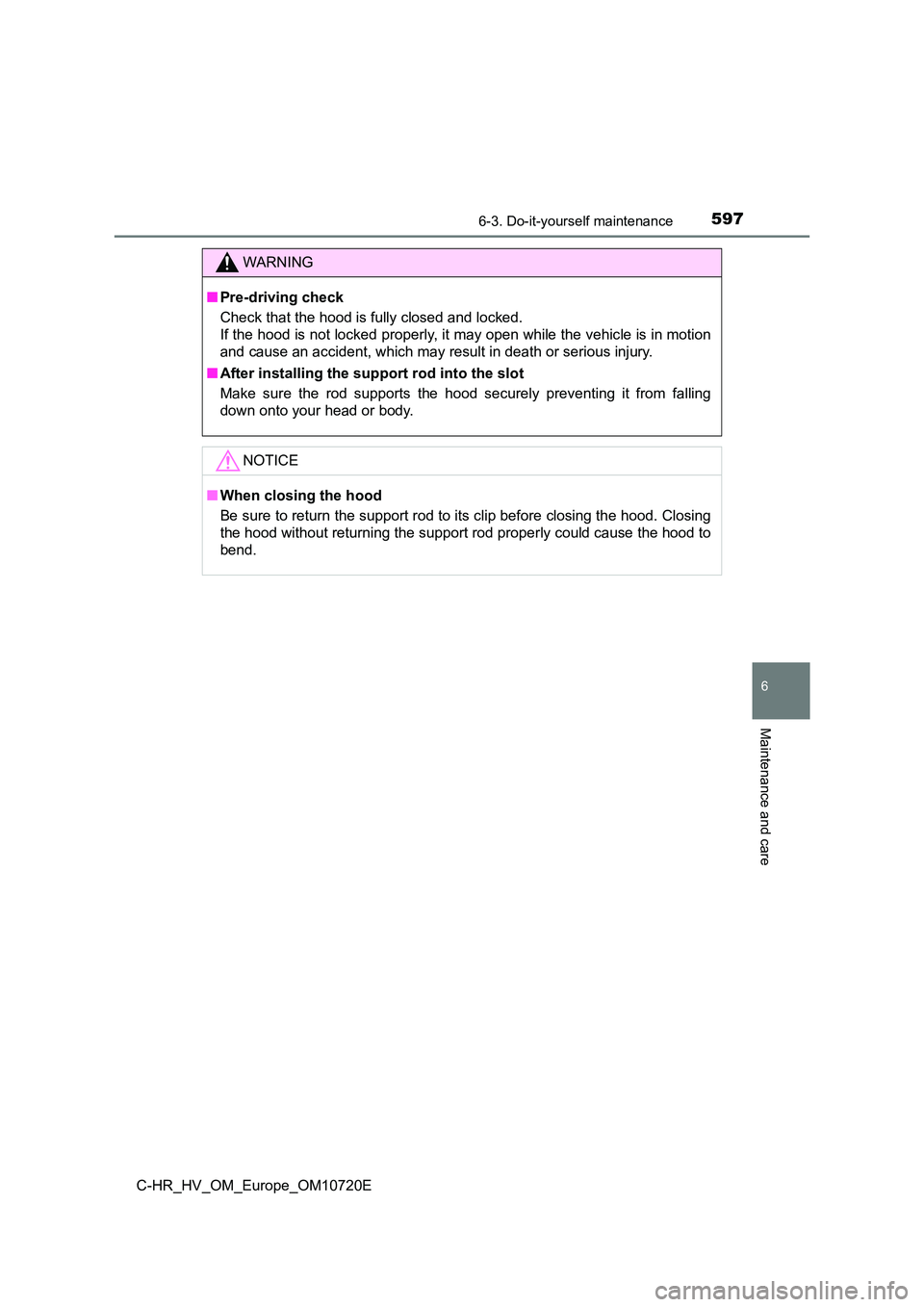

WARNING
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehic le is in motion
and cause an accident, which may result in death or serious inj ury.
■ After installing the support rod into the slot
Make sure the rod supports the hood securely preventing it from falling
down onto your head or body.
NOTICE
■ When closing the hood
Be sure to return the support rod to its clip before closing th e hood. Closing
the hood without returning the support rod properly could cause the hood to
bend.

5986-3. Do-it-yourself maintenance
C-HR_HV_OM_Europe_OM10720E

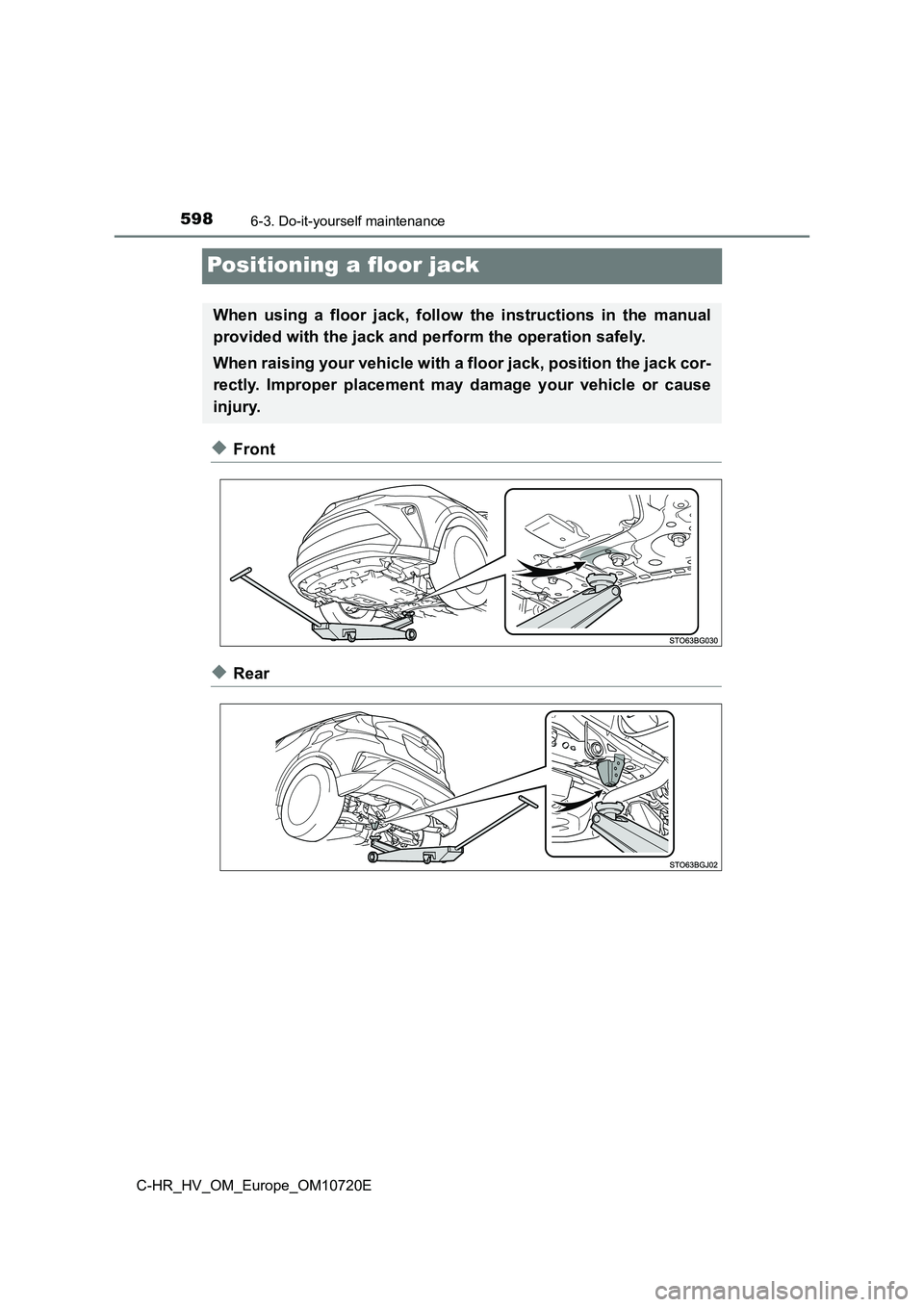

Positioning a floor jack
◆Front
◆Rear
When using a floor jack, follow the instructions in the manual
provided with the jack and perform the operation safely.
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehicle or cause
injury.
