TOYOTA C-HR 2022 Owners Manual

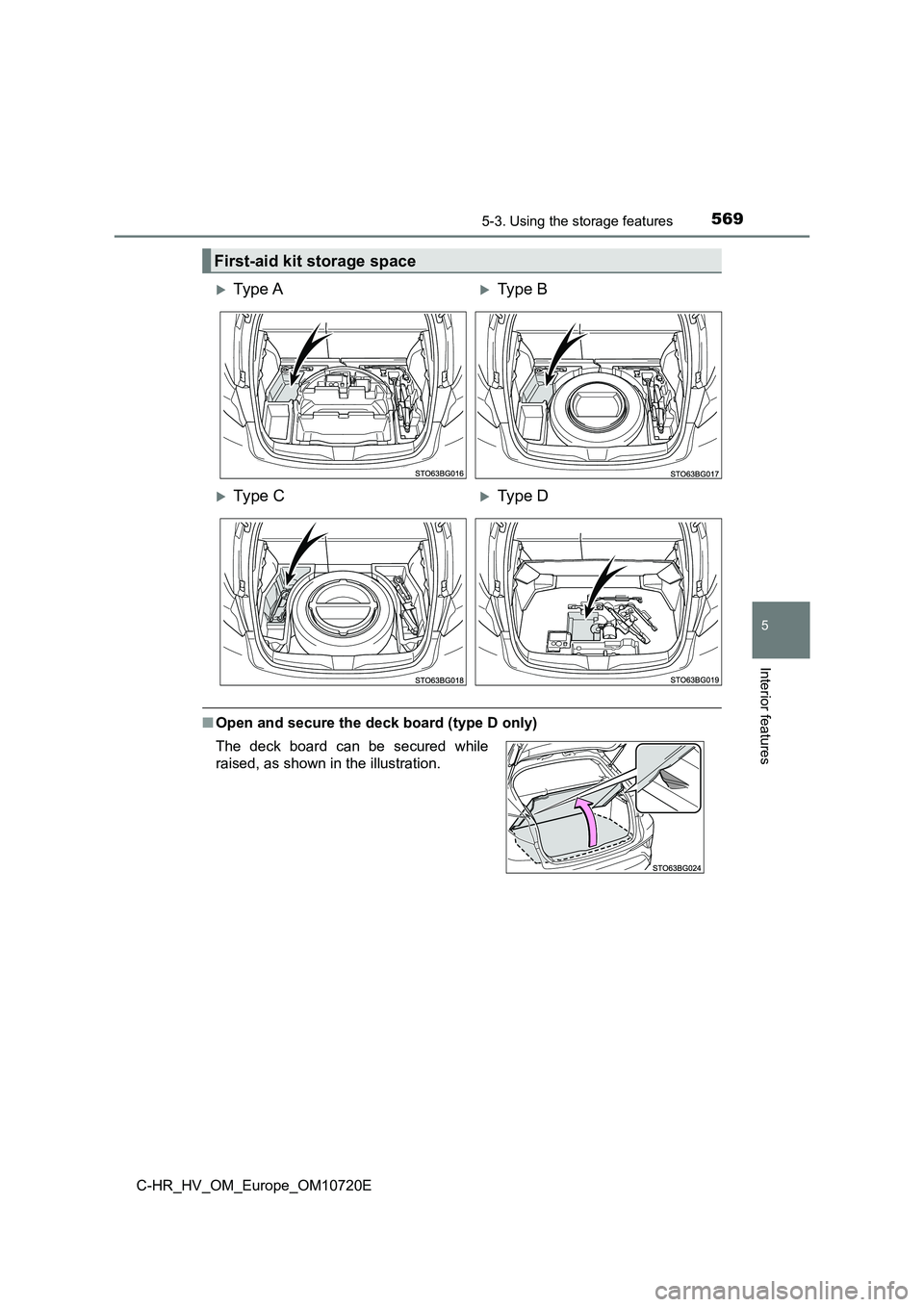

5695-3. Using the storage features
C-HR_HV_OM_Europe_OM10720E
5
Interior features
■Open and secure the deck board (type D only)
First-aid kit storage space
Ty pe AType B
Ty pe CType D
The deck board can be secured while
raised, as shown in the illustration.

5705-3. Using the storage features
C-HR_HV_OM_Europe_OM10720E

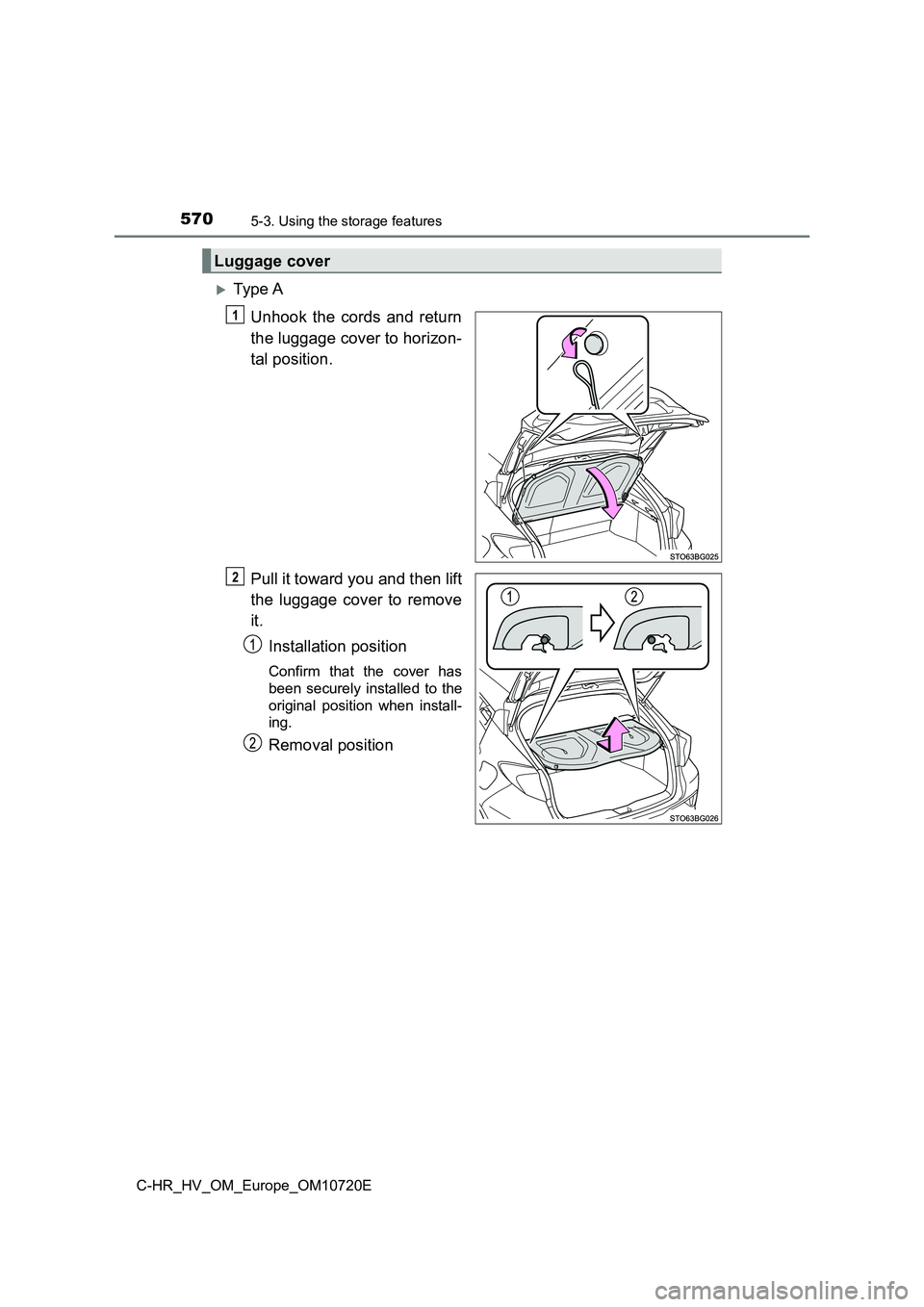

Ty pe A
Unhook the cords and return
the luggage cover to horizon-
tal position.
Pull it toward you and then lift
the luggage cover to remove
it.
Installation position
Confirm that the cover has
been securely installed to the
original position when install-
ing.
Removal position
Luggage cover
1
2

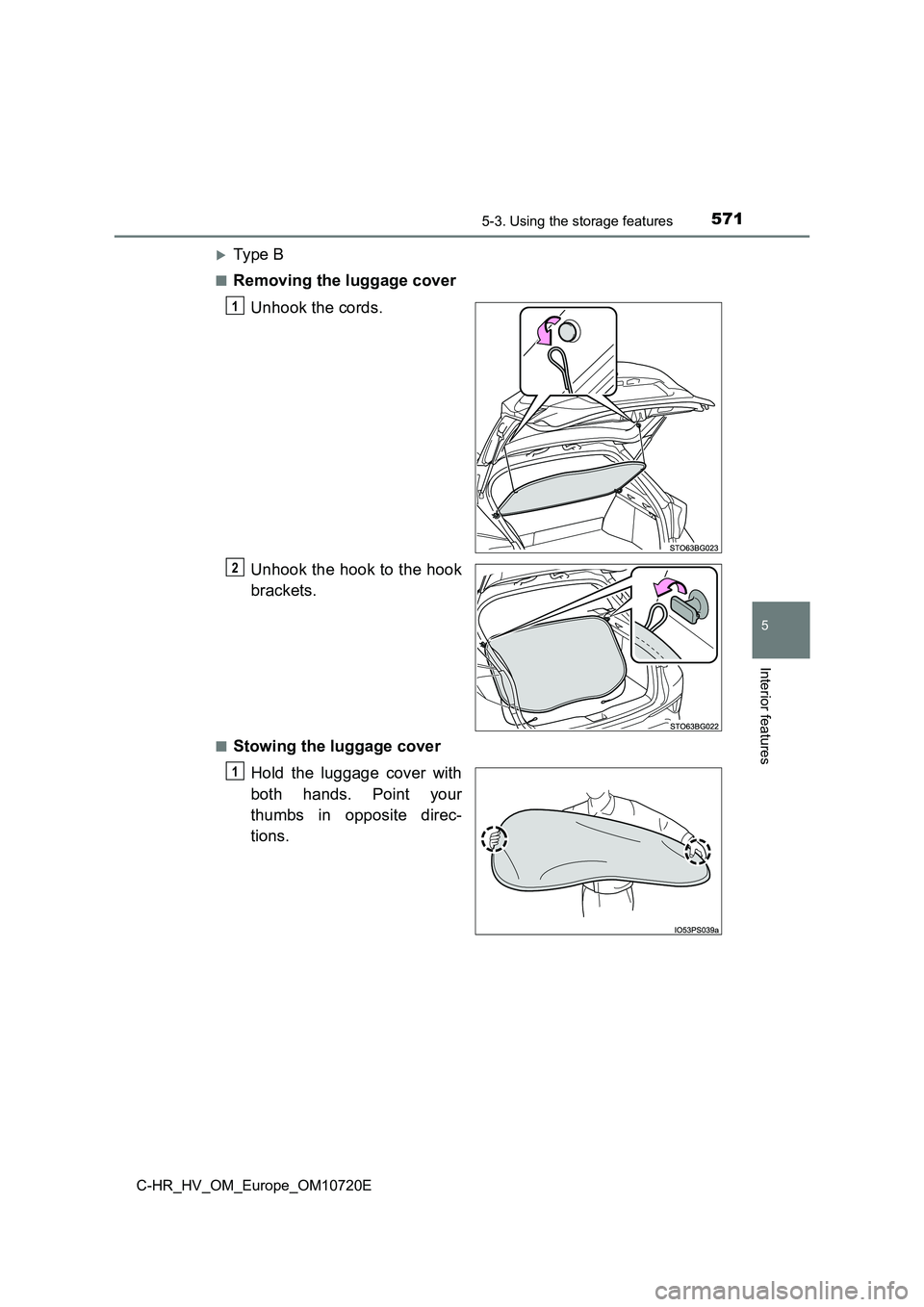

5715-3. Using the storage features
C-HR_HV_OM_Europe_OM10720E
5
Interior features
Ty pe B
■Removing the luggage cover
Unhook the cords.
Unhook the hook to the hook
brackets.
■Stowing the luggage cover
Hold the luggage cover with
both hands. Point your
thumbs in opposite direc-
tions.
1
2
1

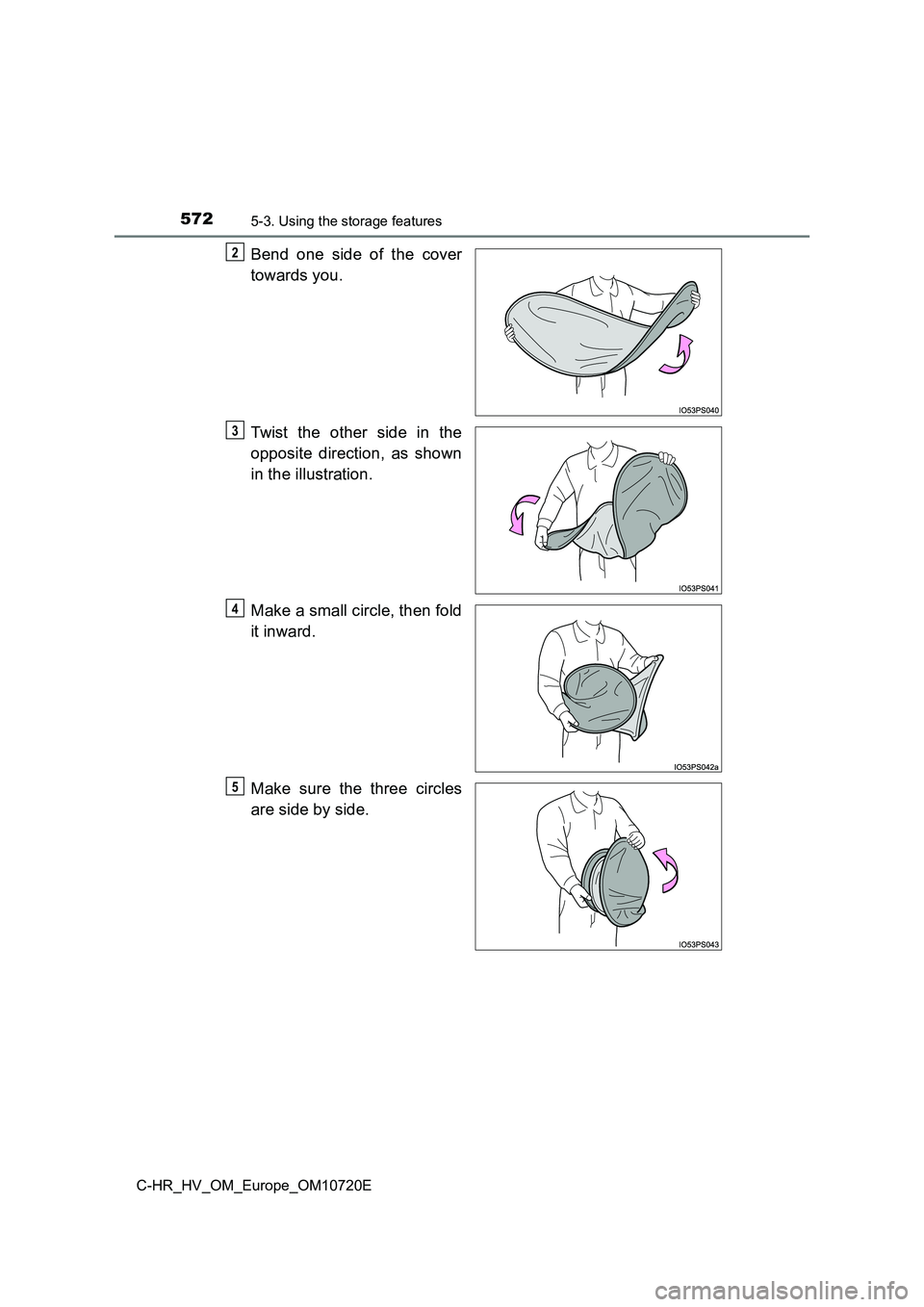

5725-3. Using the storage features
C-HR_HV_OM_Europe_OM10720E
Bend one side of the cover
towards you.
Twist the other side in the
opposite direction, as shown
in the illustration.
Make a small circle, then fold
it inward.
Make sure the three circles
are side by side.
2
3
4
5

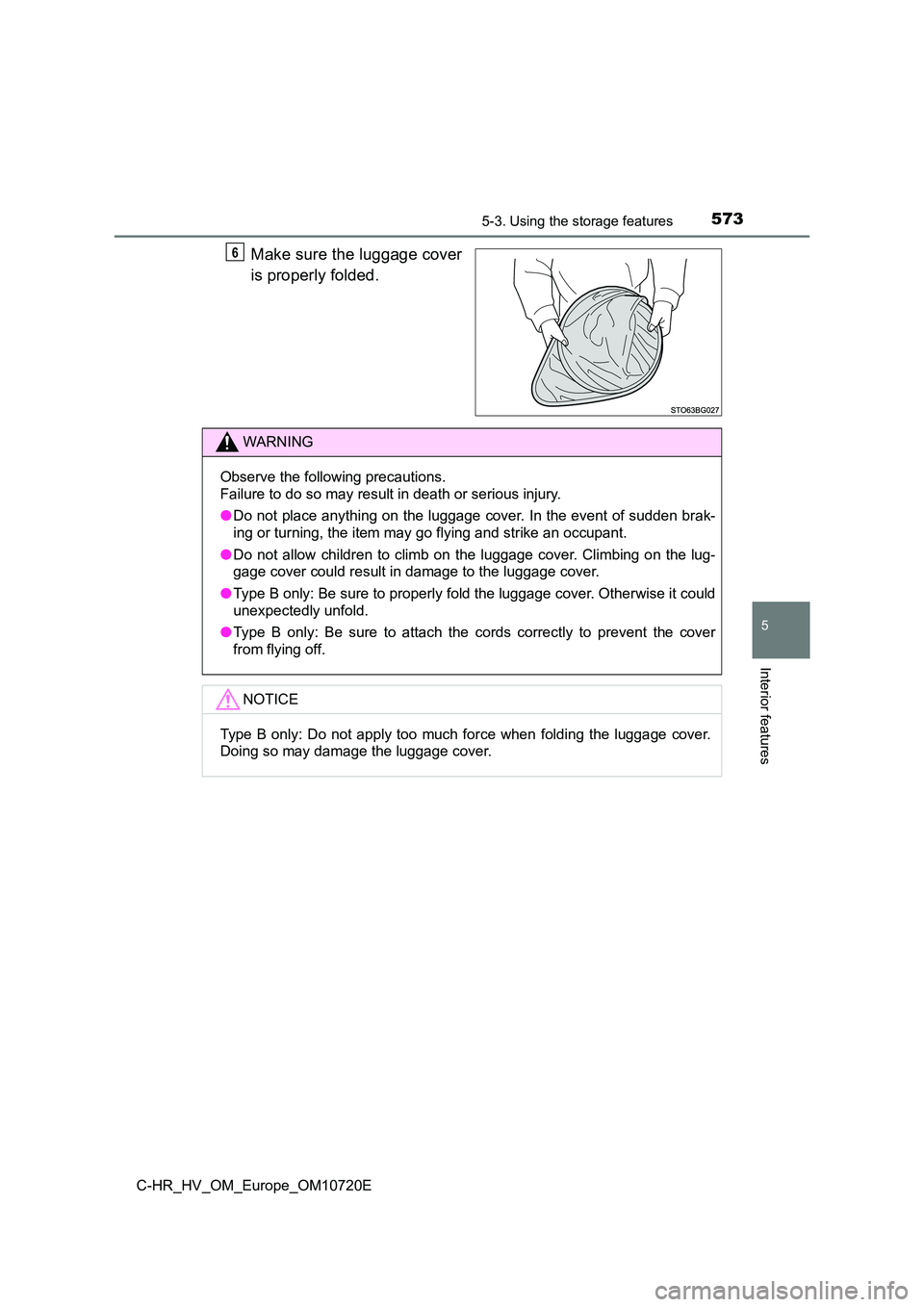

5735-3. Using the storage features
C-HR_HV_OM_Europe_OM10720E
5
Interior features
Make sure the luggage cover
is properly folded.
6
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not place anything on the luggage cover. In the event of sudden brak-
ing or turning, the item may go flying and strike an occupant.
● Do not allow children to climb on the luggage cover. Climbing on the lug-
gage cover could result in damage to the luggage cover.
● Type B only: Be sure to properly fold the luggage cover. Otherwise it could
unexpectedly unfold.
● Type B only: Be sure to attach the cords correctly to prevent the cover
from flying off.
NOTICE
Type B only: Do not apply too much force when folding the lugga ge cover.
Doing so may damage the luggage cover.

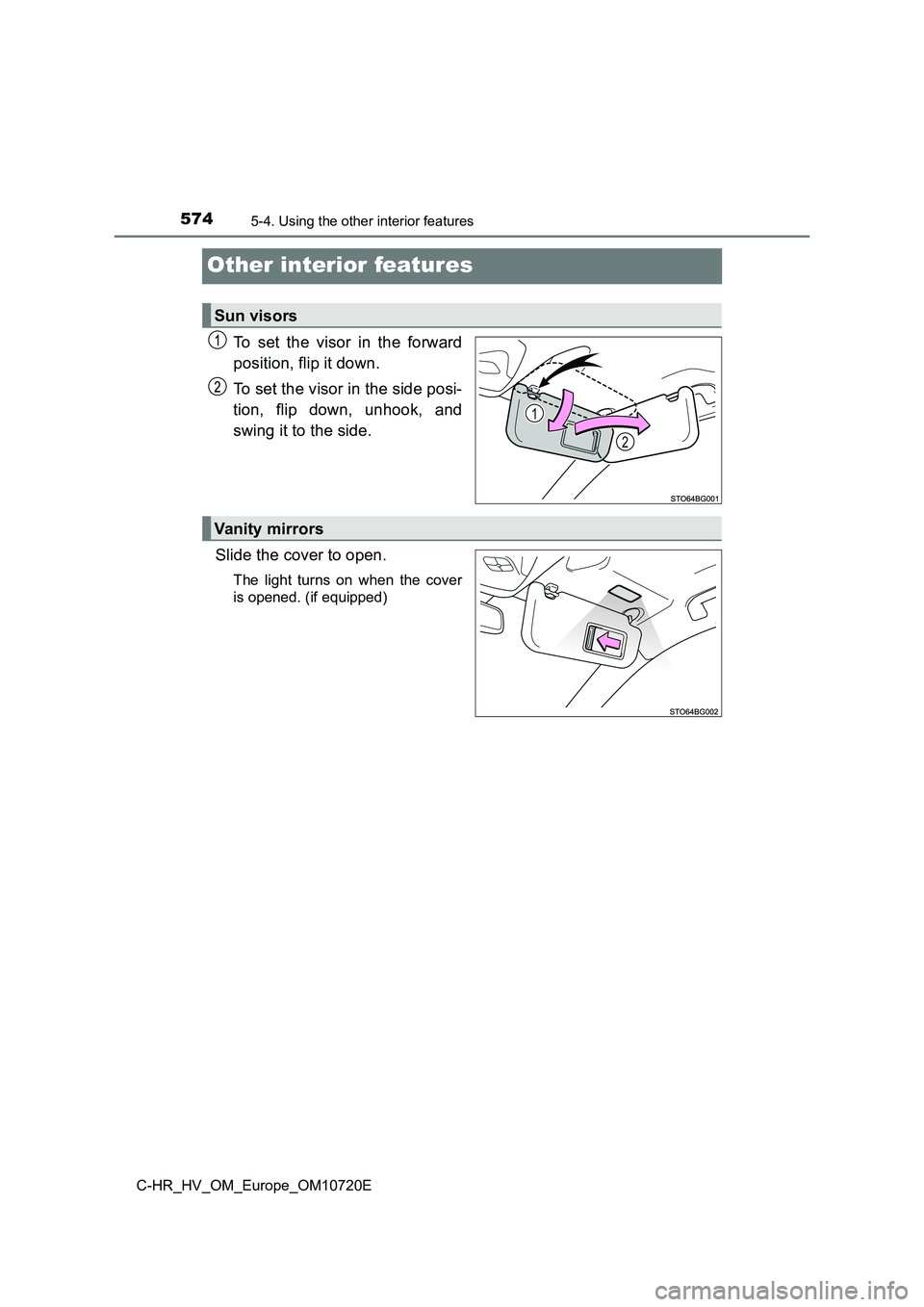

5745-4. Using the other interior features
C-HR_HV_OM_Europe_OM10720E
Other interior features
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
Slide the cover to open.
The light turns on when the cover
is opened. (if equipped)
Sun visors
2
1
9DQLW\PLUURUV

5755-4. Using the other interior features
C-HR_HV_OM_Europe_OM10720E
5
Interior features
The clock can be adjusted by pressing and holding the buttons.
Adjusts the hours
Adjusts the minutes
● The clock is displayed when the power switch is in ACCESSORY or ON
mode.
● When the 12-volt battery terminals are disconnected and reconnected, the
clock will automatically be set to 1:00.
Clock (if equipped)

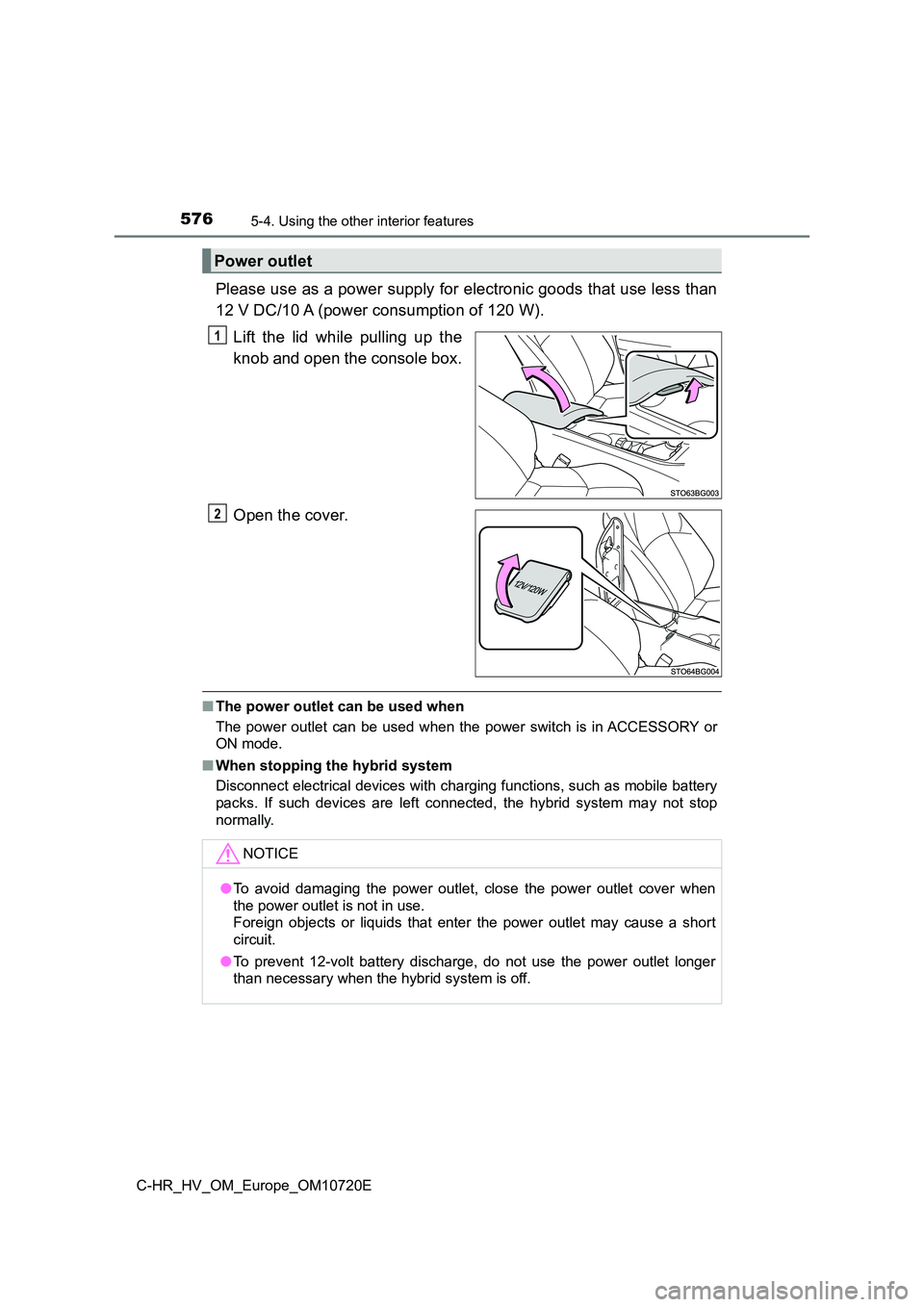

5765-4. Using the other interior features
C-HR_HV_OM_Europe_OM10720E
Please use as a power supply for electronic goods that use less than
12 V DC/10 A (power consumption of 120 W).
Lift the lid while pulling up the
knob and open the console box.
Open the cover.
■ The power outlet can be used when
The power outlet can be used when the power switch is in ACCESS ORY or
ON mode.
■ When stopping the hybrid system
Disconnect electrical devices with charging functions, such as mobile battery
packs. If such devices are left connected, the hybrid system ma y not stop
normally.
Power outlet
1
2
NOTICE
● To avoid damaging the power outlet, close the power outlet cover when
the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may caus e a short
circuit.
● To prevent 12-volt battery discharge, do not use the power outlet longer
than necessary when the hybrid system is off.

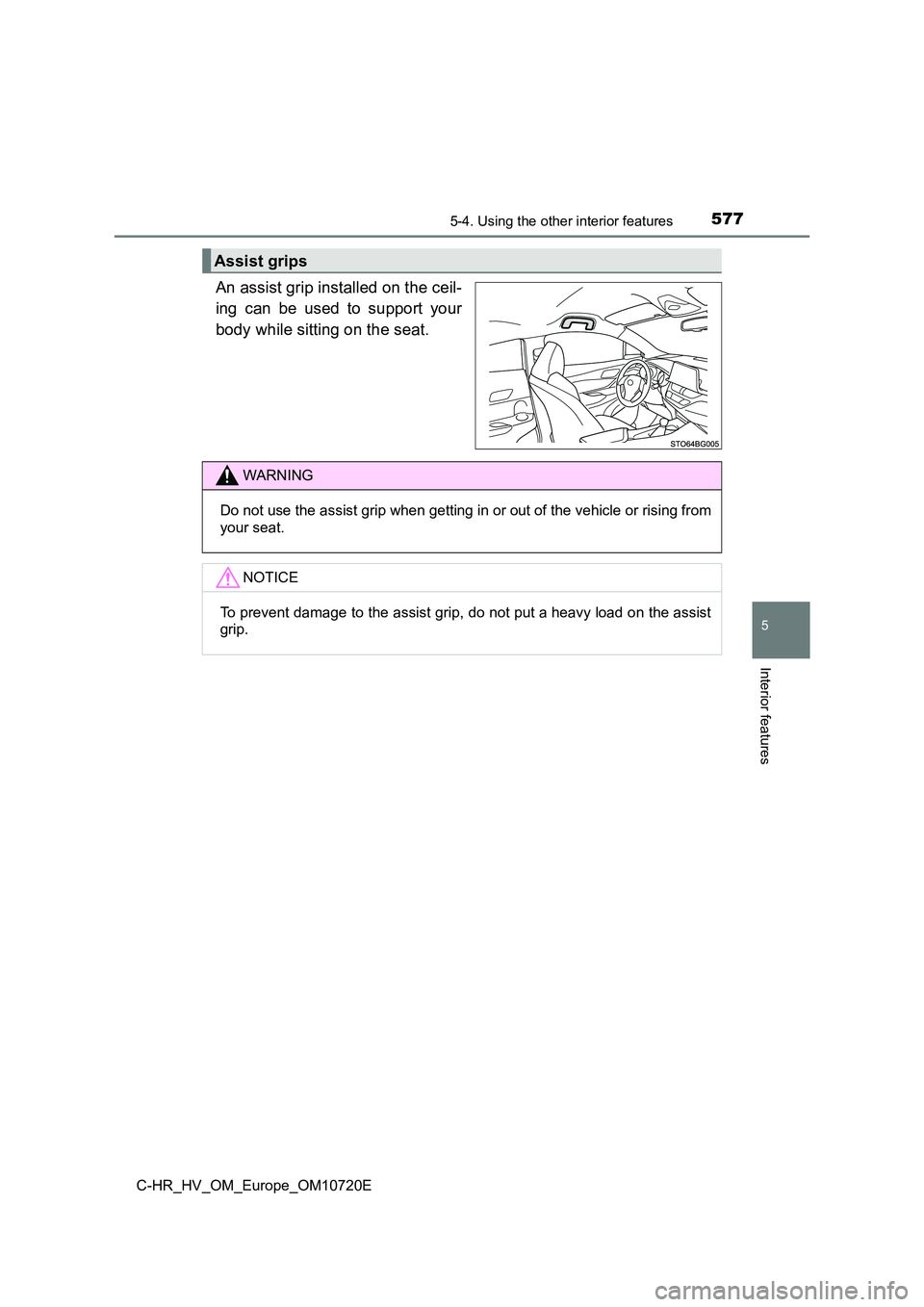

5775-4. Using the other interior features
C-HR_HV_OM_Europe_OM10720E
5
Interior features
An assist grip installed on the ceil-
ing can be used to support your
body while sitting on the seat.
Assist grips
WARNING
Do not use the assist grip when getting in or out of the vehicl e or rising from
your seat.
NOTICE
To prevent damage to the assist grip, do not put a heavy load o n the assist
grip.

5785-4. Using the other interior features
C-HR_HV_OM_Europe_OM10720E
